Removal and Installation of Woofer and Woofer Amp. (BOSE System)NKS002BN
REMOVAL

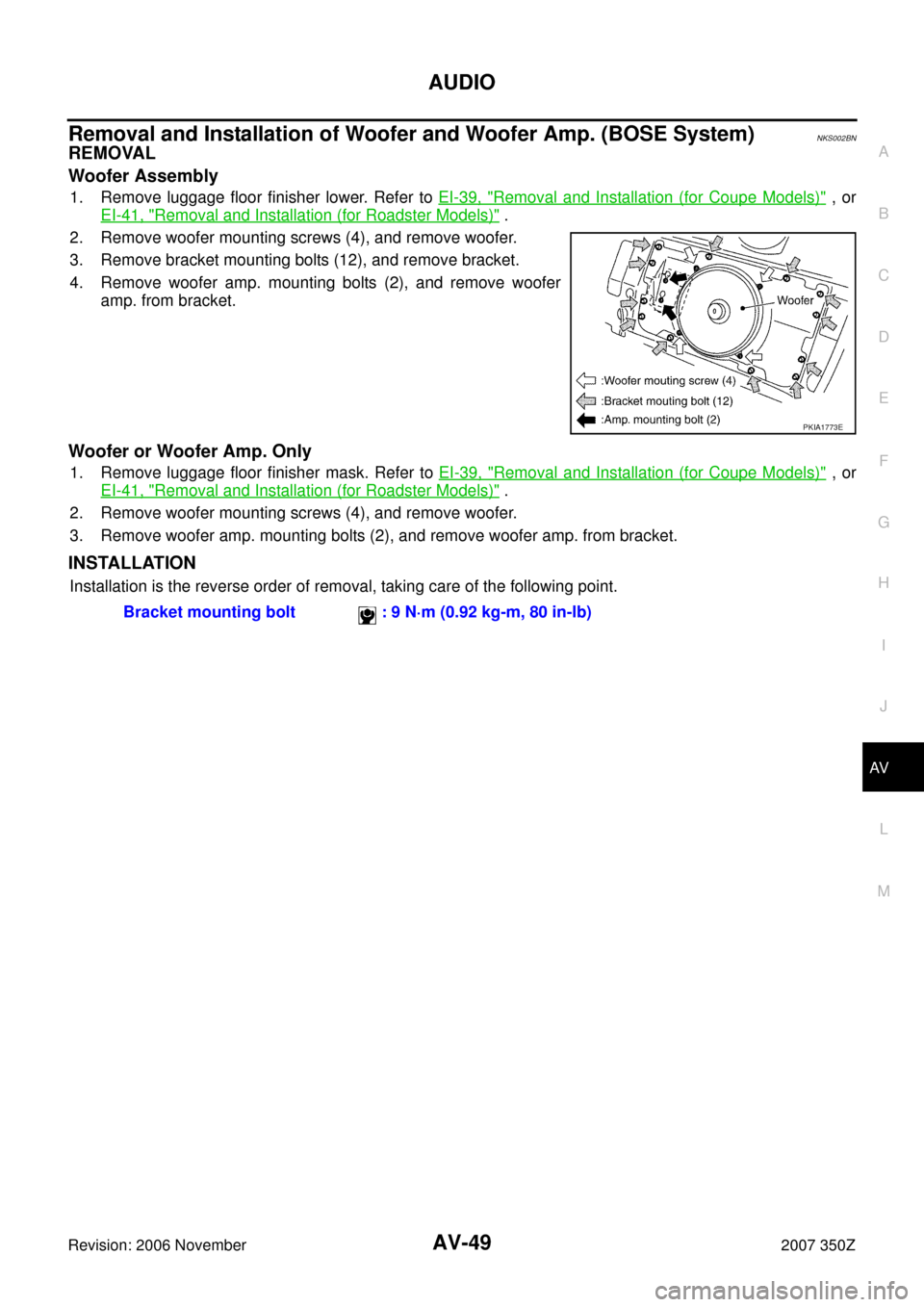

Woofer Assembly
1. Remove luggage floor finisher lower. Refer to EI-39, "Removal and Installation (for Coupe Models)" , or
EI-41, "
Removal and Installation (for Roadster Models)" .
2. Remove woofer mounting screws (4), and remove woofer.
3. Remove bracket mounting bolts (12), and remove bracket.
4. Remove woofer amp. mounting bolts (2), and remove woofer
amp. from bracket.
Woofer or Woofer Amp. Only
1. Remove luggage floor finisher mask. Refer to EI-39, "Removal and Installation (for Coupe Models)" , or
EI-41, "
Removal and Installation (for Roadster Models)" .
2. Remove woofer mounting screws (4), and remove woofer.
3. Remove woofer amp. mounting bolts (2), and remove woofer amp. from bracket.
INSTALLATION
Installation is the reverse order of removal, taking care of the following point.
PKIA1773E
Bracket mounting bolt : 9 N·m (0.92 kg-m, 80 in-lb)

AV-50
AUDIO
Revision: 2006 November2007 350Z
Removal and Installation of BOSE Speaker Amp. NKS002BO
REMOVAL
1. Remove trunk side box. Refer to EI-39, "Removal and Installation (for Coupe Models)" , or EI-49,
"Removal and Installation (for Roadstar Models)" .
2. Remove luggage floor carpet and spare tire cover (Coupe models), or trunk floor carpet and spare tire
cover (Roadster models). Refer to EI-39, "
Removal and Installation (for Coupe Models)" , or EI-49,
"Removal and Installation (for Roadstar Models)" .

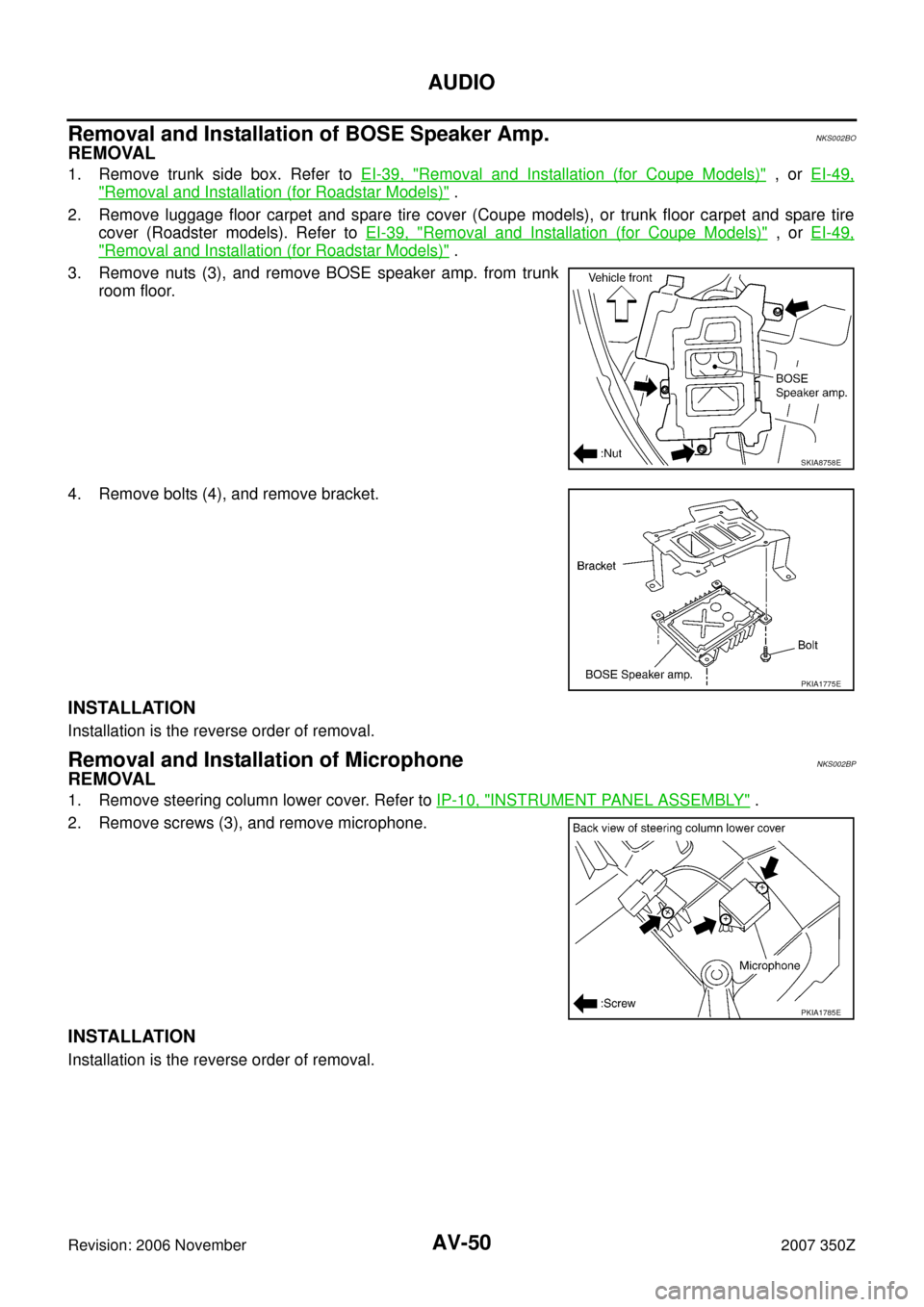

3. Remove nuts (3), and remove BOSE speaker amp. from trunk
room floor.
4. Remove bolts (4), and remove bracket.
INSTALLATION
Installation is the reverse order of removal.
Removal and Installation of MicrophoneNKS002BP
REMOVAL
1. Remove steering column lower cover. Refer to IP-10, "INSTRUMENT PANEL ASSEMBLY" .
2. Remove screws (3), and remove microphone.
INSTALLATION
Installation is the reverse order of removal.
SKIA8758E
PKIA1775E
PKIA1785E

AUDIO
AV-51
C
D
E
F
G
H
I
J
L
MA
B
AV
Revision: 2006 November2007 350Z
Removal and Installation of Satellite Radio TunerNKS002EF
REMOVAL
: Vehicle front
1. Remove trunk side box. Refer to EI-39, "
Removal and Installation (for Coupe Models)" .
2. Remove luggage floor carpet and spare tire cover. Refer to EI-39, "
Removal and Installation (for Coupe
Models)" .

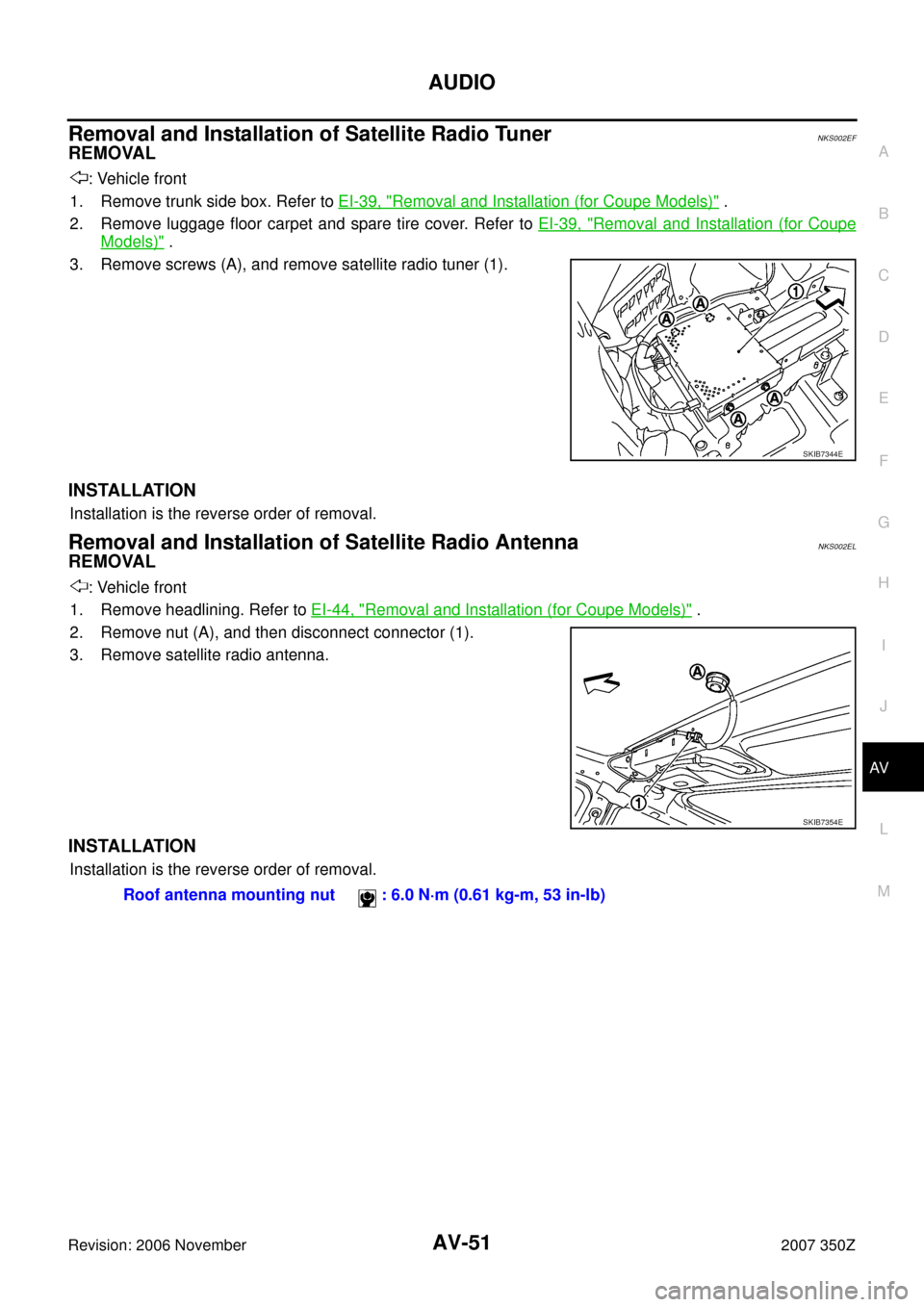

3. Remove screws (A), and remove satellite radio tuner (1).
INSTALLATION
Installation is the reverse order of removal.
Removal and Installation of Satellite Radio AntennaNKS002EL
REMOVAL
: Vehicle front
1. Remove headlining. Refer to EI-44, "
Removal and Installation (for Coupe Models)" .
2. Remove nut (A), and then disconnect connector (1).
3. Remove satellite radio antenna.
INSTALLATION
Installation is the reverse order of removal.
SKIB7344E
SKIB7354E
Roof antenna mounting nut : 6.0 N·m (0.61 kg-m, 53 in-lb)

AV-52
ANTENNA
Revision: 2006 November2007 350Z
ANTENNAPFP:28200
System DescriptionNKS002EG
With the ignition switch in ACC or ON, power is supplied

through 10A fuse [No. 6, located in the fuse block (J/B)]

to audio unit terminal 10.
Ground is supplied through the case of the antenna amp.
When the radio switch is turned ON, antenna signal is supplied

through audio unit terminal 5

to antenna amp. terminal 1.
Then the antenna amp. is activated.
Antenna signals amplified by the antenna amp. are supplied to the audio unit.

ANTENNA
AV-53
C
D
E
F
G
H
I
J
L
MA
B
AV
Revision: 2006 November2007 350Z
Wiring Diagram — M/ANT —NKS002EH
TKWT0509E

AV-54
ANTENNA
Revision: 2006 November2007 350Z

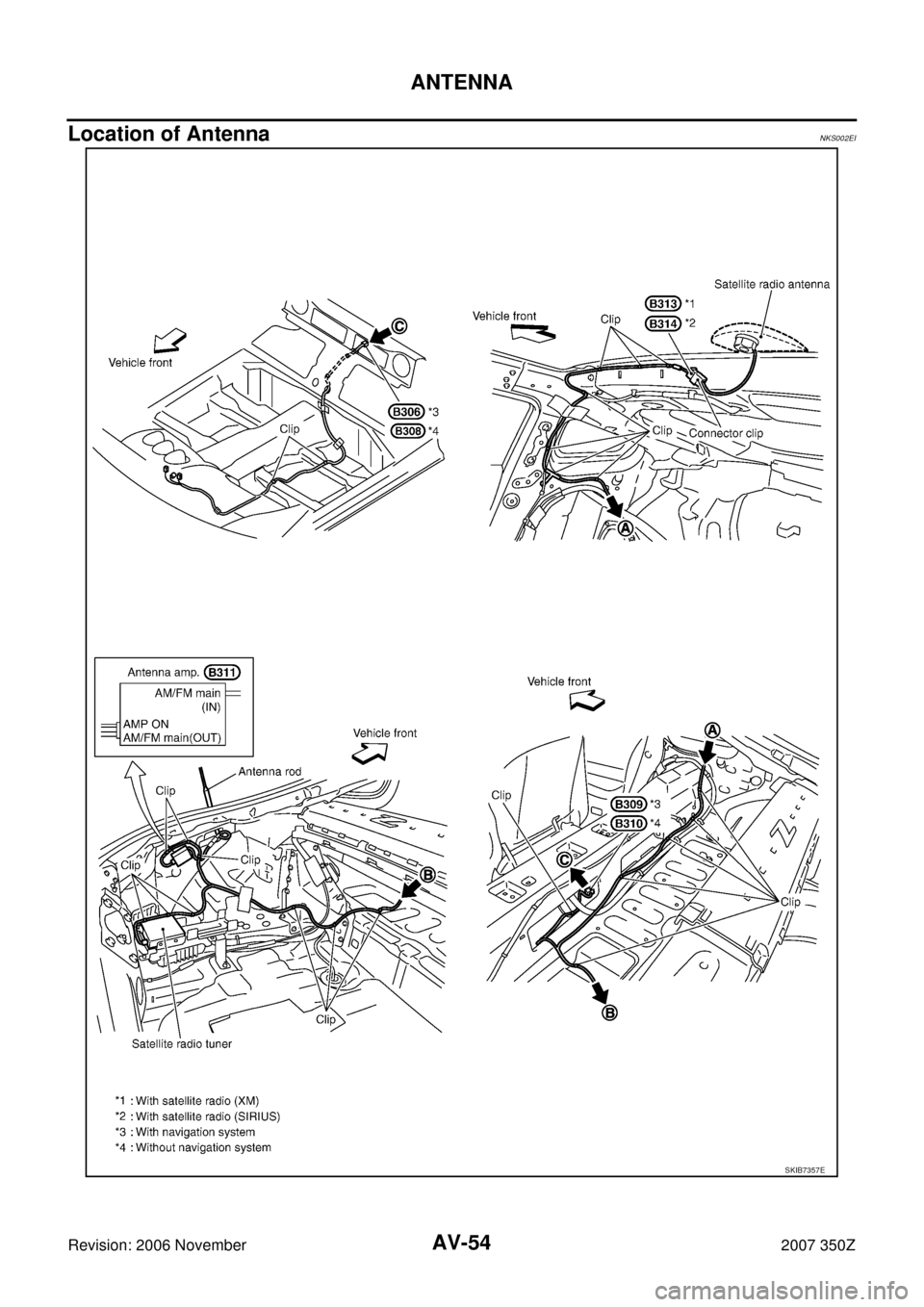

Location of AntennaNKS002EI
SKIB7357E

ANTENNA
AV-55
C
D
E
F
G
H
I
J
L
MA
B
AV
Revision: 2006 November2007 350Z

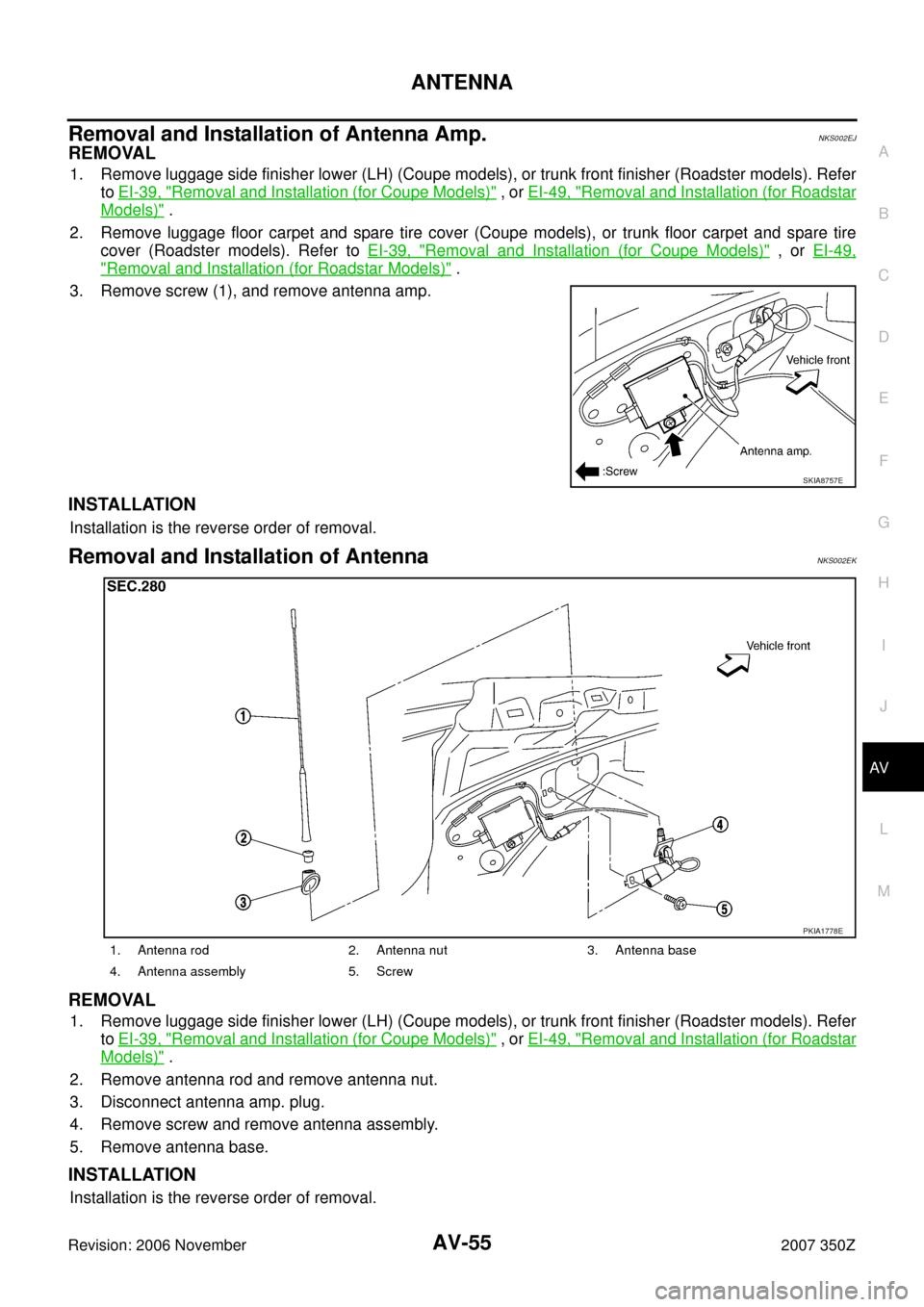

Removal and Installation of Antenna Amp.NKS002EJ
REMOVAL
1. Remove luggage side finisher lower (LH) (Coupe models), or trunk front finisher (Roadster models). Refer
to EI-39, "
Removal and Installation (for Coupe Models)" , or EI-49, "Removal and Installation (for Roadstar
Models)" .
2. Remove luggage floor carpet and spare tire cover (Coupe models), or trunk floor carpet and spare tire
cover (Roadster models). Refer to EI-39, "
Removal and Installation (for Coupe Models)" , or EI-49,
"Removal and Installation (for Roadstar Models)" .
3. Remove screw (1), and remove antenna amp.
INSTALLATION
Installation is the reverse order of removal.
Removal and Installation of AntennaNKS002EK
REMOVAL
1. Remove luggage side finisher lower (LH) (Coupe models), or trunk front finisher (Roadster models). Refer
to EI-39, "
Removal and Installation (for Coupe Models)" , or EI-49, "Removal and Installation (for Roadstar
Models)" .
2. Remove antenna rod and remove antenna nut.
3. Disconnect antenna amp. plug.
4. Remove screw and remove antenna assembly.
5. Remove antenna base.
INSTALLATION
Installation is the reverse order of removal.
SKIA8757E
1. Antenna rod 2. Antenna nut 3. Antenna base
4. Antenna assembly 5. Screw
PKIA1778E

AV-56
ANTENNA
Revision: 2006 November2007 350Z
Removal and Installation of Satellite Radio AntennaNKS002KG
Refer to AV- 5 1 , "Removal and Installation of Satellite Radio Antenna" .
