NAVIGATION SYSTEM
AV-65
C
D
E
F
G
H
I
J
L
MA
B
AV
Revision: 2006 November2007 350Z
TKWT5804E

AV-66
NAVIGATION SYSTEM
Revision: 2006 November2007 350Z
TKWT5631E

NAVIGATION SYSTEM
AV-67
C
D
E
F
G
H
I
J
L
MA
B
AV
Revision: 2006 November2007 350Z

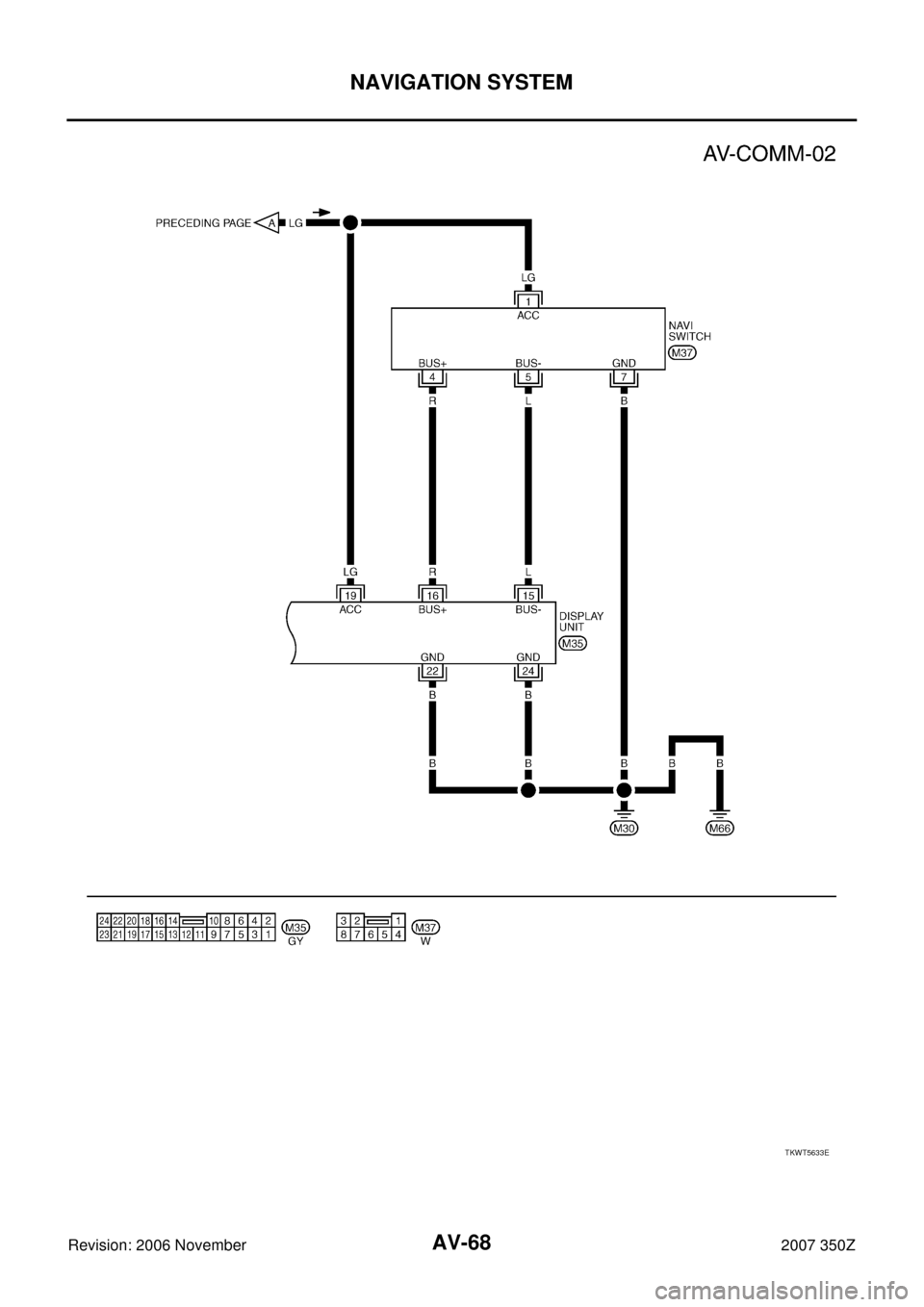

Wiring Diagram — COMM — NKS004S0

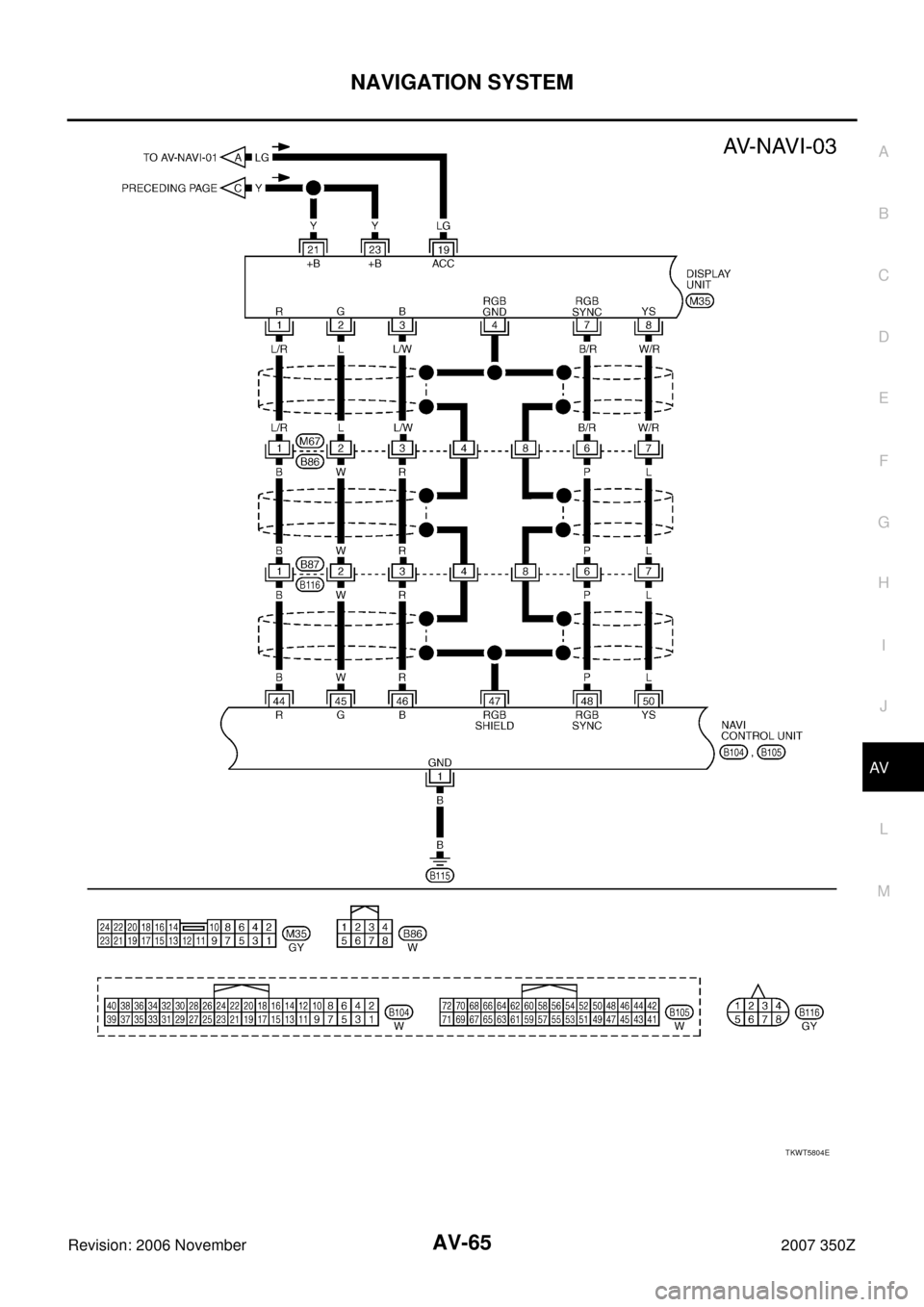

TKWT5632E

AV-68
NAVIGATION SYSTEM
Revision: 2006 November2007 350Z

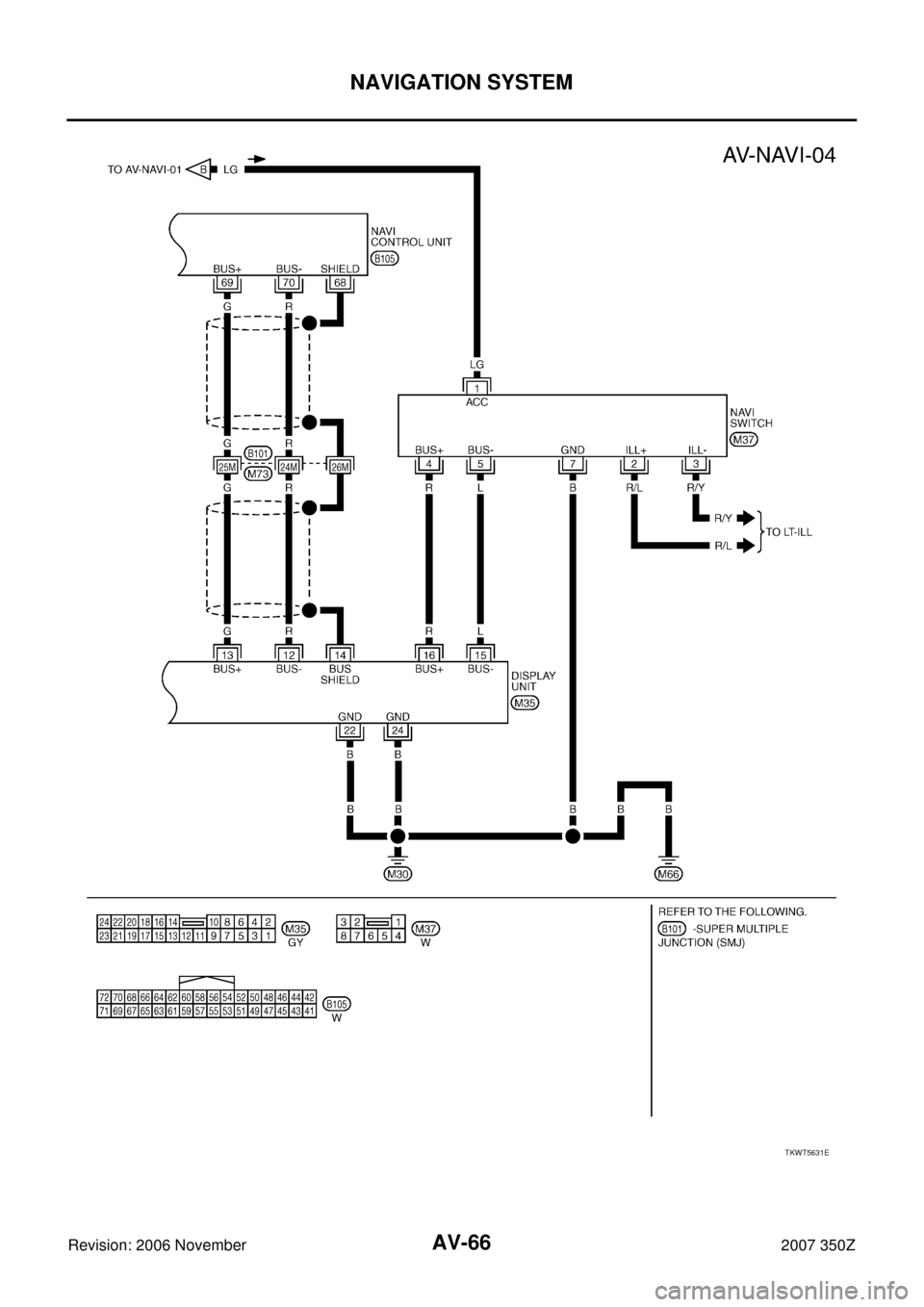

TKWT5633E

NAVIGATION SYSTEM
AV-69
C
D
E
F
G
H
I
J
L
MA
B
AV
Revision: 2006 November2007 350Z
Terminals and Reference Value for NAVI Control UnitNKS000D3
Terminal
(Wire color)
ItemSignal
input/
outputCondition
Reference value
(+) (–)Ignition
switchOperation
1 (B) Ground Ground — ON — Approx. 0 V
2 (Y) Ground Battery power supply Input OFF — Battery voltage
5 (LG) Ground ACC power supply Input ACC — Battery voltage
12 (OR) 14 (SB) Voice guidance signal Output ON Press “VOICE” button
24 (BR) 13 (B/OR)Voice guidance ON
signalOutput ON Press “VOICE” button
44 (B) Ground RGB signal (R: red) Output ONStart Confirmation/Adjust-
ment mode, and then dis-
play color bar by selecting
“Color Spectrum bar” on
Display Diagnosis screen
45 (W) Ground RGB signal (G: green) Output ONStart Confirmation/Adjust-
ment mode, and then dis-
play color bar by selecting
“Color Spectrum bar” on
Display Diagnosis screen
46 (R) Ground RGB signal (B: blue) Output ONStart Confirmation/Adjust-
ment mode, and then dis-
play color bar by selecting
“Color Spectrum bar” on
Display Diagnosis screen
47 — Shield — — — —
48 (P) GroundRGB synchronizing
signalOutput ON —
50 (L) Ground RGB area (YS) signal Output ON — Approx. 5 V
SKIB3597E
SKIB0232E
SKIB7360E
SKIB7361E
SKIB7362E
SKIB3603E

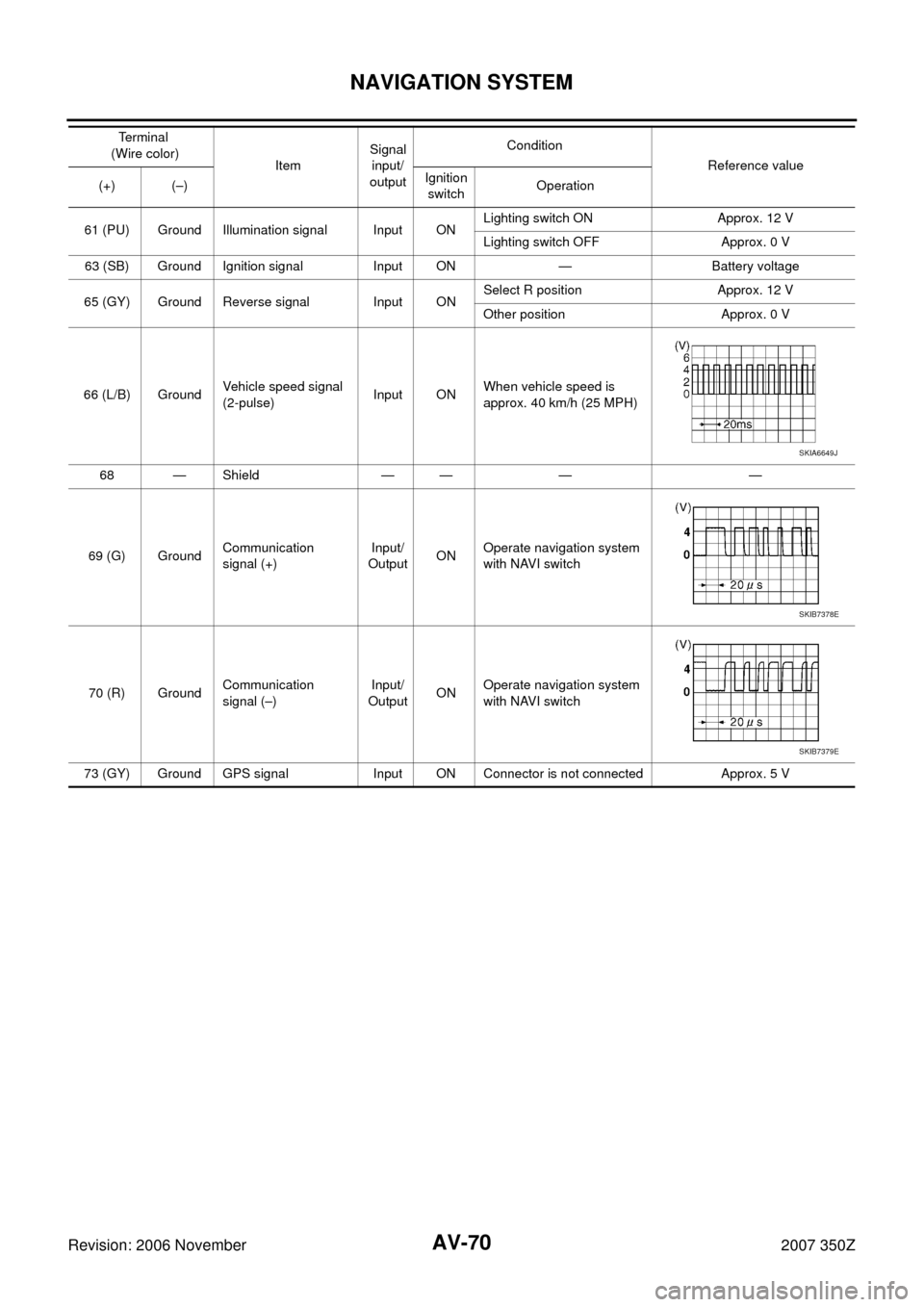

AV-70
NAVIGATION SYSTEM
Revision: 2006 November2007 350Z
61 (PU) Ground Illumination signal Input ONLighting switch ON Approx. 12 V
Lighting switch OFF Approx. 0 V
63 (SB) Ground Ignition signal Input ON — Battery voltage
65 (GY) Ground Reverse signal Input ONSelect R position Approx. 12 V
Other position Approx. 0 V
66 (L/B) GroundVehicle speed signal
(2-pulse)Input ONWhen vehicle speed is
approx. 40 km/h (25 MPH)
68 — Shield — — — —
69 (G) GroundCommunication
signal (+)Input/
OutputONOperate navigation system
with NAVI switch
70 (R) GroundCommunication
signal (–)Input/
OutputONOperate navigation system
with NAVI switch
73 (GY) Ground GPS signal Input ON Connector is not connected Approx. 5 VTe r m i n a l
(Wire color)
ItemSignal
input/
outputCondition
Reference value
(+) (–)Ignition
switchOperation
SKIA6649J
SKIB7378E
SKIB7379E

NAVIGATION SYSTEM
AV-71
C
D
E
F
G
H
I
J
L
MA
B
AV
Revision: 2006 November2007 350Z
Terminals and Reference Value for Display UnitNKS000D4
Terminal
(Wire color)
ItemSignal
input/
outputCondition
Reference value
(+) (–)Ignition
switchOperation
1 (L/R) Ground RGB signal (R: red) Input ONStart Confirmation/Adjust-
ment mode, and then dis-
play color bar by selecting
“Color Spectrum bar” on
Display Diagnosis screen
2 (L) Ground RGB signal (G: green) Input ONStart Confirmation/Adjust-
ment mode, and then dis-
play color bar by selecting
“Color Spectrum bar” on
Display Diagnosis screen
3 (L/W) Ground RGB signal (B: blue) Input ONStart Confirmation/Adjust-
ment mode, and then dis-
play color bar by selecting
“Color Spectrum bar” on
Display Diagnosis screen
4 — Shield — — — —
7 (B/R) GroundRGB synchronizing
signalInput ON —
8 (W/R) Ground RGB area (YS) signal Input ON — Approx. 5 V
12 (R) GroundCommunication
signal (–)Input/
OutputONOperate navigation system
with NAVI switch
13 (G) GroundCommunication
signal (+)Input/
OutputONOperate navigation system
with NAVI switch
14 — Shield — — — —
SKIB7360E
SKIB7361E
SKIB7362E
SKIB3603E
SKIB7379E
SKIB7378E

AV-72
NAVIGATION SYSTEM
Revision: 2006 November2007 350Z
15 (L) GroundCommunication
signal (–)Input/
OutputONOperate navigation system
with NAVI switch
16 (R) GroundCommunication
signal (+)Input/
OutputONOperate navigation system
with NAVI switch
19 (LG) Ground ACC power supply Input ACC — Battery voltage
21 (Y) Ground Battery power supply Input OFF — Battery voltage
22 (B) Ground Ground — ON — Approx. 0 V
23 (Y) Ground Battery power supply Input OFF — Battery voltage
24 (B) Ground Ground — ON — Approx. 0 VTerminal
(Wire color)
ItemSignal
input/
outputCondition
Reference value
(+) (–)Ignition
switchOperation
SKIB7379E
SKIB7378E
