2007 NISSAN 350Z Audio Visual, Navigation And Telephone System

NAVIGATION SYSTEM
AV-73
C
D
E
F
G
H
I
J
L
MA
B
AV
Revision: 2006 November2007 350Z

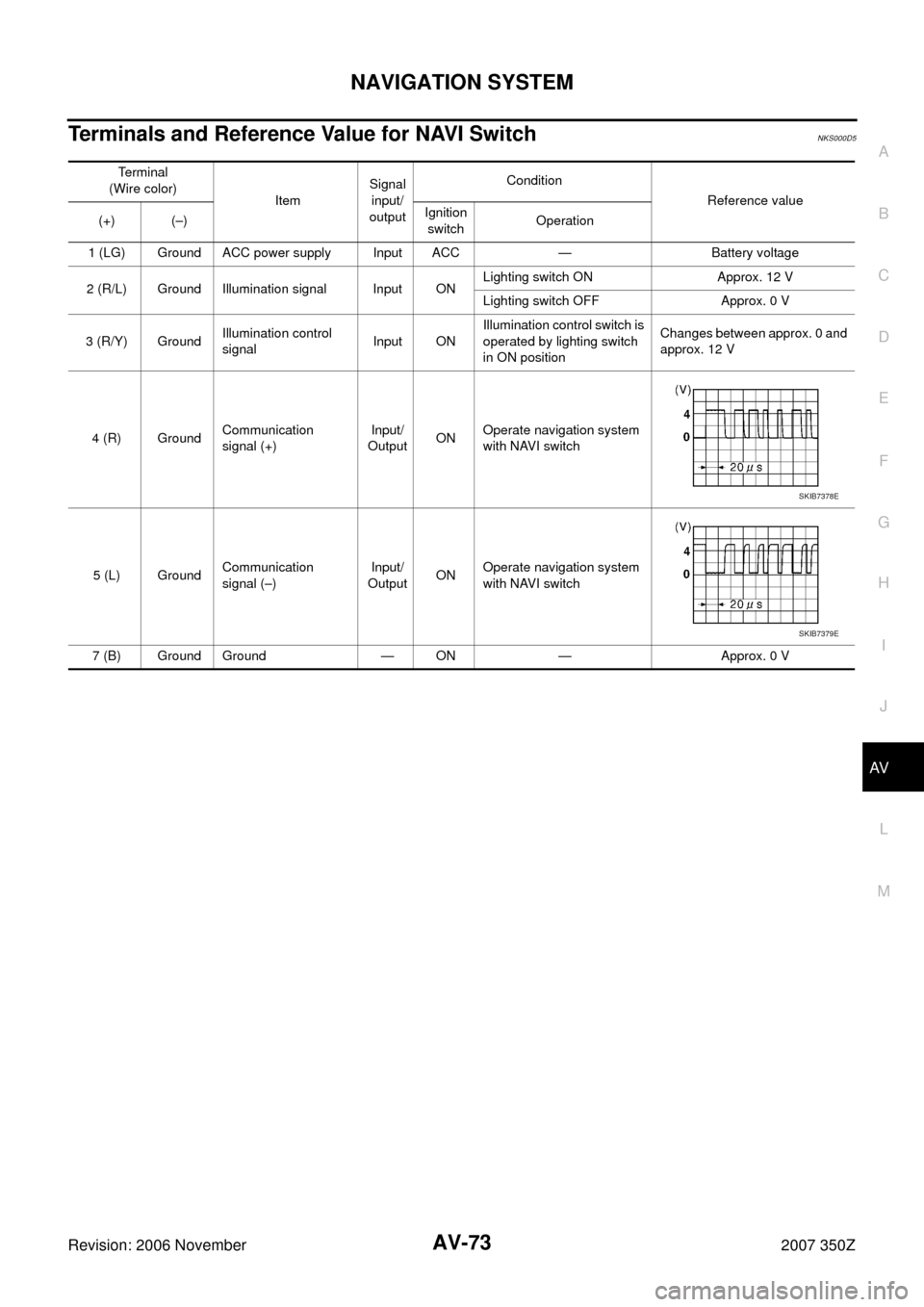

Terminals and Reference Value for NAVI SwitchNKS000D5
Terminal
(Wire color)
ItemSignal
input/
outputCondition
Reference value
(+) (–)Ignition
switchOperation
1 (LG) Ground ACC power supply Input ACC — Battery voltage
2 (R/L) Ground Illumination signal Input ONLighting switch ON Approx. 12 V
Lighting switch OFF Approx. 0 V
3 (R/Y) GroundIllumination control
signalInput ONIllumination control switch is
operated by lighting switch
in ON positionChanges between approx. 0 and
approx. 12 V
4 (R) GroundCommunication
signal (+)Input/
OutputONOperate navigation system
with NAVI switch
5 (L) GroundCommunication
signal (–)Input/
OutputONOperate navigation system
with NAVI switch
7 (B) Ground Ground — ON — Approx. 0 V
SKIB7378E
SKIB7379E

AV-74
NAVIGATION SYSTEM
Revision: 2006 November2007 350Z
Special Note for Trouble DiagnosisNKS002JP
Prior to perform trouble diagnosis, make sure there are no corresponding description in the “Example of
Symptoms Possible No Malfunction”. Refer to AV- 9 5 , "
Example of Symptoms Possible No Malfunction" .
On Board Self-Diagnosis FunctionNKS000D6
DESCRIPTION

Trouble diagnosis function of navigation system has a Self Diagnosis mode by automatic operation and a
Confirmation/Adjustment mode by manual operation.

Self Diagnosis mode checks for connections between the units constituting this system, analyzes each
individual unit at the same time, and displays the results on the display unit.

Confirmation/Adjustment mode displays trouble diagnosis that require an operation and a judgment by a
human (auto-decision can not be performed by the system), confirmation of preset value, and an error his-
tory.
DIAGNOSIS ITEM
Self Diagnosis ModeNKS000D7
OPERATION PROCEDURE
1. Start the engine.
2. Press and hold “MAP” and “ ” buttons simultaneously for 5
seconds or more.

Shifting from current screen to previous screen is performed
by pressing “BACK” button.
Mode Description
Self Diagnosis

NAVI control unit diagnosis (DVD-ROM drive will not be diagnosed when no
DVD-ROM is in it.).

Analyzes connection between the NAVI control unit and the GPS antenna, con-
nection between the NAVI control unit and each unit, and operation of each unit.
Confirmation/
AdjustmentDisplay DiagnosisColor tone and shading of the screen can be checked by the display of a color bar
and a gray scale.
Vehicle SignalsDiagnosis of signals that are input to NAVI control unit can be performed for Vehicle
speed, Lights, Ignition and Reverse.
NavigationSteering Angle
AdjustmentThis mode is used to correct difference between actual turning angle of a vehicle
and turning angle of the vehicle mark on the display.
Speed CalibrationUnder ordinary conditions, the navigation system distance measuring function will
automatically compensate for minute decreases in wheel and tire diameter caused
by tire wear or low-pressure. Speed Calibration can immediately restore system
accuracy in cases such as when distance calibration is needed because of the use
of tire chains.
Error HistoryMalfunctions that occurred in the past are displayed, along with the number of times
each has occurred. Time and location when/where the errors occurred are also dis-
played.
Delete Unit Connection Log Erase the connection history of unit and error history.
SKIB7380E

NAVIGATION SYSTEM
AV-75
C
D
E
F
G
H
I
J
L
MA
B
AV
Revision: 2006 November2007 350Z

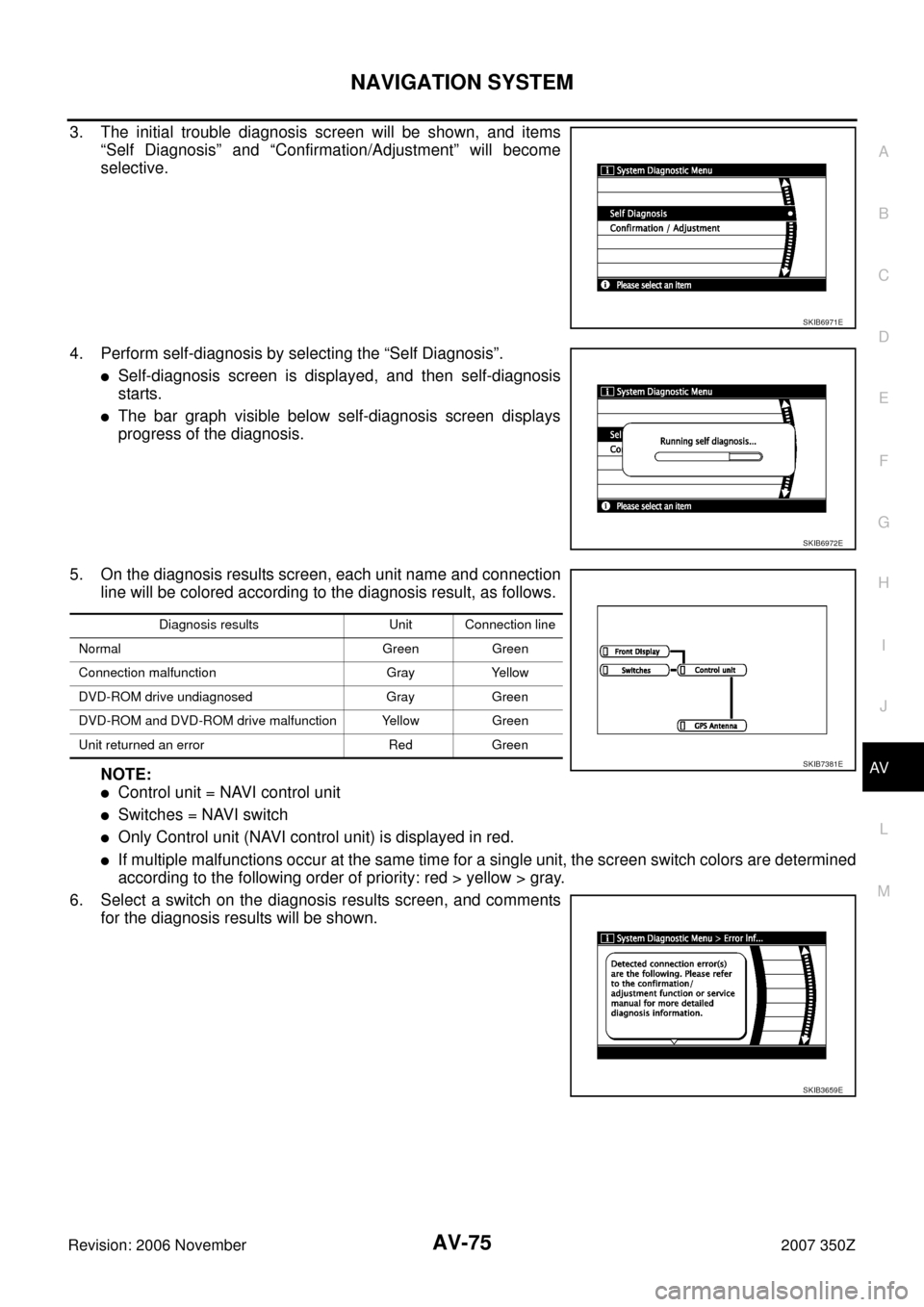

3. The initial trouble diagnosis screen will be shown, and items
“Self Diagnosis” and “Confirmation/Adjustment” will become
selective.
4. Perform self-diagnosis by selecting the “Self Diagnosis”.

Self-diagnosis screen is displayed, and then self-diagnosis
starts.

The bar graph visible below self-diagnosis screen displays
progress of the diagnosis.
5. On the diagnosis results screen, each unit name and connection
line will be colored according to the diagnosis result, as follows.
NOTE:

Control unit = NAVI control unit

Switches = NAVI switch

Only Control unit (NAVI control unit) is displayed in red.

If multiple malfunctions occur at the same time for a single unit, the screen switch colors are determined
according to the following order of priority: red > yellow > gray.
6. Select a switch on the diagnosis results screen, and comments
for the diagnosis results will be shown.
SKIB6971E
SKIB6972E
Diagnosis results Unit Connection line
Normal Green Green
Connection malfunction Gray Yellow
DVD-ROM drive undiagnosed Gray Green
DVD-ROM and DVD-ROM drive malfunction Yellow Green
Unit returned an error Red Green
SKIB7381E
SKIB3659E

AV-76
NAVIGATION SYSTEM
Revision: 2006 November2007 350Z

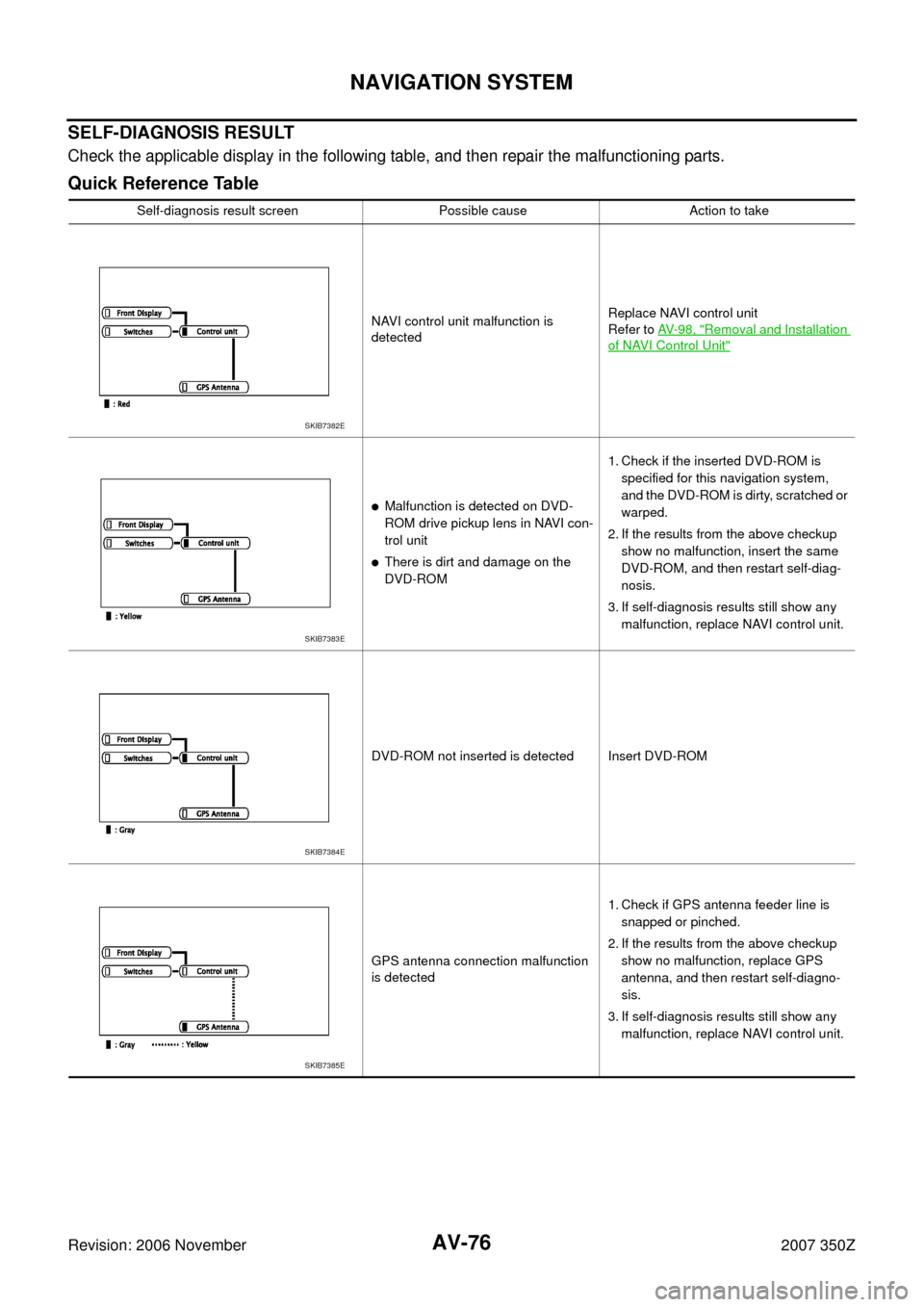

SELF-DIAGNOSIS RESULT
Check the applicable display in the following table, and then repair the malfunctioning parts.
Quick Reference Table
Self-diagnosis result screen Possible cause Action to take
NAVI control unit malfunction is
detectedReplace NAVI control unit
Refer to AV- 9 8 , "
Removal and Installation
of NAVI Control Unit"

Malfunction is detected on DVD-
ROM drive pickup lens in NAVI con-
trol unit

There is dirt and damage on the
DVD-ROM1. Check if the inserted DVD-ROM is
specified for this navigation system,
and the DVD-ROM is dirty, scratched or
warped.
2. If the results from the above checkup
show no malfunction, insert the same
DVD-ROM, and then restart self-diag-
nosis.
3. If self-diagnosis results still show any
malfunction, replace NAVI control unit.
DVD-ROM not inserted is detected Insert DVD-ROM
GPS antenna connection malfunction
is detected1. Check if GPS antenna feeder line is
snapped or pinched.
2. If the results from the above checkup
show no malfunction, replace GPS
antenna, and then restart self-diagno-
sis.
3. If self-diagnosis results still show any
malfunction, replace NAVI control unit.
SKIB7382E
SKIB7383E
SKIB7384E
SKIB7385E

NAVIGATION SYSTEM
AV-77
C
D
E
F
G
H
I
J
L
MA
B
AV
Revision: 2006 November2007 350Z
Confirmation/Adjustment ModeNKS000D8
OPERATION PROCEDURE
1. Start the engine.
2. Press and hold “MAP” and “ ” buttons simultaneously for 5
seconds or more.

Shifting from current screen to previous screen is performed
by pressing “BACK” button.
3. The initial trouble diagnosis screen will be shown, and items
“Self Diagnosis” and “Confirmation/Adjustment” will become
selective.
4. Select “Confirmation/Adjustment”.
5. Each diagnosis is shown by selecting each screen switch on
Confirmation/Adjustment screen.
SKIB7380E
SKIB6974E
SKIB7386E

AV-78
NAVIGATION SYSTEM
Revision: 2006 November2007 350Z

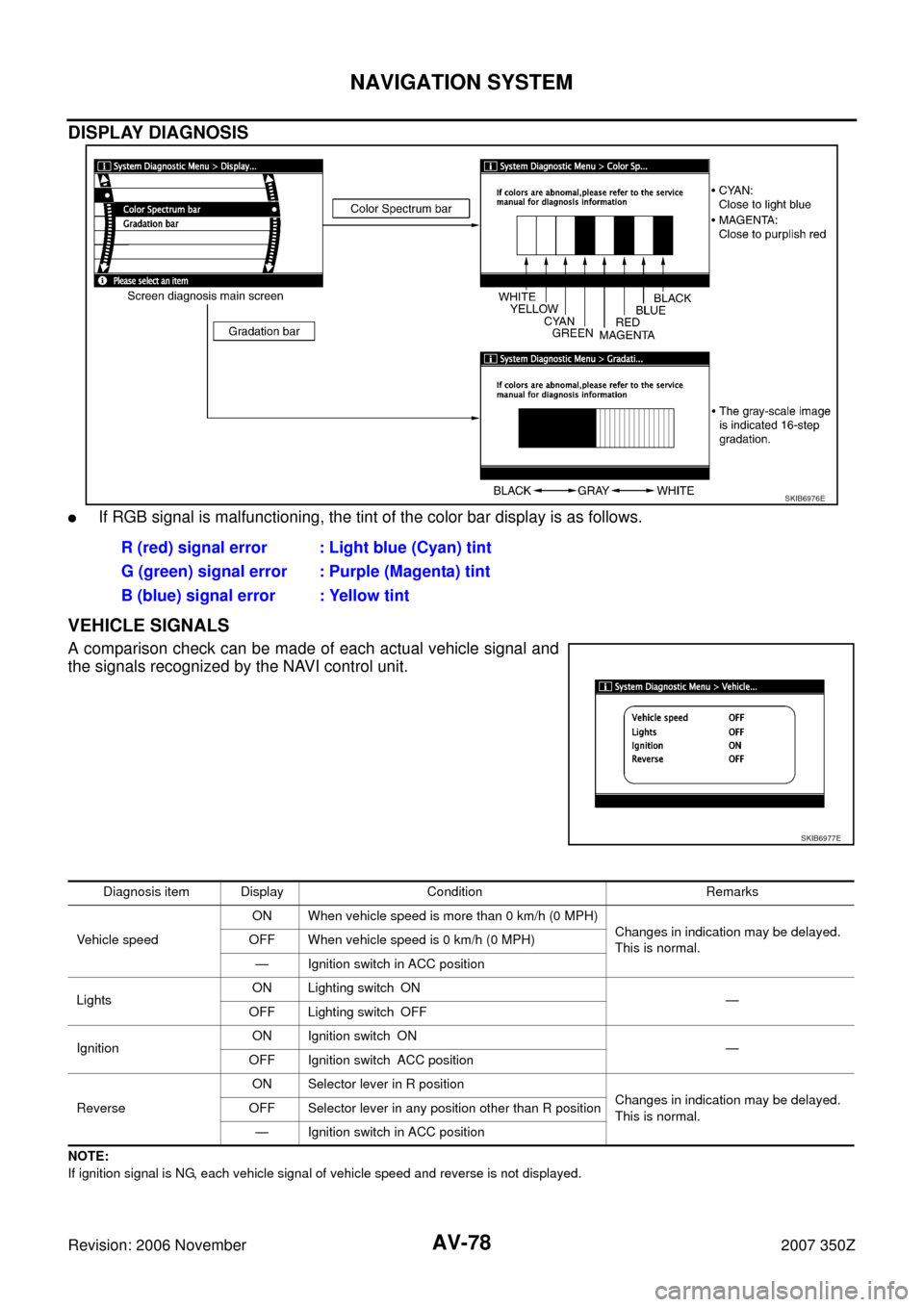

DISPLAY DIAGNOSIS

If RGB signal is malfunctioning, the tint of the color bar display is as follows.
VEHICLE SIGNALS
A comparison check can be made of each actual vehicle signal and
the signals recognized by the NAVI control unit.
NOTE:
If ignition signal is NG, each vehicle signal of vehicle speed and reverse is not displayed.
SKIB6976E
R (red) signal error : Light blue (Cyan) tint
G (green) signal error : Purple (Magenta) tint
B (blue) signal error : Yellow tint
SKIB6977E
Diagnosis item Display Condition Remarks
Vehicle speedON When vehicle speed is more than 0 km/h (0 MPH)
Changes in indication may be delayed.
This is normal. OFF When vehicle speed is 0 km/h (0 MPH)
— Ignition switch in ACC position
LightsON Lighting switch ON
—
OFF Lighting switch OFF
IgnitionON Ignition switch ON
—
OFF Ignition switch ACC position
ReverseON Selector lever in R position
Changes in indication may be delayed.
This is normal. OFF Selector lever in any position other than R position
— Ignition switch in ACC position

NAVIGATION SYSTEM
AV-79
C
D
E
F
G
H
I
J
L
MA
B
AV
Revision: 2006 November2007 350Z

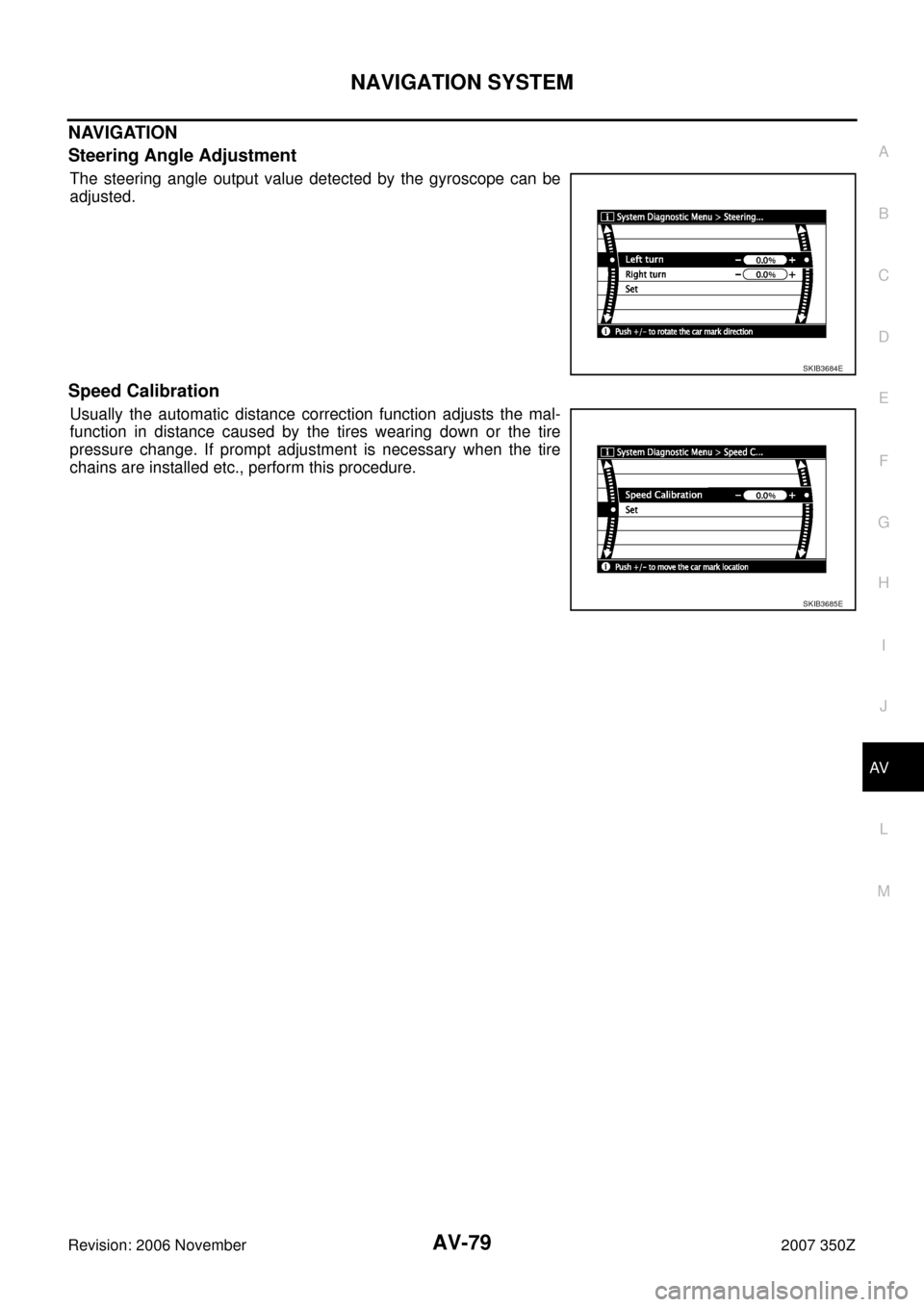

NAVIGATION
Steering Angle Adjustment
The steering angle output value detected by the gyroscope can be
adjusted.
Speed Calibration
Usually the automatic distance correction function adjusts the mal-
function in distance caused by the tires wearing down or the tire
pressure change. If prompt adjustment is necessary when the tire
chains are installed etc., perform this procedure.
SKIB3684E
SKIB3685E

AV-80
NAVIGATION SYSTEM
Revision: 2006 November2007 350Z

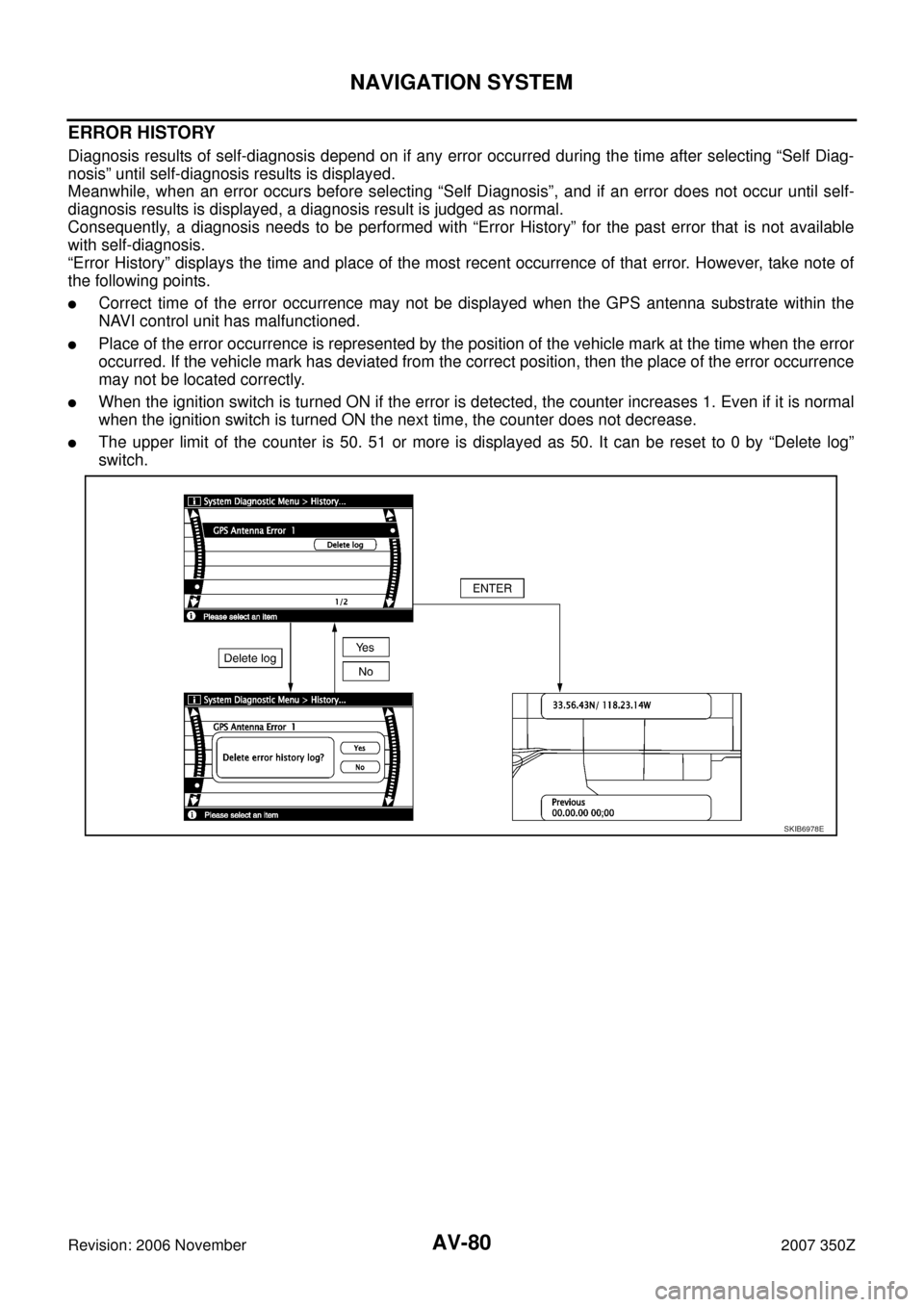

ERROR HISTORY
Diagnosis results of self-diagnosis depend on if any error occurred during the time after selecting “Self Diag-
nosis” until self-diagnosis results is displayed.
Meanwhile, when an error occurs before selecting “Self Diagnosis”, and if an error does not occur until self-
diagnosis results is displayed, a diagnosis result is judged as normal.
Consequently, a diagnosis needs to be performed with “Error History” for the past error that is not available
with self-diagnosis.
“Error History” displays the time and place of the most recent occurrence of that error. However, take note of
the following points.

Correct time of the error occurrence may not be displayed when the GPS antenna substrate within the
NAVI control unit has malfunctioned.

Place of the error occurrence is represented by the position of the vehicle mark at the time when the error
occurred. If the vehicle mark has deviated from the correct position, then the place of the error occurrence
may not be located correctly.

When the ignition switch is turned ON if the error is detected, the counter increases 1. Even if it is normal
when the ignition switch is turned ON the next time, the counter does not decrease.

The upper limit of the counter is 50. 51 or more is displayed as 50. It can be reset to 0 by “Delete log”
switch.
SKIB6978E
