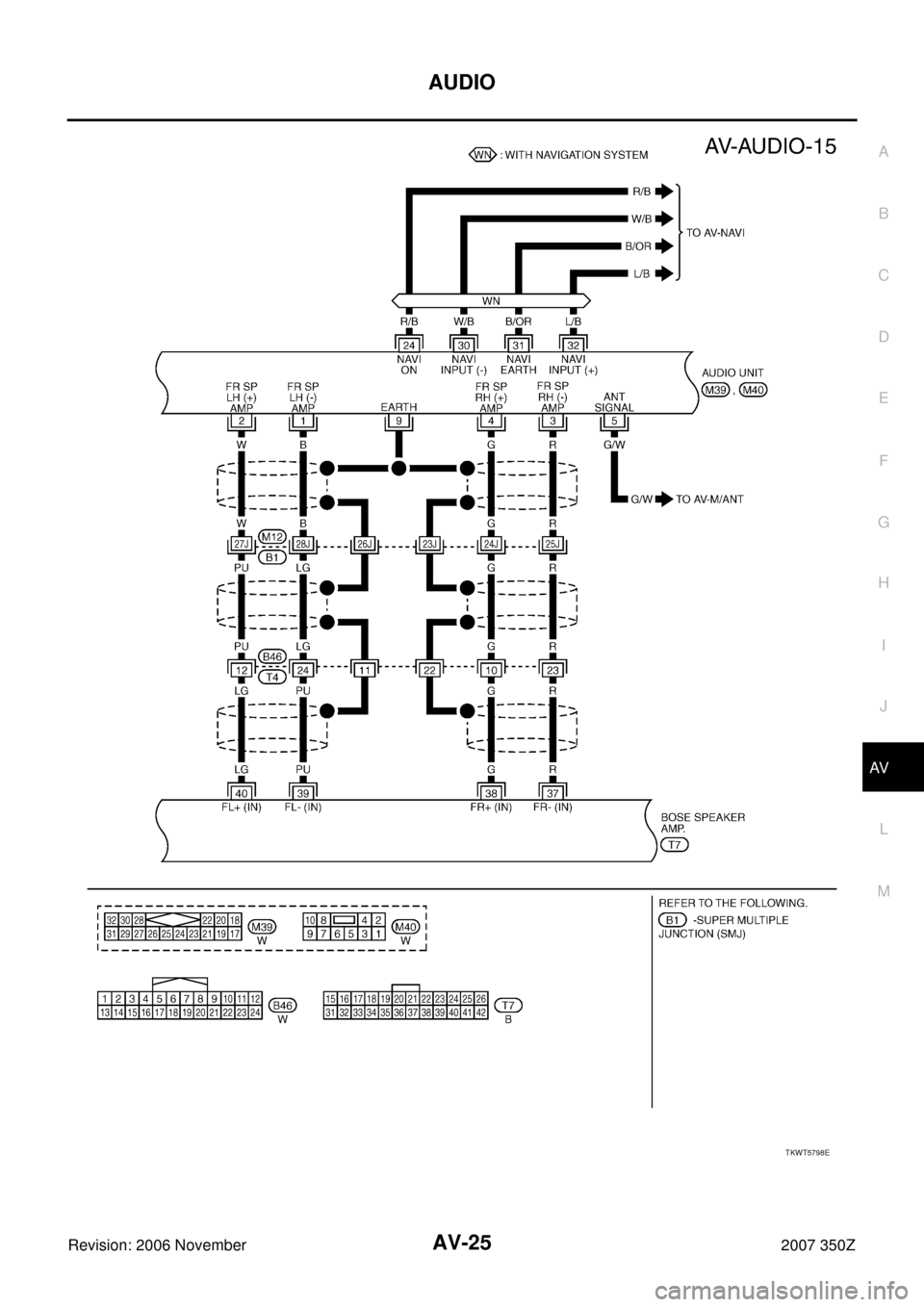

2007 NISSAN 350Z Audio Visual, Navigation And Telephone System

AUDIO
AV-25
C
D
E
F
G
H
I
J
L
MA
B
AV
Revision: 2006 November2007 350Z
TKWT5798E

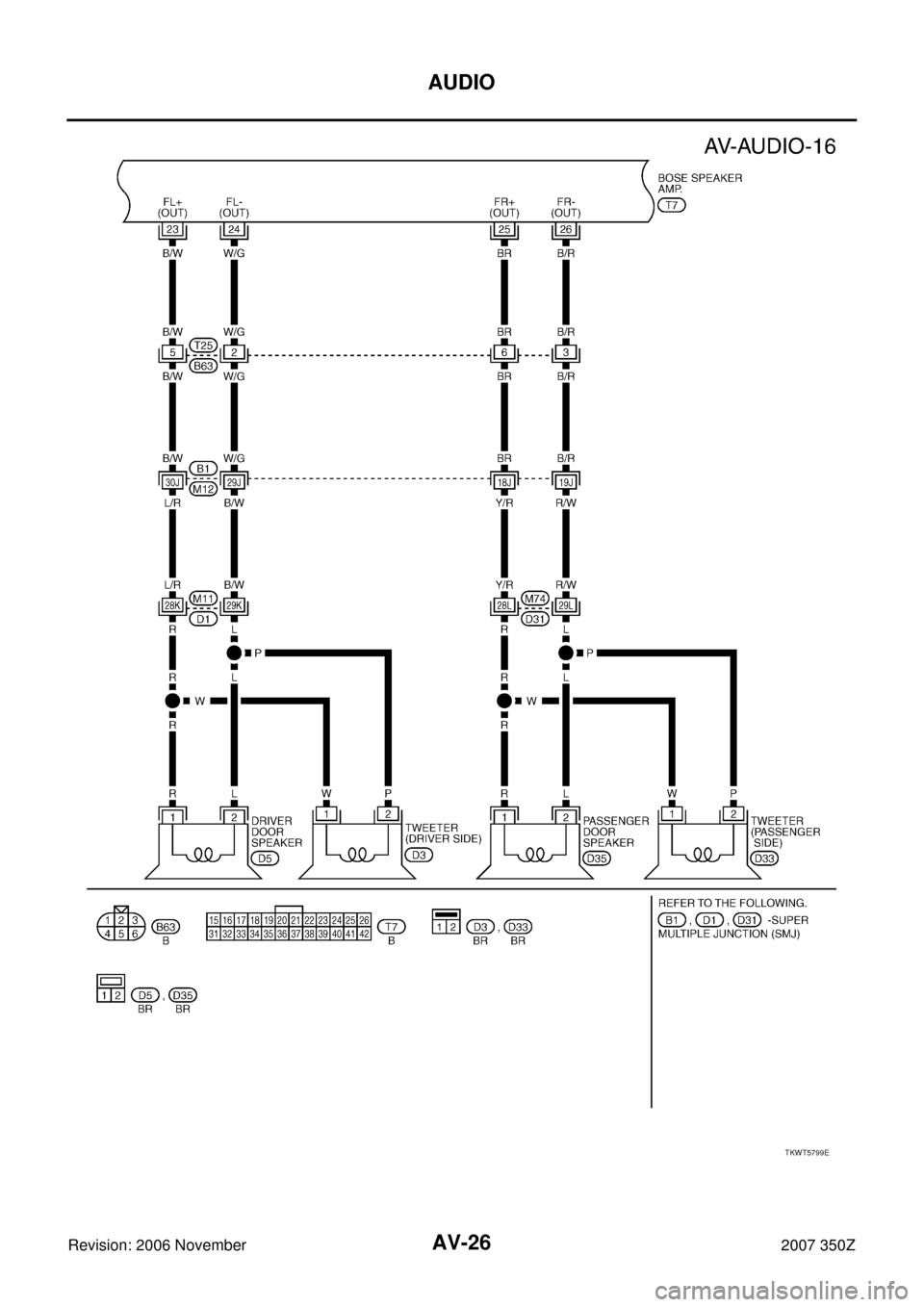

AV-26
AUDIO
Revision: 2006 November2007 350Z
TKWT5799E

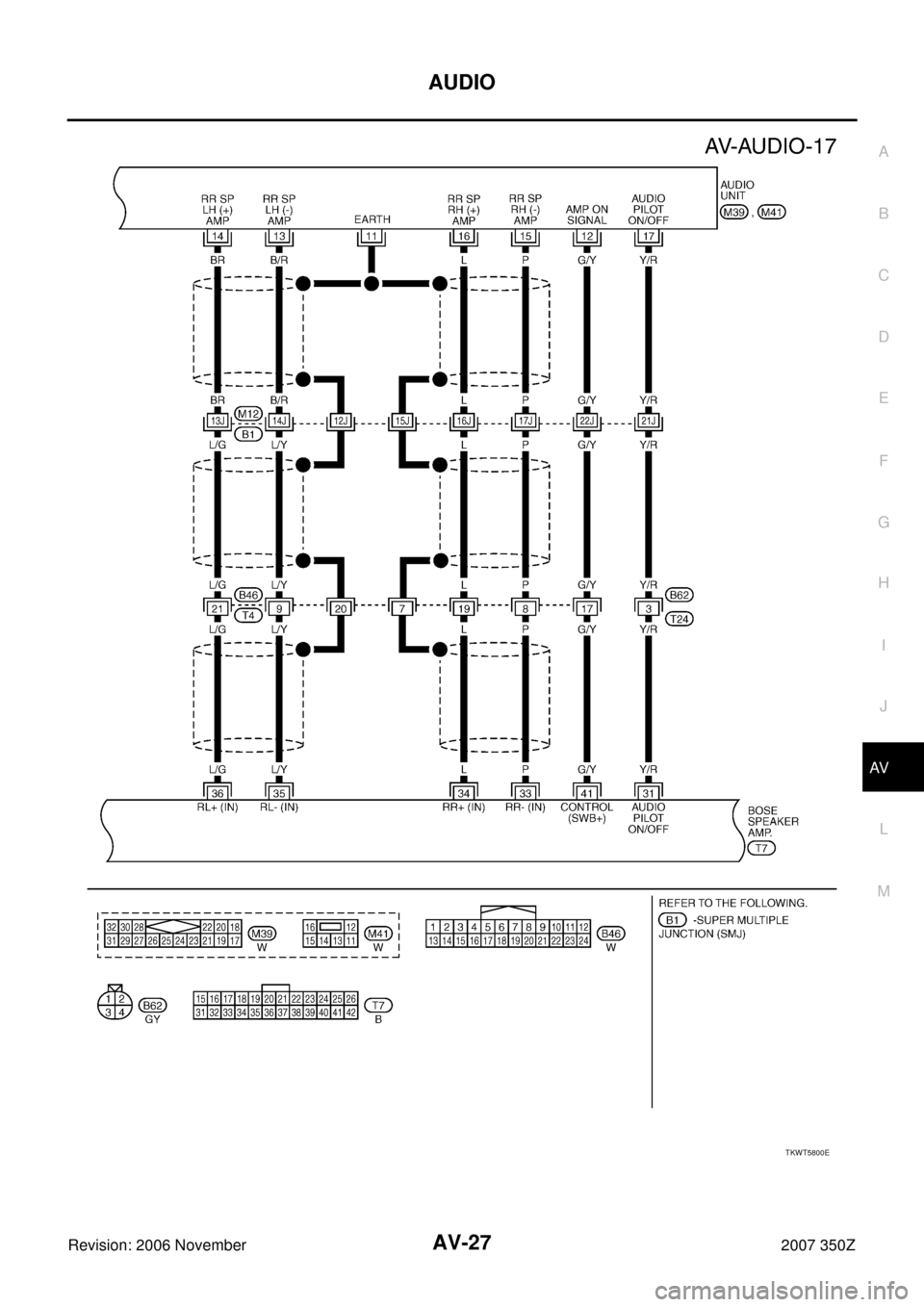

AUDIO
AV-27
C
D
E
F
G
H
I
J
L
MA
B
AV
Revision: 2006 November2007 350Z
TKWT5800E

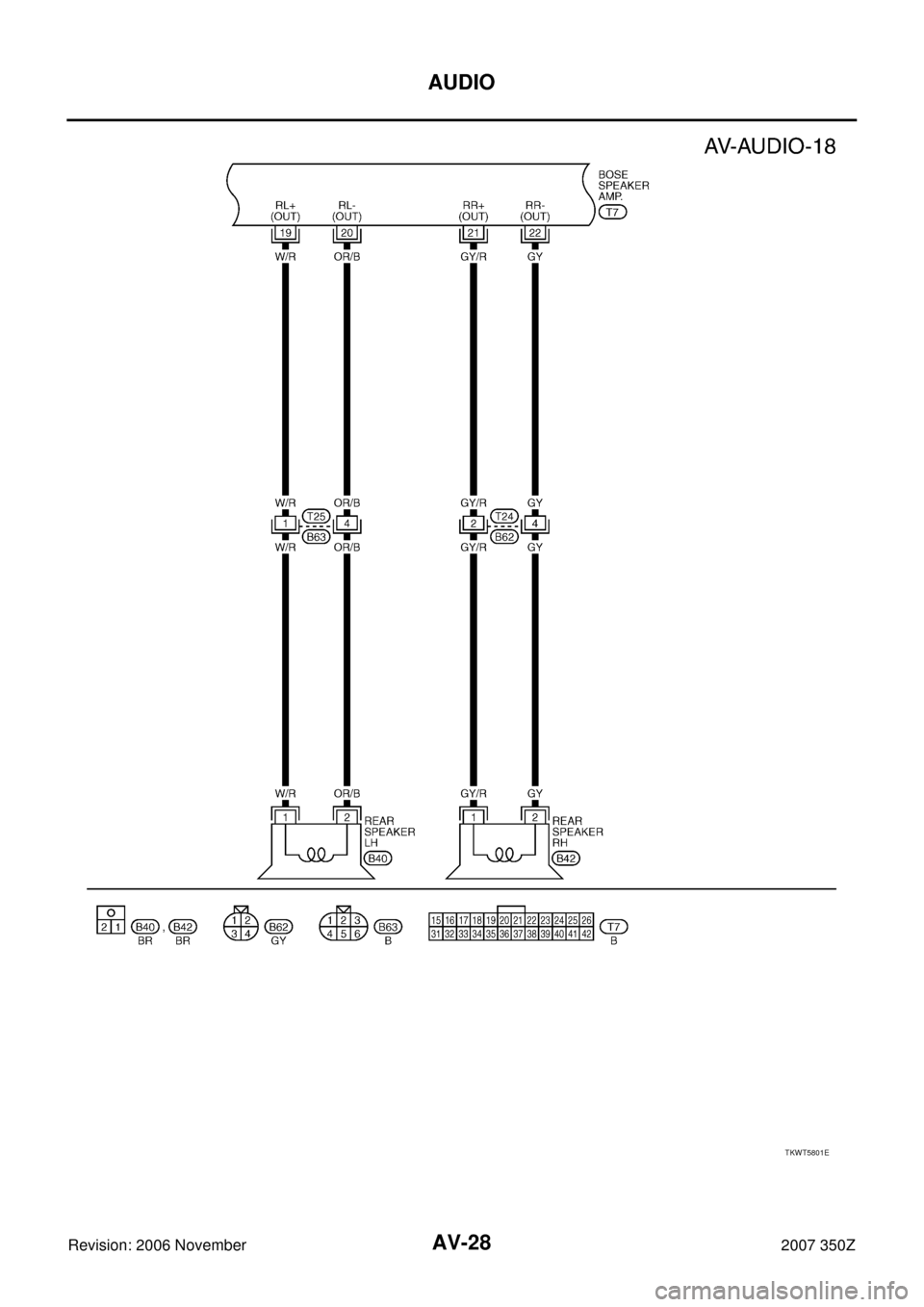

AV-28
AUDIO
Revision: 2006 November2007 350Z
TKWT5801E

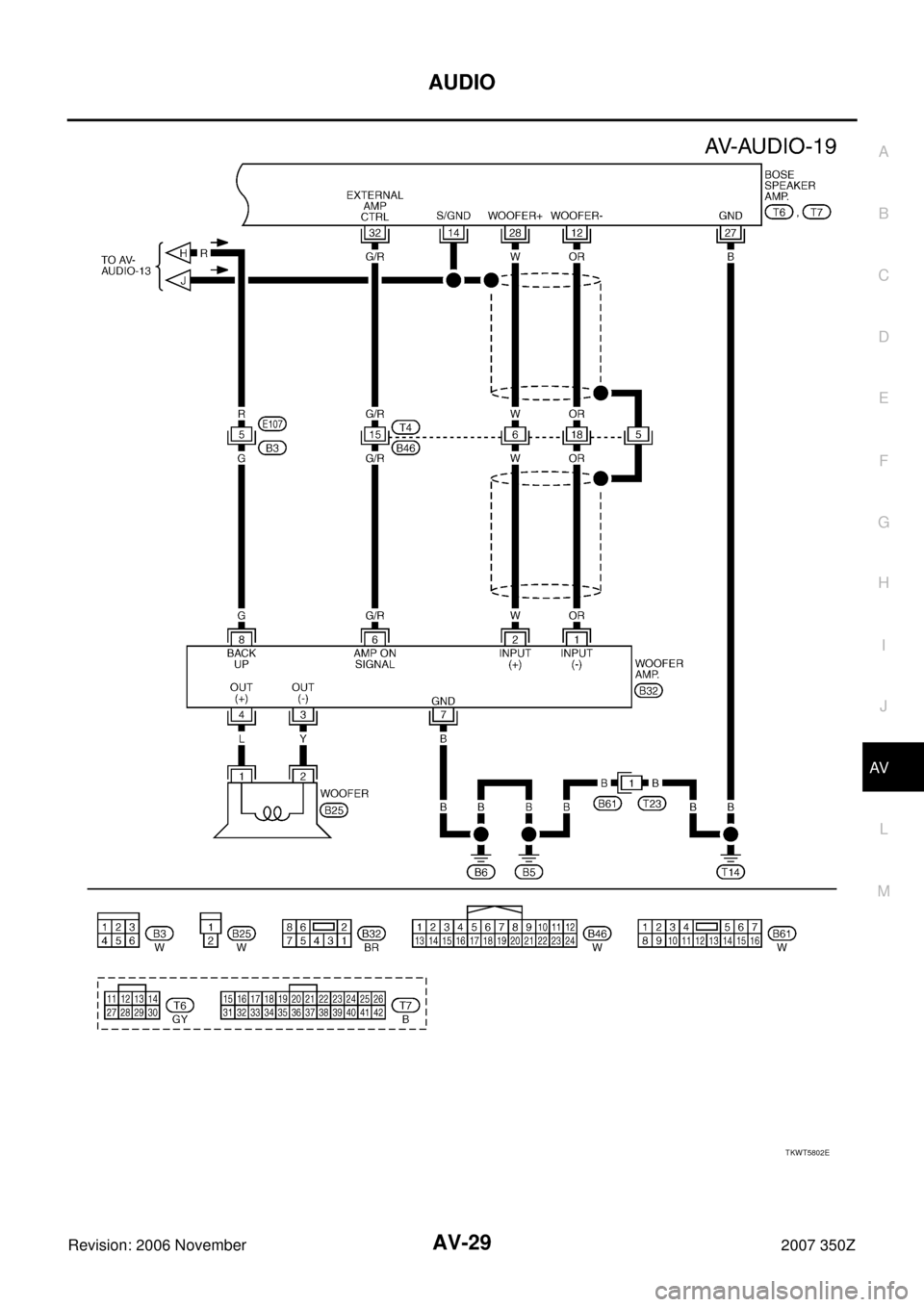

AUDIO
AV-29
C
D
E
F
G
H
I
J
L
MA
B
AV
Revision: 2006 November2007 350Z
TKWT5802E

AV-30
AUDIO
Revision: 2006 November2007 350Z
Terminals and Reference Value for Audio Unit / Base SystemNKS002B9
Te r m i n a l
(Wire color)
ItemSignal
input/
outputCondition
Reference value
+–Ignition
switchOperation
2 (L/R)
*1
(W)*21 (B/W)*1
(B)*2Audio signal front LH Output ON Receive audio signal
4 (Y/R)
*1
(G)*23 (R/W)*1
(R)*2Audio signal front RH Output ON Receive audio signal
5 (G/W) GroundAntenna amp. ON
signalOutput ON — Approx. 12 V
6 (Y) Ground Battery power supply Input OFF — Battery voltage
7 (R/Y) GroundIllumination control
signalInput ONIllumination control switch is
operated by lighting switch
in ON positionChanges between approx. 0 and
approx. 12 V
8 (R/L) Ground Lighting switch signal Input ONLighting switch ON Approx. 12 V
Lighting switch OFF Approx. 0 V
10 (LG) Ground ACC power supply Input ACC — Battery voltage
14
(LG/R)
*1
(BR)*2
13
(B/Y)*1
(B/R)*2Audio signal rear LH Output ON Receive audio signal
16
(L/OR)
*1
(L)*2
15
(B/P)*1
(P)*2Audio signal rear RH Output ON Receive audio signal
17 (R/B)18
(B/OR)Voice guidance ON
signal
*3Input ON Press “VOICE” button
SKIB3609E
SKIB3609E
SKIB3609E
SKIB3609E
SKIB0232E

AUDIO
AV-31
C
D
E
F
G
H
I
J
L
MA
B
AV
Revision: 2006 November2007 350Z

*1: With M/T without navigation system and VDC system

*2: Except *1

*3: With navigation system 20 (L/B) 19 (R/B)Voice guidance
signal
*3Input ON Press “VOICE” button
21 (R/G) 23 (Y/G)Remote control signal
AInput ONPress and hold MODE
switchApprox. 0 V
Press and hold SEEK UP
switchApprox. 1.7 V
Press and hold VOLUME
UP switchApprox. 3.3 V
Except for above Approx. 5 V
22 (OR) 23 (Y/G)Remote control signal
BInput ONPress and hold POWER
switchApprox. 0 V
Press and hold SEEK
DOWN switchApprox. 1.7 V
Press and hold VOLUME
DOWN switchApprox. 3.3 V
Except for above Approx. 5 V
23 (Y/G) GroundRemote control
ground— ON — Approx. 0 V Terminal
(Wire color)
ItemSignal
input/
outputCondition
Reference value
+–Ignition
switchOperation
SKIB3597E

AV-32
AUDIO
Revision: 2006 November2007 350Z
Terminals and Reference Value for Audio Unit / BOSE SystemNKS002BA
Te r m i n a l
(Wire color)
ItemSignal
input/
outputCondition
Reference value
+–Ignition
switchOperation
2 (W) 1 (B) Audio signal front LH Output ON Receive audio signal
4 (G) 3 (R) Audio signal front RH Output ON Receive audio signal
5 (G/W) GroundAntenna amp. ON
signalOutput ON — Approx. 12 V
6 (Y) Ground Battery power supply Input OFF — Battery voltage
7 (R/Y) GroundIllumination control
signalInput ONIllumination control switch is
operated by lighting switch
in ON positionChanges between approx. 0 and
approx. 12 V
8 (R/L) Ground Lighting switch signal Input ONLighting switch ON Approx. 12 V
Lighting switch OFF Approx. 0 V
9 — Shield — — — —
10 (LG) Ground ACC power supply Input ACC — Battery voltage
11 — Shield — — — —
12 (G/Y) GroundBOSE speaker amp.
ON signalOutput ON — Approx. 12 V
14 (BR) 13 (B/R) Audio signal rear LH Output ON Receive audio signal
16 (L) 15 (P) Audio signal rear RH Output ON Receive audio signal
17 (Y/R) GroundAudioPilot
® ON/OFF
signalOutput ONAudioPilot® OFFApprox. 7.5 V
AudioPilot
® ONApprox. 0 V
SKIB3609E
SKIB3609E
SKIB3609E
SKIB3609E
