2007 NISSAN 350Z navigation system

AV-1
AUDIO VISUAL, NAVIGATION & TELEPHONE SYS-
TEM
K ELECTRICAL
CONTENTS
C
D
E
F
G
H
I
J
L
M
SECTION AV
A
B
AV
Revision: 2006 November2007 350Z
AUDIO VISUAL, NAVIGATION & TELEPHONE SYSTEM
PRECAUTIONS .......................................................... 3
Precautions for Supplemental Restraint System
(SRS) “AIR BAG” and “SEAT BELT PRE-TEN-
SIONER” .................................................................. 3
Precautions for Battery Service ................................ 3
PREPARATION ........................................................... 4
Commercial Service Tools ........................................ 4
AUDIO ......................................................................... 5
System Description .................................................. 5
BASE SYSTEM ..................................................... 5
BOSE SYSTEM (COUPE MODELS) .................... 5
BOSE SYSTEM (ROADSTER MODELS) ............. 6
Component Parts Location ....................................... 8
Schematic / Base System ........................................ 9
Wiring Diagram — AUDIO — / Base System ......... 10
Schematic / BOSE System .................................... 13
Wiring Diagram — AUDIO — / BOSE System
(Coupe Models) ...................................................... 14
Wiring Diagram — AUDIO — / BOSE System
(Roadster Models) .................................................. 23
Terminals and Reference Value for Audio Unit / Base
System ................................................................... 30
Terminals and Reference Value for Audio Unit /
BOSE System ........................................................ 32
Terminals and Reference Value for BOSE Speaker
Amp. ....................................................................... 35
Terminals and Reference Value for Woofer Amp. ... 37
Terminals and Reference Value for Satellite Radio
Tuner ...................................................................... 38
Trouble Diagnosis .................................................. 39
Power Supply Circuit Inspection ............................ 41
Steering Switch Does Not Operate ........................ 42
AudioPilot® Does Not Work ................................... 44
Removal and Installation of Audio Unit (Base sys-
tem) ........................................................................ 46
REMOVAL ........................................................... 46
INSTALLATION ................................................... 46
Locking CD Auto Changer Mechanism (Audio unit
of BOSE system) .................................................... 46
DAMPER LOCK PROCEDURE .......................... 46Removal and Installation of Audio Unit (BOSE sys-
tem) ........................................................................ 47
REMOVAL ........................................................... 47
INSTALLATION ................................................... 47
Removal and Installation of Door Speaker ............. 47
REMOVAL ........................................................... 47
INSTALLATION ................................................... 47
Removal and Installation of Rear Speaker ............. 48
REMOVAL ........................................................... 48
INSTALLATION ................................................... 48
Removal and Installation of Tweeter ...................... 48
REMOVAL ........................................................... 48
INSTALLATION ................................................... 48
Removal and Installation of Woofer and Woofer
Amp. (BOSE System) ............................................. 49
REMOVAL ........................................................... 49
INSTALLATION ................................................... 49
Removal and Installation of BOSE Speaker Amp. ... 50
REMOVAL ........................................................... 50
INSTALLATION ................................................... 50
Removal and Installation of Microphone ................ 50
REMOVAL ........................................................... 50
INSTALLATION ................................................... 50
Removal and Installation of Satellite Radio Tuner ... 51
REMOVAL ........................................................... 51
INSTALLATION ................................................... 51
Removal and Installation of Satellite Radio Antenna ... 51
REMOVAL ........................................................... 51
INSTALLATION ................................................... 51
ANTENNA ................................................................. 52
System Description ................................................. 52
Wiring Diagram — M/ANT — ................................. 53
Location of Antenna ................................................ 54
Removal and Installation of Antenna Amp. ............ 55
REMOVAL ........................................................... 55
INSTALLATION ................................................... 55
Removal and Installation of Antenna ...................... 55
REMOVAL ........................................................... 55
INSTALLATION ................................................... 55
Removal and Installation of Satellite Radio Antenna ... 56

AV-2Revision: 2006 November2007 350Z NAVIGATION SYSTEM ............................................. 57
System Description ................................................. 57

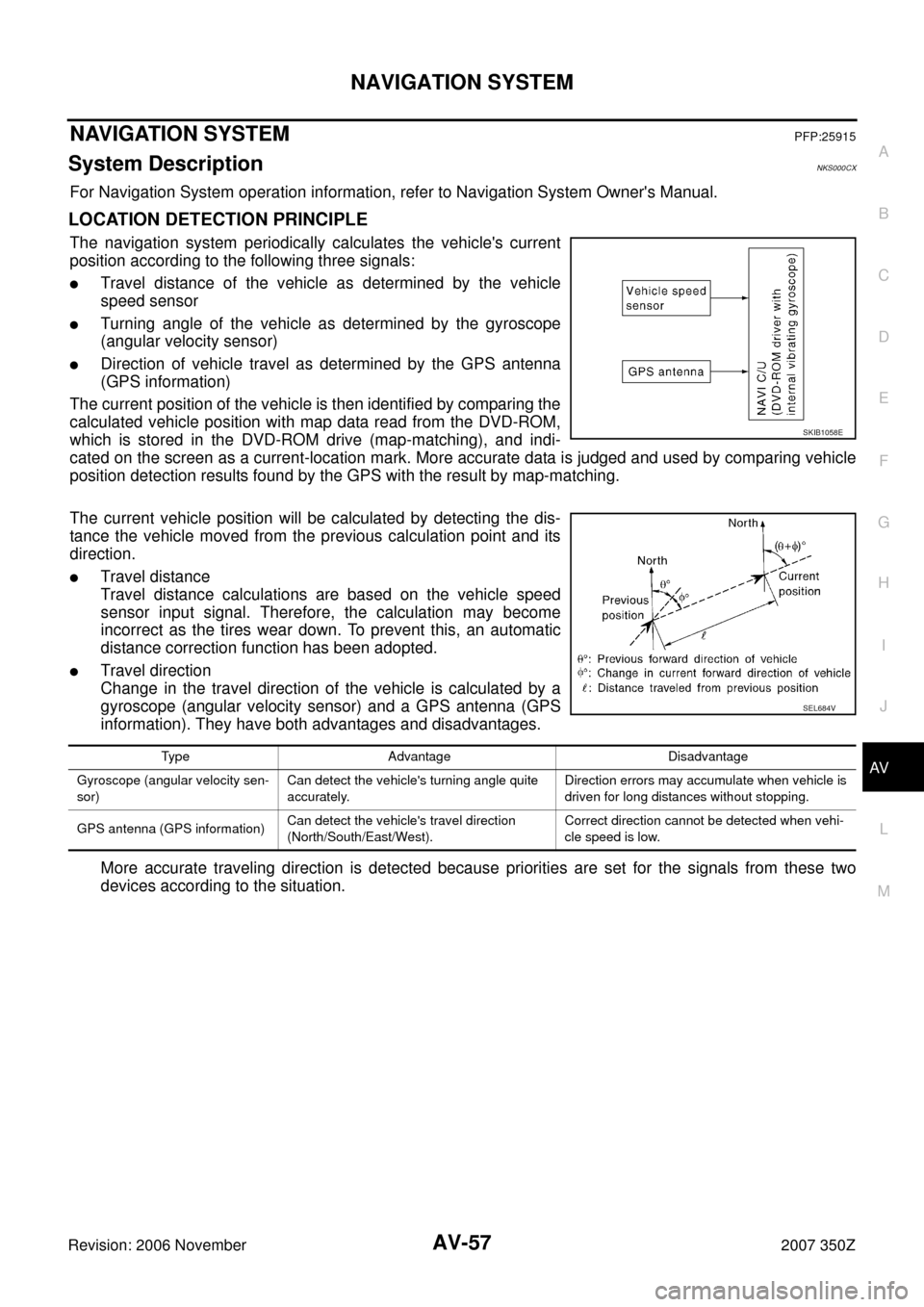

LOCATION DETECTION PRINCIPLE ................. 57
MAP-MATCHING ................................................. 58
GPS (GLOBAL POSITIONING SYSTEM) ........... 59
Component Description .......................................... 60
NAVI CONTROL UNIT ........................................ 60
GPS ANTENNA ................................................... 60
DISPLAY UNIT .................................................... 61
NAVI SWITCH ..................................................... 61
Component Parts Location ..................................... 61
Schematic ............................................................... 62
Wiring Diagram — NAVI — ..................................... 63
Wiring Diagram — COMM — ................................. 67
Terminals and Reference Value for NAVI Control
Unit ......................................................................... 69
Terminals and Reference Value for Display Unit .... 71
Terminals and Reference Value for NAVI Switch .... 73
Special Note for Trouble Diagnosis ........................ 74
On Board Self-Diagnosis Function ......................... 74
DESCRIPTION .................................................... 74
DIAGNOSIS ITEM ............................................... 74
Self Diagnosis Mode ............................................... 74
OPERATION PROCEDURE ................................ 74
SELF-DIAGNOSIS RESULT ............................... 76
Confirmation/Adjustment Mode .............................. 77
OPERATION PROCEDURE ................................ 77
DISPLAY DIAGNOSIS ......................................... 78
VEHICLE SIGNALS ............................................. 78
NAVIGATION ....................................................... 79
ERROR HISTORY ............................................... 80
DELETE UNIT CONNECTION LOG ................... 83
All Images Are Not Displayed ................................. 84
Navigation System Is Not Operated by NAVI Switch ... 87
Tint Is Strange for The RGB Image ........................ 89
RGB Image Is Rolling ............................................. 91
Voice Guidance Is Not Heard ................................. 92
Vehicle Mark Is Not Displayed Properly ................. 94
Example of Symptoms Possible No Malfunction .... 95BASIC OPERATIONS .......................................... 95
VEHICLE MARKS ................................................ 95
DVD-ROM ............................................................ 96
ROUTE CALCULATION AND VISUAL GUID-
ANCE ................................................................... 96
VOICE GUIDANCE .............................................. 97

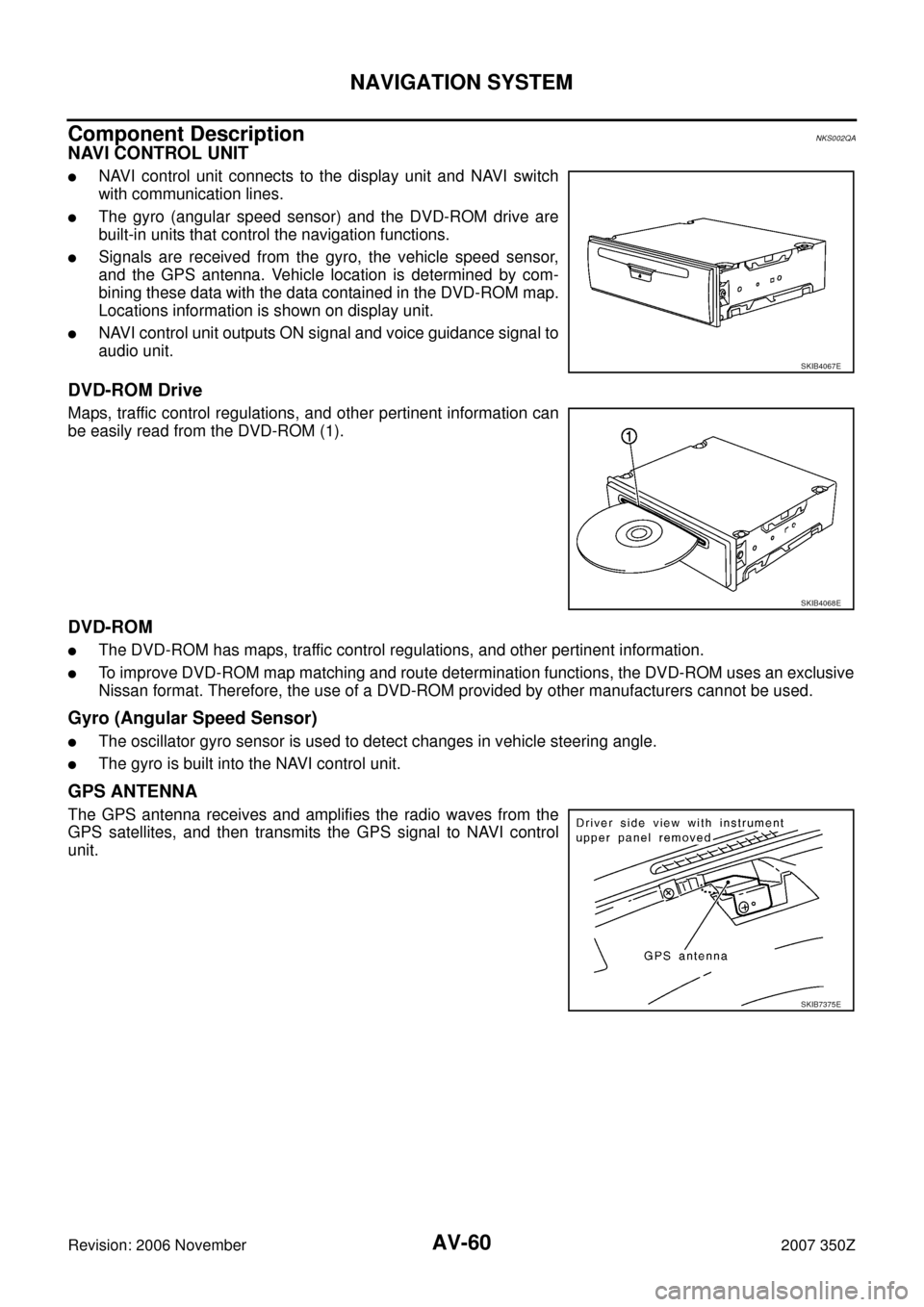

Removal and Installation of NAVI Control Unit ........ 98
REMOVAL ............................................................ 98
INSTALLATION .................................................... 98
Removal and Installation of GPS Antenna .............. 98
REMOVAL ............................................................ 98
INSTALLATION .................................................... 98
Removal and Installation of NAVI Switch ................ 99
REMOVAL ............................................................ 99
INSTALLATION .................................................... 99
Removal and Installation of Display Unit ................ 99
REMOVAL ............................................................ 99
INSTALLATION .................................................... 99
TELEPHONE ...........................................................100
System Description ...............................................100
HANDS-FREE PHONE SYSTEM ......................100
Component Parts Location ...................................101
Location of TEL Antenna ......................................102
Schematic .............................................................103
Wiring Diagram — H/PHONE — ...........................104
Terminals and Reference Value for TEL Adapter
Unit ........................................................................110
Self-Diagnosis Function ........................................ 111
DIAGNOSIS FUNCTION OPERATION PROCE-
DURE .................................................................112
ERROR ITEM (ERROR NAME) .........................113
VEHICLE SPEED SIGNAL ................................113
MICROPHONE TEST ........................................113
Symptom Chart .....................................................114
Component Inspection ..........................................115
STEERING SWITCH .........................................115
Removal and Installation of Telephone Microphone .115
REMOVAL ..........................................................115
INSTALLATION ..................................................115

AUDIO
AV-31
C
D
E
F
G
H
I
J
L
MA
B
AV
Revision: 2006 November2007 350Z

*1: With M/T without navigation system and VDC system

*2: Except *1

*3: With navigation system 20 (L/B) 19 (R/B)Voice guidance
signal
*3Input ON Press “VOICE” button
21 (R/G) 23 (Y/G)Remote control signal
AInput ONPress and hold MODE
switchApprox. 0 V
Press and hold SEEK UP
switchApprox. 1.7 V
Press and hold VOLUME
UP switchApprox. 3.3 V
Except for above Approx. 5 V
22 (OR) 23 (Y/G)Remote control signal
BInput ONPress and hold POWER
switchApprox. 0 V
Press and hold SEEK
DOWN switchApprox. 1.7 V
Press and hold VOLUME
DOWN switchApprox. 3.3 V
Except for above Approx. 5 V
23 (Y/G) GroundRemote control
ground— ON — Approx. 0 V Terminal
(Wire color)
ItemSignal
input/
outputCondition
Reference value
+–Ignition
switchOperation
SKIB3597E

AV-34
AUDIO
Revision: 2006 November2007 350Z

*1: With telephone system

*2: Without telephone system

*3: With navigation system

*4: With satellite radio35 (B) 43 (W)Satellite radio audio
signal RH
*4Input ONReceive satellite radio audio
signal
36 (R) 44 (G)Satellite radio audio
signal LH
*4Input ONReceive satellite radio audio
signal
38 (W/R) GroundCommunication signal
Rx (SAT-AUDIO)
*4Input ONWhen setting to satellite
radio mode
39 (L) GroundCommunication signal
REQ (SAT-AUDIO)
*4Input ONWhen setting to satellite
radio mode
41 —
Shield
*4—— — —
42 —
Shield
*4—— — — Te r m i n a l
(Wire color)
ItemSignal
input/
outputCondition
Reference value
+–Ignition
switchOperation
SKIB3609E
SKIB3609E
SKIB7337E
SKIB7338E

NAVIGATION SYSTEM
AV-57
C
D
E
F
G
H
I
J
L
MA
B
AV
Revision: 2006 November2007 350Z
NAVIGATION SYSTEMPFP:25915
System DescriptionNKS000CX
For Navigation System operation information, refer to Navigation System Owner's Manual.
LOCATION DETECTION PRINCIPLE
The navigation system periodically calculates the vehicle's current
position according to the following three signals:

Travel distance of the vehicle as determined by the vehicle
speed sensor

Turning angle of the vehicle as determined by the gyroscope
(angular velocity sensor)

Direction of vehicle travel as determined by the GPS antenna
(GPS information)
The current position of the vehicle is then identified by comparing the
calculated vehicle position with map data read from the DVD-ROM,
which is stored in the DVD-ROM drive (map-matching), and indi-
cated on the screen as a current-location mark. More accurate data is judged and used by comparing vehicle
position detection results found by the GPS with the result by map-matching.
The current vehicle position will be calculated by detecting the dis-
tance the vehicle moved from the previous calculation point and its
direction.

Travel distance
Travel distance calculations are based on the vehicle speed
sensor input signal. Therefore, the calculation may become
incorrect as the tires wear down. To prevent this, an automatic
distance correction function has been adopted.

Travel direction
Change in the travel direction of the vehicle is calculated by a
gyroscope (angular velocity sensor) and a GPS antenna (GPS
information). They have both advantages and disadvantages.
More accurate traveling direction is detected because priorities are set for the signals from these two
devices according to the situation.
SKIB1058E
SEL684V
Type Advantage Disadvantage
Gyroscope (angular velocity sen-
sor)Can detect the vehicle's turning angle quite
accurately.Direction errors may accumulate when vehicle is
driven for long distances without stopping.
GPS antenna (GPS information)Can detect the vehicle's travel direction
(North/South/East/West).Correct direction cannot be detected when vehi-
cle speed is low.

AV-58
NAVIGATION SYSTEM
Revision: 2006 November2007 350Z
MAP-MATCHING
Map-matching compares a current location detected by the method
in the “Location Detection Principle” with a road map data from DVD-
ROM stored in DVD-ROM drive.
NOTE:
The road map data is based on data stored in the DVD-ROM.
The vehicle position may not be corrected under the following circumstances and after driving for a certain
time when GPS information is difficult to receive. In this case, the current-location mark on the display must be
corrected manually.

In map-matching, alternative routes to reach the destination will
be shown and prioritized, after the road on which the vehicle is
currently driven has been judged and the current-location mark
has been repositioned.
If there is an error in distance and/or direction, alternative routes
will be shown in different order of priority, and the incorrect road
can be avoided.
If two roads are running in parallel, they are of the same priority.
Therefore, the current-location mark may appear on either of
them alternately, depending on maneuvering of the steering
wheel and configuration of the road.

Map-matching does not function correctly when a road on which
the vehicle is driving is new and not recorded in the DVD-ROM,
or when road pattern stored in the map data and the actual road
pattern are different due to repair.
When driving on a road not present in the map, the map-match-
ing function may find another road and position the current-loca-
tion mark on it. Then, when the correct road is detected, the
current-location mark may change to it.

Effective range for comparing the vehicle position and travel
direction calculated by the distance and direction with the road
data read from the DVD-ROM is limited. Therefore, when there
is an excessive gap between current vehicle position and the
position on the map, correction by map-matching is not possible.
SEL685V
SEL686V
SKIA0613E

NAVIGATION SYSTEM
AV-59
C
D
E
F
G
H
I
J
L
MA
B
AV
Revision: 2006 November2007 350Z
GPS (GLOBAL POSITIONING SYSTEM)
GPS (Global Positioning System) was developed for and is con-
trolled by the US Department of Defense. The system utilizes GPS
satellites (NAVSTAR), sending out radio waves while flying on an
orbit around the earth at an altitude of approximately 21,000 km
(13,100 miles).
The GPS receiver calculates the vehicle's position in three dimen-
sions (latitude/longitude/altitude) according to the time lag of the
radio waves received from four or more GPS satellites (three-dimen-
sional positioning). If radio waves were received only from three
GPS satellites, the GPS receiver calculates the vehicle's position in
two dimensions (latitude/longitude), and utilize the altitude data cal-
culated previously with radio waves from four or more GPS satellites
(two-dimensional positioning).
Position correction by GPS is not available while the vehicle is stopped.
Accuracy of GPS will deteriorate under the following conditions:

In two-dimensional positioning, GPS accuracy will deteriorate when altitude of the vehicle position
changes.

The accuracy can be even lower depending on the arrangement of the GPS satellites utilized for the posi-
tioning.

Position detection is not possible when vehicle is in an area where radio waves from the GPS satellite do
not reach, such as in a tunnel, parking lot in a building, and under an elevated highway. Radio waves from
the GPS satellites may not be received when some object is located over the GPS antenna.
NOTE:

Even a high-precision three dimensional positioning, the detection result has an error about 10 m (30ft).

Because the signals of GPS satellite is controlled by the Tracking and Control Center in the United States,
the accuracy may be degraded lower intentionally or the radio waves may stop.
SEL526V

AV-60
NAVIGATION SYSTEM
Revision: 2006 November2007 350Z
Component DescriptionNKS002QA
NAVI CONTROL UNIT

NAVI control unit connects to the display unit and NAVI switch
with communication lines.

The gyro (angular speed sensor) and the DVD-ROM drive are
built-in units that control the navigation functions.

Signals are received from the gyro, the vehicle speed sensor,
and the GPS antenna. Vehicle location is determined by com-
bining these data with the data contained in the DVD-ROM map.
Locations information is shown on display unit.

NAVI control unit outputs ON signal and voice guidance signal to
audio unit.
DVD-ROM Drive
Maps, traffic control regulations, and other pertinent information can
be easily read from the DVD-ROM (1).
DVD-ROM

The DVD-ROM has maps, traffic control regulations, and other pertinent information.

To improve DVD-ROM map matching and route determination functions, the DVD-ROM uses an exclusive
Nissan format. Therefore, the use of a DVD-ROM provided by other manufacturers cannot be used.
Gyro (Angular Speed Sensor)

The oscillator gyro sensor is used to detect changes in vehicle steering angle.

The gyro is built into the NAVI control unit.
GPS ANTENNA
The GPS antenna receives and amplifies the radio waves from the
GPS satellites, and then transmits the GPS signal to NAVI control
unit.
SKIB4067E
SKIB4068E
SKIB7375E
