2007 BMW MOTORRAD K 1200 GT Rider's Manual (in English)

Underneath the seat1Front-seat height adjust-
ment ( 62)
2 Oil dipstick ( 107),
Engine-oil filler neck
( 109)
3 Brake-fluid reservoir, rear
( 112)
4 Helmet holder ( 76)
5 Rider's Manual
6 Toolkit ( 106)
215zGeneral views

Handlebar fitting, left1Cruise-control system
OE
( 63)
2 Operating ESA
OE
( 69)
3 Operating ASC
OE
( 61)
4 Windscreen adjustment
( 63)
5 Horn
6 Flashing turn indicators,
left ( 56), Hazard warn-
ing flashers ( 57)
7 High-beam headlight and
headlight flasher ( 56)
216zGeneral views

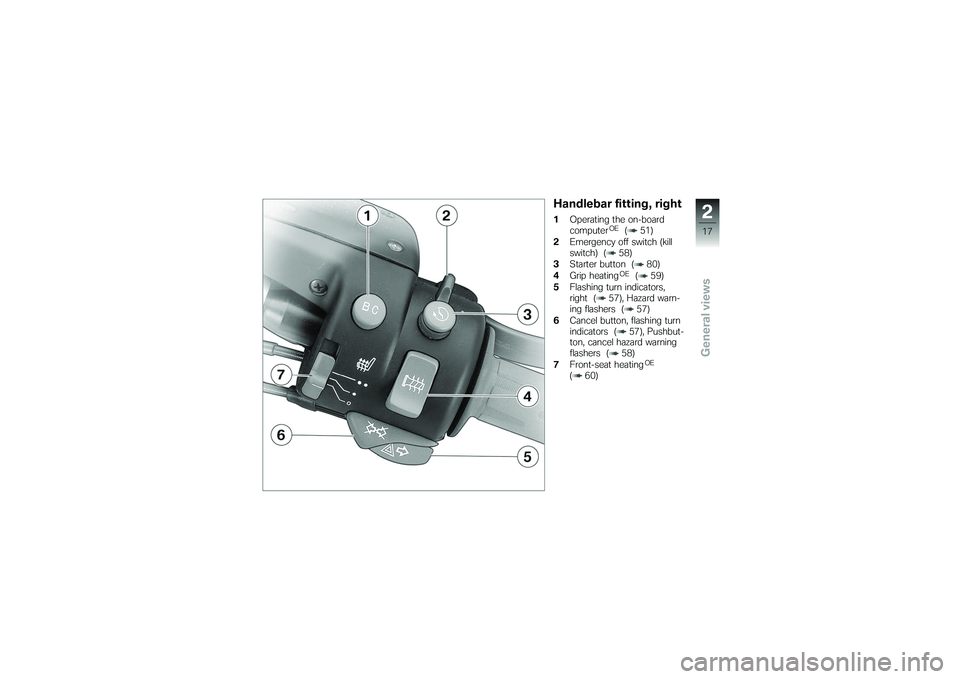

Handlebar fitting, right1Operating the on-board
computer
OE
( 51)
2 Emergency off switch (kill
switch) ( 58)
3 Starter button ( 80)
4 Grip heatingOE
( 59)
5 Flashing turn indicators,
right ( 57), Hazard warn-
ing flashers ( 57)
6 Cancel button, flashing turn
indicators ( 57), Pushbut-
ton, cancel hazard warning
flashers ( 58)
7 Front-seat heatingOE
( 60)
217zGeneral views

Instrument cluster1Speedometer
2 Telltale lights ( 22)
3 Multifunction display
( 22)
4 Rev. counter
5 Telltale light, anti-theft alarm
(OE)
6 Set the clock ( 49)
Adjust the dimmer ( 51)
7 Select the odometer
( 49)
Reset the tripmeter ( 50)
8 Sensor for instrument light-
ing
The instrument-cluster
lighting has automatic day
and night switchover.
218zGeneral views

Headlight1Side lights
2 Low-beam headlight
3 High-beam headlight
219zGeneral views

220zGeneral views

Status indicators
Status indicators
Standard status indicators........... 22
Status indicators with on-board com-
puter
OE
.............................. 23
Status indicators with tyre-pressure
monitoring (RDC)
OE
................. 24
Status indicators with seat heat-
ing
OE
................................ 24
Telltale light with cruise con-
trol
OE
................................ 25
Standard warnings . . ................. 25
Warnings issued by the on-board
computer
OE
......................... 30
ABS warnings ....................... 32
ASC warningsOE
..................... 34
RDC warnings
OE
.................... 36
Anti-theft alarm warnings
OE
......... 41
321zStatus indicators

Standard status
indicatorsMultifunction display1Fuel capacity ( 22)
2 Gear indicator ( 22)
3 Coolant temperature
( 22)
4 Clock ( 49)
5 Odometer
6 Trip meter ( 49)
Telltale lights1Flashing turn indicators, left
2 High-beam headlight
3 Idle
4 Flashing turn indicators,
rightFuel capacity
The column below the fuel-
pump symbol indicates the
remaining quantity of fuel.
When the fuel in the tank is
topped up the gauge briefly
shows the original level, before
the reading is updated.
Gear indicator
The gear engaged or
N
for neutral appears on the
display.
If no gear is engaged, the
'neutral' telltale light also
lights up.
Coolant temperature
The column below the tem-
perature symbol indicates
the coolant temperature.
Service-due indicatorIf the next service is due in less
than one month, the date for
322zStatus indicators
