2007 BMW MOTORRAD K 1200 GT cruise control

Table of ContentsYou can also consult the index at
the end of this Rider's Manual if
you want to find a particular topic
or item of information.
1 General instructions . . . . . 5
Overview ...................... 6
Abbreviations and symbols . . . . 6
Equipment . . . . . . .............. 7
Technical data . . .............. 7
Currency . ..................... 7
2 General views . . . . . . . . . . . . . 9
General view, left side . . . . . . . . 11
General view, right side . . . . . . 13
Underneath the seat ......... 15
Handlebar fitting, left ......... 16
Handlebar fitting, right . . . . . . . . 17
Instrument cluster . . . ......... 18
Headlight . .................... 19 3 Status indicators . . . . . . . 21
Standard status
indicators .
.................... 22
Status indicators with on-
board computer
OE
........... 23
Status indicators with
tyre-pressure monitoring
(RDC)
OE...................... 24
Status indicators with seat
heatingOE
.................... 24
Telltale light with cruise con-
trol
OE
........................ 25
Standard warnings . . ......... 25
Warnings issued by the on-
board computer
OE
........... 30
ABS warnings . . . ............. 32
ASC warnings
OE
............. 34
RDC warnings
OE
............. 36
Anti-theft alarm
warnings
OE................... 41 4 Operation . . . . . . . . . . . . . . . . 45
Ignition switch and steering
lock . .
........................ 47
Electronic immobiliser . . . . . . . . 48
Clock . . . . . .................... 49
Odometer and tripmeters . . . . 49
Multifunction display ......... 51
On-board computer
OE
....... 51
Tyre pressure monitoring
RDC
OE
....................... 54
Lights . . . . .................... 55
Turn indicators . . ............. 56
Hazard warning flashers . . . . . . 57
Emergency off switch (kill
switch) . . . .................... 58
Grip heating
OE
............... 59
Seat heatingOE............... 60
Automatic Stability Control
ASC
OE
....................... 61
Seat height . . . . . . ............. 62
Windscreen . . . . . ............. 63
Cruise-control system
OE
..... 63
Stowage compartment . . . . . . . 66
Clutch . . . . .................... 66

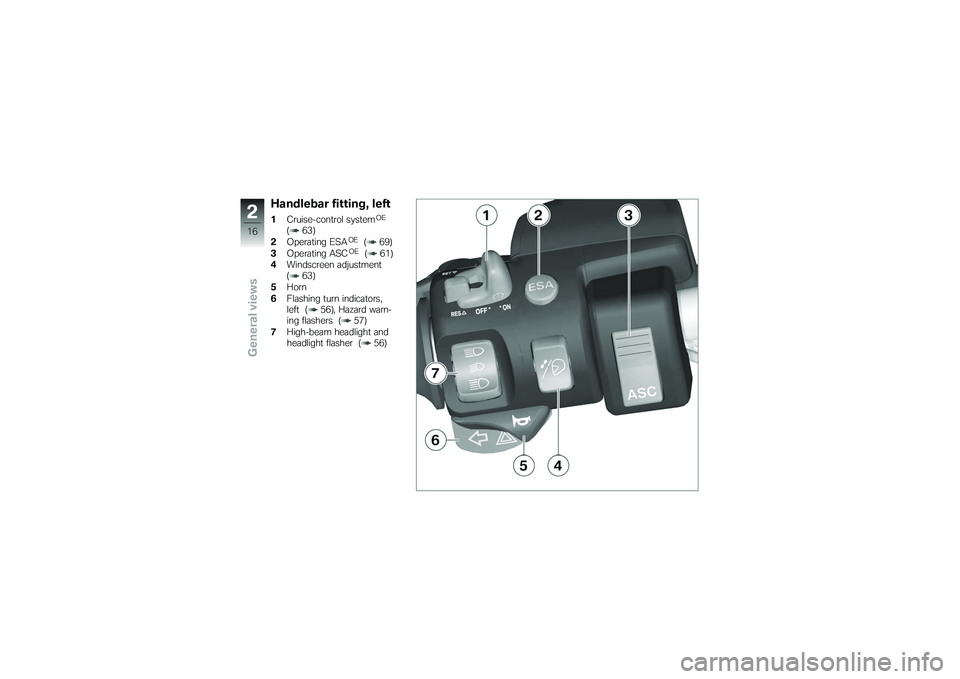

Handlebar fitting, left1Cruise-control system
OE
( 63)
2 Operating ESA
OE
( 69)
3 Operating ASC
OE
( 61)
4 Windscreen adjustment
( 63)
5 Horn
6 Flashing turn indicators,
left ( 56), Hazard warn-
ing flashers ( 57)
7 High-beam headlight and
headlight flasher ( 56)
216zGeneral views

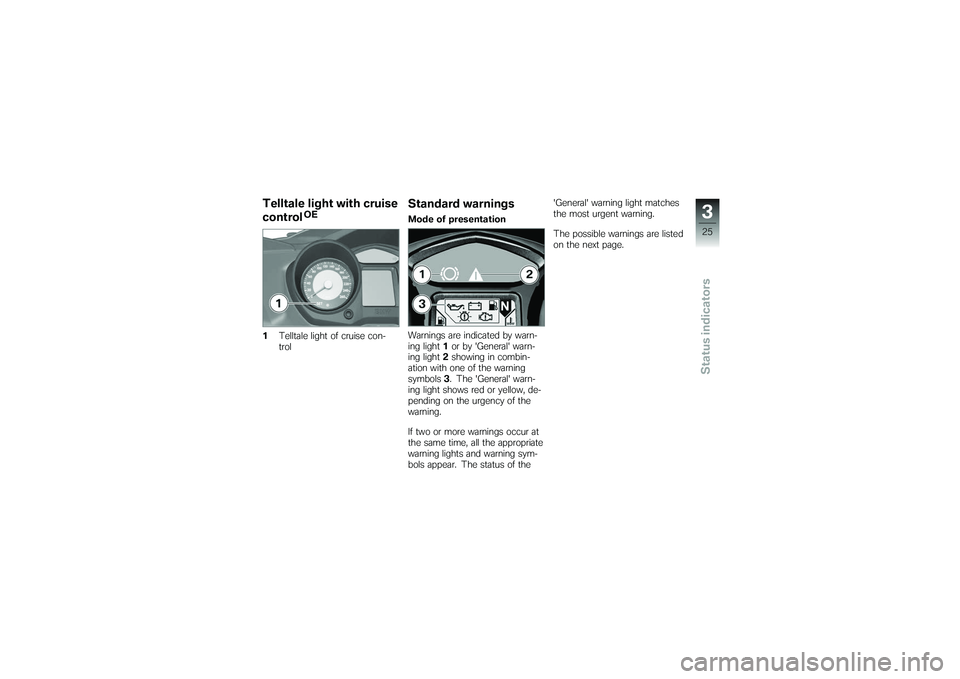

Telltale light with cruise
control
OE
1 Telltale light of cruise con-
trol
Standard warningsMode of presentation
Warnings are indicated by warn-
ing light 1or by 'General' warn-
ing light 2showing in combin-
ation with one of the warning
symbols 3. The 'General' warn-
ing light shows red or yellow, de-
pending on the urgency of the
warning.
If two or more warnings occur at
the same time, all the appropriate
warning lights and warning sym-
bols appear. The status of the 'General' warning light matches
the most urgent warning.
The possible warnings are listed
on the next page.
325zStatus indicators

Operation
Operation
Ignition switch and steering lock..... 47
Electronic immobiliser . . . ............ 48
Clock ................................ 49
Odometer and tripmeters ............ 49
Multifunction display ................. 51
On-board computer
OE
............... 51
Tyre pressure monitoring
RDC
OE
.............................. 54
Lights ................................ 55
Turn indicators ....................... 56
Hazard warning flashers . . ............ 57
Emergency off switch (kill switch) . . . . 58
Grip heating
OE
....................... 59
Seat heatingOE
...................... 60 Automatic Stability Control
ASC
OE
.............................. 61
Seat height . . . ....................... 62
Windscreen . . . ....................... 63
Cruise-control system
OE
............. 63
Stowage compartment . ............. 66
Clutch . . ............................. 66
Brakes . . ............................. 67
Handlebars . . . ....................... 67
Mirrors . . ............................. 68
Spring preload ....................... 68
Damping ............................. 69
Electronic Suspension Adjustment
ESA
OE
............................... 69
Tyres . . . ............................. 72
445zOperation

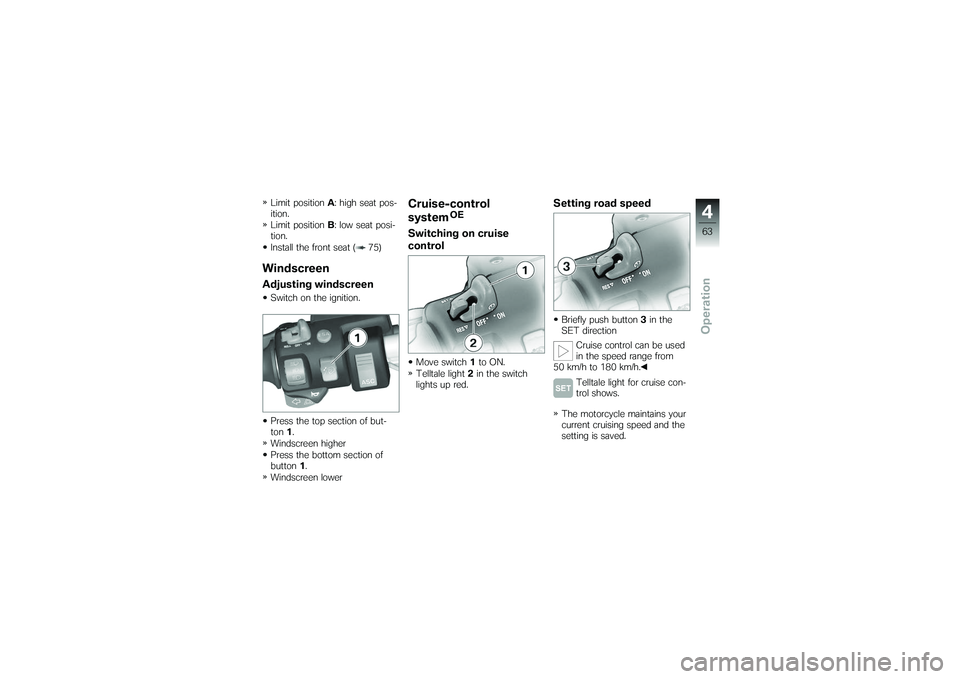

Limit positionA: high seat pos-
ition.
Limit position B: low seat posi-
tion.
Install the front seat ( 75)WindscreenAdjusting windscreenSwitch on the ignition.
Press the top section of but-
ton 1.
Windscreen higher
Press the bottom section of
button 1.
Windscreen lower
Cruise-control
system
OE
Switching on cruise
controlMove switch 1to ON.
Telltale light 2in the switch
lights up red.
Setting road speedBriefly push button 3in the
SET direction
Cruise control can be used
in the speed range from
50 km/h to 180 km/h.
Telltale light for cruise con-
trol shows.
The motorcycle maintains your
current cruising speed and the
setting is saved.
463zOperation

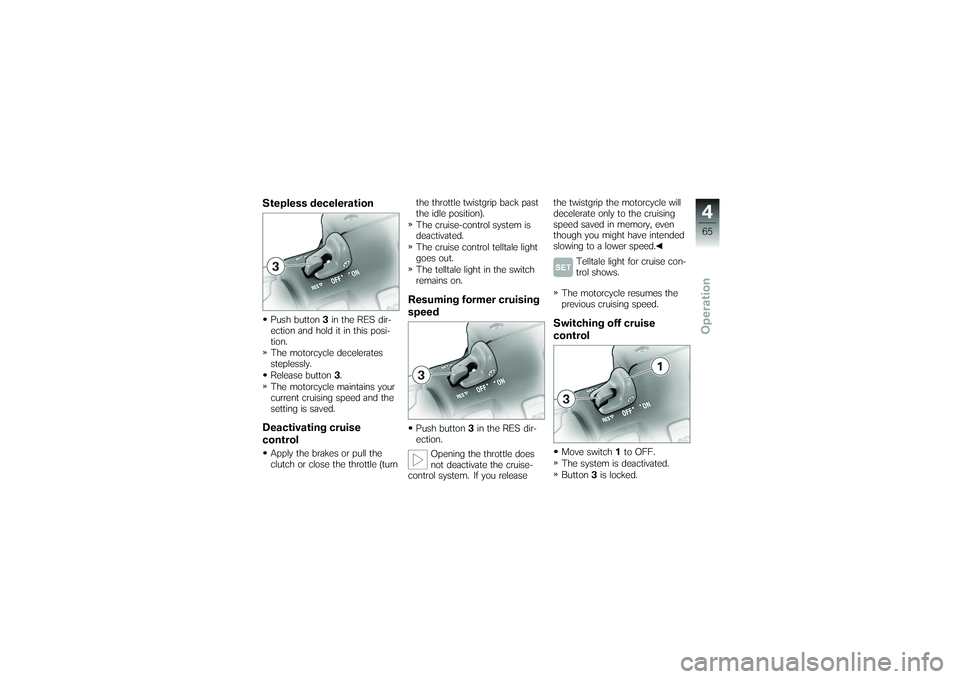

Stepless decelerationPush button3in the RES dir-
ection and hold it in this posi-
tion.
The motorcycle decelerates
steplessly.
Release button 3.
The motorcycle maintains your
current cruising speed and the
setting is saved.Deactivating cruise
controlApply the brakes or pull the
clutch or close the throttle (turn the throttle twistgrip back past
the idle position).
The cruise-control system is
deactivated.
The cruise control telltale light
goes out.
The telltale light in the switch
remains on.
Resuming former cruising
speedPush button
3in the RES dir-
ection.
Opening the throttle does
not deactivate the cruise-
control system. If you release the twistgrip the motorcycle will
decelerate only to the cruising
speed saved in memory, even
though you might have intended
slowing to a lower speed.
Telltale light for cruise con-
trol shows.
The motorcycle resumes the
previous cruising speed.
Switching off cruise
controlMove switch 1to OFF.
The system is deactivated.
Button 3is locked.
465zOperation

ASC self-diagnosis is per-
formed. ( 82)
Press starter button1.
If ambient temperatures are
very low, you might find it
necessary to open the throttle
slightly when starting the engine.
At ambient temperatures below
0 °C, disengage the clutch after
switching on the ignition.
The start attempt is auto-
matically interrupted if bat-
tery voltage is too low. Recharge
the battery before you start the engine, or use jump leads and a
donor battery to start.
The engine starts.
Consult the troubleshooting
chart below if the engine re-
fuses to start. ( 142)
Pre-ride checkThe instrument cluster runs a
test of the 'General' warning light
when the ignition is switched
on: this is the "Pre-Ride-Check"
The warning light shows first red
and then yellow, so that you can
check that it is in working order.
The test is aborted if you start
the engine before it completes.
Phase 1 General warning light shows
red.CHECK!
appears on the dis-
play. Phase 2
General warning light shows
yellow.
CHECK!
appears on the dis-
play.
If the motorcycle is
equipped with cruise
control, SET lights up.
If the 'General' warning light does
not show:
Some malfunctions cannot
be indicated if the 'Gener-
al' warning light cannot be dis-
played.
Check that the 'General' warning
light comes on, and that it shows
red and yellow.
Have the fault rectified as
quickly as possible by a
specialist workshop, preferably
an authorised BMW Motorrad
dealer.
581zRiding

Cruise-control system, 16Operation, 63
Telltale light, 25
Currency, 7
D
Damping Adjusting for rear wheel, 69
Dimensions Technical data, 152
E
Electrics Technical data, 150
Emergency off switch (kill switch), 17, 58
Engine Starting, 80
Technical data, 145
Warning, engine electronics, 27
Engine oil Filler neck, 15
Oil dipstick, 15
Technical data, 146
Test, 107
Topping up, 107 Warning, engine oil level, 32
Warning, engine oil
pressure, 28
Equipment, 7
ESA, 16, 69 Adjust spring preload, 71
Adjust suspension damping, 71
Call up the settings, 70
EWS, 48 Warning, 27
F
Frame Technical data, 152
Front seat Adjusting, 15
Heating, 17
Front-wheel stand Installing, 121
Fuel Quantity reading, 22
Refuelling, 87
Technical data, 146
Warning, fuel down to
reserve, 27
Fuses, 150 G
Gear indicator, 22
Grip heating, 17, 59
H
Handlebar fittings
General view, left side, 16
General view, right side, 17
Handlebars Adjusting, 67
Hazard warning flashers, 16, 17 Switching off, 58
Switching on, 57
Headlight Adjustment for driving on left/
driving on right, 72
Beam throw, 73
High-beam headlight, 19
Low-beam headlight, 19
Side lights, 19
Helmet holder, 15, 76
High-beam headlight, 16
Horn, 16
