2007 BMW MOTORRAD K 1200 GT Rider's Manual (in English)

Ignition switch and
steering lockKeysYou receive one master key and
one spare key. Please consult
the information on the electronic
immobiliser (EWS) if a key is lost
or mislaid ( 48).
Ignition switch and steering lock,
tank filler cap lock and the seat
and case locks are all operated
with the same key.
with OA Topcase:
If you wish you can arrange to
have the topcase fitted with a
lock that can be opened with this
key as well. Consult a specialist
workshop, preferably an author-
ised BMW Motorrad dealer.
Switching on ignitionTurn the key to position1.
Side light and all function cir-
cuits switched on.
Engine can be started.
Pre-ride check is performed.
( 81)
ABS self-diagnosis is
performed. ( 82)
with OE ASC: Turn the key to position 1.
ASC self-diagnosis is
performed in addition to
the checks outlined above.
( 82)
Switching off ignitionTurn the key to position 2.
Lights switched off.
Handlebars not locked.
Key can be removed.
Electrically powered accessor-
ies remain operational for a lim-
ited period of time.
The battery can be recharged
via the on-board socket.
447zOperation

Locking handlebars
If the motorcycle is on the
side stand, the surface of
the ground will determine wheth-
er it is better to turn the handle-
bars to the left or right. However,
the motorcycle is more stable on
a level surface with the handle-
bars turned to the left than with
the handlebars turned to the
right.
On level ground, always turn the
handlebars to the left to set the
steering lock.
Turn the handlebars to the full
left or right lock position. Turn the key to position
3,
while moving the handlebars
slightly.
Ignition, lights and all function
circuits switched off.
Handlebars locked.
Key can be removed.
Electronic immobiliserProtection against theftThe electronic immobiliser helps
protect your BMW motorcycle
from theft, and this enhanced se-
curity is at your disposal without
any need for you to set paramet-
ers or activate additional systems.
The engine of a motorcycle fit-
ted with this electronic immobil-
iser can be started only with the
keys that belong to the vehicle.
You can also have your author-
ised BMW Motorrad dealer bar
individual keys, for example if a
particular key goes missing. The engine cannot be started with a
key that has been barred.
In-key electronicsThe motorcycle's electronics
exchange certain continuously
changing signals with the elec-
tronics in the key; these signals
are specific to your motorcycle
and they are transmitted via the
ring aerial in the ignition lock.
The ignition is not enabled for
starting until the key has been
recognised as "authorised" for
your motorcycle.
A spare key attached to
the same ring as the ig-
nition key used to start the en-
gine could "irritate" the electron-
ics, in which case the enabling
signal for starting is not issued.
The
EWS
warning appears in the
multifunction display.
Always keep the spare key sep-
arately from the ignition key.
448zOperation

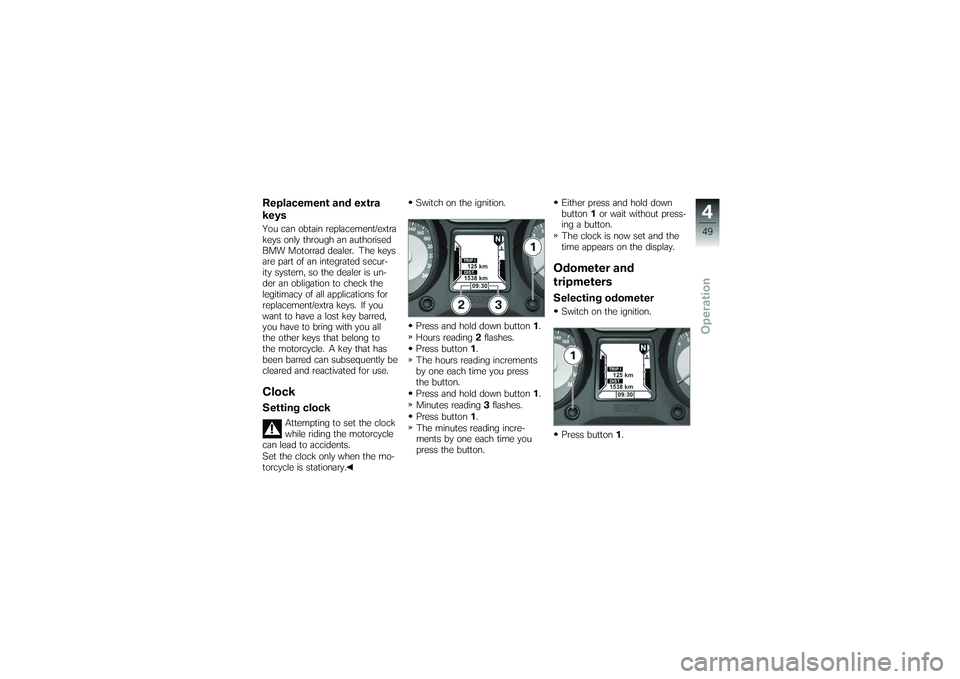

Replacement and extra
keysYou can obtain replacement/extra
keys only through an authorised
BMW Motorrad dealer. The keys
are part of an integrated secur-
ity system, so the dealer is un-
der an obligation to check the
legitimacy of all applications for
replacement/extra keys. If you
want to have a lost key barred,
you have to bring with you all
the other keys that belong to
the motorcycle. A key that has
been barred can subsequently be
cleared and reactivated for use.ClockSetting clock
Attempting to set the clock
while riding the motorcycle
can lead to accidents.
Set the clock only when the mo-
torcycle is stationary. Switch on the ignition.
Press and hold down button
1.
Hours reading 2flashes.
Press button 1.
The hours reading increments
by one each time you press
the button.
Press and hold down button 1.
Minutes reading 3flashes.
Press button 1.
The minutes reading incre-
ments by one each time you
press the button. Either press and hold down
button
1or wait without press-
ing a button.
The clock is now set and the
time appears on the display.
Odometer and
tripmetersSelecting odometerSwitch on the ignition.
Press button 1.
449zOperation

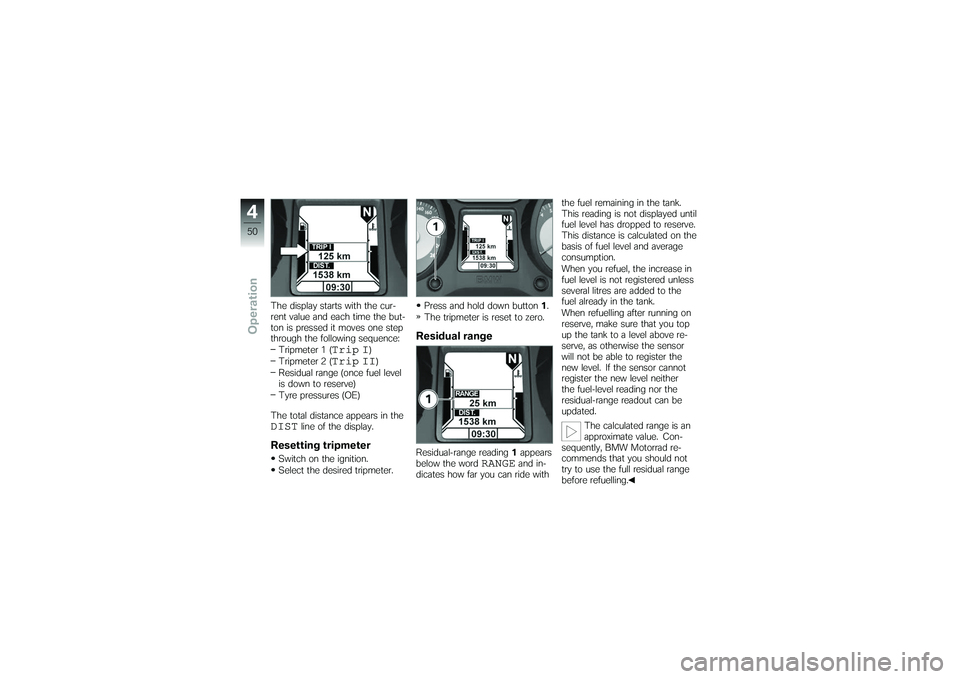

The display starts with the cur-
rent value and each time the but-
ton is pressed it moves one step
through the following sequence:Tripmeter 1 (
Trip I
)
Tripmeter 2 (
Trip II
)
Residual range (once fuel level
is down to reserve)
Tyre pressures (OE)
The total distance appears in the
DIST
line of the display.
Resetting tripmeterSwitch on the ignition.
Select the desired tripmeter. Press and hold down button
1.
The tripmeter is reset to zero.
Residual rangeResidual-range reading 1appears
below the word
RANGE
and in-
dicates how far you can ride with the fuel remaining in the tank.
This reading is not displayed until
fuel level has dropped to reserve.
This distance is calculated on the
basis of fuel level and average
consumption.
When you refuel, the increase in
fuel level is not registered unless
several litres are added to the
fuel already in the tank.
When refuelling after running on
reserve, make sure that you top
up the tank to a level above re-
serve, as otherwise the sensor
will not be able to register the
new level. If the sensor cannot
register the new level neither
the fuel-level reading nor the
residual-range readout can be
updated.
The calculated range is an
approximate value. Con-
sequently, BMW Motorrad re-
commends that you should not
try to use the full residual range
before refuelling.
450zOperation

Multifunction displayAdjusting dimmer
Attempting to adjust the
dimmer while riding the
motorcycle can lead to accidents.
Do not attempt to adjust the
dimmer unless the motorcycle
is at a standstill.
Press button 1.
The level of dimming appears
in display field 2.
Press button 1again.
The brightness of the dis-
play increases one level each
time you press the button. Each time you press the button
after maximum brightness is
reached, brightness is reduced
by one level.
On-board computer
OE
Selecting readingsSwitch on the ignition.
Press button
1. The display starts with the cur-
rent value and each time the but-
ton is pressed it moves one step
through the following sequence:
Ambient temperature
Range
Average speed
Average consumption
Oil level
Tyre pressures (OE)
451zOperation

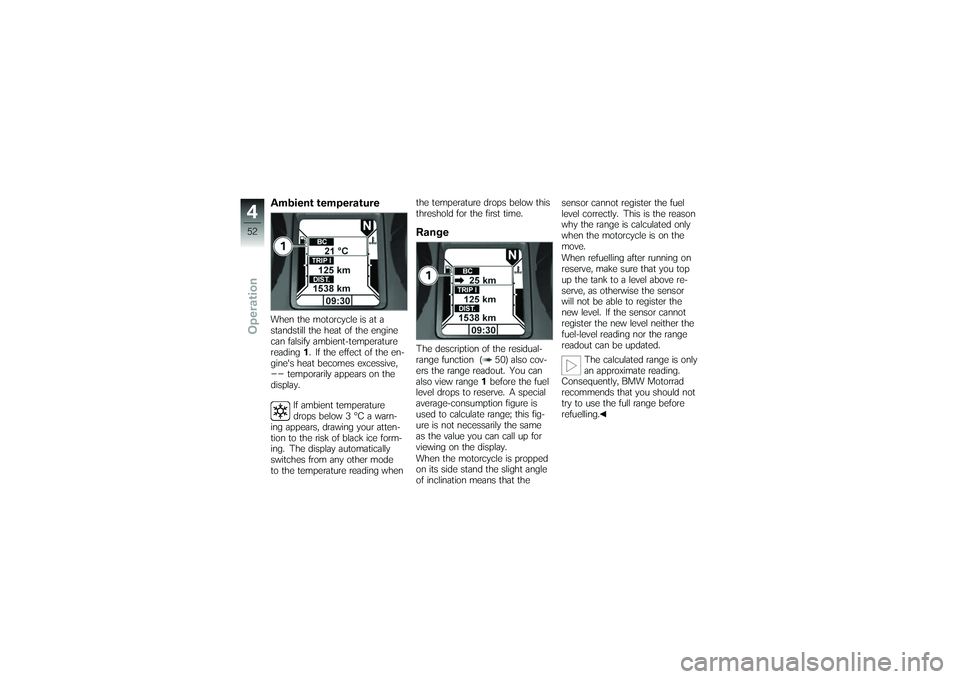

Ambient temperatureWhen the motorcycle is at a
standstill the heat of the engine
can falsify ambient-temperature
reading1. If the effect of the en-
gine's heat becomes excessive,--
temporarily appears on the
display.
If ambient temperature
drops below 3 °C a warn-
ing appears, drawing your atten-
tion to the risk of black ice form-
ing. The display automatically
switches from any other mode
to the temperature reading when the temperature drops below this
threshold for the first time.
RangeThe description of the residual-
range function ( 50) also cov-
ers the range readout. You can
also view range
1before the fuel
level drops to reserve. A special
average-consumption figure is
used to calculate range; this fig-
ure is not necessarily the same
as the value you can call up for
viewing on the display.
When the motorcycle is propped
on its side stand the slight angle
of inclination means that the sensor cannot register the fuel
level correctly. This is the reason
why the range is calculated only
when the motorcycle is on the
move.
When refuelling after running on
reserve, make sure that you top
up the tank to a level above re-
serve, as otherwise the sensor
will not be able to register the
new level. If the sensor cannot
register the new level neither the
fuel-level reading nor the range
readout can be updated.
The calculated range is only
an approximate reading.
Consequently, BMW Motorrad
recommends that you should not
try to use the full range before
refuelling.
452zOperation

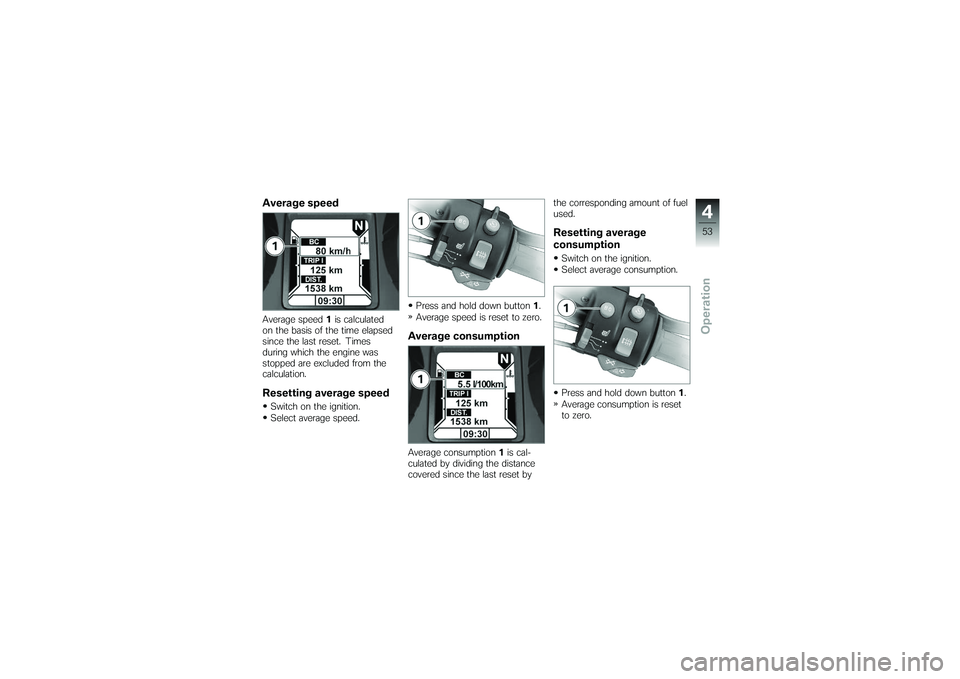

Average speedAverage speed1is calculated
on the basis of the time elapsed
since the last reset. Times
during which the engine was
stopped are excluded from the
calculation.Resetting average speedSwitch on the ignition.
Select average speed. Press and hold down button
1.
Average speed is reset to zero.
Average consumptionAverage consumption 1is cal-
culated by dividing the distance
covered since the last reset by the corresponding amount of fuel
used.
Resetting average
consumptionSwitch on the ignition.
Select average consumption.
Press and hold down button
1.
Average consumption is reset
to zero.
453zOperation

Oil levelOil-level indicator1gives you
an indication of the engine oil
level. You can call up this read-
ing only when the motorcycle is
at a standstill.
The preconditions for the oil level
check are as follows:
Engine at operating temperat-
ure.
Engine idling for at least 30
seconds.
Side stand retracted.
Make sure the motorcycle is
upright. The readings mean:
Oil level is correct
Check the oil level with the
dipstick the next time you
stop for fuel. If you call up anoth-
er reading on the on-board com-
puter, this symbol remains visible
until the sensor again registers a
correct oil level.
Oil level cannot be meas-
ured (conditions as stated
above not satisfied).
The most recently measured
level is displayed for 5 seconds
when you next switch on the ig-
nition.
The oil sensor might be
defective if the "Check
oil level" message reappears
even though the oil level in the
oil sight glass is correct. In this
case, consult your authorised
BMW Motorrad dealer.
Tyre pressure
monitoring RDC
OE
Viewing tyre-pressure
readingsSwitch on the ignition.
Repeatedly press button 1un-
til the tyre pressures appear
in the odometer panel of the
display.
454zOperation
