2007 BMW MOTORRAD K 1200 GT Rider's Manual (in English)

Battery
Battery, manufacturer and designationGEL 19
Battery type Gel battery
Battery rated voltage 12 V
Battery rated capacity 19 Ah
Technical data
Spark plugs, manufacturer and designation NGK KR9CI
Electrode gap of spark plug 0.8 mm
Lighting
Bulb for high-beam headlight H7 / 12 V / 55 W
Bulb for low-beam headlight H7 / 12 V / 55 W
with OE Xenon lights: D2R / 35 W
Bulb for parking light W5W / 12 V / 5 W
Bulb for tail light/brake light P21W / 12 V / 21 W
Bulbs for flashing turn indicators, front H21W / 12 V / 21 W
Bulbs for flashing turn indicators, rear P21W / 12 V / 21 W
10151zTechnical data

FrameFrame typeLight alloy weldment with bolt-on tubular steel
rear frame
Type plate location Frame cross-tube, rear
VIN location Frame side section, front rightDimensionsLength of motorcycle2318 mm
Width of motorcycle 982 mm, Across mirrors
Height of motorcycle 1438 mm, At DIN unladen weight
Front-seat height 820 mm, Without rider
with OE Front seat, low: 800 mm, Without rider
10152zTechnical data

WeightsUnladen weight288 kg, DIN unladen weight, ready for road, 90 %
load of fuel, without optional extras
Permissible gross weight 520 kg
Maximum payload max 238 kgRiding specificationsTop speed>200 km/h
10153zTechnical data

10154zTechnical data

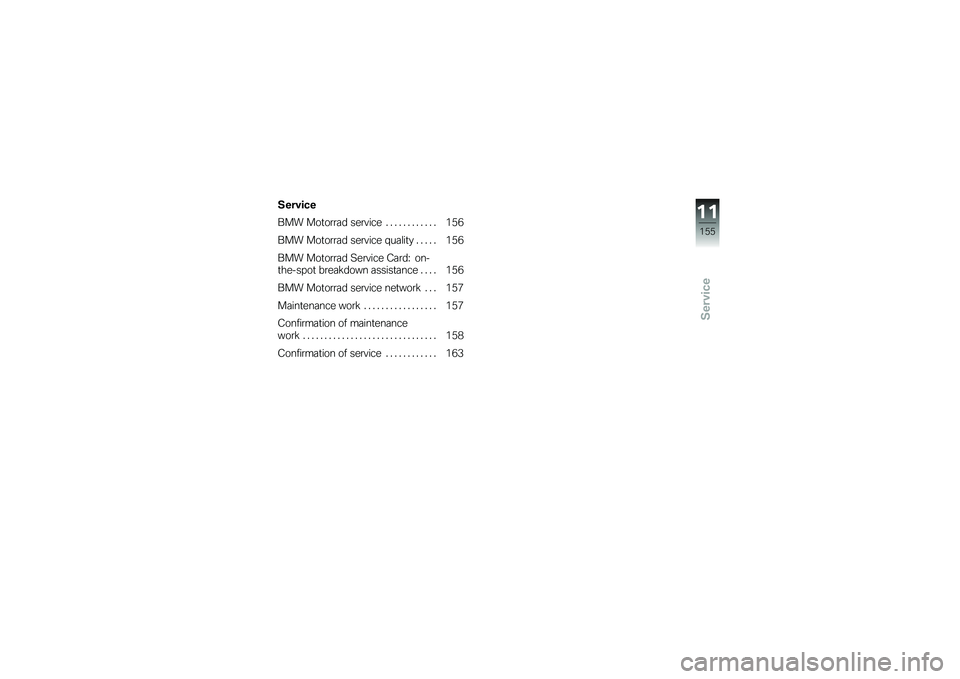

Service
Service
BMW Motorrad service . ........... 156
BMW Motorrad service quality ..... 156
BMW Motorrad Service Card: on-
the-spot breakdown assistance .... 156
BMW Motorrad service network . . . 157
Maintenance work . . ............... 157
Confirmation of maintenance
work ............................... 158
Confirmation of service . . .......... 163
11155zService

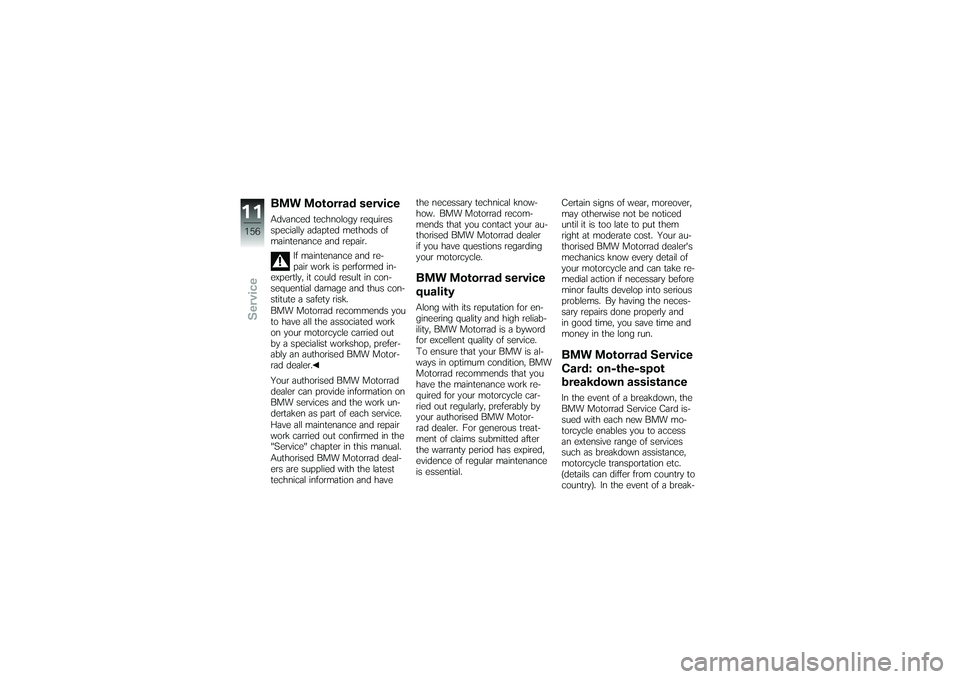

BMW Motorrad serviceAdvanced technology requires
specially adapted methods of
maintenance and repair.If maintenance and re-
pair work is performed in-
expertly, it could result in con-
sequential damage and thus con-
stitute a safety risk.
BMW Motorrad recommends you
to have all the associated work
on your motorcycle carried out
by a specialist workshop, prefer-
ably an authorised BMW Motor-
rad dealer.
Your authorised BMW Motorrad
dealer can provide information on
BMW services and the work un-
dertaken as part of each service.
Have all maintenance and repair
work carried out confirmed in the
"Service" chapter in this manual.
Authorised BMW Motorrad deal-
ers are supplied with the latest
technical information and have the necessary technical know-
how. BMW Motorrad recom-
mends that you contact your au-
thorised BMW Motorrad dealer
if you have questions regarding
your motorcycle.
BMW Motorrad service
qualityAlong with its reputation for en-
gineering quality and high reliab-
ility, BMW Motorrad is a byword
for excellent quality of service.
To ensure that your BMW is al-
ways in optimum condition, BMW
Motorrad recommends that you
have the maintenance work re-
quired for your motorcycle car-
ried out regularly, preferably by
your authorised BMW Motor-
rad dealer. For generous treat-
ment of claims submitted after
the warranty period has expired,
evidence of regular maintenance
is essential.
Certain signs of wear, moreover,
may otherwise not be noticed
until it is too late to put them
right at moderate cost. Your au-
thorised BMW Motorrad dealer's
mechanics know every detail of
your motorcycle and can take re-
medial action if necessary before
minor faults develop into serious
problems. By having the neces-
sary repairs done properly and
in good time, you save time and
money in the long run.
BMW Motorrad Service
Card: on-the-spot
breakdown assistanceIn the event of a breakdown, the
BMW Motorrad Service Card is-
sued with each new BMW mo-
torcycle enables you to access
an extensive range of services
such as breakdown assistance,
motorcycle transportation etc.
(details can differ from country to
country). In the event of a break-
11156zService

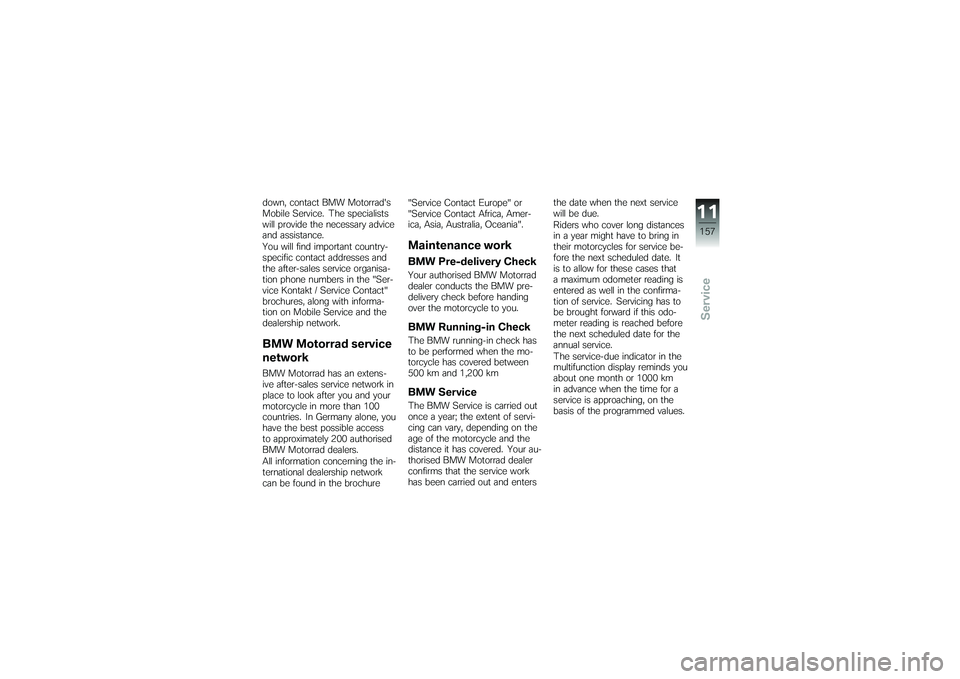

down, contact BMW Motorrad's
Mobile Service. The specialists
will provide the necessary advice
and assistance.
You will find important country-
specific contact addresses and
the after-sales service organisa-
tion phone numbers in the "Ser-
vice Kontakt / Service Contact"
brochures, along with informa-
tion on Mobile Service and the
dealership network.BMW Motorrad service
networkBMW Motorrad has an extens-
ive after-sales service network in
place to look after you and your
motorcycle in more than 100
countries. In Germany alone, you
have the best possible access
to approximately 200 authorised
BMW Motorrad dealers.
All information concerning the in-
ternational dealership network
can be found in the brochure"Service Contact Europe" or
"Service Contact Africa, Amer-
ica, Asia, Australia, Oceania".
Maintenance workBMW Pre-delivery CheckYour authorised BMW Motorrad
dealer conducts the BMW pre-
delivery check before handing
over the motorcycle to you.BMW Running-in CheckThe BMW running-in check has
to be performed when the mo-
torcycle has covered between
500 km and 1,200 kmBMW ServiceThe BMW Service is carried out
once a year; the extent of servi-
cing can vary, depending on the
age of the motorcycle and the
distance it has covered. Your au-
thorised BMW Motorrad dealer
confirms that the service work
has been carried out and enters
the date when the next service
will be due.
Riders who cover long distances
in a year might have to bring in
their motorcycles for service be-
fore the next scheduled date. It
is to allow for these cases that
a maximum odometer reading is
entered as well in the confirma-
tion of service. Servicing has to
be brought forward if this odo-
meter reading is reached before
the next scheduled date for the
annual service.
The service-due indicator in the
multifunction display reminds you
about one month or 1000 km
in advance when the time for a
service is approaching, on the
basis of the programmed values.
11157zService

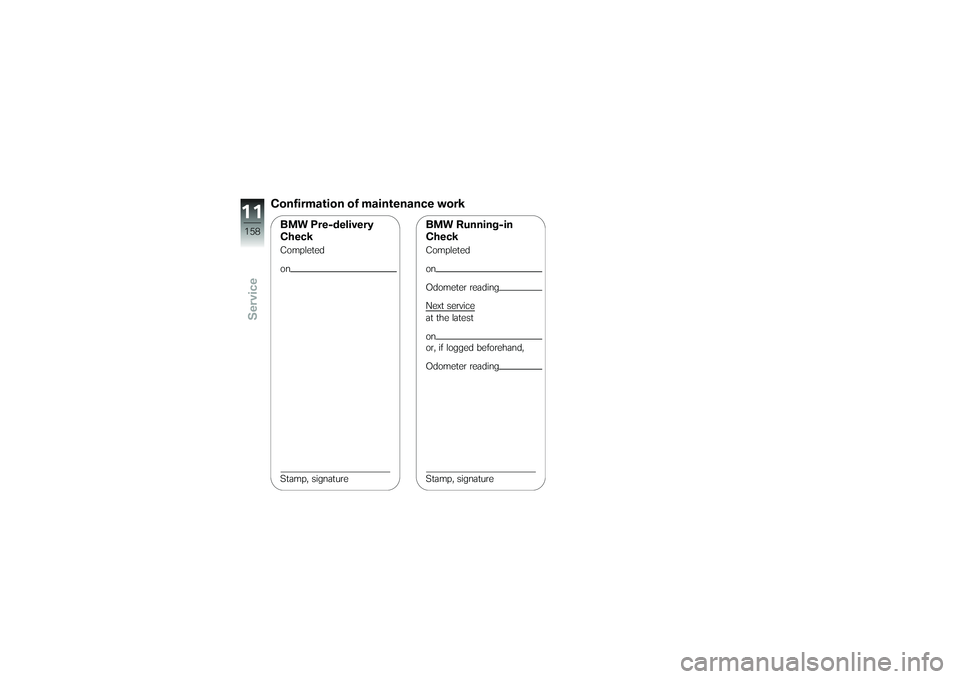

Confirmation of maintenance workBMW Pre-delivery
CheckCompleted
on
Stamp, signature
BMW Running-in
CheckCompleted
on
Odometer reading
Next service
at the latest
on
or, if logged beforehand,
Odometer reading
Stamp, signature
