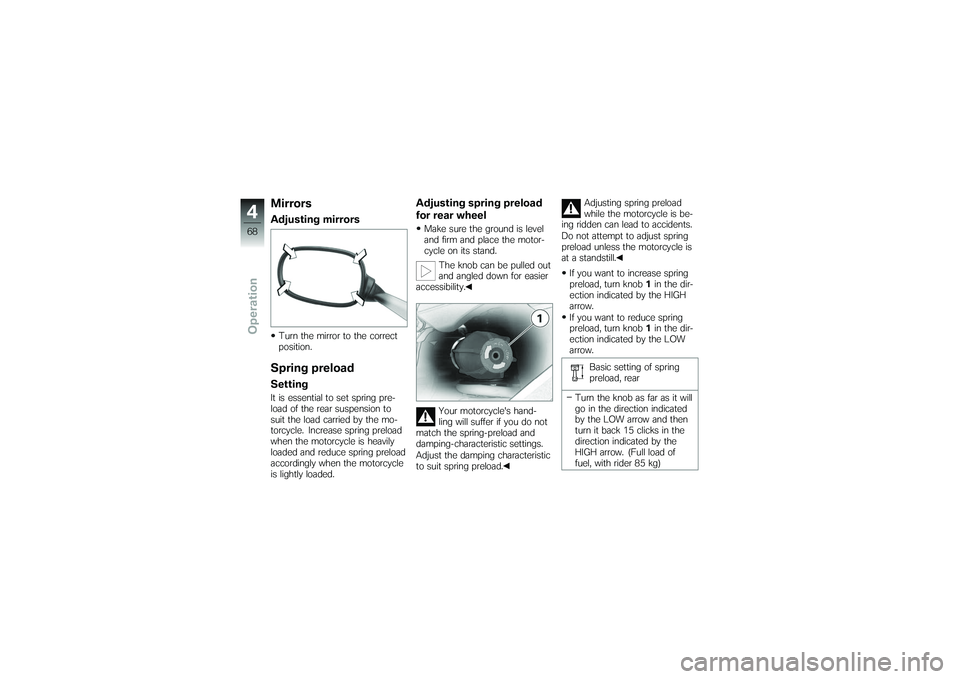

MirrorsAdjusting mirrorsTurn the mirror to the correct
position.Spring preloadSettingIt is essential to set spring pre-
load of the rear suspension to
suit the load carried by the mo-
torcycle. Increase spring preload
when the motorcycle is heavily
loaded and reduce spring preload
accordingly when the motorcycle
is lightly loaded.
Adjusting spring preload
for rear wheelMake sure the ground is level
and firm and place the motor-
cycle on its stand.The knob can be pulled out
and angled down for easier
accessibility.
Your motorcycle's hand-
ling will suffer if you do not
match the spring-preload and
damping-characteristic settings.
Adjust the damping characteristic
to suit spring preload. Adjusting spring preload
while the motorcycle is be-
ing ridden can lead to accidents.
Do not attempt to adjust spring
preload unless the motorcycle is
at a standstill.
If you want to increase spring
preload, turn knob 1in the dir-
ection indicated by the HIGH
arrow.
If you want to reduce spring
preload, turn knob 1in the dir-
ection indicated by the LOW
arrow.
Basic setting of spring
preload, rear
Turn the knob as far as it will
go in the direction indicated
by the LOW arrow and then
turn it back 15 clicks in the
direction indicated by the
HIGH arrow. (Full load of
fuel, with rider 85 kg)
468zOperation
FrameFrame typeLight alloy weldment with bolt-on tubular steel
rear frame
Type plate location Frame cross-tube, rear
VIN location Frame side section, front rightDimensionsLength of motorcycle2318 mm
Width of motorcycle 982 mm, Across mirrors
Height of motorcycle 1438 mm, At DIN unladen weight
Front-seat height 820 mm, Without rider
with OE Front seat, low: 800 mm, Without rider
