2006 MERCEDES-BENZ SPRINTER sensor

Component Page
Cigar Lighter...................... 8W-80-30
Cigar Lighter Lamp................. 8W-80-30
Circulation Pump (Cabin Heater
Module)........................ 8W-80-31
Circulation Pump (Rest System)........ 8W-80-31
Circulation Pump Diode.............. 8W-80-31
Clockspring C1..................... 8W-80-31
Clockspring C2..................... 8W-80-31
Controller Antilock Brake............. 8W-80-32
Courtesy Lamp-Driver Door........... 8W-80-33
Courtesy Lamp-Left Sliding Door....... 8W-80-33
Courtesy Lamp-Passenger Door........ 8W-80-33
Courtesy Lamp-Right Sliding Door...... 8W-80-33
Crankcase Heater................... 8W-80-34
Crankshaft Position Sensor........... 8W-80-34
CTEL Antenna Connector............. 8W-80-34
CTEL Connector.................... 8W-80-34
Cylinder Lock Switch-Driver.......... 8W-80-35
Data Link Connector................ 8W-80-35
Differential Lock Solenoid Valve........ 8W-80-35
Dome Lamp....................... 8W-80-35
Door Lock Motor/Ajar Switch
Assembly-Driver C1............... 8W-80-36
Door Lock Motor/Ajar Switch
Assembly-Driver C2............... 8W-80-36
Door Lock Motor/Ajar Switch
Assembly-Left Sliding C1........... 8W-80-36
Door Lock Motor/Ajar Switch
Assembly-Left Sliding C2........... 8W-80-36
Door Lock Motor/Ajar Switch
Assembly-Passenger C1............ 8W-80-36
Door Lock Motor/Ajar Switch
Assembly-Passenger C2............ 8W-80-37
Door Lock Motor/Ajar Switch
Assembly-Rear C1................ 8W-80-37
Door Lock Motor/Ajar Switch
Assembly-Rear C2................ 8W-80-37
Door Lock Motor/Ajar Switch
Assembly-Right Sliding C1.......... 8W-80-37
Door Lock Motor/Ajar Switch
Assembly-Right Sliding C2.......... 8W-80-37
Dosing Pump...................... 8W-80-38
EGR Valve........................ 8W-80-38
Electrohydraulic Control Unit......... 8W-80-38
Engine Control Module C1 (Except
OBD).......................... 8W-80-38
Engine Control Module C1 (OBD)...... 8W-80-39
Engine Control Module C2 (Except
OBD).......................... 8W-80-40
Engine Control Module C2 (OBD)...... 8W-80-41
Engine Control Module C3 (Except
OBD).......................... 8W-80-42
Engine Control Module C4 (Except
OBD).......................... 8W-80-43Component Page
Engine Control Module C5 (Except
OBD).......................... 8W-80-44
Engine Coolant Level Switch.......... 8W-80-44
Engine Coolant Temperature Sensor.... 8W-80-44
Engine Oil Sensor................... 8W-80-44
Evaporator Temperature Sensor........ 8W-80-45
Fog Lamp Switch................... 8W-80-45
Fuel Injector No. 1.................. 8W-80-45
Fuel Injector No. 2.................. 8W-80-45
Fuel Injector No. 3.................. 8W-80-46
Fuel Injector No. 4.................. 8W-80-46
Fuel Injector No. 5.................. 8W-80-46
Fuel Level Sensor................... 8W-80-46
Fuel Pressure Sensor................ 8W-80-47
Fuel Pressure Solenoid............... 8W-80-47
Fuel Pump (OBD)................... 8W-80-47
Fuel Pump Relay (OBD).............. 8W-80-47
Fuel Quantity Control Valve (OBD)..... 8W-80-47
Fuel Shutdown Solenoid.............. 8W-80-48
Fuel Temperature Sensor............. 8W-80-48
Fuse Block No. 1 C1................. 8W-80-48
Fuse Block No. 1 C2................. 8W-80-49
Fuse Block No. 1 C3................. 8W-80-49
Fuse Block No. 1 C4................. 8W-80-49
Fuse Block No. 1 C5................. 8W-80-49
Glow Plug Control Module C1......... 8W-80-50
Glow Plug Control Module C2......... 8W-80-50
Headlamp Adjust Switch............. 8W-80-50
Headlamp Assembly-Left............. 8W-80-51
Headlamp Assembly-Right............ 8W-80-51
Heated Seat Module-Driver........... 8W-80-51
Heated Seat Module-Passenger........ 8W-80-52
Heated Seat Switch-Driver............ 8W-80-52
Heated Seat Switch-Passenger......... 8W-80-52
Heater Timer-auxiliary............... 8W-80-53
High Idle Switch.................... 8W-80-53
Hood Ajar Switch................... 8W-80-53
Horn............................. 8W-80-54
Horn (VTSS)....................... 8W-80-54
Ignition Lock Switch................. 8W-80-54
Instrument Cluster C1............... 8W-80-54
Instrument Cluster C2............... 8W-80-55
Instrument Panel Socket............. 8W-80-55
Intake Air Pressure Sensor (OBD)...... 8W-80-55
Intake Air Temperature Sensor........ 8W-80-56
Interior Lamp No. 1................. 8W-80-56
Interior Lamp No. 2................. 8W-80-56
Interior Lamp No. 3................. 8W-80-56
Interior Lamp No. 4................. 8W-80-56
Interior Lamp No. 5................. 8W-80-57
Interior Lamp-Left.................. 8W-80-57
Interior Lamp-middle Front........... 8W-80-57
Interior Lamp-middle Rear............ 8W-80-57
Interior Lamp-Rear No. 1............. 8W-80-58
Interior Lamp-Rear No. 2............. 8W-80-58
8W - 80 - 2 8W-80 CONNECTOR PIN-OUTSVA

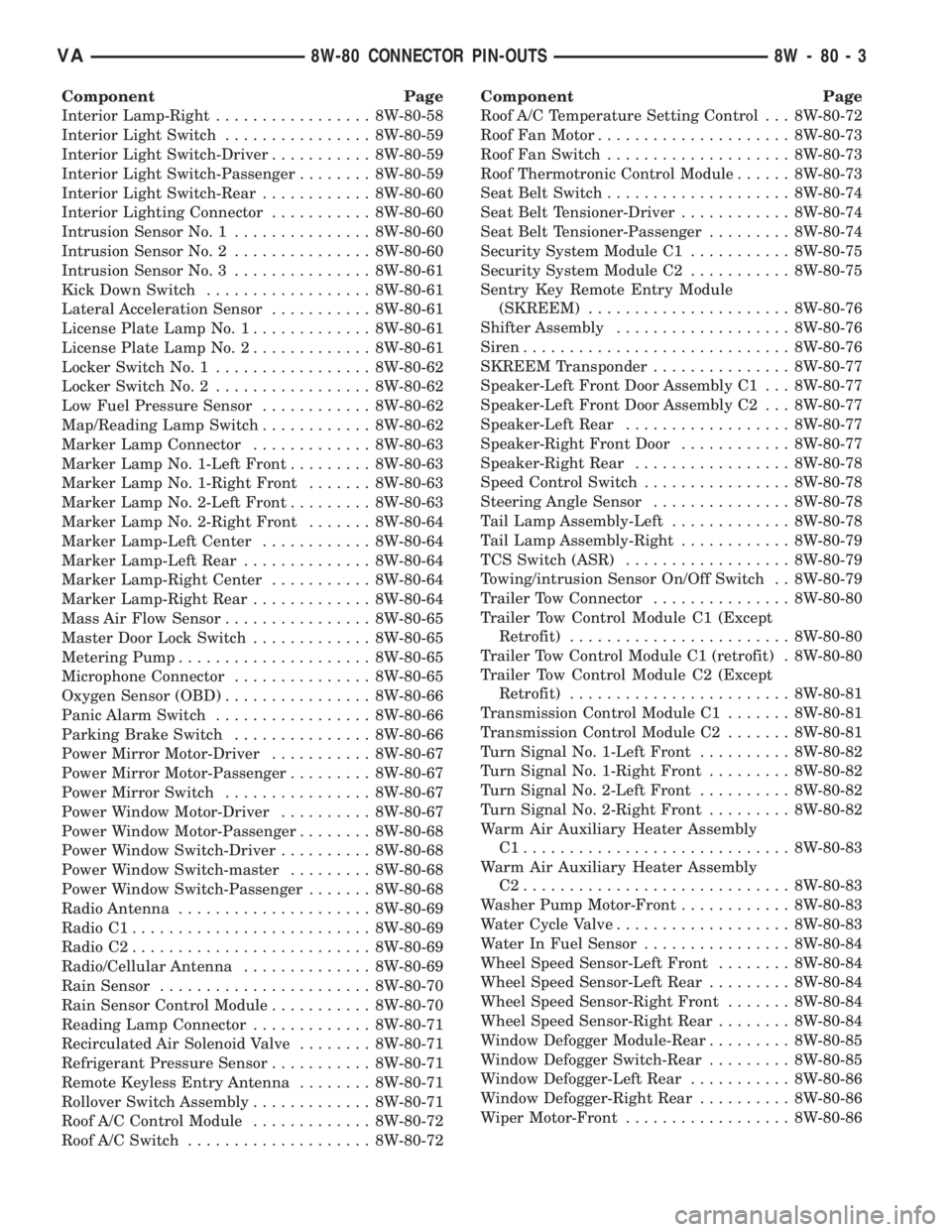

Component Page
Interior Lamp-Right................. 8W-80-58
Interior Light Switch................ 8W-80-59
Interior Light Switch-Driver........... 8W-80-59
Interior Light Switch-Passenger........ 8W-80-59
Interior Light Switch-Rear............ 8W-80-60
Interior Lighting Connector........... 8W-80-60
Intrusion Sensor No. 1............... 8W-80-60
Intrusion Sensor No. 2............... 8W-80-60
Intrusion Sensor No. 3............... 8W-80-61
Kick Down Switch.................. 8W-80-61
Lateral Acceleration Sensor........... 8W-80-61
License Plate Lamp No. 1............. 8W-80-61
License Plate Lamp No. 2............. 8W-80-61
Locker Switch No. 1................. 8W-80-62
Locker Switch No. 2................. 8W-80-62
Low Fuel Pressure Sensor............ 8W-80-62
Map/Reading Lamp Switch............ 8W-80-62
Marker Lamp Connector............. 8W-80-63
Marker Lamp No. 1-Left Front......... 8W-80-63
Marker Lamp No. 1-Right Front....... 8W-80-63
Marker Lamp No. 2-Left Front......... 8W-80-63
Marker Lamp No. 2-Right Front....... 8W-80-64
Marker Lamp-Left Center............ 8W-80-64
Marker Lamp-Left Rear.............. 8W-80-64
Marker Lamp-Right Center........... 8W-80-64
Marker Lamp-Right Rear............. 8W-80-64
Mass Air Flow Sensor................ 8W-80-65
Master Door Lock Switch............. 8W-80-65
Metering Pump..................... 8W-80-65
Microphone Connector............... 8W-80-65
Oxygen Sensor (OBD)................ 8W-80-66
Panic Alarm Switch................. 8W-80-66
Parking Brake Switch............... 8W-80-66
Power Mirror Motor-Driver........... 8W-80-67
Power Mirror Motor-Passenger......... 8W-80-67
Power Mirror Switch................ 8W-80-67
Power Window Motor-Driver.......... 8W-80-67
Power Window Motor-Passenger........ 8W-80-68
Power Window Switch-Driver.......... 8W-80-68
Power Window Switch-master......... 8W-80-68
Power Window Switch-Passenger....... 8W-80-68
Radio Antenna..................... 8W-80-69
Radio C1.......................... 8W-80-69
Radio C2.......................... 8W-80-69
Radio/Cellular Antenna.............. 8W-80-69
Rain Sensor....................... 8W-80-70
Rain Sensor Control Module........... 8W-80-70
Reading Lamp Connector............. 8W-80-71
Recirculated Air Solenoid Valve........ 8W-80-71
Refrigerant Pressure Sensor........... 8W-80-71
Remote Keyless Entry Antenna........ 8W-80-71
Rollover Switch Assembly............. 8W-80-71
Roof A/C Control Module............. 8W-80-72
Roof A/C Switch.................... 8W-80-72Component Page
Roof A/C Temperature Setting Control . . . 8W-80-72
Roof Fan Motor..................... 8W-80-73
Roof Fan Switch.................... 8W-80-73
Roof Thermotronic Control Module...... 8W-80-73
Seat Belt Switch.................... 8W-80-74
Seat Belt Tensioner-Driver............ 8W-80-74
Seat Belt Tensioner-Passenger......... 8W-80-74
Security System Module C1........... 8W-80-75
Security System Module C2........... 8W-80-75
Sentry Key Remote Entry Module
(SKREEM)...................... 8W-80-76
Shifter Assembly................... 8W-80-76
Siren............................. 8W-80-76
SKREEM Transponder............... 8W-80-77
Speaker-Left Front Door Assembly C1 . . . 8W-80-77
Speaker-Left Front Door Assembly C2 . . . 8W-80-77
Speaker-Left Rear.................. 8W-80-77
Speaker-Right Front Door............ 8W-80-77
Speaker-Right Rear................. 8W-80-78
Speed Control Switch................ 8W-80-78
Steering Angle Sensor............... 8W-80-78
Tail Lamp Assembly-Left............. 8W-80-78
Tail Lamp Assembly-Right............ 8W-80-79
TCS Switch (ASR).................. 8W-80-79
Towing/intrusion Sensor On/Off Switch . . 8W-80-79
Trailer Tow Connector............... 8W-80-80
Trailer Tow Control Module C1 (Except
Retrofit)........................ 8W-80-80
Trailer Tow Control Module C1 (retrofit) . 8W-80-80
Trailer Tow Control Module C2 (Except
Retrofit)........................ 8W-80-81
Transmission Control Module C1....... 8W-80-81
Transmission Control Module C2....... 8W-80-81
Turn Signal No. 1-Left Front.......... 8W-80-82
Turn Signal No. 1-Right Front......... 8W-80-82
Turn Signal No. 2-Left Front.......... 8W-80-82
Turn Signal No. 2-Right Front......... 8W-80-82
Warm Air Auxiliary Heater Assembly
C1............................. 8W-80-83
Warm Air Auxiliary Heater Assembly
C2............................. 8W-80-83
Washer Pump Motor-Front............ 8W-80-83
Water Cycle Valve................... 8W-80-83
Water In Fuel Sensor................ 8W-80-84
Wheel Speed Sensor-Left Front........ 8W-80-84
Wheel Speed Sensor-Left Rear......... 8W-80-84
Wheel Speed Sensor-Right Front....... 8W-80-84
Wheel Speed Sensor-Right Rear........ 8W-80-84
Window Defogger Module-Rear......... 8W-80-85
Window Defogger Switch-Rear......... 8W-80-85
Window Defogger-Left Rear........... 8W-80-86
Window Defogger-Right Rear.......... 8W-80-86
Wiper Motor-Front.................. 8W-80-86
VA8W-80 CONNECTOR PIN-OUTS 8W - 80 - 3

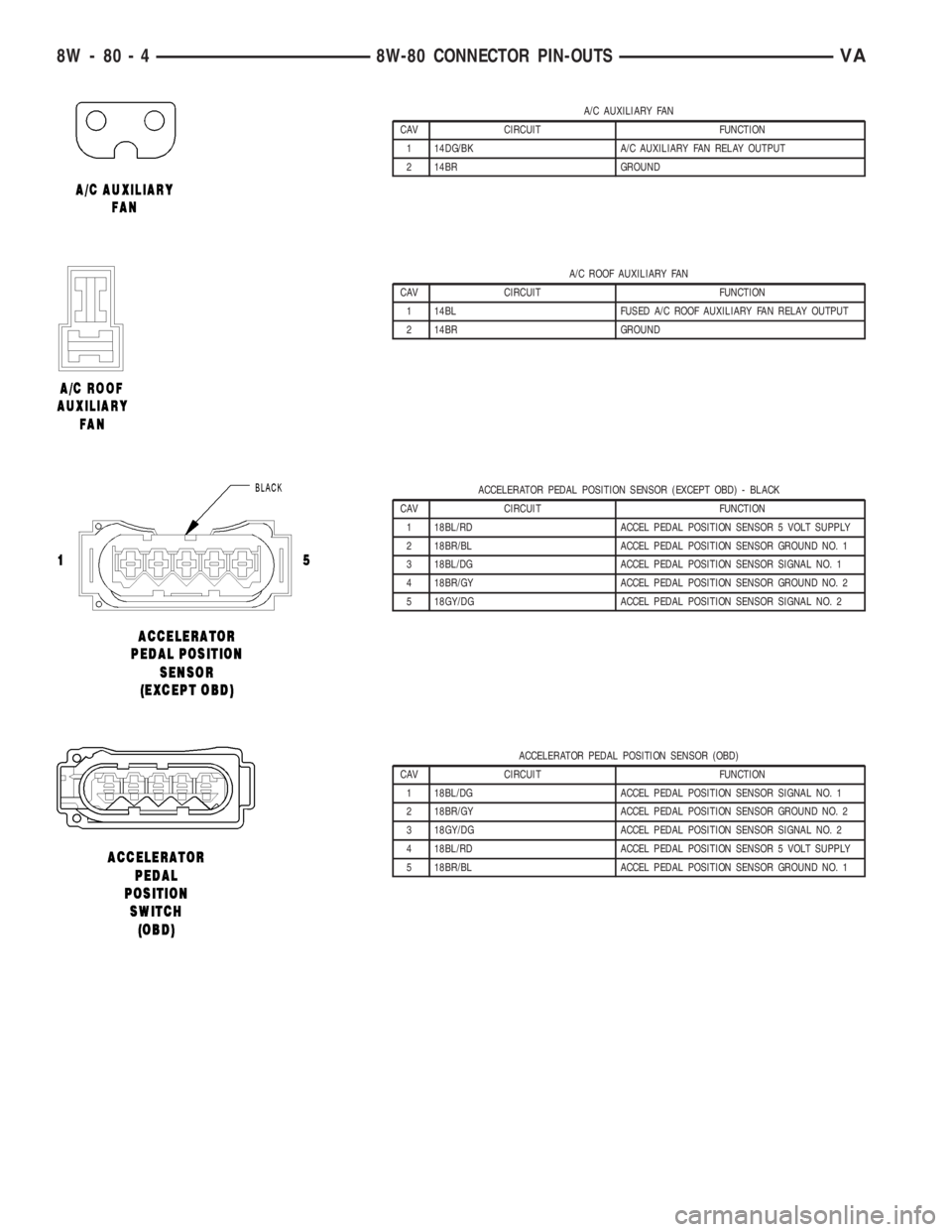

A/C AUXILIARY FAN
CAV CIRCUIT FUNCTION
1 14DG/BK A/C AUXILIARY FAN RELAY OUTPUT
2 14BR GROUND
A/C ROOF AUXILIARY FAN
CAV CIRCUIT FUNCTION
1 14BL FUSED A/C ROOF AUXILIARY FAN RELAY OUTPUT
2 14BR GROUND
ACCELERATOR PEDAL POSITION SENSOR (EXCEPT OBD) - BLACK
CAV CIRCUIT FUNCTION
1 18BL/RD ACCEL PEDAL POSITION SENSOR 5 VOLT SUPPLY
2 18BR/BL ACCEL PEDAL POSITION SENSOR GROUND NO. 1
3 18BL/DG ACCEL PEDAL POSITION SENSOR SIGNAL NO. 1
4 18BR/GY ACCEL PEDAL POSITION SENSOR GROUND NO. 2
5 18GY/DG ACCEL PEDAL POSITION SENSOR SIGNAL NO. 2
ACCELERATOR PEDAL POSITION SENSOR (OBD)
CAV CIRCUIT FUNCTION
1 18BL/DG ACCEL PEDAL POSITION SENSOR SIGNAL NO. 1
2 18BR/GY ACCEL PEDAL POSITION SENSOR GROUND NO. 2
3 18GY/DG ACCEL PEDAL POSITION SENSOR SIGNAL NO. 2
4 18BL/RD ACCEL PEDAL POSITION SENSOR 5 VOLT SUPPLY
5 18BR/BL ACCEL PEDAL POSITION SENSOR GROUND NO. 1
8W - 80 - 4 8W-80 CONNECTOR PIN-OUTSVA

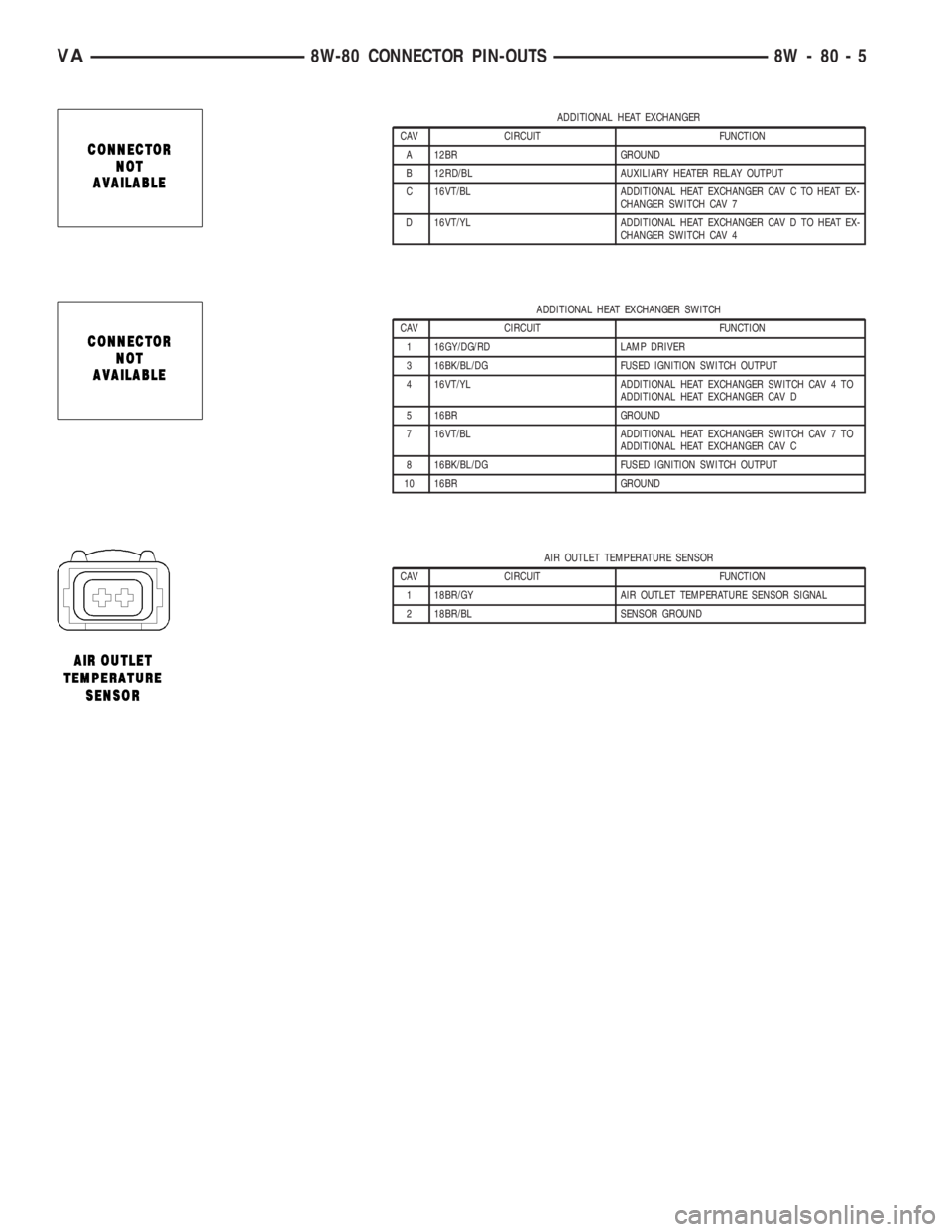

ADDITIONAL HEAT EXCHANGER
CAV CIRCUIT FUNCTION
A 12BR GROUND
B 12RD/BL AUXILIARY HEATER RELAY OUTPUT
C 16VT/BL ADDITIONAL HEAT EXCHANGER CAV C TO HEAT EX-
CHANGER SWITCH CAV 7
D 16VT/YL ADDITIONAL HEAT EXCHANGER CAV D TO HEAT EX-
CHANGER SWITCH CAV 4
ADDITIONAL HEAT EXCHANGER SWITCH
CAV CIRCUIT FUNCTION
1 16GY/DG/RD LAMP DRIVER
3 16BK/BL/DG FUSED IGNITION SWITCH OUTPUT
4 16VT/YL ADDITIONAL HEAT EXCHANGER SWITCH CAV 4 TO
ADDITIONAL HEAT EXCHANGER CAV D
5 16BR GROUND
7 16VT/BL ADDITIONAL HEAT EXCHANGER SWITCH CAV 7 TO
ADDITIONAL HEAT EXCHANGER CAV C
8 16BK/BL/DG FUSED IGNITION SWITCH OUTPUT
10 16BR GROUND
AIR OUTLET TEMPERATURE SENSOR
CAV CIRCUIT FUNCTION
1 18BR/GY AIR OUTLET TEMPERATURE SENSOR SIGNAL
2 18BR/BL SENSOR GROUND
VA8W-80 CONNECTOR PIN-OUTS 8W - 80 - 5

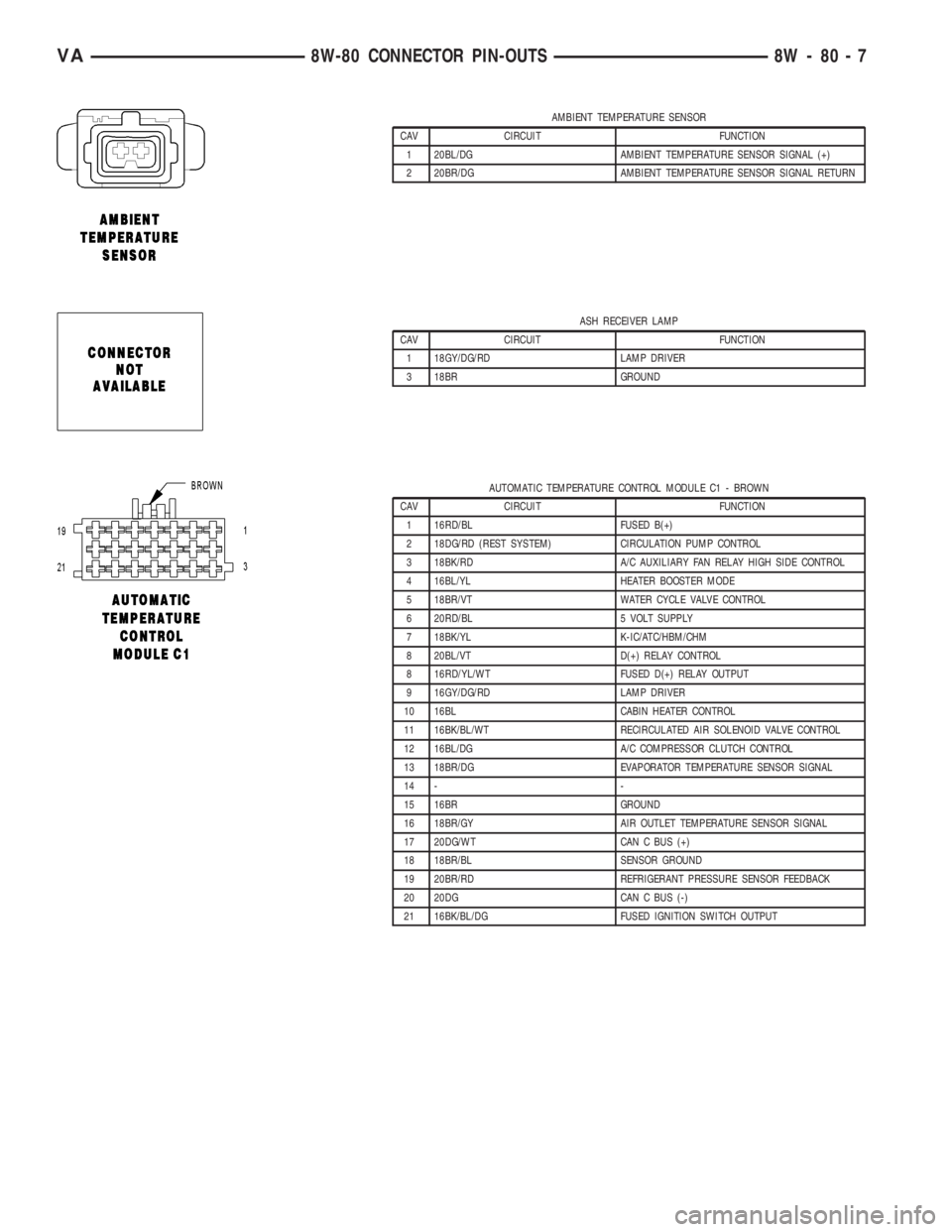

AMBIENT TEMPERATURE SENSOR
CAV CIRCUIT FUNCTION
1 20BL/DG AMBIENT TEMPERATURE SENSOR SIGNAL (+)
2 20BR/DG AMBIENT TEMPERATURE SENSOR SIGNAL RETURN
ASH RECEIVER LAMP
CAV CIRCUIT FUNCTION
1 18GY/DG/RD LAMP DRIVER
3 18BR GROUND
AUTOMATIC TEMPERATURE CONTROL MODULE C1 - BROWN
CAV CIRCUIT FUNCTION
1 16RD/BL FUSED B(+)
2 18DG/RD (REST SYSTEM) CIRCULATION PUMP CONTROL
3 18BK/RD A/C AUXILIARY FAN RELAY HIGH SIDE CONTROL
4 16BL/YL HEATER BOOSTER MODE
5 18BR/VT WATER CYCLE VALVE CONTROL
6 20RD/BL 5 VOLT SUPPLY
7 18BK/YL K-IC/ATC/HBM/CHM
8 20BL/VT D(+) RELAY CONTROL
8 16RD/YL/WT FUSED D(+) RELAY OUTPUT
9 16GY/DG/RD LAMP DRIVER
10 16BL CABIN HEATER CONTROL
11 16BK/BL/WT RECIRCULATED AIR SOLENOID VALVE CONTROL
12 16BL/DG A/C COMPRESSOR CLUTCH CONTROL
13 18BR/DG EVAPORATOR TEMPERATURE SENSOR SIGNAL
14 - -
15 16BR GROUND
16 18BR/GY AIR OUTLET TEMPERATURE SENSOR SIGNAL
17 20DG/WT CAN C BUS (+)
18 18BR/BL SENSOR GROUND
19 20BR/RD REFRIGERANT PRESSURE SENSOR FEEDBACK
20 20DG CAN C BUS (-)
21 16BK/BL/DG FUSED IGNITION SWITCH OUTPUT
VA8W-80 CONNECTOR PIN-OUTS 8W - 80 - 7

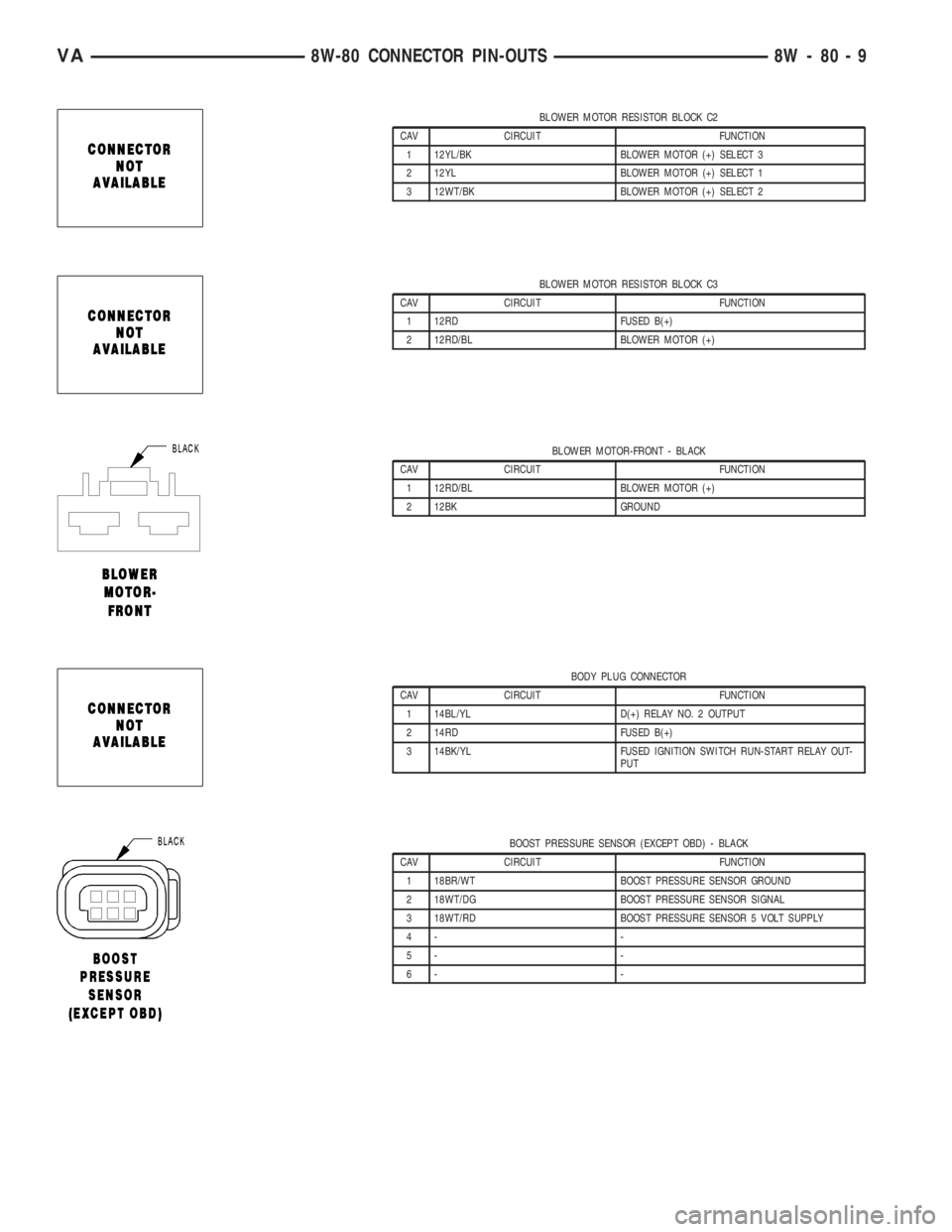

BLOWER MOTOR RESISTOR BLOCK C2
CAV CIRCUIT FUNCTION
1 12YL/BK BLOWER MOTOR (+) SELECT 3
2 12YL BLOWER MOTOR (+) SELECT 1
3 12WT/BK BLOWER MOTOR (+) SELECT 2
BLOWER MOTOR RESISTOR BLOCK C3
CAV CIRCUIT FUNCTION
1 12RD FUSED B(+)
2 12RD/BL BLOWER MOTOR (+)
BLOWER MOTOR-FRONT - BLACK
CAV CIRCUIT FUNCTION
1 12RD/BL BLOWER MOTOR (+)
2 12BK GROUND
BODY PLUG CONNECTOR
CAV CIRCUIT FUNCTION
1 14BL/YL D(+) RELAY NO. 2 OUTPUT
2 14RD FUSED B(+)
3 14BK/YL FUSED IGNITION SWITCH RUN-START RELAY OUT-
PUT
BOOST PRESSURE SENSOR (EXCEPT OBD) - BLACK
CAV CIRCUIT FUNCTION
1 18BR/WT BOOST PRESSURE SENSOR GROUND
2 18WT/DG BOOST PRESSURE SENSOR SIGNAL
3 18WT/RD BOOST PRESSURE SENSOR 5 VOLT SUPPLY
4- -
5- -
6- -
VA8W-80 CONNECTOR PIN-OUTS 8W - 80 - 9

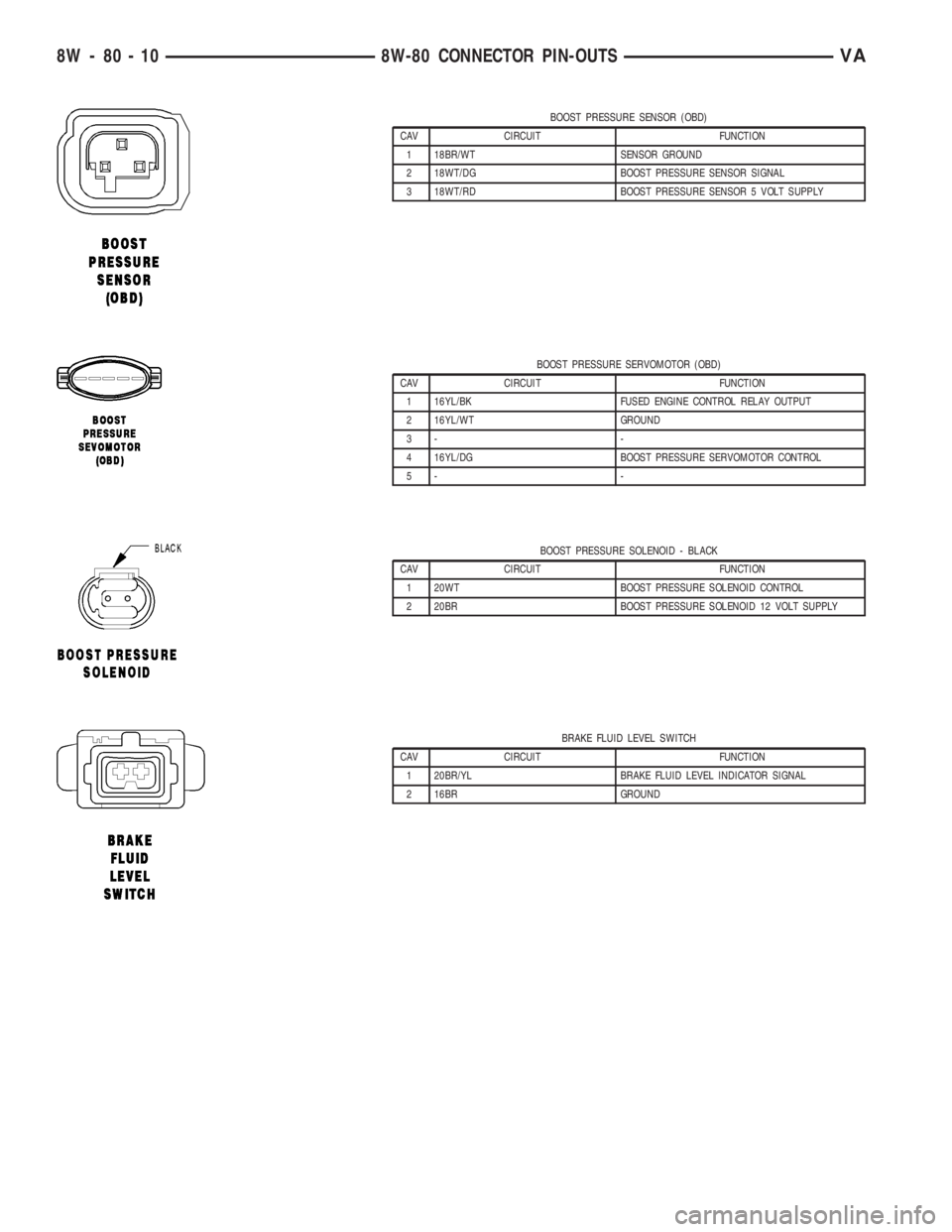

BOOST PRESSURE SENSOR (OBD)
CAV CIRCUIT FUNCTION
1 18BR/WT SENSOR GROUND
2 18WT/DG BOOST PRESSURE SENSOR SIGNAL
3 18WT/RD BOOST PRESSURE SENSOR 5 VOLT SUPPLY
BOOST PRESSURE SERVOMOTOR (OBD)
CAV CIRCUIT FUNCTION
1 16YL/BK FUSED ENGINE CONTROL RELAY OUTPUT
2 16YL/WT GROUND
3- -
4 16YL/DG BOOST PRESSURE SERVOMOTOR CONTROL
5- -
BOOST PRESSURE SOLENOID - BLACK
CAV CIRCUIT FUNCTION
1 20WT BOOST PRESSURE SOLENOID CONTROL
2 20BR BOOST PRESSURE SOLENOID 12 VOLT SUPPLY
BRAKE FLUID LEVEL SWITCH
CAV CIRCUIT FUNCTION
1 20BR/YL BRAKE FLUID LEVEL INDICATOR SIGNAL
2 16BR GROUND
8W - 80 - 10 8W-80 CONNECTOR PIN-OUTSVA

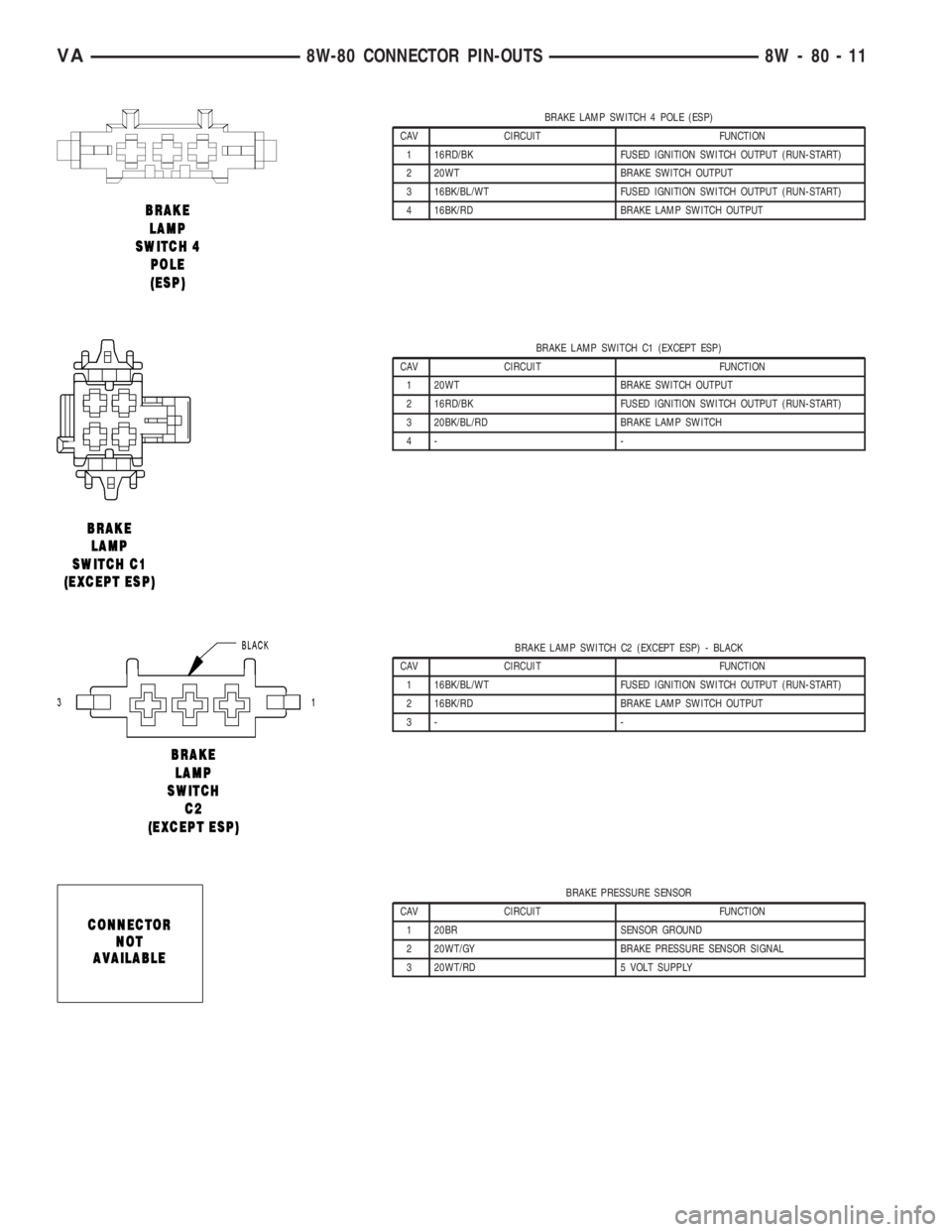

BRAKE LAMP SWITCH 4 POLE (ESP)
CAV CIRCUIT FUNCTION
1 16RD/BK FUSED IGNITION SWITCH OUTPUT (RUN-START)
2 20WT BRAKE SWITCH OUTPUT
3 16BK/BL/WT FUSED IGNITION SWITCH OUTPUT (RUN-START)
4 16BK/RD BRAKE LAMP SWITCH OUTPUT
BRAKE LAMP SWITCH C1 (EXCEPT ESP)
CAV CIRCUIT FUNCTION
1 20WT BRAKE SWITCH OUTPUT
2 16RD/BK FUSED IGNITION SWITCH OUTPUT (RUN-START)
3 20BK/BL/RD BRAKE LAMP SWITCH
4- -
BRAKE LAMP SWITCH C2 (EXCEPT ESP) - BLACK
CAV CIRCUIT FUNCTION
1 16BK/BL/WT FUSED IGNITION SWITCH OUTPUT (RUN-START)
2 16BK/RD BRAKE LAMP SWITCH OUTPUT
3- -
BRAKE PRESSURE SENSOR
CAV CIRCUIT FUNCTION
1 20BR SENSOR GROUND
2 20WT/GY BRAKE PRESSURE SENSOR SIGNAL
3 20WT/RD 5 VOLT SUPPLY
VA8W-80 CONNECTOR PIN-OUTS 8W - 80 - 11
