2006 MERCEDES-BENZ SPRINTER sensor

OXYGEN SENSOR (OBD)
CAV CIRCUIT FUNCTION
1 20DG/BK O2 1/1 PUMP CELL SIGNAL
2 20GY/WT O2 1/1 VIRTUAL GROUND
3 20GY/BL O2 1/1 HEATER CONTROL
4 20RD/DG FUSED ENGINE CONTROL RELAY OUTPUT
5 20DG/YL O2 1/1 PUMP CELL CONTROL
6 20GY O2 1/1 SENSOR CELL SIGNAL
PANIC ALARM SWITCH - BLACK
CAV CIRCUIT FUNCTION
1 18GY/DG/RD LAMP DRIVER
2- -
3 18BR GROUND
4- -
5- -
6- -
7 18GY/WT PANIC SWITCH SENSE
8- -
9- -
10 18BR GROUND
PARKING BRAKE SWITCH
CAV CIRCUIT FUNCTION
1 20BR/BK PARK BRAKE INDICATOR SIGNAL
2 16BR GROUND
3- -
4- -
5- -
6- -
7- -
8- -
9- -
10 - -
8W - 80 - 66 8W-80 CONNECTOR PIN-OUTSVA

RADIO ANTENNA
CAV CIRCUIT FUNCTION
1 16BK RADIO ANTENNA
2 16BK RADIO ANTENNA W/SHIELD
RADIO C1 - BLACK
CAV CIRCUIT FUNCTION
A1 20BL/RD/WT VEHICLE SPEED SENSOR OUTPUT
A2 20YL K-TCM/RADIO
A3 18DG/YL/BK CTEL MUTE
A4 16RD/YL FUSED B(+)
A5 16BK RADIO ANTENNA
A6 16GY/DG/RD LAMP DRIVER
A7 16BK/RD FUSED IGNITION SWITCH OUTPUT (ACC-RUN-START)
A8 16BR GROUND
B1 16BR/GY SPEAKER-RIGHT REAR
B2 16WT/GY SPEAKER-RIGHT REAR
B3 18BR/RD SPEAKER-RIGHT FRONT (+)
B4 18BK SPEAKER-RIGHT FRONT (-)
B5 18BR/DG SPEAKER-LEFT FRONT (+)
B6 18BR SPEAKER-LEFT FRONT (-)
B7 16BR/BL SPEAKER-LEFT REAR
B8 16WT/BL SPEAKER-LEFT REAR
RADIO C2
CAV CIRCUIT FUNCTION
1 16BK RADIO ANTENNA W/SHIELD
2 16BK SHIELD
RADIO/CELLULAR ANTENNA
CAV CIRCUIT FUNCTION
1 16BK/RD FUSED IGNITION SWITCH OUTPUT (ACC-RUN-START)
2 16BK RADIO ANTENNA W/SHIELD
3 16BK CELLULAR ANTENNA W/SHIELD
VA8W-80 CONNECTOR PIN-OUTS 8W - 80 - 69

RAIN SENSOR
CAV CIRCUIT FUNCTION
1 20DG CIRCUIT 30
2 20BR RAIN SENSOR GROUND
3 20BK/DG RAIN SENSOR INPUT SIGNAL
RAIN SENSOR CONTROL MODULE
CAV CIRCUIT FUNCTION
A1 14BK/VT SWITCHED POWER
A2 20WT RAIN SENSOR INPUT SIGNAL
A3 18BK WIPER STAGE 1 INPUT
A4 16BK/VT/RD WASHER PUMP OUTPUT
A5 - -
A6 - -
A7 - -
A8 14BK/DG FRONT WIPER MOTOR STAGE 2 OUTPUT
B1 - -
B2 18BK/GY/RD FRONT WIPER MOTOR STAGE 2 INPUT
B3 18WT/VT NO FUNCTION DEFINED
B4 18BK/VT NO FUNCTION DEFINED
B5 - -
B6 - -
B7 - -
B8 14BK/DB FRONT WIPER MOTOR STAGE 1 OUTPUT
C1 14BR GROUND
C2 16BK/VT/WT FRONT WIPER MOTOR GROUND
C3 20RD CIRCUIT 30
C4 - -
C5 - -
C6 - -
C7 20YL RAIN SENSOR GROUND
C8 - -
8W - 80 - 70 8W-80 CONNECTOR PIN-OUTSVA

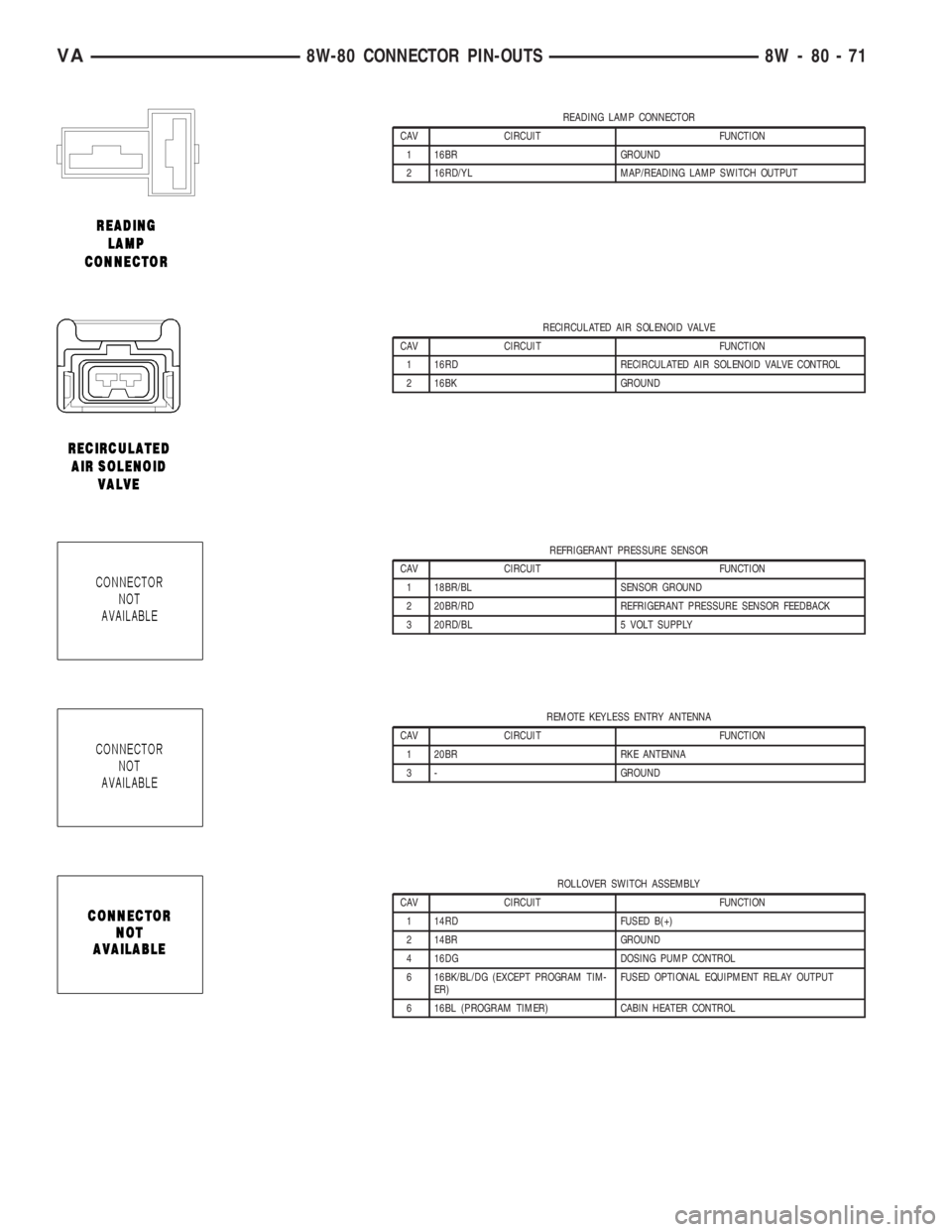

READING LAMP CONNECTOR
CAV CIRCUIT FUNCTION
1 16BR GROUND
2 16RD/YL MAP/READING LAMP SWITCH OUTPUT
RECIRCULATED AIR SOLENOID VALVE
CAV CIRCUIT FUNCTION
1 16RD RECIRCULATED AIR SOLENOID VALVE CONTROL
2 16BK GROUND
REFRIGERANT PRESSURE SENSOR
CAV CIRCUIT FUNCTION
1 18BR/BL SENSOR GROUND
2 20BR/RD REFRIGERANT PRESSURE SENSOR FEEDBACK
3 20RD/BL 5 VOLT SUPPLY
REMOTE KEYLESS ENTRY ANTENNA
CAV CIRCUIT FUNCTION
1 20BR RKE ANTENNA
3 - GROUND
ROLLOVER SWITCH ASSEMBLY
CAV CIRCUIT FUNCTION
1 14RD FUSED B(+)
2 14BR GROUND
4 16DG DOSING PUMP CONTROL
6 16BK/BL/DG (EXCEPT PROGRAM TIM-
ER)FUSED OPTIONAL EQUIPMENT RELAY OUTPUT
6 16BL (PROGRAM TIMER) CABIN HEATER CONTROL
VA8W-80 CONNECTOR PIN-OUTS 8W - 80 - 71

ROOF A/C CONTROL MODULE - BLACK
CAV CIRCUIT FUNCTION
1 12BR GROUND
2 12RD FUSED B(+)
3 16YL 12V A/C FAN MOTOR CONTROL-LOW SPEED
4 16VT 12V A/C FAN MOTOR CONTROL-HIGH SPEED
5 16BK TEMPERATURE SENSOR SIGNAL
6 16BR TEMPERATURE SWITCH SENSE
ROOF A/C SWITCH
CAV CIRCUIT FUNCTION
1 16GY/DG/RD LAMP DRIVER
2- -
3 16RD/BK FUSED D(+) RELAY NO. 1 OUTPUT
4 16VT A/C FAN MOTOR CONTROL-HIGH SPEED
5- -
6- -
7 16YL A/C FAN MOTOR CONTROL-LOW SPEED
8 16RD/BK FUSED D(+) RELAY NO. 1 OUTPUT
9- -
10 16BR GROUND
ROOF A/C TEMPERATURE SETTING CONTROL
CAV CIRCUIT FUNCTION
1- -
2- -
3 16BR TEMPERATURE SWITCH SENSE
4- -
5 16BK TEMPERATURE SENSOR SIGNAL
6- -
7- -
8- -
9 16GY/DG/RD LAMP DRIVER
10 - -
8W - 80 - 72 8W-80 CONNECTOR PIN-OUTSVA

ROOF FAN MOTOR
CAV CIRCUIT FUNCTION
1 16WT MOTOR (+/-)
2 16BK MOTOR (+/-)
ROOF FAN SWITCH
CAV CIRCUIT FUNCTION
1 16GY/DG/RD LAMP DRIVER
2- -
3 16BK/BL/WT FUSED OPTIONAL EQUIPMENT RELAY OUTPUT
4 16WT MOTOR (+/-)
5 16BR GROUND
6 16BR GROUND
7 16BK MOTOR (+/-)
8 16BK/BL/WT FUSED OPTIONAL EQUIPMENT RELAY OUTPUT
9- -
10 16BR GROUND
ROOF THERMOTRONIC CONTROL MODULE
CAV CIRCUIT FUNCTION
1 16DG TEMPERATURE SWITCH SENSE
2- -
3 16VT ROOF A/C FAN RELAY CONTROL
4 16DG ROOF A/C TEMPERATURE SETTING CONTROL
GROUND
5 16RD/DG ROOF A/C BLOWER STAGE 1 RELAY CONTROL
5 16BK/WT ROOF A/C BLOWER STAGE 1 RELAY CONTROL
6 16WT TEMPERATURE SENSOR SIGNAL
7 16BL TEMPERATURE SENSOR SUPPLY VOLTAGE
8 16BR TEMPERATURE SENSOR GROUND
VA8W-80 CONNECTOR PIN-OUTS 8W - 80 - 73

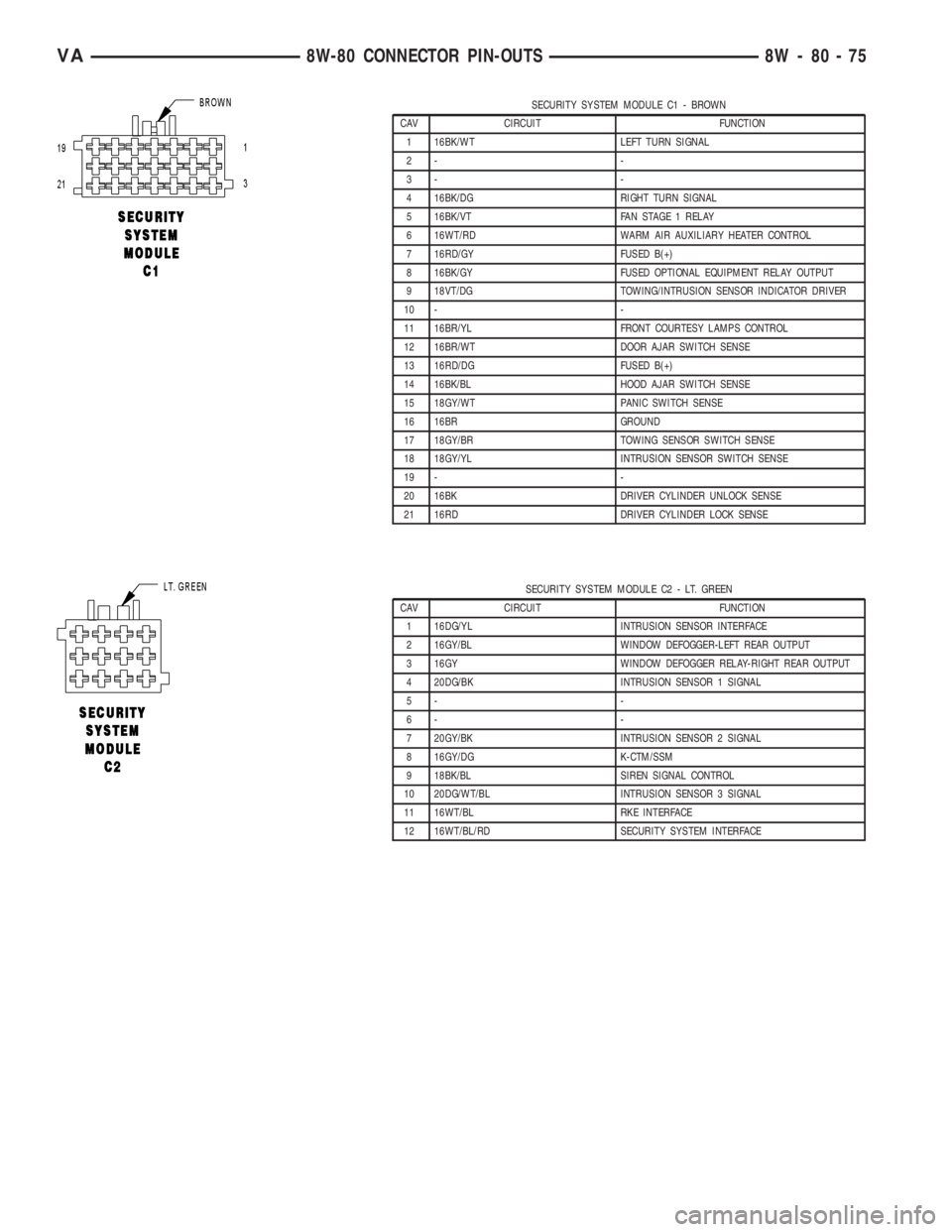

SECURITY SYSTEM MODULE C1 - BROWN
CAV CIRCUIT FUNCTION
1 16BK/WT LEFT TURN SIGNAL
2- -
3- -
4 16BK/DG RIGHT TURN SIGNAL
5 16BK/VT FAN STAGE 1 RELAY
6 16WT/RD WARM AIR AUXILIARY HEATER CONTROL
7 16RD/GY FUSED B(+)
8 16BK/GY FUSED OPTIONAL EQUIPMENT RELAY OUTPUT
9 18VT/DG TOWING/INTRUSION SENSOR INDICATOR DRIVER
10 - -
11 16BR/YL FRONT COURTESY LAMPS CONTROL
12 16BR/WT DOOR AJAR SWITCH SENSE
13 16RD/DG FUSED B(+)
14 16BK/BL HOOD AJAR SWITCH SENSE
15 18GY/WT PANIC SWITCH SENSE
16 16BR GROUND
17 18GY/BR TOWING SENSOR SWITCH SENSE
18 18GY/YL INTRUSION SENSOR SWITCH SENSE
19 - -
20 16BK DRIVER CYLINDER UNLOCK SENSE
21 16RD DRIVER CYLINDER LOCK SENSE
SECURITY SYSTEM MODULE C2 - LT. GREEN
CAV CIRCUIT FUNCTION
1 16DG/YL INTRUSION SENSOR INTERFACE
2 16GY/BL WINDOW DEFOGGER-LEFT REAR OUTPUT
3 16GY WINDOW DEFOGGER RELAY-RIGHT REAR OUTPUT
4 20DG/BK INTRUSION SENSOR 1 SIGNAL
5- -
6- -
7 20GY/BK INTRUSION SENSOR 2 SIGNAL
8 16GY/DG K-CTM/SSM
9 18BK/BL SIREN SIGNAL CONTROL
10 20DG/WT/BL INTRUSION SENSOR 3 SIGNAL
11 16WT/BL RKE INTERFACE
12 16WT/BL/RD SECURITY SYSTEM INTERFACE
VA8W-80 CONNECTOR PIN-OUTS 8W - 80 - 75

SPEAKER-RIGHT REAR
CAV CIRCUIT FUNCTION
1 16BR/GY SPEAKER-RIGHT REAR
2 16WT/GY SPEAKER-RIGHT REAR
SPEED CONTROL SWITCH
CAV CIRCUIT FUNCTION
1 18GY OFF SIGNAL
2 18BK VERIFICATION SIGNAL
3 18BL RESUME SIGNAL
4 18YL DECEL/SET SIGNAL
5 18DG ACCEL/SET SIGNAL
6 18RD S/C SWITCH 12 VOLT SUPPLY
STEERING ANGLE SENSOR
CAV CIRCUIT FUNCTION
1 20DG/WT CAN C BUS (-)
2- -
3 20DG CAN C BUS (+)
4- -
5 20BK/RD FUSED OPTIONAL EQUIPMENT RELAY OUTPUT
6 20BR GROUND
TAIL LAMP ASSEMBLY-LEFT - BLACK
CAV CIRCUIT FUNCTION
1- -
2 16GY/BK LEFT LAMP RELAY OUTPUT
3 16BK/RD BRAKE LAMP SWITCH OUTPUT
4 16WT/RD BACK-UP LAMP
5 16BK/WT LEFT TURN SIGNAL
6 16BR GROUND
8W - 80 - 78 8W-80 CONNECTOR PIN-OUTSVA
