2006 MERCEDES-BENZ SPRINTER sensor

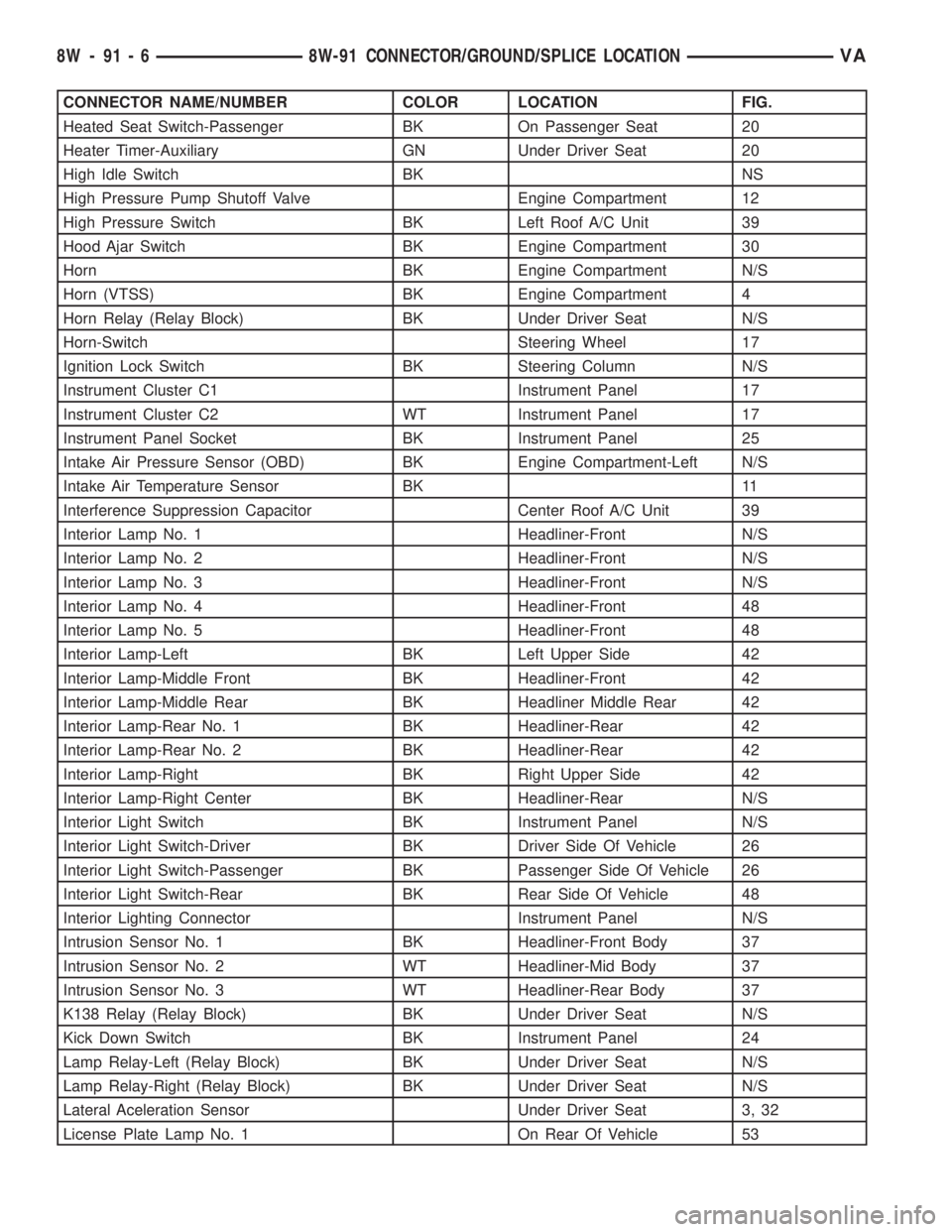

CONNECTOR NAME/NUMBER COLOR LOCATION FIG.
Heated Seat Switch-Passenger BK On Passenger Seat 20
Heater Timer-Auxiliary GN Under Driver Seat 20
High Idle Switch BK NS
High Pressure Pump Shutoff Valve Engine Compartment 12
High Pressure Switch BK Left Roof A/C Unit 39
Hood Ajar Switch BK Engine Compartment 30
Horn BK Engine Compartment N/S
Horn (VTSS) BK Engine Compartment 4
Horn Relay (Relay Block) BK Under Driver Seat N/S
Horn-Switch Steering Wheel 17
Ignition Lock Switch BK Steering Column N/S
Instrument Cluster C1 Instrument Panel 17
Instrument Cluster C2 WT Instrument Panel 17
Instrument Panel Socket BK Instrument Panel 25
Intake Air Pressure Sensor (OBD) BK Engine Compartment-Left N/S
Intake Air Temperature Sensor BK 11
Interference Suppression Capacitor Center Roof A/C Unit 39
Interior Lamp No. 1 Headliner-Front N/S
Interior Lamp No. 2 Headliner-Front N/S
Interior Lamp No. 3 Headliner-Front N/S
Interior Lamp No. 4 Headliner-Front 48
Interior Lamp No. 5 Headliner-Front 48
Interior Lamp-Left BK Left Upper Side 42
Interior Lamp-Middle Front BK Headliner-Front 42
Interior Lamp-Middle Rear BK Headliner Middle Rear 42
Interior Lamp-Rear No. 1 BK Headliner-Rear 42
Interior Lamp-Rear No. 2 BK Headliner-Rear 42
Interior Lamp-Right BK Right Upper Side 42
Interior Lamp-Right Center BK Headliner-Rear N/S
Interior Light Switch BK Instrument Panel N/S
Interior Light Switch-Driver BK Driver Side Of Vehicle 26
Interior Light Switch-Passenger BK Passenger Side Of Vehicle 26
Interior Light Switch-Rear BK Rear Side Of Vehicle 48
Interior Lighting Connector Instrument Panel N/S
Intrusion Sensor No. 1 BK Headliner-Front Body 37
Intrusion Sensor No. 2 WT Headliner-Mid Body 37
Intrusion Sensor No. 3 WT Headliner-Rear Body 37
K138 Relay (Relay Block) BK Under Driver Seat N/S
Kick Down Switch BK Instrument Panel 24
Lamp Relay-Left (Relay Block) BK Under Driver Seat N/S
Lamp Relay-Right (Relay Block) BK Under Driver Seat N/S
Lateral Aceleration Sensor Under Driver Seat 3, 32
License Plate Lamp No. 1 On Rear Of Vehicle 53
8W - 91 - 6 8W-91 CONNECTOR/GROUND/SPLICE LOCATIONVA

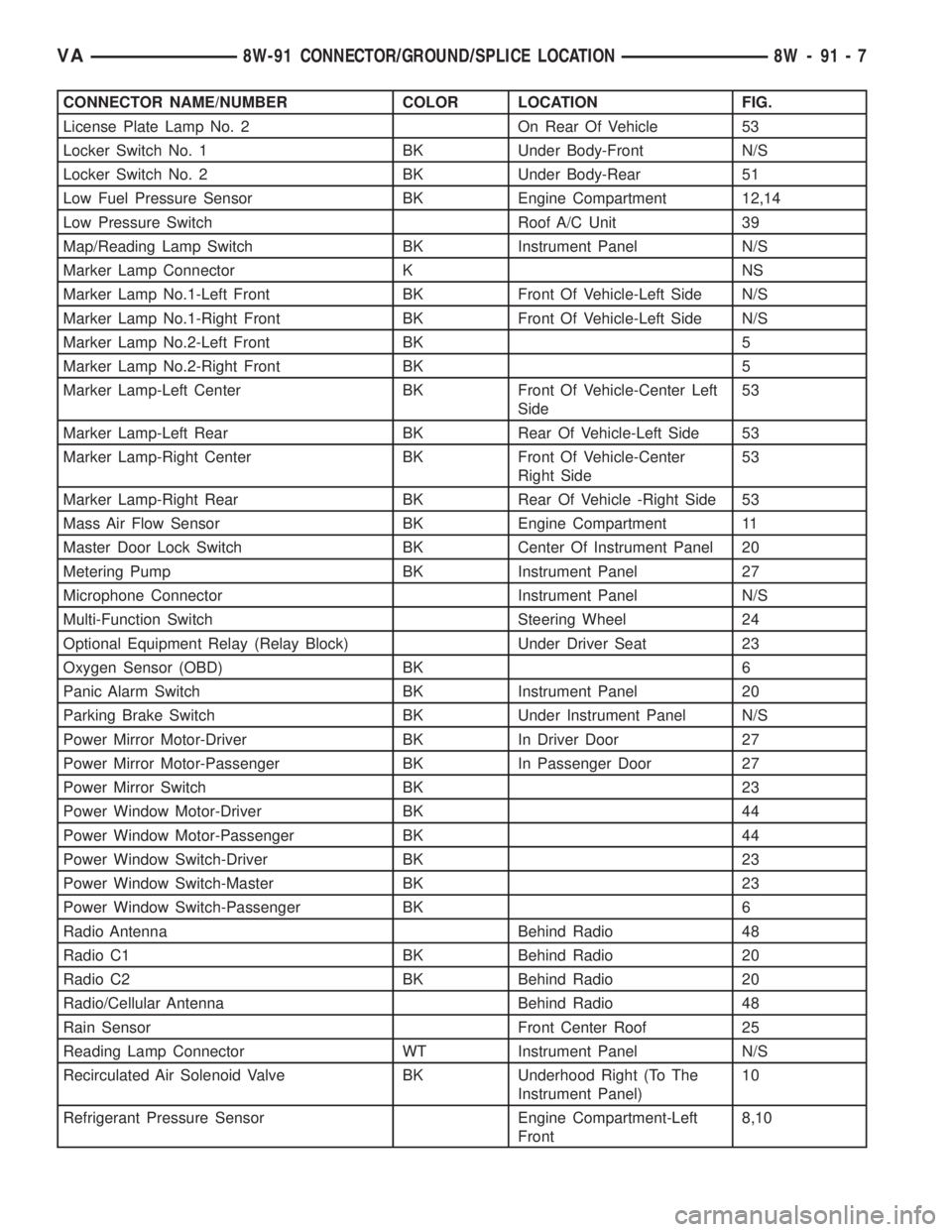

CONNECTOR NAME/NUMBER COLOR LOCATION FIG.
License Plate Lamp No. 2 On Rear Of Vehicle 53
Locker Switch No. 1 BK Under Body-Front N/S
Locker Switch No. 2 BK Under Body-Rear 51
Low Fuel Pressure Sensor BK Engine Compartment 12,14
Low Pressure Switch Roof A/C Unit 39
Map/Reading Lamp Switch BK Instrument Panel N/S
Marker Lamp Connector K NS
Marker Lamp No.1-Left Front BK Front Of Vehicle-Left Side N/S
Marker Lamp No.1-Right Front BK Front Of Vehicle-Left Side N/S
Marker Lamp No.2-Left Front BK 5
Marker Lamp No.2-Right Front BK 5
Marker Lamp-Left Center BK Front Of Vehicle-Center Left
Side53
Marker Lamp-Left Rear BK Rear Of Vehicle-Left Side 53
Marker Lamp-Right Center BK Front Of Vehicle-Center
Right Side53
Marker Lamp-Right Rear BK Rear Of Vehicle -Right Side 53
Mass Air Flow Sensor BK Engine Compartment 11
Master Door Lock Switch BK Center Of Instrument Panel 20
Metering Pump BK Instrument Panel 27
Microphone Connector Instrument Panel N/S
Multi-Function Switch Steering Wheel 24
Optional Equipment Relay (Relay Block) Under Driver Seat 23
Oxygen Sensor (OBD) BK 6
Panic Alarm Switch BK Instrument Panel 20
Parking Brake Switch BK Under Instrument Panel N/S
Power Mirror Motor-Driver BK In Driver Door 27
Power Mirror Motor-Passenger BK In Passenger Door 27
Power Mirror Switch BK 23
Power Window Motor-Driver BK 44
Power Window Motor-Passenger BK 44
Power Window Switch-Driver BK 23
Power Window Switch-Master BK 23
Power Window Switch-Passenger BK 6
Radio Antenna Behind Radio 48
Radio C1 BK Behind Radio 20
Radio C2 BK Behind Radio 20
Radio/Cellular Antenna Behind Radio 48
Rain Sensor Front Center Roof 25
Reading Lamp Connector WT Instrument Panel N/S
Recirculated Air Solenoid Valve BK Underhood Right (To The
Instrument Panel)10
Refrigerant Pressure Sensor Engine Compartment-Left
Front8,10
VA8W-91 CONNECTOR/GROUND/SPLICE LOCATION 8W - 91 - 7

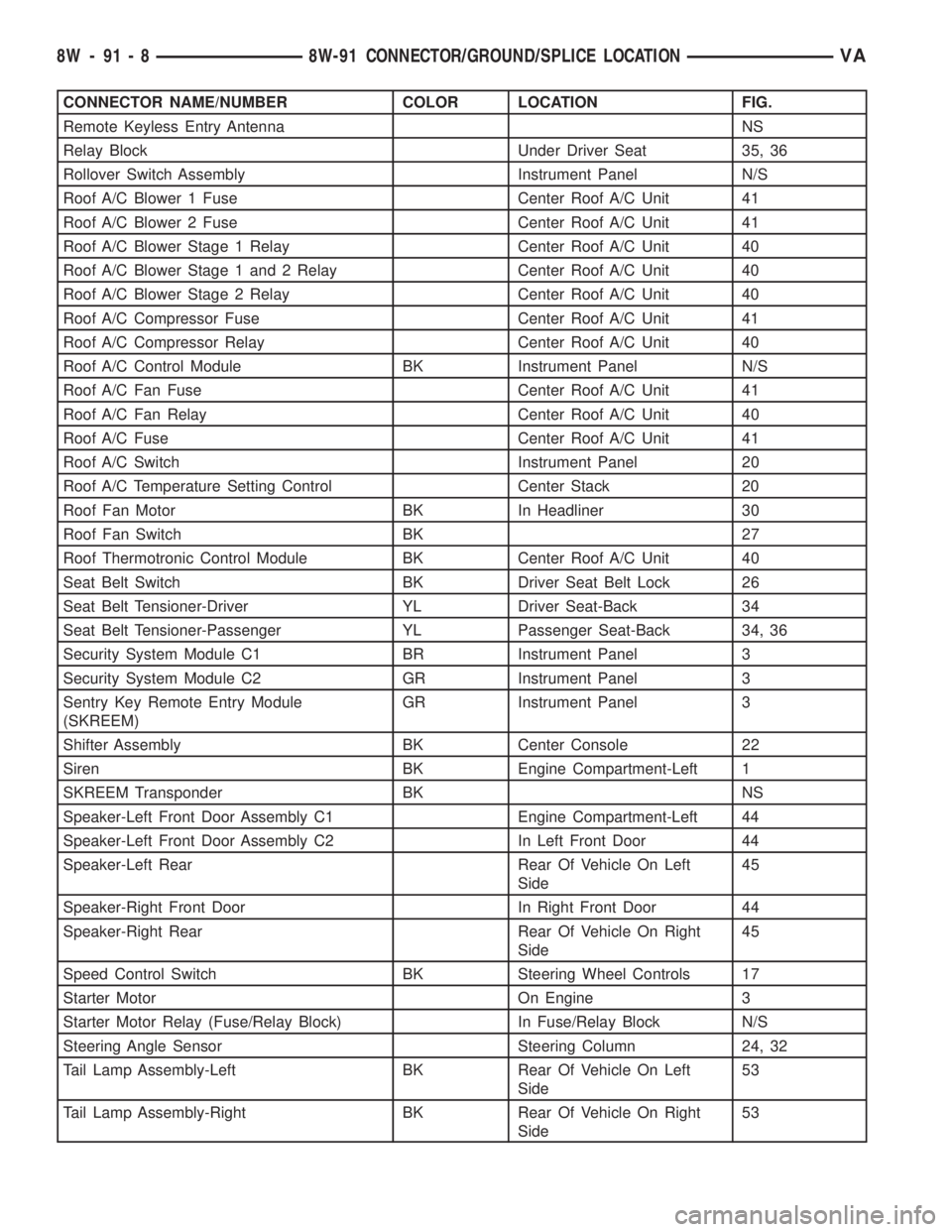

CONNECTOR NAME/NUMBER COLOR LOCATION FIG.
Remote Keyless Entry Antenna NS
Relay Block Under Driver Seat 35, 36
Rollover Switch Assembly Instrument Panel N/S
Roof A/C Blower 1 Fuse Center Roof A/C Unit 41
Roof A/C Blower 2 Fuse Center Roof A/C Unit 41
Roof A/C Blower Stage 1 Relay Center Roof A/C Unit 40
Roof A/C Blower Stage 1 and 2 Relay Center Roof A/C Unit 40
Roof A/C Blower Stage 2 Relay Center Roof A/C Unit 40
Roof A/C Compressor Fuse Center Roof A/C Unit 41
Roof A/C Compressor Relay Center Roof A/C Unit 40
Roof A/C Control Module BK Instrument Panel N/S
Roof A/C Fan Fuse Center Roof A/C Unit 41
Roof A/C Fan Relay Center Roof A/C Unit 40
Roof A/C Fuse Center Roof A/C Unit 41
Roof A/C Switch Instrument Panel 20
Roof A/C Temperature Setting Control Center Stack 20
Roof Fan Motor BK In Headliner 30
Roof Fan Switch BK 27
Roof Thermotronic Control Module BK Center Roof A/C Unit 40
Seat Belt Switch BK Driver Seat Belt Lock 26
Seat Belt Tensioner-Driver YL Driver Seat-Back 34
Seat Belt Tensioner-Passenger YL Passenger Seat-Back 34, 36
Security System Module C1 BR Instrument Panel 3
Security System Module C2 GR Instrument Panel 3
Sentry Key Remote Entry Module
(SKREEM)GR Instrument Panel 3
Shifter Assembly BK Center Console 22
Siren BK Engine Compartment-Left 1
SKREEM Transponder BK NS
Speaker-Left Front Door Assembly C1 Engine Compartment-Left 44
Speaker-Left Front Door Assembly C2 In Left Front Door 44
Speaker-Left Rear Rear Of Vehicle On Left
Side45
Speaker-Right Front Door In Right Front Door 44
Speaker-Right Rear Rear Of Vehicle On Right
Side45
Speed Control Switch BK Steering Wheel Controls 17
Starter Motor On Engine 3
Starter Motor Relay (Fuse/Relay Block) In Fuse/Relay Block N/S
Steering Angle Sensor Steering Column 24, 32
Tail Lamp Assembly-Left BK Rear Of Vehicle On Left
Side53
Tail Lamp Assembly-Right BK Rear Of Vehicle On Right
Side53
8W - 91 - 8 8W-91 CONNECTOR/GROUND/SPLICE LOCATIONVA

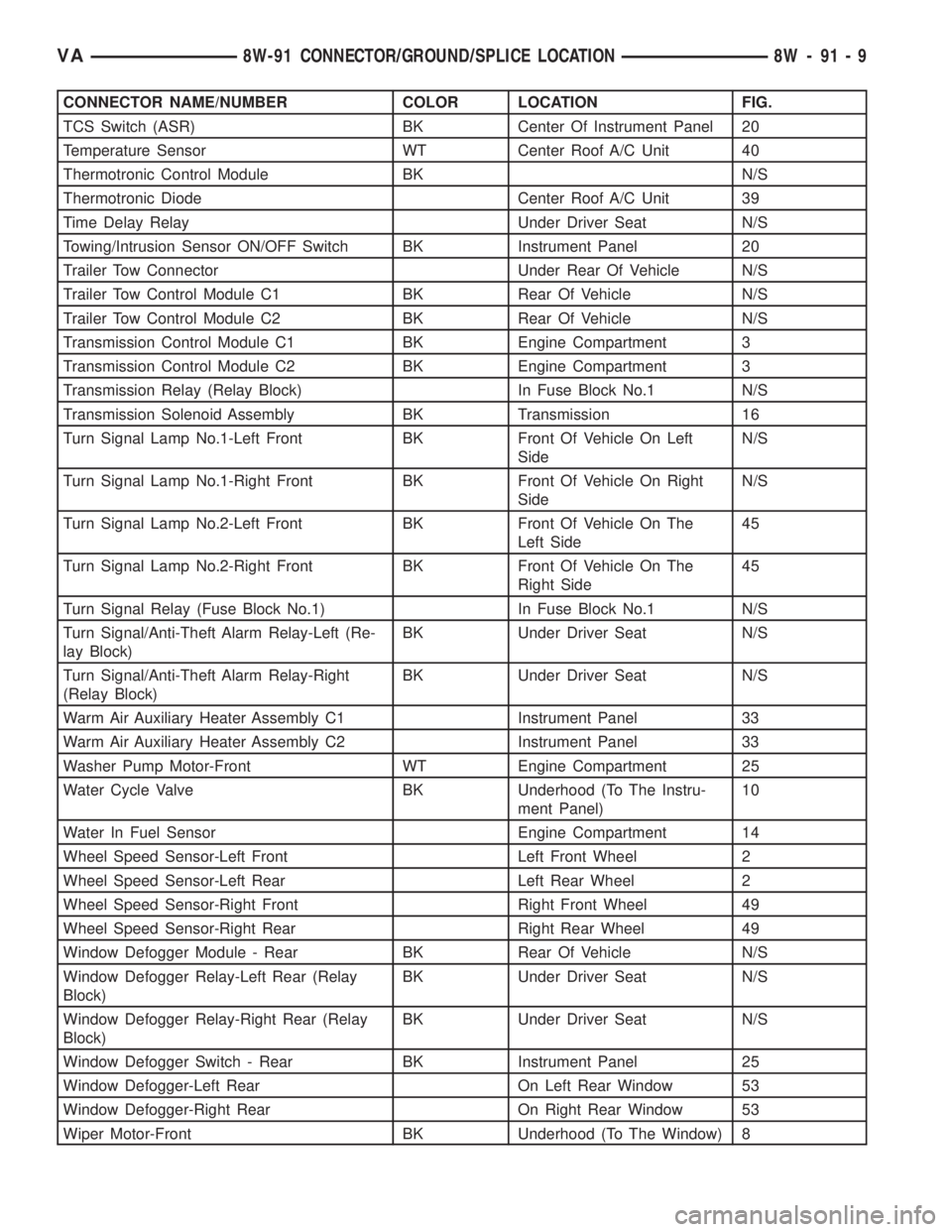

CONNECTOR NAME/NUMBER COLOR LOCATION FIG.
TCS Switch (ASR) BK Center Of Instrument Panel 20
Temperature Sensor WT Center Roof A/C Unit 40
Thermotronic Control Module BK N/S
Thermotronic Diode Center Roof A/C Unit 39
Time Delay Relay Under Driver Seat N/S
Towing/Intrusion Sensor ON/OFF Switch BK Instrument Panel 20
Trailer Tow Connector Under Rear Of Vehicle N/S
Trailer Tow Control Module C1 BK Rear Of Vehicle N/S
Trailer Tow Control Module C2 BK Rear Of Vehicle N/S
Transmission Control Module C1 BK Engine Compartment 3
Transmission Control Module C2 BK Engine Compartment 3
Transmission Relay (Relay Block) In Fuse Block No.1 N/S
Transmission Solenoid Assembly BK Transmission 16
Turn Signal Lamp No.1-Left Front BK Front Of Vehicle On Left
SideN/S
Turn Signal Lamp No.1-Right Front BK Front Of Vehicle On Right
SideN/S
Turn Signal Lamp No.2-Left Front BK Front Of Vehicle On The
Left Side45
Turn Signal Lamp No.2-Right Front BK Front Of Vehicle On The
Right Side45
Turn Signal Relay (Fuse Block No.1) In Fuse Block No.1 N/S
Turn Signal/Anti-Theft Alarm Relay-Left (Re-
lay Block)BK Under Driver Seat N/S
Turn Signal/Anti-Theft Alarm Relay-Right
(Relay Block)BK Under Driver Seat N/S
Warm Air Auxiliary Heater Assembly C1 Instrument Panel 33
Warm Air Auxiliary Heater Assembly C2 Instrument Panel 33
Washer Pump Motor-Front WT Engine Compartment 25
Water Cycle Valve BK Underhood (To The Instru-
ment Panel)10
Water In Fuel Sensor Engine Compartment 14
Wheel Speed Sensor-Left Front Left Front Wheel 2
Wheel Speed Sensor-Left Rear Left Rear Wheel 2
Wheel Speed Sensor-Right Front Right Front Wheel 49
Wheel Speed Sensor-Right Rear Right Rear Wheel 49
Window Defogger Module - Rear BK Rear Of Vehicle N/S
Window Defogger Relay-Left Rear (Relay
Block)BK Under Driver Seat N/S
Window Defogger Relay-Right Rear (Relay
Block)BK Under Driver Seat N/S
Window Defogger Switch - Rear BK Instrument Panel 25
Window Defogger-Left Rear On Left Rear Window 53
Window Defogger-Right Rear On Right Rear Window 53
Wiper Motor-Front BK Underhood (To The Window) 8
VA8W-91 CONNECTOR/GROUND/SPLICE LOCATION 8W - 91 - 9

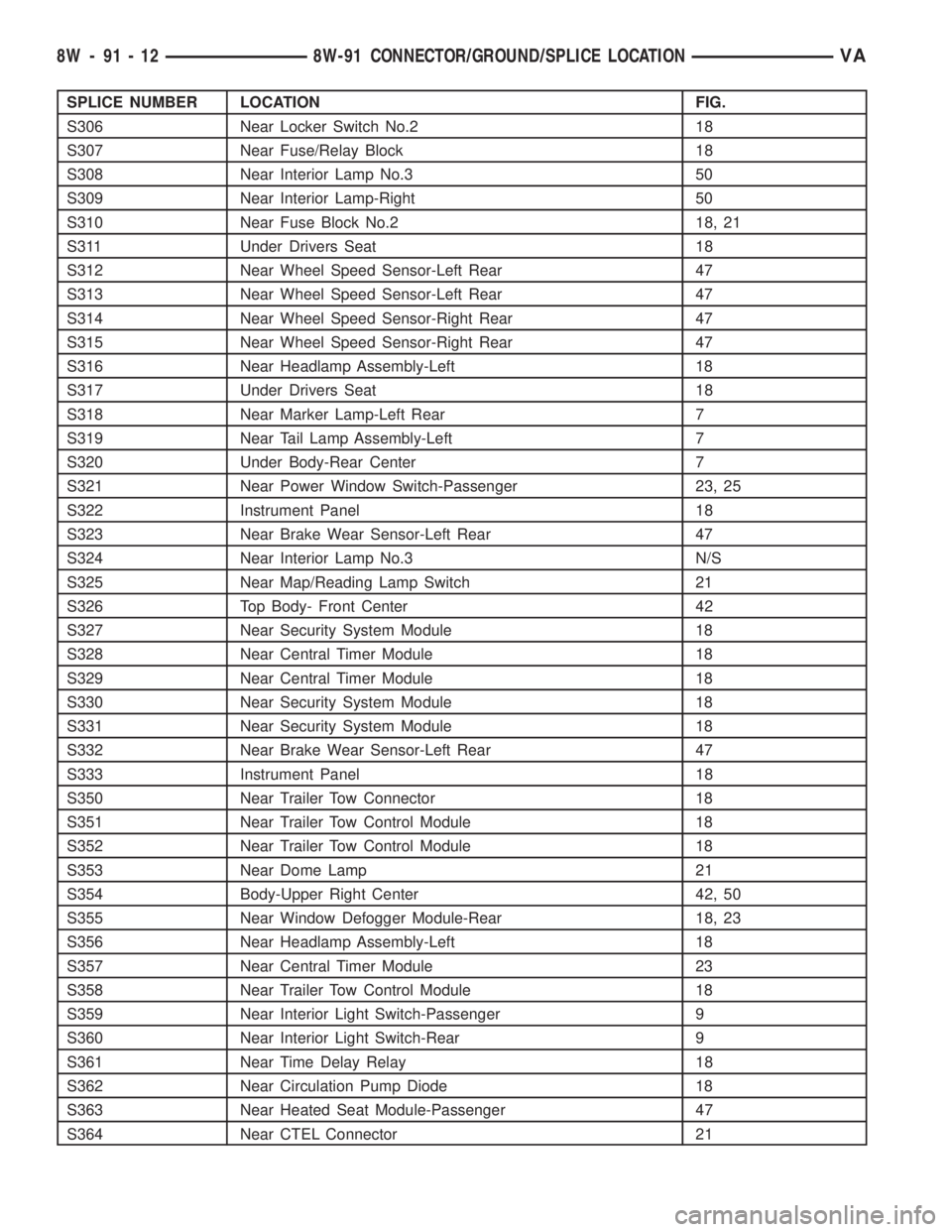

SPLICE NUMBER LOCATION FIG.
S306 Near Locker Switch No.2 18
S307 Near Fuse/Relay Block 18
S308 Near Interior Lamp No.3 50
S309 Near Interior Lamp-Right 50
S310 Near Fuse Block No.2 18, 21
S311 Under Drivers Seat 18
S312 Near Wheel Speed Sensor-Left Rear 47
S313 Near Wheel Speed Sensor-Left Rear 47
S314 Near Wheel Speed Sensor-Right Rear 47
S315 Near Wheel Speed Sensor-Right Rear 47
S316 Near Headlamp Assembly-Left 18
S317 Under Drivers Seat 18
S318 Near Marker Lamp-Left Rear 7
S319 Near Tail Lamp Assembly-Left 7
S320 Under Body-Rear Center 7
S321 Near Power Window Switch-Passenger 23, 25
S322 Instrument Panel 18
S323 Near Brake Wear Sensor-Left Rear 47
S324 Near Interior Lamp No.3 N/S
S325 Near Map/Reading Lamp Switch 21
S326 Top Body- Front Center 42
S327 Near Security System Module 18
S328 Near Central Timer Module 18
S329 Near Central Timer Module 18
S330 Near Security System Module 18
S331 Near Security System Module 18
S332 Near Brake Wear Sensor-Left Rear 47
S333 Instrument Panel 18
S350 Near Trailer Tow Connector 18
S351 Near Trailer Tow Control Module 18
S352 Near Trailer Tow Control Module 18
S353 Near Dome Lamp 21
S354 Body-Upper Right Center 42, 50
S355 Near Window Defogger Module-Rear 18, 23
S356 Near Headlamp Assembly-Left 18
S357 Near Central Timer Module 23
S358 Near Trailer Tow Control Module 18
S359 Near Interior Light Switch-Passenger 9
S360 Near Interior Light Switch-Rear 9
S361 Near Time Delay Relay 18
S362 Near Circulation Pump Diode 18
S363 Near Heated Seat Module-Passenger 47
S364 Near CTEL Connector 21
8W - 91 - 12 8W-91 CONNECTOR/GROUND/SPLICE LOCATIONVA

Fig. 2 ENGINE COMPARTMENT AND WHEEL SPEED SENSORS
VA8W-91 CONNECTOR/GROUND/SPLICE LOCATION 8W - 91 - 15

Fig. 13 ENGINE SENSORS AND INJECTORS
8W - 91 - 26 8W-91 CONNECTOR/GROUND/SPLICE LOCATIONVA

Fig. 37 INTRUSION SENSORS
8W - 91 - 50 8W-91 CONNECTOR/GROUND/SPLICE LOCATIONVA
