2006 MERCEDES-BENZ SPRINTER sensor

FUEL SHUTDOWN SOLENOID
CAV CIRCUIT FUNCTION
1 20BR/YL FUEL SHUTDOWN SOLENOID CONTROL
2 18RD/BK FUEL SHUTDOWN SOLENOID 12 VOLT SUPPLY
FUEL TEMPERATURE SENSOR
CAV CIRCUIT FUNCTION
1 18DG/BK FUEL TEMPERATURE SENSOR GROUND
2 18BL/GY FUEL TEMPERATURE SENSOR SIGNAL
FUSE BLOCK NO. 1 C1
CAV CIRCUIT FUNCTION
1 INTERNAL FOG LAMP SWITCH OUTPUT
3 INTERNAL HIGH BEAM SWITCH OUTPUT
4 16RD/BL FUSED RIGHT LAMP RELAY OUTPUT
5 INTERNAL HIGH BEAM SELECT
6 INTERNAL FUSED LEFT RELAY OUTPUT
8 INTERNAL LAMP DRIVER
9 INTERNAL FUSED IGNITION SWITCH OUTPUT (RUN-START)
10 INTERNAL FUSED B(+)
11 INTERNAL TURN SIGNAL RELAY OUTPUT
14 INTERNAL GROUND
15 INTERNAL WIPER SWITCH OUTPUT
16 INTERNAL WIPER SWITCH OUTPUT
18 INTERNAL FUSED IGNITION SWITCH OUTPUT (RUN-START)
19 INTERNAL 12 VOLT SUPPLY
21 INTERNAL WIPER ON/OFF SWITCH OUTPUT
22 INTERNAL FUSED B(+)
8W - 80 - 48 8W-80 CONNECTOR PIN-OUTSVA

HORN
CAV CIRCUIT FUNCTION
1 18RD/DG FUSED B(+)
2 18BR GROUND
3 18BK/BL SIREN SIGNAL CONTROL
HORN (VTSS)
CAV CIRCUIT FUNCTION
1 16BK/BR HORN RELAY OUTPUT
2 16BK/YL FUSED IGNITION SWITCH OUTPUT (RUN-START)
IGNITION LOCK SWITCH - BLACK
CAV CIRCUIT FUNCTION
1 20BR GROUND
2 20BL/BK KEY-IN IGNITION SWITCH SIGNAL
INSTRUMENT CLUSTER C1
CAV CIRCUIT FUNCTION
1 20BR FUEL LEVEL SENSOR SIGNAL RETURN
2 20BR/DG AMBIENT TEMPERATURE SENSOR SIGNAL RETURN
4 20WT/GY K-IC/ATC/HBM/CHM
5 20BR/BK PARK BRAKE INDICATOR SIGNAL
7 20BK/DG RIGHT TURN SIGNAL
10 20BL/BK FUEL LEVEL SENSOR SIGNAL (+)
11 20BL/DG AMBIENT TEMPERATURE SENSOR SIGNAL (+)
14 20DG/WT/BL ENGINE COOLANT LEVEL SWITCH SIGNAL
15 20BR/WT FRONT COURTESY LAMPS CONTROL
16 20YL/RD SEAT BELT SWITCH SIGNAL
17 20DG CAN C BUS (-)
18 20DG/WT CAN C BUS (+)
8W - 80 - 54 8W-80 CONNECTOR PIN-OUTSVA

INSTRUMENT CLUSTER C2 - WHITE
CAV CIRCUIT FUNCTION
1- -
2- -
3 20RD/YL FUSED B(+)
4 20BR/WT BRAKE WEAR SENSOR SIGNAL
5- -
6 18BR GROUND
7 20GY/DG/RD LAMP DRIVER
8 20BL/WT FUSED HIGH BEAM SWITCH OUTPUT
9 20BL/RD/WT VEHICLE SPEED SENSOR OUTPUT
10 20BK FUSED IGNITION SWITCH OUTPUT (RUN-START)
11 20BL/BK KEY-IN IGNITION SWITCH SIGNAL
12 - -
13 20BK/WT LEFT TURN SIGNAL
14 20BR/YL BRAKE FLUID LEVEL INDICATOR SIGNAL
15 20BL GENERATOR MONITOR SIGNAL
16 20YL AIRBAG WARNING INDICATOR DRIVER
17 - -
18 20BL/VT D(+) RELAY NO. 1 CONTROL
18 20BL/VT D(+) RELAY NO. 1 CONTROL
INSTRUMENT PANEL SOCKET - BLACK
CAV CIRCUIT FUNCTION
1 16BR GROUND
2 16RD FUSED B(+)
INTAKE AIR PRESSURE SENSOR (OBD)
CAV CIRCUIT FUNCTION
1 20BR/RD INTAKE PRESSURE SENSOR GROUND
2 20VT/DG INTAKE PRESSURE SENSOR SIGNAL
3 20VT/RD INTAKE PRESSURE SENSOR 5 VOLT SUPPLY
VA8W-80 CONNECTOR PIN-OUTS 8W - 80 - 55

INTAKE AIR TEMPERATURE SENSOR - BLACK
CAV CIRCUIT FUNCTION
1 18BR/DG INTAKE AIR TEMPERATURE SENSOR GROUND
2 18DG/WT INTAKE AIR TEMPERATURE SENSOR SIGNAL
INTERIOR LAMP NO. 1
CAV CIRCUIT FUNCTION
1 16DG INTERIOR LAMPS DRIVER
2 16BR GROUND
INTERIOR LAMP NO. 2
CAV CIRCUIT FUNCTION
1 16DG INTERIOR LAMPS DRIVER
2 16BR GROUND
INTERIOR LAMP NO. 3
CAV CIRCUIT FUNCTION
1 16DG INTERIOR LAMPS DRIVER
2 16BR GROUND
INTERIOR LAMP NO. 4
CAV CIRCUIT FUNCTION
1 16DG INTERIOR LAMPS DRIVER
2 16BR GROUND
8W - 80 - 56 8W-80 CONNECTOR PIN-OUTSVA

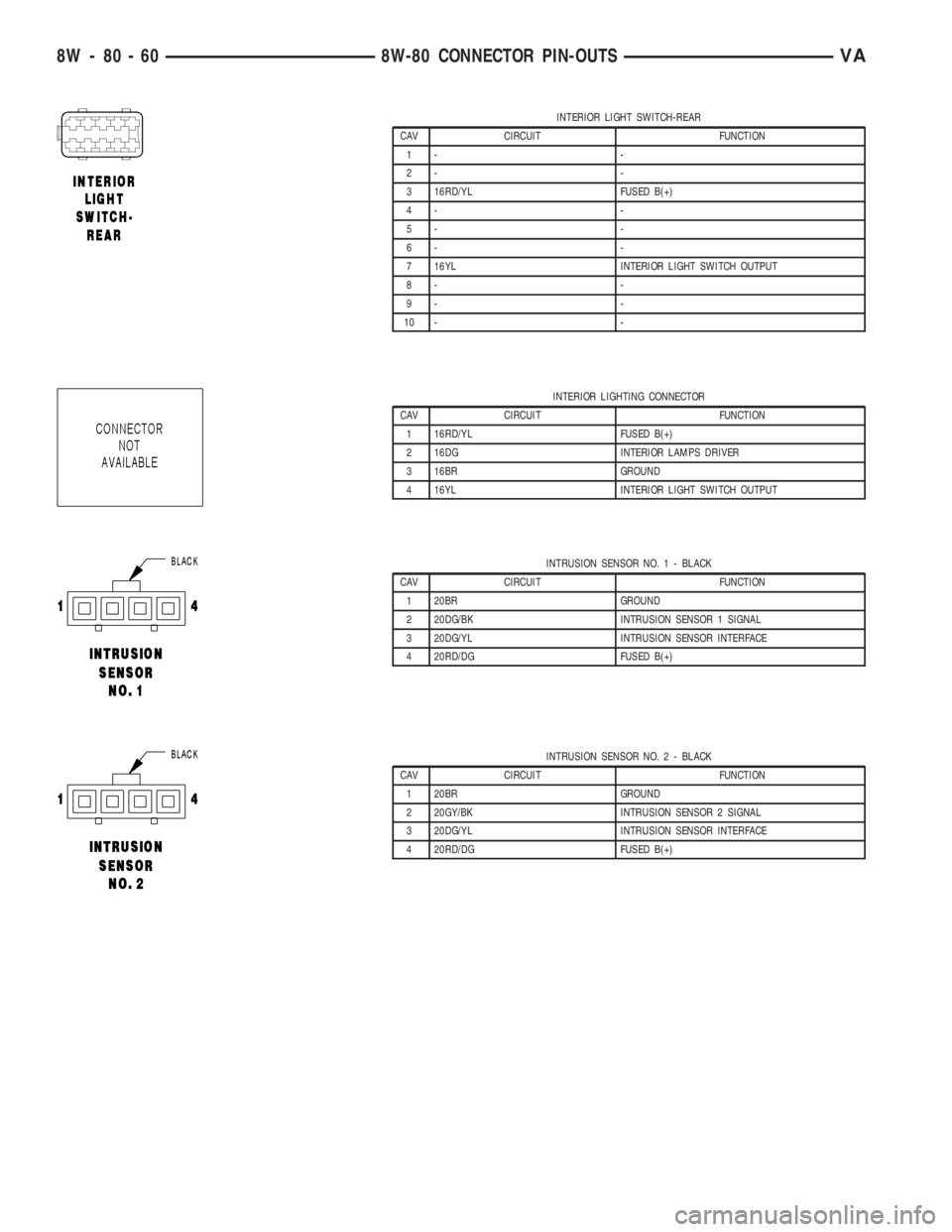

INTERIOR LIGHT SWITCH-REAR
CAV CIRCUIT FUNCTION
1- -
2- -
3 16RD/YL FUSED B(+)
4- -
5- -
6- -
7 16YL INTERIOR LIGHT SWITCH OUTPUT
8- -
9- -
10 - -
INTERIOR LIGHTING CONNECTOR
CAV CIRCUIT FUNCTION
1 16RD/YL FUSED B(+)
2 16DG INTERIOR LAMPS DRIVER
3 16BR GROUND
4 16YL INTERIOR LIGHT SWITCH OUTPUT
INTRUSION SENSOR NO. 1 - BLACK
CAV CIRCUIT FUNCTION
1 20BR GROUND
2 20DG/BK INTRUSION SENSOR 1 SIGNAL
3 20DG/YL INTRUSION SENSOR INTERFACE
4 20RD/DG FUSED B(+)
INTRUSION SENSOR NO. 2 - BLACK
CAV CIRCUIT FUNCTION
1 20BR GROUND
2 20GY/BK INTRUSION SENSOR 2 SIGNAL
3 20DG/YL INTRUSION SENSOR INTERFACE
4 20RD/DG FUSED B(+)
8W - 80 - 60 8W-80 CONNECTOR PIN-OUTSVA

INTRUSION SENSOR NO. 3 - BLACK
CAV CIRCUIT FUNCTION
1 20BR GROUND
2 20DG/WT/BL INTRUSION SENSOR 3 SIGNAL
3 20DG/YL INTRUSION SENSOR INTERFACE
4 20RD/DG FUSED B(+)
KICK DOWN SWITCH - BLACK
CAV CIRCUIT FUNCTION
1 18BR/DG KICKDOWN SWITCH SIGNAL
2 18BR (EXCEPT OBD) SENSOR GROUND
2 18BR (OBD) GROUND
LATERAL ACCELERATION SENSOR
CAV CIRCUIT FUNCTION
1 20YL/RD SENSOR SIGNAL
2 20YL/WT SENSOR SIGNAL
3 20RD/BL POWER INPUT
4 20DG/YL SENSOR SIGNAL
5 20BK/DG SENSOR SIGNAL
6 20BR GROUND
LICENSE PLATE LAMP NO. 1
CAV CIRCUIT FUNCTION
1 16GY/DG/RD LAMP DRIVER
2 16BR GROUND
LICENSE PLATE LAMP NO. 2
CAV CIRCUIT FUNCTION
1 16GY/DG/RD LAMP DRIVER
2 16BR GROUND
VA8W-80 CONNECTOR PIN-OUTS 8W - 80 - 61

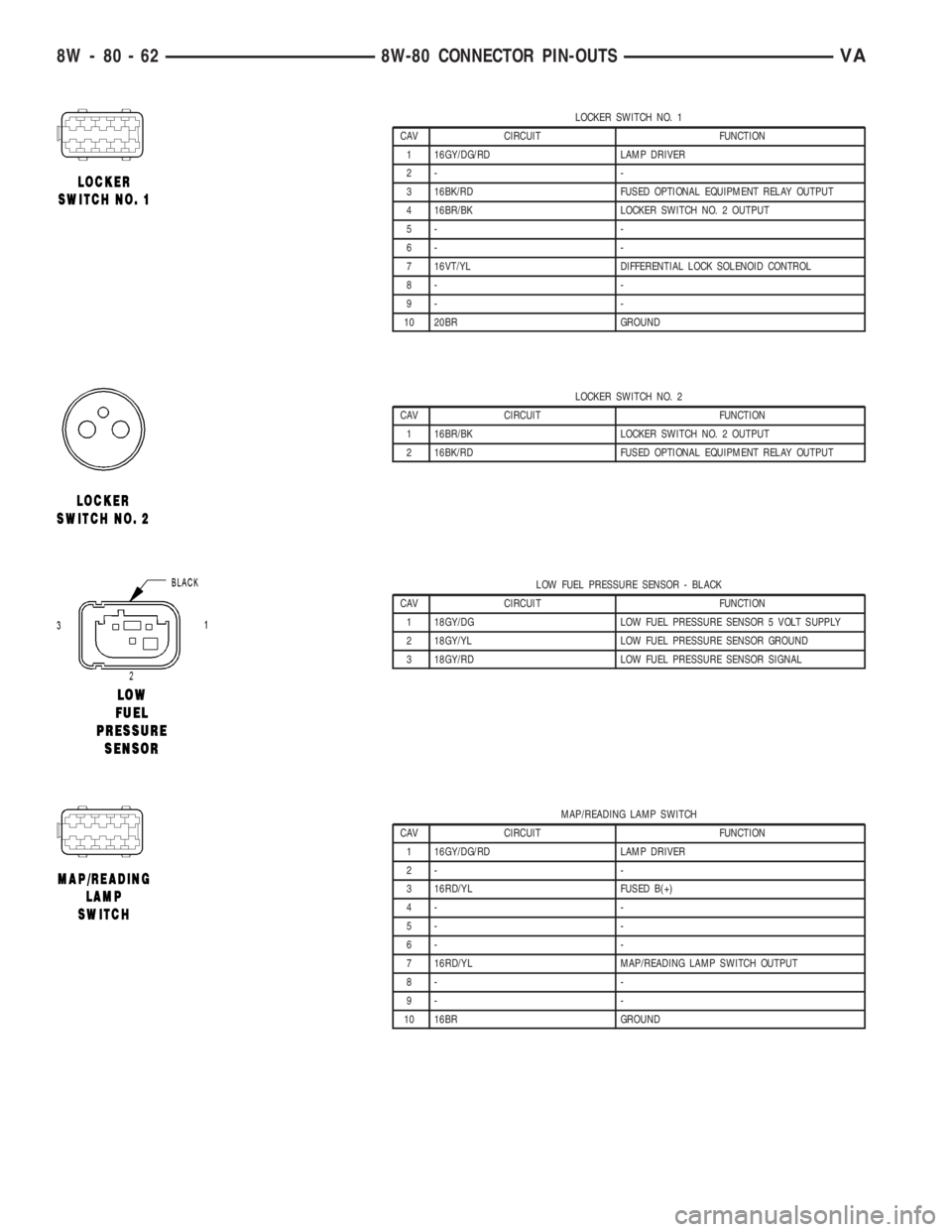

LOCKER SWITCH NO. 1
CAV CIRCUIT FUNCTION
1 16GY/DG/RD LAMP DRIVER
2- -
3 16BK/RD FUSED OPTIONAL EQUIPMENT RELAY OUTPUT
4 16BR/BK LOCKER SWITCH NO. 2 OUTPUT
5- -
6- -
7 16VT/YL DIFFERENTIAL LOCK SOLENOID CONTROL
8- -
9- -
10 20BR GROUND
LOCKER SWITCH NO. 2
CAV CIRCUIT FUNCTION
1 16BR/BK LOCKER SWITCH NO. 2 OUTPUT
2 16BK/RD FUSED OPTIONAL EQUIPMENT RELAY OUTPUT
LOW FUEL PRESSURE SENSOR - BLACK
CAV CIRCUIT FUNCTION
1 18GY/DG LOW FUEL PRESSURE SENSOR 5 VOLT SUPPLY
2 18GY/YL LOW FUEL PRESSURE SENSOR GROUND
3 18GY/RD LOW FUEL PRESSURE SENSOR SIGNAL
MAP/READING LAMP SWITCH
CAV CIRCUIT FUNCTION
1 16GY/DG/RD LAMP DRIVER
2- -
3 16RD/YL FUSED B(+)
4- -
5- -
6- -
7 16RD/YL MAP/READING LAMP SWITCH OUTPUT
8- -
9- -
10 16BR GROUND
8W - 80 - 62 8W-80 CONNECTOR PIN-OUTSVA

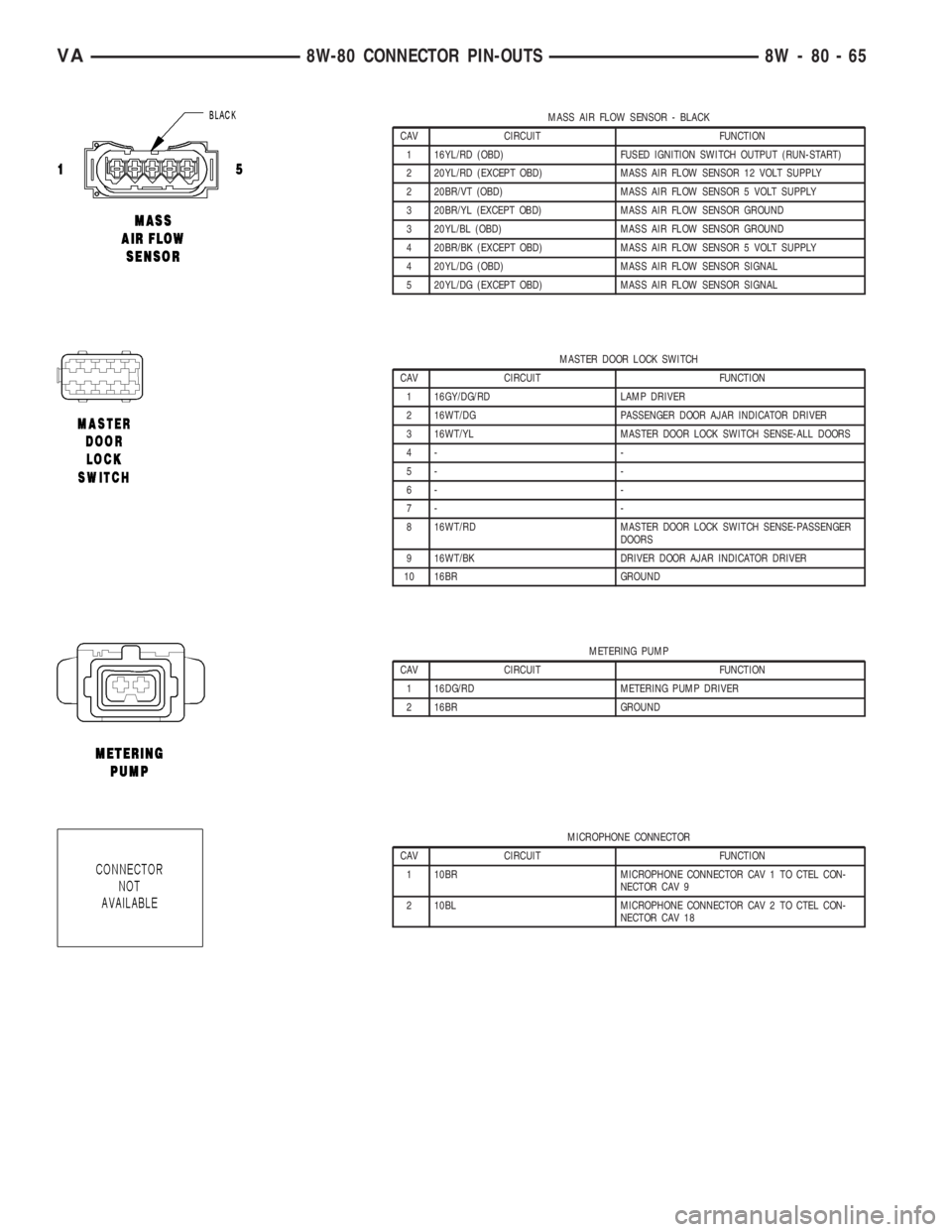

MASS AIR FLOW SENSOR - BLACK
CAV CIRCUIT FUNCTION
1 16YL/RD (OBD) FUSED IGNITION SWITCH OUTPUT (RUN-START)
2 20YL/RD (EXCEPT OBD) MASS AIR FLOW SENSOR 12 VOLT SUPPLY
2 20BR/VT (OBD) MASS AIR FLOW SENSOR 5 VOLT SUPPLY
3 20BR/YL (EXCEPT OBD) MASS AIR FLOW SENSOR GROUND
3 20YL/BL (OBD) MASS AIR FLOW SENSOR GROUND
4 20BR/BK (EXCEPT OBD) MASS AIR FLOW SENSOR 5 VOLT SUPPLY
4 20YL/DG (OBD) MASS AIR FLOW SENSOR SIGNAL
5 20YL/DG (EXCEPT OBD) MASS AIR FLOW SENSOR SIGNAL
MASTER DOOR LOCK SWITCH
CAV CIRCUIT FUNCTION
1 16GY/DG/RD LAMP DRIVER
2 16WT/DG PASSENGER DOOR AJAR INDICATOR DRIVER
3 16WT/YL MASTER DOOR LOCK SWITCH SENSE-ALL DOORS
4- -
5- -
6- -
7- -
8 16WT/RD MASTER DOOR LOCK SWITCH SENSE-PASSENGER
DOORS
9 16WT/BK DRIVER DOOR AJAR INDICATOR DRIVER
10 16BR GROUND
METERING PUMP
CAV CIRCUIT FUNCTION
1 16DG/RD METERING PUMP DRIVER
2 16BR GROUND
MICROPHONE CONNECTOR
CAV CIRCUIT FUNCTION
1 10BR MICROPHONE CONNECTOR CAV 1 TO CTEL CON-
NECTOR CAV 9
2 10BL MICROPHONE CONNECTOR CAV 2 TO CTEL CON-
NECTOR CAV 18
VA8W-80 CONNECTOR PIN-OUTS 8W - 80 - 65
