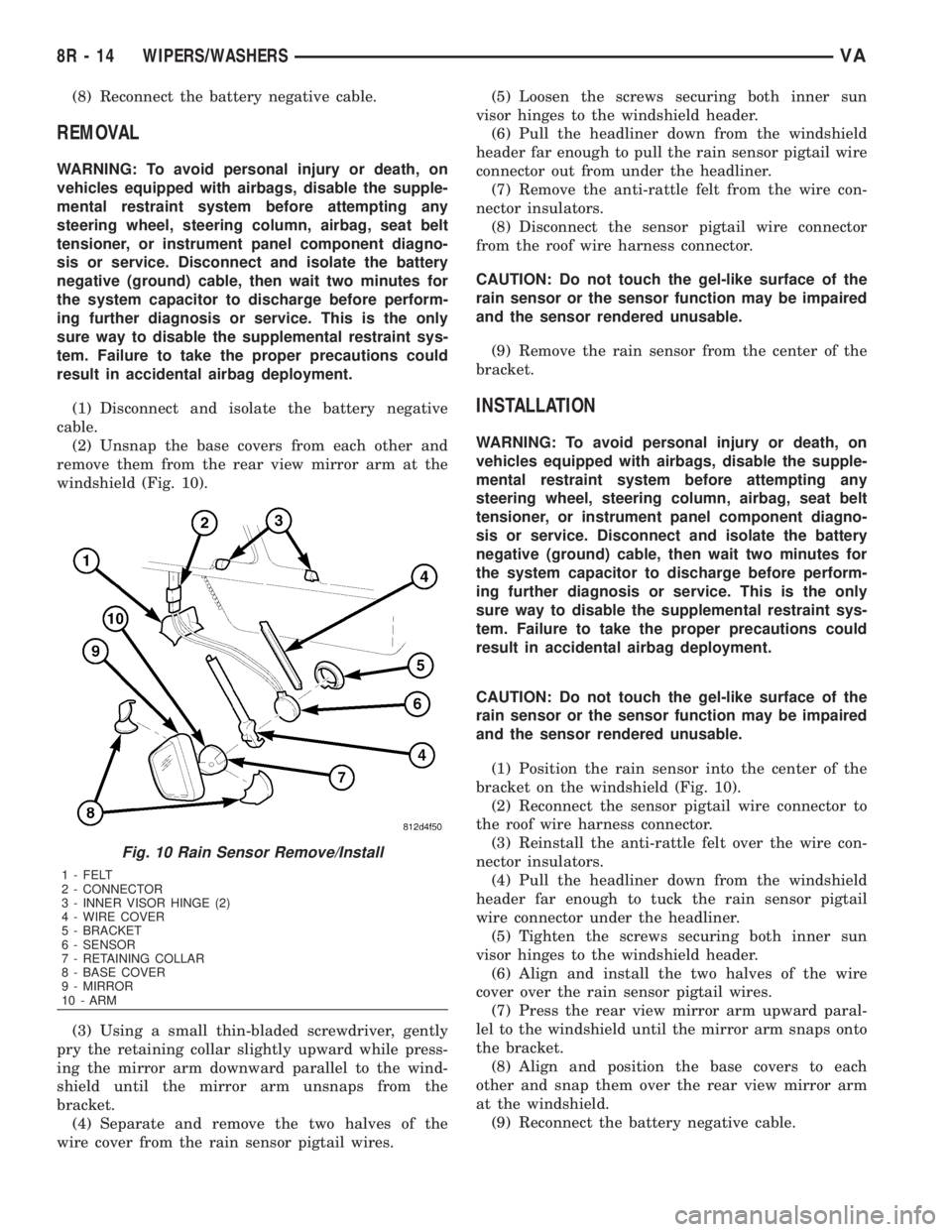

(8) Reconnect the battery negative cable.
REMOVAL
WARNING: To avoid personal injury or death, on
vehicles equipped with airbags, disable the supple-
mental restraint system before attempting any
steering wheel, steering column, airbag, seat belt
tensioner, or instrument panel component diagno-
sis or service. Disconnect and isolate the battery
negative (ground) cable, then wait two minutes for
the system capacitor to discharge before perform-
ing further diagnosis or service. This is the only
sure way to disable the supplemental restraint sys-
tem. Failure to take the proper precautions could
result in accidental airbag deployment.
(1) Disconnect and isolate the battery negative
cable.
(2) Unsnap the base covers from each other and
remove them from the rear view mirror arm at the
windshield (Fig. 10).
(3) Using a small thin-bladed screwdriver, gently
pry the retaining collar slightly upward while press-
ing the mirror arm downward parallel to the wind-
shield until the mirror arm unsnaps from the
bracket.
(4) Separate and remove the two halves of the
wire cover from the rain sensor pigtail wires.(5) Loosen the screws securing both inner sun
visor hinges to the windshield header.
(6) Pull the headliner down from the windshield
header far enough to pull the rain sensor pigtail wire
connector out from under the headliner.
(7) Remove the anti-rattle felt from the wire con-
nector insulators.
(8) Disconnect the sensor pigtail wire connector
from the roof wire harness connector.
CAUTION: Do not touch the gel-like surface of the
rain sensor or the sensor function may be impaired
and the sensor rendered unusable.
(9) Remove the rain sensor from the center of the
bracket.
INSTALLATION
WARNING: To avoid personal injury or death, on
vehicles equipped with airbags, disable the supple-
mental restraint system before attempting any
steering wheel, steering column, airbag, seat belt
tensioner, or instrument panel component diagno-
sis or service. Disconnect and isolate the battery
negative (ground) cable, then wait two minutes for
the system capacitor to discharge before perform-
ing further diagnosis or service. This is the only
sure way to disable the supplemental restraint sys-
tem. Failure to take the proper precautions could
result in accidental airbag deployment.
CAUTION: Do not touch the gel-like surface of the
rain sensor or the sensor function may be impaired
and the sensor rendered unusable.
(1) Position the rain sensor into the center of the
bracket on the windshield (Fig. 10).
(2) Reconnect the sensor pigtail wire connector to
the roof wire harness connector.
(3) Reinstall the anti-rattle felt over the wire con-
nector insulators.
(4) Pull the headliner down from the windshield
header far enough to tuck the rain sensor pigtail
wire connector under the headliner.
(5) Tighten the screws securing both inner sun
visor hinges to the windshield header.
(6) Align and install the two halves of the wire
cover over the rain sensor pigtail wires.
(7) Press the rear view mirror arm upward paral-
lel to the windshield until the mirror arm snaps onto
the bracket.
(8) Align and position the base covers to each
other and snap them over the rear view mirror arm
at the windshield.
(9) Reconnect the battery negative cable.
Fig. 10 Rain Sensor Remove/Install
1 - FELT
2 - CONNECTOR
3 - INNER VISOR HINGE (2)
4 - WIRE COVER
5 - BRACKET
6 - SENSOR
7 - RETAINING COLLAR
8 - BASE COVER
9 - MIRROR
10 - ARM
8R - 14 WIPERS/WASHERSVA
Page 1058 of 2305

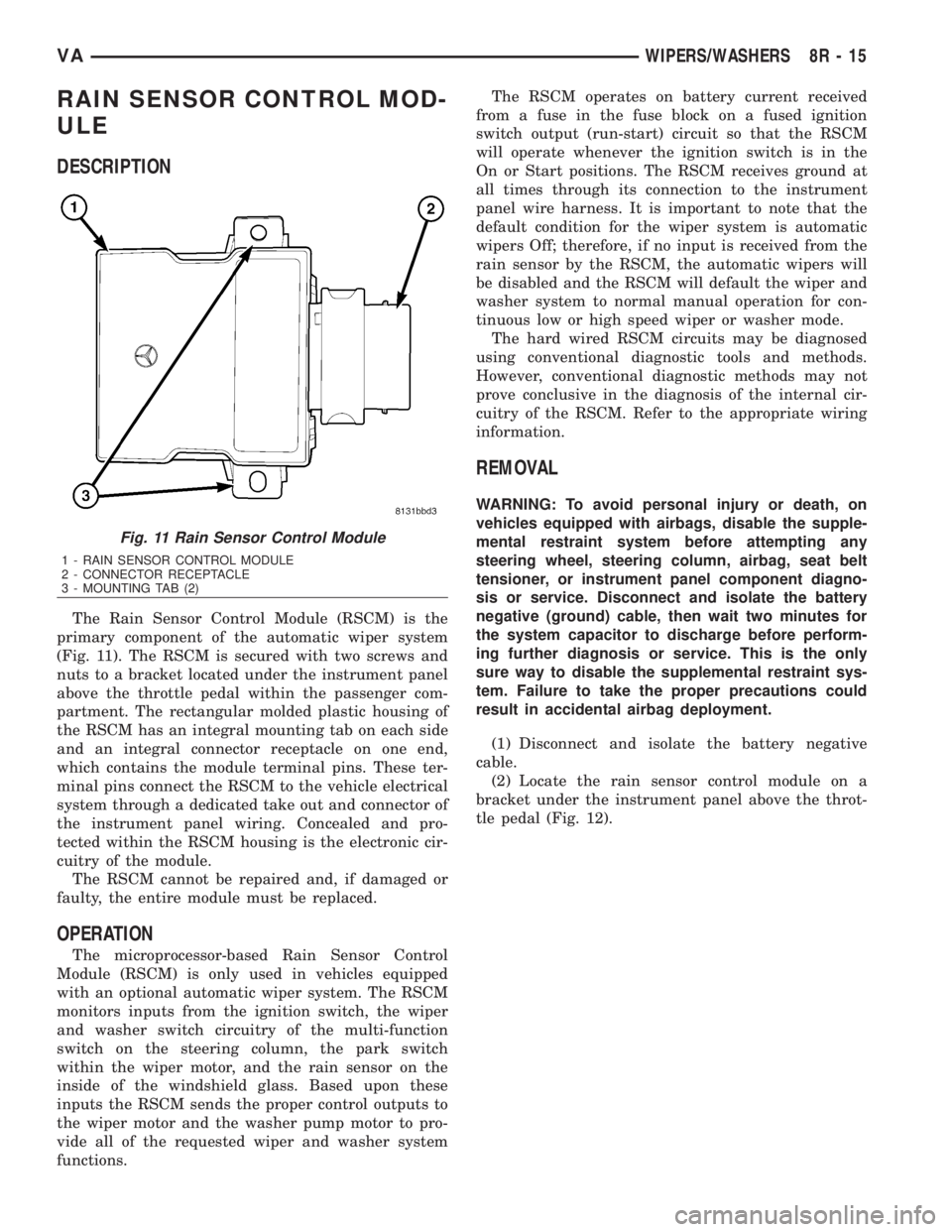

RAIN SENSOR CONTROL MOD-
ULE
DESCRIPTION
The Rain Sensor Control Module (RSCM) is the
primary component of the automatic wiper system
(Fig. 11). The RSCM is secured with two screws and
nuts to a bracket located under the instrument panel
above the throttle pedal within the passenger com-
partment. The rectangular molded plastic housing of
the RSCM has an integral mounting tab on each side
and an integral connector receptacle on one end,
which contains the module terminal pins. These ter-
minal pins connect the RSCM to the vehicle electrical
system through a dedicated take out and connector of
the instrument panel wiring. Concealed and pro-
tected within the RSCM housing is the electronic cir-
cuitry of the module.
The RSCM cannot be repaired and, if damaged or
faulty, the entire module must be replaced.
OPERATION
The microprocessor-based Rain Sensor Control
Module (RSCM) is only used in vehicles equipped
with an optional automatic wiper system. The RSCM
monitors inputs from the ignition switch, the wiper
and washer switch circuitry of the multi-function
switch on the steering column, the park switch
within the wiper motor, and the rain sensor on the
inside of the windshield glass. Based upon these
inputs the RSCM sends the proper control outputs to
the wiper motor and the washer pump motor to pro-
vide all of the requested wiper and washer system
functions.The RSCM operates on battery current received
from a fuse in the fuse block on a fused ignition
switch output (run-start) circuit so that the RSCM
will operate whenever the ignition switch is in the
On or Start positions. The RSCM receives ground at
all times through its connection to the instrument
panel wire harness. It is important to note that the
default condition for the wiper system is automatic
wipers Off; therefore, if no input is received from the
rain sensor by the RSCM, the automatic wipers will
be disabled and the RSCM will default the wiper and
washer system to normal manual operation for con-
tinuous low or high speed wiper or washer mode.
The hard wired RSCM circuits may be diagnosed
using conventional diagnostic tools and methods.
However, conventional diagnostic methods may not
prove conclusive in the diagnosis of the internal cir-
cuitry of the RSCM. Refer to the appropriate wiring
information.
REMOVAL
WARNING: To avoid personal injury or death, on
vehicles equipped with airbags, disable the supple-
mental restraint system before attempting any
steering wheel, steering column, airbag, seat belt
tensioner, or instrument panel component diagno-
sis or service. Disconnect and isolate the battery
negative (ground) cable, then wait two minutes for
the system capacitor to discharge before perform-
ing further diagnosis or service. This is the only
sure way to disable the supplemental restraint sys-
tem. Failure to take the proper precautions could
result in accidental airbag deployment.
(1) Disconnect and isolate the battery negative
cable.
(2) Locate the rain sensor control module on a
bracket under the instrument panel above the throt-
tle pedal (Fig. 12).
Fig. 11 Rain Sensor Control Module
1 - RAIN SENSOR CONTROL MODULE
2 - CONNECTOR RECEPTACLE
3 - MOUNTING TAB (2)
VAWIPERS/WASHERS 8R - 15
Page 1059 of 2305
(3) Cut the tie wrap on the control module (Fig.
13).
(4) Unlock and disconnect the wire harness con-
nector from the module connector receptacle.
(5) Remove the two screws and nuts that secure
the module to the bracket.
(6) Remove the module from the bracket.
INSTALLATION
WARNING: To avoid personal injury or death, on
vehicles equipped with airbags, disable the supple-
mental restraint system before attempting any
steering wheel, steering column, airbag, seat belt
tensioner, or instrument panel component diagno-
sis or service. Disconnect and isolate the battery
negative (ground) cable, then wait two minutes for
the system capacitor to discharge before perform-
ing further diagnosis or service. This is the only
sure way to disable the supplemental restraint sys-
tem. Failure to take the proper precautions could
result in accidental airbag deployment.
(1) Position the rain sensor control module to the
bracket under the instrument panel above the throt-
tle pedal (Fig. 12).
(2) Install and tighten the two screws and nuts
that secure the module to the bracket (Fig. 13).
(3) Reconnect and lock the wire harness connector
to the module connector receptacle.
(4) Install a new tie wrap to secure the wire har-
ness to the control module.
(5) Reconnect the battery negative cable.
WASHER FLUID LEVEL
SWITCH
DESCRIPTION
The optional washer fluid level switch is a single
pole, single throw switch that is integral to a unique
version of the washer pump/motor unit, located rear-
ward facing side of the washer reservoir, which is
located in a dedicated hole on the top of the sump
area near the back of the windshield washer reser-
voir on the right front fender wheel house in the
engine compartment. Only a molded plastic nipple
with a clear vent tube are visible near the top of the
washer pump/motor unit that is equipped with the
optional fluid level switch when it is installed in the
reservoir. The vent tube is routed to and retained in
an integral clip located behind the reservoir filler cap
near the top of the reservoir. This version of the
washer pump/motor unit also has a third terminal
pin in its integral connector receptacle. The washer
fluid level switch cannot be adjusted or repaired. If
faulty or damaged, the entire washer pump/motor
unit must be replaced.
OPERATION
The washer fluid level switch monitors the level of
the washer fluid in the washer reservoir. When the
fluid level in the washer reservoir is at or above the
predetermined minimum, the switch contacts are
open. When the fluid level in the washer reservoir
Fig. 12 Rain Sensor Control Module Location
1 - INSTRUMENT PANEL
2 - RAIN SENSOR CONTROL MODULE
3 - THROTTLE PEDAL
Fig. 13 Rain Sensor Control Module Remove/Install
1 - SCREW (2)
2 - CONNECTOR
3 - NUT (2)
4 - TIE WRAP
5 - MODULE
8R - 16 WIPERS/WASHERSVA
Page 1092 of 2305

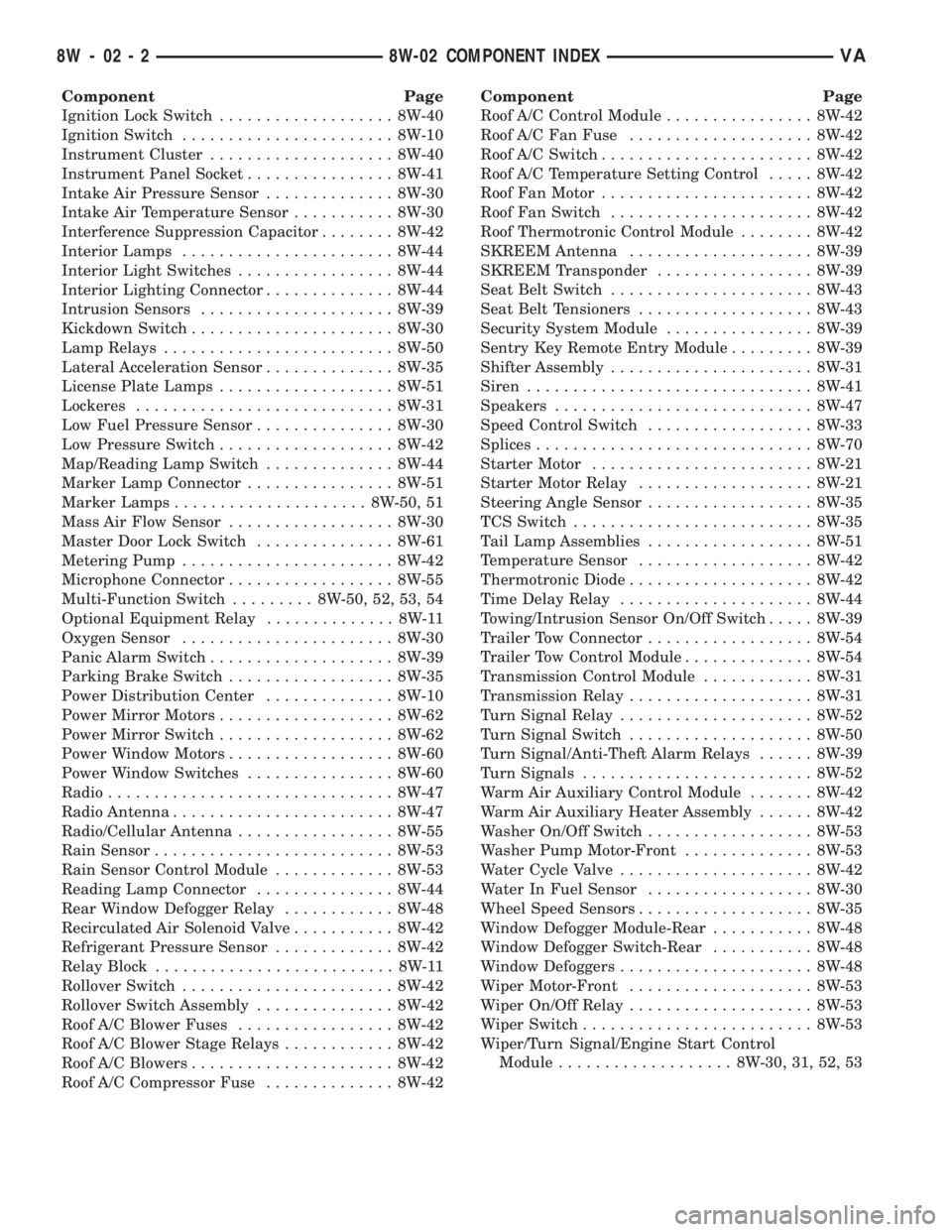

8W-02 COMPONENT INDEX
Component Page
A/C Auxiliary Fan..................... 8W-42
A/C Auxiliary Fan Relay................ 8W-42
A/C Compressor Clutch................. 8W-42
A/C Compressor Clutch Relay............ 8W-42
A/C Roof Auxiliary Fan................. 8W-42
A/C Roof Auxiliary Fan Relay............ 8W-42
Accelerator Pedal Position Sensor......... 8W-30
Additional Heat Exchanger.............. 8W-42
Additional Heat Exchanger Relay......... 8W-42
Additional Heat Exchanger Switch........ 8W-42
Air Outlet Temperature Sensor........... 8W-42
Airbag Control Module................. 8W-43
Airbag Squibs........................ 8W-43
Ambient Temperature Sensor............ 8W-42
Anti Icing Switch..................... 8W-42
Ash Receiver Lamp.................... 8W-44
Automatic Temperature Control Module.... 8W-42
Auxiliary Heater Control................ 8W-42
Battery............................. 8W-20
Battery Relay-Auxiliary................ 8W-20
Battery-Auxiliary..................... 8W-20
Beam Select Switch.................... 8W-50
Blower Motor Resistor Block............. 8W-42
Blower Motor-Front.................... 8W-42
Blower Stage I Diode................... 8W-42
Body Plug Connector................... 8W-11
Boost Pressure Sensor.................. 8W-30
Boost Pressure Servomotor.............. 8W-30
Boost Pressure Solenoid................ 8W-30
Brake Fluid Level Switch............... 8W-35
Brake Lamp Switch.................... 8W-35
Brake Lamp Switch 4 Pole.............. 8W-35
Brake Pressure Sensor................. 8W-35
Brake Wear Sensors................... 8W-35
CTEL Antenna Connector............... 8W-55
CTEL Connector...................... 8W-55
Cabin Heater Assembly................. 8W-42
Cabin Heater Module.................. 8W-42
Camshaft Position Sensor............... 8W-30
Center High Mounted Stop Lamp......... 8W-51
Central Timer Module.................. 8W-45
Cigar Lighter......................... 8W-41
Cigar Lighter Lamp................... 8W-44
Circulation Pump..................... 8W-42
Circulation Pump Diode................ 8W-42
Circulation Pump Relay-Cabin Heater
Module........................... 8W-42
Clockspring....................... 8W-41, 43
Controller Antilock Brake............... 8W-35
Courtesy Lamps...................... 8W-44
Crankcase Heater..................... 8W-30
Crankshaft Position Sensor.............. 8W-30Component Page
Cylinder Lock Switch-Driver............. 8W-61
D+ Relays........................ 8W-10, 11
Data Link Connector................... 8W-18
Daytime Running Lamp Relays........... 8W-50
Differential Lock Solenoid Valve.......... 8W-31
Dome Lamp.......................... 8W-44
Door Jamb Switch-Rear................. 8W-61
Door Jamb Switches................... 8W-44
Door Jamb Switches-Sliding............. 8W-61
Door Lock Motor/Ajar Switch Assemblies . . . 8W-61
Dosing Pump......................... 8W-42
EGR Valve........................... 8W-30
Electrohydraulic Control Unit............ 8W-31
Engine Control Module................. 8W-30
Engine Control Relay.................. 8W-31
Engine Coolant Level Switch............. 8W-30
Engine Coolant Temperature Sensor....... 8W-30
Engine Oil Sensor..................... 8W-30
Evaporator Temperature Sensor.......... 8W-42
Fan Stage 1 Relay..................... 8W-42
Fog Lamp Relay...................... 8W-50
Fog Lamp Switch..................... 8W-50
Fuel Injectors........................ 8W-30
Fuel Level Sensor..................... 8W-30
Fuel Pressure Sensor.................. 8W-30
Fuel Pressure Solenoid................. 8W-30
Fuel Pump........................... 8W-30
Fuel Pump Relay...................... 8W-30
Fuel Quantity Control Valve............. 8W-30
Fuel Shutdown Solenoid................ 8W-30
Fuel Temperature Sensor............... 8W-30
Fuse Blocks.................... 8W-10, 11, 30
Fuse/Relay Block...................... 8W-11
Fused Ignition Switch Run-Start Relay..... 8W-11
Fuses......................... 8W-10, 11, 42
Generator........................... 8W-20
Glow Plug Control Module.............. 8W-30
Glow Plugs.......................... 8W-30
Grounds............................ 8W-15
Hazard Warning Switch................ 8W-52
Headlamp Adjust Switch................ 8W-50
Headlamp Assemblies............... 8W-50, 52
Headlamp Switch..................... 8W-50
Heated Seat Modules.................. 8W-63
Heated Seat Switches.................. 8W-63
Heater Timer-Auxiliary................. 8W-42
High Idle Switch...................... 8W-30
High Pressure Switch.................. 8W-42
Hood Ajar Switch..................... 8W-39
Horn............................... 8W-41
Horn Relay.......................... 8W-41
Horn Switch......................... 8W-41
VA8W-02 COMPONENT INDEX 8W - 02 - 1
Page 1093 of 2305
Component Page
Ignition Lock Switch................... 8W-40
Ignition Switch....................... 8W-10
Instrument Cluster.................... 8W-40
Instrument Panel Socket................ 8W-41
Intake Air Pressure Sensor.............. 8W-30
Intake Air Temperature Sensor........... 8W-30
Interference Suppression Capacitor........ 8W-42
Interior Lamps....................... 8W-44
Interior Light Switches................. 8W-44
Interior Lighting Connector.............. 8W-44
Intrusion Sensors..................... 8W-39
Kickdown Switch...................... 8W-30
Lamp Relays......................... 8W-50
Lateral Acceleration Sensor.............. 8W-35
License Plate Lamps................... 8W-51
Lockeres............................ 8W-31
Low Fuel Pressure Sensor............... 8W-30
Low Pressure Switch................... 8W-42
Map/Reading Lamp Switch.............. 8W-44
Marker Lamp Connector................ 8W-51
Marker Lamps..................... 8W-50, 51
Mass Air Flow Sensor.................. 8W-30
Master Door Lock Switch............... 8W-61
Metering Pump....................... 8W-42
Microphone Connector.................. 8W-55
Multi-Function Switch......... 8W-50, 52, 53, 54
Optional Equipment Relay.............. 8W-11
Oxygen Sensor....................... 8W-30
Panic Alarm Switch.................... 8W-39
Parking Brake Switch.................. 8W-35
Power Distribution Center.............. 8W-10
Power Mirror Motors................... 8W-62
Power Mirror Switch................... 8W-62
Power Window Motors.................. 8W-60
Power Window Switches................ 8W-60
Radio............................... 8W-47
Radio Antenna........................ 8W-47
Radio/Cellular Antenna................. 8W-55
Rain Sensor.......................... 8W-53
Rain Sensor Control Module............. 8W-53
Reading Lamp Connector............... 8W-44
Rear Window Defogger Relay............ 8W-48
Recirculated Air Solenoid Valve........... 8W-42
Refrigerant Pressure Sensor............. 8W-42
Relay Block.......................... 8W-11
Rollover Switch....................... 8W-42
Rollover Switch Assembly............... 8W-42
Roof A/C Blower Fuses................. 8W-42
Roof A/C Blower Stage Relays............ 8W-42
Roof A/C Blowers...................... 8W-42
Roof A/C Compressor Fuse.............. 8W-42Component Page
Roof A/C Control Module................ 8W-42
Roof A/C Fan Fuse.................... 8W-42
Roof A/C Switch....................... 8W-42
Roof A/C Temperature Setting Control..... 8W-42
Roof Fan Motor....................... 8W-42
Roof Fan Switch...................... 8W-42
Roof Thermotronic Control Module........ 8W-42
SKREEM Antenna.................... 8W-39
SKREEM Transponder................. 8W-39
Seat Belt Switch...................... 8W-43
Seat Belt Tensioners................... 8W-43
Security System Module................ 8W-39
Sentry Key Remote Entry Module......... 8W-39
Shifter Assembly...................... 8W-31
Siren............................... 8W-41
Speakers............................ 8W-47
Speed Control Switch.................. 8W-33
Splices.............................. 8W-70
Starter Motor........................ 8W-21
Starter Motor Relay................... 8W-21
Steering Angle Sensor.................. 8W-35
TCS Switch.......................... 8W-35
Tail Lamp Assemblies.................. 8W-51
Temperature Sensor................... 8W-42
Thermotronic Diode.................... 8W-42
Time Delay Relay..................... 8W-44
Towing/Intrusion Sensor On/Off Switch..... 8W-39
Trailer Tow Connector.................. 8W-54
Trailer Tow Control Module.............. 8W-54
Transmission Control Module............ 8W-31
Transmission Relay.................... 8W-31
Turn Signal Relay..................... 8W-52
Turn Signal Switch.................... 8W-50
Turn Signal/Anti-Theft Alarm Relays...... 8W-39
Turn Signals......................... 8W-52
Warm Air Auxiliary Control Module....... 8W-42
Warm Air Auxiliary Heater Assembly...... 8W-42
Washer On/Off Switch.................. 8W-53
Washer Pump Motor-Front.............. 8W-53
Water Cycle Valve..................... 8W-42
Water In Fuel Sensor.................. 8W-30
Wheel Speed Sensors................... 8W-35
Window Defogger Module-Rear........... 8W-48
Window Defogger Switch-Rear........... 8W-48
Window Defoggers..................... 8W-48
Wiper Motor-Front.................... 8W-53
Wiper On/Off Relay.................... 8W-53
Wiper Switch......................... 8W-53
Wiper/Turn Signal/Engine Start Control
Module................... 8W-30, 31, 52, 53
8W - 02 - 2 8W-02 COMPONENT INDEXVA
Page 1094 of 2305

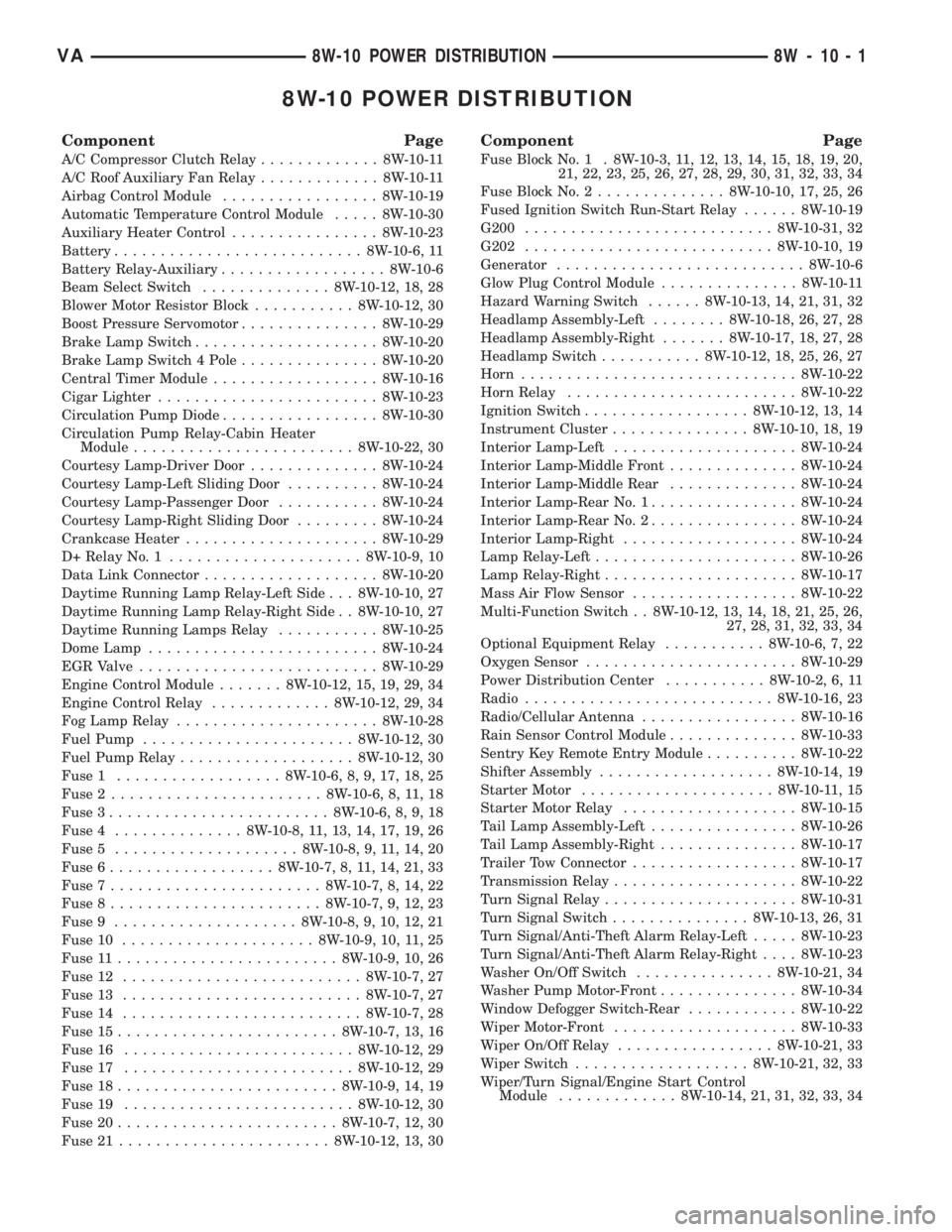

8W-10 POWER DISTRIBUTION
Component Page
A/C Compressor Clutch Relay............. 8W-10-11
A/C Roof Auxiliary Fan Relay............. 8W-10-11
Airbag Control Module................. 8W-10-19
Automatic Temperature Control Module..... 8W-10-30
Auxiliary Heater Control................ 8W-10-23
Battery........................... 8W-10-6, 11
Battery Relay-Auxiliary.................. 8W-10-6
Beam Select Switch.............. 8W-10-12, 18, 28
Blower Motor Resistor Block........... 8W-10-12, 30
Boost Pressure Servomotor............... 8W-10-29
Brake Lamp Switch.................... 8W-10-20
Brake Lamp Switch 4 Pole............... 8W-10-20
Central Timer Module.................. 8W-10-16
Cigar Lighter........................ 8W-10-23
Circulation Pump Diode................. 8W-10-30
Circulation Pump Relay-Cabin Heater
Module........................ 8W-10-22, 30
Courtesy Lamp-Driver Door.............. 8W-10-24
Courtesy Lamp-Left Sliding Door.......... 8W-10-24
Courtesy Lamp-Passenger Door........... 8W-10-24
Courtesy Lamp-Right Sliding Door......... 8W-10-24
Crankcase Heater..................... 8W-10-29
D+ Relay No. 1..................... 8W-10-9, 10
Data Link Connector................... 8W-10-20
Daytime Running Lamp Relay-Left Side . . . 8W-10-10, 27
Daytime Running Lamp Relay-Right Side . . 8W-10-10, 27
Daytime Running Lamps Relay........... 8W-10-25
Dome Lamp......................... 8W-10-24
EGR Valve.......................... 8W-10-29
Engine Control Module....... 8W-10-12, 15, 19, 29, 34
Engine Control Relay............. 8W-10-12, 29, 34
Fog Lamp Relay...................... 8W-10-28
Fuel Pump....................... 8W-10-12, 30
Fuel Pump Relay................... 8W-10-12, 30
Fuse 1.................. 8W-10-6, 8, 9, 17, 18, 25
Fuse 2....................... 8W-10-6, 8, 11, 18
Fuse 3........................ 8W-10-6, 8, 9, 18
Fuse 4.............. 8W-10-8, 11, 13, 14, 17, 19, 26
Fuse 5.................... 8W-10-8, 9, 11, 14, 20
Fuse 6.................. 8W-10-7, 8, 11, 14, 21, 33
Fuse 7....................... 8W-10-7, 8, 14, 22
Fuse 8....................... 8W-10-7, 9, 12, 23
Fuse 9.................... 8W-10-8, 9, 10, 12, 21
Fuse 10..................... 8W-10-9, 10, 11, 25
Fuse 11........................ 8W-10-9, 10, 26
Fuse 12.......................... 8W-10-7, 27
Fuse 13.......................... 8W-10-7, 27
Fuse 14.......................... 8W-10-7, 28
Fuse 15........................ 8W-10-7, 13, 16
Fuse 16......................... 8W-10-12, 29
Fuse 17......................... 8W-10-12, 29
Fuse 18........................ 8W-10-9, 14, 19
Fuse 19......................... 8W-10-12, 30
Fuse 20........................ 8W-10-7, 12, 30
Fuse 21....................... 8W-10-12, 13, 30
Component Page
Fuse Block No. 1 . 8W-10-3, 11, 12, 13, 14, 15, 18, 19, 20,
21, 22, 23, 25, 26, 27, 28, 29, 30, 31, 32, 33, 34
Fuse Block No. 2.............. 8W-10-10, 17, 25, 26
Fused Ignition Switch Run-Start Relay...... 8W-10-19
G200........................... 8W-10-31, 32
G202........................... 8W-10-10, 19
Generator........................... 8W-10-6
Glow Plug Control Module............... 8W-10-11
Hazard Warning Switch...... 8W-10-13, 14, 21, 31, 32
Headlamp Assembly-Left........ 8W-10-18, 26, 27, 28
Headlamp Assembly-Right....... 8W-10-17, 18, 27, 28
Headlamp Switch........... 8W-10-12, 18, 25, 26, 27
Horn.............................. 8W-10-22
Horn Relay......................... 8W-10-22
Ignition Switch.................. 8W-10-12, 13, 14
Instrument Cluster............... 8W-10-10, 18, 19
Interior Lamp-Left.................... 8W-10-24
Interior Lamp-Middle Front.............. 8W-10-24
Interior Lamp-Middle Rear.............. 8W-10-24
Interior Lamp-Rear No. 1................ 8W-10-24
Interior Lamp-Rear No. 2................ 8W-10-24
Interior Lamp-Right................... 8W-10-24
Lamp Relay-Left...................... 8W-10-26
Lamp Relay-Right..................... 8W-10-17
Mass Air Flow Sensor.................. 8W-10-22
Multi-Function Switch . . 8W-10-12, 13, 14, 18, 21, 25, 26,
27, 28, 31, 32, 33, 34
Optional Equipment Relay........... 8W-10-6, 7, 22
Oxygen Sensor....................... 8W-10-29
Power Distribution Center........... 8W-10-2, 6, 11
Radio........................... 8W-10-16, 23
Radio/Cellular Antenna................. 8W-10-16
Rain Sensor Control Module.............. 8W-10-33
Sentry Key Remote Entry Module.......... 8W-10-22
Shifter Assembly................... 8W-10-14, 19
Starter Motor..................... 8W-10-11, 15
Starter Motor Relay................... 8W-10-15
Tail Lamp Assembly-Left................ 8W-10-26
Tail Lamp Assembly-Right............... 8W-10-17
Trailer Tow Connector.................. 8W-10-17
Transmission Relay.................... 8W-10-22
Turn Signal Relay..................... 8W-10-31
Turn Signal Switch............... 8W-10-13, 26, 31
Turn Signal/Anti-Theft Alarm Relay-Left..... 8W-10-23
Turn Signal/Anti-Theft Alarm Relay-Right.... 8W-10-23
Washer On/Off Switch............... 8W-10-21, 34
Washer Pump Motor-Front............... 8W-10-34
Window Defogger Switch-Rear............ 8W-10-22
Wiper Motor-Front.................... 8W-10-33
Wiper On/Off Relay................. 8W-10-21, 33
Wiper Switch................... 8W-10-21, 32, 33
Wiper/Turn Signal/Engine Start Control
Module............. 8W-10-14, 21, 31, 32, 33, 34
VA8W-10 POWER DISTRIBUTION 8W - 10 - 1
Page 1128 of 2305

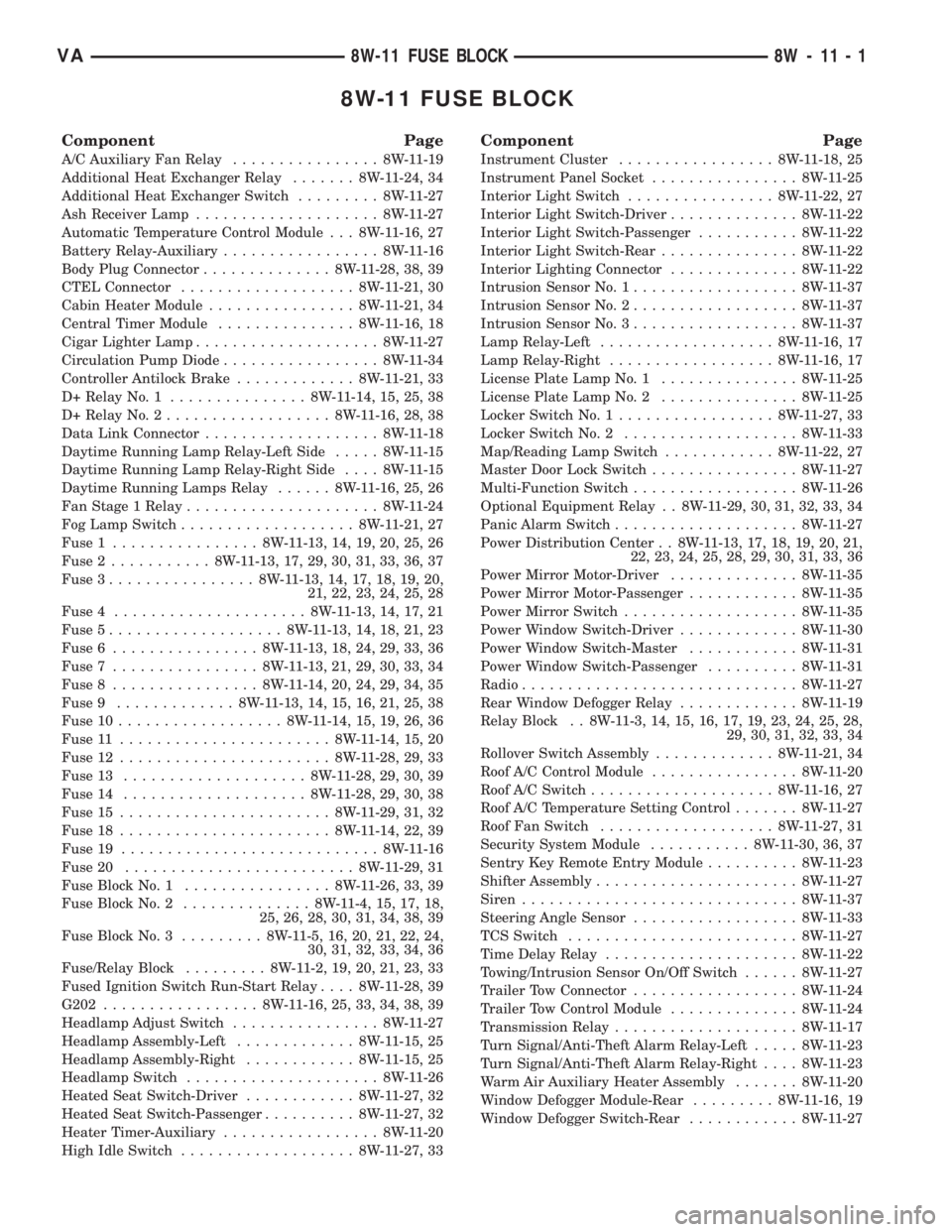

8W-11 FUSE BLOCK
Component Page
A/C Auxiliary Fan Relay................ 8W-11-19
Additional Heat Exchanger Relay....... 8W-11-24, 34
Additional Heat Exchanger Switch......... 8W-11-27
Ash Receiver Lamp.................... 8W-11-27
Automatic Temperature Control Module . . . 8W-11-16, 27
Battery Relay-Auxiliary................. 8W-11-16
Body Plug Connector.............. 8W-11-28, 38, 39
CTEL Connector................... 8W-11-21, 30
Cabin Heater Module................ 8W-11-21, 34
Central Timer Module............... 8W-11-16, 18
Cigar Lighter Lamp.................... 8W-11-27
Circulation Pump Diode................. 8W-11-34
Controller Antilock Brake............. 8W-11-21, 33
D+ Relay No. 1............... 8W-11-14, 15, 25, 38
D+ Relay No. 2.................. 8W-11-16, 28, 38
Data Link Connector................... 8W-11-18
Daytime Running Lamp Relay-Left Side..... 8W-11-15
Daytime Running Lamp Relay-Right Side.... 8W-11-15
Daytime Running Lamps Relay...... 8W-11-16, 25, 26
Fan Stage 1 Relay..................... 8W-11-24
Fog Lamp Switch................... 8W-11-21, 27
Fuse 1................ 8W-11-13, 14, 19, 20, 25, 26
Fuse 2........... 8W-11-13, 17, 29, 30, 31, 33, 36, 37
Fuse 3................ 8W-11-13, 14, 17, 18, 19, 20,
21, 22, 23, 24, 25, 28
Fuse 4..................... 8W-11-13, 14, 17, 21
Fuse 5................... 8W-11-13, 14, 18, 21, 23
Fuse 6................ 8W-11-13, 18, 24, 29, 33, 36
Fuse 7................ 8W-11-13, 21, 29, 30, 33, 34
Fuse 8................ 8W-11-14, 20, 24, 29, 34, 35
Fuse 9............. 8W-11-13, 14, 15, 16, 21, 25, 38
Fuse 10.................. 8W-11-14, 15, 19, 26, 36
Fuse 11....................... 8W-11-14, 15, 20
Fuse 12....................... 8W-11-28, 29, 33
Fuse 13.................... 8W-11-28, 29, 30, 39
Fuse 14.................... 8W-11-28, 29, 30, 38
Fuse 15....................... 8W-11-29, 31, 32
Fuse 18....................... 8W-11-14, 22, 39
Fuse 19............................ 8W-11-16
Fuse 20......................... 8W-11-29, 31
Fuse Block No. 1................ 8W-11-26, 33, 39
Fuse Block No. 2.............. 8W-11-4, 15, 17, 18,
25, 26, 28, 30, 31, 34, 38, 39
Fuse Block No. 3......... 8W-11-5, 16, 20, 21, 22, 24,
30, 31, 32, 33, 34, 36
Fuse/Relay Block......... 8W-11-2, 19, 20, 21, 23, 33
Fused Ignition Switch Run-Start Relay.... 8W-11-28, 39
G202................. 8W-11-16, 25, 33, 34, 38, 39
Headlamp Adjust Switch................ 8W-11-27
Headlamp Assembly-Left............. 8W-11-15, 25
Headlamp Assembly-Right............ 8W-11-15, 25
Headlamp Switch..................... 8W-11-26
Heated Seat Switch-Driver............ 8W-11-27, 32
Heated Seat Switch-Passenger.......... 8W-11-27, 32
Heater Timer-Auxiliary................. 8W-11-20
High Idle Switch................... 8W-11-27, 33
Component Page
Instrument Cluster................. 8W-11-18, 25
Instrument Panel Socket................ 8W-11-25
Interior Light Switch................ 8W-11-22, 27
Interior Light Switch-Driver.............. 8W-11-22
Interior Light Switch-Passenger........... 8W-11-22
Interior Light Switch-Rear............... 8W-11-22
Interior Lighting Connector.............. 8W-11-22
Intrusion Sensor No. 1.................. 8W-11-37
Intrusion Sensor No. 2.................. 8W-11-37
Intrusion Sensor No. 3.................. 8W-11-37
Lamp Relay-Left................... 8W-11-16, 17
Lamp Relay-Right.................. 8W-11-16, 17
License Plate Lamp No. 1............... 8W-11-25
License Plate Lamp No. 2............... 8W-11-25
Locker Switch No. 1................. 8W-11-27, 33
Locker Switch No. 2................... 8W-11-33
Map/Reading Lamp Switch............ 8W-11-22, 27
Master Door Lock Switch................ 8W-11-27
Multi-Function Switch.................. 8W-11-26
Optional Equipment Relay . . 8W-11-29, 30, 31, 32, 33, 34
Panic Alarm Switch.................... 8W-11-27
Power Distribution Center . . 8W-11-13, 17, 18, 19, 20, 21,
22, 23, 24, 25, 28, 29, 30, 31, 33, 36
Power Mirror Motor-Driver.............. 8W-11-35
Power Mirror Motor-Passenger............ 8W-11-35
Power Mirror Switch................... 8W-11-35
Power Window Switch-Driver............. 8W-11-30
Power Window Switch-Master............ 8W-11-31
Power Window Switch-Passenger.......... 8W-11-31
Radio.............................. 8W-11-27
Rear Window Defogger Relay............. 8W-11-19
Relay Block . . 8W-11-3, 14, 15, 16, 17, 19, 23, 24, 25, 28,
29, 30, 31, 32, 33, 34
Rollover Switch Assembly............. 8W-11-21, 34
Roof A/C Control Module................ 8W-11-20
Roof A/C Switch.................... 8W-11-16, 27
Roof A/C Temperature Setting Control....... 8W-11-27
Roof Fan Switch................... 8W-11-27, 31
Security System Module........... 8W-11-30, 36, 37
Sentry Key Remote Entry Module.......... 8W-11-23
Shifter Assembly...................... 8W-11-27
Siren.............................. 8W-11-37
Steering Angle Sensor.................. 8W-11-33
TCS Switch......................... 8W-11-27
Time Delay Relay..................... 8W-11-22
Towing/Intrusion Sensor On/Off Switch...... 8W-11-27
Trailer Tow Connector.................. 8W-11-24
Trailer Tow Control Module.............. 8W-11-24
Transmission Relay.................... 8W-11-17
Turn Signal/Anti-Theft Alarm Relay-Left..... 8W-11-23
Turn Signal/Anti-Theft Alarm Relay-Right.... 8W-11-23
Warm Air Auxiliary Heater Assembly....... 8W-11-20
Window Defogger Module-Rear......... 8W-11-16, 19
Window Defogger Switch-Rear............ 8W-11-27
VA8W-11 FUSE BLOCK 8W - 11 - 1
Page 1168 of 2305
8W-15 GROUND DISTRIBUTION
Component PageA/C Auxiliary Fan..........................8W-15-4
A/C Auxiliary Fan Relay......................8W-15-12
A/C Compressor Clutch Relay...................8W-15-30
A/C Roof Auxiliary Fan......................8W-15-30
A/C Roof Auxiliary Fan Relay...................8W-15-30
Additional Heat Exchanger....................8W-15-12
Additional Heat Exchanger Relay.................8W-15-12
Additional Heat Exchanger Switch................8W-15-24
Airbag Control Module.......................8W-15-11
Ash Receiver Lamp........................8W-15-22
Automatic Temperature Control Module.............8W-15-24
Auxiliary Heater Control.....................8W-15-24
Battery................................8W-15-8
Battery Relay-Auxiliary......................8W-15-11
Battery-Auxiliary..........................8W-15-11
Blower Motor-Front.........................8W-15-9
Brake Fluid Level Switch......................8W-15-8
Brake Wear Sensor-Left Front...................8W-15-8
Brake Wear Sensor-Left Rear...................8W-15-28
Brake Wear Sensor-Right Front..................8W-15-8
Brake Wear Sensor-Right Rear..................8W-15-28
CTEL Connector..........................8W-15-21
Cabin Heater Module........................8W-15-3
Center High Mounted Stop Lamp.................8W-15-6
Central Timer Module.......................8W-15-15
Cigar Lighter............................8W-15-22
Cigar Lighter Lamp........................8W-15-22
Circulation Pump..........................8W-15-9
Circulation Pump Relay-Cabin Heater Module..........8W-15-12
Clockspring.............................8W-15-10
Controller Antilock Brake....................8W-15-2, 28
Crankcase Heater..........................8W-15-4
Cylinder Lock Switch-Driver...................8W-15-10
D+ Relay No. 1...........................8W-15-12
D+ Relay No. 2...........................8W-15-14
Data Link Connector........................8W-15-10
Daytime Running Lamp Relay-Left Side.............8W-15-13
Daytime Running Lamp Relay-Right Side............8W-15-13
Daytime Running Lamps Relay..................8W-15-13
Differential Lock Solenoid Valve..................8W-15-2
Dome Lamp.............................8W-15-6
Dosing Pump............................8W-15-2
Engine Control Module.......................8W-15-7
Engine Coolant Level Switch....................8W-15-2
Fan Stage 1 Relay.........................8W-15-11
Fog Lamp Relay..........................8W-15-11
Fog Lamp Switch.........................8W-15-22
Fuel Pump.............................8W-15-19
Fuse Block No. 1..........................8W-15-7
Fused Ignition Switch Run-Start Relay..............8W-15-14
G100...............................8W-15-2, 3
G101.................................8W-15-4
G102.................................8W-15-4
G103.................................8W-15-4
G200...........................8W-15-6, 7, 8, 9, 10
G201................................8W-15-11
G202................8W-15-11, 12, 13, 14, 15, 16, 17, 18, 19
G203......................8W-15-20, 21, 22, 23, 24, 25
G300............................8W-15-26, 27, 28
G301................................8W-15-28
G302................................8W-15-28
G303................................8W-15-31
G304................................8W-15-31
G305..............................8W-15-29, 30
Glow Plug Control Module.....................8W-15-2
Hazard Warning Switch.......................8W-15-7
Headlamp Adjust Switch.....................8W-15-22
Headlamp Assembly-Left......................8W-15-3
Headlamp Assembly-Right.....................8W-15-4
Heated Seat Module-Driver....................8W-15-19
Heated Seat Module-Passenger..................8W-15-19
Heated Seat Switch-Driver....................8W-15-25
Heated Seat Switch-Passenger..................8W-15-25
Heater Timer-Auxiliary......................8W-15-24
High Idle Switch..........................8W-15-25
Hood Ajar Switch..........................8W-15-4
Horn Relay.............................8W-15-11
Horn Switch............................8W-15-10
Ignition Lock Switch........................8W-15-10
Instrument Cluster........................8W-15-10
Instrument Panel Socket.....................8W-15-20
Interior Lamp No. 1.........................8W-15-6
Interior Lamp No. 2.........................8W-15-6
Interior Lamp No. 3.........................8W-15-6Component PageInterior Lamp No. 4.........................8W-15-6
Interior Lamp No. 5.........................8W-15-6
Interior Lamp-Left.........................8W-15-6
Interior Lamp-Middle Front...................8W-15-5, 6
Interior Lamp-Middle Rear...................8W-15-5, 6
Interior Lamp-Rear No. 2......................8W-15-5
Interior Lamp-Right.......................8W-15-5, 6
Interior Light Switch.......................8W-15-21
Interior Lighting Connector.....................8W-15-6
Intrusion Sensor No. 1.......................8W-15-6
Intrusion Sensor No. 2.......................8W-15-6
Intrusion Sensor No. 3.......................8W-15-6
Kickdown Switch..........................8W-15-8
Lamp Relay-Left..........................8W-15-13
Lamp Relay-Right.........................8W-15-13
License Plate Lamp No. 1.....................8W-15-27
License Plate Lamp No. 2.....................8W-15-27
Locker Switch No. 1........................8W-15-20
Map/Reading Lamp Switch....................8W-15-21
Marker Lamp Connector......................8W-15-17
Marker Lamp No. 1-Left Front..................8W-15-16
Marker Lamp No. 1-Right Front.................8W-15-16
Marker Lamp No. 2-Left Front..................8W-15-16
Marker Lamp No. 2-Right Front.................8W-15-16
Marker Lamp-Left Center.....................8W-15-17
Marker Lamp-Left Rear......................8W-15-27
Marker Lamp-Right Center....................8W-15-17
Marker Lamp-Right Rear.....................8W-15-27
Master Door Lock Switch.....................8W-15-25
Metering Pump...........................8W-15-18
Multi-Function Switch.......................8W-15-7
Optional Equipment Relay....................8W-15-19
Panic Alarm Switch........................8W-15-20
Parking Brake Switch.......................8W-15-15
Power Mirror Motor-Driver....................8W-15-23
Power Mirror Motor-Passenger..................8W-15-23
Power Mirror Switch........................8W-15-23
Power Window Switch-Driver...................8W-15-23
Power Window Switch-Master...................8W-15-23
Radio................................8W-15-21
Rain Sensor............................8W-15-31
Rain Sensor Control Module..................8W-15-19, 31
Reading Lamp Connector......................8W-15-6
Rear Window Defogger Relay...................8W-15-14
Recirculated Air Solenoid Valve...................8W-15-9
Rollover Switch Assembly......................8W-15-3
Roof A/C Blower..........................8W-15-29
Roof A/C Blower Stage I And Ii Relay...............8W-15-29
Roof A/C Blower Stage I Relay..................8W-15-29
Roof A/C Blower Stage Ii Relay..................8W-15-29
Roof A/C Control Module.....................8W-15-28
Roof A/C Switch..........................8W-15-24
Roof Fan Switch..........................8W-15-21
Roof Thermotronic Control Module................8W-15-30
Seat Belt Switch..........................8W-15-15
Security System Module......................8W-15-15
Sentry Key Remote Entry Module.................8W-15-7
Shifter Assembly..........................8W-15-20
Siren.................................8W-15-9
Steering Angle Sensor........................8W-15-7
TCS Switch.............................8W-15-25
Tail Lamp Assembly-Left.....................8W-15-26
Tail Lamp Assembly-Right.....................8W-15-26
Thermotronic Diode........................8W-15-30
Time Delay Relay.........................8W-15-17
Towing/Intrusion Sensor On/Off Switch..............8W-15-22
Trailer Tow Connector.......................8W-15-28
Trailer Tow Control Module....................8W-15-19
Transmission Control Module...................8W-15-19
Transmission Relay........................8W-15-19
Turn Signal No. 1-Left Front....................8W-15-3
Turn Signal No. 1-Right Front...................8W-15-4
Turn Signal No. 2-Left Front....................8W-15-3
Turn Signal No. 2-Right Front...................8W-15-4
Warm Air Auxiliary Heater Assembly...............8W-15-18
Washer Pump Motor-Front.....................8W-15-4
Water Cycle Valve..........................8W-15-9
Window Defogger Module-Rear..................8W-15-15
Window Defogger Switch-Rear..................8W-15-20
Window Defogger-Left Rear....................8W-15-26
Window Defogger-Right Rear...................8W-15-26
Wiper Motor-Front.........................8W-15-9
Wiper/Turn Signal/Engine Start Control Module.........8W-15-7
VA8W-15 GROUND DISTRIBUTION 8W - 15 - 1
