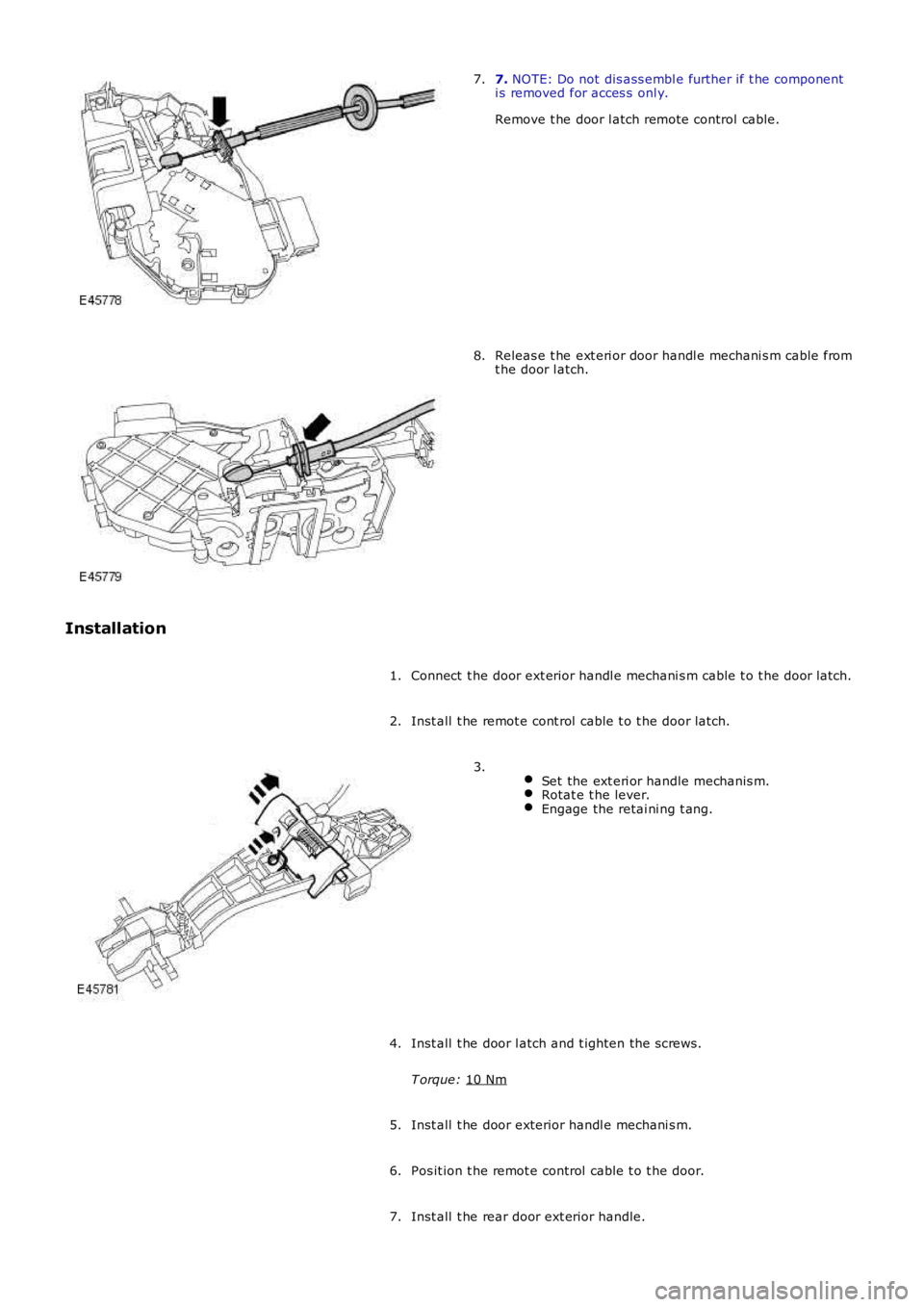

2006 LAND ROVER FRELANDER 2 remote control

7.
NOTE: Do not dis ass embl e further if t he component
i s removed for acces s onl y.
Remove t he door l atch remote control cable.
7. Releas e t he ext eri or door handl e mechani s m cable from
t he door l atch.
8.
Installation Connect t he door ext erior handl e mechani s m cable t o t he door latch.
1.
Inst all t he remot e cont rol cable t o t he door latch.
2.
Set the ext eri or handle mechanis m. Rotat e t he lever.
Engage the retai ni ng t ang.3.
Inst all t he door l atch and t ighten the s crews .
T orque: 10 Nm 4.
Inst all t he door exterior handl e mechani s m.
5.
Pos it ion t he remot e control cable t o t he door.
6.
Inst all t he rear door ext erior handle.
7.
