P0868-GOVERNOR PRESSURE SENSOR VOLTS TOO HI (DIESEL)
For a complete wiring diagramRefer to Section 8W

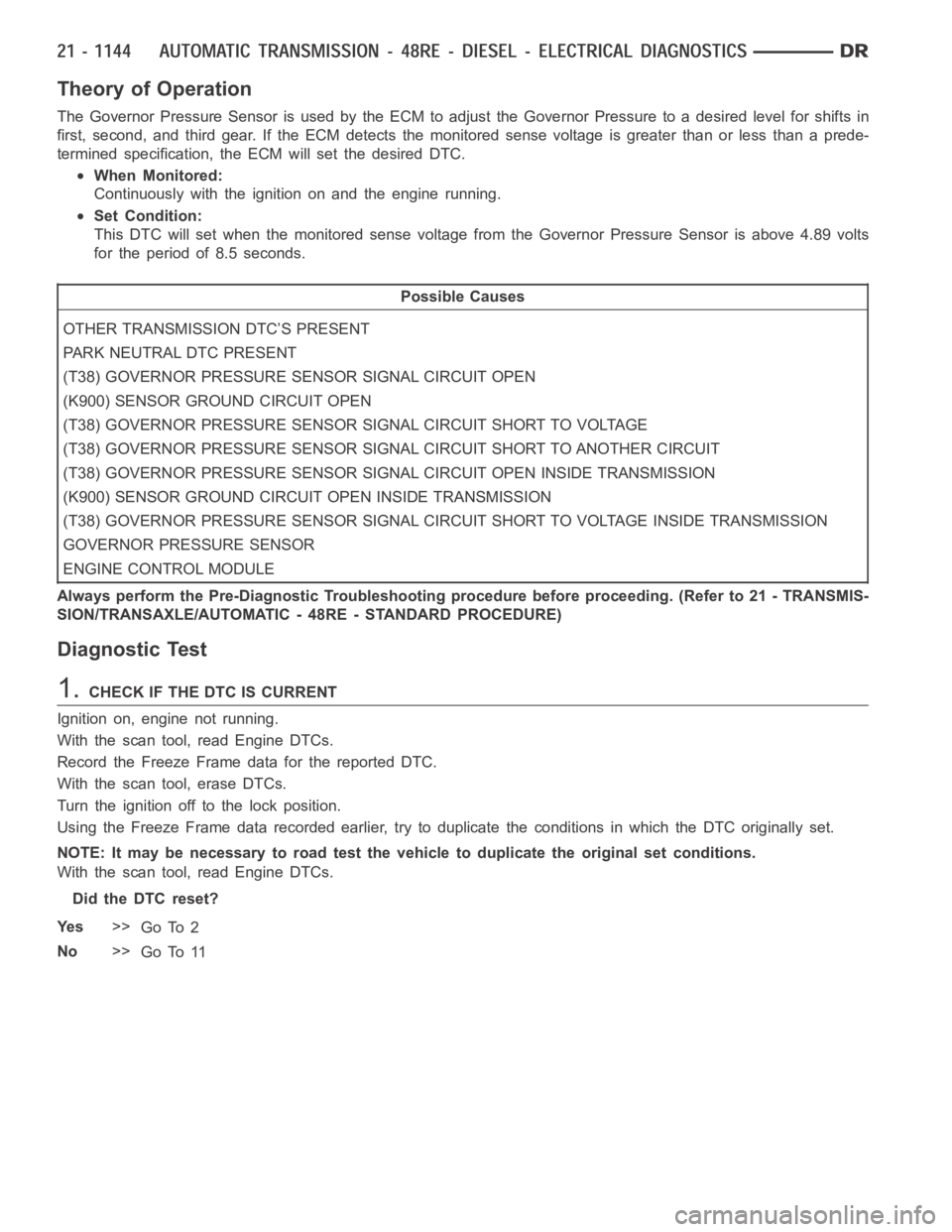

Theory of Operation
The Governor Pressure Sensor is used by the ECM to adjust the Governor Pressure to a desired level for shifts in
first, second, and third gear. If the ECM detects the monitored sense voltage is greater than or less than a prede-
termined specification, the ECM will set the desired DTC.
When Monitored:
Continuously with the ignition on and the engine running.
Set Condition:
This DTC will set when the monitored sense voltage from the Governor Pressure Sensor is above 4.89 volts
for the period of 8.5 seconds.
Possible Causes
OTHER TRANSMISSION DTC’S PRESENT
PARK NEUTRAL DTC PRESENT
(T38) GOVERNOR PRESSURE SENSOR SIGNAL CIRCUIT OPEN
(K900) SENSOR GROUND CIRCUIT OPEN
(T38) GOVERNOR PRESSURE SENSOR SIGNAL CIRCUIT SHORT TO VOLTAGE
(T38) GOVERNOR PRESSURE SENSOR SIGNAL CIRCUIT SHORT TO ANOTHER CIRCUIT
(T38) GOVERNOR PRESSURE SENSOR SIGNAL CIRCUIT OPEN INSIDE TRANSMISSION
(K900) SENSOR GROUND CIRCUIT OPEN INSIDE TRANSMISSION
(T38) GOVERNOR PRESSURE SENSOR SIGNAL CIRCUIT SHORT TO VOLTAGE INSIDE TRANSMISSION
GOVERNOR PRESSURE SENSOR
ENGINE CONTROL MODULE
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 21 - TRANSMIS-
SION/TRANSAXLE/AUTOMATIC - 48RE - STANDARD PROCEDURE)
Diagnostic Test
1.CHECK IF THE DTC IS CURRENT
Ignition on, engine not running.
With the scan tool, read Engine DTCs.
Record the Freeze Frame data for the reported DTC.
With the scan tool, erase DTCs.
Turn the ignition off to the lock position.
Using the Freeze Frame data recorded earlier, try to duplicate the conditions in which the DTC originally set.
NOTE: It may be necessary to road test the vehicle to duplicate the originalset conditions.
With the scan tool, read Engine DTCs.
Did the DTC reset?
Ye s>>
Go To 2
No>>
Go To 11

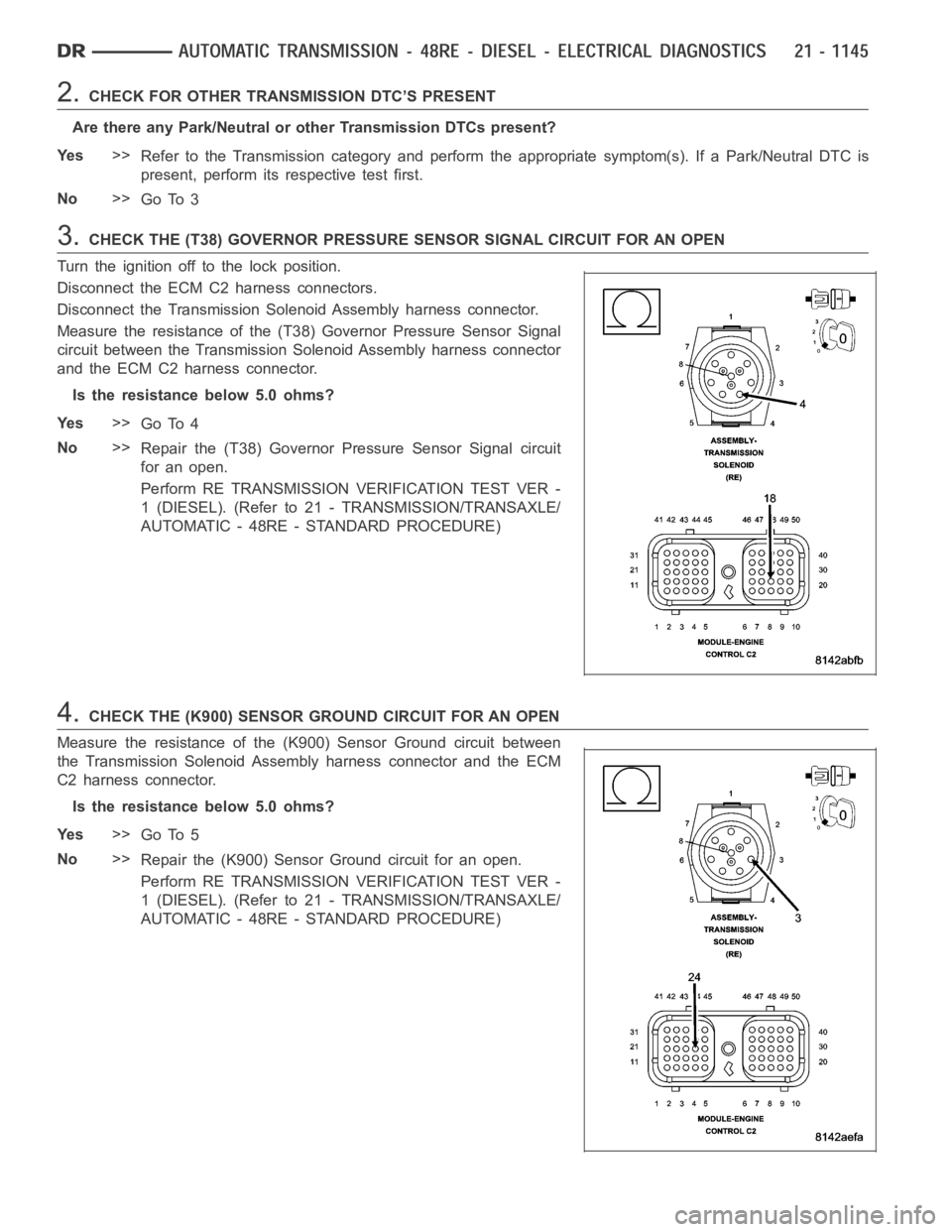

2.CHECK FOR OTHER TRANSMISSION DTC’S PRESENT
Are there any Park/Neutral or other Transmission DTCs present?
Ye s>>
Refer to the Transmission category and perform the appropriate symptom(s). If a Park/Neutral DTC is
present, perform its respective test first.
No>>
Go To 3
3.CHECK THE (T38) GOVERNOR PRESSURE SENSOR SIGNAL CIRCUIT FOR AN OPEN
Turn the ignition off to the lock position.
Disconnect the ECM C2 harness connectors.
Disconnect the Transmission Solenoid Assembly harness connector.
Measure the resistance of the (T38) Governor Pressure Sensor Signal
circuit between the Transmission Solenoid Assembly harness connector
and the ECM C2 harness connector.
Is the resistance below 5.0 ohms?
Ye s>>
Go To 4
No>>
Repair the (T38) Governor Pressure Sensor Signal circuit
for an open.
Perform RE TRANSMISSION VERIFICATION TEST VER -
1 (DIESEL). (Refer to 21 - TRANSMISSION/TRANSAXLE/
AUTOMATIC - 48RE - STANDARD PROCEDURE)
4.CHECK THE (K900) SENSOR GROUND CIRCUIT FOR AN OPEN
Measure the resistance of the (K900) Sensor Ground circuit between
the Transmission Solenoid Assembly harness connector and the ECM
C2 harness connector.
Is the resistance below 5.0 ohms?
Ye s>>
Go To 5
No>>
Repair the (K900) Sensor Ground circuit for an open.
Perform RE TRANSMISSION VERIFICATION TEST VER -
1 (DIESEL). (Refer to 21 - TRANSMISSION/TRANSAXLE/
AUTOMATIC - 48RE - STANDARD PROCEDURE)

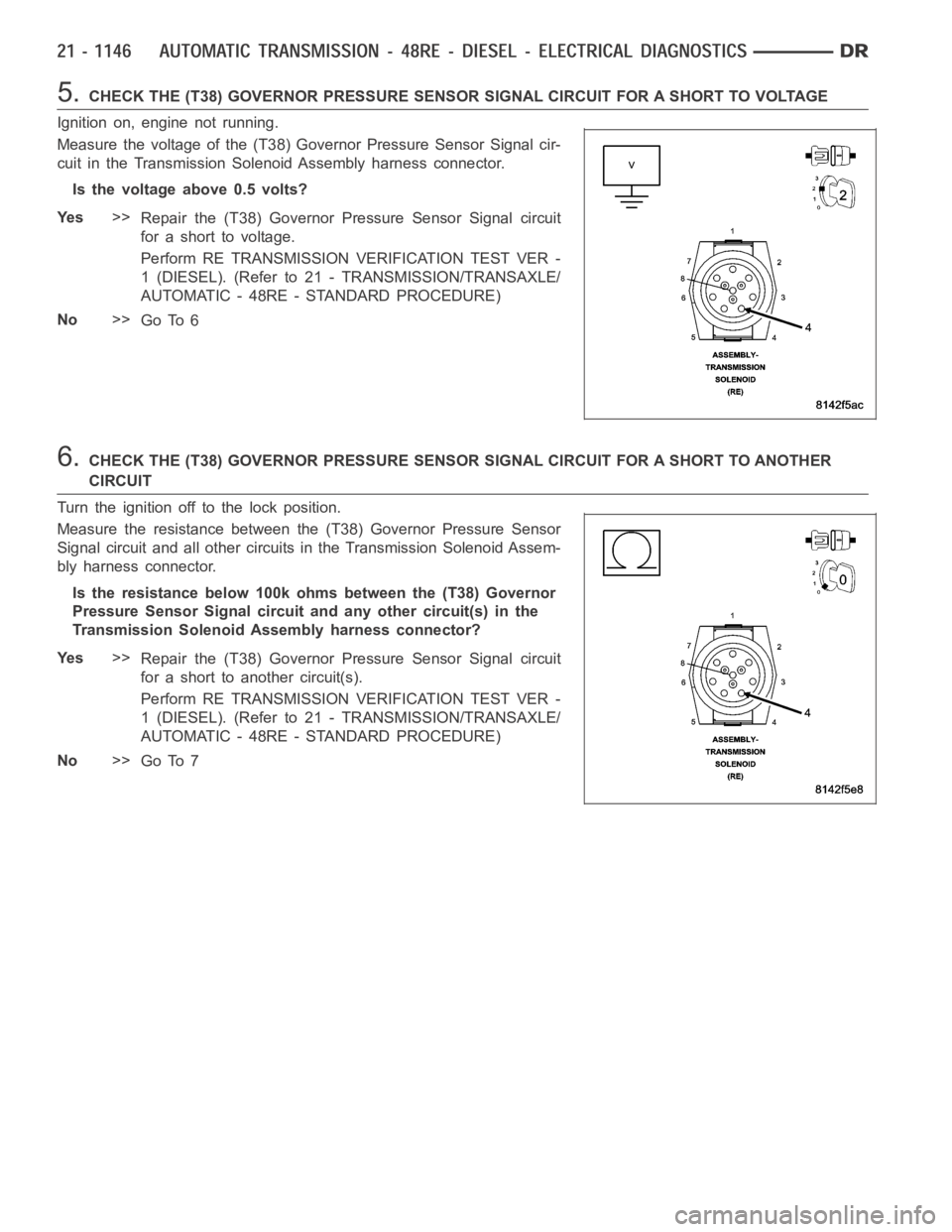

5.CHECK THE (T38) GOVERNOR PRESSURE SENSOR SIGNAL CIRCUIT FOR A SHORT TO VOLTAGE
Ignition on, engine not running.
Measure the voltage of the (T38) Governor Pressure Sensor Signal cir-
cuit in the Transmission Solenoid Assembly harness connector.
Is the voltage above 0.5 volts?
Ye s>>
Repair the (T38) Governor Pressure Sensor Signal circuit
for a short to voltage.
Perform RE TRANSMISSION VERIFICATION TEST VER -
1 (DIESEL). (Refer to 21 - TRANSMISSION/TRANSAXLE/
AUTOMATIC - 48RE - STANDARD PROCEDURE)
No>>
Go To 6
6.CHECK THE (T38) GOVERNOR PRESSURE SENSOR SIGNAL CIRCUIT FOR A SHORT TO ANOTHER
CIRCUIT
Turn the ignition off to the lock position.
Measure the resistance between the (T38) Governor Pressure Sensor
Signal circuit and all other circuits in the Transmission Solenoid Assem-
bly harness connector.
Is the resistance below 100k ohms between the (T38) Governor
Pressure Sensor Signal circuit and any other circuit(s) in the
Transmission Solenoid Assembly harness connector?
Ye s>>
Repair the (T38) Governor Pressure Sensor Signal circuit
for a short to another circuit(s).
Perform RE TRANSMISSION VERIFICATION TEST VER -
1 (DIESEL). (Refer to 21 - TRANSMISSION/TRANSAXLE/
AUTOMATIC - 48RE - STANDARD PROCEDURE)
No>>
Go To 7

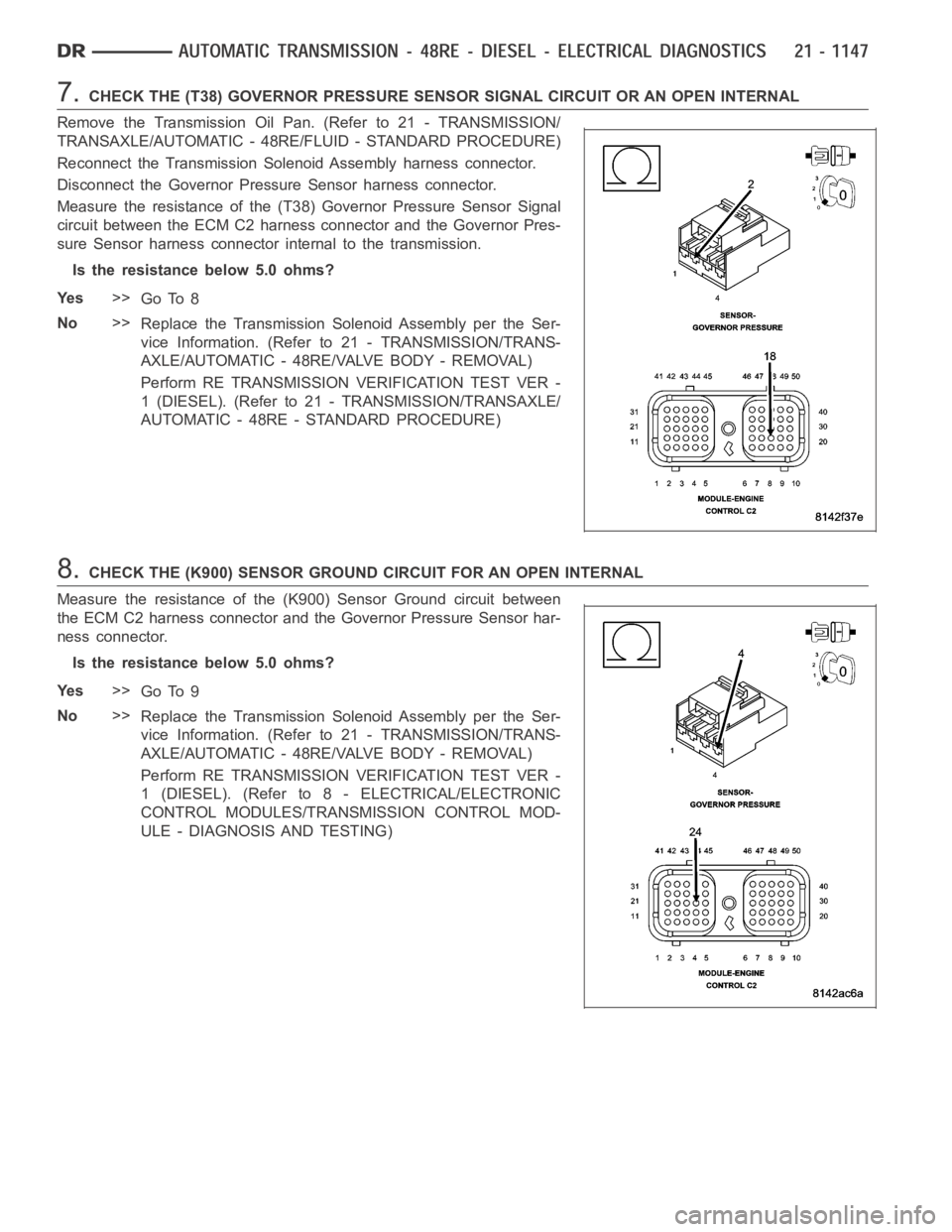

7.CHECK THE (T38) GOVERNOR PRESSURE SENSOR SIGNAL CIRCUIT OR AN OPEN INTERNAL
Remove the Transmission Oil Pan. (Refer to 21 - TRANSMISSION/
TRANSAXLE/AUTOMATIC - 48RE/FLUID - STANDARD PROCEDURE)
Reconnect the Transmission Solenoid Assembly harness connector.
Disconnect the Governor Pressure Sensor harness connector.
Measure the resistance of the (T38) Governor Pressure Sensor Signal
circuit between the ECM C2 harness connector and the Governor Pres-
sure Sensor harness connector internal to the transmission.
Is the resistance below 5.0 ohms?
Ye s>>
Go To 8
No>>
Replace the Transmission Solenoid Assembly per the Ser-
vice Information. (Refer to 21 - TRANSMISSION/TRANS-
AXLE/AUTOMATIC - 48RE/VALVE BODY - REMOVAL)
Perform RE TRANSMISSION VERIFICATION TEST VER -
1 (DIESEL). (Refer to 21 - TRANSMISSION/TRANSAXLE/
AUTOMATIC - 48RE - STANDARD PROCEDURE)
8.CHECK THE (K900) SENSOR GROUND CIRCUIT FOR AN OPEN INTERNAL
Measure the resistance of the (K900) Sensor Ground circuit between
the ECM C2 harness connector and the Governor Pressure Sensor har-
ness connector.
Is the resistance below 5.0 ohms?
Ye s>>
Go To 9
No>>
Replace the Transmission Solenoid Assembly per the Ser-
vice Information. (Refer to 21 - TRANSMISSION/TRANS-
AXLE/AUTOMATIC - 48RE/VALVE BODY - REMOVAL)
Perform RE TRANSMISSION VERIFICATION TEST VER -
1 (DIESEL). (Refer to 8 - ELECTRICAL/ELECTRONIC
CONTROL MODULES/TRANSMISSION CONTROL MOD-
ULE - DIAGNOSIS AND TESTING)

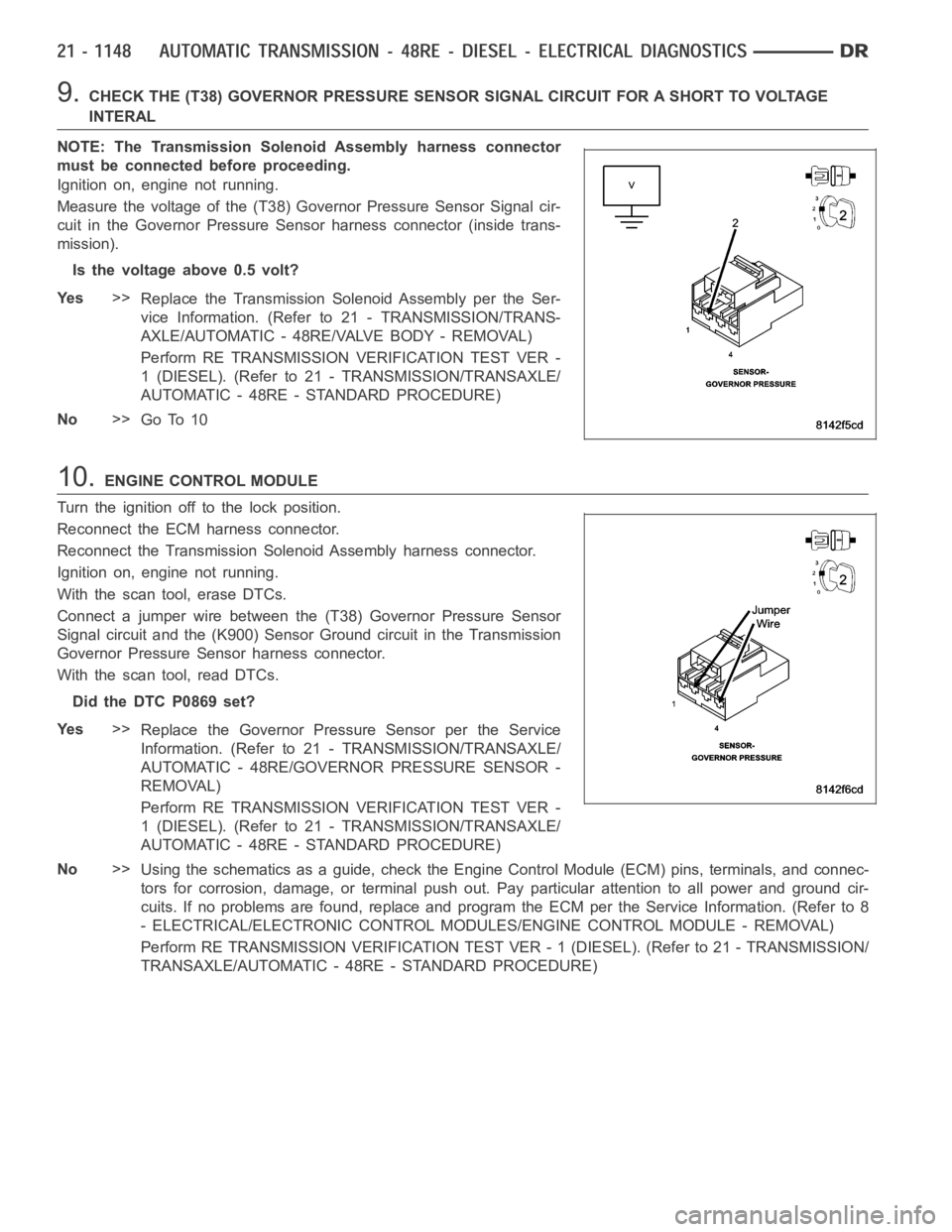

9.CHECK THE (T38) GOVERNOR PRESSURE SENSOR SIGNAL CIRCUIT FOR A SHORT TO VOLTAGE
INTERAL
NOTE: The Transmission Solenoid Assembly harness connector
must be connected before proceeding.
Ignition on, engine not running.
Measure the voltage of the (T38) Governor Pressure Sensor Signal cir-
cuit in the Governor Pressure Sensor harness connector (inside trans-
mission).
Is the voltage above 0.5 volt?
Ye s>>
Replace the Transmission Solenoid Assembly per the Ser-
vice Information. (Refer to 21 - TRANSMISSION/TRANS-
AXLE/AUTOMATIC - 48RE/VALVE BODY - REMOVAL)
Perform RE TRANSMISSION VERIFICATION TEST VER -
1 (DIESEL). (Refer to 21 - TRANSMISSION/TRANSAXLE/
AUTOMATIC - 48RE - STANDARD PROCEDURE)
No>>
Go To 10
10.ENGINE CONTROL MODULE
Turn the ignition off to the lock position.
Reconnect the ECM harness connector.
Reconnect the Transmission Solenoid Assembly harness connector.
Ignition on, engine not running.
With the scan tool, erase DTCs.
Connect a jumper wire between the (T38) Governor Pressure Sensor
Signal circuit and the (K900) Sensor Ground circuit in the Transmission
Governor Pressure Sensor harness connector.
With the scan tool, read DTCs.
Did the DTC P0869 set?
Ye s>>
Replace the Governor Pressure Sensor per the Service
Information. (Refer to 21 - TRANSMISSION/TRANSAXLE/
AUTOMATIC - 48RE/GOVERNOR PRESSURE SENSOR -
REMOVAL)
Perform RE TRANSMISSION VERIFICATION TEST VER -
1 (DIESEL). (Refer to 21 - TRANSMISSION/TRANSAXLE/
AUTOMATIC - 48RE - STANDARD PROCEDURE)
No>>
Using the schematics as a guide, check the Engine Control Module (ECM) pins, terminals, and connec-
tors for corrosion, damage, or terminal push out. Pay particular attentiontoallpowerandgroundcir-
cuits. If no problems are found, replace and program the ECM per the ServiceInformation. (Refer to 8
- ELECTRICAL/ELECTRONIC CONTROL MODULES/ENGINE CONTROL MODULE - REMOVAL)
Perform RE TRANSMISSION VERIFICATION TEST VER - 1 (DIESEL). (Refer to 21 - TRANSMISSION/
TRANSAXLE/AUTOMATIC - 48RE - STANDARD PROCEDURE)

P0869-GOVERNOR PRESSURE SENSOR VOLTS TOO LOW (DIESEL)
For a complete wiring diagramRefer to Section 8W

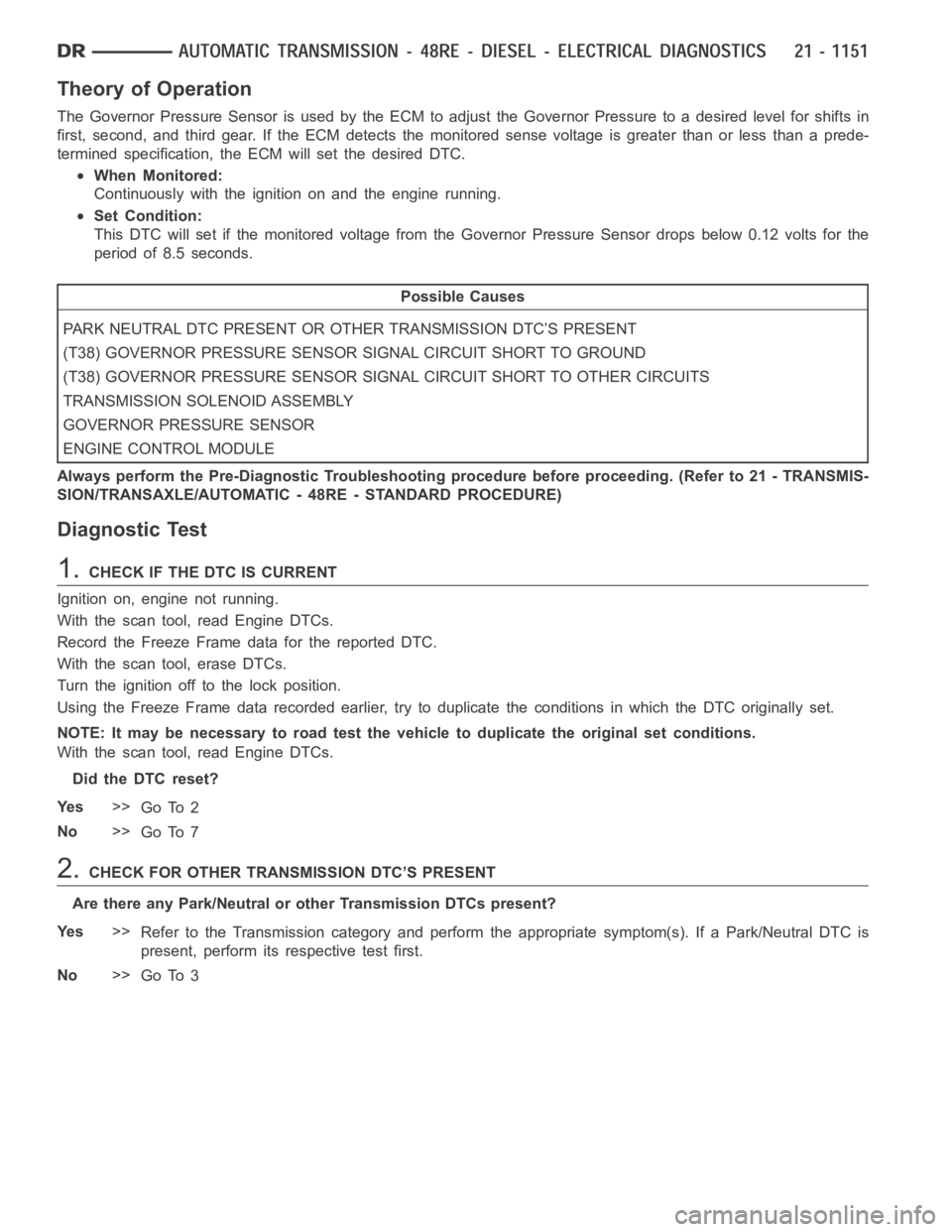

Theory of Operation
The Governor Pressure Sensor is used by the ECM to adjust the Governor Pressure to a desired level for shifts in
first, second, and third gear. If the ECM detects the monitored sense voltage is greater than or less than a prede-
termined specification, the ECM will set the desired DTC.
When Monitored:
Continuously with the ignition on and the engine running.
Set Condition:
This DTC will set if the monitored voltage from the Governor Pressure Sensor drops below 0.12 volts for the
period of 8.5 seconds.
Possible Causes
PARK NEUTRAL DTC PRESENT OR OTHER TRANSMISSION DTC’S PRESENT
(T38) GOVERNOR PRESSURE SENSOR SIGNAL CIRCUIT SHORT TO GROUND
(T38) GOVERNOR PRESSURE SENSOR SIGNAL CIRCUIT SHORT TO OTHER CIRCUITS
TRANSMISSION SOLENOID ASSEMBLY
GOVERNOR PRESSURE SENSOR
ENGINE CONTROL MODULE
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 21 - TRANSMIS-
SION/TRANSAXLE/AUTOMATIC - 48RE - STANDARD PROCEDURE)
Diagnostic Test
1.CHECK IF THE DTC IS CURRENT
Ignition on, engine not running.
With the scan tool, read Engine DTCs.
Record the Freeze Frame data for the reported DTC.
With the scan tool, erase DTCs.
Turn the ignition off to the lock position.
Using the Freeze Frame data recorded earlier, try to duplicate the conditions in which the DTC originally set.
NOTE: It may be necessary to road test the vehicle to duplicate the originalset conditions.
With the scan tool, read Engine DTCs.
Did the DTC reset?
Ye s>>
Go To 2
No>>
Go To 7
2.CHECK FOR OTHER TRANSMISSION DTC’S PRESENT
Are there any Park/Neutral or other Transmission DTCs present?
Ye s>>
Refer to the Transmission category and perform the appropriate symptom(s). If a Park/Neutral DTC is
present, perform its respective test first.
No>>
Go To 3
