2005 TOYOTA AVENSIS sensor

A78508
Non±reusable part
N´m (kgf´cm, ft´lbf) : Specified torqueThrottle Body AssyThrottle Motor Connector

Throttle Body Gasket
Water By±pass Hose No. 2
Water By±pass Hose No. 1
9.0 (90, 80 in.
lbf)
x4
x4
21 (210, 15)Throttle Body Bracket
8.4 (86, 74 in.
lbf)
Ground Terminal
Wire Harness Protector
8.4 (86, 74 in.
lbf)
10±48
± ENGINE CONTROL SYSTEMKNOCK SENSOR (1AZ±FSE)
AVENSIS REPAIR MANUAL (RM1018E)

A79577
N´m (kgf´cm, ft´lbf)
: Specified torque

Non±reusable part
Gasket
GasketFuel Tube Sub±assy
Fuel Pipe Clamp
Fuel Pressure Pulsation
Damper Assy Fuel Pump Assy

Fuel Pump
Insulator
Fuel HoseFuel pipe Sub±assy No. 1

Fuel Injector Back±up Ring No. 1
25 (255, 18)
33 (331, 24)
9.0 (92, 80 in.
lbf)
38 (388, 28)
30 (306, 22)

Fuel Injector Back±up Ring No. 2

Fuel Injector Back±up Ring No. 3
O±ring
Engine Cover Bracket
± ENGINE CONTROL SYSTEMKNOCK SENSOR (1AZ±FSE)
10±49
AVENSIS REPAIR MANUAL (RM1018E)

A79597
N´m (kgf´cm, ft´lbf)
: Specified torque

Non±reusable part
Gasket
Gasket
38 (388, 28)
21 (210, 15)
9.5 (97, 84 in.
lbf)
30 (306, 22)
9.8 (100, 7)
30 (306, 22)
30 (306, 22)
Union to Connector
Tube Hose
Vacuum Hose
Intake Manifold
Insulator No. 1
Intake Air Control Valve Assy
Intake Manifold Insulator No. 2
Surge Tank
Stay No. 1
Engine Cover Bracket
Charcoal Canister Assy
Intake Manifold
x2 10±50
± ENGINE CONTROL SYSTEMKNOCK SENSOR (1AZ±FSE)
AVENSIS REPAIR MANUAL (RM1018E)

A79833N´m (kgf´cm, ft´lbf)
: Specified torqueKnock Sensor
20 (204, 15)
± ENGINE CONTROL SYSTEMKNOCK SENSOR (1AZ±FSE)
10±51
AVENSIS REPAIR MANUAL (RM1018E)

TEMPERATURE
C(
F)
RESISTANCE k
30
20
10
5
2
1
0.5
0.3
0.2
0.13
±20 0 20 40 60 80 100
(±4)(32) (80) (140)(104) (212)
(176)
A50371
A65174
Ohmmeter
E34090

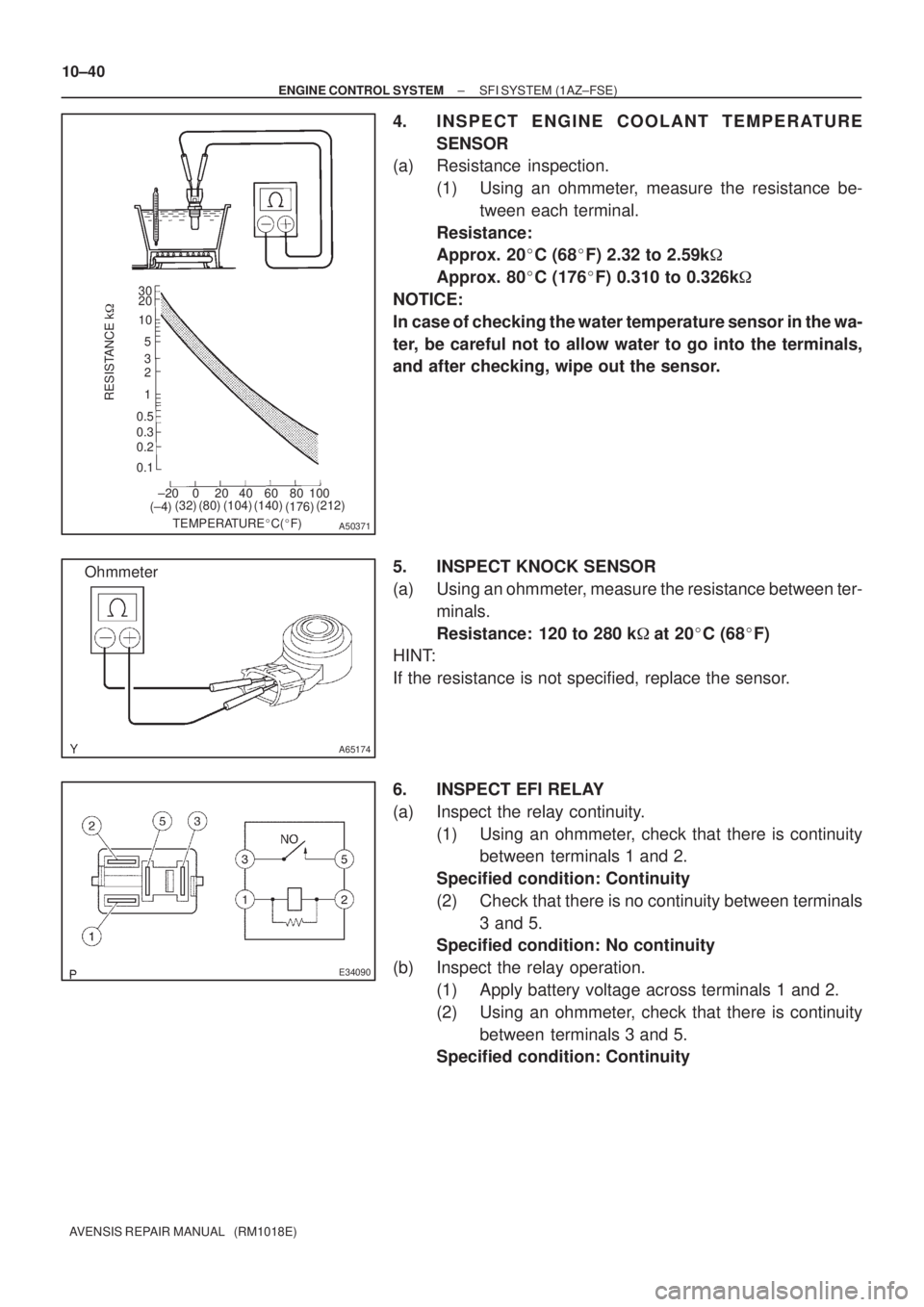

10±40
± ENGINE CONTROL SYSTEMSFI SYSTEM (1AZ±FSE)
AVENSIS REPAIR MANUAL (RM1018E)
4. INSPECT ENGINE COOLANT TEMPERATURE
SENSOR
(a) Resistance inspection.
(1) Using an ohmmeter, measure the resistance be-
tween each terminal.
Resistance:
Approx. 20
C (68
F) 2.32 to 2.59k
Approx. 80
C (176
F) 0.310 to 0.326k
NOTICE:
In case of checking the water temperature sensor in the wa-
ter, be careful not to allow water to go into the terminals,
and after checking, wipe out the sensor.
5. INSPECT KNOCK SENSOR
(a) Using an ohmmeter, measure the resistance between ter-
minals.
Resistance: 120 to 280 kat 20
C (68
F)
HINT:
If the resistance is not specified, replace the sensor.
6. INSPECT EFI RELAY
(a) Inspect the relay continuity.
(1) Using an ohmmeter, check that there is continuity
between terminals 1 and 2.
Specified condition: Continuity
(2) Check that there is no continuity between terminals
3 and 5.
Specified condition: No continuity
(b) Inspect the relay operation.
(1) Apply battery voltage across terminals 1 and 2.
(2) Using an ohmmeter, check that there is continuity
between terminals 3 and 5.
Specified condition: Continuity

A53763
E2PSW
10±38
±
ENGINE CONTROL SYSTEM SFI SYSTEM(1AZ±FSE)
AVENSIS REPAIR MANUAL (RM1018E)
2.INSPECT POWER STEERING OIL PRESSURE SEN- SOR
(a)Using a voltmeter, measure the voltage between termi-
nals PSW and E2.
Voltage:
ConditionVoltage (V)
Not spin the steering wheel at engine idling9 to 14
Spin the steering wheel at engine idling0 to 3
3.INSPECT THROTTLE BODY
(a)Inspect the throttle control motor for operating sound.(1)Turn the ignition switch ON.
(2)When turning the accelerator pedal position sensor lever, check the running sound of the motor.Also, check that there is no friction sound.
If operation is not as specified, check the throttle control motor (See page 10±39), wiring and ECM.
(b) Inspect the throttle position sensor.
(1) Connect the hand±held tester to the DLC3.
(2) Turn the ignition switch ON.
(3) When turning the accelerator pedal position sensor lever to the full±\
open position, check thatthe throttle valve opening percentage (THROTTLE POS) of the CURRENT DATA shown the
standard value.
Standard throttle valve opening percentage:
60 % or more
If operation is not as specified, check that the accelerator pedal positio\
n sensor (See page 10±39), wiring
and ECM.
If you have no hand±held tester, measure voltage between terminals (VTA1 ± E2, VTA2 ± E2) of the ECM
connector (See page 05±318).
(c) Inspect the air assist system.
(1) Start the engine and check that the CHK ENG does not light up.
(2) Allow the engine to warm up to normal operating temperature.
(3) Turn the A/C compressor ON to OFF, and check the idle speed.
Idle speed (Transmission in neutral): 700
50 rpm
NOTICE:
Perform inspection under condition without electrical load.
(d) After checking the above (b) to (d), perform the driving test and check that there is no sense of incon-
gruity.
4. INSPECT ACCELERATOR PEDAL POSITION SENSOR
(a) Connect the hand±held tester to the DLC3.
(b) Turn the ignition switch ON.
(c) Check that the voltage (ACCEL POS) of the CURRENT DATA shown the standard value.
Accelerator pedal released: 0.5 to 1.1 V
Accelerator pedal depress: 2.6 to 4.5 V
(d) Check that the voltage (ACCEL POS #2) of the CURRENT DATA shown the standard value. Accelerator pedal released: 1.2 to 2.0 V
Accelerator pedal depress: 3.4 to 5.3 V
If you have no hand±held tester, measure voltage between terminals (VPA ± EPA, VPA2 ± EPA2) of the ECM
connector (See page 05±318).

100FL±01
A77917
A77918
(a)
(b)
A77919
10±34
±
ENGINE CONTROL SYSTEM KNOCK SENSOR(1AZ±FE)
AVENSIS REPAIR MANUAL (RM1018E)
REPLACEMENT
1.DISCHARGE FUEL SYSTEM PRESSURE (See page 11±15)
2.REMOVE ENGINE ROOM COVER SIDE (See page 10±26)
3.REMOVE RADIATOR SUPPORT OPENING COVER (See page 10±26)
4.ENGINE COOLANT (See page 16±19)
5.REMOVE ENGINE COVER SUB±ASSY NO.1 (See page 10±26)
6.REMOVE AIR CLEANER CAP SUB±ASSY (See page 10±26)
7.SEPARATE ACCELERATOR CONTROL CABLE ASSY (See page 10±26)
8.REMOVE THROTTLE BODY ASSY (See page 10±26)
9.DISCONNECT FUEL TUBE SUB±ASSY (See page 11±26) SST 09268±21010
10.REMOVE FUEL DELIVERY PIPE SUB±ASSY (See page 11±26)
11. REMOVE VARIABLE RESISTOR (LHD STEERINGPOSITION TYPE, LEADED GASOLINE)
(a) Disconnect the variable resistor connector.
(b) Remove the bolt, and then remove the variable resistor.
12. REMOVE CHARCOAL CANISTER ASSY
(a) Disconnect the charcoal canister outlet hose No. 1.
(b) Disconnect the fuel hose.
(c) Pull up and remove the charcoal canister.
13. DISCONNECT HEATER INLET WATER HOSE

A77920
RHD: LHD:
A77921
(b)
A77922
A78435
A78436
Upper
Engine
Front
10
10

± ENGINE CONTROL SYSTEMKNOCK SENSOR (1AZ±FE)
10±35
AVENSIS REPAIR MANUAL (RM1018E)
14. REMOVE INTAKE MANIFOLD
(a) Disconnect the union to connector tube hose.
(b) Remove the wire harness clamp.
(c) Remove the 5 bolts and 2 nuts, and then remove the in-
take manifold.
(d) Remove the gasket from the intake manifold.
15. REMOVE INTAKE MANIFOLD INSULATOR NO.1
16. REMOVE KNOCK SENSOR
(a) Disconnect the knock sensor connector.
(b) Remove the nut, and then remove the knock sensor.
17. INSTALL KNOCK SENSOR
(a) Install the knock sensor with the nut as shown in the il-
lustration.
Torque: 20 N
m (204 kgf
cm, 15 ft
lbf)
(b) Connect the knock sensor connector.
