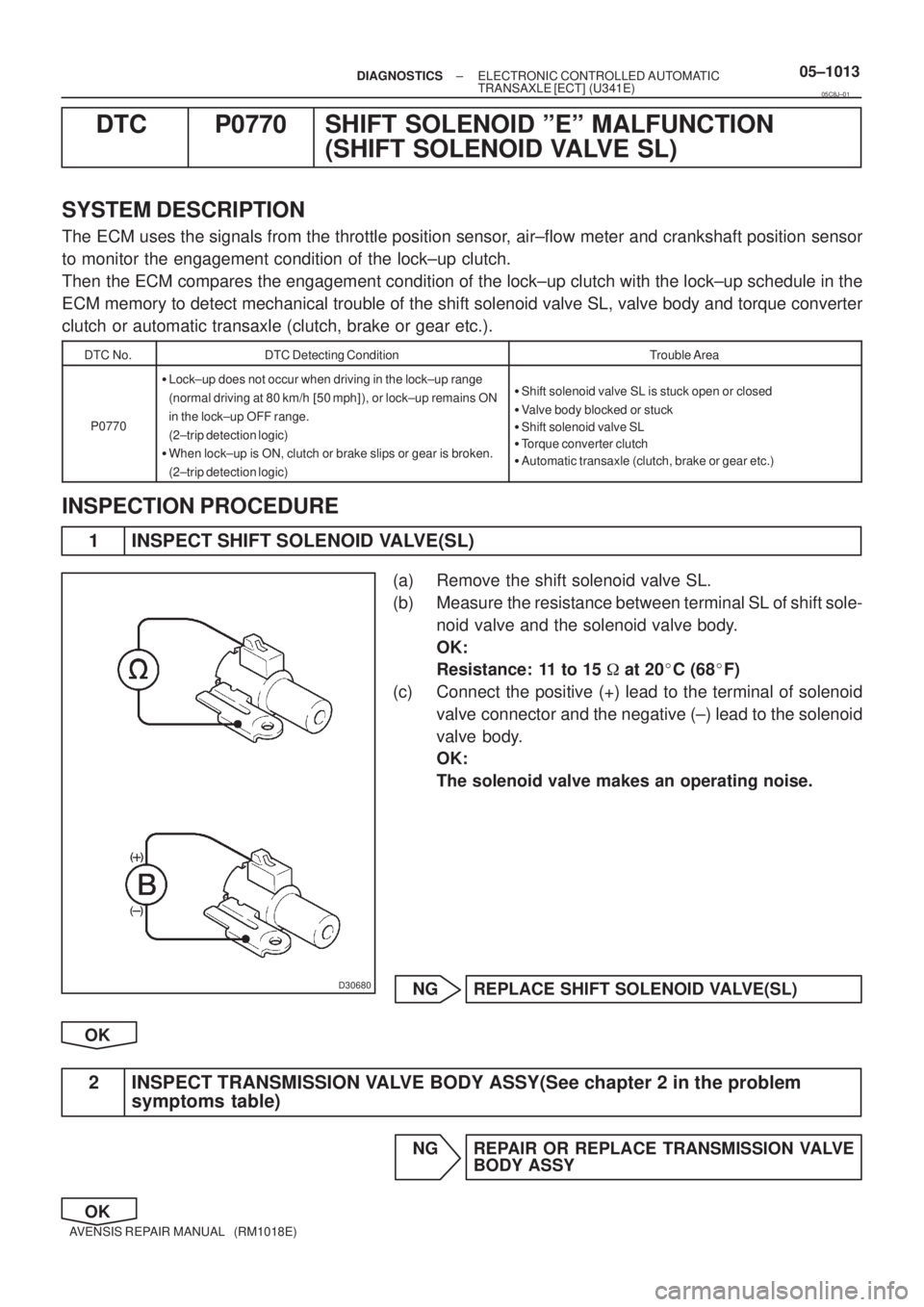

DTC P0770 SHIFT SOLENOID ºEº MALFUNCTION
(SHIFT SOLENOID VALVE SL)
SYSTEM DESCRIPTION
The ECM uses the signals from the throttle position sensor, air±flow meter and crankshaft position sensor
to monitor the engagement condition of the lock±up clutch.
Then the ECM compares the engagement condition of the lock±up clutch with the lock±up schedule in the
ECM memory to detect mechanical trouble of the shift solenoid valve SL, valve body and torque converter
clutch or automatic transaxle (clutch, brake or gear etc.).
DTC No.DTC Detecting ConditionTrouble Area
P0770

Lock±up does not occur when driving in the lock±up range
(normal driving at 80 km/h
50 mph), or lock±up remains ON
in the lock±up OFF range.
(2±trip detection logic)

When lock±up is ON, clutch or brake slips or gear is broken.
(2±trip detection logic)
Shift solenoid valve SL is stuck open or closed

Valve body blocked or stuck

Shift solenoid valve SL

Torque converter clutch

Automatic transaxle (clutch, brake or gear etc.)
INSPECTION PROCEDURE
1 INSPECT SHIFT SOLENOID VALVE(SL)
(a) Remove the shift solenoid valve SL.
(b) Measure the resistance between terminal SL of shift sole-
noid valve and the solenoid valve body.
OK:
Resistance: 11 to 15
at 20C (68F)
(c) Connect the positive (+) lead to the terminal of solenoid
valve connector and the negative (±) lead to the solenoid
valve body.
OK:
The solenoid valve makes an operating noise.
NG REPLACE SHIFT SOLENOID VALVE(SL)
OK
2 INSPECT TRANSMISSION VALVE BODY ASSY(See chapter 2 in the problem
symptoms table)
NG REPAIR OR REPLACE TRANSMISSION VALVE
BODY ASSY
OK
05C8J±01

± DIAGNOSTICSELECTRONIC CONTROLLED AUTOMATIC
TRANSAXLE [ECT] (U341E)05±1007
AVENSIS REPAIR MANUAL (RM1018E)

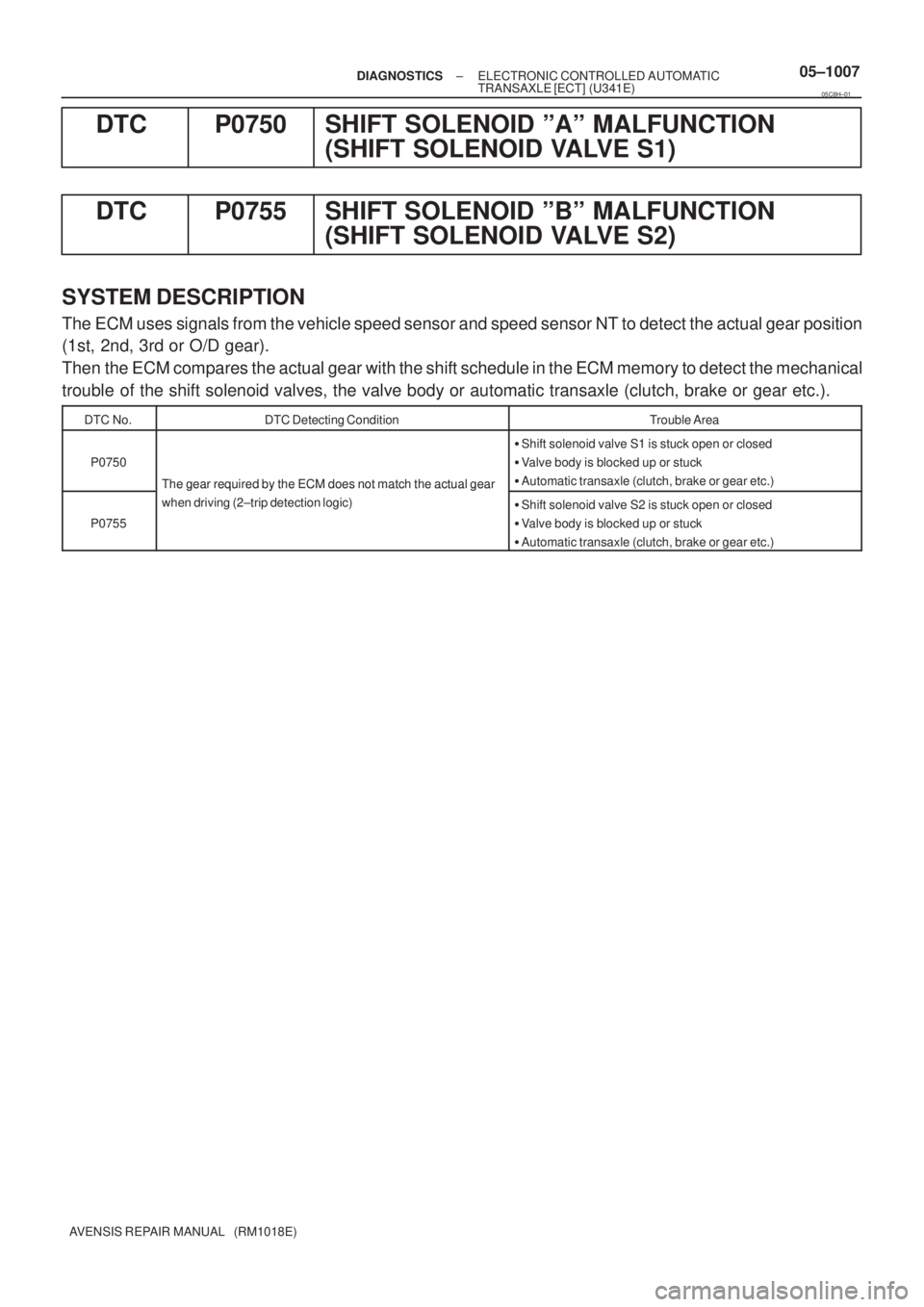

DTC P0750 SHIFT SOLENOID ºAº MALFUNCTION
(SHIFT SOLENOID VALVE S1)
DTC P0755 SHIFT SOLENOID ºBº MALFUNCTION
(SHIFT SOLENOID VALVE S2)
SYSTEM DESCRIPTION
The ECM uses signals from the vehicle speed sensor and speed sensor NT to detect the actual gear position
(1st, 2nd, 3rd or O/D gear).
Then the ECM compares the actual gear with the shift schedule in the ECM memory to detect the mechanical
trouble of the shift solenoid valves, the valve body or automatic transaxle (clutch, brake or gear etc.).
DTC No.DTC Detecting ConditionTrouble Area
P0750
The gear required by the ECM does not match the actual gear

Shift solenoid valve S1 is stuck open or closed

Valve body is blocked up or stuck

Automatic transaxle (clutch, brake or gear etc.)
P0755
The gear required by the ECM does not match the actual gear
when driving (2±trip detection logic)
Shift solenoid valve S2 is stuck open or closed

Valve body is blocked up or stuck

Automatic transaxle (clutch, brake or gear etc.)
05C8H±01

C54864
THOE2
±
DIAGNOSTICS ELECTRONIC CONTROLLED AUTOMATIC
TRANSAXLE [ECT](U341E)05±1005
AVENSIS REPAIR MANUAL (RM1018E)
DTCP0711TRANSMISSION FLUID TEMPERATURE
SENSOR CIRCUIT RANGE/PERFORMANCE
CIRCUIT DESCRIPTION
The ATF temperature sensor converts the fluid temperature into a resistance v\
alue which is input into the
ECM.
DTC No.DTC Detection ConditionTrouble Area
P0711
Both (a) and (b) are detected: (2±trip detection logic)
(a)After 12 sec. of engine start, temp. of atmosphere and that
of engine coolant is more than ±10 C
(b)After normal driving for over 20 min. and 10 km, ATF temp.
is less than 10 C

Open or short in ATF temp. sensor circuit

Transmission wire (ATF temperature sensor)

ECM
WIRING DIAGRAM
See page 05±1003.

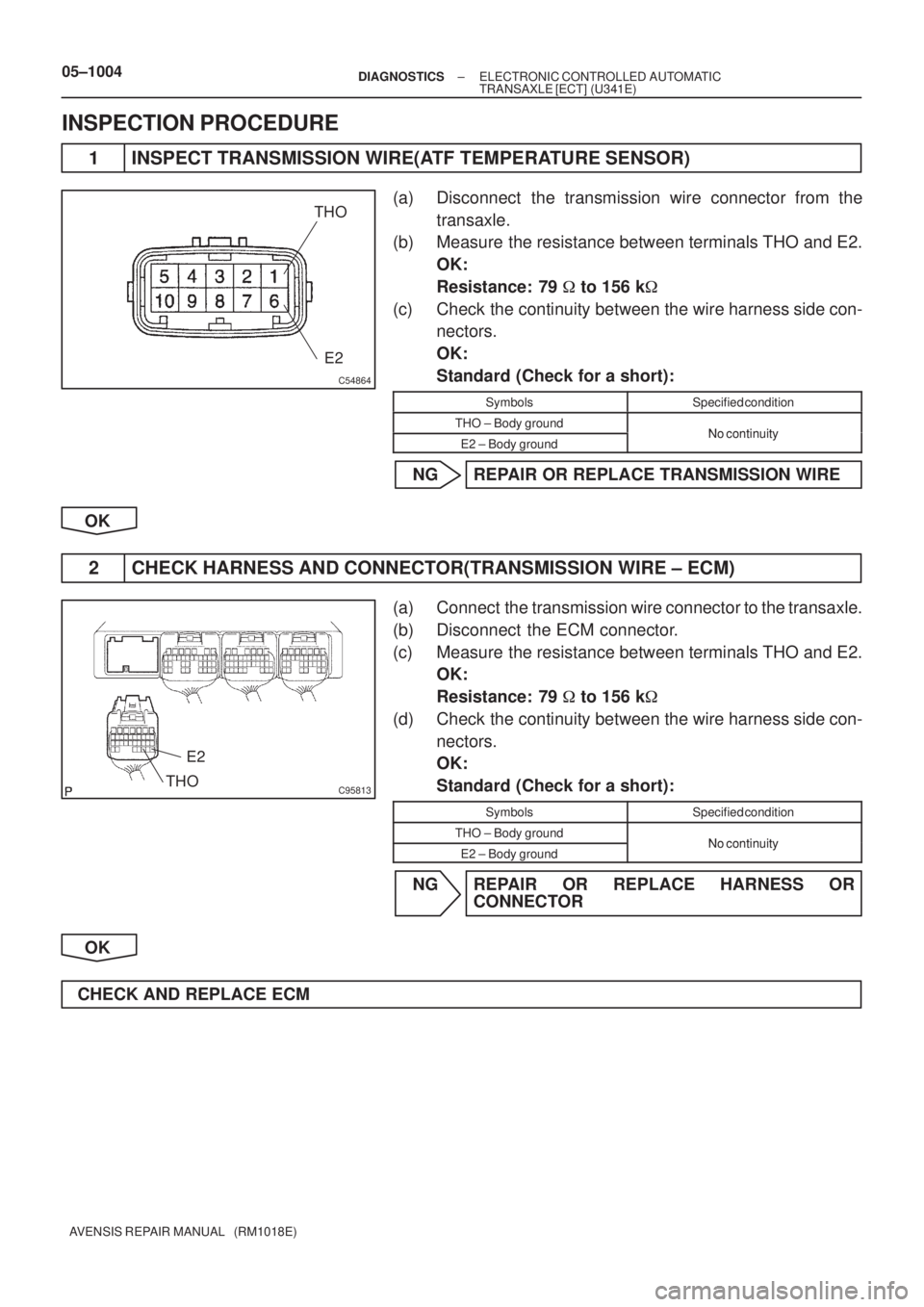

INSPECTION PROCEDURE
1 INSPECT TRANSMISSION WIRE(ATF TEMPERATURE SENSOR)
(a) Disconnect the transmission wire connector from the
transaxle.
(b) Measure the resistance between terminals THO and E2.
OK:
Temperature: C ( F)Resistance: k

10 (50)6.4
110 (230)0.2
(c) Check the continuity between the wire harness side con-
nectors.
OK:
Standard (Check for a short):
SymbolsSpecified condition
THO ± Body groundNo continuityE2 ± Body groundNo continuity
NG REPAIR OR REPLACE TRANSMISSION WIRE
OK
05C8G±01

D26545
THO E2 BR
30
V E2 E1
ECT Solenoid
E13 O
THO OECM
28
E13
6
1
± DIAGNOSTICSELECTRONIC CONTROLLED AUTOMATIC
TRANSAXLE [ECT] (U341E)05±1003
AVENSIS REPAIR MANUAL (RM1018E)

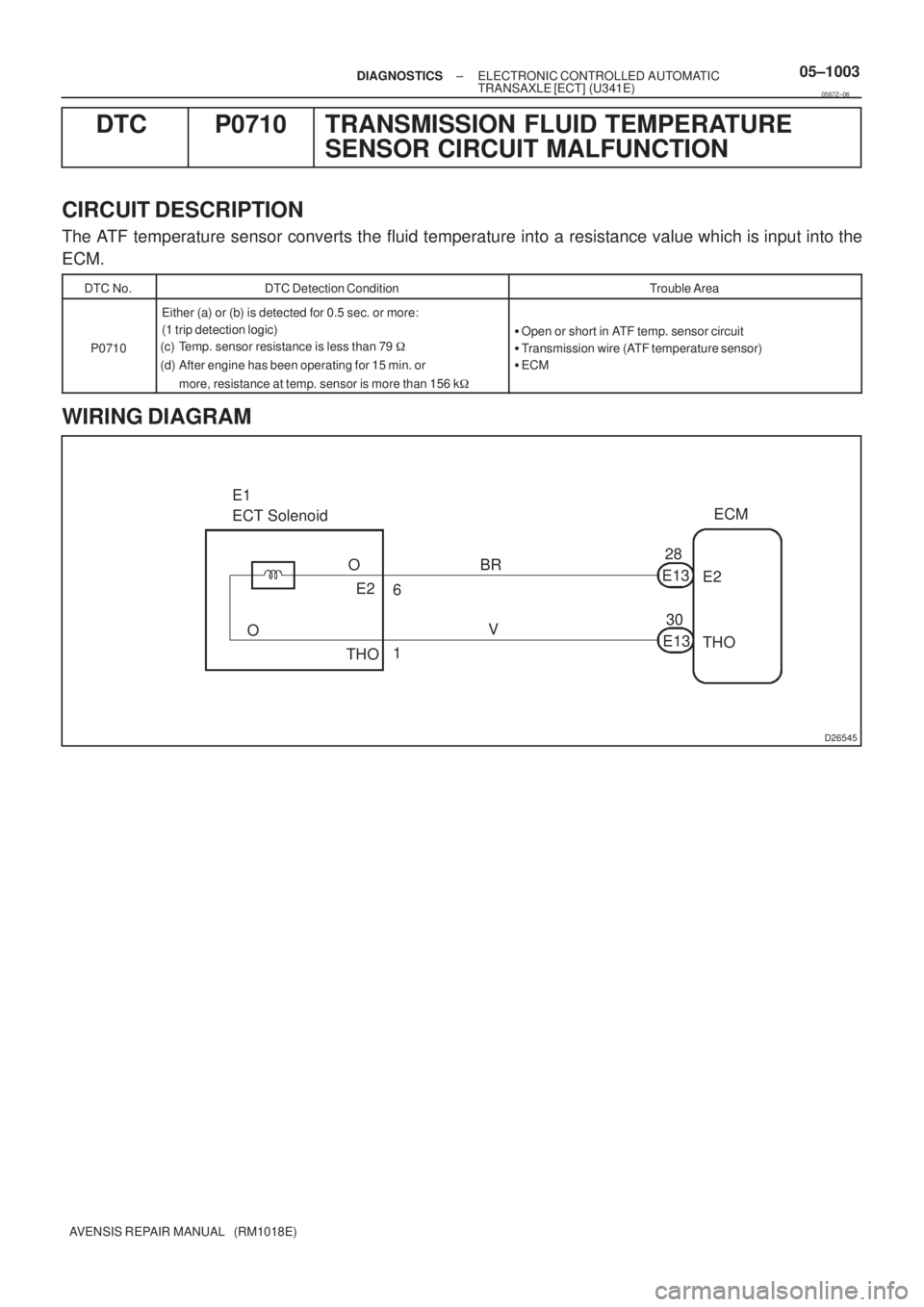

DTC P0710 TRANSMISSION FLUID TEMPERATURE
SENSOR CIRCUIT MALFUNCTION
CIRCUIT DESCRIPTION
The ATF temperature sensor converts the fluid temperature into a resistance value which is input into the
ECM.
DTC No.DTC Detection ConditionTrouble Area
P0710
Either (a) or (b) is detected for 0.5 sec. or more:
(1 trip detection logic)
(c) Temp. sensor resistance is less than 79

(d) After engine has been operating for 15 min. or
more, resistance at temp. sensor is more than 156 k


Open or short in ATF temp. sensor circuit

Transmission wire (ATF temperature sensor)

ECM
WIRING DIAGRAM
0567Z±06

C54864
THO
E2
C95813THOE2
05±1004± DIAGNOSTICSELECTRONIC CONTROLLED AUTOMATIC
TRANSAXLE [ECT] (U341E)
AVENSIS REPAIR MANUAL (RM1018E)
INSPECTION PROCEDURE
1 INSPECT TRANSMISSION WIRE(ATF TEMPERATURE SENSOR)
(a) Disconnect the transmission wire connector from the
transaxle.
(b) Measure the resistance between terminals THO and E2.
OK:
Resistance: 79
to 156 k

(c) Check the continuity between the wire harness side con-
nectors.
OK:
Standard (Check for a short):
SymbolsSpecified condition
THO ± Body groundNo continuityE2 ± Body groundNo continuity
NG REPAIR OR REPLACE TRANSMISSION WIRE
OK
2 CHECK HARNESS AND CONNECTOR(TRANSMISSION WIRE ± ECM)
(a) Connect the transmission wire connector to the transaxle.
(b) Disconnect the ECM connector.
(c) Measure the resistance between terminals THO and E2.
OK:
Resistance: 79
to 156 k

(d) Check the continuity between the wire harness side con-
nectors.
OK:
Standard (Check for a short):
SymbolsSpecified condition
THO ± Body groundNo continuityE2 ± Body groundNo continuity
NG REPAIR OR REPLACE HARNESS OR
CONNECTOR
OK
CHECK AND REPLACE ECM

0567W±10
05±1000±
DIAGNOSTICS ELECTRONIC CONTROLLED AUTOMATIC
TRANSAXLE [ECT](U341E)
AVENSIS REPAIR MANUAL (RM1018E)
PROBLEM SYMPTOMS TABLE
HINT:
If a normal code is displayed during the DTC check but the trouble still o\
ccurs, check the circuits for each
symptom in the order given in the charts on the following pages and proceed to \
the page given for trouble-
shooting.
The Matrix Chart is divided into 3 chapters.

If the instruction ºProceed to next circuit inspection shown on matri\
x chartº is given in the flow chart
for each circuit, proceed to the circuit with the next highest number in the table to continue the check.

If the trouble still occurs even though there are no abnormalities in any of the other circuits, then ch\
eck
and replace the ECM.
CHAPTER 1: ELECTRONIC CIRCUIT MATRIX CHART
SymptomSuspect AreaSee page
No up±shift (A particular gear, from 1st to O/D gear, is not up±
shifted)ECM01±32
No down±shift (A particular gear, from O/D to 1st gear, is not
down±shifted)ECM01±32
No lock±up or No lock±up off
3. Stop light switch circuit
4. Engine coolant temp. sensor circuit
5. Throttle position sensor circuit
6. ECM05±1018
05±16
05±16
01±32
Shift point too high or too low
1. Engine coolant temp. sensor circuit
2. Throttle position sensor circuit
3. ECM05±16
05±16
01±32
No gear change by shifting into º+º or º±º while the shif\
t lever is in
the Sposition1. Transmission control switch circuit
2. ECM05±103501±32
Up±shift to O/D from 3rd while engine is cold
1. Engine coolant temp. sensor circuit
2. ATF temp. sensor circuit
3. ECM05±16
05±1003
05±1005 01±32
Harsh engagement (N
D)ECM01±32
Harsh engagement (Lock±up)ECM01±32
Harsh engagement (Any driving range)ECM01±32
Poor acceleration
1. Pattern select switch circuit (ECT SNOW switch)
2. Instrument panel J/B assy (Integration relay)
3. ECM05±1040
01±32
Engine stalls when starting off or stoppingECM01±32
No kick±down1. Kick±down switch circuit
2. ECM05±103301±32
No 2nd start
1. Pattern select switch circuit (ECT SNOW switch)
2. Transmission control switch circuit
3. Park/neutral position switch circuit
4. Instrument panel J/B assy (Integration relay)
5. ECM05±1040
05±1035
05±1024
05±104001±32

±
DIAGNOSTICS ELECTRONIC MOTOR POWER STEERING SYSTEM
05±1063
AVENSIS REPAIR MANUAL (RM1018E)
DTCC1516/16Calibration of Sensor Zero Point Not
Completed
CIRCUIT DESCRIPTION
This DTC does not indicate trouble. This is detected when the torque sensor \
zero point calibration is not
completed normally.
DTC No.DTC Detecting ConditionTrouble Area
C1516/16The torque sensor zero point calibration is not completed
normally.Sensor zero point calibration failure.
INSPECTION PROCEDURE
1CLEAR DTC(See page 05±1045)
2PERFORM CALIBRATION OF TORQUE SENSOR ZERO POINT(See page 05±1045)
3 RECONFIRM DTC
(a)Check the DTCs (See page 05±1045).
(A): DTC C1516/16 output after attempted 3 time or more.
(B): Normal code output.
HINT:
If the DTC code is output in spite of conducting the steering zero point c\
alibration, replace the steering col-
umn assy.
(A) REPLACE STEERING COLUMN ASSY
(B)
END
0579K±02

05±1062
±
DIAGNOSTICS ELECTRONIC MOTOR POWER STEERING SYSTEM
AVENSIS REPAIR MANUAL (RM1018E)
DTCC1515/15Torque Sensor Zero Point Calbration Not Performed
CIRCUIT DESCRIPTION
This DTC does not indicate trouble. Perform calibration of torque sensor zer\
o point to delete DTC.
DTC No.DTC Detecting ConditionTrouble Area
C1515/15When torque sensor zero point calibration is not performed,
this DTC is detected.Sensor zero point calibration is not performed.
INSPECTION PROCEDURE
1RECONFIRM DTC
(a)Check the DTCs (See page 05±1045).
(b) Is DTC excepted for C1515/15 outputed?
YES REPAIR CIRCUIT INDICATED BY OUTPUTCODE
NO
2PERFORM CALIBRATION OF TORQUE SENSOR ZERO POINT(See page 05±1045)
3 RECONFIRM DTC
(a)Check the DTC (See page 05±1045).
(b) Is DTC C1516/16 outputed? NO END
YES
REPAIR CIRCUIT INDICATED BY DTC C1516/16(See page 05±1063)
050YA±04
