2005 TOYOTA AVENSIS sensor

D26545
E1
ECT Solenoid
ECM
28
E2 BR
6
30
THO
E13
1 E2
THO O
O
VE13 05±882
± DIAGNOSTICSELECTRONIC CONTROLLED AUTOMATIC
TRANSAXLE [ECT] (U241E(1AZ±FE))
AVENSIS REPAIR MANUAL (RM1018E)

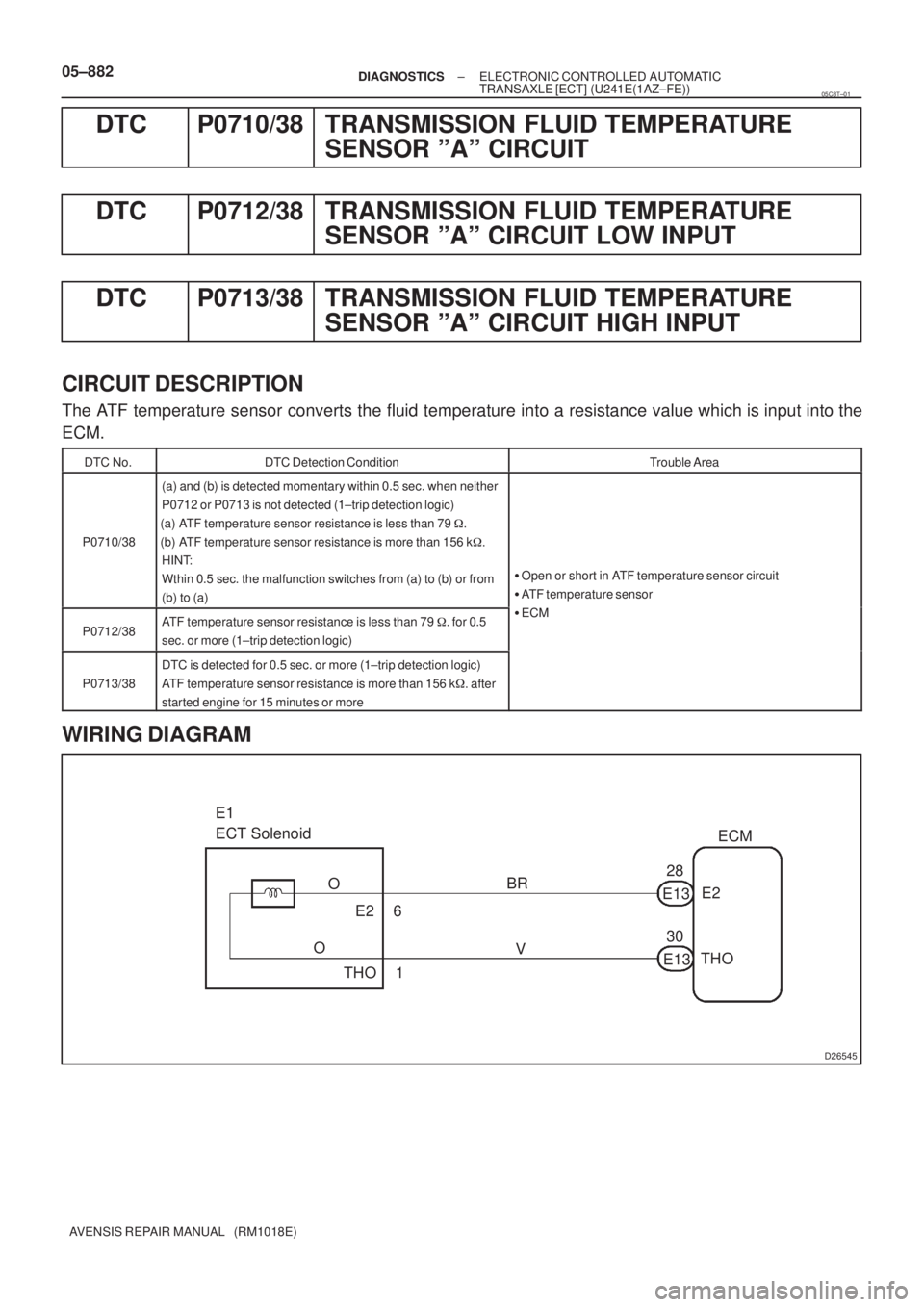

DTC P0710/38 TRANSMISSION FLUID TEMPERATURE
SENSOR ºAº CIRCUIT
DTC P0712/38 TRANSMISSION FLUID TEMPERATURE
SENSOR ºAº CIRCUIT LOW INPUT
DTC P0713/38 TRANSMISSION FLUID TEMPERATURE
SENSOR ºAº CIRCUIT HIGH INPUT
CIRCUIT DESCRIPTION
The ATF temperature sensor converts the fluid temperature into a resistance value which is input into the
ECM.
DTC No.DTC Detection ConditionTrouble Area
P0710/38
(a) and (b) is detected momentary within 0.5 sec. when neither
P0712 or P0713 is not detected (1±trip detection logic)
(a) ATF temperature sensor resistance is less than 79
(b) ATF temperature sensor resistance is more than 156 k
HINT:
Wthin 0.5 sec. the malfunction switches from (a) to (b) or from
(b) to (a)

Open or short in ATF temperature sensor circuit

ATF temperature sensor
P0712/38ATF temperature sensor resistance is less than 79 for 0.5
sec. or more (1±trip detection logic)
ECM
P0713/38
DTC is detected for 0.5 sec. or more (1±trip detection logic)
ATF temperature sensor resistance is more than 156 kafter
started engine for 15 minutes or more
WIRING DIAGRAM
05C8T±01

C54864
THO
E2
C95813THOE2
± DIAGNOSTICSELECTRONIC CONTROLLED AUTOMATIC
TRANSAXLE [ECT] (U241E(1AZ±FE))05±883
AVENSIS REPAIR MANUAL (RM1018E)

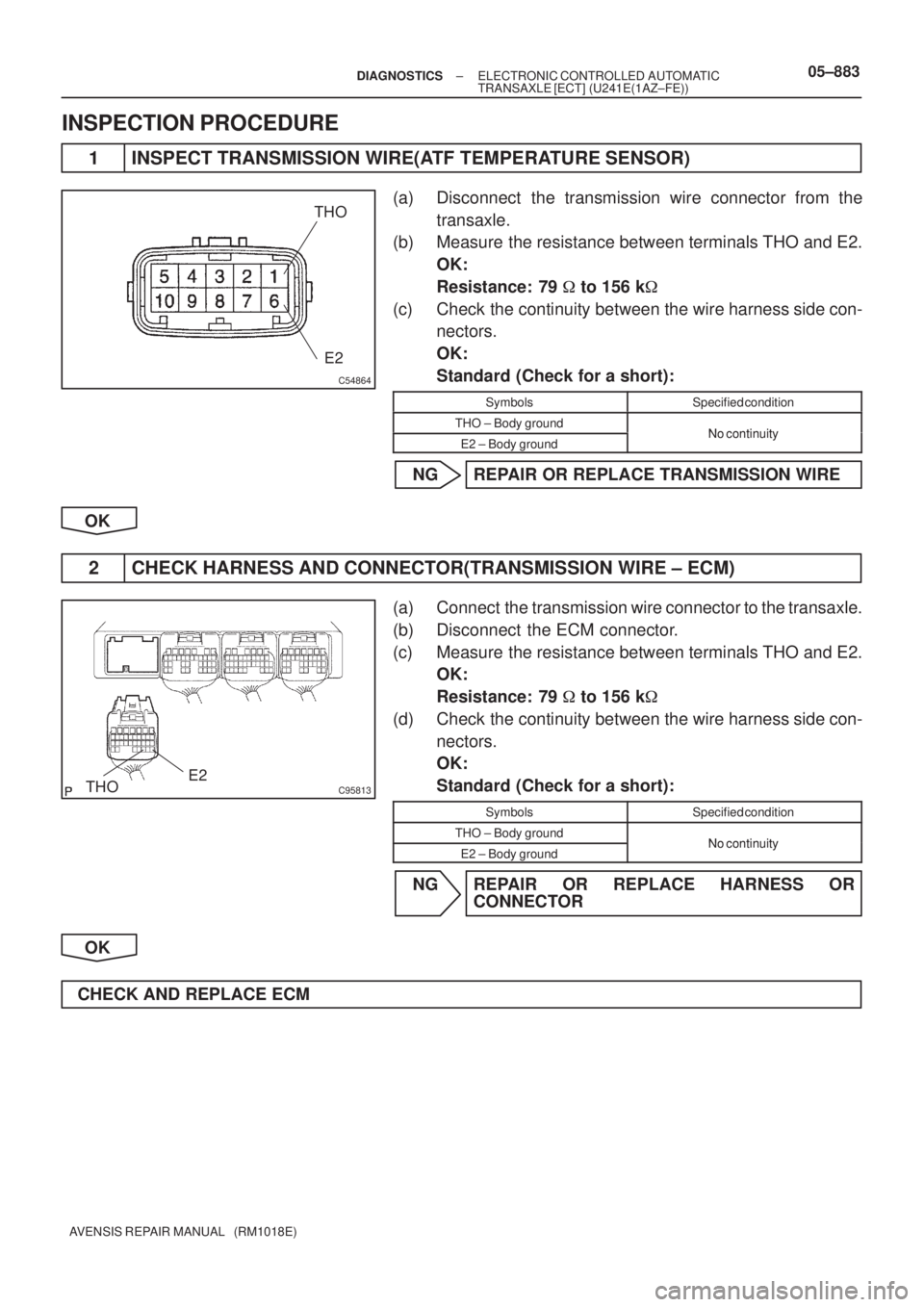

INSPECTION PROCEDURE
1 INSPECT TRANSMISSION WIRE(ATF TEMPERATURE SENSOR)
(a) Disconnect the transmission wire connector from the
transaxle.
(b) Measure the resistance between terminals THO and E2.
OK:
Resistance: 79
to 156 k

(c) Check the continuity between the wire harness side con-
nectors.
OK:
Standard (Check for a short):
SymbolsSpecified condition
THO ± Body groundNo continuityE2 ± Body groundNo continuity
NG REPAIR OR REPLACE TRANSMISSION WIRE
OK
2 CHECK HARNESS AND CONNECTOR(TRANSMISSION WIRE ± ECM)
(a) Connect the transmission wire connector to the transaxle.
(b) Disconnect the ECM connector.
(c) Measure the resistance between terminals THO and E2.
OK:
Resistance: 79
to 156 k

(d) Check the continuity between the wire harness side con-
nectors.
OK:
Standard (Check for a short):
SymbolsSpecified condition
THO ± Body groundNo continuityE2 ± Body groundNo continuity
NG REPAIR OR REPLACE HARNESS OR
CONNECTOR
OK
CHECK AND REPLACE ECM

0567W±11
±
DIAGNOSTICS ELECTRONIC CONTROLLED AUTOMATIC
TRANSAXLE [ECT](U241E(1AZ±FE))05±879
AVENSIS REPAIR MANUAL (RM1018E)
PROBLEM SYMPTOMS TABLE
HINT:
If a normal code is displayed during the DTC check but the trouble still o\
ccurs, check the circuits for each
symptom in the order given in the charts on the following pages and proceed to \
the page given for trouble-
shooting.
The Matrix Chart is divided into 3 chapters.

If the instruction ºProceed to next circuit inspection shown on matri\
x chartº is given in the flow chart
for each circuit, proceed to the circuit with the next highest number in the table to continue the check.

If the trouble still occurs even though there are no abnormalities in any of the other circuits, then ch\
eck
and replace the ECM.
CHAPTER 1: ELECTRONIC CIRCUIT MATRIX CHART
SymptomSuspect AreaSee page
No up±shift (A particular gear, from 1st to O/D gear, is not up±
shifted)ECM01±32
No down±shift (A particular gear, from O/D to 1st gear, is not
down±shifted)ECM01±32
No lock±up or No lock±up off
4. Stop light switch circuit
5. Engine coolant temp. sensor circuit
6. Throttle position sensor circuit
7. ECM05±905
05±161
05±161
01±32
Shift point too high or too lowECM01±32
No gear change by shifting into º+º or º±º while the shif\
t lever is in
the Sposition1. Transmission control switch circuit
2. ECM05±91001±32
Up±shift to O/D from 3rd while engine is cold
1. Engine coolant temp. sensor circuit
2. ATF temp. sensor circuit
3. ECM05±161
05±88201±32
Harsh engagement (N
D)ECM01±32
Harsh engagement (Lock±up)ECM01±32
Harsh engagement (Any driving range)ECM01±32
Poor accelerationECM01±32
Engine stalls when starting off or stoppingECM01±32
No kick±down1. Kick±down switch circuit
2. ECM05±908
01±32

0567R±11
D30682
Combination Meter
(MIL)
Europe spec: Stop Lamp
Switch Assy
Shift Lock Control Unit
(Transmission Control Switch)
Shift Solenoid Valve SLT
Shift Solenoid Valve SL1ECM
DLC3
Park/neutral Position
Switch Assy
Shift Solenoid Valve SL2
Shift Solenoid Valve DSLShift Solenoid
Valve S4
Transmission Wire
(ATF Temperature Sensor) Speed Sensor (NT)
Speed Sensor (NC)
Kick±down Switch
± DIAGNOSTICSELECTRONIC CONTROLLED AUTOMATIC
TRANSAXLE [ECT] (U241E(1AZ±FE))05±877
AVENSIS REPAIR MANUAL (RM1018E)
LOCATION

0567Q±08
05±876±
DIAGNOSTICS ELECTRONIC CONTROLLED AUTOMATIC
TRANSAXLE [ECT](U241E(1AZ±FE))
AVENSIS REPAIR MANUAL (RM1018E)
DIAGNOSTIC TROUBLE CODE CHART
If a DTC is displayed during the DTC check, check the circuit listed in th\
e table below and proceed to the
page given.
*
1 : ± ... MIL does not light /
... MIL light up
DTC No.
(See Page)Detection ItemTrouble AreaMIL *Memory
P0500/42 (05±240)Vehicle Speed Sensor ºAº
 Combination meter
 Open or short in vehicle speed sensor circuit
 Vehicle speed sensor
 ECM


P0710/38
(05±882)Transmission Fluid Temperature
Sensor ºAº Circuit

P0712/38(05±882)Transmission Fluid Temperature
Sensor ºAº Circuit Low Input Open or short in ATF temperature sensor circuit
 ATF temperature sensor

ECM


P0713/38
(05±882)Transmission Fluid Temperature
Sensor ºAº Circuit High Input
ECM


P0717/37(05±884)Turbine Speed Sensor Circuit No
Signal
 Open or short in speed sensor (NT) circuit
 Speed sensor (NT)
 ECM
 Automatic transaxle assembly


P0748/62
(05±886)Pressure Control Solenoid ºAº
Electrical
(Shift Solenoid Valve SL1) Open or short in shift solenoid valve SL1 circuit
 Shift solenoid valve SL1
 ECM


P0778/63
(05±886)Pressure Control Solenoid ºBº
Electrical
(Shift Solenoid Valve SL2) Open or short in shift solenoid valve SL2 circuit
 Shift solenoid valve SL2
 ECM


P0793/67
(05±892)Intermediate Shaft Speed Sen-
sor ºAº Open or short in speed sensor (NC) circuit
 Speed sensor (NC)
 ECM


P0982/65
(05±886)Shift Solenoid ºDº Control Circuit
Low (Shift Solenoid Valve S4) Open or short in shift solenoid valve S4 circuit
Shift l id l S4


P0983/65
(05±886)Shift Solenoid ºDº Control Circuit
High (Shift Solenoid Valve S4) Shift solenoid valve S4
 ECM


P2716/77
(05±894)Pressure Contorl Solenoid ºDº
Electrical
(Shift Solenoid Valve SLT) Open or short in shift solenoid valve SLT circuit
 Shift solenoid valve SLT
 ECM
±
P2769/64
(05±897)Torque Converter Clutch Sole-
noid Circuit Low
(Shift Solenoid Valve DSL)
 Open or short in shift solenoid valve DSL circuit
Shift l id l DSL
±
P2770/64
(05±897)Torque Converter Clutch Sole-
noid Circuit High
(Shift Solenoid Valve DSL) Shift solenoid valve DSL
 ECM
±

05±868± DIAGNOSTICSELECTRONIC CONTROLLED AUTOMATIC
TRANSAXLE [ECT] (U241E(1AZ±FE))
AVENSIS REPAIR MANUAL (RM1018E)
4. DATA LIST
HINT:
According to the DATA LIST displayed by the hand±held tester, you can read the value of the switch, sensor,
actuator and so on without parts removal. Reading the DATA LIST as the first step of troubleshooting is one
of the methods to shorten the work time.
(a) Warm up the engine.
(b) Turn the ignition switch OFF.
(c) Connect the hand±held tester to the DLC3.
(d) Turn the ignition switch ON.
(e) According to the display on tester, read the ºDATA LISTº.
ItemMeasurement Item/
Display (Range)Normal ConditionDiagnostic Note
STOP LIGHT SWStop light SW Status/
ON or OFF
Brake Pedal is depressed: ON

Brake Pedal is released: OFF

SHIFTActual Gear Position/
1st, 2nd, 3rd, 4th (O/D)Shift lever Range is;

D: 1st, 2nd, 3rd or 4th (O/D)

SPD (NC)Counter Gear Speed
display: 50 r/minD Range is warmed up,4th (O/D);
Same as input shaft speed

LOCK UP SOLLock Up Solenoid Status/
ON or OFF
Lock Up: ON

Except Lock Up: OFF

KICKDOWN SWKick down SW Status/
ON or OFF

Accelerator Pedal is depressed:
ON

Accelerator Pedal is released:
OFF


PNP SW [NSW]PNP SW Status/
ON or OFFShift lever range is;
P or N: ON
Except P or N: OFF
The shift lever range and these
REVERSEPNP SW Status/
ON or OFFShift lever range is;
R: ON
Except R: OFFThe shift lever range and these
values are different, there are fail-
ures of the PNP switch or shift
cable adjustment
DRIVEPNP SW Status/
ON or OFFShift lever range is;
D and 3: ON
Except D and 3: OFFcable adjustment.
SOLENOID (SLT)Shift Solenoid SLT Status/
ON or OFFIG SW ON: ON

AT FLUID TEMP
ATF Temp. Sensor Value/
min.: ±40C (±40F)
max.: 215C (419F)80C (176F)
(After Stall Test)If the value is º±40C (±40F)º or
º215C (419F)º, ATF temp. sen-
sor circuit is opened or shorted.

C87489
Skid Control ECU
with Actuator
W− B (*1) W− B (*1)
W−
B (*2)
W (*2) W (*1)
W (*1) W
S1 TS
28
W− B (*2)
CB CA6
3 IE2 12
J8
J/C
D
A IO IP
CG TS
D5
DLC3
4 12 D
ACenter J/B
J16
J/C
*1: LHD
*2: RHD IO: 1AZ
−FSE
IL: 1CD− FTV
C
B
J20 J21 W (*2)
J/C
C52361
Ts
CGDLC3
05− 854
−
DIAGNOSTICS ABS WITH EBD & BA & TRC & VSC SYSTEM
TS TERMINAL CIRCUIT
CIRCUIT DESCRIPTION
The sensor check circuit detects troubles in the sensor signal which cannot be detected by the DTC check.
Connecting terminals Ts and CG of the DLC3 starts the check.
WIRING DIAGRAM
INSPECTION PROCEDURE
1 INSPECT DLC3 TERMINAL VOLTAGE(Ts TERMINAL)
(a) Turn the ignition switch ON.
(b) Measure the voltage between terminals Ts and CG of the
DLC3.
OK:
Voltage: 10 to 14 V
OK Go to step 3
NG
056T8− 03

± DIAGNOSTICSELECTRONIC CONTROLLED AUTOMATIC
TRANSAXLE [ECT] (U241E(1AZ±FSE))05±923
AVENSIS REPAIR MANUAL (RM1018E)
(8) Simulate the conditions of the malfunction de-
scribed by the customer.
NOTICE:
Leave the ignition switch ON until you have checked the
DTCs, etc.
(9) After simulating the malfunction conditions, use the
hand±held tester diagnosis selector to check the
DTCs and freeze frame data, etc.
HINT:
Take care not to turn the ignition switch OFF, as turning it off
switches the diagnosis system from Check mode to Normal
mode, which all DTCs etc. are erased.
(10) After checking the DTC, inspect the applicable cir-
cuit.
(b) Clear the DTC.
When using the hand±held tester:
The following operation will erase the DTC and freeze
frame data. Operate the hand±held tester to erase the
codes.
(c) Clear the DTC.
When not using the hand±held tester:
Remove the EFI fuse from engine room J/B for 10 se-
conds or more.
4. DATA LIST
HINT:
According to the DATA LIST displayed by the hand±held tester, you can read the value of the switch, sensor,
actuator and so on without parts removal. Reading the DATA LIST as the first step of troubleshooting is one
of the methods to shorten the work time.
(a) Warm up the engine.
(b) Turn the ignition switch OFF.
(c) Connect the hand±held tester to the DLC3.
(d) Turn the ignition switch ON.
(e) According to the display on tester, read the ºDATA LISTº.
ItemMeasurement Item/
Display (Range)Normal ConditionDiagnostic Note
STOP LIGHT SWStop light SW Status/
ON or OFF
Brake Pedal is depressed: ON

Brake Pedal is released: OFF

SHIFTActual Gear Position/
1st, 2nd, 3rd, 4th (O/D)Shift lever Range is;

D: 1st, 2nd, 3rd or 4th (O/D)

SPD (NC)Counter Gear Speed
display: 50 r/minD Range is warmed up,4th (O/D);
Same as input shaft speed

LOCK UP SOLLock Up Solenoid Status/
ON or OFF
Lock Up: ON

Except Lock Up: OFF

KICKDOWN SWKick down SW Status/
ON or OFF

Accelerator Pedal is depressed:
ON

Accelerator Pedal is released:
OFF
