2005 TOYOTA AVENSIS sensor

05±552
±
DIAGNOSTICS ECD SYSTEM (1CD±FTV)
AVENSIS REPAIR MANUAL (RM1018E)
Lower engine idle speed (Poor idling)
1. A/C signal circuit
2. Injector
3. EGR system
4. Compression
5. Valve clearance
6. Fuel line (Air bleed)
7. EC


8. Supply pump
9. Fuel pressure sensor
10.Diesel throttle55±3
11±56
12±16
14±266
14±270 ±
10±56
10±56
10±56
10±56
Rough idling (Poor idling)
1. Injector
2. Fuel line (Air bleed)
3. EGR system
4. Compression
5. Valve clearance
6. EC

7. Supply pump
8. Fuel pressure sensor
9. Diesel throttle11±56 ±
12±16
14±266
14±270 10±56
10±56
10±56
10±56
Hunting at hot engine (Poor idling)
1. Injector
2. EC
power source circuit
3. Compression
4. Fuel line (Air bleed)
5. Valve clearance
6. EC

7. Supply pump
8. Fuel pressure sensor
9. Diesel throttle11±56
05±686
14±266 ±
14±270
10±56
10±56
10±56
10±56
Hunting at cold engine (Poor idling)
1. Injector
2. EC
power source circuit
3. Compression
4. Fuel line (Air bleed)
5. Valve clearance
6. EC

7. Supply pump
8. Fuel pressure sensor
9. Diesel throttle11±56
05±686
14±266 ±
14±270
10±56
10±56
10±56
10±56
Hesitation/ Poor acceleration (Poor driveability)
1. Injector
2. Fuel filter
3. EGR system
4. Compression
5. EC

6. Supply pump
7. Fuel pressure sensor
8. Diesel throttle11±56
11±82
12±16
14±266 10±56
10±56
10±56
10±56
Knocking (Poor driveability)
1. Injector
2. EGR system
3. EC

4. Supply pump
5. Fuel pressure sensor11±56
12±16
10±56
10±56
10±56
Black smoke (Poor driveability)
1. Injector
2. EGR system
3. EC

4. Supply pump
5. Fuel pressure sensor
6. Diesel throttle11±56
12±16
10±56
10±56
10±56
10±56

±
DIAGNOSTICS ECD SYSTEM (1CD±FTV)
05±553
AVENSIS REPAIR MANUAL (RM1018E)
White smoke (Poor driveability)
1. EGR system
2. Injector
3. Fuel filter
4. EC


5. Supply pump
6. Fuel pressure sensor
7. Diesel throttle12±16
11±56
11±82
10±56
10±56
10±56
10±56
Surging/ Hunting (Poor driveability)
1. Injector
2. EC

3. Supply pump
4. Fuel pressure sensor11±56
10±56
10±56
10±56

054JE±04
A80993
Mass Air Flow
Meter
DLC3
Accelerator Pedal Assy
(Accel Position Sensor) Injector
Diesel Turbo Inlet
Air Temperature Sensor
EGR Valve Assy
Engine Room R/B
No.3
Suction Control
Valve
Fuel Temperature
Sensor Common Rail Assy
(Fuel Pressure
Sensor Assy)Glow Plug Assy Camshaft Position
Sensor
Manifold Absolute
Pressure Sensor
EDU
ECM
Common Rail Assy
(Pressure Discharge Valve Assy)
Supply
Pump
Engine Room J/B
Engine Coolant Temperature Sensor
VRV
Crankshaft Position Sensor
Intake Shutter Assy
05±548
± DIAGNOSTICSECD SYSTEM (1CD±FTV)
AVENSIS REPAIR MANUAL (RM1018E)
LOCATION

054JD±04
05±544
±
DIAGNOSTICS ECD SYSTEM(1CD±FTV)
AVENSIS REPAIR MANUAL (RM1018E)
DIAGNOSTIC TROUBLE CODE CHART
HINT:
Parameters listed in the chart may not be exactly the same as your readings due to\
the type of instrument
or other factors.

If a malfunction code is displayed during the DTC check in the check mode, check the circuit f\
or the codes
listed in the table below. For details of each code, refer to the ''See page '' under the respective ''DTC No.''
in the DTC chart.



\f  \b
 *1
CHK ENG
P0045
(05±554)Turbo/Super Charger Boost Con-
trol Solenoid Circuit / Open
VRV

Open or short in VRV circuit

ECM

P0087
(05±557)Fuel Rail/System Pressure ± Too
Low
Open or short in fuel pressure sensor circuit

Fuel pressure sensor

ECM

P0088
(05±563)Fuel Rail/System Pressure ± Too
High

Supply pump

Pressure discharge valve

Short in Supply pump (suction control valve)circuit

Open pressure discharge valve circuit

ECM

P0093
(05±570)Fuel System Leak Detected ±
Large Leak

Fuel line between supply pump and common rail

Fuel line between common rail and injector

Supply pump

Common rail

Injector (P1238 is set simultaneously)

Pressure discharge valve

Open or short in EDU circuit (P0200 is set simultaneously)

Open or short in injector circuit (P0200 and P1238 are set
simultaneously)

EDU (P0200 is set simultaneously)

ECM

P0095
(05±573)Intake Air Temperature Sensor 2
Circuit
O h ti di lt b ilt it i it

P0097
(05±573)Intake Air Temperature Sensor 2
Circuit Low
Open or short in diesel turbo inlet air temp. sensor circuit

Diesel turbo inlet air temperature sensor

ECM

P0098
(05±573)Intake Air Temperature Sensor 2
Circuit High
ECM

P0100
(05±577)Mass or Volume Air Flow Circuit

Open or short in mass air flow meter circuit

Mass air flow meter

ECM

P0101
(05±583)Mass or Volume Air Flow Circuit
Range/Performance Problem
Mass air flow meter
P0102
(05±577)Mass or Volume Air Flow Meter
Circuit Low Input
Open or short in mass air flow meter circuit

Mass air flow meter

P0103
(05±577)Mass or Volume Air Flow Meter
Circuit High Input
Mass air flow meter

ECM

P0105
(05±584)Manifold Absolute Pressure/
Barometric Pressure Circuit

Open or short in manifold absolute pressure sensor circuit

Manifold absolute pressure sensor

Turbocharger assy

EGR valve assy

ECM

P0106
(05±588)Manifold Absolute Pressure/
Barometric Pressure Circuit
Range/Performance Problem

Manifold absolute pressure sensor

±
DIAGNOSTICS ECD SYSTEM (1CD±FTV)
05±545
AVENSIS REPAIR MANUAL (RM1018E)P0107
(05±584)
Manifold Absolute Pressure/
Barometric Pressure Circuit Low
Input
Open or short in manifold absolute pressure sensor circuit

Manifold absolute pressure sensor

Turbocharger assy

P0108
(05±584)Manifold Absolute Pressure/
Barometric Pressure Circuit High
Input
Turbocharger assy

EGR valve assy

ECM

P0110
(05±589)Intake Air Temperature Circuit
O h ti itk it t i it

P0112
(05±589)Intake Air Temperature Circuit
Low Input
Open or short in intake air temperature sensor circuit

Intake air temperature sensor (built in mass air flow meter)

ECM

P0113
(05±589)Intake Air Temperature Circuit
High Input
ECM

P0115
(05±593)Engine Coolant Temperature Cir-
cuit
Open or short in engine coolant temp. sensor circuit

Engine coolant temp. sensor

ECM

P0116
(05±597)Engine Coolant Temperature Cir-
cuit Range/Performance Prob-
lem
Cooling system

Engine coolant temperature sensor

Thermostat

P0117
(05±593)Engine Coolant Temp. Circuit
Low Input
Open or short in engine coolant temp. sensor circuit

Engine coolant tempsensor

P0118
(05±593)Engine Coolant Temp. Circuit
High Input
Engine coolant temp. sensor

ECM

P0168
(05±598)Fuel Temperature Too High
Fuel temperature sensor
P0180
(05±599)Fuel Temperature Sensor ºAº
Circuit
Open or short in fuel temp sensor circuit

P0182
(05±599)Fuel Temperature Sensor ºAº
Circuit Low Input
Open or short in fuel temp. sensor circuit

Fuel temperature sensor

ECM

P0183
(05±599)Fuel Temperature Sensor ºAº
Circuit High Input
ECM

P0190
(05±557)Fuel Rail Pressure Sensor Cir-
cuit
Open or short in fuel pressure sensor circuit

Fuel pressure sensor

ECM

P0191
(05±603)Fuel Rail Pressure Sensor Cir-
cuit Range/Performance
Fuel pressure sensor
P0192
(05±557)Fuel Rail Pressure Sensor Cir-
cuit Low Input
Open or short in fuel pressure sensor

Fuelpressure sensor

P0193
(05±557)Fuel Rail Pressure Sensor Cir-
cuit High Input
Fuel pressure sensor

ECM

P0200
(05±604)Injector Circuit / Open

Open or short in EDU circuit

Injector

EDU

ECM

P0234
(05±612)Turbo/Super Charger Overboost
Condition
VRV

Open or short in VRV circuit

Turbocharger

P0299
(05±612)Turbo/Super Charger Under-
boost
g

EGR valve

Vacuum hose

ECM

P0335
(05±616)Crankshaft Position Sensor ºAº
Circuit
Open or short in crankshaft position sensor circuit

Crankshaft position sensor
P0339
(05±616)Crankshaft Position Sensor ºAº
Circuit Intermittent
Crankshaft osition sensor

Signal plate (crankshaft timing pulley)

ECM

P0340
(05±620)Camshaft Position Sensor ºAº
Circuit (Bank 1 or Single Sensor)

Open or short in camshaft position sensor circuit

Camshaft position sensor

Camshaft timing pulley

ECM

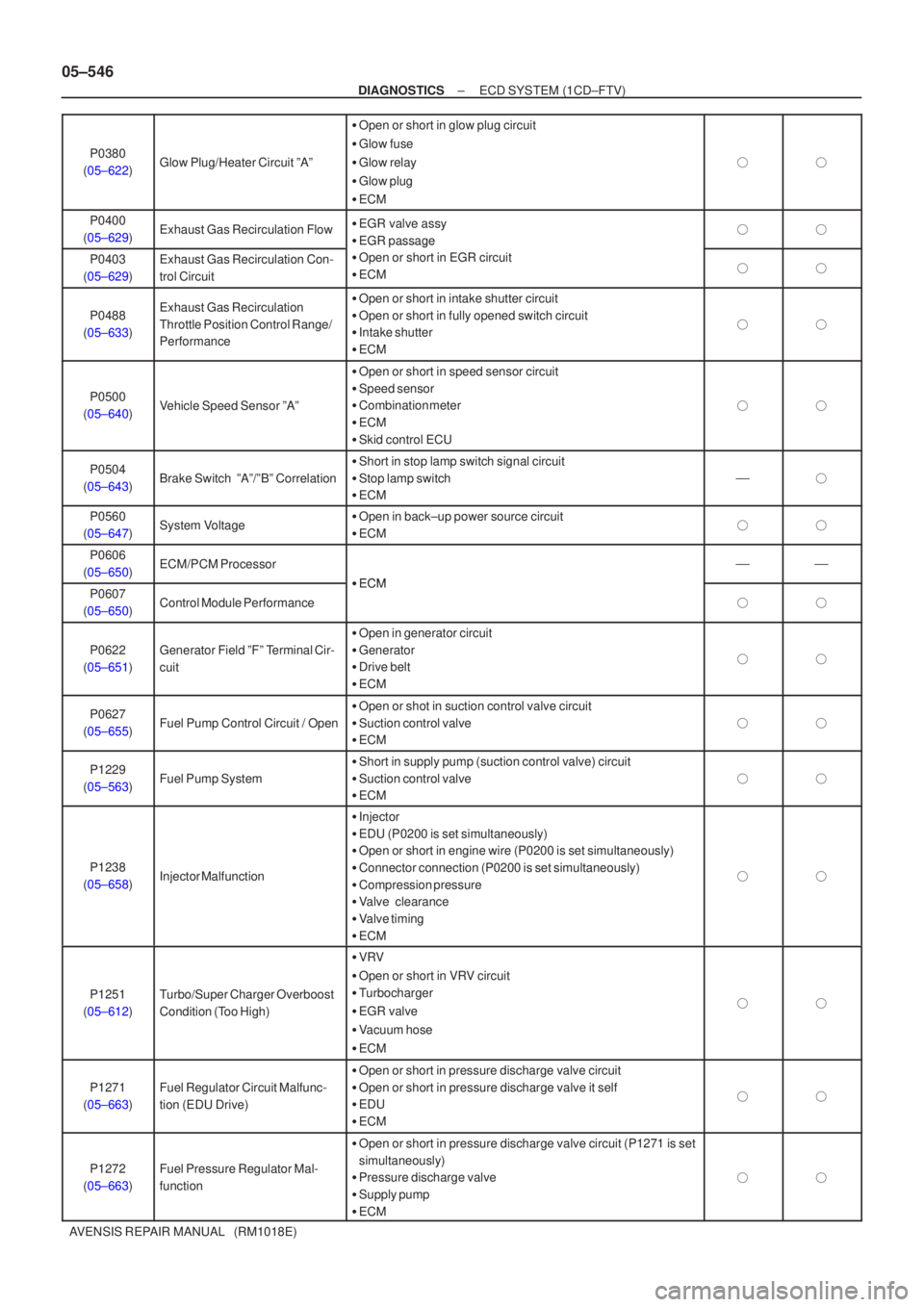

05±546
±
DIAGNOSTICS ECD SYSTEM (1CD±FTV)
AVENSIS REPAIR MANUAL (RM1018E) P0380
(05±622)
Glow Plug/Heater Circuit ºAº

Open or short in glow plug circuit

Glow fuse

Glow relay

Glow plug

ECM

P0400
(05±629)Exhaust Gas Recirculation Flow
EGR valve assy

EGR passage
P0403
(05±629)Exhaust Gas Recirculation Con-
trol Circuit
EGR assage

Open or short in EGR circuit

ECM
P0488
(05±633)Exhaust Gas Recirculation
Throttle Position Control Range/
Performance
Open or short in intake shutter circuit

Open or short in fully opened switch circuit

Intake shutter

ECM

P0500
(05±640)Vehicle Speed Sensor ºAº

Open or short in speed sensor circuit

Speed sensor

Combination meter

ECM

Skid control ECU

P0504
(05±643)Brake Switch ºAº/ºBº Correlation

Short in stop lamp switch signal circuit

Stop lamp switch

ECM


P0560
(05±647)System Voltage
Open in back±up power source circuit

ECM
P0606
(05±650)ECM/PCM Processor

ECM



P0607
(05±650)Control Module Performance

ECM

P0622
(05±651)Generator Field ºFº Terminal Cir-
cuit

Open in generator circuit

Generator

Drive belt

ECM

P0627
(05±655)Fuel Pump Control Circuit / Open

Open or shot in suction control valve circuit

Suction control valve

ECM

P1229
(05±563)Fuel Pump System

Short in supply pump (suction control valve) circuit

Suction control valve

ECM

P1238
(05±658)Injector Malfunction

Injector

EDU (P0200 is set simultaneously)

Open or short in engine wire (P0200 is set simultaneously)

Connector connection (P0200 is set simultaneously)

Compression pressure

Valve clearance

Valve timing

ECM

P1251
(05±612)Turbo/Super Charger Overboost
Condition (Too High)

VRV

Open or short in VRV circuit

Turbocharger

EGR valve

Vacuum hose

ECM

P1271
(05±663)Fuel Regulator Circuit Malfunc-
tion (EDU Drive)

Open or short in pressure discharge valve circuit

Open or short in pressure discharge valve it self

EDU

ECM

P1272
(05±663)Fuel Pressure Regulator Mal-
function

Open or short in pressure discharge valve circuit (P1271 is set
simultaneously)

Pressure discharge valve

Supply pump

ECM


±
DIAGNOSTICS ECD SYSTEM (1CD±FTV)
05±547
AVENSIS REPAIR MANUAL (RM1018E)P1601
(05±673)
Injector Correction Circuit Mal-
function (EEPROM)
Injector compensation code

ECM
P1611
(05±650)IC Circuit Malfunction
ECM
P2120
(05±674)Throttle/Pedal Position Sensor/
Switch ºDº Circuit
Open or short in accelerator pedal position sensor circuit

Accelerator pedal position sensor

ECM

P2121
(05±681)Throttle/Pedal Position Sensor/
Switch ºDº Circuit Range/Perfor-
mance
Accelerator pedal position sensor circuit

Accelerator pedal position sensor

ECM

P2122
(05±674)Throttle/Pedal Position Sensor/
Switch ºDº Circuit Low Input
P2123
(05±674)Throttle/Pedal Position Sensor/
Switch ºDº Circuit High Input
P2125
(05±674)Throttle/Pedal Position Sensor/
Switch ºEº Circuit

Open or short in accelerator pedal position sensor circuit
P2127
(05±674)Throttle/Pedal Position Sensor/
Switch ºEº Circuit Low Input
Oen or short in accelerator edal osition sensor circuit

Accelerator pedal position sensor

ECM
P2128
(05±674)Throttle/Pedal Position Sensor/
Switch ºEº Circuit High Input
P2138
(05±674)Throttle/Pedal Position Sensor/
Switch ºDº/ºEº Voltage Correla-
tion

P2226
(05±684)Barometric Pressure Circuit
P2227
(05±685)Barometric Pressure Circuit
Range/Performance

ECM

P2228
(05±685)Barometric Pressure Circuit Low
Input
ECM

P2229
(05±685)Barometric Pressure Circuit High
Input
B2799
(05±1625)Engine Immobiliser System Mal-
function
Immobiliser system

*1: Check engine warning light (CHK ENG) is illuminated

05±532
± DIAGNOSTICSECD SYSTEM (1CD±FTV)
AVENSIS REPAIR MANUAL (RM1018E)
(c) Clearing the DTCs not using the hand±held tester:
(1) Disconnect the battery terminal or remove the EFI
and ETCS fuses from the engine room R/B for more
than 60 seconds.
4. FAIL±SAFE CHART
If any of the following codes are recorded, the ECM enters the fail±safe mode.
DTC No.Fail±Safe OperationFail±Safe Deactivation Conditions
P0087VTA is fixed at 10 %Ignition switch OFF
P0088VTA is fixed at 10 %Ignition switch OFF
P0093After fail safe driving control is performed for 1 minute, en-
gine stallsIgnition switch OFF
P0095
P0097
P0098
Intake air temp. is fixed at 145
C (293
F)Return to normal condition
P0105
P0107
P0108
Turbo pressure is set at fixed valueReturn to normal condition
P0115
P0117
P0118
When fuel temp. sensor operates normal and intake air
temp. is less than 15
C (59
F), value of fuel temp. sensor
is substituted
When fuel temp. sensor operates normal and intake air
temp. is more than 20
C (68
F), value is fixed at 120
C
(248
F)
When the fuel temp. sensor is abnormal, value is fixed at
40
C (104
F)
Return to normal condition
P0168Output limitReturn to normal condition
P0180
P0182
P0183
Fuel temp. is fixed at 40
C (104
F)Return to normal condition
P0190
P0191
P0192
P0193
VTA is fixed at 10 %Ignition switch OFF
P0200VTA is fixed at 25 %Ignition switch OFF
P0335Output limitReturn to normal condition
P0488VTA is fixed at 25 %Ignition switch OFF
P0500Vehicle speed is fixed at 0 km/h (0 mph)Vehicle speed less than 10 km/h (6 mph)
P1229VTA is fixed at 10 %Ignition switch OFF
P1271VTA is fixed at 25 %Ignition switch OFF
P1272VTA is fixed at 25 %Ignition switch OFF
P2120
P2122
P2123
P2125
P2127
P2128
P2138
Output limitIgnition switch OFF
5. CHECK FOR INTERMITTENT PROBLEMS
Hand±held tester only:
By putting the vehicle's ECM in the check mode, the 1 trip detection logic is possible instead of the 2 trip
detection logic, and the sensitivity to detect faults is increased. This makes it easier to detect intermittent
problems.
(a) Clear the DTCs (See step 2).
(b) Set the check mode (See step 3).
