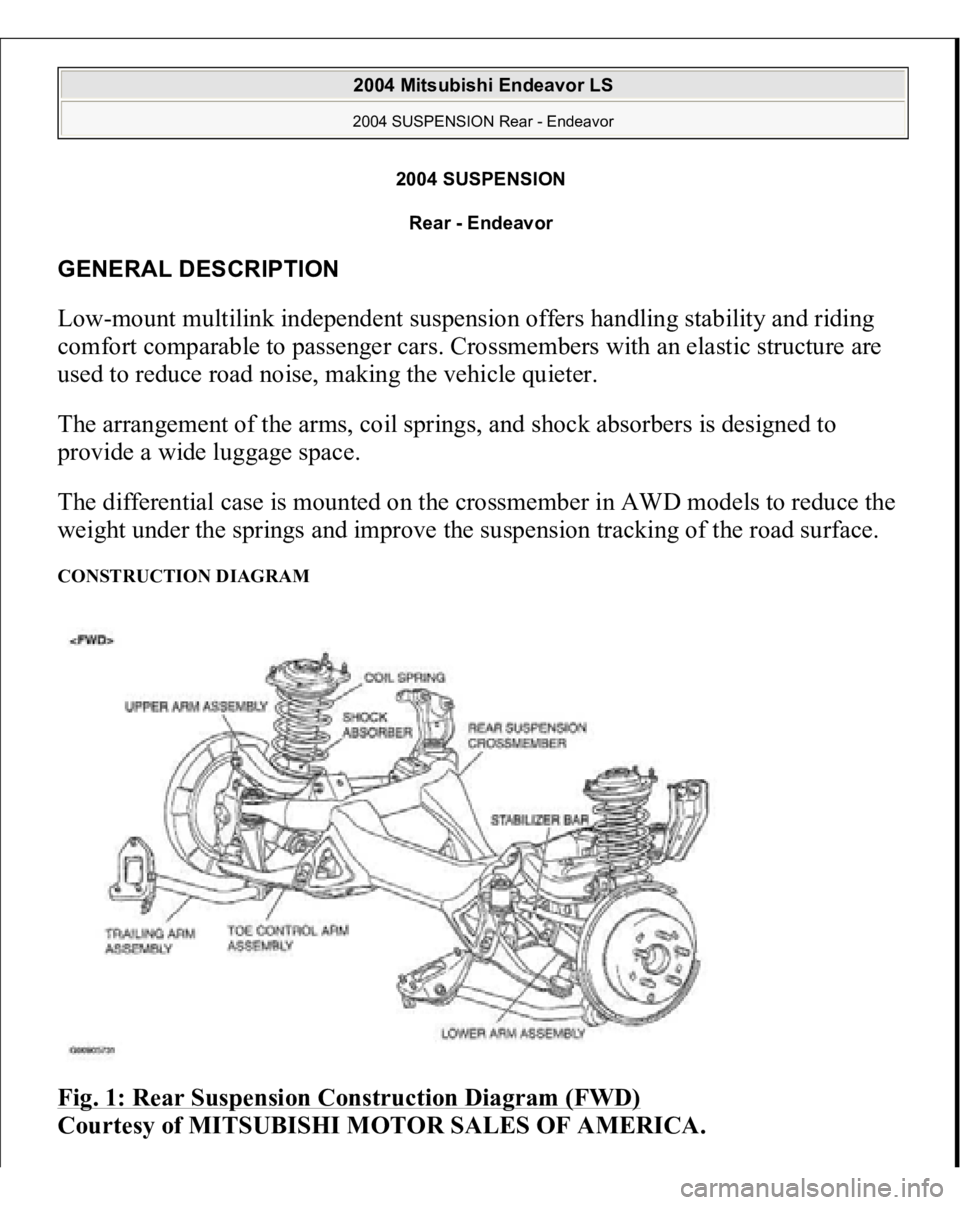

Page 3037 of 3870
2004 SUSPENSION
Rear - Endeavor
GENERAL DESCRIPTION Low-mount multilink independent suspension offers handling stability and riding
comfort comparable to passenger cars. Crossmembers with an elastic structure are
used to reduce road noise, making the vehicle quieter.
The arrangement of the arms, coil springs, and shock absorbers is designed to
provide a wide luggage space.
The differential case is mounted on the crossmember in AWD models to reduce the
weight under the springs and improve the suspension tracking of the road surface. CONSTRUCTION DIAGRAM Fig. 1: Rear Suspension Construction Diagram (FWD)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
2004 Mitsubishi Endeavor LS 2004 SUSPENSION Rear - Endeavor
2004 Mitsubishi Endeavor LS 2004 SUSPENSION Rear - Endeavor
Page 3038 of 3870
Fig. 2: Rear Suspension Construction Diagram (AWD)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
REAR SUSPENSION DIAGNOSIS INTRODUCTION TO REAR SUSPENSION DIAGNOSIS If the rear suspension is faulty, the vehicle will not run straightforward or noise will
occur. Incorrect wheel alignment, malfunction of shock absorber, stabilizer bar, coil
spring, control arms or worn or out-of-balance will cause these problems. REAR SUSPENSION DIAGNOSTIC TROUBLESHOOTING STRATEGY Use these steps to plan your diagnostic strategy. If you follow them carefully, you
will be sure that you have exhausted most of the possible ways to find a rear
suspension fault.
1. Gather information from the customer.
2. Verify that the condition described by the customer exists.
3. Find the malfunction by following the Symptom Chart.
4. Verif
y malfunction is eliminated.
2004 Mitsubishi Endeavor LS 2004 SUSPENSION Rear - Endeavor
Page 3110 of 3870
Fig. 1: Construction Diagram
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
2004 Mitsubishi Endeavor LS
2004 BRAKES Traction Control, Active Skid Control System - Endeavor
Page 3121 of 3870
unit reservoir, will be supplied to the front left wheel during oversteering or the rear
right wheel during understeering when the vehicle is at right turn. Furthermore, the
system also controls the engine if the accelerator pedal is depressed excessively. DURING NORMAL BRAKING Fig. 11: During Normal Braking Diagram
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
The brake fluid flows from the master cylinder to the cut valve and the inlet valve
to supply fluid pressure to the relevant wheels.
2004 Mitsubishi Endeavor LS
2004 BRAKES Traction Control, Active Skid Control System - Endeavor
Page 3122 of 3870
Fig. 12: Status Of Operation Valve Specification
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
WHEN THE ABS FLUID PRESSURE IS DECREASING Fig. 13: ABS Fluid Pressure Is Decreasing Diagram
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
The system closes the inlet solenoid valve to shut the fluid channel from the master
c
ylinder, and o
pens the outlet solenoid valve to return the brake fluid from the
2004 Mitsubishi Endeavor LS
2004 BRAKES Traction Control, Active Skid Control System - Endeavor
Page 3123 of 3870
wheel cylinders to the buffer chamber. This causes the wheel cylinder fluid pressure
to decrease. Then the system activates the pump motor to return the brake fluid
from the buffer chamber to the hydraulic unit reservoir.
Fig. 14: Status Of Operation Valve Specification
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
WHEN THE ABS FLUID PRESSURE IS HOLDING Fig. 15: ABS Fluid Pressure Is Holding Diagram
2004 Mitsubishi Endeavor LS
2004 BRAKES Traction Control, Active Skid Control System - Endeavor
Page 3126 of 3870
Fig. 19: Traction Control System Is Increasing Diagram
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
The system closes the cut valve to shut the fluid channel from the master cylinder.
The brake fluid, which is pumped from the hydraulic unit reservoir, is supplied to
the wheel cylinders.
Fi
g. 20: Status Of O
peration Valve S
pecificatio
n
2004 Mitsubishi Endeavor LS
2004 BRAKES Traction Control, Active Skid Control System - Endeavor
Page 3127 of 3870
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA
.
WHEN THE TRACTION CONTROL SYSTEM IS HOLDING FLUID PRESSURE (OR THE ACTIVE SKID
CONTROL IS HOLDING FLUID PRESSURE WHEN THE BRAKE PEDAL IS NOT DEPRESSED) Fig. 21: Traction Control System Is Holding Diagram
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
The system closes the inlet and outlet valves to hold the fluid pressure in the wheel
cylinders. The brake fluid, which is pumped from the hydraulic unit reservoir, is
supplied to the inlet valve. At this time, excessive fluid is returned through the relie
f
valve to the h
ydraulic unit reservoir.
2004 Mitsubishi Endeavor LS
2004 BRAKES Traction Control, Active Skid Control System - Endeavor
