2004 MITSUBISHI ENDEAVOR diagram

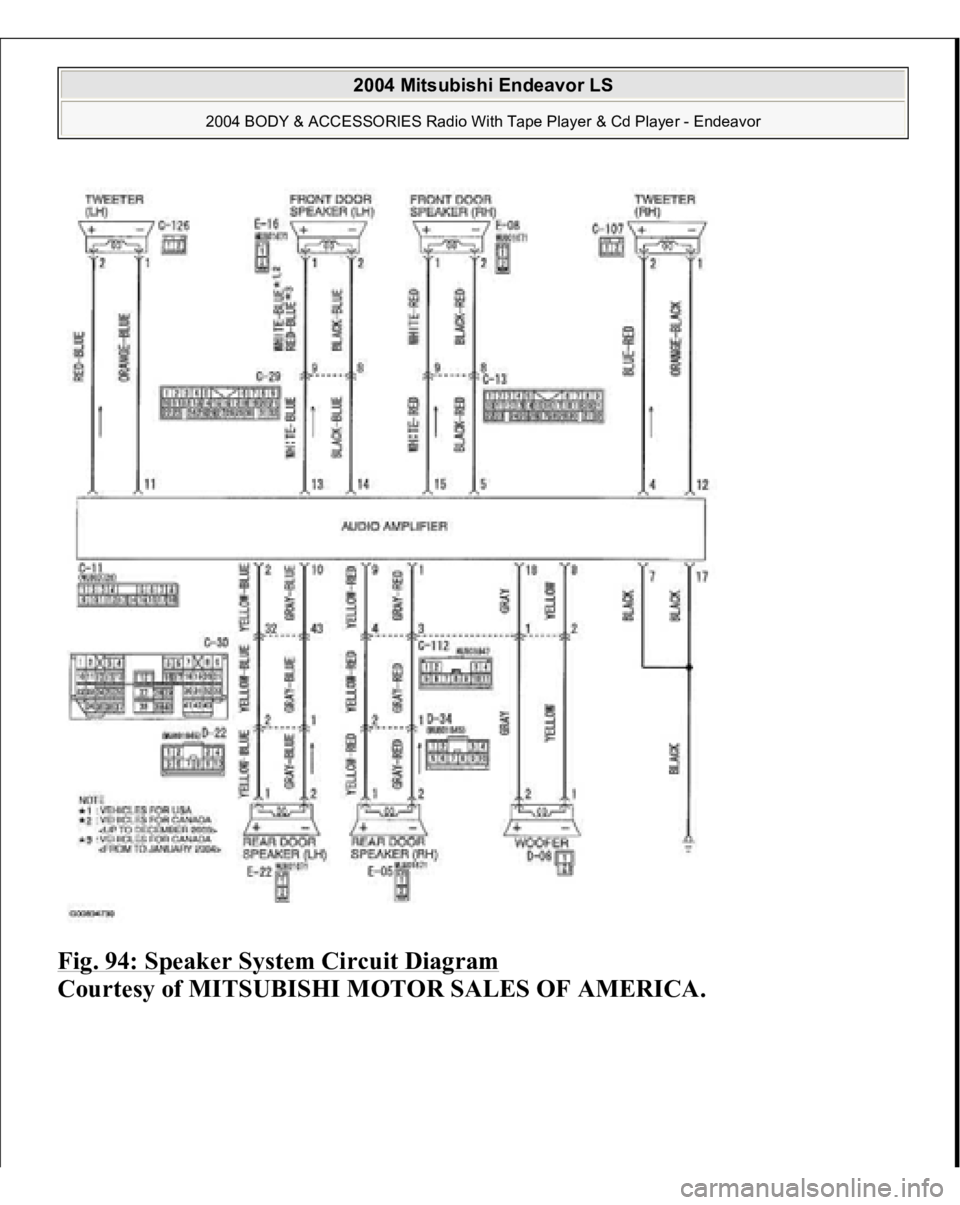

Fig. 94: Speaker System Circuit Diagram

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Radio With Tape Player & Cd Player - Endeavor

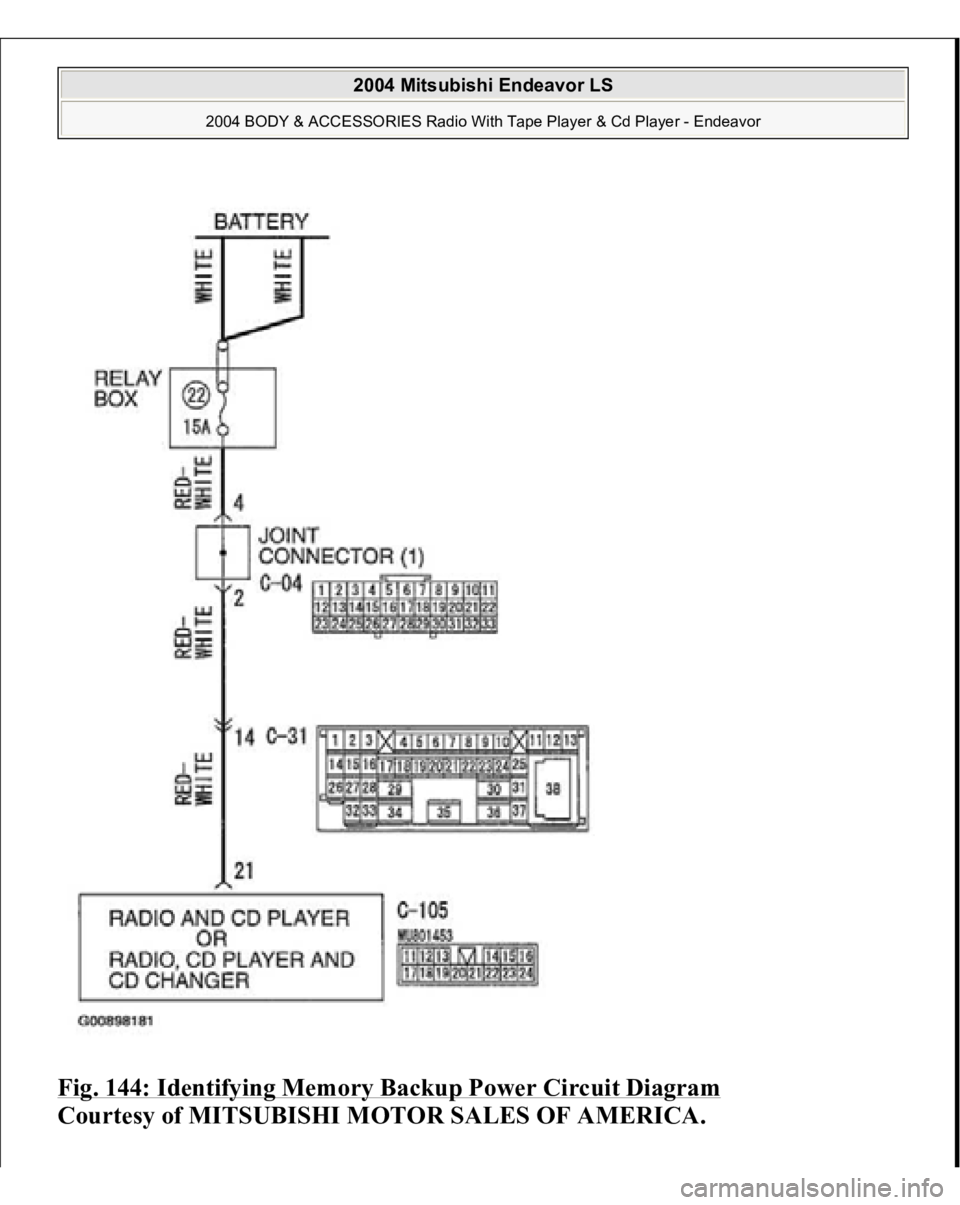

Fig. 144: Identifying Memory Backup Power Circuit Diagram

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Radio With Tape Player & Cd Player - Endeavor

Fig. 3: Inspection Procedure 1 Circuit Diagram

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Video Entertainment System - Endeavor

2004 SUSPENSION
Front - Endeavor
GENERAL DESCRIPTION The front suspension is a McPherson strut with coil spring. The shock absorber is
gas-filled hydraulic double-acting type. CONSTRUCTION DIAGRAM Fig. 1: Front Suspension Construction Diagram

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
FRONT SUSPENSION DIAGNOSIS INTRODUCTION TO FRONT SUSPENSION DIAGNOSIS
2004 Mitsubishi Endeavor LS 2004 SUSPENSION Front - Endeavor


2004 Mitsubishi Endeavor LS 2004 SUSPENSION Front - Endeavor

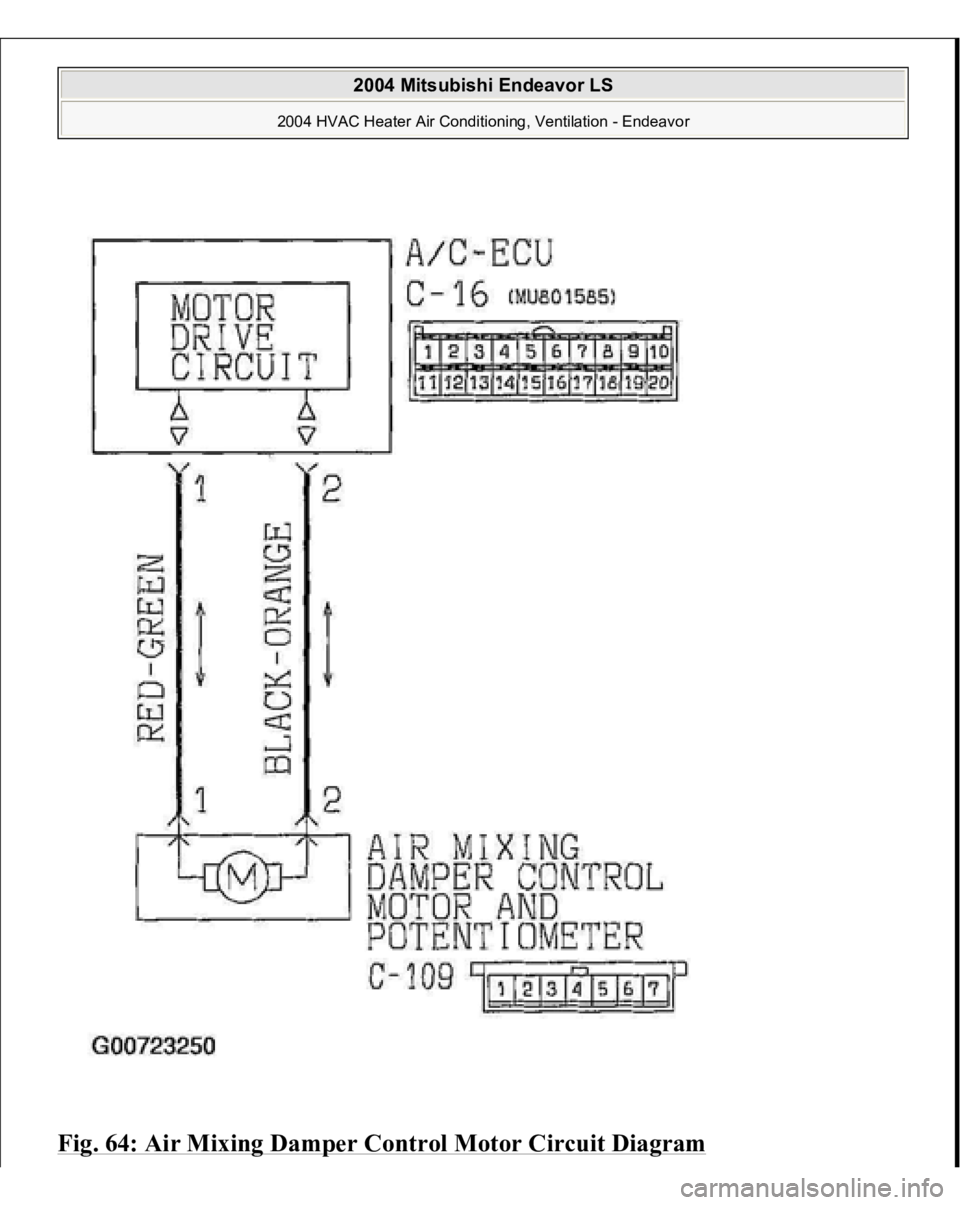

Fig. 64: Air Mixing Damper Control Motor Circuit Diagram
2004 Mitsubishi Endeavor LS
2004 HVAC Heater Air Conditioning, Ventilation - Endeavor

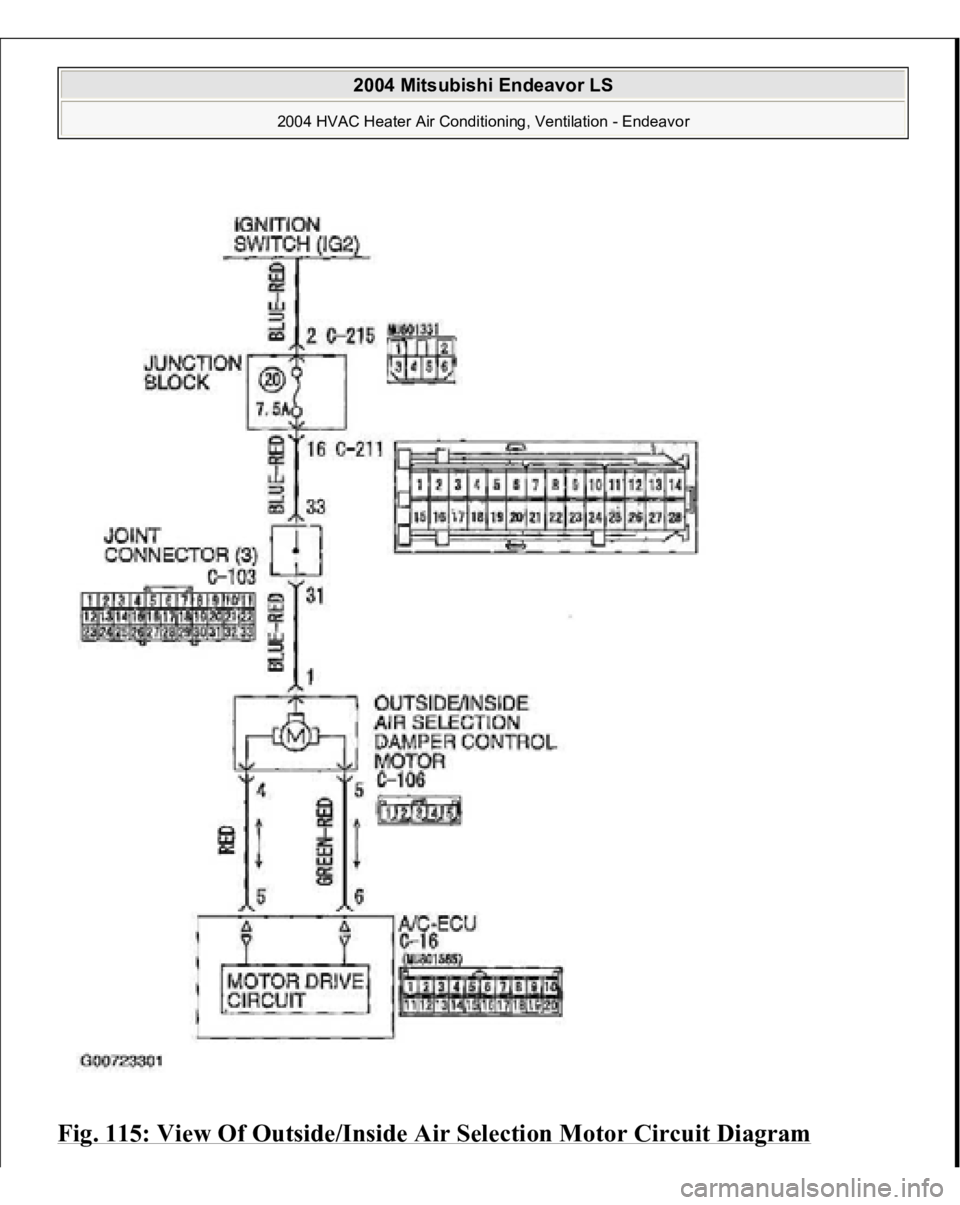

Fig. 115: View Of Outside/Inside Air Selection Motor Circuit Diagram
2004 Mitsubishi Endeavor LS
2004 HVAC Heater Air Conditioning, Ventilation - Endeavor

Fig. 173: View Of Blower Motor Circuit Diagram

Courtes
y of MITSUBISHI MOTOR SALES OF AMERICA
.

2004 Mitsubishi Endeavor LS
2004 HVAC Heater Air Conditioning, Ventilation - Endeavor

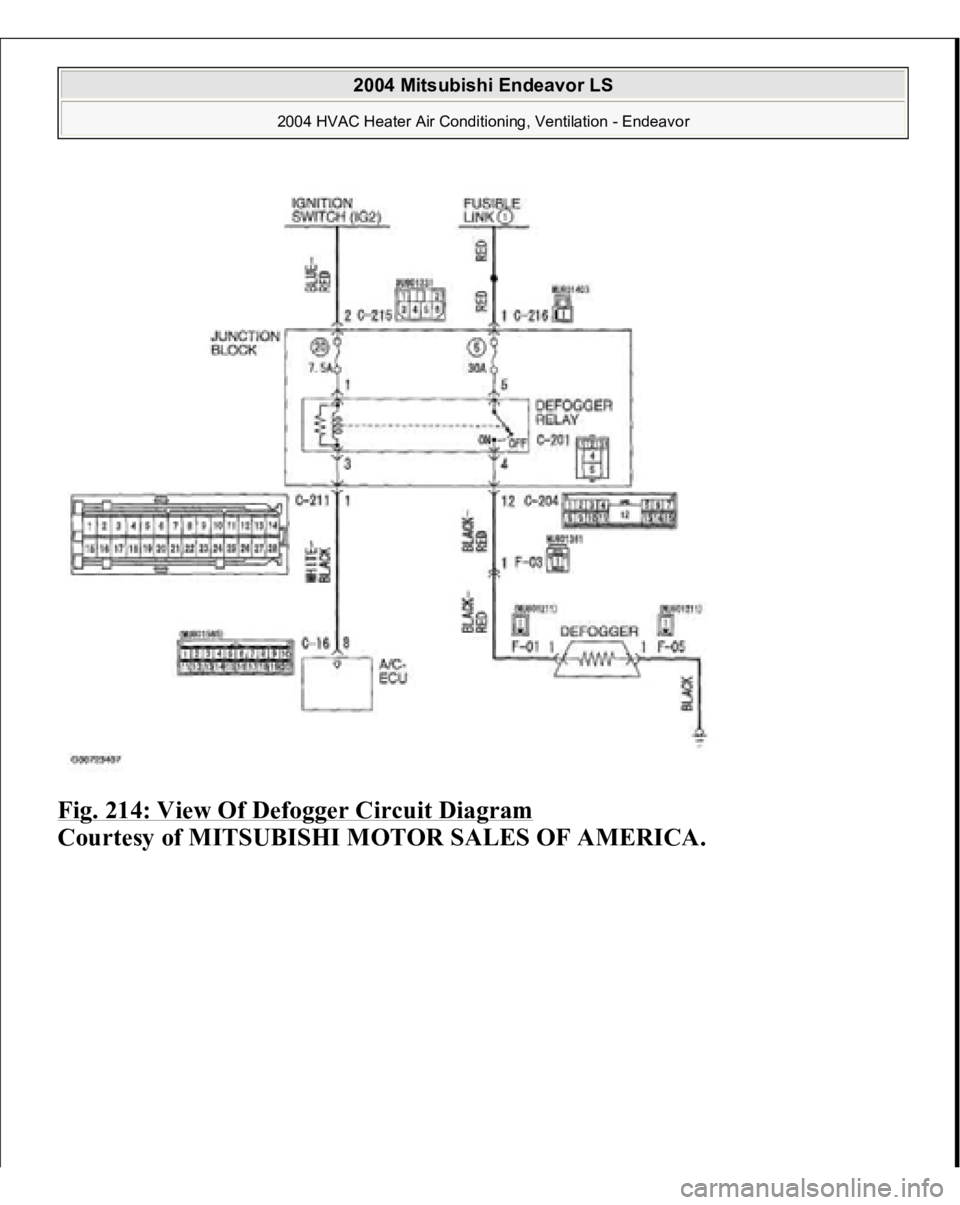

Fig. 214: View Of Defogger Circuit Diagram

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
2004 Mitsubishi Endeavor LS
2004 HVAC Heater Air Conditioning, Ventilation - Endeavor
