Page 2604 of 3870

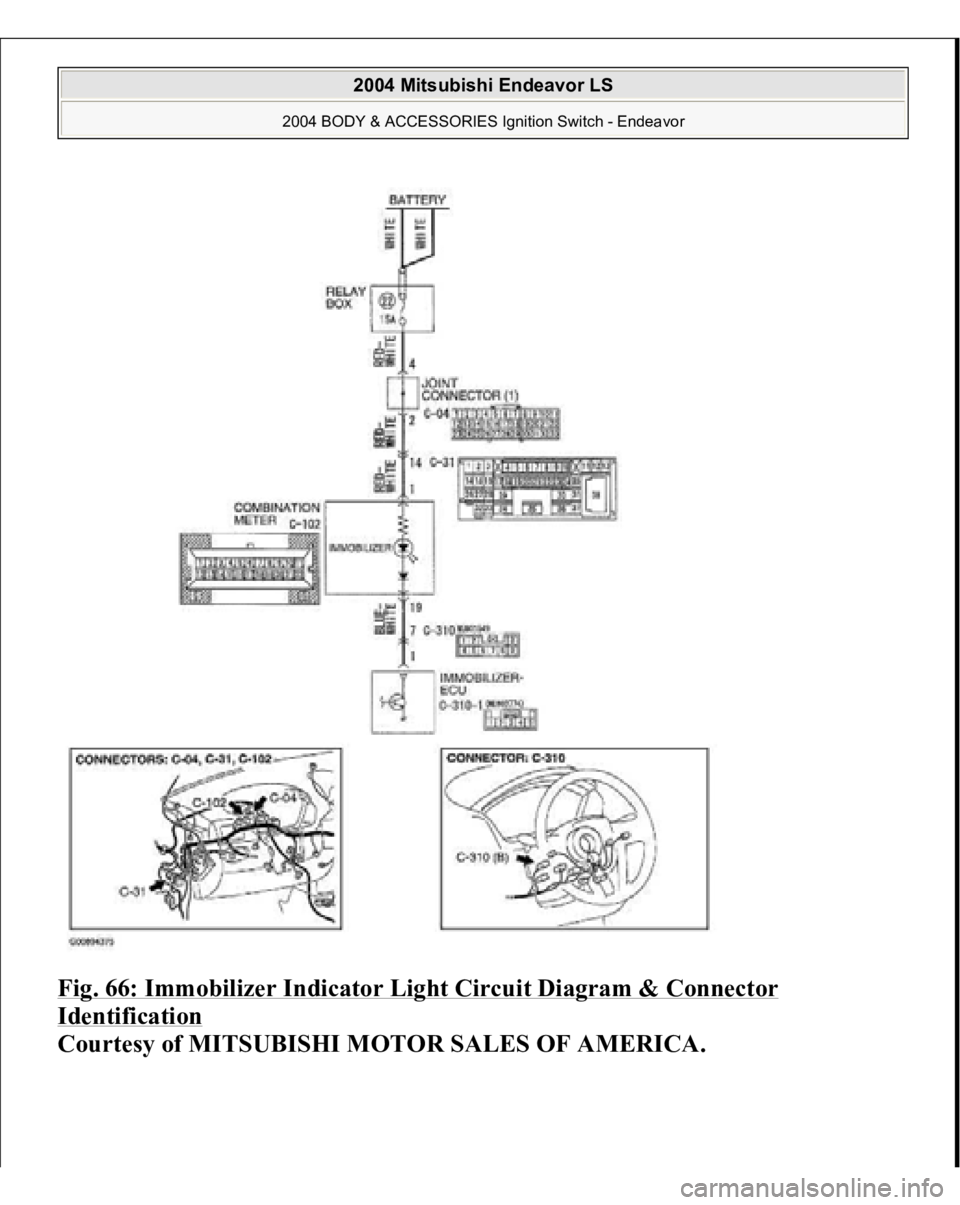

Fig. 66: Immobilizer Indicator Light Circuit Diagram & Connector Identification
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Ignition Switch - Endeavor
Page 2624 of 3870
Fig. 81: Immobilizer Indicator Light Circuit Diagram & Connector Identification
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
CIRCUIT OPERATION If the requirements for starting the engine are not satisfied, the immobilizer-ECU
flashes the immobilizer indicator for 30 seconds.
2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Ignition Switch - Endeavor
Page 2684 of 3870
Fig. 1: Ignition System Circuit Diagram
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
SPECIAL TOOLS Fig. 2: Identifying Special Tool
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
ON-VEHICLE SERVICE KNOCK CONTROL SYSTEM CHECK Check the knock sensor circuit if diagnostic trouble code, No. P0325 is shown.
Refer to DTC P0325: KNOCK SENSOR CIRCUIT MALFUNCTION
.
2004 Mitsubishi Endeavor Limited 2004 ENGINE Ignition System - Endeavor
Page 2740 of 3870

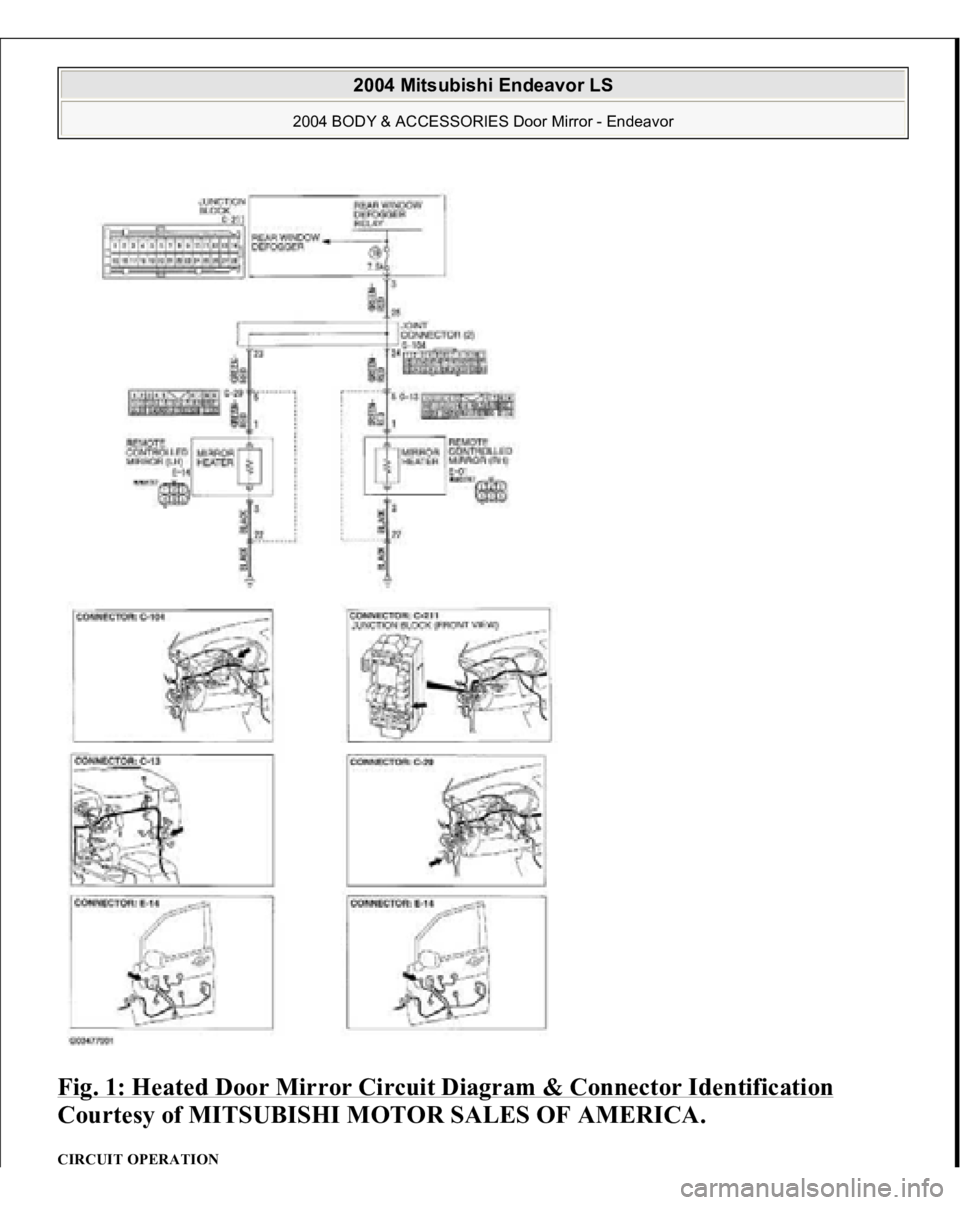

Fig. 1: Heated Door Mirror Circuit Diagram & Connector Identification
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
CIRCUIT OPERATION
2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Door Mirror - Endeavor
Page 2754 of 3870

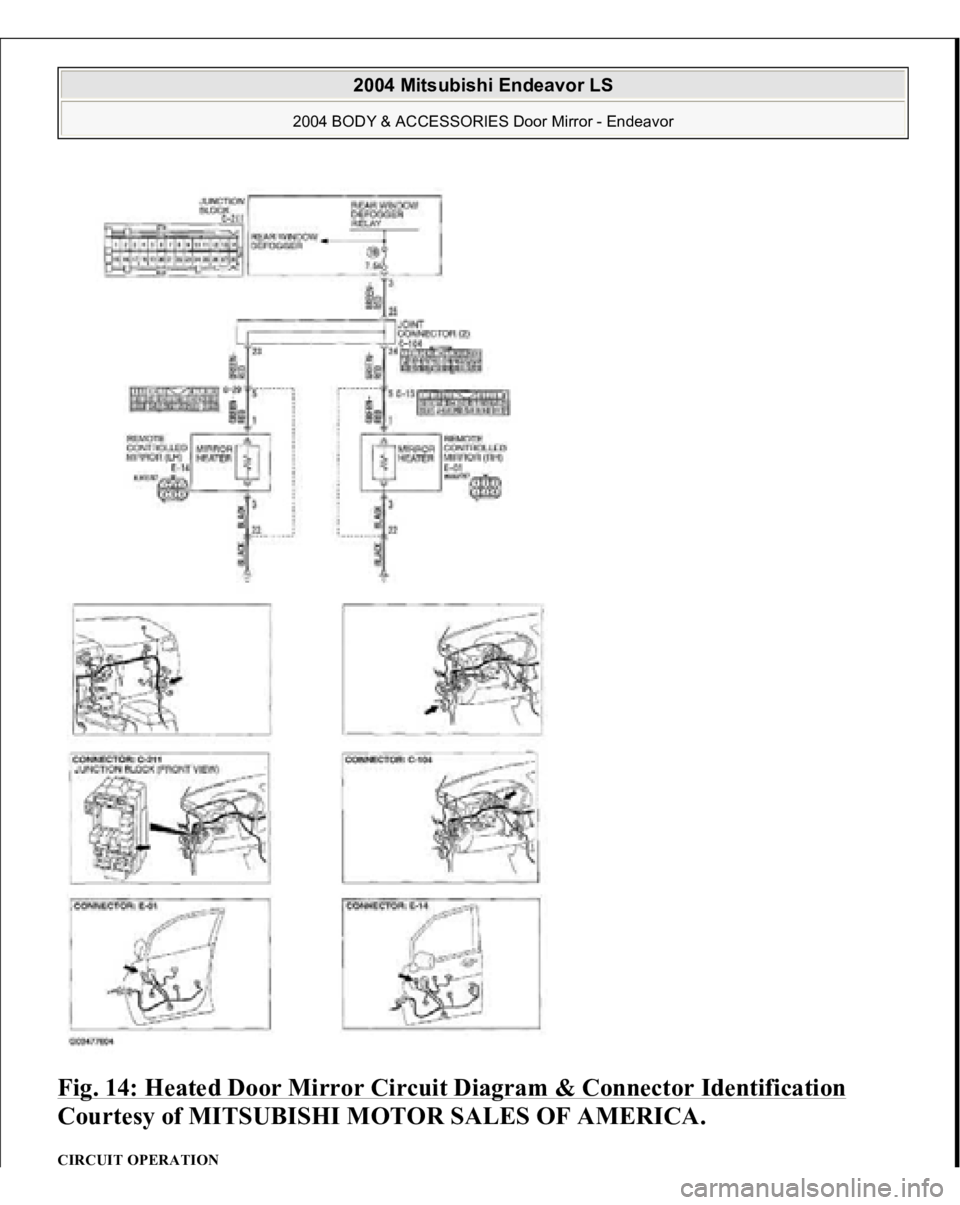

Fig. 14: Heated Door Mirror Circuit Diagram & Connector Identification
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
CIRCUIT OPERATION
2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Door Mirror - Endeavor
Page 2925 of 3870

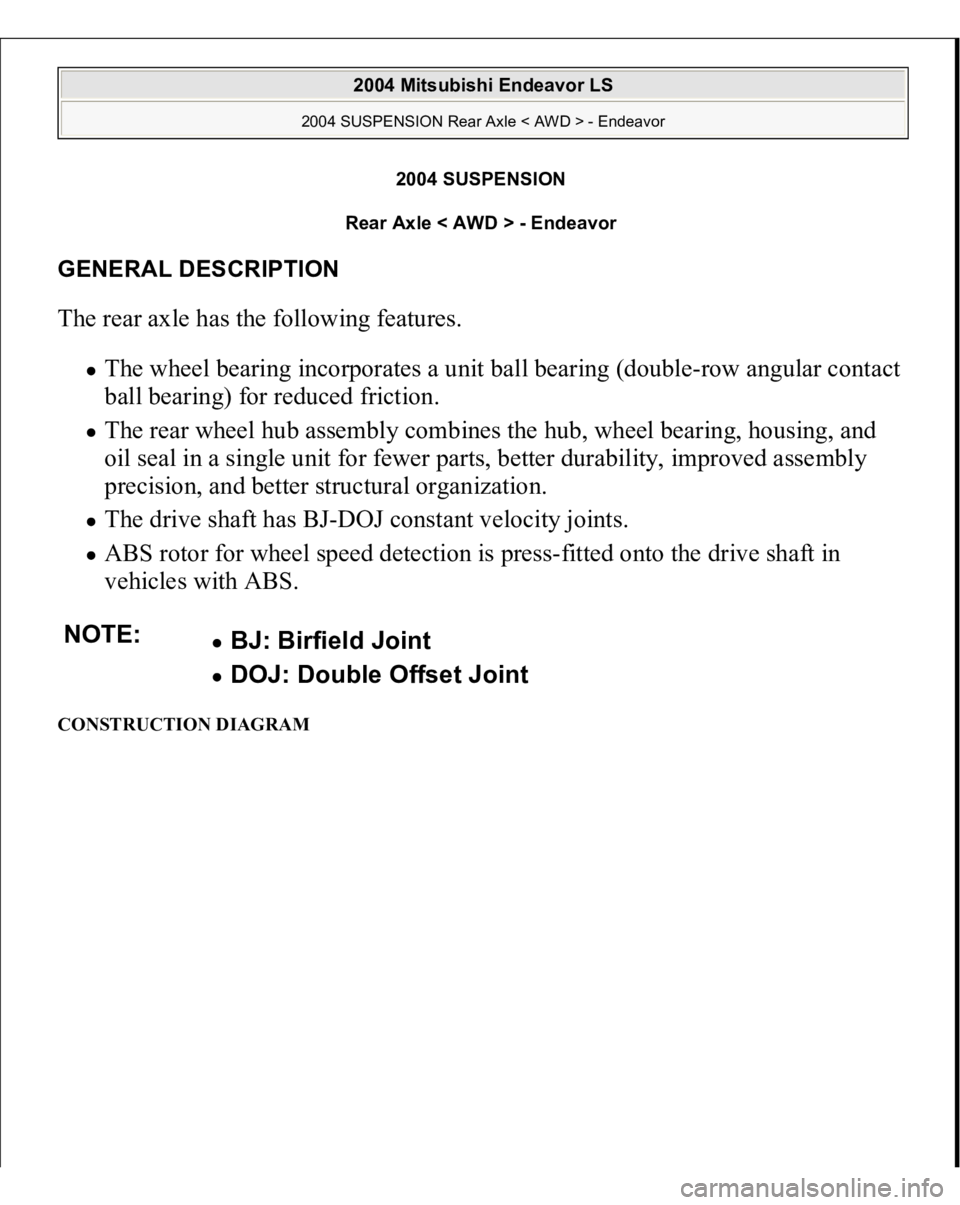

2004 SUSPENSION
Rear Axle < AWD > - Endeavor
GENERAL DESCRIPTION The rear axle has the following features.
The wheel bearing incorporates a unit ball bearing (double-row angular contact
ball bearing) for reduced friction. The rear wheel hub assembly combines the hub, wheel bearing, housing, and
oil seal in a single unit for fewer parts, better durability, improved assembly
precision, and better structural organization. The drive shaft has BJ-DOJ constant velocity joints. ABS rotor for wheel speed detection is press-fitted onto the drive shaft in
vehicles with ABS.
CONSTRUCTION DIAGRAM NOTE:
BJ: Birfield Joint DOJ: Double Offset Joint
2004 Mitsubishi Endeavor LS
2004 SUSPENSION Rear Axle < AWD > - Endeavor
2004 Mitsubishi Endeavor LS
2004 SUSPENSION Rear Axle < AWD > - Endeavor
Page 2927 of 3870
2. Verify that the condition described by the customer exists.
3. Find the malfunction by following the Symptom Chart.
4. Verify malfunction is eliminated. SYMPTOM CHART Fig. 2: Identifying Symptom Chart
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
SYMPTOM PROCEDURES INSPECTION PROCEDURE 1: NOISE DURING WHEEL ROTATION {{DRIVE SHAFT}} DIAGNOSIS
STEP 1. Check the wheel bearing end play.
1. Remove the caliper assembly, and suspend the caliper assembly with a
wire and remove the brake disc.
2. Fit the dial gauge as shown in the diagram and move the hub in the axial
direction to measure the play.
Limit: 0.05 mm (0.002 inch)
2004 Mitsubishi Endeavor LS
2004 SUSPENSION Rear Axle < AWD > - Endeavor
Page 2948 of 3870

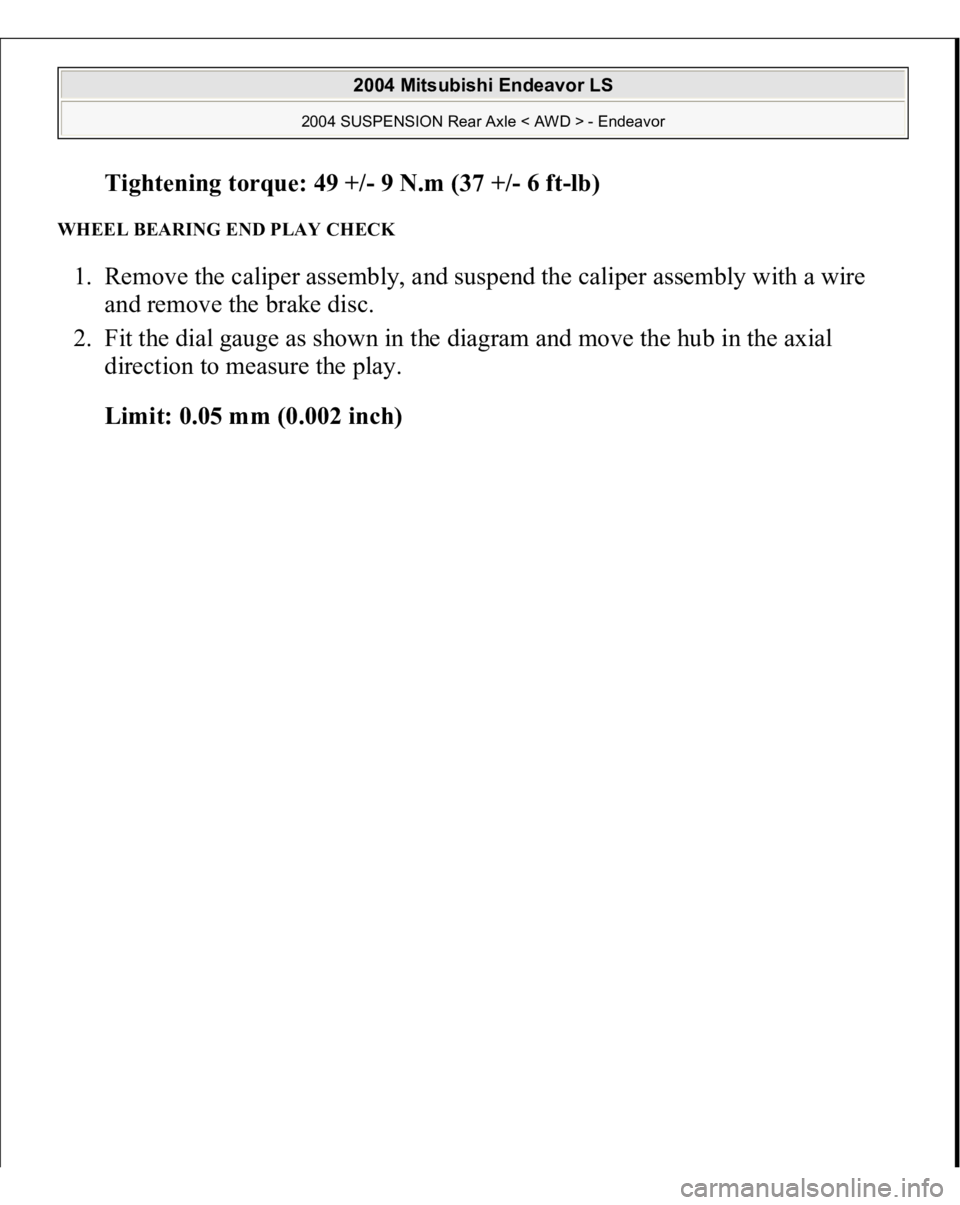

Tightening torque: 49 +/- 9 N.m (37 +
/-6 f
t-lb)
WHEEL BEARING END PLAY CHECK 1. Remove the caliper assembly, and suspend the caliper assembly with a wire
and remove the brake disc.
2. Fit the dial gauge as shown in the diagram and move the hub in the axial
direction to measure the play.
Limit: 0.05 mm (0.002 inch)
2004 Mitsubishi Endeavor LS
2004 SUSPENSION Rear Axle < AWD > - Endeavor
