2004 MITSUBISHI ENDEAVOR diagram

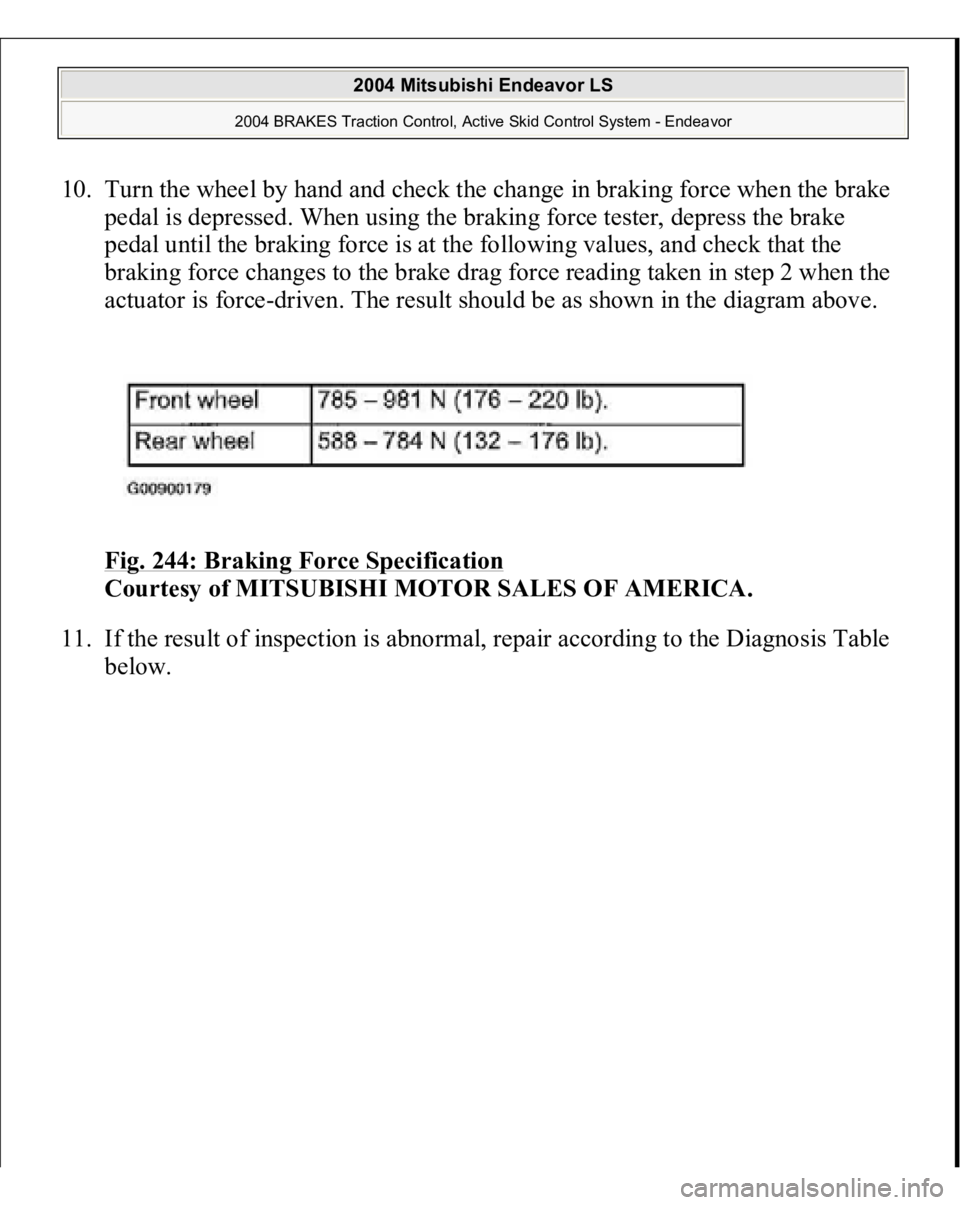

10. Turn the wheel by hand and check the change in braking force when the brake
pedal is depressed. When using the braking force tester, depress the brake
pedal until the braking force is at the following values, and check that the
braking force changes to the brake drag force reading taken in step 2 when the
actuator is force-driven. The result should be as shown in the diagram above.
Fig. 244: Braking Force Specification

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
11. If the result of inspection is abnormal, repair according to the Diagnosis Table
below.

2004 Mitsubishi Endeavor LS
2004 BRAKES Traction Control, Active Skid Control System - Endeavor

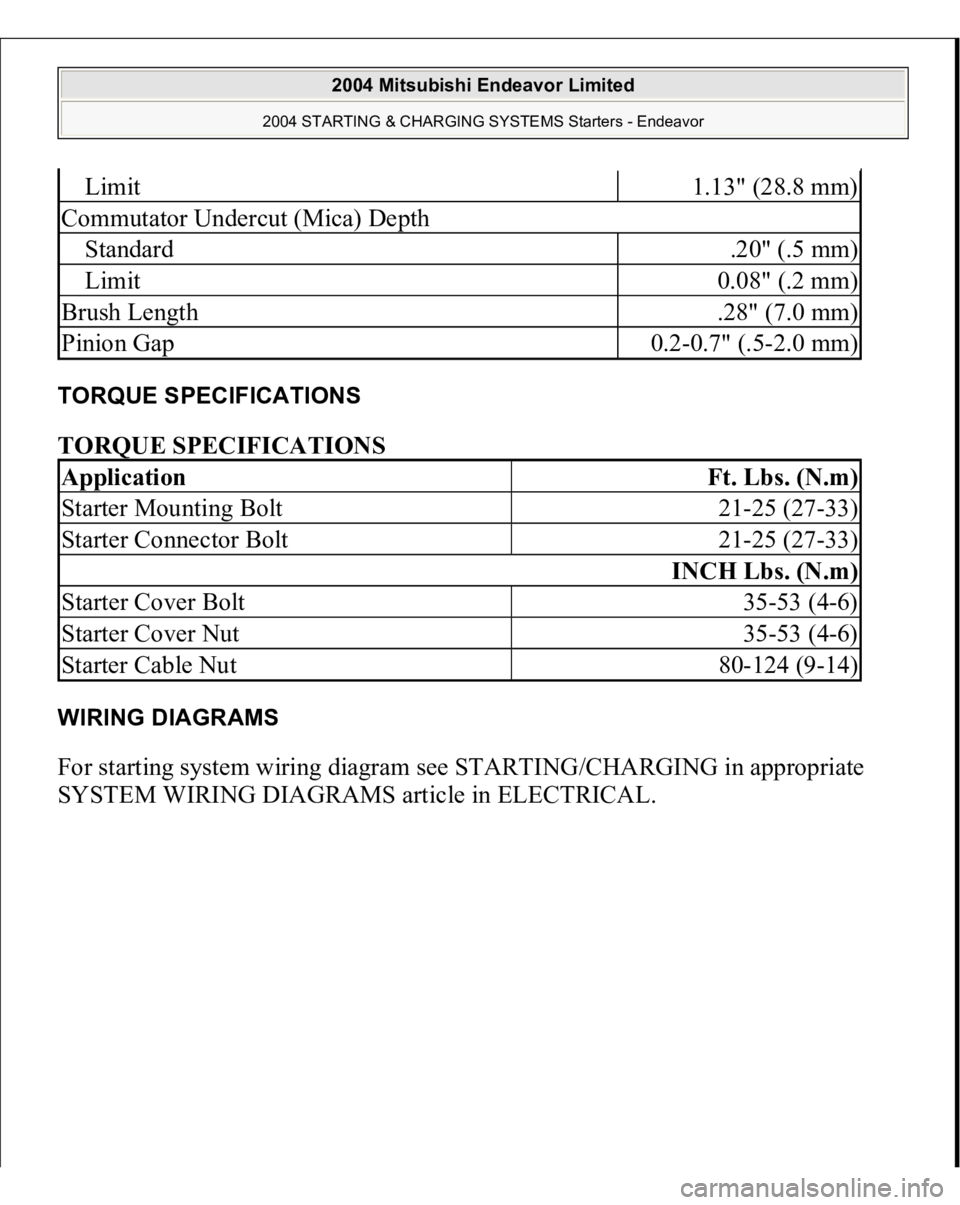

TORQUE SPECIFICATIONS TORQUE SPECIFICATIONS WIRING DIAGRAMS For starting system wiring diagram see STARTING/CHARGING in appropriate
SYSTEM WIRING DIAGRAMS article in ELECTRICAL.
Limit
1.13" (28.8 mm)
Commutator Undercut (Mica) DepthStandard
.20" (.5 mm)
Limit
0.08" (.2 mm)
Brush Length
.28" (7.0 mm)
Pinion Gap
0.2-0.7" (.5-2.0 mm)
Application
Ft. Lbs. (N.m)
Starter Mounting Bolt
21-25 (27-33)
Starter Connector Bolt
21-25 (27-33)
INCH Lbs. (N.m)
Starter Cover Bolt
35-53 (4-6)
Starter Cover Nut
35-53 (4-6)
Starter Cable Nut
80-124 (9-14)

2004 Mitsubishi Endeavor Limited
2004 STARTING & CHARGING SYSTEMS Starters - Endeavor

2004 BRAKES
Traction Control System (TCL) - Endeavor

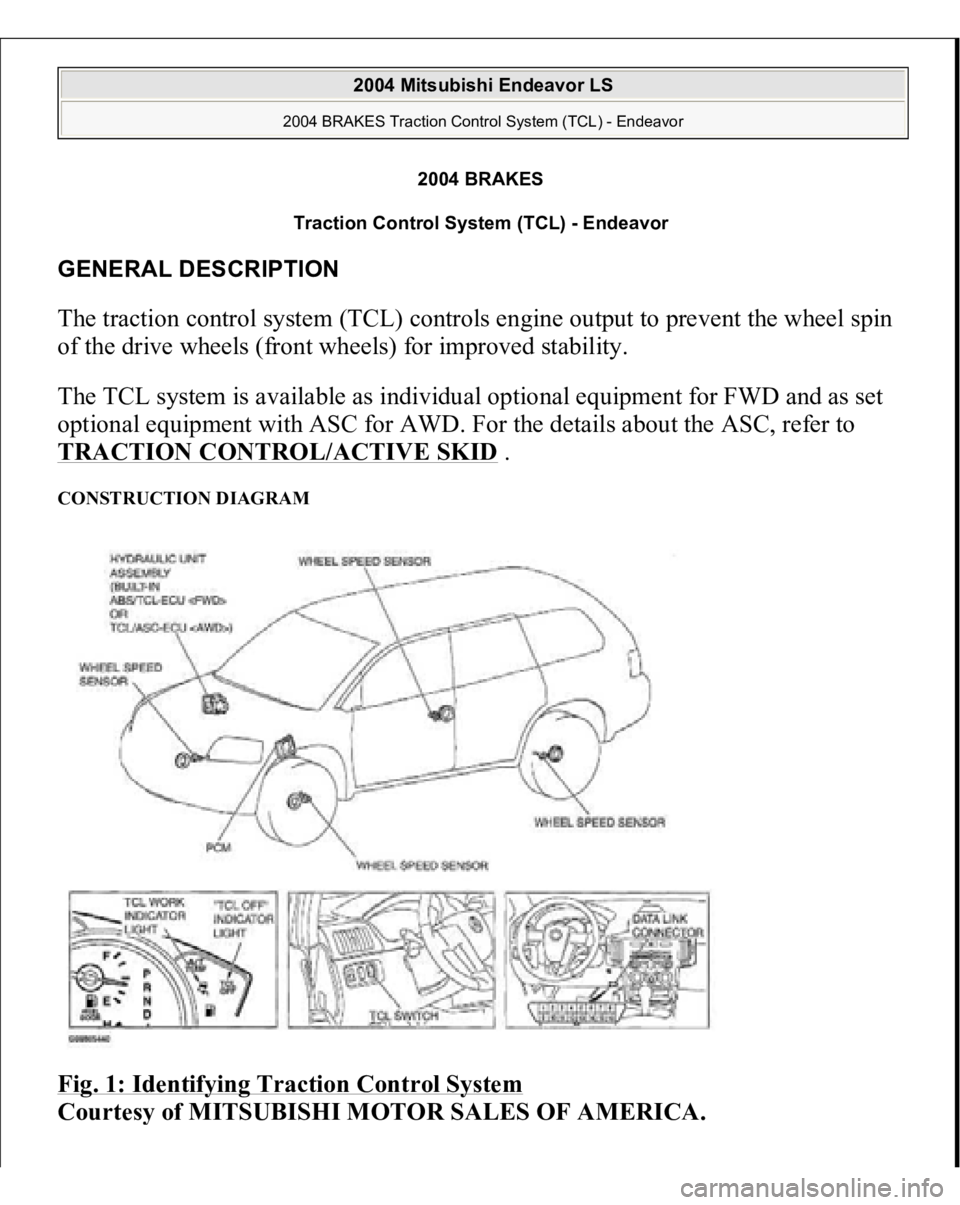

GENERAL DESCRIPTION The traction control system (TCL) controls engine output to prevent the wheel spin
of the drive wheels (front wheels) for improved stability.
The TCL system is available as individual optional equipment for FWD and as set
optional equipment with ASC for AWD. For the details about the ASC, refer to
TRACTION CONTROL/ACTIVE SKID
.
CONSTRUCTION DIAGRAM Fig. 1: Identifying Traction Control System

Courtes
y of MITSUBISHI MOTOR SALES OF AMERICA
.

2004 Mitsubishi Endeavor LS
2004 BRAKES Traction Control System (TCL) - Endeavor


2004 Mitsubishi Endeavor LS
2004 BRAKES Traction Control System (TCL) - Endeavor

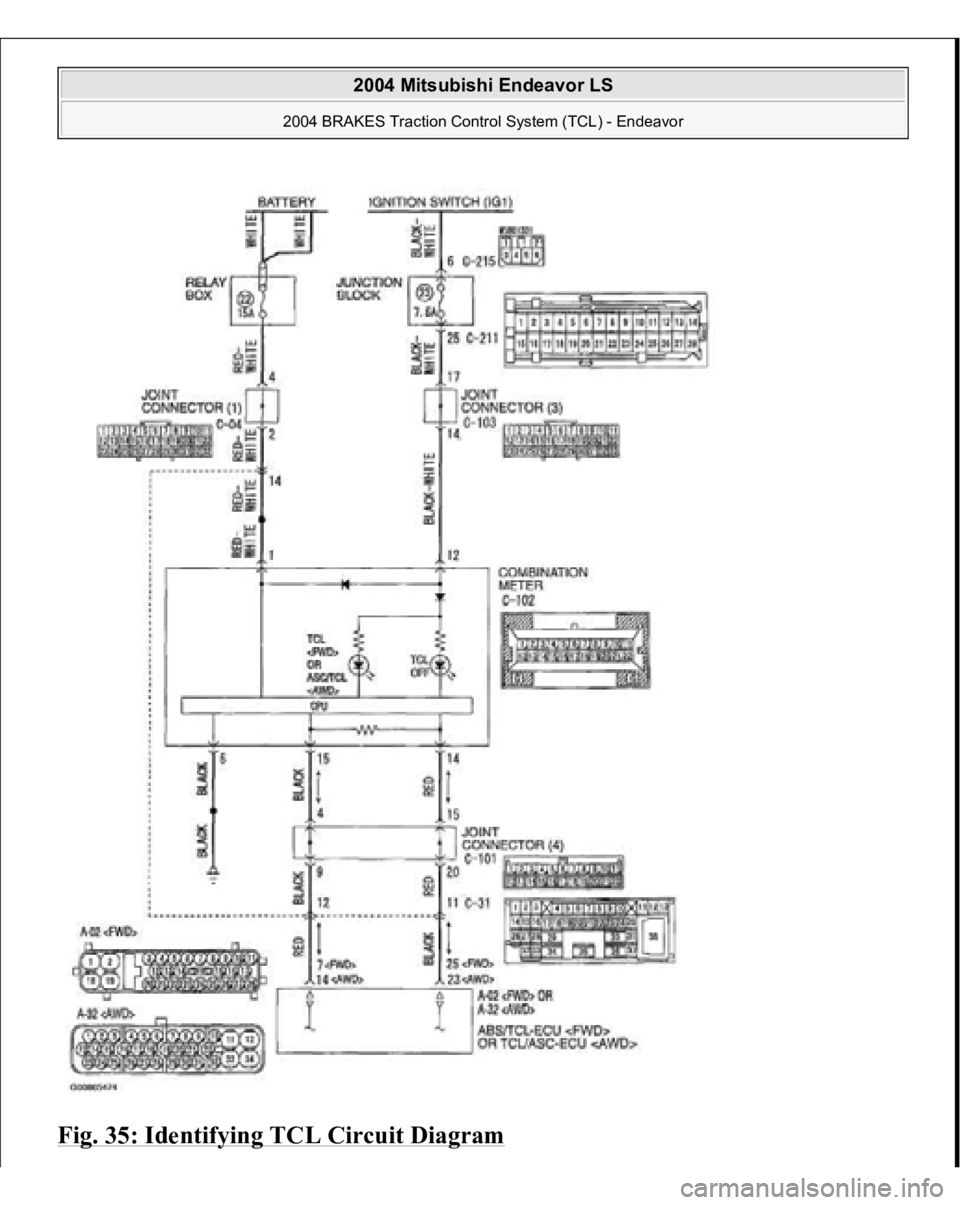

Fig. 35: Identifying TCL Circuit Diagram
2004 Mitsubishi Endeavor LS
2004 BRAKES Traction Control System (TCL) - Endeavor

2004 Mitsubishi Endeavor LS
2004 SYSTEM WIRING DIAGRAMS Mitsubishi - Endeavor

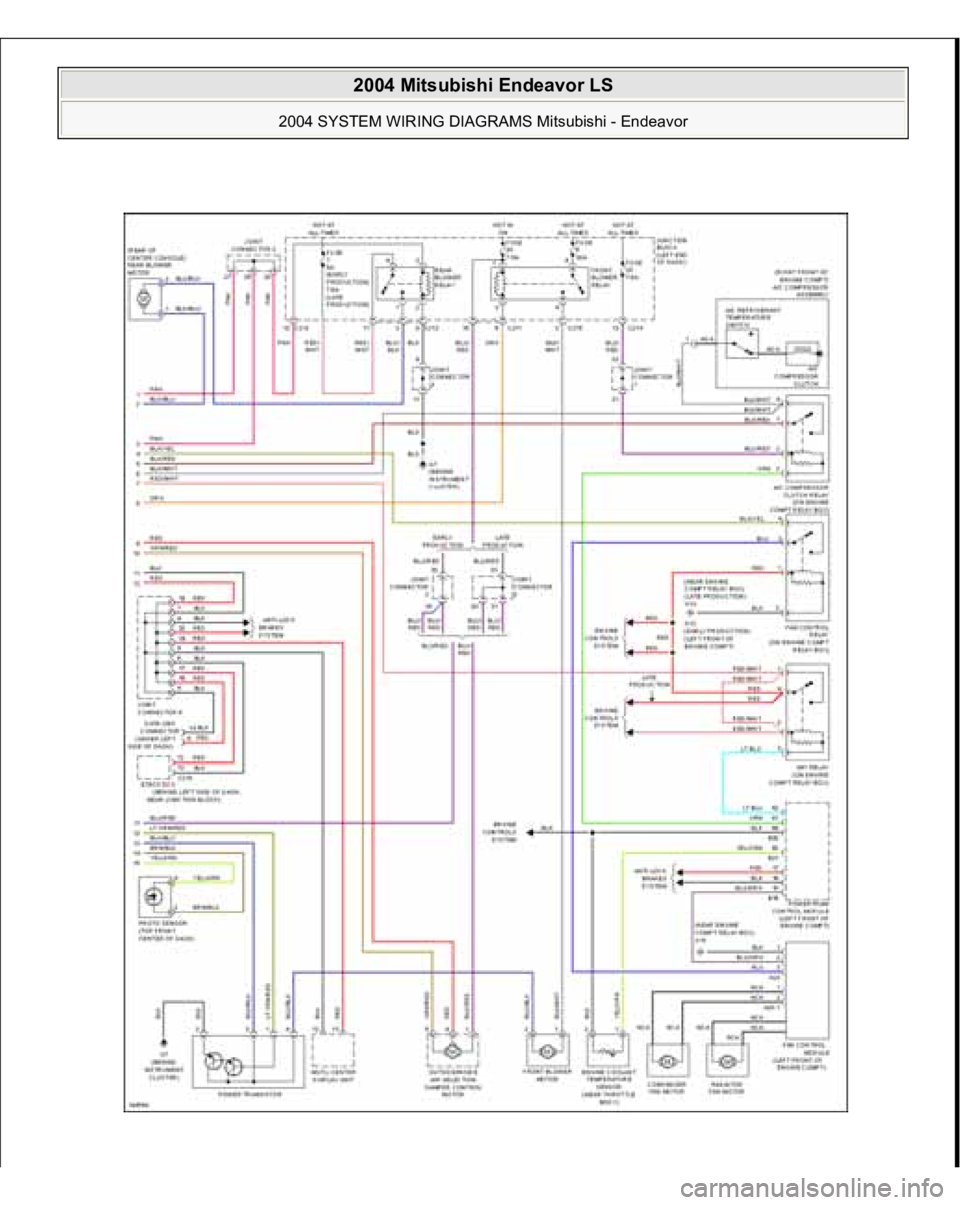

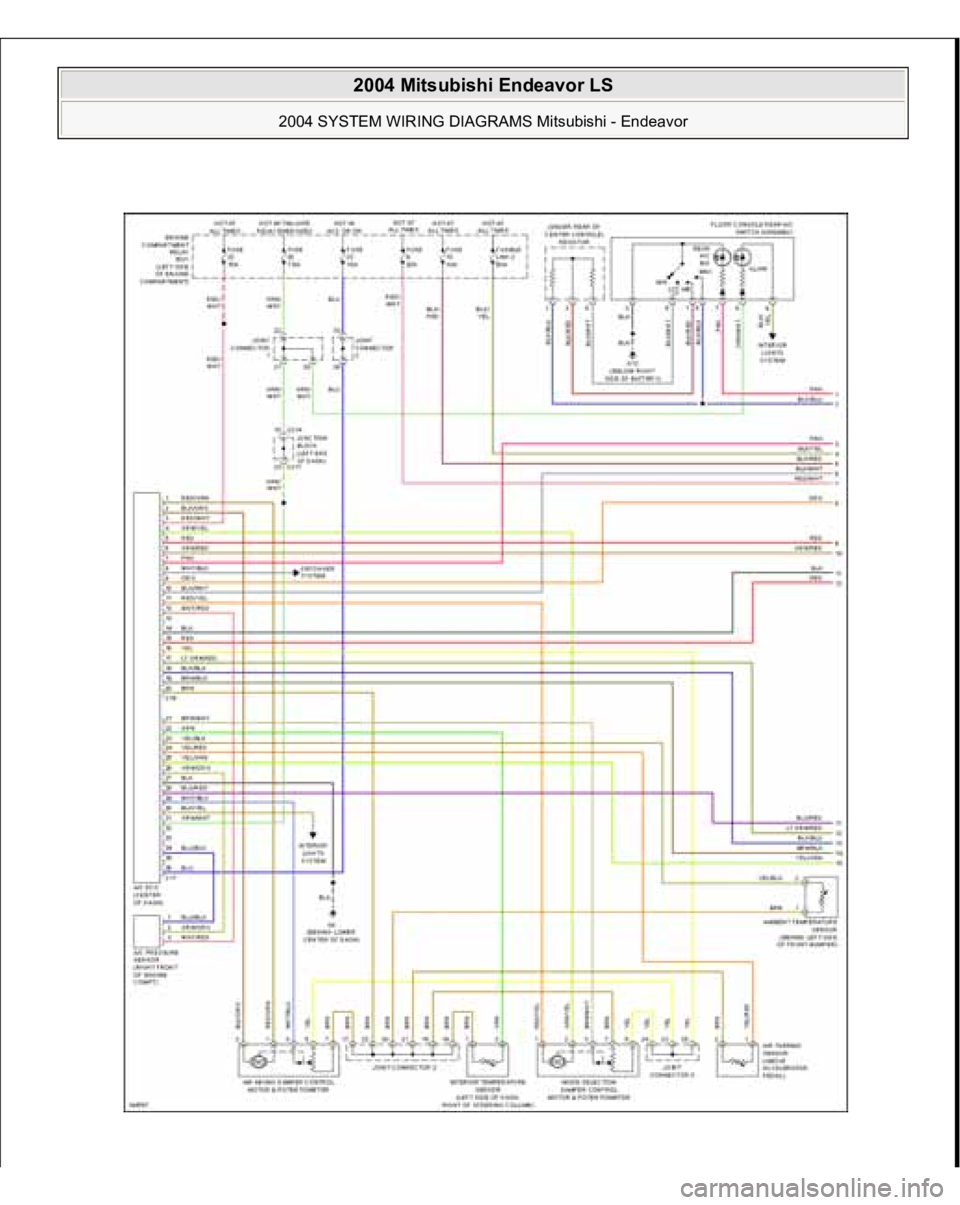

Fig. 1: Automatic A/C Circuit (1 of 2)

2004 Mitsubishi Endeavor LS
2004 SYSTEM WIRING DIAGRAMS Mitsubishi - Endeavor

2004 Mitsubishi Endeavor LS
2004 SYSTEM WIRING DIAGRAMS Mitsubishi - Endeavor

Fig. 2: Automatic A/C Circuit (2 of 2)

2004 Mitsubishi Endeavor LS
2004 SYSTEM WIRING DIAGRAMS Mitsubishi - Endeavor
