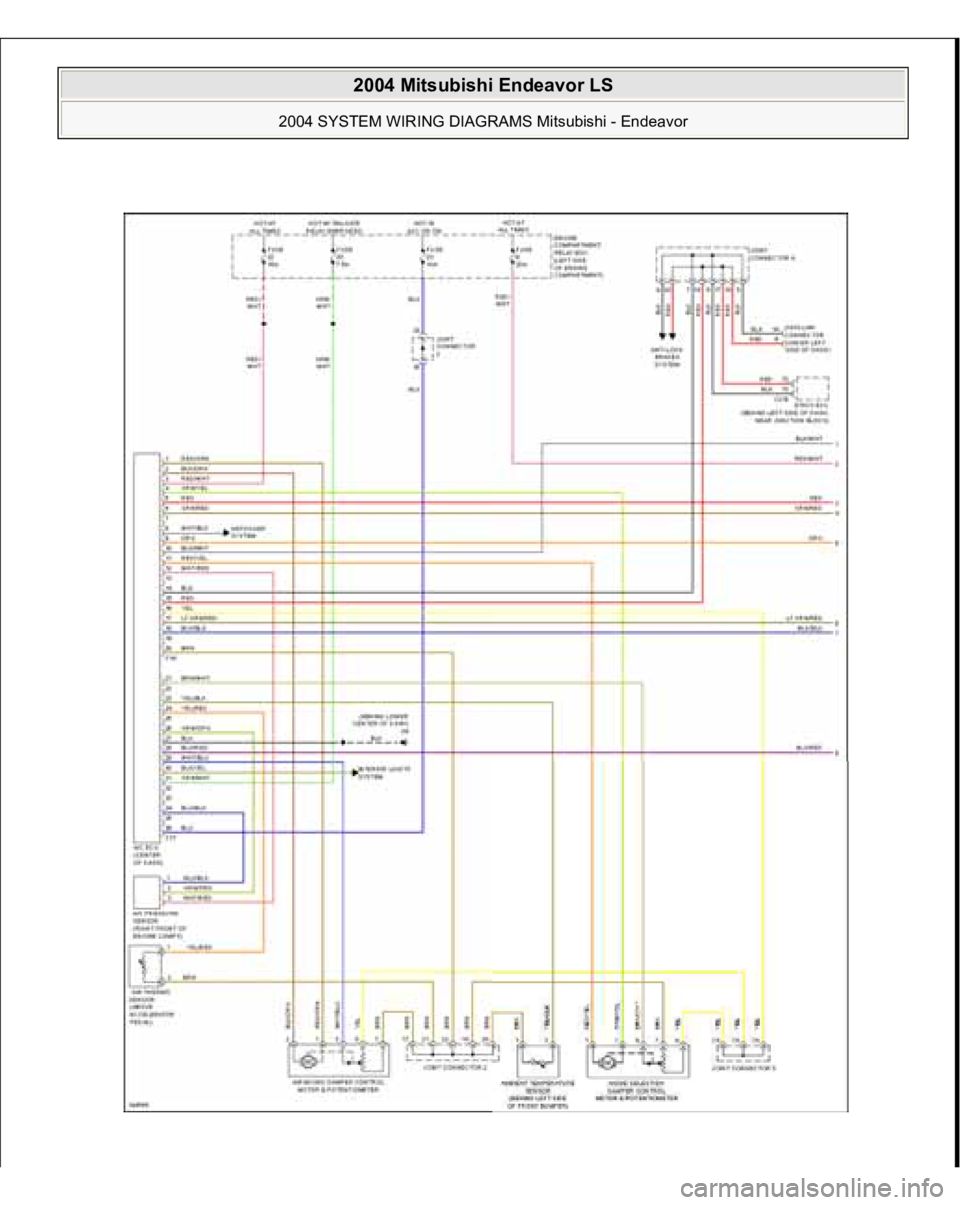

Page 3761 of 3870
2004 Mitsubishi Endeavor LS
2004 SYSTEM WIRING DIAGRAMS Mitsubishi - Endeavor
Page 3762 of 3870
Fig. 3: Manual A/C Circuit (1 of 2)
2004 Mitsubishi Endeavor LS
2004 SYSTEM WIRING DIAGRAMS Mitsubishi - Endeavor

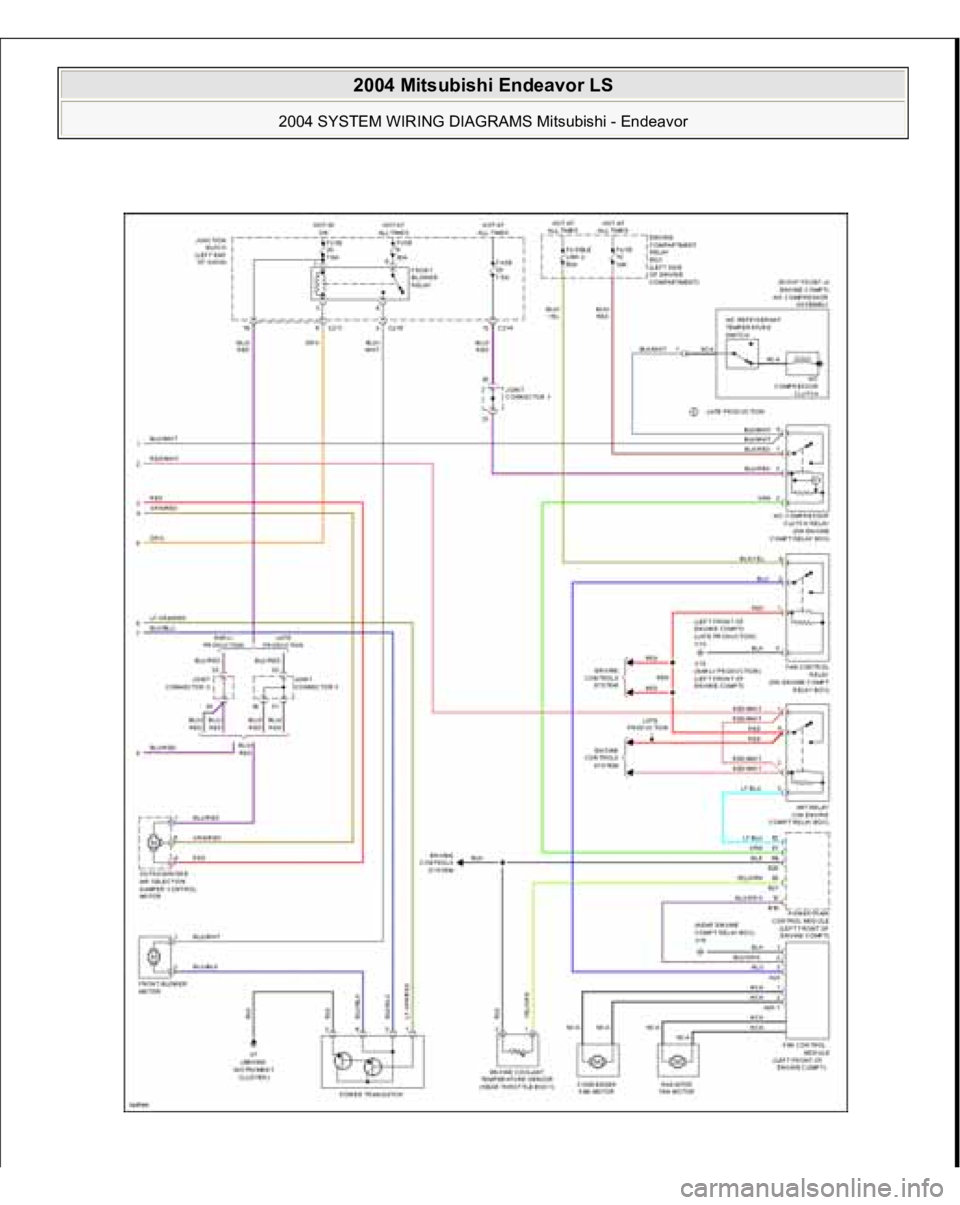

Page 3763 of 3870
2004 Mitsubishi Endeavor LS
2004 SYSTEM WIRING DIAGRAMS Mitsubishi - Endeavor
Page 3764 of 3870
Fig. 4: Manual A/C Circuit (2 of 2)
ANTI
-LOCK BRAKES
2004 Mitsubishi Endeavor LS
2004 SYSTEM WIRING DIAGRAMS Mitsubishi - Endeavor

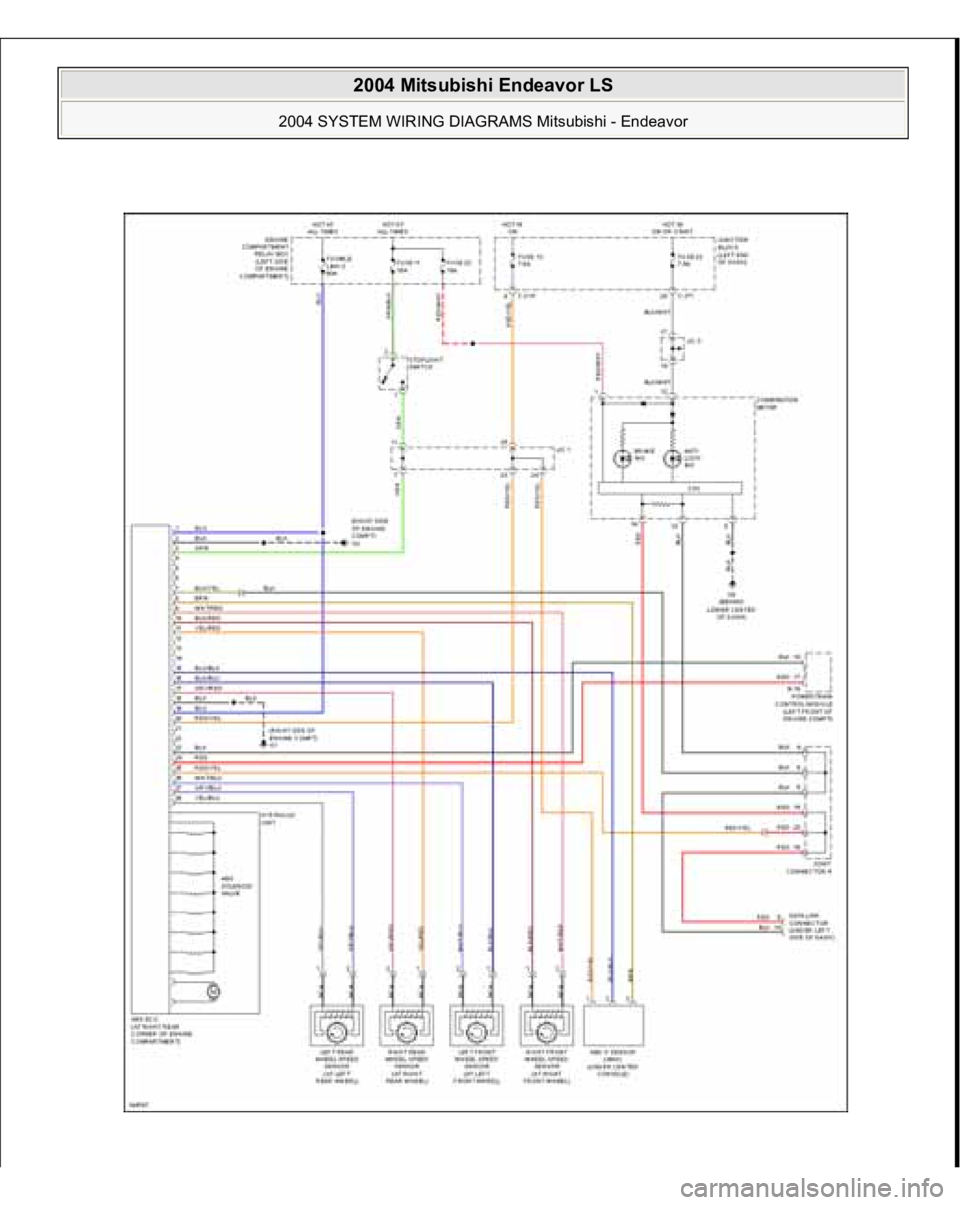

Page 3765 of 3870
2004 Mitsubishi Endeavor LS
2004 SYSTEM WIRING DIAGRAMS Mitsubishi - Endeavor
Page 3766 of 3870
Fig. 5: Anti
-Lock Brakes Circui
t
2004 Mitsubishi Endeavor LS
2004 SYSTEM WIRING DIAGRAMS Mitsubishi - Endeavor

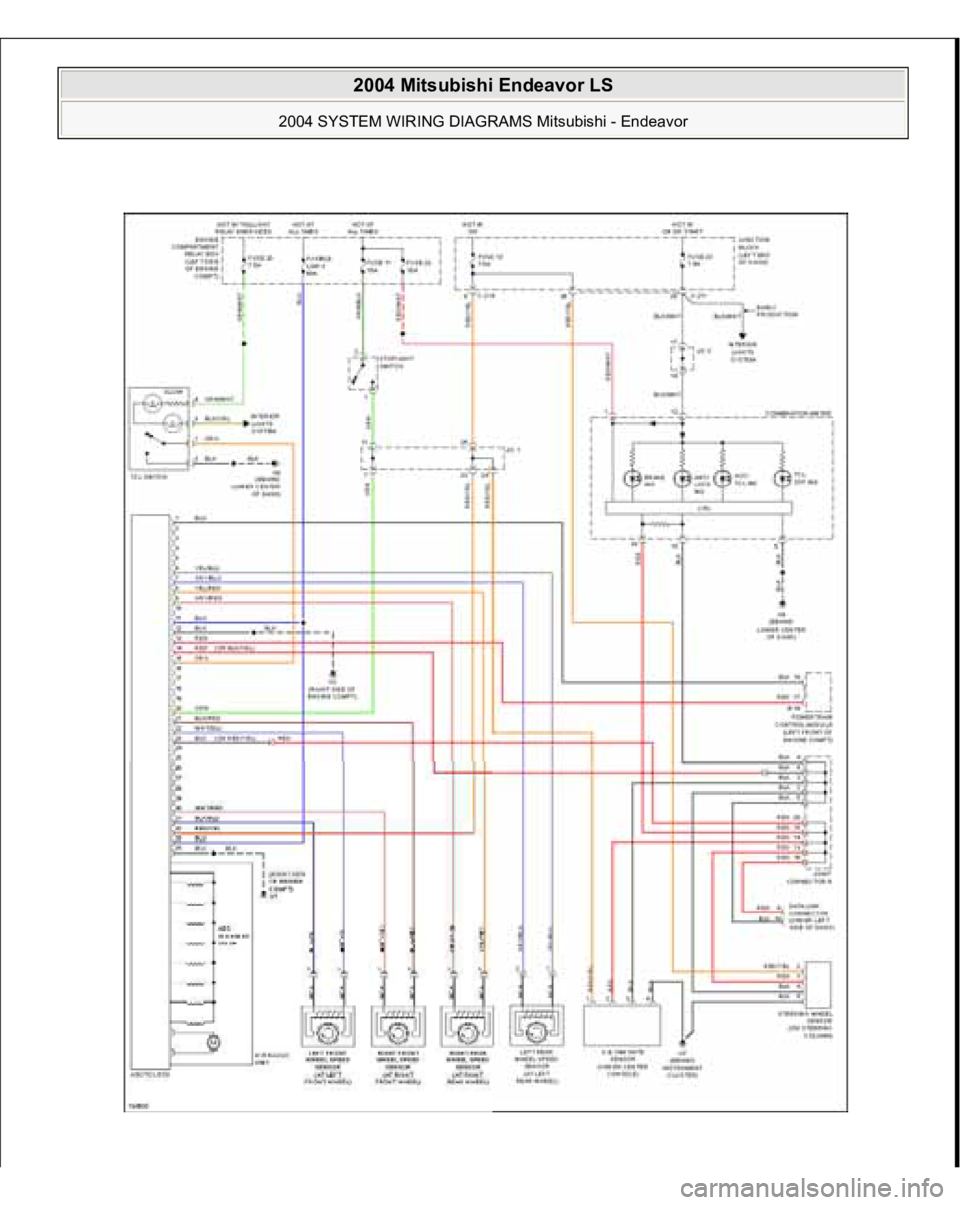

Page 3767 of 3870
2004 Mitsubishi Endeavor LS
2004 SYSTEM WIRING DIAGRAMS Mitsubishi - Endeavor
Page 3768 of 3870
Fig. 6: Traction Control Circuit, W/ Active Skid Control
2004 Mitsubishi Endeavor LS
2004 SYSTEM WIRING DIAGRAMS Mitsubishi - Endeavor
