2004 MITSUBISHI ENDEAVOR diagram

2004 Mitsubishi Endeavor LS
2004 SYSTEM WIRING DIAGRAMS Mitsubishi - Endeavor

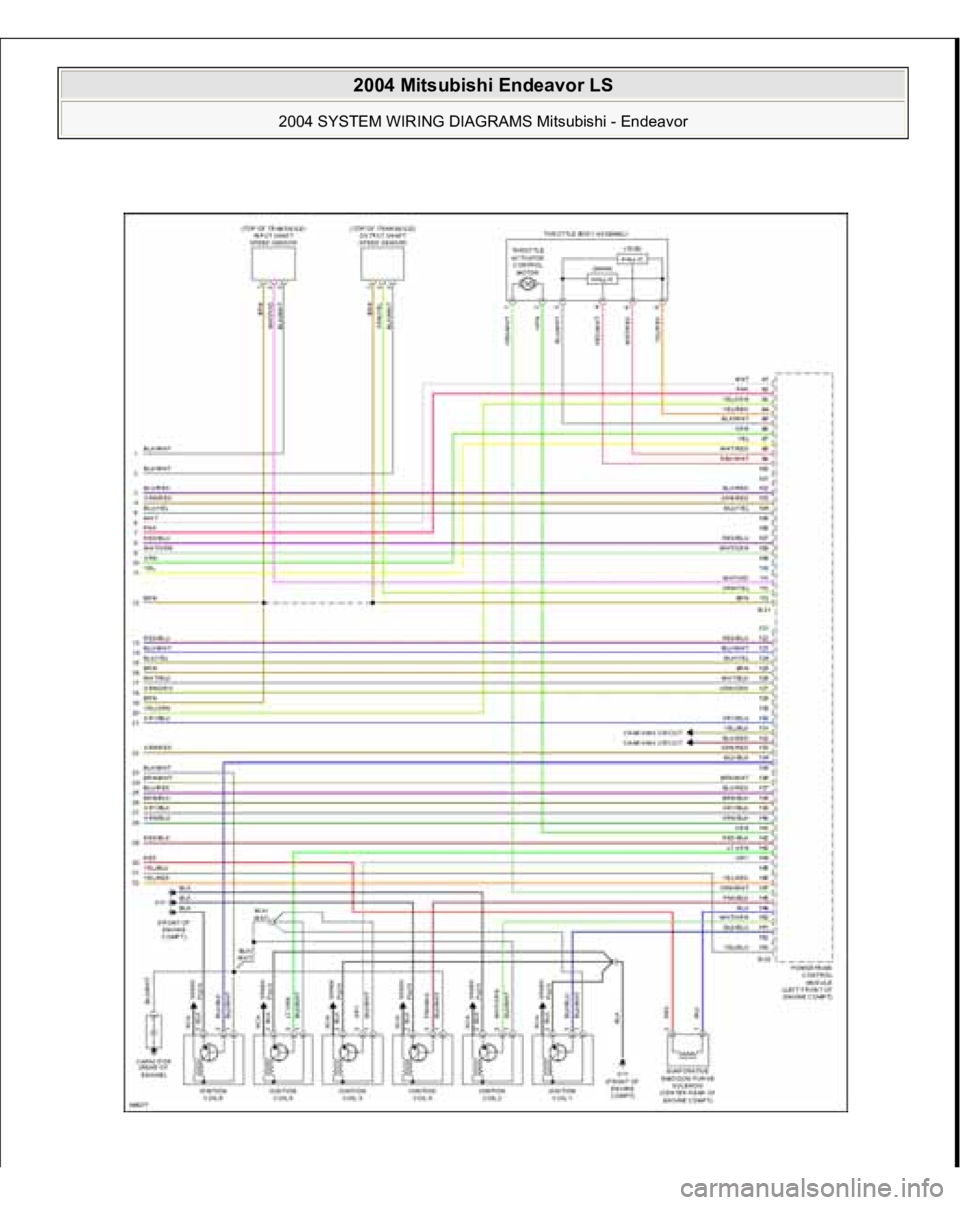

Fig. 19: 3.8L, En
gine Performance Circuit (4 of 5)


2004 Mitsubishi Endeavor LS
2004 SYSTEM WIRING DIAGRAMS Mitsubishi - Endeavor

2004 Mitsubishi Endeavor LS
2004 SYSTEM WIRING DIAGRAMS Mitsubishi - Endeavor

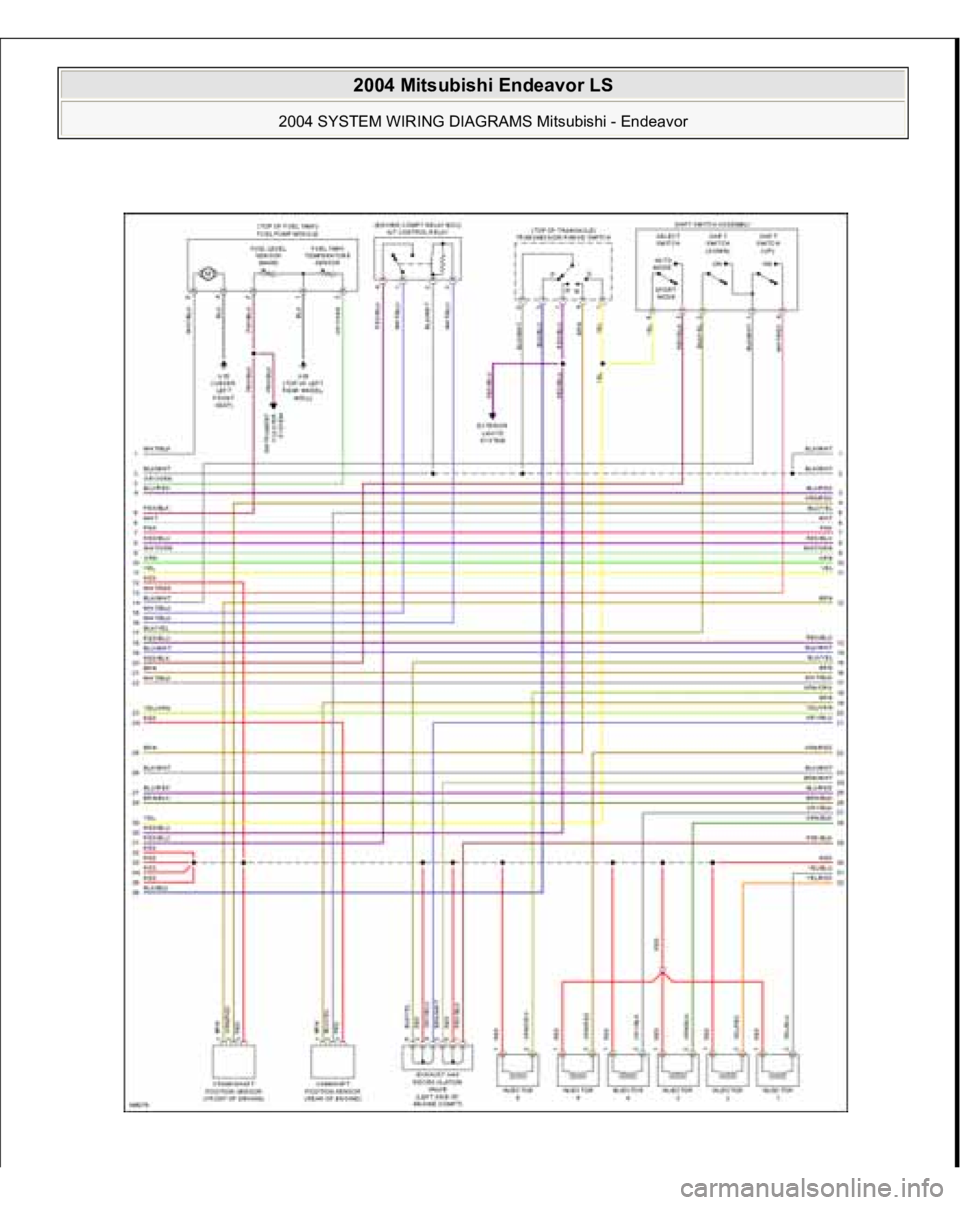

Fig. 20: 3.8L, Engine Performance Circuit (5 of 5)

EXTERIOR LIGHTS
2004 Mitsubishi Endeavor LS
2004 SYSTEM WIRING DIAGRAMS Mitsubishi - Endeavor

2004 Mitsubishi Endeavor LS
2004 SYSTEM WIRING DIAGRAMS Mitsubishi - Endeavor

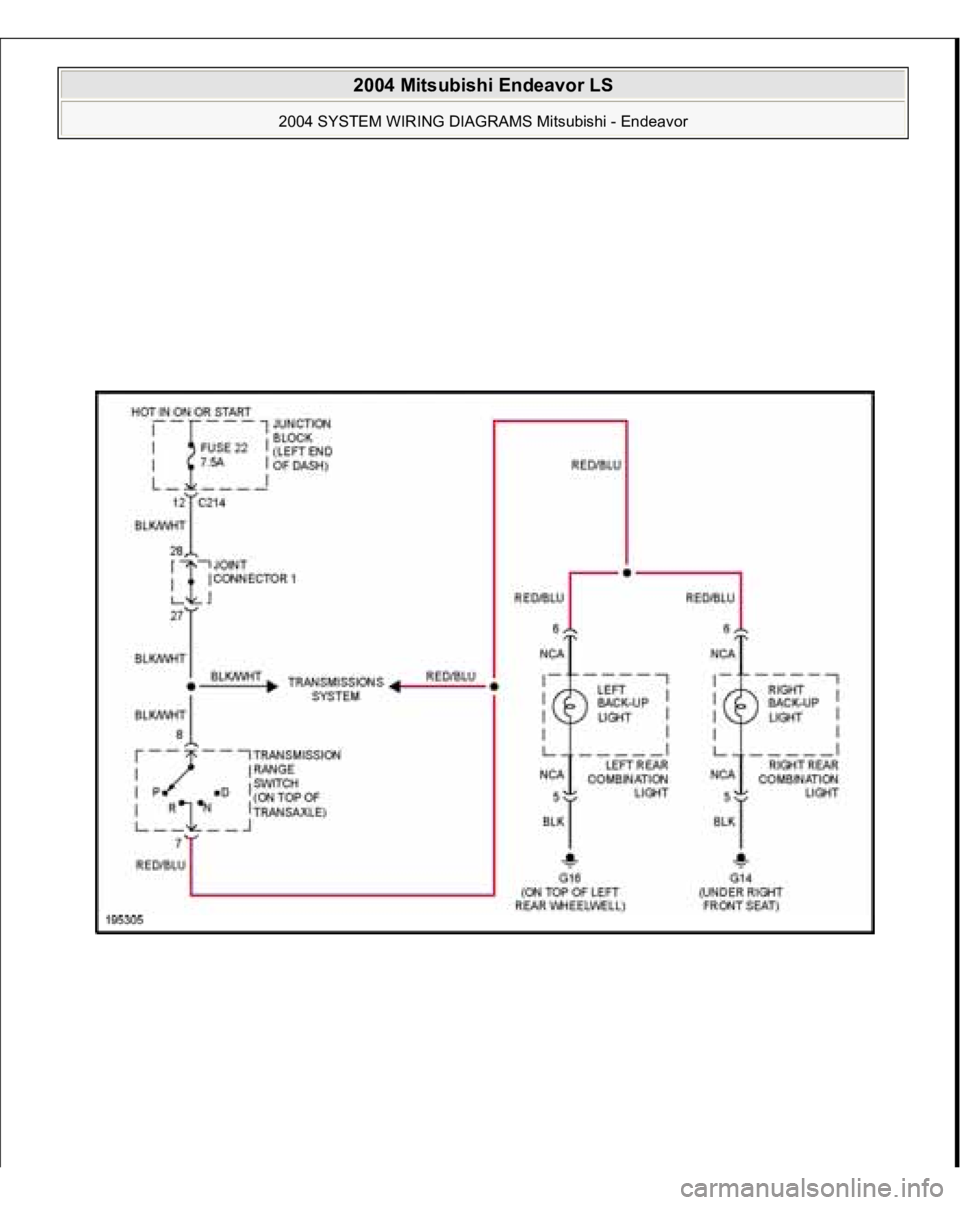

Fig. 21: Back
-up Lam
ps Circui
t

2004 Mitsubishi Endeavor LS
2004 SYSTEM WIRING DIAGRAMS Mitsubishi - Endeavor

2004 Mitsubishi Endeavor LS
2004 SYSTEM WIRING DIAGRAMS Mitsubishi - Endeavor

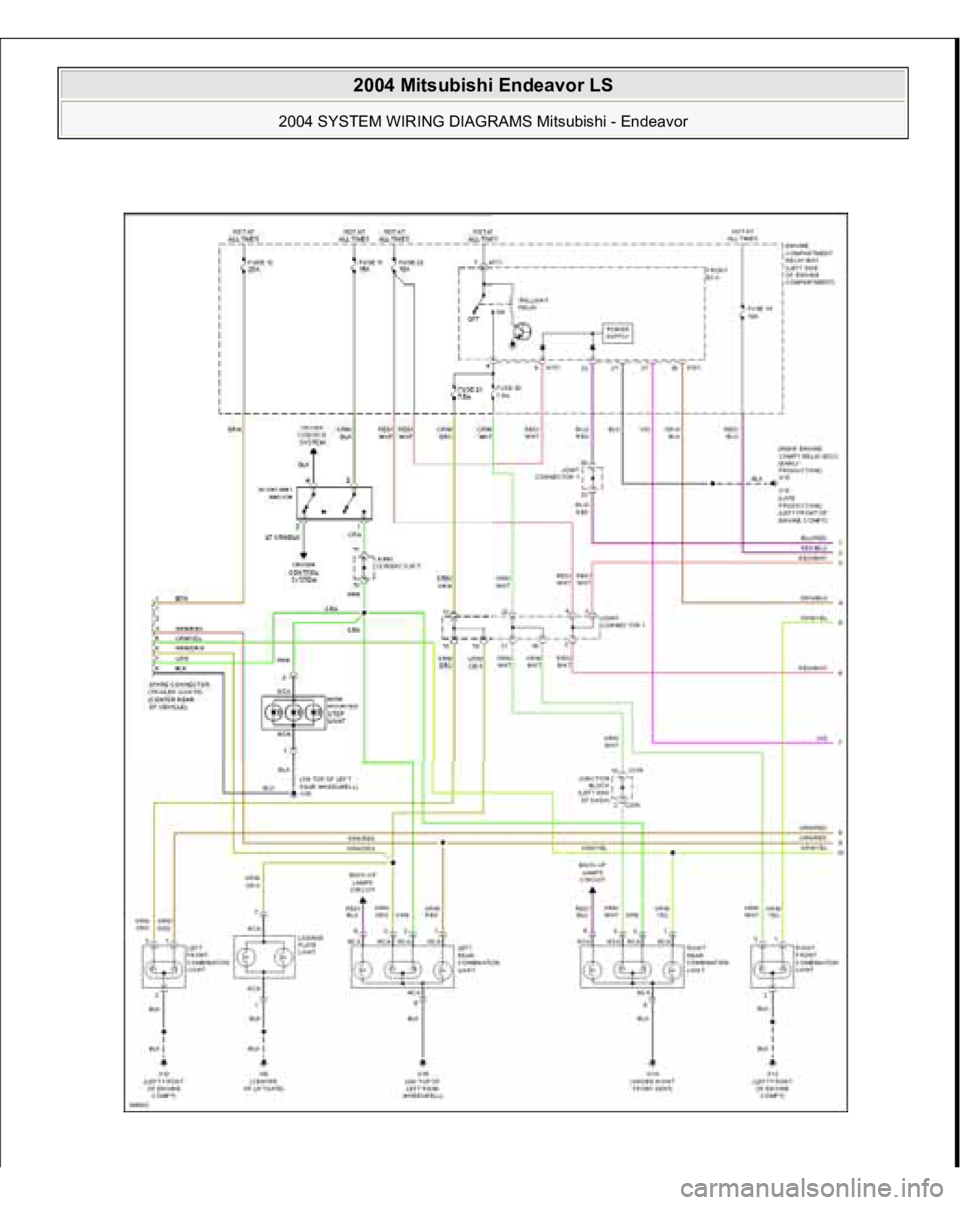

Fig. 22: Exterior Lam
ps Circuit (1 of 2)

2004 Mitsubishi Endeavor LS
2004 SYSTEM WIRING DIAGRAMS Mitsubishi - Endeavor
