Page 3825 of 3870
2004 Mitsubishi Endeavor LS
2004 SYSTEM WIRING DIAGRAMS Mitsubishi - Endeavor
Page 3826 of 3870

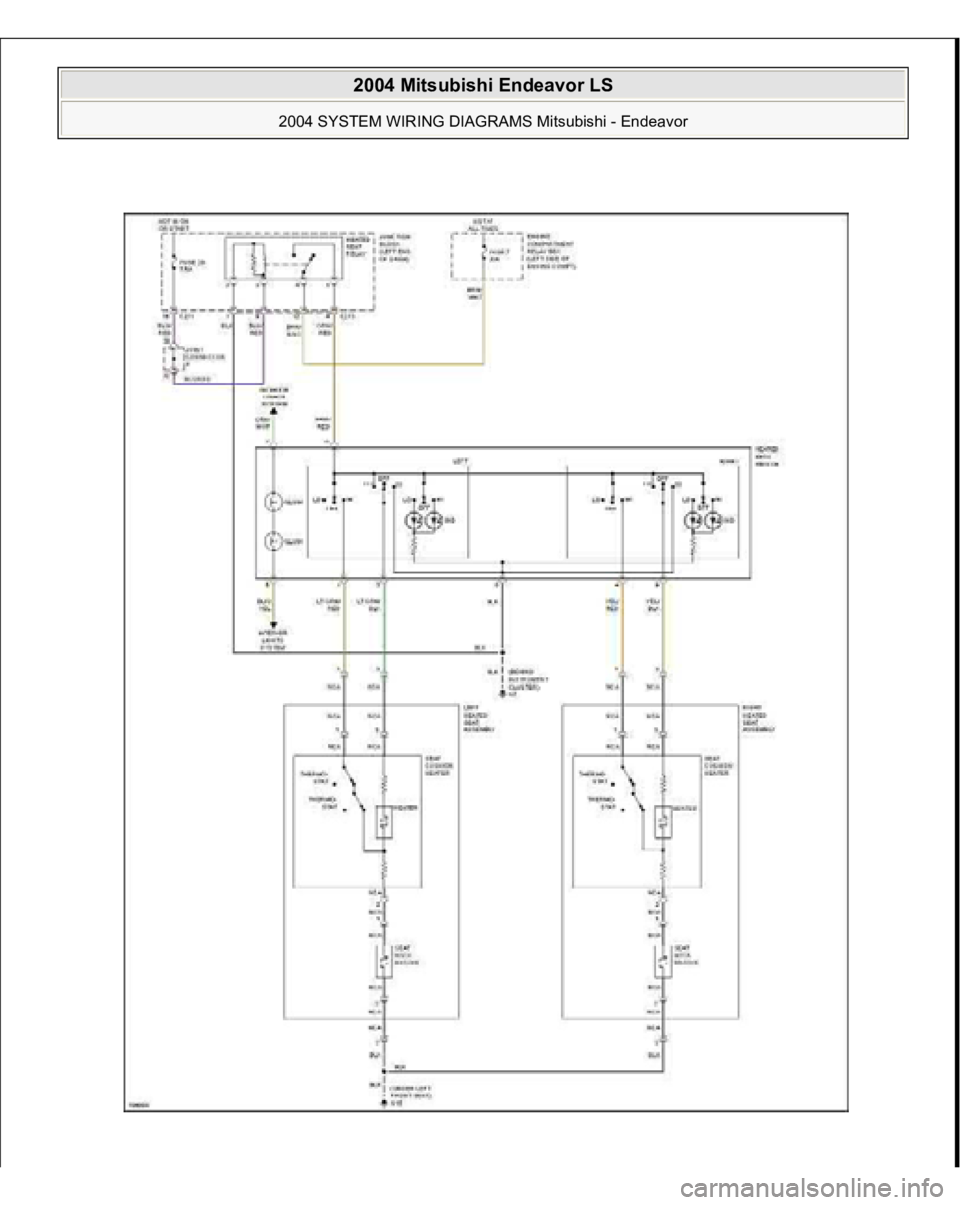

Fig. 35: Heated Seats Circui
t
2004 Mitsubishi Endeavor LS
2004 SYSTEM WIRING DIAGRAMS Mitsubishi - Endeavor
Page 3827 of 3870
2004 Mitsubishi Endeavor LS
2004 SYSTEM WIRING DIAGRAMS Mitsubishi - Endeavor
Page 3828 of 3870

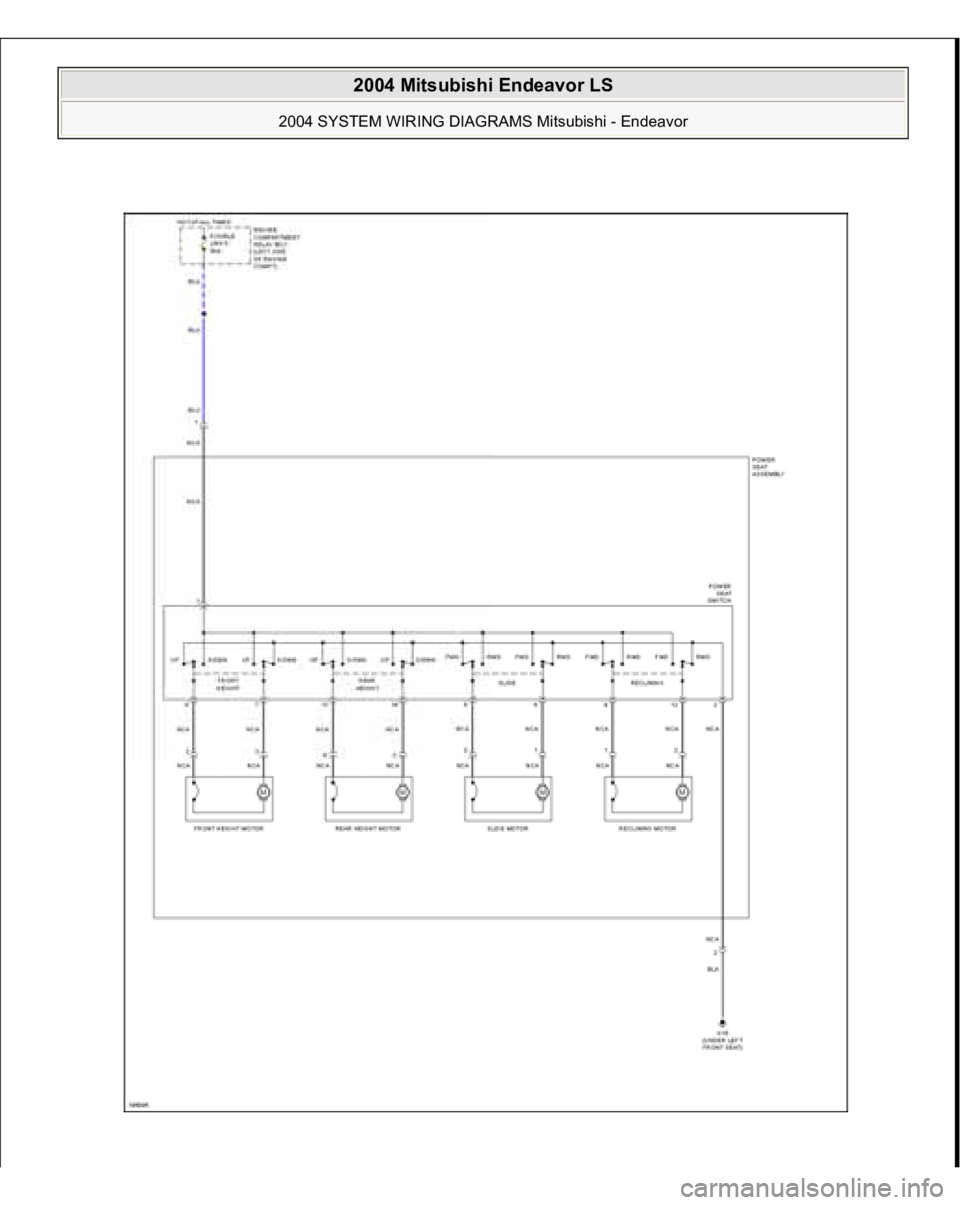

Fig. 36: Power Seat Circui
t
POWER TOP/SUNROO
F
2004 Mitsubishi Endeavor LS
2004 SYSTEM WIRING DIAGRAMS Mitsubishi - Endeavor
Page 3829 of 3870
2004 Mitsubishi Endeavor LS
2004 SYSTEM WIRING DIAGRAMS Mitsubishi - Endeavor
Page 3830 of 3870

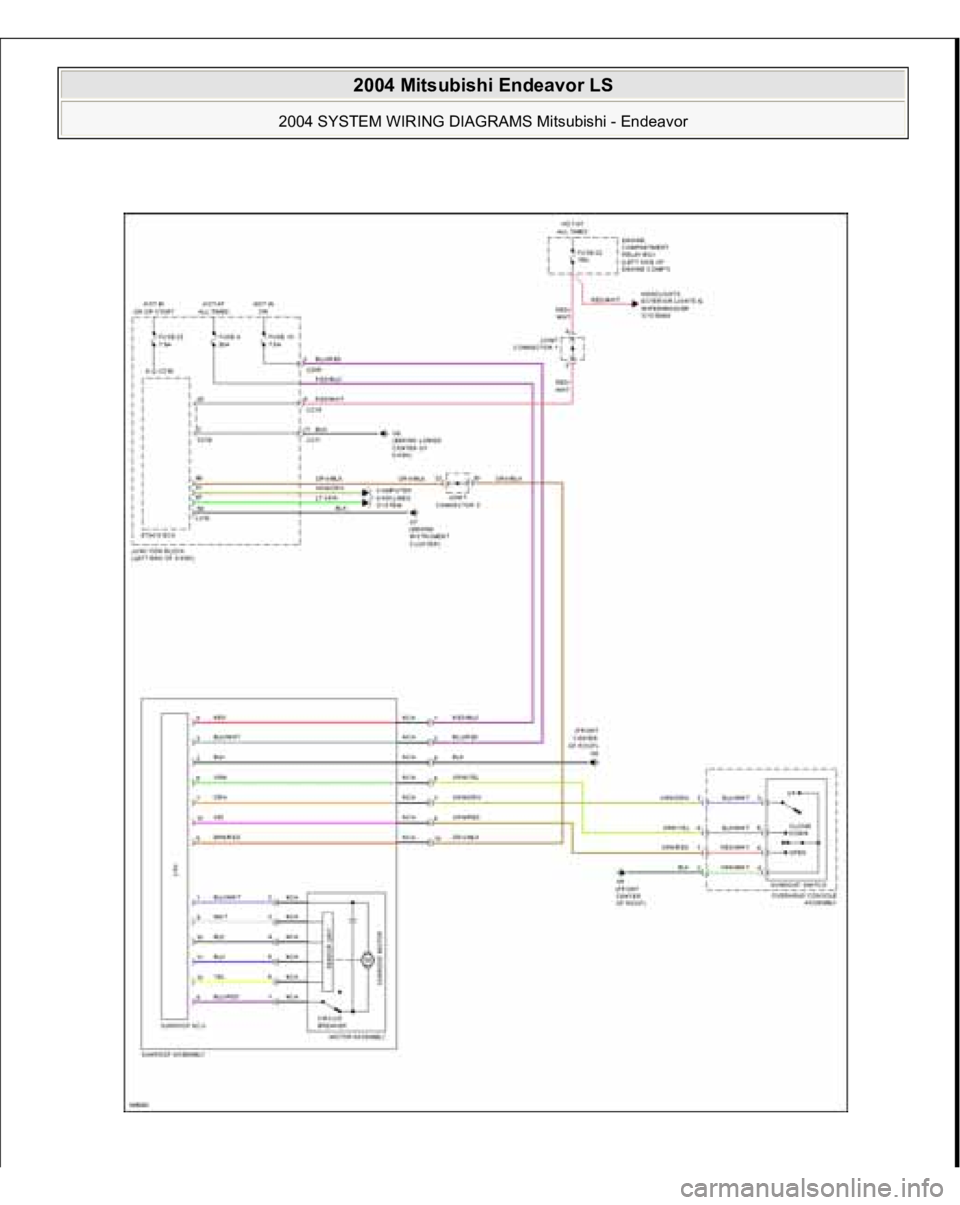

Fig. 37: Power Top/Sunroof Circui
t
POWER WINDOWS
2004 Mitsubishi Endeavor LS
2004 SYSTEM WIRING DIAGRAMS Mitsubishi - Endeavor
Page 3831 of 3870
2004 Mitsubishi Endeavor LS
2004 SYSTEM WIRING DIAGRAMS Mitsubishi - Endeavor
Page 3832 of 3870

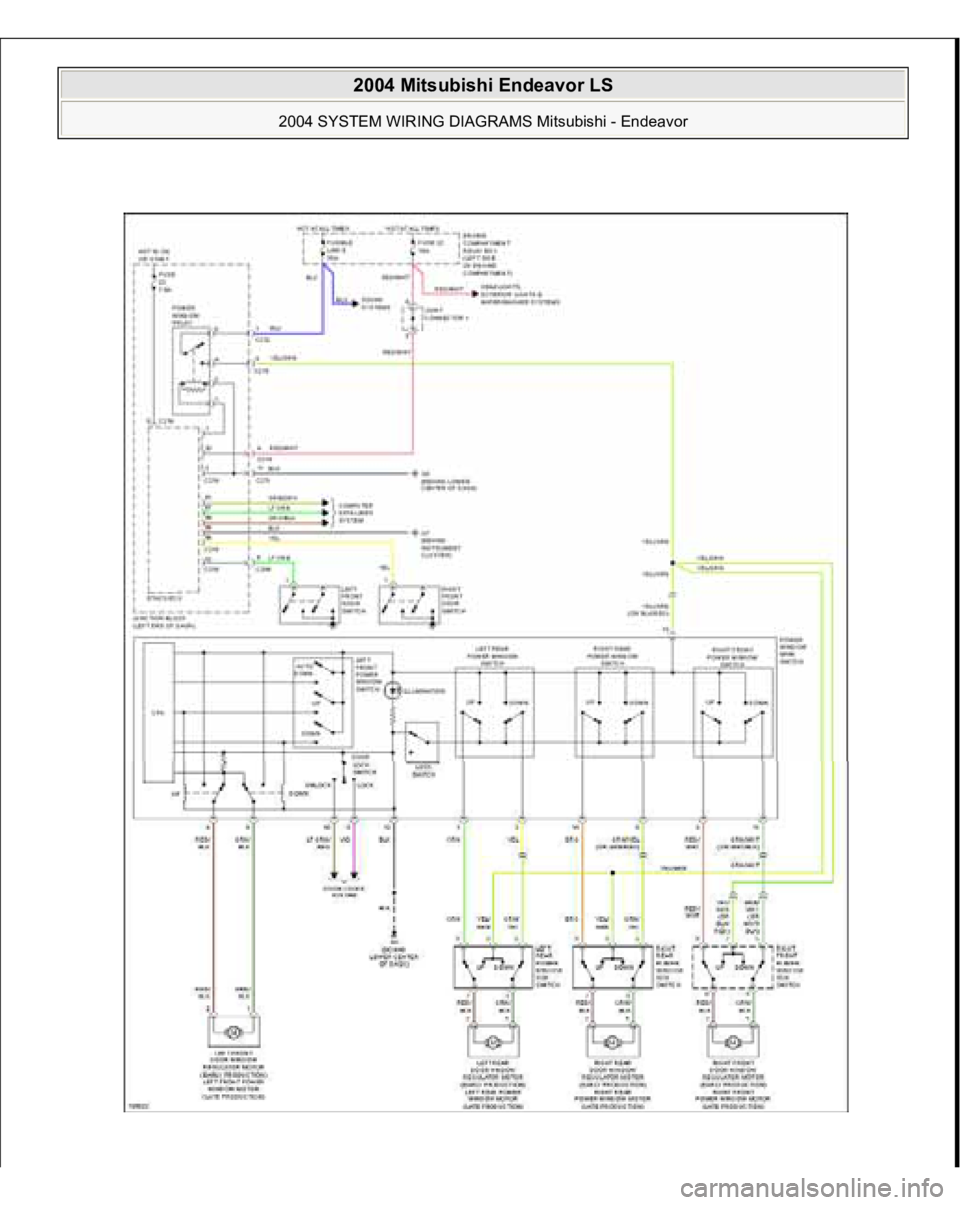

Fig. 38: Power Windows Circui
t
RADI
O
2004 Mitsubishi Endeavor LS
2004 SYSTEM WIRING DIAGRAMS Mitsubishi - Endeavor
