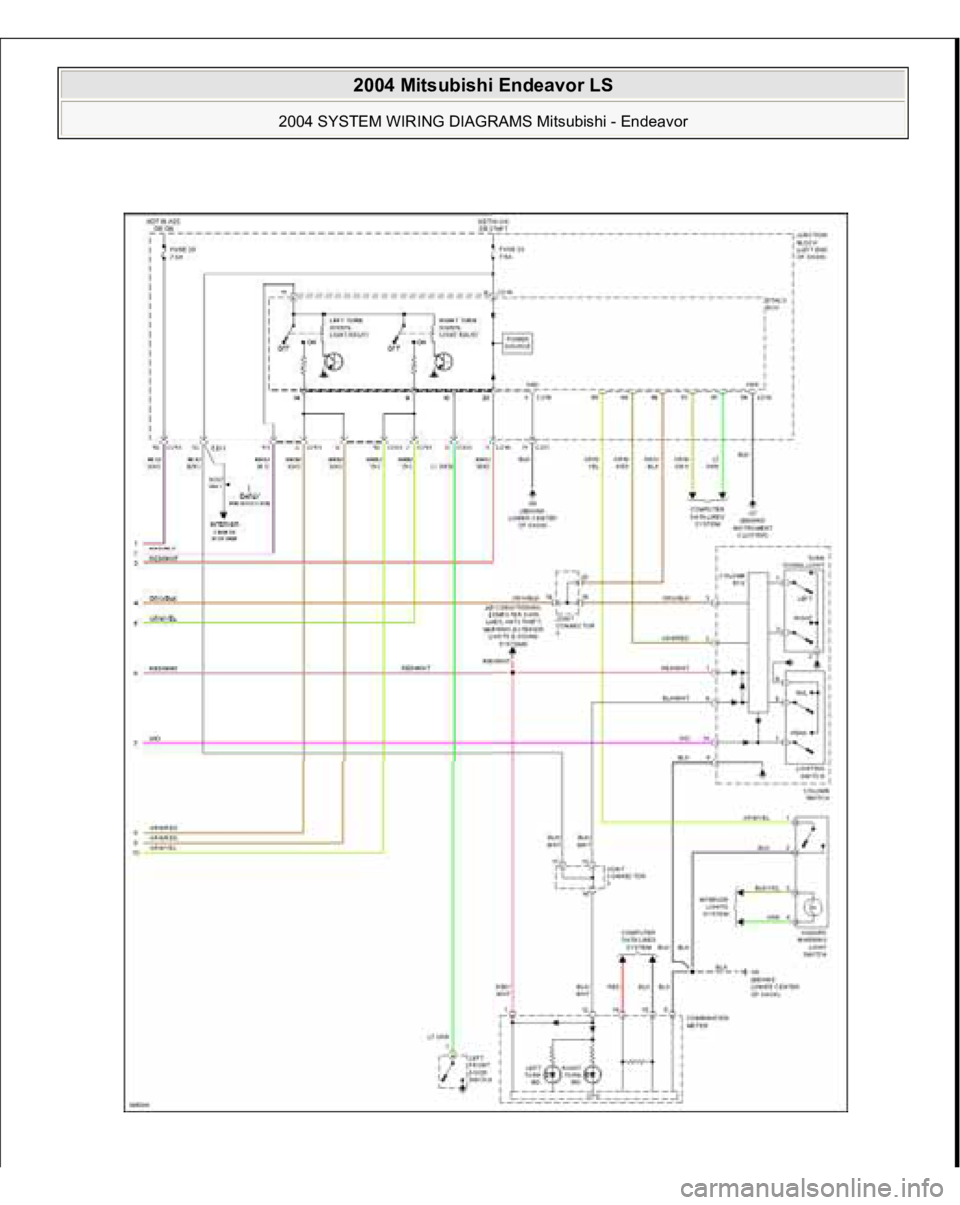

Page 3801 of 3870
2004 Mitsubishi Endeavor LS
2004 SYSTEM WIRING DIAGRAMS Mitsubishi - Endeavor
Page 3802 of 3870

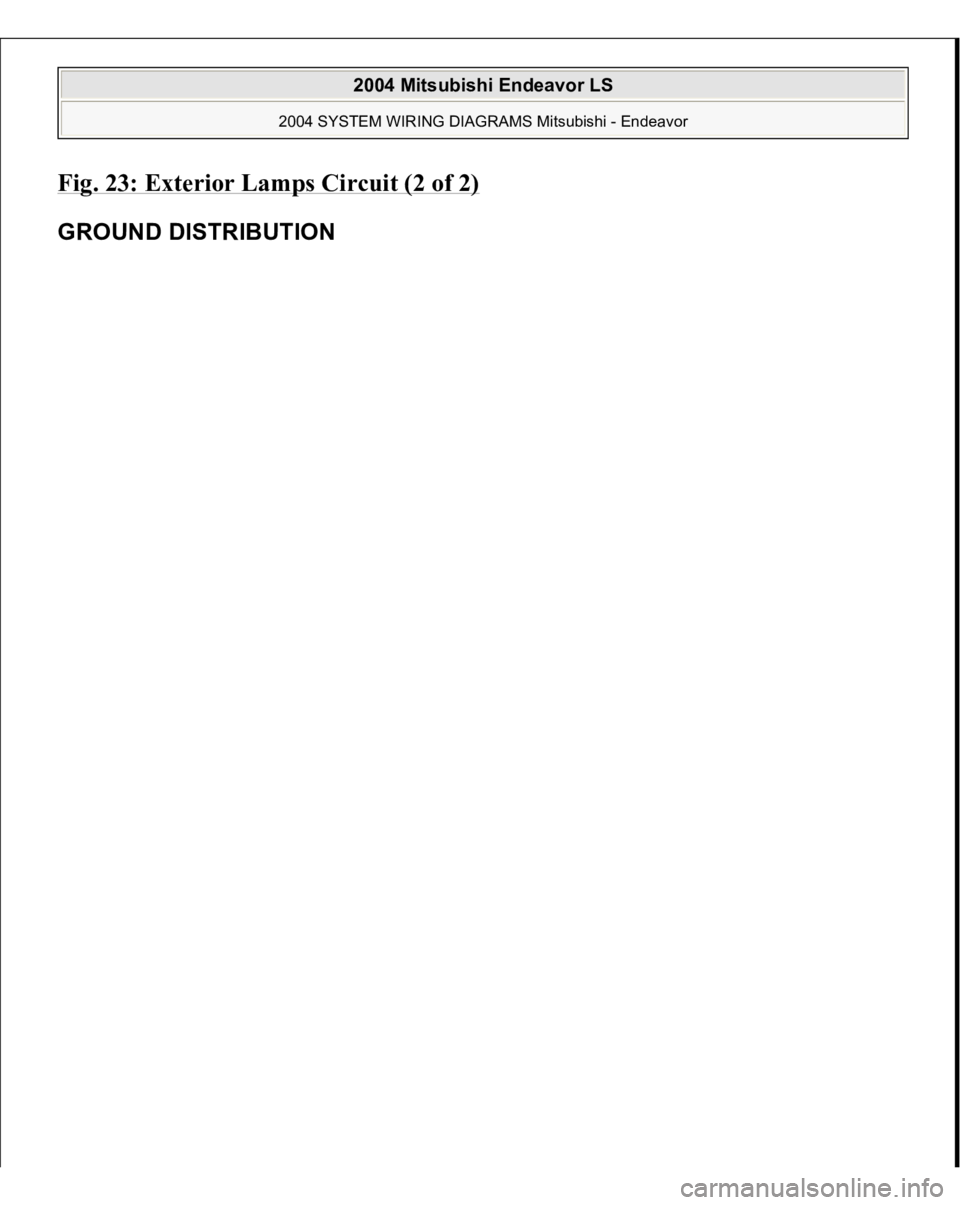

Fig. 23: Exterior Lamps Circuit (2 of 2)

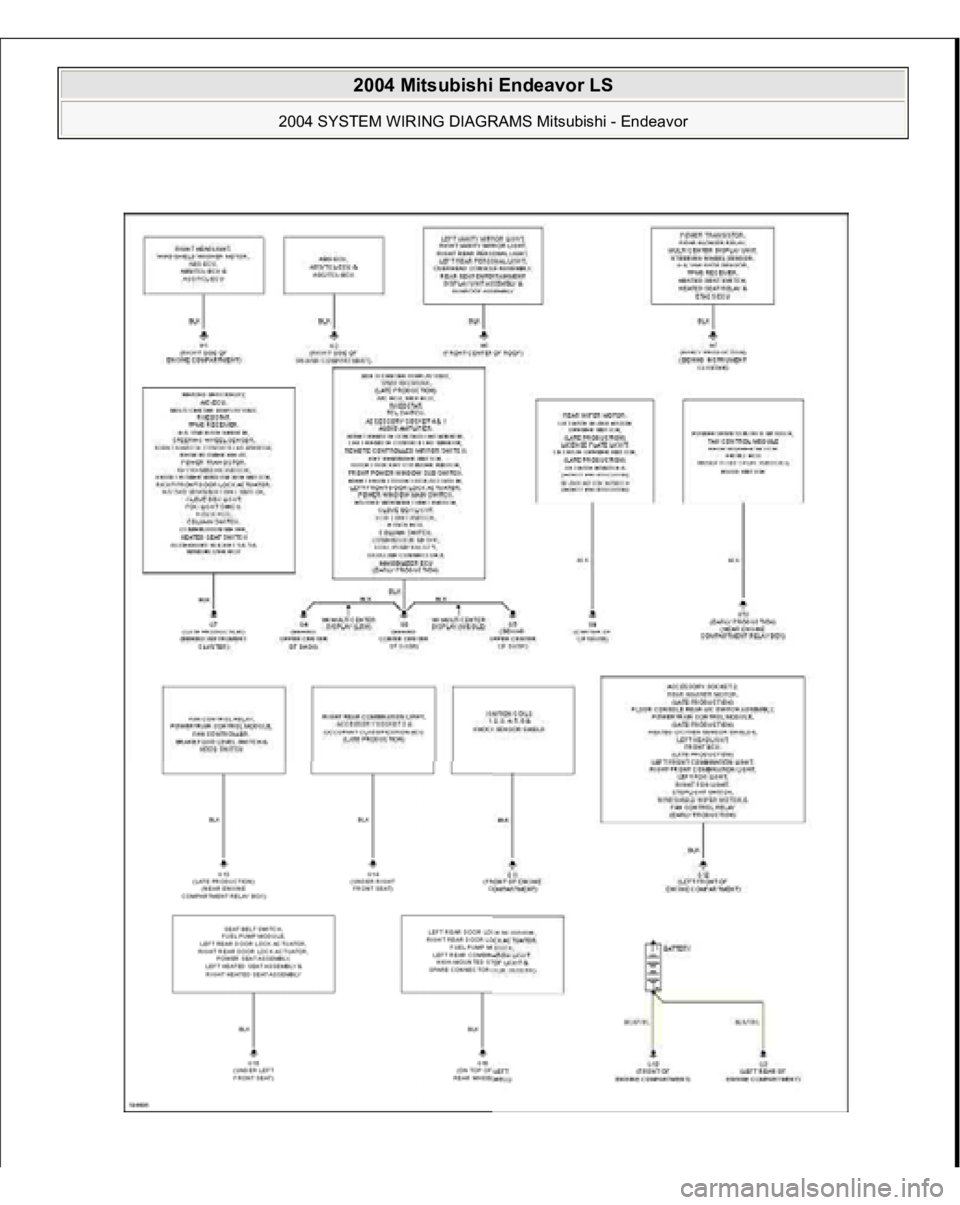

GROUND DISTRIBUTION
2004 Mitsubishi Endeavor LS
2004 SYSTEM WIRING DIAGRAMS Mitsubishi - Endeavor
Page 3803 of 3870
2004 Mitsubishi Endeavor LS
2004 SYSTEM WIRING DIAGRAMS Mitsubishi - Endeavor
Page 3804 of 3870

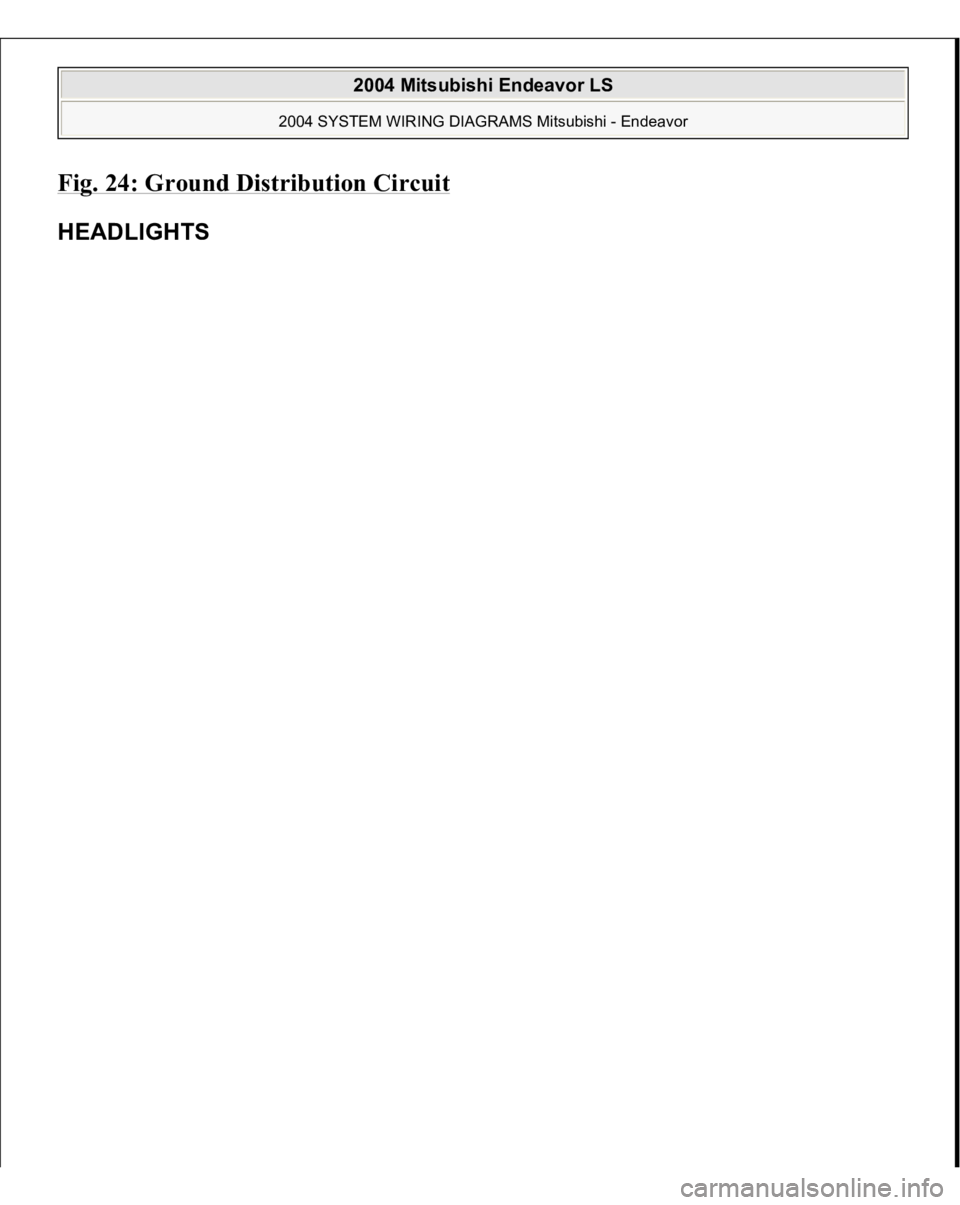

Fig. 24: Ground Distribution Circui
t

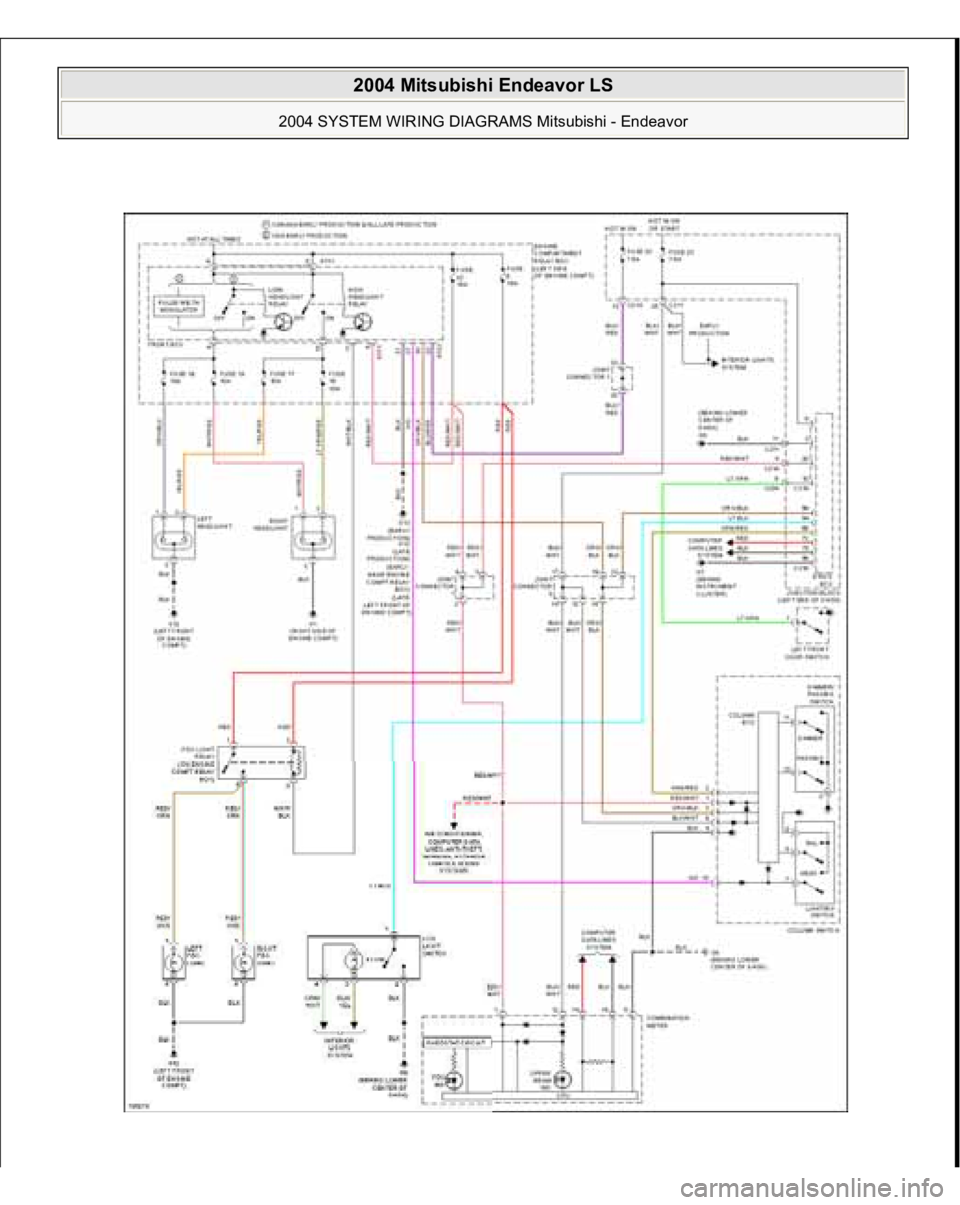

HEADLIGHTS
2004 Mitsubishi Endeavor LS
2004 SYSTEM WIRING DIAGRAMS Mitsubishi - Endeavor
Page 3805 of 3870
2004 Mitsubishi Endeavor LS
2004 SYSTEM WIRING DIAGRAMS Mitsubishi - Endeavor
Page 3806 of 3870

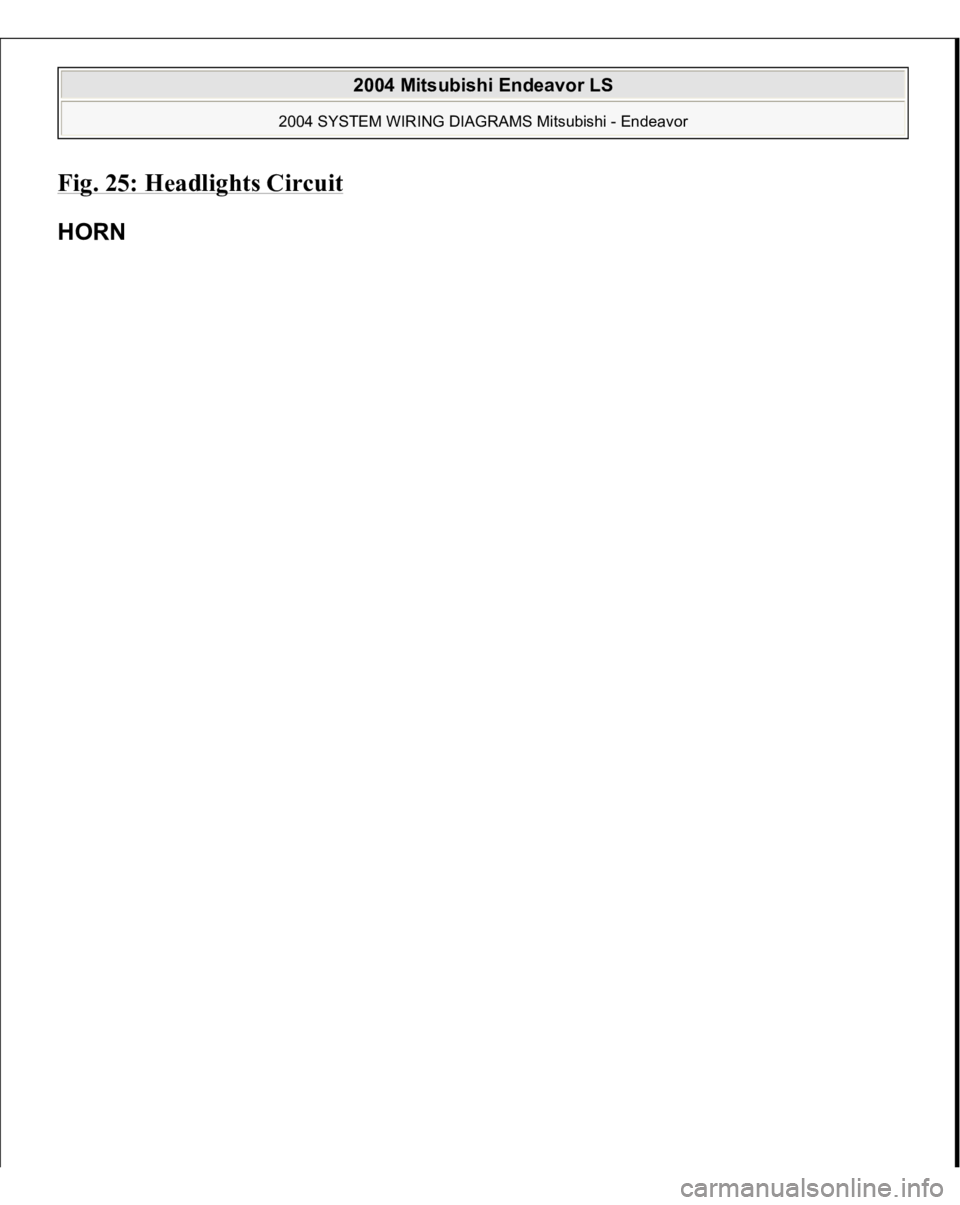

Fig. 25: Headlights Circui
t
HORN
2004 Mitsubishi Endeavor LS
2004 SYSTEM WIRING DIAGRAMS Mitsubishi - Endeavor
Page 3807 of 3870
2004 Mitsubishi Endeavor LS
2004 SYSTEM WIRING DIAGRAMS Mitsubishi - Endeavor
Page 3808 of 3870

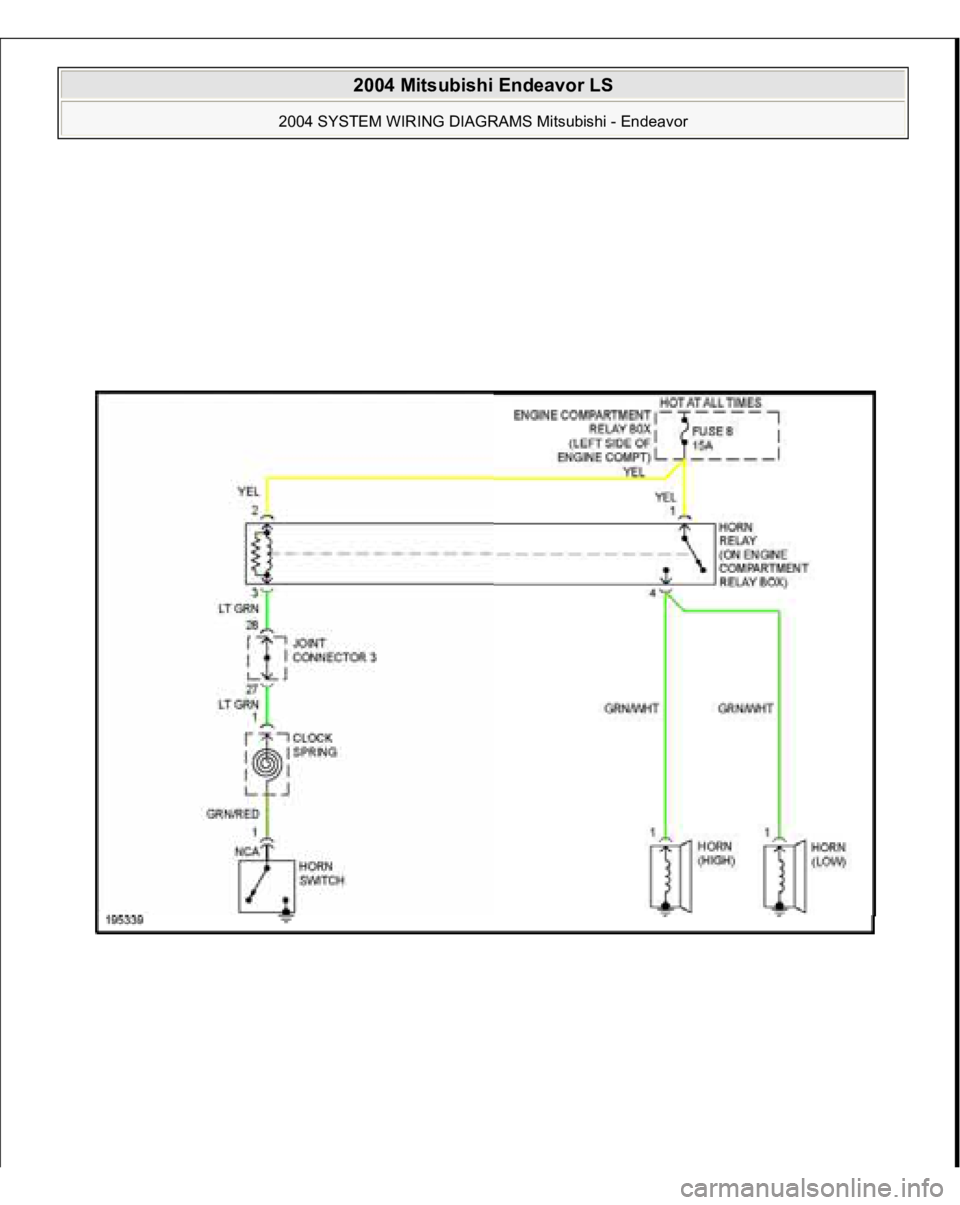

Fig. 26: Horn Circui
t
INSTRUMENT CLUSTE
R
2004 Mitsubishi Endeavor LS
2004 SYSTEM WIRING DIAGRAMS Mitsubishi - Endeavor
