6 . If ACCURACY CHECK COMPLETION is not displayed, go to next step.
5. If ABNORMAL CONDITION is displayed, press OK and go to calibration
screen. Remove weight from seat. Verify seat is installed correctly. If seat is
installed correctly, go to step 1 .
6. Remove weight from seat cushion. Move seat to rear most position. Repeat
step2 . Go to next step.
7. Select INTERACTIVE DIAGNOSIS, then SPECIAL FUNCTION then SEAT
WEIGHT SENSOR ACCURACY CHECK on screen. Place a 66 pound weight
(30 kg) in center of passenger-side seat cushion. Repeat step2 . Touch OK
button to perform accuracy check. Go to next step.
8. If variance between sensor output and input levels is within 11 pounds (5 kg),
ACCURACY CHECK COMPLETION will be displayed on screen.
Calibration is complete. If ACCURACY CHECK COMPLETION is not
displayed, go to next step.
9. Verify seat is installed correctly. Repeat step2 . Touch OK button. When
EXECUTION prompt is displayed, touch OK button. When calibration is
completed, screen will display ZERO CALIBRATION COMPLETED. If
calibration cannot be completed, an intermittent condition may exist.
FRONT IMPACT SENSOR (DUAL-STAGE AIR BAG SYSTEM) 1. Remove appropriate front impact sensor. See FRONT IMPACT SENSOR

under REMOVAL & INSTALLATION. Visually inspect front impact sensor
case, connectors and brackets for damage. If no damage is found, go to next
step. If damage is found, discard front impact sensor.
2. Measure resistance between terminals of front impact sensor. Resistance
should be 738-902 ohms. Measure resistance between front impact sensor
terminals and front impact sensor case. Resistance should be infinite. If
resistance is not as specified, replace front impact sensor.
WIRING DIAGRAMS
2004 Mitsubishi Endeavor Limited
2004 ACCESSORIES/SAFETY EQUIPMENT Mitsubishi - Air Bag Restraint Systems

2004 DRIVELINE/AXLES
Front Axle - Endeavor
GENERAL DESCRIPTION The front axle consists of front hubs, knuckles, wheel bearings and drive shafts, and
has the following features:
The wheel bearing incorporates a unit ball bearing (double-row angular contact
ball bearing) for reduced friction. The front wheel hub assembly combines the hub, wheel bearing, housing, and
oil seal in a single unit for fewer parts, better durability, improved assembly
precision, and better structural organization. The driveshaft incorporates BJ-PTJ type constant velocity joints< FWD>, BJ-
DOJ < AWD-LH>and BJ-TJ< AWD-RH> with high transmission efficiency
for low vibration and noise. Due to the use of the inner shaft and bracket assembly, the right and left drive
shafts are approximately the same in length. This reduces noise, vibration and
torque steer.< FWD> ABS rotor for detecting the wheel speeds is press-fitted to the rear hub in
vehicles with ABS.
CONSTRUCTION DIAGRAM NOTE:
PTJ: Pillow Tripod Joint BJ: Birfield Joint DOJ: Double Offset Joint TJ: Tripod Joint

2004 Mitsubishi Endeavor LS
2004 DRIVELINE/AXLES Front Axle - Endeavor


2004 Mitsubishi Endeavor LS
2004 DRIVELINE/AXLES Front Axle - Endeavor

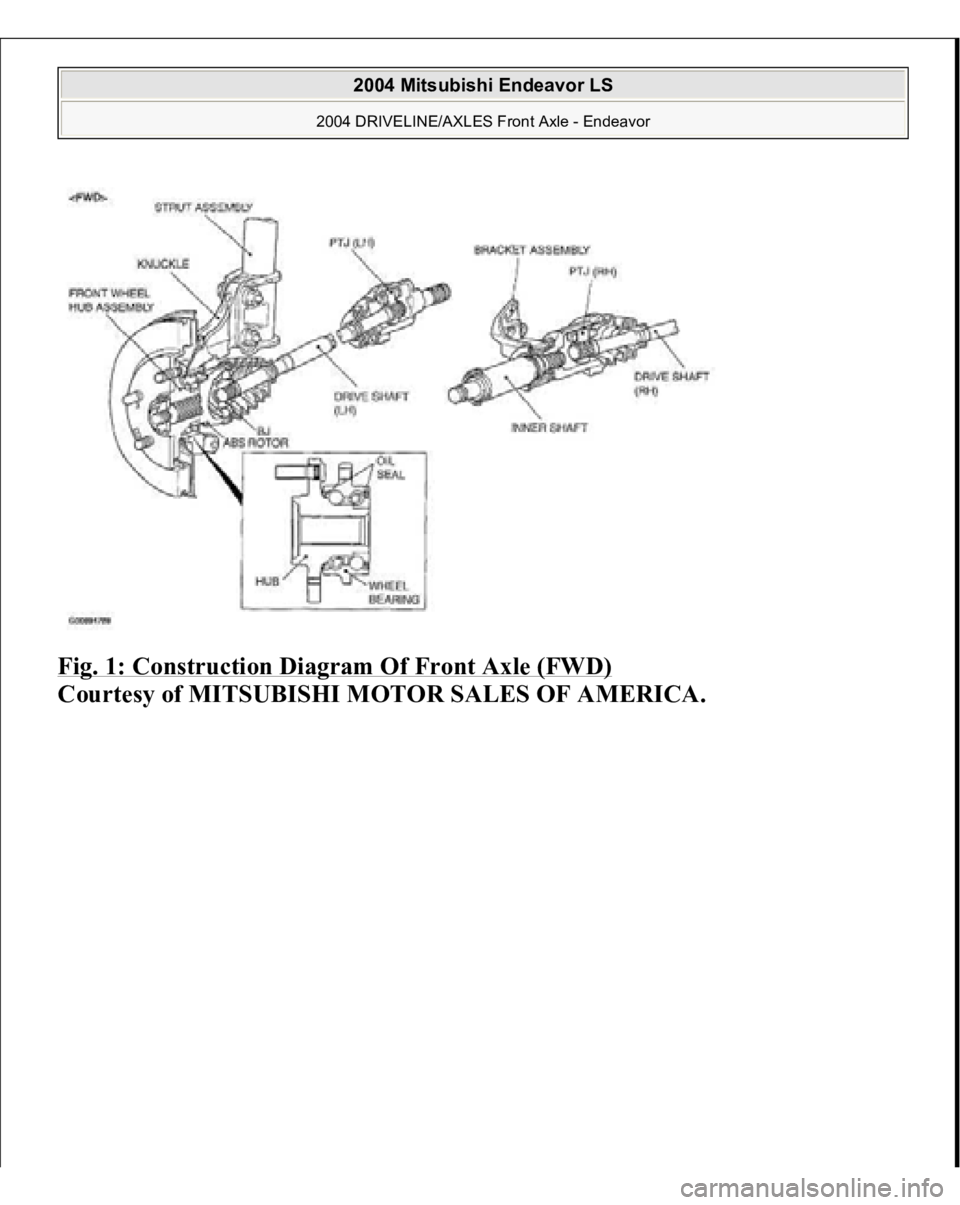

Fig. 1: Construction Diagram Of Front Axle (FWD)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

2004 Mitsubishi Endeavor LS
2004 DRIVELINE/AXLES Front Axle - Endeavor

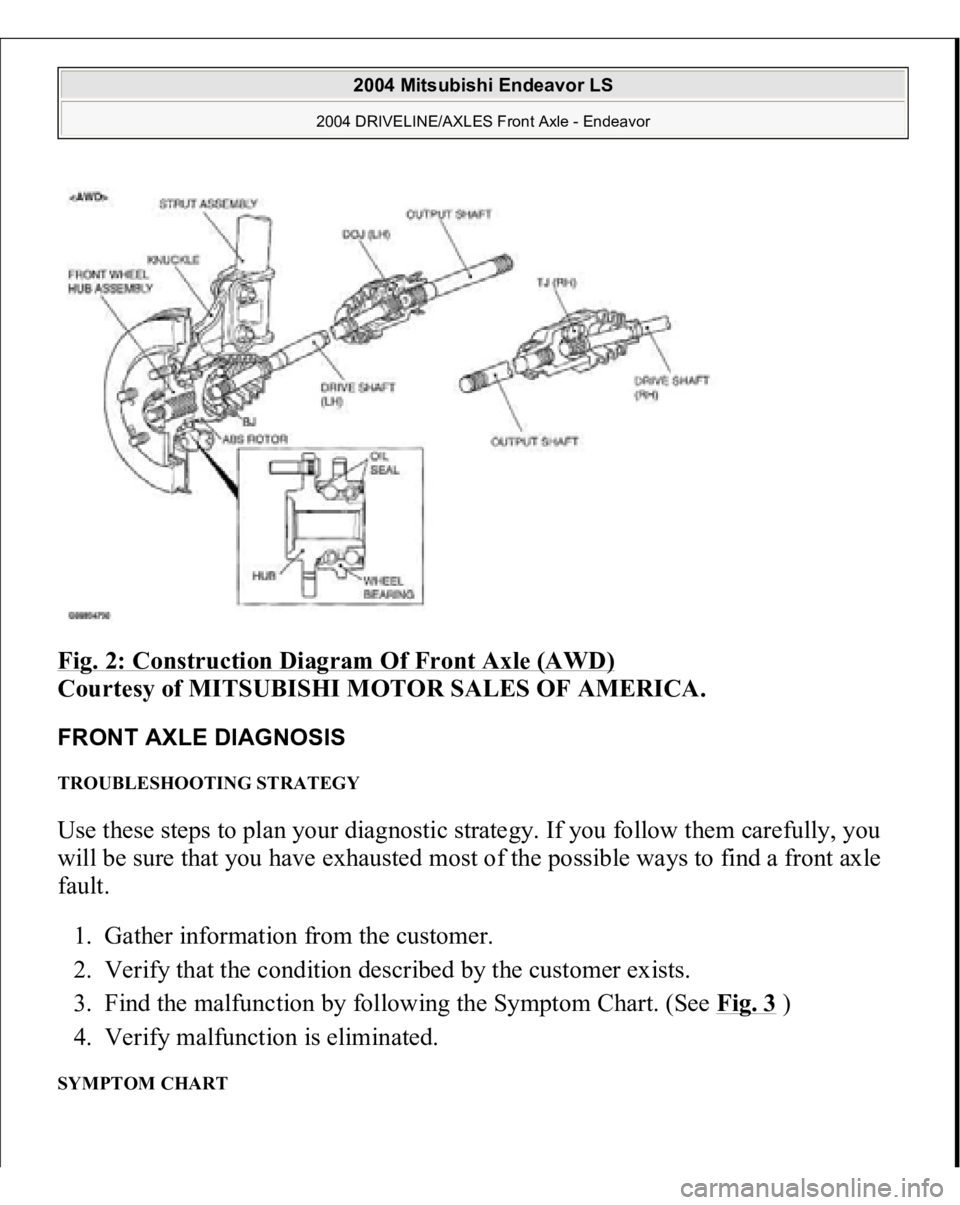

Fig. 2: Construction Diagram Of Front Axle (AWD)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
FRONT AXLE DIAGNOSIS TROUBLESHOOTING STRATEGY Use these steps to plan your diagnostic strategy. If you follow them carefully, you
will be sure that you have exhausted most of the possible ways to find a front axle
fault.
1. Gather information from the customer.
2. Verify that the condition described by the customer exists.
3. Find the malfunction by following the Symptom Chart. (See Fig. 3
)
4. Verify malfunction is eliminated.
SYMPTOM CHART
2004 Mitsubishi Endeavor LS
2004 DRIVELINE/AXLES Front Axle - Endeavor

installation easier.
3. The master cylinder reservoir tank cap has been colored white to make
identification easier.
4. The ABS-ECU and hydraulic unit have been integrated to make them more
compact and light weight.
CONSTRUCTION DIAGRAM < VEHICLE WITH ABS>

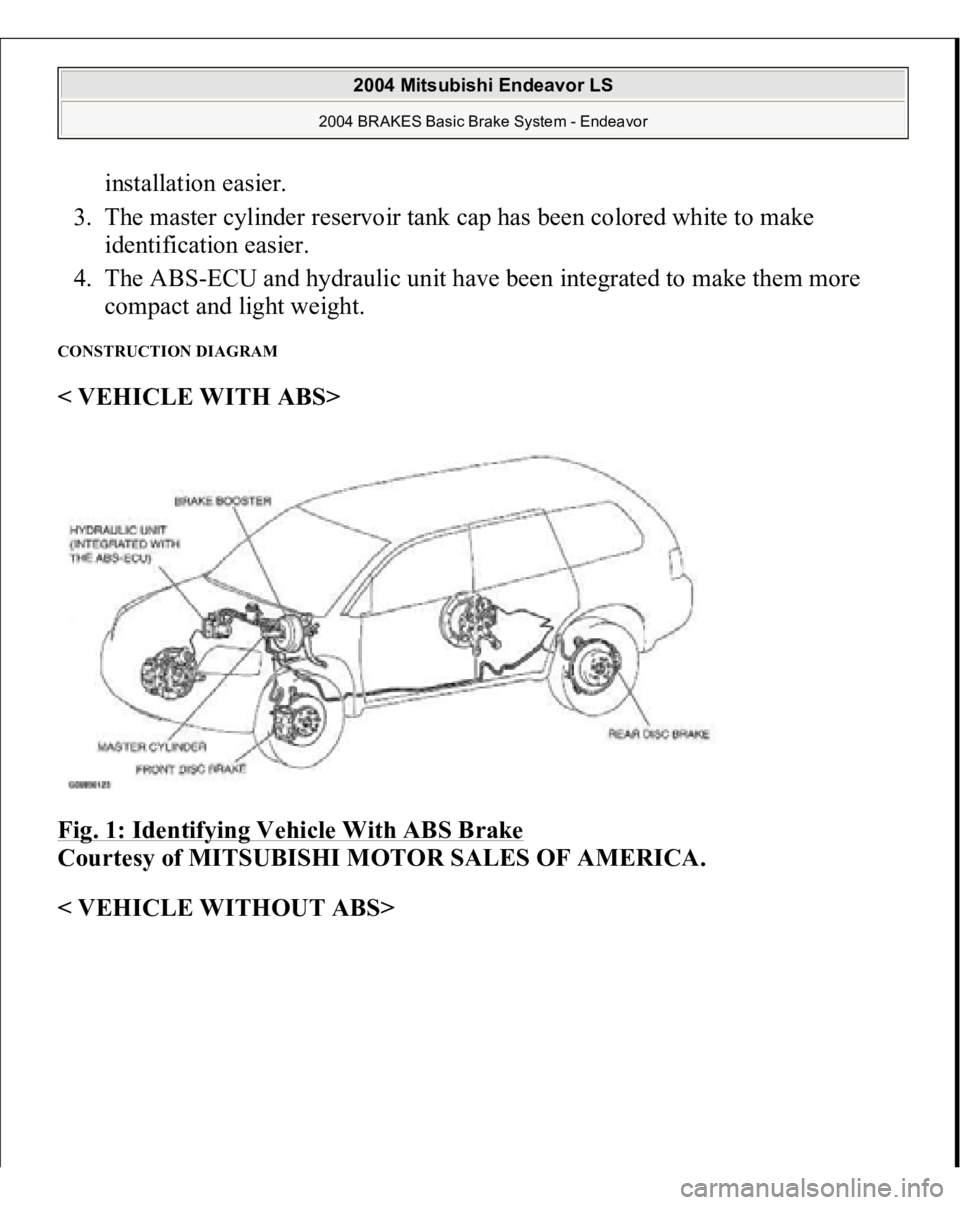

Fig. 1: Identifying Vehicle With ABS Brake

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
< VEHICLE WITHOUT ABS>

2004 Mitsubishi Endeavor LS
2004 BRAKES Basic Brake System - Endeavor

11. Remove condenser fan motor.
12. To install, reverse removal procedures.
Fig. 13: Exploded View Of Radiator & Radiator Fans

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
WIRING DIAGRAMS See COOLING FAN in appropriate SYSTEM WIRING DIAGRAMS article in
ELECTRICAL.
2004 Mitsubishi Endeavor Limited
2004 ENGINE COOLING Electric Cooling Fans - Endeavor

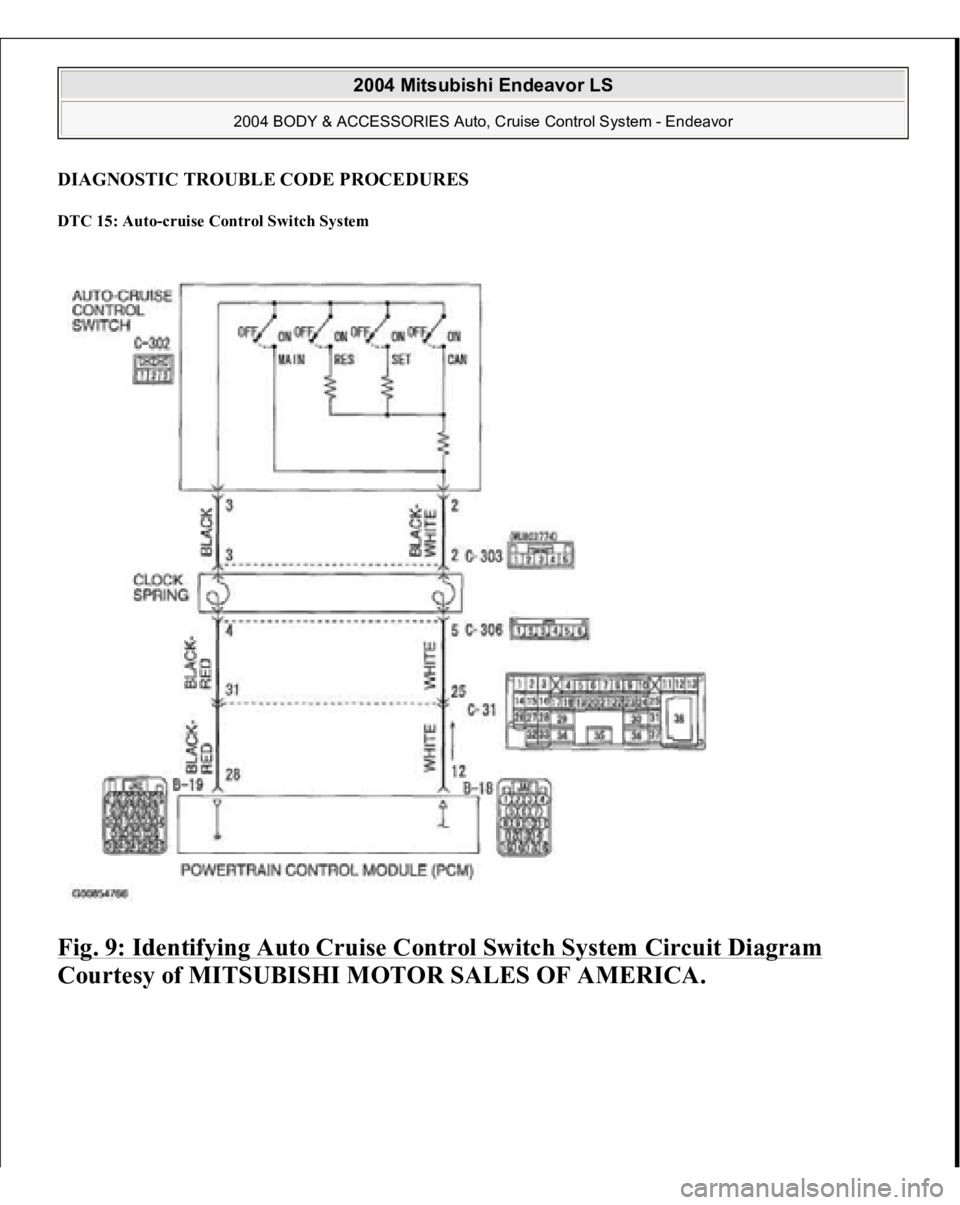

DIAGNOSTIC TROUBLE CODE PROCEDURESDTC 15: Auto-cruise Control Switch System Fig. 9: Identifying Auto Cruise Control Switch System Circuit Diagram

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Auto, Cruise Control System - Endeavor

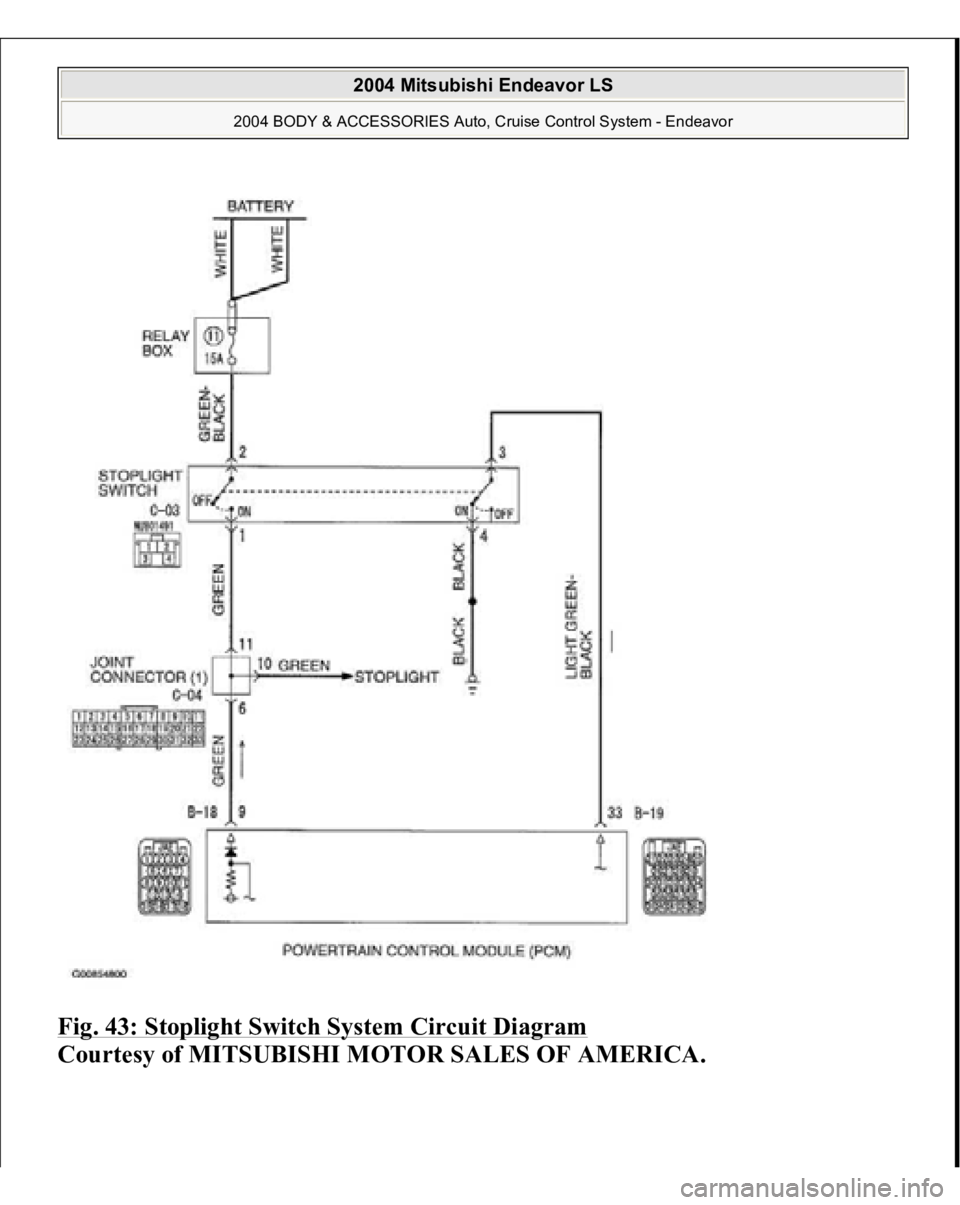

Fig. 43: Stoplight Switch System Circuit Diagram
