96
CONNECT NAV
NAVIGATOR
SHARX FUNCTION
Occasional interference in the signals
can occur when tuned to FM radio sta-
tions caused by stations broadcasting
on very close frequencies. The
SHARX function reduces such inter-
ference.
Switching on and off
Proceed as follows to switch the
SHARX function on and off:
1)in Radio mode, press MEN (10),
the display will show the Radio func-
tions menu fig. 26
2)press button (13) next to
SHARX. The message ON or OFF will
appear. The default setting is ON.R-TXT FUNCTION
R-TXT option enables to receive and
display text messages provided by cer-
tain RDS stations. In addition to the
station name this function provides al-
so information on the programme be-
ing broadcast or shows the title of the
piece of music being played.
Switching on and off
Proceed as follows to switch the Ra-
diotext function on and off:
1)in Radio mode, press MEN (10):
the display will show the Radio menu
fig. 262)press (13) relevant to R-TXT. The
message ON or OFF will appear. The
default setting is OFF.
When the display shows the message
“Radiotext” and you want to change
station, proceed as follows:
1) in Radio mode, press the TU but-
ton (17) or either the (13) or (14)
button. The Radio functions menu -
excluding the Radiotext function - will
appear on the display
2) change station: the Radiotext
function, if available, will appear on the
display
fig. 26F0E3001g

97
CONNECT NAV
NAVIGATOR
TIM FUNCTION
The device is provided with vocal
digital memory. Up to 14 traffic mes-
sages having max. overall length equal
to or lower than 4 minutes can be
stored automatically.
According to the length of the new
traffic messages, the oldest ones are
cleared.
IMPORTANT Traffic messages
longer than four minutes are record-
ed partly. In this case the message
OVERFLOW will appear on the dis-
play.
When a new traffic message arrives
while you are listening to a TIM mes-
sage, the latter one is stopped and the
new arrived message is transmitted.Storing traffic messages
Traffic messages are stored auto-
matically when listening to TA stations
or when the TIM function is on with
the device off.
Messages can be stored for 2 hours
or 24 hours (see next paragraph
“Choosing how long to store traffic
messages“).
If listening to a station not broad-
casting traffic info, switching the device
off with the TIM function on will start
automatically the search for a TA sta-
tion.Choosing how long to store
traffic messages
With the device on, proceed as fol-
lows to choose how long to store traf-
fic messages:
1) press T (8) to display the Traffic
menufig. 25
2) use the knob/button (11) to se-
lect TIM/TMCfig. 27, then press the
knob/button (11) to confirm
fig. 27F0E3216g

98
CONNECT NAV
NAVIGATOR
3) press (14) relevant to TIM fig. 28,
until the required indication is dis-
played 2H = the message will be
stored for 2 hours; 24H = the mes-
sage will be stored for 24 hours or
OFF (function off)
IMPORTANT When the Traffic
menu is displayed, the TIM function
can be switched on/off by pressing the
T button (8) for over 2 seconds.
When switching the device off, the
message “GOODBYE” will appear on
the display together with the traffic
message storage time previously se-
lected.Listening to stored
traffic messages
Proceed as follows:
1)press T (8) to display the Traffic
menu fig. 25
2)use the knob/button (11) to se-
lect TIM/TMC fig. 27, then press the
knob/button (11) to confirm
3) press (13) relevant to TIM-INFO.
The last stored message has the high-
est number (14) and will be played
first; then all the other messages will
be played in decreasing sequence. The
display will also show the time of ar-
rival of the message being played.Once the message playing procedure
is over, the system will automatically
switch over to the last selected sound
source (Radio, CD or CD Changer).
To listen to the last selected sound
source (Radio, CD or CD Changer)
without playing all traffic messages,
press T (8) or ESC (9) button.
fig. 28F0E3214g

99
CONNECT NAV
NAVIGATOR
C C
O O
M M
P P
A A
C C
T T
D D
I I
S S
C C
P P
L L
A A
Y Y
E E
R R
( (
C C
D D
) )
A symbol indicating the audio CD,
the CD programmed sequence, the
current sound source (CD), and the
TA and TMC functions status will ap-
pear in the lower row of the display.
INSERTING AND
EJECTING A CD
Proceed as follows to insert a CD:
1)press button T(1) to open the
front panel
2)press button ı(19) to eject an in-
serted CD, if any
3) place the audio CD with the la-
bel facing upwards in the groove on
the open front panel edge
4) delicately push the CD in the slot
until the automatic mechanism takes
the CD into the player
5) close the front panel. Audio CDs can be played with the in-
ternal CD player or with the CD-
Changer (where fitted).
During CD playback, either the track
number and the playing time, or the
track number only, will appear on the
display (according to the settings, see
“CD functions” in this section).
The main CD menu fig. 29shows
the number of the tracks on the CD
and the track being played is high-
lighted. A graphic symbol progressively
indicating the playing time will appear
under the track.CD playing will then start automati-
cally. The display will show the main
CD menu fig. 29.
Proceed as follows to eject the CD:
1)press button T(1) to open the
front panel
2)press button ı(19) on the inner
side of the front panel (see section
“Controls”). The CD will be ejected
to half of its diameter
3)take the CD from the slot and re-
move it completely
4)close the front panel.
IMPORTANT Only open the front
panel to insert and eject a CD. A beep
will be heard if the front panel is left
open longer than 30 seconds. Close
the front panel to stop the warning sig-
nal.
fig. 29F0E3010g

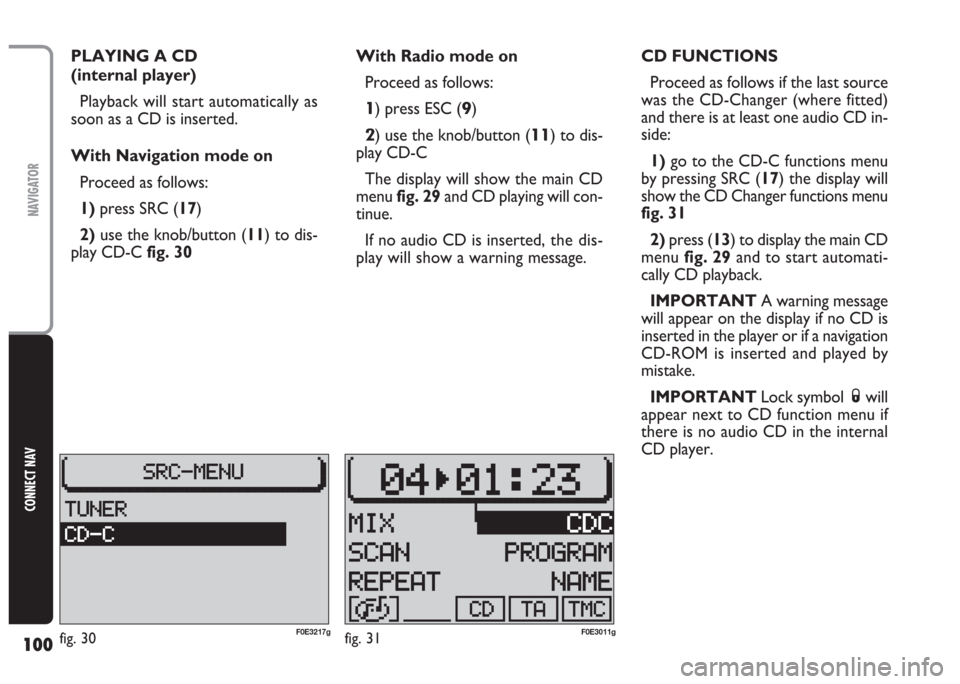

100
CONNECT NAV
NAVIGATOR
PLAYING A CD
(internal player)
Playback will start automatically as
soon as a CD is inserted.
With Navigation mode on
Proceed as follows:
1) press SRC (17)
2)use the knob/button (11) to dis-
play CD-Cfig. 30With Radio mode on
Proceed as follows:
1) press ESC (9)
2) use the knob/button (11) to dis-
play CD-C
The display will show the main CD
menu fig. 29and CD playing will con-
tinue.
If no audio CD is inserted,the dis-
play will show a warning message.CD FUNCTIONS
Proceed as follows if the last source
was the CD-Changer (where fitted)
and there is at least one audio CD in-
side:
1)go to the CD-C functions menu
by pressing SRC (17) the display will
show the CD Changer functions menu
fig. 31
2)press (13) to display the main CD
menu fig. 29and to start automati-
cally CD playback.
IMPORTANT A warning message
will appear on the display if no CD is
inserted in the player or if a navigation
CD-ROM is inserted and played by
mistake.
IMPORTANT Lock symbol Swill
appear next to CD function menu if
there is no audio CD in the internal
CD player.
fig. 30F0E3217gfig. 31F0E3011g

101
CONNECT NAV
NAVIGATOR
Switching the track playing
time/number display on and off
Proceed as follows to display the
played track number and the playing
time:
1) press the MEN button (10). The
CD menu will be displayed
2)press (13) relevant to TIME
fig. 32. ON or OFF will be displayed.
The default setting is ON.Receiving traffic
information
To switch the traffic announcement
function on and off (see “ta function”
in previous section) when listening to
a CD: briefly press the TA button (4).
The TA symbol will either appear (on)
or disappear (off) in the lower row of
the main CD menu.
SELECTING NEXT/PREVIOUS
TRACKS
To select next tracks: briefly press
§on selector (2); as soon as the last
track is reached press again §on se-
lector (2) to return to the first track
on the CD.
To play a track again or to select
the previoustrack briefly press ù
on selector (2); as soon as the first
track on the CD is reached, press
again ùon selector (2) to go back to
the last CD track.SCANNING TRACKS
If you want to listen to a certain part
of the track being played, you can scan
the track: hold ùor §on selector
(2) pressed during playback. The track
will be scanned forwards or back-
wards.
fig. 32F0E3012g

102
CONNECT NAV
NAVIGATOR
MIX FUNCTION
(random playback)
Proceed as follows to play the CD
tracks in random order:
1) press SRC (17) to display the CD
functions menu fig. 31
2) press (14) relevant to MIX fig. 33.
Press ESC (9) to turn the MIX func-
tion off.
The MIX function will end automat-
ically if the SCAN function is switched
on.SCAN FUNCTION
(scanning all tracks on a CD)
Proceed as follows to listen to the
first part of each track on the CD:
1)press SRC (17) the display will
show the CD functions menu fig. 31
2)press (14) relevant to SCAN
fig. 34.
Press ESC (9) to turn the SCAN
function off.
The SCAN function will automatical-
ly end if the MIX is switched on.REPEAT function
(repeating the cd tracks)
The REPEAT function can be used to
repeat a track.
Proceed as follows to switch the RE-
PEAT function on:
1) press SRC (17) to display the CD
functions menufig. 31
2) in CD mode, use keys ùor §
on selector (2) to choose the required
track
3)press (14) relevant to REPEAT
fig. 35.
fig. 35F0E3015gfig. 34F0E3014gfig. 33F0E3013g

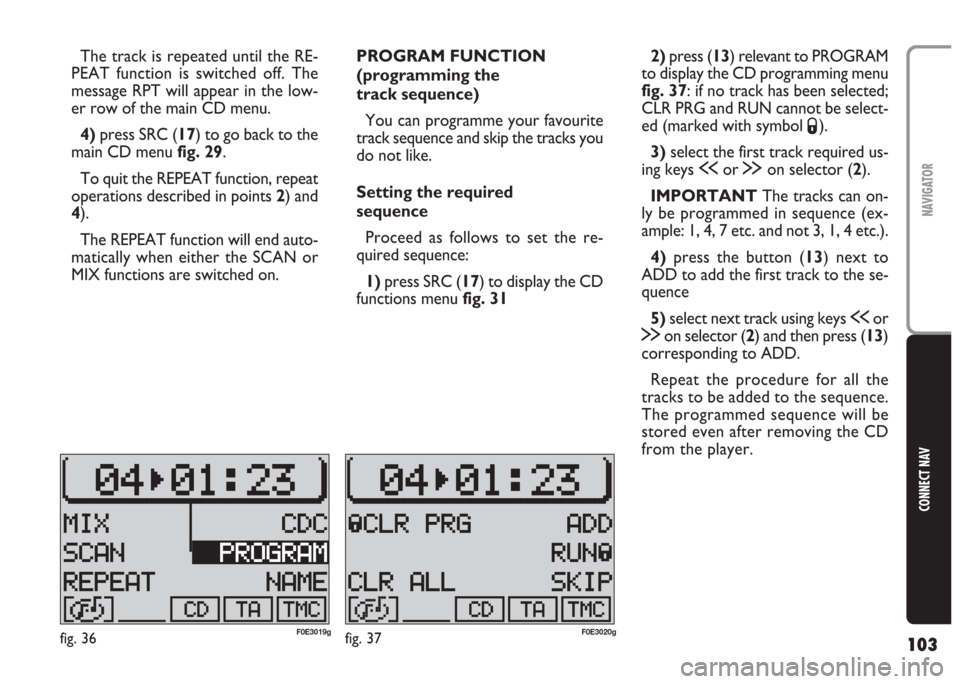

103
CONNECT NAV
NAVIGATOR
The track is repeated until the RE-
PEAT function is switched off. The
message RPT will appear in the low-
er row of the main CD menu.
4) press SRC (17) to go back to the
main CD menu fig. 29.
To quit the REPEAT function, repeat
operations described in points 2) and
4).
The REPEAT function will end auto-
matically when either the SCAN or
MIX functions are switched on.PROGRAM FUNCTION
(programming the
track sequence)
You can programme your favourite
track sequence and skip the tracks you
do not like.
Setting the required
sequence
Proceed as follows to set the re-
quired sequence:
1) press SRC (17) to display the CD
functions menufig. 312) press (13) relevant to PROGRAM
to display the CD programming menu
fig. 37: if no track has been selected;
CLR PRG and RUN cannot be select-
ed (marked with symbol
S).
3)select the first track required us-
ing keys ùor §on selector (2).
IMPORTANT The tracks can on-
ly be programmed in sequence (ex-
ample: 1, 4, 7 etc. and not 3, 1, 4 etc.).
4)press the button (13) next to
ADD to add the first track to the se-
quence
5)select next track using keys ùor
§on selector (2) and then press (13)
corresponding to ADD.
Repeat the procedure for all the
tracks to be added to the sequence.
The programmed sequence will be
stored even after removing the CD
from the player.
fig. 36F0E3019gfig. 37F0E3020g
