2003 NISSAN TEANA headlamp

HEADLAMP - HALOGEN TYPE -
LT-41
C
D
E
F
G
H
I
J
L
MA
B
LT

SchematicBKS001NN
TKWM4829E

LT-42
HEADLAMP - HALOGEN TYPE -

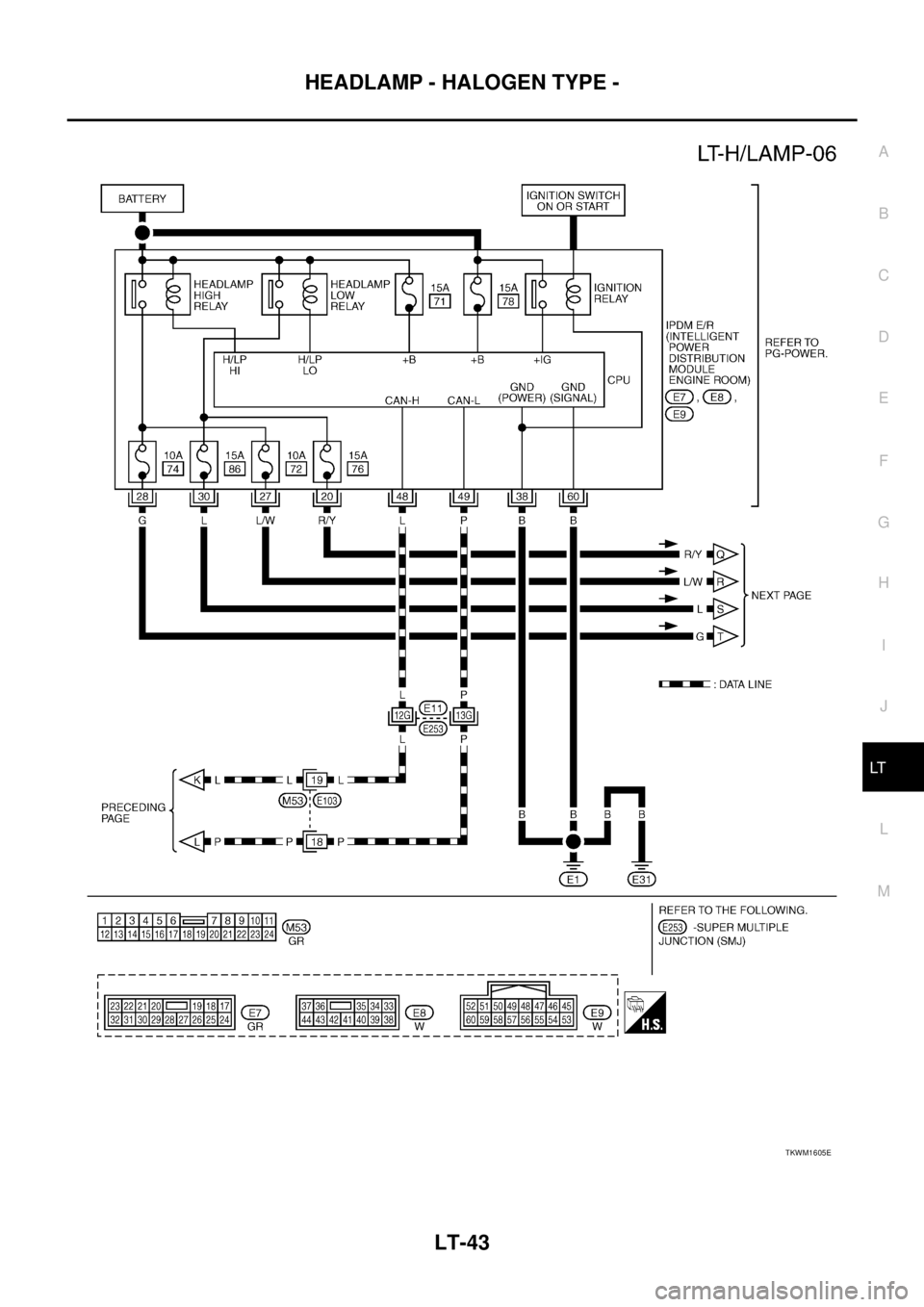

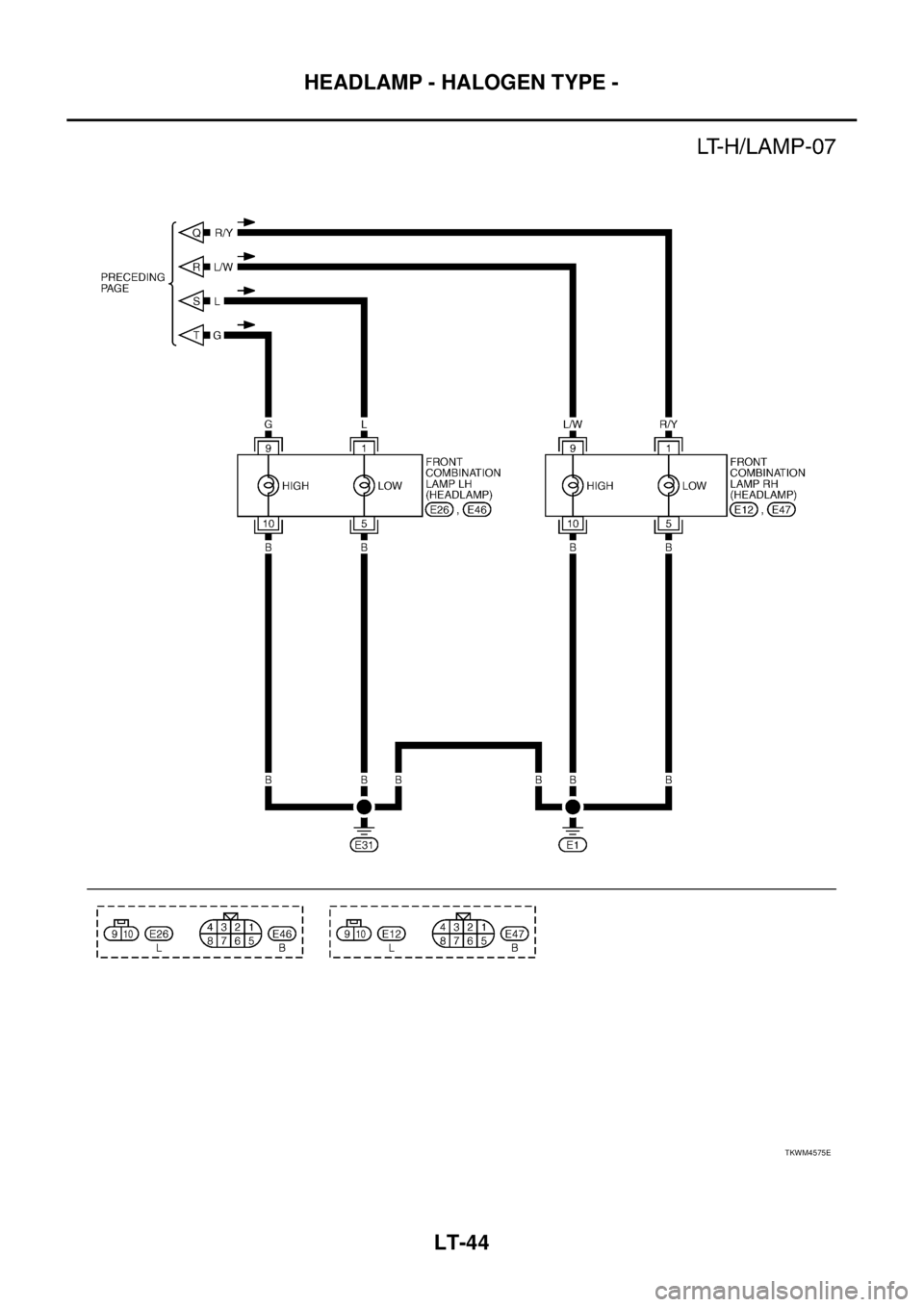

Wiring Diagram — H/LAMP —BKS001NO
TKWM4574E

HEADLAMP - HALOGEN TYPE -
LT-43
C
D
E
F
G
H
I
J
L
MA
B
LT

TKWM1605E

LT-44
HEADLAMP - HALOGEN TYPE -

TKWM4575E

HEADLAMP - HALOGEN TYPE -
LT-45
C
D
E
F
G
H
I
J
L
MA
B
LT

TKWM4830E

LT-46
HEADLAMP - HALOGEN TYPE -

Terminals and Reference Values for BCMBKS001NP
CAUTION:

Check combination switch system terminal waveform under the loaded condition with lighting
switch, turn signal switch and wiper switch OFF not to be fluctuated by overloaded.

Turn wiper intermittent dial position to 4 except when checking waveform or voltage of wiper inter-
mittent dial position. Wiper intermittent dial position can be confirmed on CONSULT-II. Refer to LT-
184, "DATA MONITOR" .
Te r -
minal
No.Wire
colorSignal nameMeasuring condition
Reference value
Ignition
switchOperation or condition
2BRCombination switch
input 5ONLighting, turn,
wiper switch
(Wiper intermittent
dial position 4)OFF Approx. 0 V
Lighting switch HIGH
BEAM position
(Operates only HIGH
BEAM switch)
Approx. 1.0 V
Lighting switch 2ND
position
Approx. 2.0 V
3R/YCombination switch
input 4ONLighting, turn,
wiper switch
(Wiper intermittent
dial position 4)OFF Approx. 0 V
Any of the conditions below

Lighting switch 2ND
position

Lighting switch PASSING
position
(Operates only PASSING
switch)
Approx. 1.0 V
11 V Ignition switch (ACC) ACC — Battery voltage
PKIB4959J
PKIC4459J
PKIB4959J

HEADLAMP - HALOGEN TYPE -
LT-47
C
D
E
F
G
H
I
J
L
MA
B
LT

34 L/WCombination switch
output 3ONLighting, turn,
wiper switch
(Wiper intermittent
dial position 4)OFF
Approx. 7.2 V
Any of the conditions below

Lighting switch 2ND
position

Lighting switch HI BEAM
position
(Operates only HI BEAM
switch)
Approx. 1.2 V
35 G/BCombination switch
output 2ONLighting, turn,
wiper switch
(Wiper intermittent
dial position 4)OFF
Approx. 7.2 V
Any of the conditions below

Lighting switch 2ND
position

Lighting switch PASSING
position
(Operates only PASSING
switch)
Approx. 1.2 V
38 R Ignition switch (ON) ON — Battery voltage
39 L CAN-H — — —
40 P CAN-L — — —
42 Y/R Battery power supply OFF — Battery voltage
52 B Ground ON — Approx. 0 V
55 W/B Battery power supply OFF — Battery voltage Te r -
minal
No.Wire
colorSignal nameMeasuring condition
Reference value
Ignition
switchOperation or condition
PKIB4960J
PKIB4958J
PKIB4960J
PKIB4958J

LT-48
HEADLAMP - HALOGEN TYPE -

Terminals and Reference Values for IPDM E/RBKS001NQ
How to Perform Trouble DiagnosisBKS001NR
1. Confirm the symptom or customer complaint.
2. Understand operation description and function description. Refer to LT- 3 8 , "
System Description" .
3. Perform the Preliminary Check. Refer to LT- 4 8 , "
Preliminary Check" .
4. Check symptom and repair or replace the cause of malfunction.
5. Does the headlamp operate normally? If YES, GO TO 6. If NO, GO TO 4.
6. INSPECTION END
Preliminary CheckBKS001NS
CHECK POWER SUPPLY AND GROUND CIRCUIT
1. CHECK FUSES AND FUSIBLE LINK
Check for blown fuses and fusible link.
Refer to LT-42, "Wiring Diagram — H/LAMP —" .
OK or NG
OK >> GO TO 2.
NG >> If fuse or fusible link is blown, be sure to eliminate cause of malfunction before installing new fuse
or fusible link. Refer to PG-3, "
POWER SUPPLY ROUTING CIRCUIT" .
Terminal
No.Wire
colorSignal nameMeasuring condition
Reference value
Ignition
switchOperation or condition
20 R/Y Headlamp low (RH) ON Lighting switch 2ND positionOFF Approx. 0 V
ON Battery voltage
27 L/W Headlamp high (RH) ONLighting switch HI BEAM or
PASSING positionOFF Approx. 0 V
ON Battery voltage
28 G Headlamp high (LH) ONLighting switch HI BEAM or
PASSING positionOFF Approx. 0 V
ON Battery voltage
30 L Headlamp low (LH) ON Lighting switch 2ND positionOFF Approx. 0 V
ON Battery voltage
38 B Ground ON — Approx. 0 V
48 L CAN− H— — —
49 P CAN− L— — —
60 B Ground ON — Approx. 0 V
Unit Power source Fuse and fusible link No.
BCMBatteryM
17
Ignition switch ACC or ON position 6
Ignition switch ON or START position 1
IPDM E/R Battery72
74
76
86
