Headlamp Does Not Change To High (One Side)BKS001N7

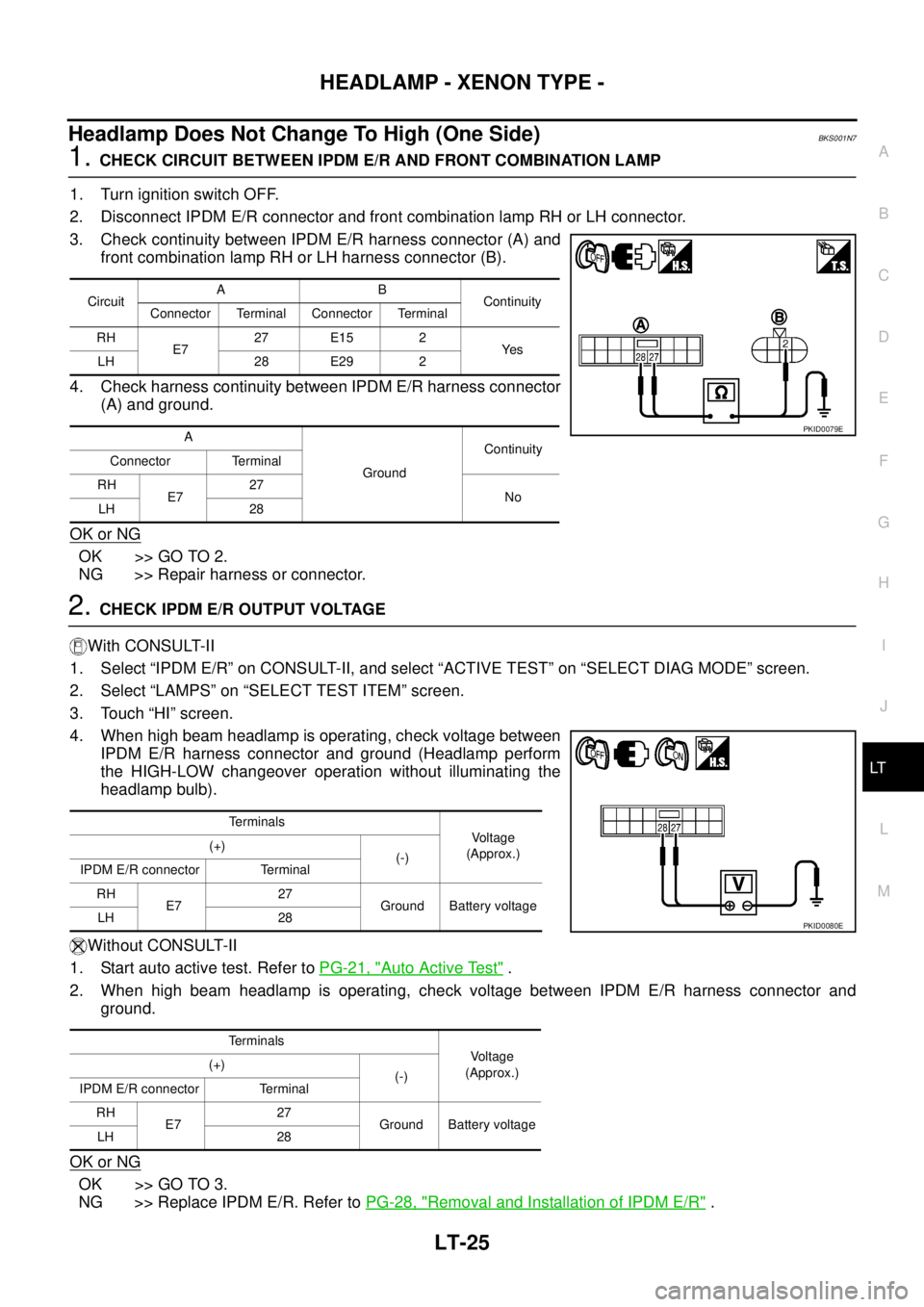

1. CHECK CIRCUIT BETWEEN IPDM E/R AND FRONT COMBINATION LAMP
1. Turn ignition switch OFF.
2. Disconnect IPDM E/R connector and front combination lamp RH or LH connector.
3. Check continuity between IPDM E/R harness connector (A) and
front combination lamp RH or LH harness connector (B).
4. Check harness continuity between IPDM E/R harness connector
(A) and ground.
OK or NG
OK >> GO TO 2.
NG >> Repair harness or connector.
2. CHECK IPDM E/R OUTPUT VOLTAGE
With CONSULT-II
1. Select “IPDM E/R” on CONSULT-II, and select “ACTIVE TEST” on “SELECT DIAG MODE” screen.
2. Select “LAMPS” on “SELECT TEST ITEM” screen.
3. Touch “HI” screen.
4. When high beam headlamp is operating, check voltage between
IPDM E/R harness connector and ground (Headlamp perform
the HIGH-LOW changeover operation without illuminating the
headlamp bulb).
Without CONSULT-II
1. Start auto active test. Refer to PG-21, "
Auto Active Test" .
2. When high beam headlamp is operating, check voltage between IPDM E/R harness connector and
ground.
OK or NG
OK >> GO TO 3.
NG >> Replace IPDM E/R. Refer to PG-28, "
Removal and Installation of IPDM E/R" .
CircuitAB
Continuity
Connector Terminal Connector Terminal
RH
E727 E15 2
Ye s
LH 28 E29 2
A
GroundContinuity
Connector Terminal
RH
E727
No
LH 28
PKID0079E
Terminals
Voltage
(Approx.) (+)
(-)
IPDM E/R connector Terminal
RH
E727
Ground Battery voltage
LH 28
Terminals
Voltage
(Approx.) (+)
(-)
IPDM E/R connector Terminal
RH
E727
Ground Battery voltage
LH 28
PKID0080E

LT-26
HEADLAMP - XENON TYPE -

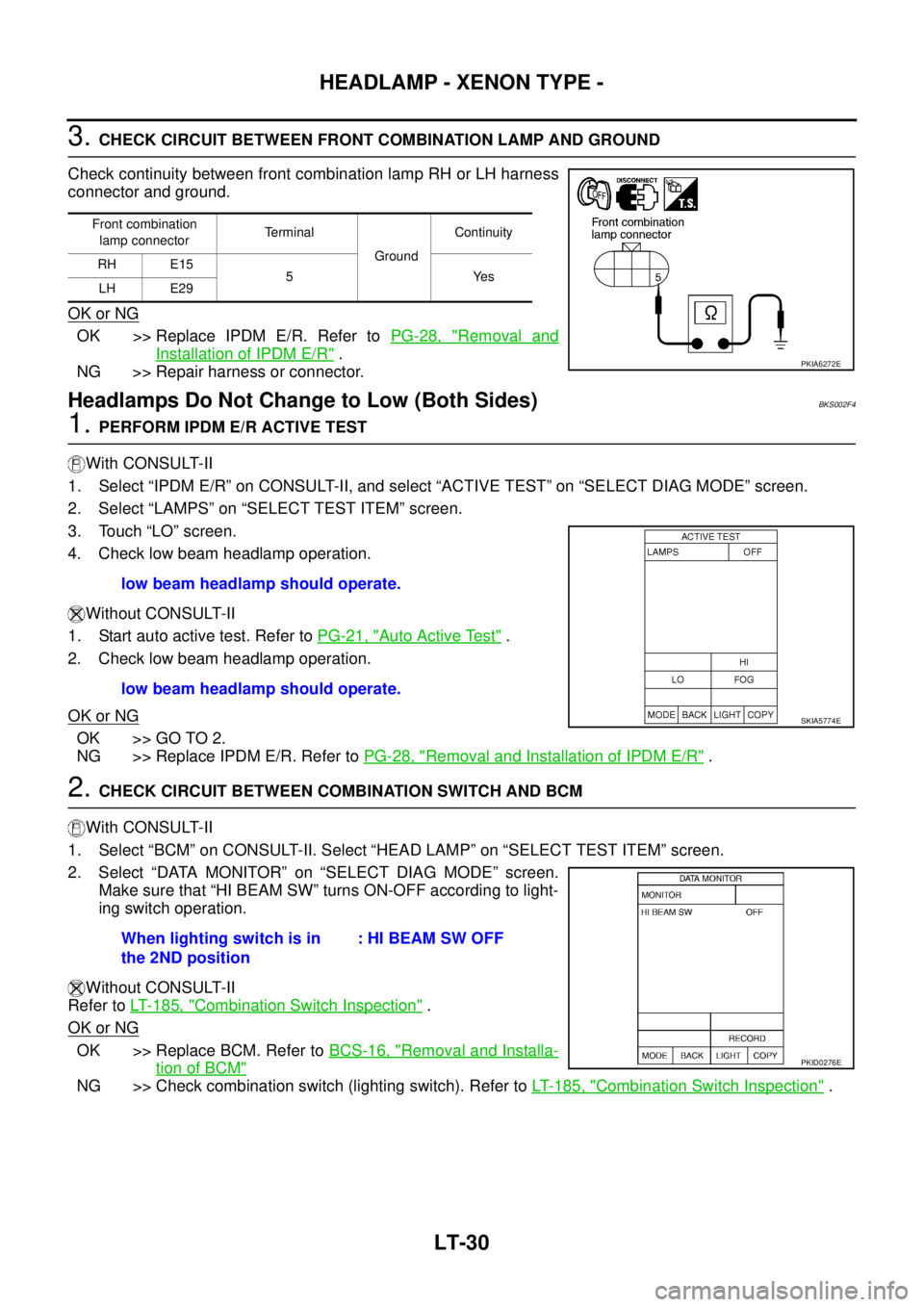

3. CHECK CIRCUIT BETWEEN FRONT COMBINATION LAMP AND GROUND
Check continuity between front combination lamp RH or LH harness
connector and ground.
OK or NG
OK >> Replace front combination lamp.
NG >> Repair harness or connector.
High Beam Indicator Does Not IlluminateBKS001N8

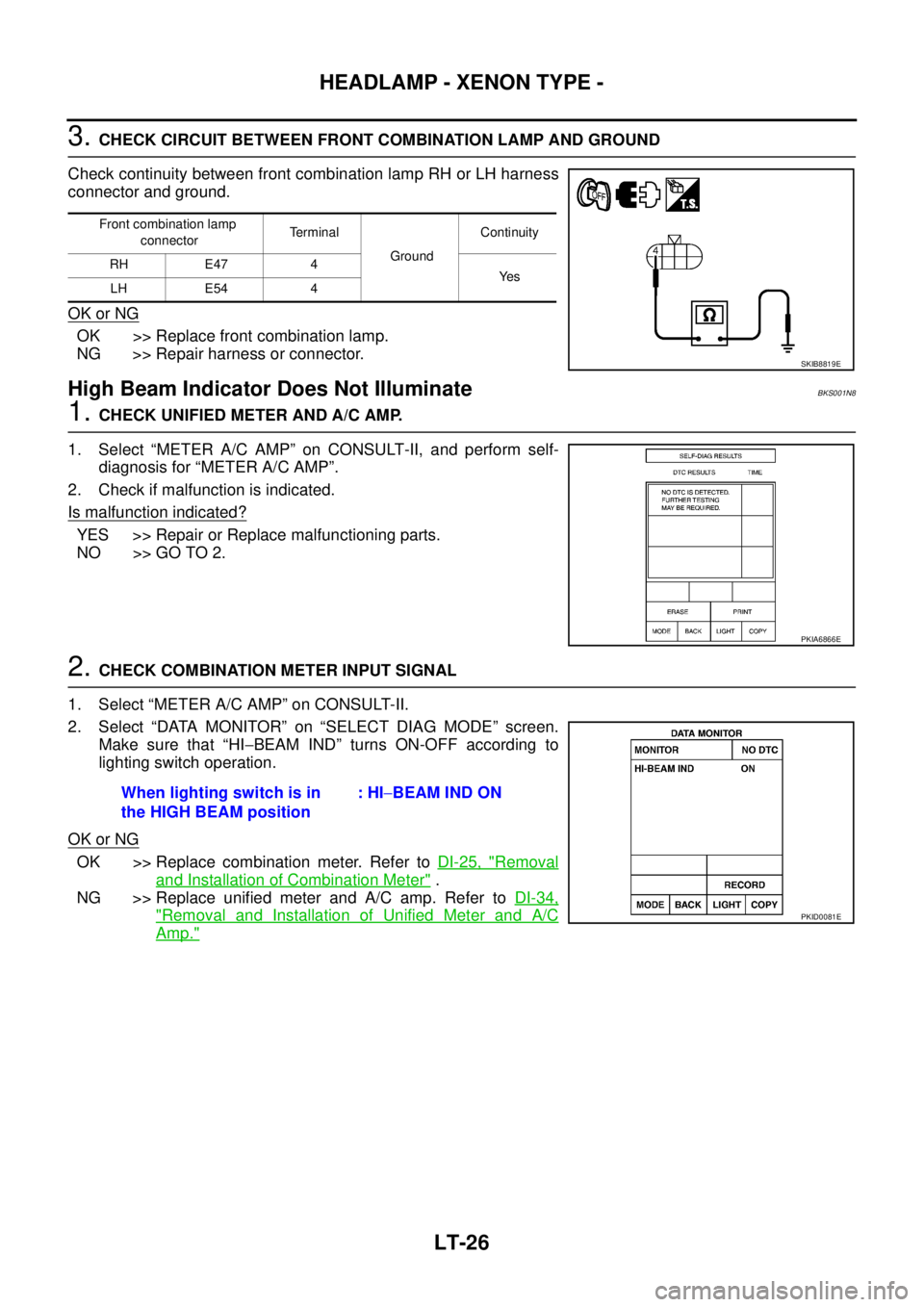

1. CHECK UNIFIED METER AND A/C AMP.
1. Select “METER A/C AMP” on CONSULT-II, and perform self-
diagnosis for “METER A/C AMP”.
2. Check if malfunction is indicated.
Is malfunction indicated?
YES >> Repair or Replace malfunctioning parts.
NO >> GO TO 2.
2. CHECK COMBINATION METER INPUT SIGNAL
1. Select “METER A/C AMP” on CONSULT-II.
2. Select “DATA MONITOR” on “SELECT DIAG MODE” screen.
Make sure that “HI−BEAM IND” turns ON-OFF according to
lighting switch operation.
OK or NG
OK >> Replace combination meter. Refer to DI-25, "Removal
and Installation of Combination Meter" .
NG >> Replace unified meter and A/C amp. Refer to DI-34,
"Removal and Installation of Unified Meter and A/C
Amp."
Front combination lamp
connectorTerminal
GroundContinuity
RH E47 4
Ye s
LH E54 4
SKIB8819E
PKIA6866E
When lighting switch is in
the HIGH BEAM position: HI−BEAM IND ON
PKID0081E

HEADLAMP - XENON TYPE -
LT-27
C
D
E
F
G
H
I
J
L
MA
B
LT

Headlamp Do Not Illuminate (Both Sides)BKS001N9

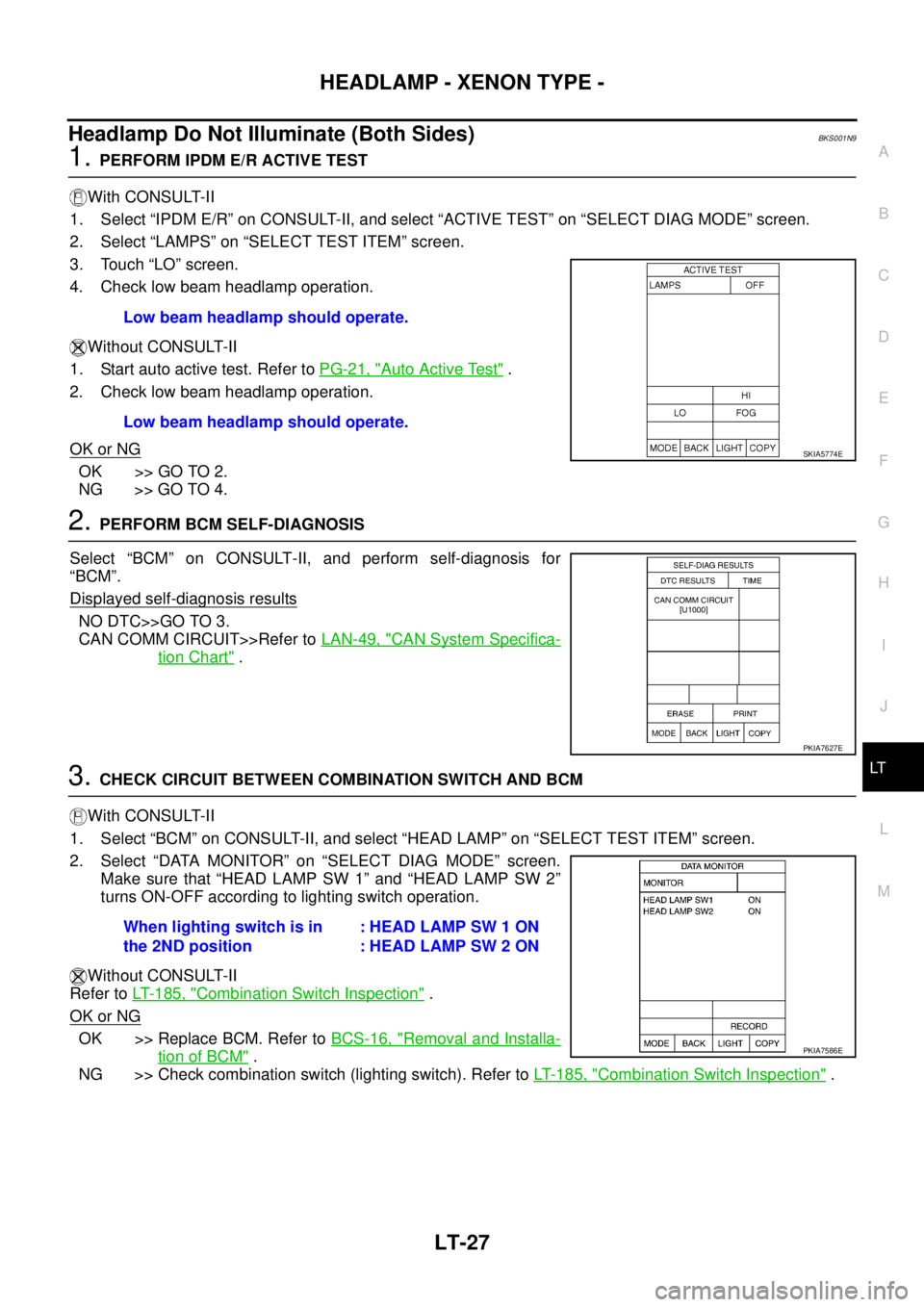

1. PERFORM IPDM E/R ACTIVE TEST
With CONSULT-II
1. Select “IPDM E/R” on CONSULT-II, and select “ACTIVE TEST” on “SELECT DIAG MODE” screen.
2. Select “LAMPS” on “SELECT TEST ITEM” screen.
3. Touch “LO” screen.
4. Check low beam headlamp operation.
Without CONSULT-II
1. Start auto active test. Refer to PG-21, "
Auto Active Test" .
2. Check low beam headlamp operation.
OK or NG
OK >> GO TO 2.
NG >> GO TO 4.
2. PERFORM BCM SELF-DIAGNOSIS
Select “BCM” on CONSULT-II, and perform self-diagnosis for
“BCM”.
Displayed self
-diagnosis results
NO DTC>>GO TO 3.
CAN COMM CIRCUIT>>Refer to LAN-49, "
CAN System Specifica-
tion Chart" .
3. CHECK CIRCUIT BETWEEN COMBINATION SWITCH AND BCM
With CONSULT-II
1. Select “BCM” on CONSULT-II, and select “HEAD LAMP” on “SELECT TEST ITEM” screen.
2. Select “DATA MONITOR” on “SELECT DIAG MODE” screen.
Make sure that “HEAD LAMP SW 1” and “HEAD LAMP SW 2”
turns ON-OFF according to lighting switch operation.
Without CONSULT-II
Refer to LT- 1 8 5 , "
Combination Switch Inspection" .
OK or NG
OK >> Replace BCM. Refer to BCS-16, "Removal and Installa-
tion of BCM" .
NG >> Check combination switch (lighting switch). Refer to LT- 1 8 5 , "
Combination Switch Inspection" . Low beam headlamp should operate.
Low beam headlamp should operate.
SKIA5774E
PKIA7627E
When lighting switch is in
the 2ND position: HEAD LAMP SW 1 ON
: HEAD LAMP SW 2 ON
PKIA7586E

LT-28
HEADLAMP - XENON TYPE -

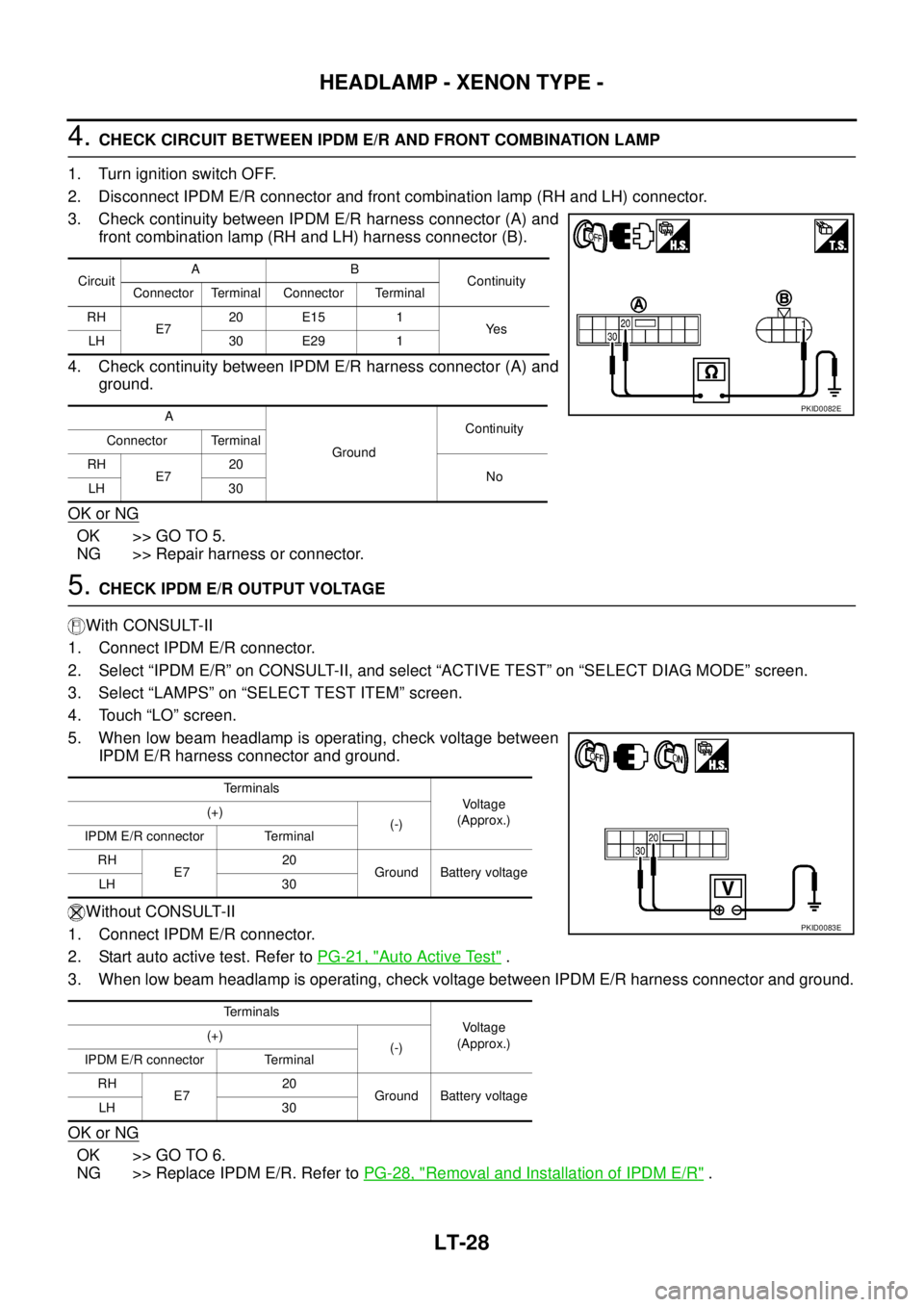

4. CHECK CIRCUIT BETWEEN IPDM E/R AND FRONT COMBINATION LAMP
1. Turn ignition switch OFF.
2. Disconnect IPDM E/R connector and front combination lamp (RH and LH) connector.
3. Check continuity between IPDM E/R harness connector (A) and
front combination lamp (RH and LH) harness connector (B).
4. Check continuity between IPDM E/R harness connector (A) and
ground.
OK or NG
OK >> GO TO 5.
NG >> Repair harness or connector.
5. CHECK IPDM E/R OUTPUT VOLTAGE
With CONSULT-II
1. Connect IPDM E/R connector.
2. Select “IPDM E/R” on CONSULT-II, and select “ACTIVE TEST” on “SELECT DIAG MODE” screen.
3. Select “LAMPS” on “SELECT TEST ITEM” screen.
4. Touch “LO” screen.
5. When low beam headlamp is operating, check voltage between
IPDM E/R harness connector and ground.
Without CONSULT-II
1. Connect IPDM E/R connector.
2. Start auto active test. Refer to PG-21, "
Auto Active Test" .
3. When low beam headlamp is operating, check voltage between IPDM E/R harness connector and ground.
OK or NG
OK >> GO TO 6.
NG >> Replace IPDM E/R. Refer to PG-28, "
Removal and Installation of IPDM E/R" .
CircuitAB
Continuity
Connector Terminal Connector Terminal
RH
E720 E15 1
Ye s
LH 30 E29 1
A
GroundContinuity
Connector Terminal
RH
E720
No
LH 30
PKID0082E
Terminals
Voltage
(Approx.) (+)
(-)
IPDM E/R connector Terminal
RH
E720
Ground Battery voltage
LH 30
Terminals
Voltage
(Approx.) (+)
(-)
IPDM E/R connector Terminal
RH
E720
Ground Battery voltage
LH 30
PKID0083E

HEADLAMP - XENON TYPE -
LT-29
C
D
E
F
G
H
I
J
L
MA
B
LT

6. CHECK CIRCUIT BETWEEN FRONT COMBINATION LAMP AND GROUND
1. Turn ignition switch OFF.
2. Check continuity between front combination lamp (RH and LH)
harness connector and ground.
OK or NG
OK >> Check headlamp harness and connectors, ballasts (HID
control unit), and xenon bulbs. Refer to LT- 3 2 , "
Xenon
Headlamp Trouble Diagnosis" .
NG >> Repair harness or connector.
Headlamp Does Not Illuminate (One Side)BKS001NA
1. CHECK BULB
Check ballasts (HID control unit) and xenon bulb of lamp which does not illuminate. Refer to LT- 3 2 , "
Xenon
Headlamp Trouble Diagnosis" .
OK or NG
OK >> GO TO 2.
NG >> Repair malfunctioning parts.
2. CHECK CIRCUIT BETWEEN IPDM E/R AND FRONT COMBINATION LAMP
1. Turn ignition switch OFF.
2. Disconnect IPDM E/R connector and front combination lamp RH or LH connector.
3. Check continuity between IPDM E/R harness connector (A) and
front combination lamp RH or LH harness connector (B).
4. Check continuity between IPDM E/R harness connector (A) and
ground.
OK or NG
OK >> GO TO 3.
NG >> Repair harness or connector.
Front combination lamp
connectorTe r m i n a l
GroundContinuity
RH E15 5
Ye s
LH E29 5
PKIA6272E
CircuitAB
Continuity
Connector Terminal Connector Terminal
RH
E720 E15 1
Ye s
LH 30 E29 1
A
GroundContinuity
Connector Terminal
RH
E720
No
LH 30
PKID0082E

LT-30
HEADLAMP - XENON TYPE -

3. CHECK CIRCUIT BETWEEN FRONT COMBINATION LAMP AND GROUND
Check continuity between front combination lamp RH or LH harness
connector and ground.
OK or NG
OK >> Replace IPDM E/R. Refer to PG-28, "Removal and
Installation of IPDM E/R" .
NG >> Repair harness or connector.
Headlamps Do Not Change to Low (Both Sides)BKS002F4
1. PERFORM IPDM E/R ACTIVE TEST
With CONSULT-II
1. Select “IPDM E/R” on CONSULT-II, and select “ACTIVE TEST” on “SELECT DIAG MODE” screen.
2. Select “LAMPS” on “SELECT TEST ITEM” screen.
3. Touch “LO” screen.
4. Check low beam headlamp operation.
Without CONSULT-II
1. Start auto active test. Refer to PG-21, "
Auto Active Test" .
2. Check low beam headlamp operation.
OK or NG
OK >> GO TO 2.
NG >> Replace IPDM E/R. Refer to PG-28, "
Removal and Installation of IPDM E/R" .
2. CHECK CIRCUIT BETWEEN COMBINATION SWITCH AND BCM
With CONSULT-II
1. Select “BCM” on CONSULT-II. Select “HEAD LAMP” on “SELECT TEST ITEM” screen.
2. Select “DATA MONITOR” on “SELECT DIAG MODE” screen.
Make sure that “HI BEAM SW” turns ON-OFF according to light-
ing switch operation.
Without CONSULT-II
Refer to LT- 1 8 5 , "
Combination Switch Inspection" .
OK or NG
OK >> Replace BCM. Refer to BCS-16, "Removal and Installa-
tion of BCM"
NG >> Check combination switch (lighting switch). Refer to LT- 1 8 5 , "Combination Switch Inspection" .
Front combination
lamp connectorTerminal
Ground Continuity
RH E15
5Yes
LH E29
PKIA6272E
low beam headlamp should operate.
low beam headlamp should operate.
SKIA5774E
When lighting switch is in
the 2ND position: HI BEAM SW OFF
PKID0276E

HEADLAMP - XENON TYPE -
LT-31
C
D
E
F
G
H
I
J
L
MA
B
LT

Headlamps Do Not Turn OFFBKS001NB

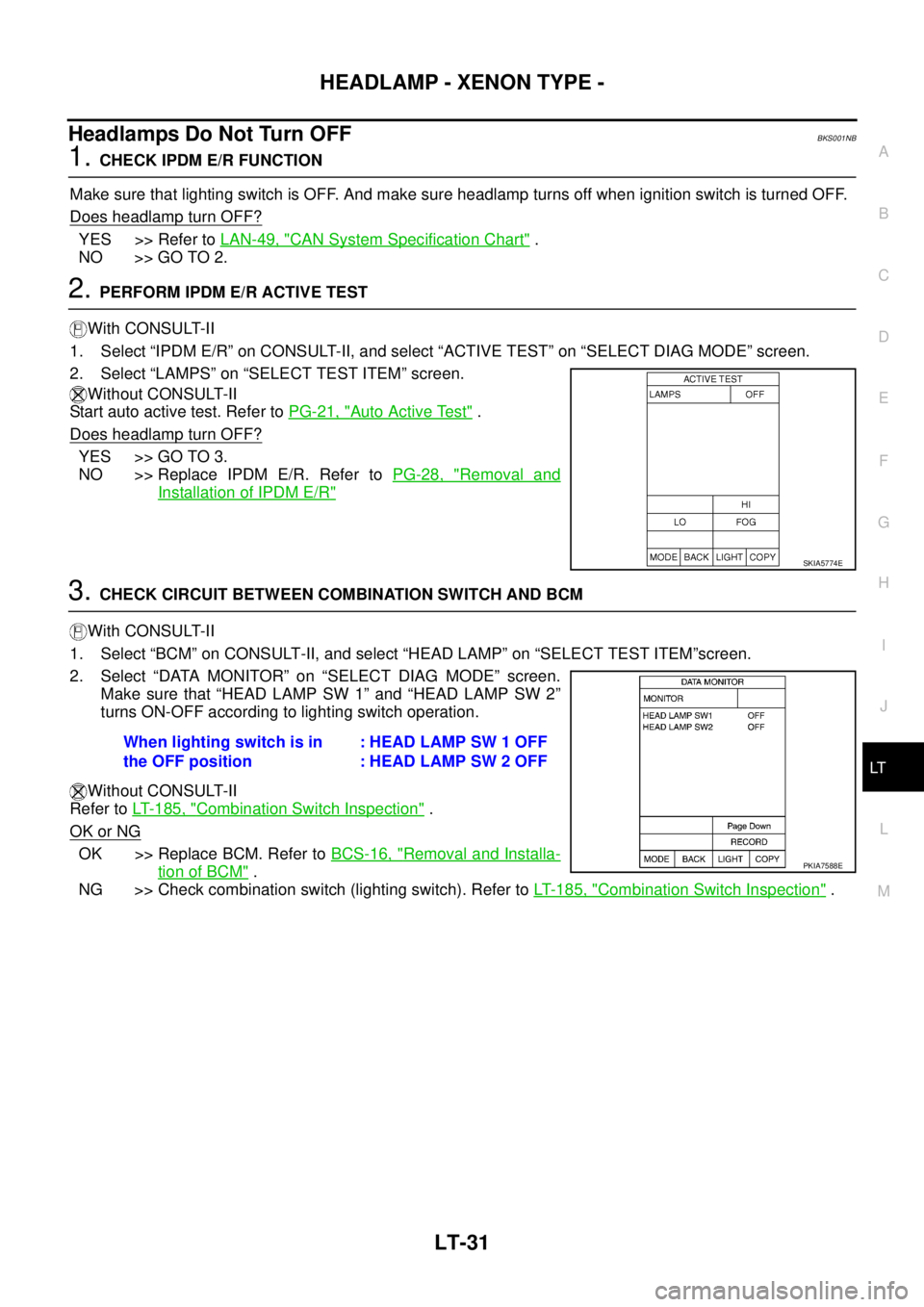

1. CHECK IPDM E/R FUNCTION
Make sure that lighting switch is OFF. And make sure headlamp turns off when ignition switch is turned OFF.
Does headlamp turn OFF?
YES >> Refer to LAN-49, "CAN System Specification Chart" .
NO >> GO TO 2.
2. PERFORM IPDM E/R ACTIVE TEST
With CONSULT-II
1. Select “IPDM E/R” on CONSULT-II, and select “ACTIVE TEST” on “SELECT DIAG MODE” screen.
2. Select “LAMPS” on “SELECT TEST ITEM” screen.
Without CONSULT-II
Start auto active test. Refer to PG-21, "
Auto Active Test" .
Does headlamp turn OFF?
YES >> GO TO 3.
NO >> Replace IPDM E/R. Refer to PG-28, "
Removal and
Installation of IPDM E/R"
3. CHECK CIRCUIT BETWEEN COMBINATION SWITCH AND BCM
With CONSULT-II
1. Select “BCM” on CONSULT-II, and select “HEAD LAMP” on “SELECT TEST ITEM”screen.
2. Select “DATA MONITOR” on “SELECT DIAG MODE” screen.
Make sure that “HEAD LAMP SW 1” and “HEAD LAMP SW 2”
turns ON-OFF according to lighting switch operation.
Without CONSULT-II
Refer to LT- 1 8 5 , "
Combination Switch Inspection" .
OK or NG
OK >> Replace BCM. Refer to BCS-16, "Removal and Installa-
tion of BCM" .
NG >> Check combination switch (lighting switch). Refer to LT- 1 8 5 , "
Combination Switch Inspection" .
SKIA5774E
When lighting switch is in
the OFF position: HEAD LAMP SW 1 OFF
: HEAD LAMP SW 2 OFF
PKIA7588E

LT-32
HEADLAMP - XENON TYPE -

General Information for Xenon Headlamp Trouble DiagnosisBKS001NC
In most cases, malfunction of xenon headlamp - “does not illuminate”, “flickers” or “dark” - is caused by an
abnormal xenon bulb. An abnormal HID control unit or lamp housing, however, may be a cause. Be sure to
perform trouble diagnosis following the steps described below.
Caution:BKS001ND

Installation or removal of the connector must be done with the lighting switch OFF.

When the lamp is illuminated (when the lighting switch is ON), never touch the harness, HID control unit,
inside of the lamp, or the lamp metal parts.

To check illumination, temporarily install lamp in the vehicle. Be sure to connect power at the vehicle side
connector.

If the error can be traced directly to the electrical system, first check for items such as burned-out fuses
and fusible links, broken wires or loose connectors, pulled-out terminals, and improper connections.

Never work with wet hands.

Using a tester for HID control unit circuit trouble diagnosis is prohibited.

Disassembling the HID control unit or harnesses (bulb socket harness, ECM harness) is prohibited.

Immediately after illumination, the light intensity and color will fluctuate, but there is nothing wrong.

When the bulb has reached the end of its lifetime, the brightness may drop significantly, it may flash
repeatedly, or the light may turn a reddish color.
Xenon Headlamp Trouble DiagnosisBKS001NE
1. CHECK 1: XENON HEADLAMP LIGHTING
Install normal xenon bulb to corresponding xenon bulb headlamp, and check if lamp lights up.
OK or NG
OK >> Replace xenon bulb.
NG >> GO TO 2.
2. CHECK 2: XENON HEADLAMP LIGHTING
Install normal HID control unit to corresponding xenon headlamp, and check if lamp lights up.
OK or NG
OK >> Replace HID control unit.
NG >> GO TO 3.
3. CHECK 3: XENON HEADLAMP LIGHTING
Install normal xenon lamp housing assembly to corresponding xenon headlamp, and check if lamp lights up.
OK or NG
OK >> Replace xenon headlamp housing assembly.
NG >> INSPECTION END
