2003 NISSAN TEANA headlamp

HEADLAMP - XENON TYPE -
LT-33
C
D
E
F
G
H
I
J
L
MA
B
LT

Aiming AdjustmentBKS001NF
PREPARATION BEFORE ADJUSTING
For Details, Refer To the Regulations In Your Own Country.
Before performing aiming adjustment, check the following.
1. Keep all tires inflated to correct pressures.
2. Place vehicle on level ground.
3. Set that there is no-load in vehicle other than the driver (or equivalent weight placed in driver's position).
Coolant, engine oil filled up to correct level and full fuel tank.
LOW BEAM AND HIGH BEAM
1. Turn headlamp low beam ON.

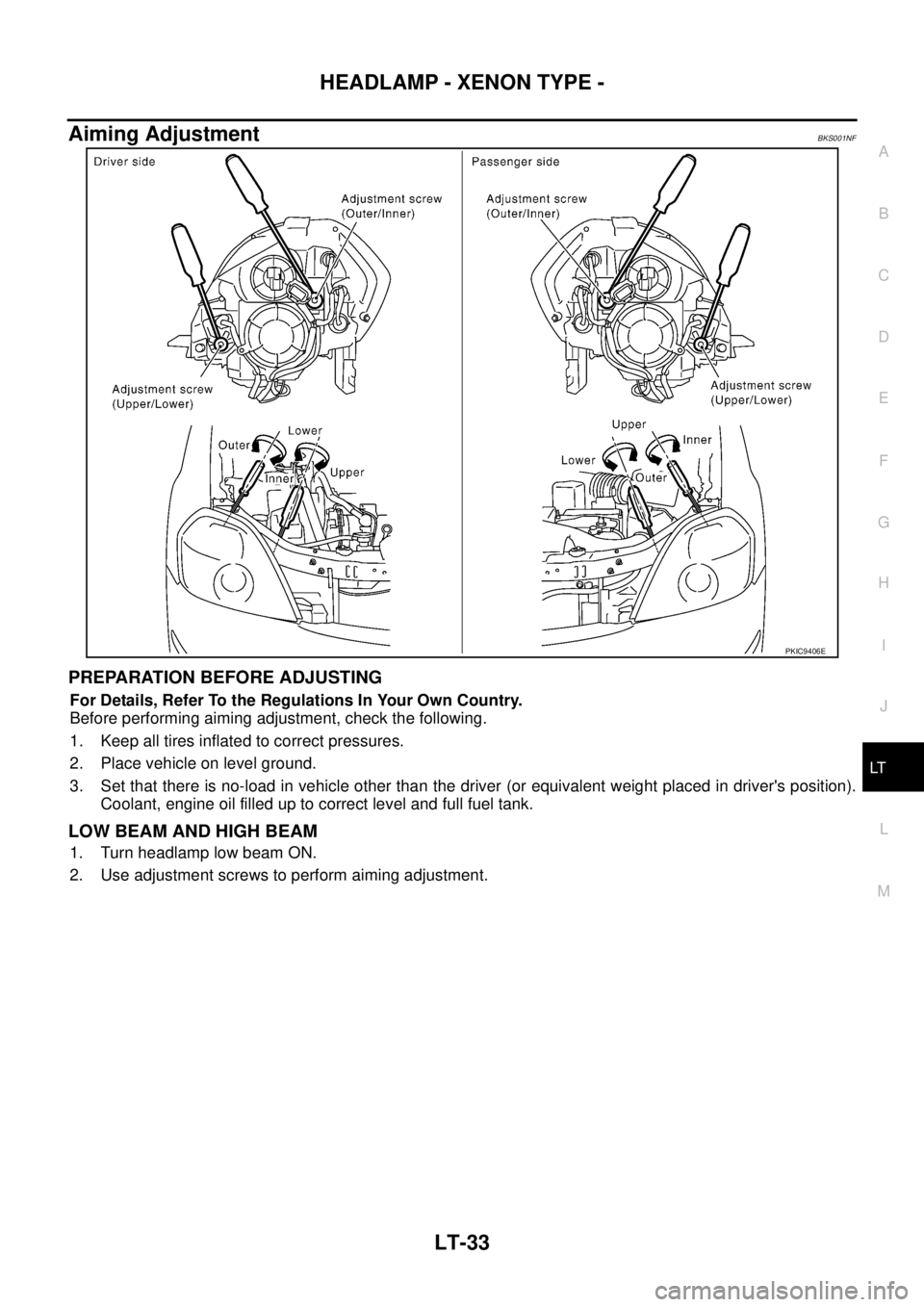

2. Use adjustment screws to perform aiming adjustment.
PKIC9406E

LT-34
HEADLAMP - XENON TYPE -

ADJUSTMENT USING AN ADJUSTMENT SCREEN (LIGHT/DARK BORDERLINE)
If the vehicle front body has been repaired and/or the headlamp assembly has been replaced, check aiming.

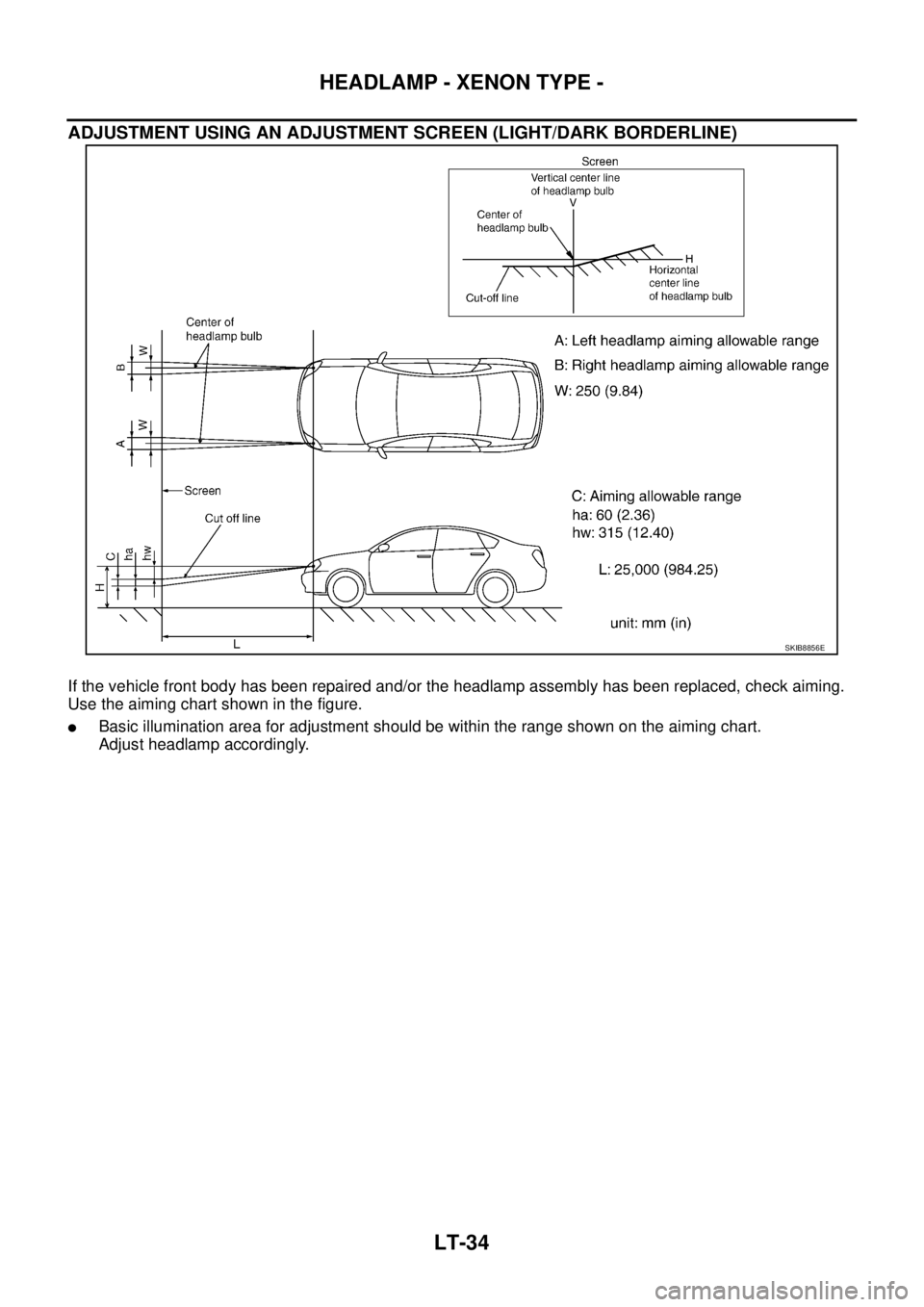

Use the aiming chart shown in the figure.

Basic illumination area for adjustment should be within the range shown on the aiming chart.
Adjust headlamp accordingly.
SKIB8856E

HEADLAMP - XENON TYPE -
LT-35
C
D
E
F
G
H
I
J
L
MA
B
LT

Bulb ReplacementBKS001NG
HEADLAMP HIGH/LOW BEAM
1. Turn lighting switch OFF.
2. Disconnect negative battery cable or remove circuit fuse.
3. Remove washer tank inlet when replacing bulb RH. Refer to WW-38, "
Removal and Installation of Washer
Ta n k" .
Remove air cleaner case when replacing bulb LH. Refer to EM-17, "
Removal and Installation" (models
with QR engine), or EM-131, "
Removal and Installation" (models with VQ engine).
4. Turn plastic cap counterclockwise and unlock it.
5. Turn xenon bulb socket (1) counterclockwise and unlock it.
6. Unlock retaining spring and remove bulb from headlamp.
BENDING LAMP
1. Turn lighting switch OFF.
2. Remove washer tank inlet when replacing bulb RH. Refer to WW-38, "
Removal and Installation of Washer
Ta n k" .
Remove air cleaner case when replacing bulb LH. Refer to EM-17, "
Removal and Installation" (models
with QR engine), or EM-131, "
Removal and Installation" (models with VQ engine).
3. Turn plastic cap counterclockwise and unlock it.
4. Remove the socket connected to the bulb.
5. Unlock retaining spring and remove bulb from headlamp.
PARKING LAMP
1. Turn lighting switch OFF.
2. Remove fender protector (front). Refer to EI-23, "
Removal and Installation" .
3. Turn bulb socket counterclockwise and unlock it.
4. Remove bulb from its socket.
FRONT TURN SIGNAL LAMP
1. Turn lighting switch OFF.
2. Remove fender protector (front). Refer to EI-23, "
Removal and Installation" .
3. Turn bulb socket counterclockwise and unlock it.
4. Remove bulb from its socket.
CAUTION:
After installing bulb, be sure to install plastic cap and bulb socket securely to insure watertight-
ness.Headlamp high/low beam : 12V - 35W (D2S)
PKIC9216J
Bending lamp : 12V - 55W (H7)
Parking lamp : 12V - 5W
Front turn signal lamp : 12V - 21W (amber)

LT-36
HEADLAMP - XENON TYPE -

Removal and InstallationBKS001NH
REMOVAL
1. Disconnect negative battery cable or remove circuit fuse.
2. Remove front bumper. Refer to EI-14, "
Removal and Installation" .
3. Remove headlamp mounting bolts (1).
4. Remove plastics bumper bracket, then pull headlamp (2) toward
vehicle front, disconnect connector, and remove headlamp.
INSTALLATION
Note the following, and installation is the reverse order of removal.
NOTE:
After installation, perform aiming adjustment. Refer to LT- 3 3 , "
Aiming Adjustment" .
PKIC9215J
Headlamp mounting bolt : 5.1 N·m (0.52 kg-m, 45 in-lb)

HEADLAMP - XENON TYPE -
LT-37
C
D
E
F
G
H
I
J
L
MA
B
LT

Disassembly and AssemblyBKS001NI
DISASSEMBLY
1. Turn plastic cap counterclockwise and unlock it.
2. Turn xenon bulb socket counterclockwise, and unlock it.
3. Unlock retaining spring, and remove xenon bulb (high/low).
4. Remove HID control unit screws.
5. Disconnect connectors and ground screw from the HID control unit.
6. Remove xenon bulb socket from headlamp housing assembly.
7. Disconnect bending lamp bulb socket.
8. Unlock retaining spring and remove bending lamp bulb.
9. Turn parking lamp bulb socket counterclockwise and unlock it.
10. Remove parking lamp bulb from its socket.
11. Turn front turn signal lamp bulb socket counterclockwise and unlock it.
12. Remove front turn signal lamp bulb from its socket.
ASSEMBLY
Note the following, and assembly is the reverse order of disassembly.
CAUTION:

When HID control unit is removed, reinstall it securely and avoid any looseness.

After installing bulb, be sure to install plastic cap and bulb socket securely to insure watertight-
ness.

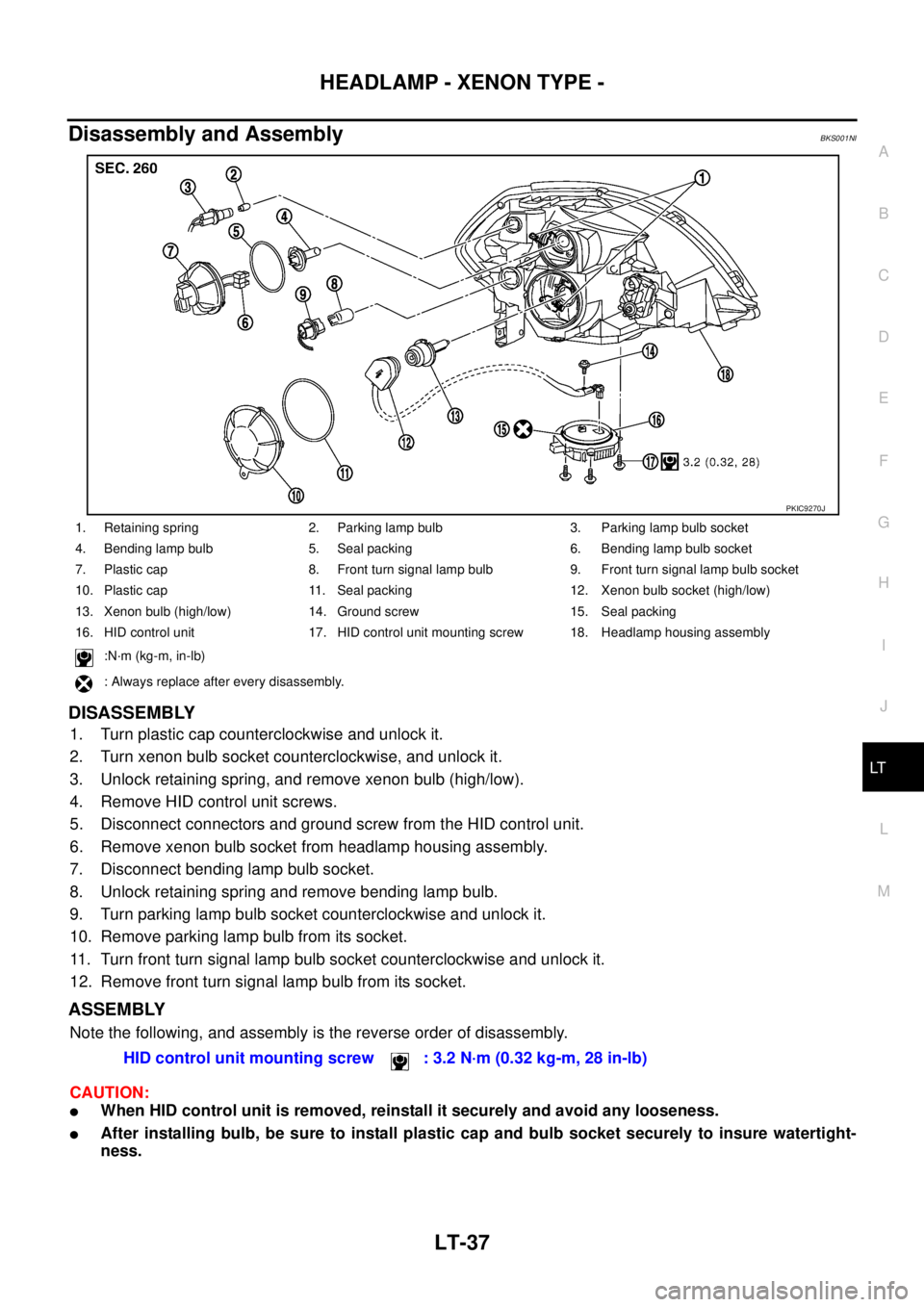

1. Retaining spring 2. Parking lamp bulb 3. Parking lamp bulb socket
4. Bending lamp bulb 5. Seal packing 6. Bending lamp bulb socket
7. Plastic cap 8. Front turn signal lamp bulb 9. Front turn signal lamp bulb socket
10. Plastic cap 11. Seal packing 12. Xenon bulb socket (high/low)
13. Xenon bulb (high/low) 14. Ground screw 15. Seal packing
16. HID control unit 17. HID control unit mounting screw 18. Headlamp housing assembly
:N·m (kg-m, in-lb)
: Always replace after every disassembly.
PKIC9270J
HID control unit mounting screw : 3.2 N·m (0.32 kg-m, 28 in-lb)

LT-38
HEADLAMP - HALOGEN TYPE -

HEADLAMP - HALOGEN TYPE -PFP:26010

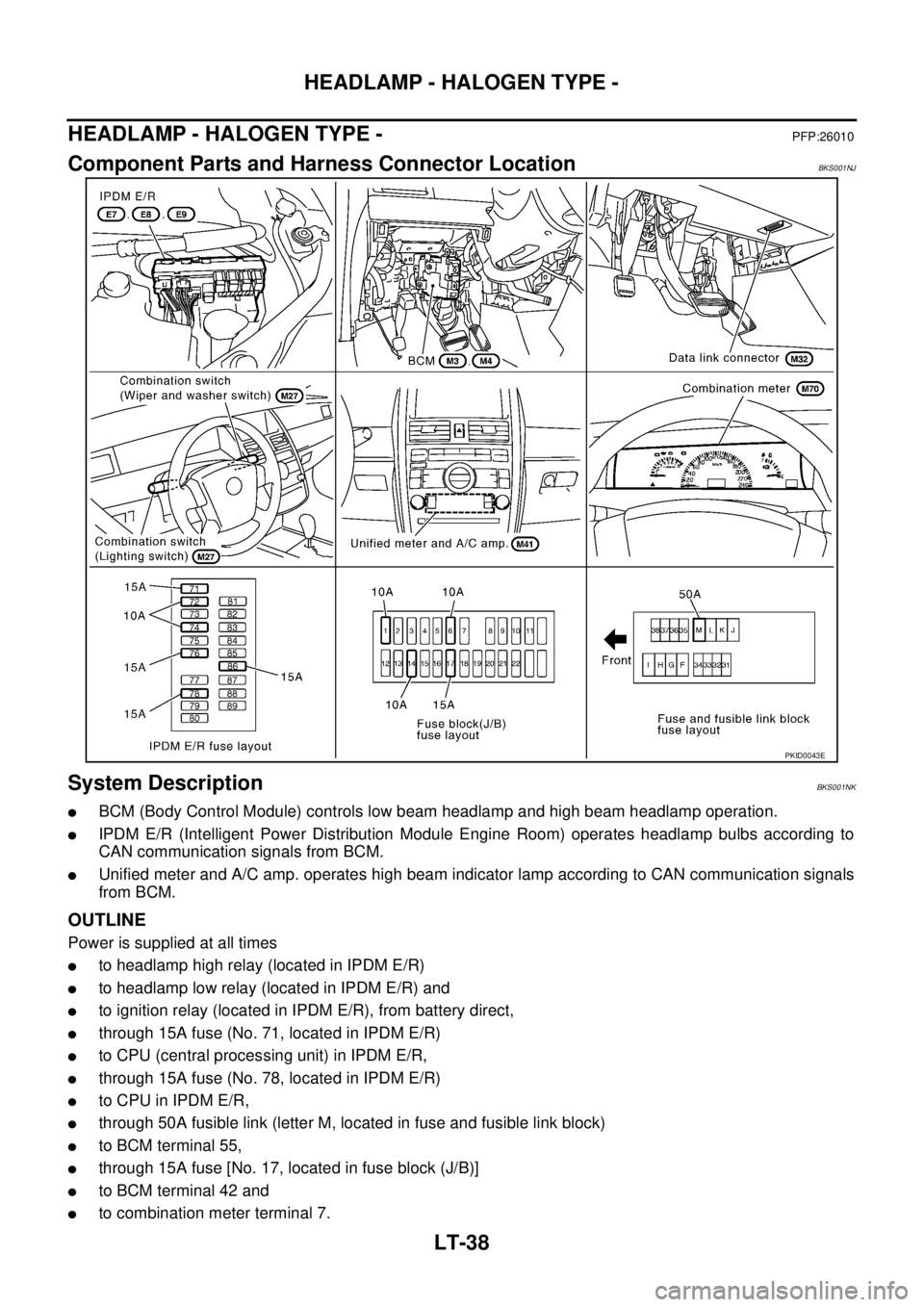

Component Parts and Harness Connector LocationBKS001NJ
System DescriptionBKS001NK

BCM (Body Control Module) controls low beam headlamp and high beam headlamp operation.

IPDM E/R (Intelligent Power Distribution Module Engine Room) operates headlamp bulbs according to
CAN communication signals from BCM.

Unified meter and A/C amp. operates high beam indicator lamp according to CAN communication signals
from BCM.
OUTLINE
Power is supplied at all times

to headlamp high relay (located in IPDM E/R)

to headlamp low relay (located in IPDM E/R) and

to ignition relay (located in IPDM E/R), from battery direct,

through 15A fuse (No. 71, located in IPDM E/R)

to CPU (central processing unit) in IPDM E/R,

through 15A fuse (No. 78, located in IPDM E/R)

to CPU in IPDM E/R,

through 50A fusible link (letter M, located in fuse and fusible link block)

to BCM terminal 55,

through 15A fuse [No. 17, located in fuse block (J/B)]

to BCM terminal 42 and

to combination meter terminal 7.
PKID0043E

HEADLAMP - HALOGEN TYPE -
LT-39
C
D
E
F
G
H
I
J
L
MA
B
LT

With the ignition switch in the ON or START position, power is supplied

to ignition relay (located in IPDM E/R),

through 10A fuse [No. 1, located in fuse block (J/B)]

to BCM terminal 38,

through 10A fuse [No. 14, located in fuse block (J/B)]

to combination meter terminal 8.
With the ignition switch in the ACC or ON position, power is supplied

through 10A fuse [No. 6, located in fuse block (J/B)]

to BCM terminal 11.
Ground is supplied

to BCM terminal 52 and

to combination meter terminals 10, 11 and 12

through grounds M71 and M72,

to IPDM E/R terminals 38 and 60

through grounds E1 and E31.
LOW BEAM OPERATION
When the lighting switch is in 2ND position, BCM detects the HEAD LAMP1 and 2 (ON) by BCM combination
switch reading function. BCM sends low beam request signal (ON) through CAN communication.
When receiving low beam request signal (ON), IPDM E/R turns ON headlamp low relay in IPDM E/R. IPDM E/
R supplies power

through 15A fuse (No. 76, located in IPDM E/R)

through IPDM E/R terminal 20

to front combination lamp RH terminal 1,

through 15A fuse (No. 86, located in IPDM E/R)

through IPDM E/R terminal 30

to front combination lamp LH terminal 1.
Ground is supplied

to front combination lamp RH and LH terminals 5

through grounds E1 and E31.
With power and ground supplied, low beam headlamp illuminates.
HIGH BEAM OPERATION
When the lighting switch is in HIGH BEAM position and then also in 2ND position, BCM detects the HEAD
LAMP1, 2 (ON) and the HI BEAM (ON) by BCM combination switch reading function. BCM sends low beam
request signal (ON) and high beam request signal (ON) through CAN communication.
When receiving those signals, IPDM E/R turns ON headlamp low relay and headlamp high relay in IPDM E/R.
IPDM E/R supplies power

through 15A fuse (No. 76, located in IPDM E/R)

through IPDM E/R terminal 20

to front combination lamp RH terminal 1,

through 15A fuse (No. 86, located in IPDM E/R)

through IPDM E/R terminal 30

to front combination lamp LH terminal 1,

through 10A fuse (No. 72, located in IPDM E/R)

through IPDM E/R terminal 27

to front combination lamp RH terminal 9,

through 10A fuse (No. 74, located in IPDM E/R)

through IPDM E/R terminal 28

to front combination lamp LH terminal 9.
Ground is supplied

to front combination lamp RH and LH terminals 5, and

LT-40
HEADLAMP - HALOGEN TYPE -


to front combination lamp RH and LH terminals 10

through grounds E1 and E31.
With power and ground supplied, low beam headlamp and high beam headlamp illuminate.
Unified meter and A/C amp. receives high beam request signal (ON) through CAN communication, and makes
high beam indicator lamp turn ON in combination meter.
FLASH-TO-PASS OPERATION
When the lighting switch is in PASSING position, BCM detects the PASSING (ON) by BCM combination switch
reading function. BCM sends low beam request signal (ON) and high beam request signal (ON) through CAN
communication.
When receiving low beam request signal (ON) and high beam request signal (ON), IPDM E/R turns ON head-
lamp low relay and headlamp high relay in IPDM E/R. IPDM E/R supplies power

through 15A fuse (No. 76, located in IPDM E/R)

through IPDM E/R terminal 20

to front combination lamp RH terminal 1,

through 15A fuse (No. 86, located in IPDM E/R)

through IPDM E/R terminal 30

to front combination lamp LH terminal 1,

through 10A fuse (No. 72, located in IPDM E/R)

through IPDM E/R terminal 27

to front combination lamp RH terminal 9,

trough 10A fuse (No. 74, located in IPDM E/R)

through IPDM E/R terminal 28

to front combination lamp LH terminal 9.
Ground is supplied

to front combination lamp RH and LH terminals 5, and

to front combination lamp RH and LH terminals 10

through grounds E1 and E31.
With power and ground supplied, low beam headlamp and high beam headlamp illuminate.
Unified meter and A/C amp. receives high beam request signal (ON) through CAN communication, and makes
high beam indicator lamp turn ON in combination meter.
COMBINATION SWITCH READING FUNCTION
Refer to BCS-3, "COMBINATION SWITCH READING FUNCTION" .
EXTERIOR LAMP BATTERY SAVER CONTROL
Refer to LT- 1 9 7 , "EXTERIOR LAMP BATTERY SAVER CONTROL" .
AUTO LIGHT OPERATION
Refer to LT- 6 4 , "System Description" .
CAN Communication System DescriptionBKS001NL
CAN (Controller Area Network) is a serial communication line for real time application. It is an on-vehicle mul-
tiplex communication line with high data communication speed and excellent error detection ability. Many elec-
tronic control units are equipped onto a vehicle, and each control unit shares information and links with other
control units during operation (not independent). In CAN communication, control units are connected with 2
communication lines (CAN H line, CAN L line) allowing a high rate of information transmission with less wiring.
Each control unit transmits/receives data but selectively reads required data only.
CAN Communication UnitBKS001NM
Refer to LAN-49, "CAN System Specification Chart" .
