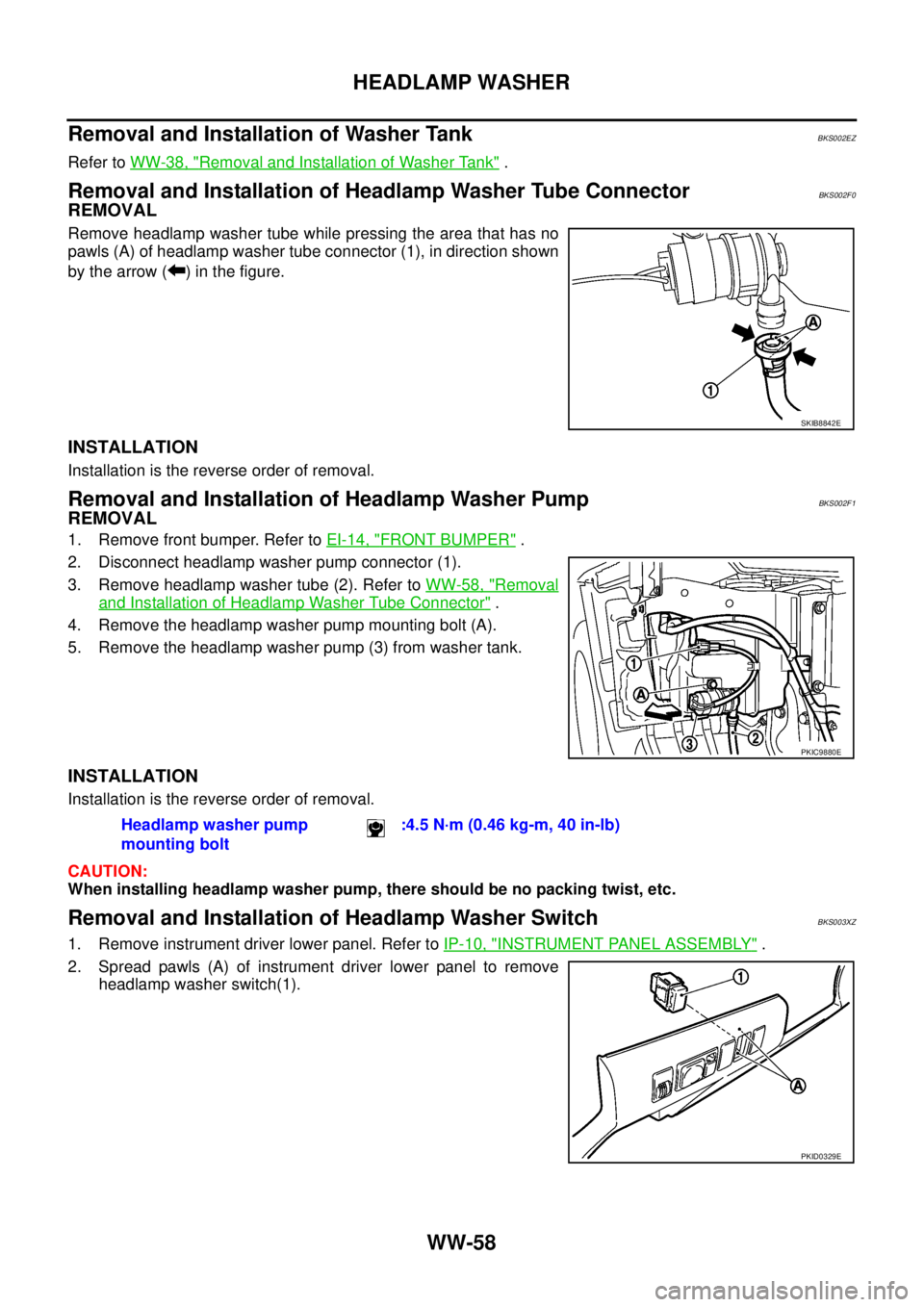

WW-58

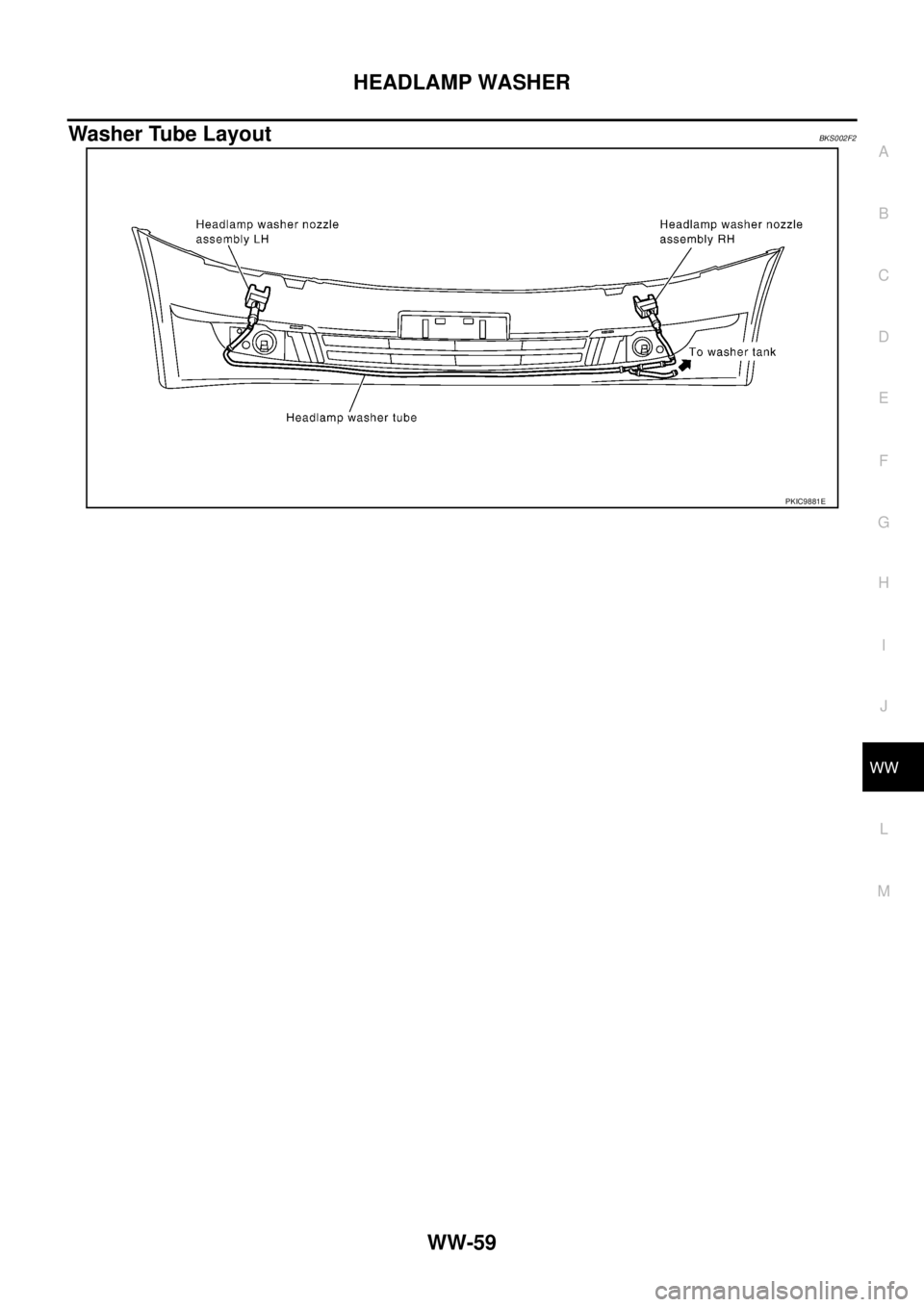

HEADLAMP WASHER
Removal and Installation of Washer TankBKS002EZ
Refer to WW-38, "Removal and Installation of Washer Tank" .
Removal and Installation of Headlamp Washer Tube ConnectorBKS002F0
REMOVAL
Remove headlamp washer tube while pressing the area that has no
pawls (A) of headlamp washer tube connector (1), in direction shown
by the arrow ( ) in the figure.
INSTALLATION
Installation is the reverse order of removal.
Removal and Installation of Headlamp Washer PumpBKS002F1
REMOVAL
1. Remove front bumper. Refer to EI-14, "FRONT BUMPER" .
2. Disconnect headlamp washer pump connector (1).
3. Remove headlamp washer tube (2). Refer to WW-58, "
Removal
and Installation of Headlamp Washer Tube Connector" .
4. Remove the headlamp washer pump mounting bolt (A).
5. Remove the headlamp washer pump (3) from washer tank.
INSTALLATION
Installation is the reverse order of removal.
CAUTION:
When installing headlamp washer pump, there should be no packing twist, etc.
Removal and Installation of Headlamp Washer SwitchBKS003XZ
1. Remove instrument driver lower panel. Refer to IP-10, "INSTRUMENT PANEL ASSEMBLY" .
2. Spread pawls (A) of instrument driver lower panel to remove
headlamp washer switch(1).
SKIB8842E
PKIC9880E
Headlamp washer pump
mounting bolt:4.5 N·m (0.46 kg-m, 40 in-lb)
PKID0329E
