PARKING, LICENSE PLATE AND TAIL LAMPS
LT-211
C
D
E
F
G
H
I
J
L
MA
B
LT

6. CHECK CIRCUIT BETWEEN PARKING, LICENSE PLATE, TAIL LAMPS AND GROUND

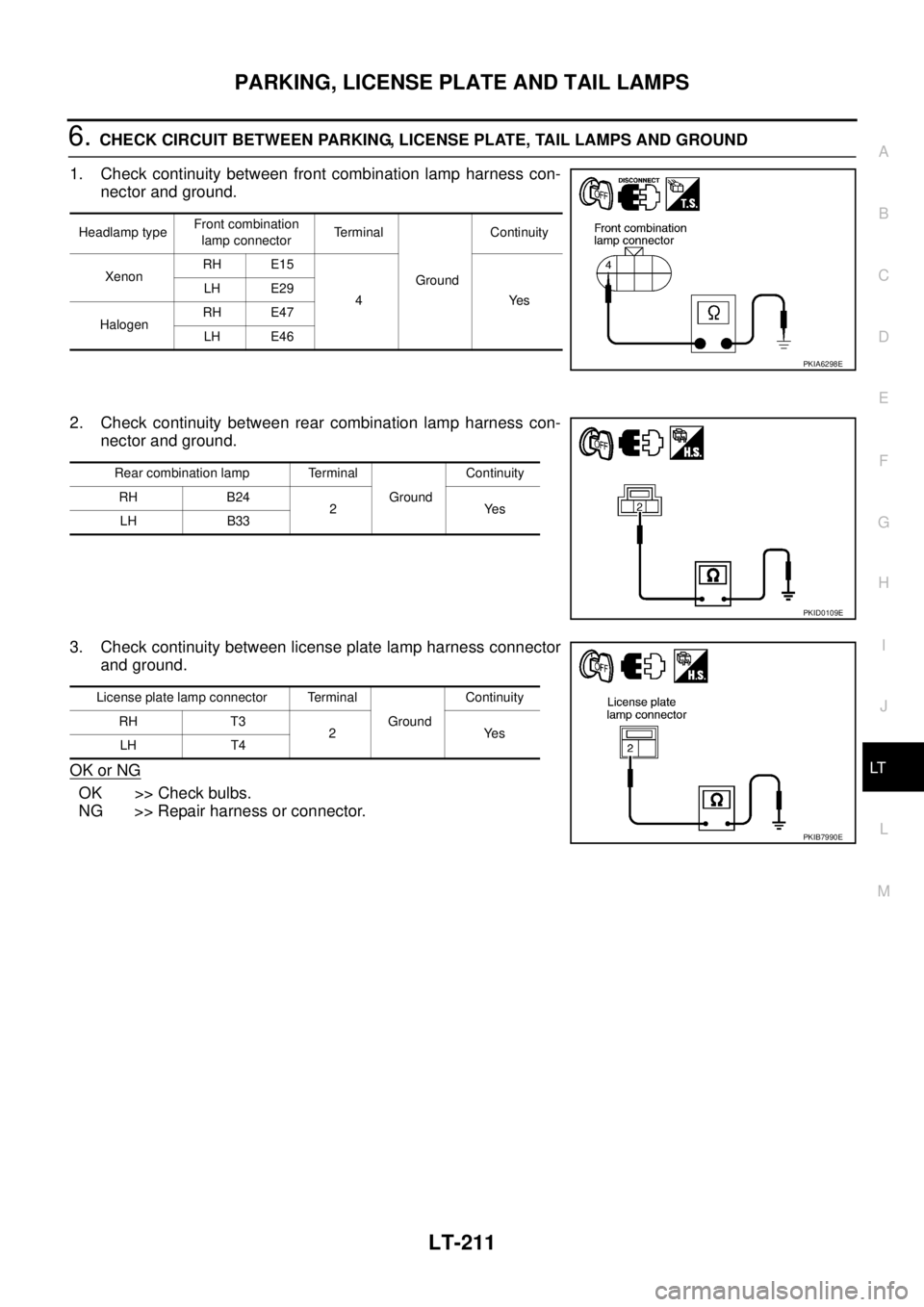

1. Check continuity between front combination lamp harness con-
nector and ground.
2. Check continuity between rear combination lamp harness con-
nector and ground.
3. Check continuity between license plate lamp harness connector
and ground.
OK or NG
OK >> Check bulbs.
NG >> Repair harness or connector.
Headlamp typeFront combination
lamp connectorTerminal
GroundContinuity
XenonRH E15
4Yes LH E29
HalogenRH E47
LH E46
PKIA6298E
Rear combination lamp Terminal
GroundContinuity
RH B24
2Yes
LH B33
PKID0109E
License plate lamp connector Terminal
GroundContinuity
RH T3
2Yes
LH T4
PKIB7990E

ILLUMINATION
LT-245
C
D
E
F
G
H
I
J
L
MA
B
LT


to VDC off switch (illumination) terminal 3 (with VDC)

to CD auto changer (illumination) terminal 14 (with CD auto changer)

to audio unit (illumination) terminal 8

to door mirror remote control switch (illumination) terminal 16

to hazard switch (illumination) terminal 3

to headlamp washer switch (illumination) terminal 3

to cigarette lighter socket terminal 2

to headlamp aiming switch (illumination) terminal 3 (without xenon headlamp)

to A/C and AV switch (illumination) terminal 16

to front heated seat switch (driver side) (illumination) terminal 5

to front heated seat switch (passenger side) (illumination) terminal 5

to front air massage seat switch (illumination) terminal 5 (with air massage seat)

to front door armrest illumination (driver side) terminal 1

to front door armrest illumination (passenger side) terminal 1

to rear door armrest illumination LH terminal 1

to rear door armrest illumination RH terminal 1

to rear sunshade rear switch (illumination) terminal 8 (with rear center armrest switches)

to rear audio control switch (illumination) terminal 17 (with rear center armrest switches)

to rear heated seat switch LH (illumination) terminal 25 (with rear heated seat) and

to rear heated seat switch RH (illumination) terminal 33 (with rear heated seat),

through BCM terminal 16

to display control unit (illumination) terminal 14 (with display control unit)

to display unit (illumination) terminal 4 (without display control unit).
Ground is supplied

to glove box lamp terminal 2

to A/T device illumination terminal 2 (with A/T)

to CVT device illumination terminal 2 (with CVT)

to rear sunshade front switch (illumination) terminal 6 (with rear sunshade)

to VDC off switch (illumination) terminal 4 (with VDC)

to door mirror remote control switch (illumination) terminal 15

to hazard switch (illumination) terminal 4

to headlamp washer switch (illumination) terminal 4

to cigarette lighter socket terminal 1

to headlamp aiming switch (illumination) terminal 4 (without xenon headlamp)

to A/C and AV switch (illumination) terminal 15

to display control unit (illumination) terminal 3 (with display control unit)

to display unit (illumination) terminal 6 (without display control unit)

to front heated seat switch (driver side) (illumination) terminal 6

to front heated seat switch (passenger side) (illumination) terminal 6

to front air massage seat switch (illumination) terminal 6 (with air massage seat)

to front door armrest illumination (driver side) terminal 2 and

to front door armrest illumination (passenger side) terminal 2

through grounds M71 and M72,

to CD auto changer (illumination) (with CD auto changer) and

to Audio unit (illumination)

through case ground,

to rear door armrest illumination LH terminal 2

to rear sunshade rear switch (illumination) terminal 9 (with rear center armrest switches)

to rear audio control switch (illumination) terminal 18 (with rear center armrest switches)

BULB SPECIFICATIONS
LT-261
C
D
E
F
G
H
I
J
L
MA
B
LT

BULB SPECIFICATIONSPFP:26297
HeadlampBKS001RS
Exterior LampBKS001RT
Interior Lamp/IlluminationBKS001RU
Item Wattage (W)
Low/High (Xenon type)35 (D2S)
Low (Halogen type)55 (H11)
High (Halogen type)55 (H7)
Item Wattage (W)
Front combination lamp (Xenon type)Front turn signal lamp 21 (amber)
Parking lamp 5
Bending lamp 55 (H7)
Front combination lamp (Halogen type)Front turn signal lamp 21 (amber)
Parking lamp 5
Rear combination lampStop lamp LED
Tail lamp 5
Rear turn signal lamp 21
Back-up lamp 21
Rear fog lamp 21
Side turn signal lamp5
Front fog lamp35 (H8)
License plate lamp5
High-mounted stop lampLED
Item Wattage (W)
Map lamp8
Personal lamp8
Trunk room lamp3.4
Ashtray illumination1.4
Step lamp2.7
Vanity mirror lamp1.8
Ignition key hole illumination1.4
Glove box lamp1.4
Cigarette lighter illumination1.4

MA-4
DESCRIPTION

DESCRIPTIONPFP:00000
Pre-Delivery Inspection ItemsBLS0005D
Shown below are Pre-delivery Inspection Items required for the new vehicle. It is recommended that
necessary items other than those listed here be added, paying due regard to the conditions in each
country.
Perform applicable items on each model. Consult text of this section for specifications.
UNDER HOOD — engine off
Radiator coolant level and coolant hose connections for leaks
Battery fluid level, specific gravity and conditions of battery terminals
Drive belts tension
Fuel lines and connections for leaks
Engine oil level and oil leaks
Brake reservoir fluid level and fluid lines for leaks
Windshield and rear window washer and headlamp cleaner reservoir fluid level
Power steering reservoir fluid level and hose connections for leaks
ON INSIDE AND OUTSIDE
Remove front spring/strut spacer (If applicable)
Operation of all instruments, gauges, lights and accessories
Operation of horn(s), wiper and washer
Steering lock for operation
Check air conditioner for gas leaks
Front and rear seats, and seat belts for operation
All moldings, trims and fittings for fit and alignment
All windows for operation and alignment
Hood, trunk lid, door panels for fit and alignment
Latches, keys and locks for operation
Weatherstrips for adhesion and fit
Headlamp aiming
Tighten wheel nuts (Inc. inner nuts if applicable)
Tire pressure (Inc. spare tire)
Check front wheels for toe-in
Install clock/voltmeter/room lamp fuse (If applicable)
Install deodorizing filter to air conditioner (If applicable)
Remove wiper blade protectors (If applicable)
UNDER BODY
Transfer and differential gear oil level
Brake and fuel lines and oil/fluid reservoirs for leaks
Tighten bolts and nuts of steering linkage and gear box, suspension, propeller shafts and drive shafts
Tighten rear body bolts and nuts (Models with wooden bed only)
ROAD TEST
Clutch operation
Parking brake operation
Service brake operation
Automatic transmission/transaxle shift timing and kickdown
Steering control and returnables
Engine performance

MA-6
GENERAL MAINTENANCE

GENERAL MAINTENANCEPFP:00000
General MaintenanceBLS0005E
General maintenance includes those items which should be checked during the normal day-to-day operation
of the vehicle. They are essential if the vehicle is to continue operating properly. The owners can perform the
checks and inspections themselves or they can have their NISSAN dealers do them for a nominal charge.
OUTSIDE THE VEHICLE
The maintenance items listed here should be performed from time to time, unless otherwise specified.
INSIDE THE VEHICLE
The maintenance items listed here should be checked on a regular basis, such as when performing periodic maintenance, cleaning the
vehicle, etc.Item Reference page
TiresCheck the pressure with a gauge periodically when at a service station, includ-
ing the spare, and adjust to the specified pressure if necessary. Check carefully
for damage, cuts or excessive wear.—
WindshieldClean the windshield on a regular basis.
Check the windshield at least every six months for cracks or other damage.
Repair as necessary.—
Windshield wiper
bladesCheck for cracks or wear if not functioning correctly. —
Doors and engine
hoodCheck that all doors, the engine hood, the trunk lid and back door operate prop-
erly. Also ensure that all latches lock securely. Lubricate if necessary. Make sure
that the secondary latch keeps the hood from opening when the primary latch is
released.
When driving in areas using road salt or other corrosive materials, check for
lubrication frequently.BL-13
Tire rotationTires should be rotated every 10,000 km (6,000 miles).MA-40
LampsMake sure that the headlamps, stop lamps, tail lamps, turn signal lamps, and
other lamps are all operating properly and installed securely. Also check head-
lamp aim.—
Item Reference page
Warning lamps and
chimesMake sure that all warning lamps and buzzers/chimes are operating properly. —
Windshield wiper and
washerCheck that the wipers and washer operate properly and that the wipers do not
streak.—
Windshield defrosterCheck that air comes out of the defroster outlets properly and in sufficient quan-
tity when operating the heater or air conditioner.—
Steering wheelCheck that it has the specified play.
Check for changes in the steering conditions, such as excessive free play, hard
steering or strange noises.
Free play: Less than 35 mm (1.38 in)—
Seat beltsCheck that all parts of the seat belt system (e.g. buckles, anchors, adjusters and
retractors) operate properly and smoothly, and are installed securely. Check the
belt webbing for cuts, fraying, wear or damage.MA-44
Accelerator pedalCheck the pedal for smooth operation and make sure the pedal does not catch
or require uneven effort. Keep the floor mats away from the pedal.—
Brake pedal and
boosterCheck the pedal for smooth operation and make sure it has the proper distance
under it when depressed fully. Check the brake booster function. Be sure to
keep the floor mats away from the pedal.BR-6
, BR-21
Parking brakeCheck that the pedal has the proper travel.PB-2

IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE ROOM)
PG-17
C
D
E
F
G
H
I
J
L
MA
B
PG

IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE ROOM)
PFP:284B7
System DescriptionBKS0024N

IPDM E/R (Intelligent Power Distribution Module Engine Room) integrates the relay box and fuse block
which were originally placed in engine room. It controls integrated relay via IPDM E/R control circuit.

IPDM E/R-integrated control circuit performs ON-OFF operation of relay, CAN communication control, oil
pressure switch signal, hood switch signal reception, etc.

It controls operation of each electrical part via ECM, BCM and CAN communication lines.
CAUTION:
None of the IPDM E/R-integrated relays can be removed.
SYSTEMS CONTROLLED BY IPDM E/R
FAIL-SAFE CONTROL

When CAN communication with other control units is impossible, IPDM E/R performs fail-safe control.
After CAN communication recovers normally, it also returns to normal control.

Operation of control parts by IPDM E/R during fail-safe mode is as follows:
Control system Transmit control unit Control part
Lamp control BCM

Headlamp (HI, LO)

Parking, license plate and tail lamps

Front fog lamp
Wiper control BCM Front wiper
Rear window defogger control BCM Rear window defogger
A/C compressor control ECM A/C compressor (magnet clutch)
Cooling fan control ECM Cooling fan
Horn control BCM Horn
Controlled system Fail-safe mode
Headlamp

With the ignition switch ON, low beam headlamp is ON.

With the ignition switch OFF, low beam headlamp is OFF.
Parking, license plate and tail lamps

With the ignition switch ON, parking, license plate and tail lamps are ON.

With the ignition switch OFF, parking, license plate and tail lamps are OFF.
Cooling fan

With the ignition switch ON, cooling fan HI operates.

With the ignition switch OFF, cooling fan stops.
Front wiperUntil the ignition switch is turned OFF, front wiper LO and HI remains in the same status it was
in just before fail−safe control was initiated.
Rear window defogger Rear window defogger is OFF.
A/C compressor A/C compressor is OFF.
Front fog lamp Front fog lamp is OFF.

PG-20
IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE ROOM)

All Items, Main Items, Selection From Menu
NOTE:

Perform monitoring of IPDM E/R data with the ignition switch ON. When the ignition switch is at ACC, the display may not be cor-
rect.

*1: The vehicle without the Intelligent Key system displays only ON without change.

*2: This item is displayed, but does not function.
ACTIVE TEST
Operation Procedure
1. Touch “ACTIVE TEST” on “SELECT DIAG MODE” screen.
2. Touch item to be tested.
3. Touch “START”, and confirm its operation.
4. Touch “OFF” while testing to stop the operation.
CONSULT-II
screen displayItem name Display or unitMonitor item selection
Description
ALL
SIGNALSMAIN
SIGNALSSELEC-
TION
FROM
MENU
MOTOR FAN REQ Motor fan request 1/2/3/4×× ×Signal status input from ECM
AC COMP REQ Compressor request ON/OFF×× ×Signal status input from ECM
TAIL&CLR REQ Tail & clear request ON/OFF×× ×Signal status input from BCM
HL LO REQ Headlamp LO request ON/OFF×× ×Signal status input from BCM
HL HI REQ Headlamp HI request ON/OFF×× ×Signal status input from BCM
FR FOG REQ Front fog request ON/OFF×× ×Signal status input from BCM
HL WASHER REQHeadlamp washer
requestON/OFF××Signal status input from head-
lamp washer switch
FR WIP REQ Front wiper requestSTOP/1LOW/
LOW/HI×× ×Signal status input from BCM
WIP AUTO STOP Wiper auto stop ACT P/STOP P×× ×Output status of IPDM E/R
WIP PROT Wiper protection OFF/BLOCK×× ×Control status of IPDM E/R
ST RLY REQ
*1Starter request ON/OFF××Status of input signal
IGN RLY Ignition relay status ON/OFF×× ×Ignition relay status monitored
with IPDM E/R
RR DEF REQRear window defogger
requestON/OFF×× ×Signal status input from BCM
OIL P SW Oil pressure switch OPEN/CLOSE××Signal status input in IPDM E/R
DTRL REQ*
2Daytime running light
requestON/OFF××—
HOOD SW
*2Hood switch ON/OFF××—
THFT HRN REQTheft warning horn
requestON/OFF××Signal status input from BCM
HORN CHIRP
*2Horn chirp ON/OFF××—
CONSULT-II screen display Test item Description
TAIL LAMPParking, license plate and tail
lamps operationTail lamp relay is operated by switching operation ON-OFF.
REAR DEFOGGER Rear window defogger operation Rear defogger relay is operated by switching operation ON-OFF.

IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE ROOM)
PG-21
C
D
E
F
G
H
I
J
L
MA
B
PG

NOTE:
High beam headlamp repeats high beam and low beam every 1 second. When high beam headlamp of xenon type operates, the head-
lamp perform the HIGH-LOW changeover operation without illuminating the headlamp bulb.
Auto Active TestBKS002EW
DESCRIPTION

In auto active test mode, operation inspection can be performed when IPDM E/R sends a drive signal to
the following systems:
–Rear window defogger
–Front wiper
–Parking, license plate and tail lamps
–Front fog lamp
–Headlamp (HI, LO)
–A/C compressor (magnet clutch)
–Cooling fan
–Oil pressure warning lamp
OPERATION PROCEDURE
1. Close hood and front door (passenger side), and then lift wiper arms away from windshield (to prevent
glass damage by wiper operation).
NOTE:
When auto active test is performed with hood opened, sprinkle water on windshield beforehand.
2. Turn ignition switch OFF.
3. Turn ignition switch ON, and within 20 seconds, press driver's door switch 10 times (close the other
doors). Then turn ignition switch OFF.
4. Turn ignition switch ON within 10 seconds after ignition switch OFF.
5. When auto active test mode is actuated, horn chirps once. Oil pressure warning lamp starts blinking.
6. After a series of operations is repeated three times, auto active test is completed.
NOTE:
When auto active test mode has to be cancelled halfway, turn ignition switch OFF.
CAUTION:
Be sure to inspect door switch when the auto active test cannot be performed.
FRONT WIPER Front wiper (HI, LO) operationFront wiper relay and front wiper high relay are operated by switch-
ing operation (OFF: OFF, HI: high speed, LO: low speed).
MOTOR FAN Cooling fan operationCooling fan relay-1, 2 and 3 are operated by switching operation
(1: OFF, 2: LO, 3: MID, 4: HI).
HEAD LAMP WASHER Headlamp washer operation Headlamp washer relay is operated by switching operation ON-OFF.
LAMPSHigh beam headlamp and low
beam headlamp operation
NOTEHeadlamp low relay and headlamp high relay are operated by
switching operation (OFF: OFF, HI: high beam, LO: low beam).
Front fog lamp operationFront fog lamp relay is operated by switching operation
(OFF: OFF, FOG: ON).
HORN Horn operation Touch “ON” button, horn relay operates 20 ms.CONSULT-II screen display Test item Description
