BCS-4
BCM (BODY CONTROL MODULE)

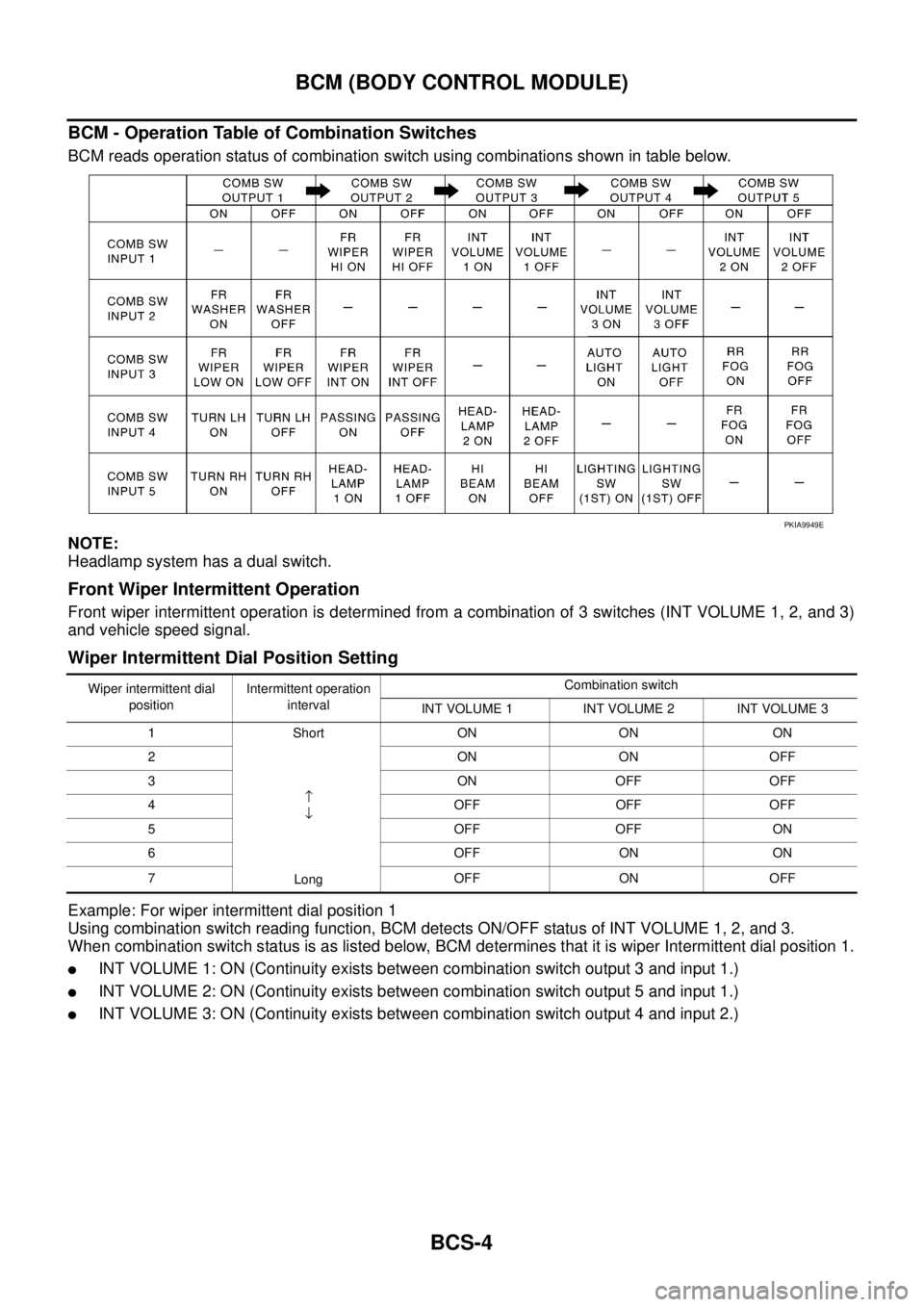

BCM - Operation Table of Combination Switches
BCM reads operation status of combination switch using combinations shown in table below.
NOTE:
Headlamp system has a dual switch.
Front Wiper Intermittent Operation
Front wiper intermittent operation is determined from a combination of 3 switches (INT VOLUME 1, 2, and 3)
and vehicle speed signal.
Wiper Intermittent Dial Position Setting
Example: For wiper intermittent dial position 1
Using combination switch reading function, BCM detects ON/OFF status of INT VOLUME 1, 2, and 3.
When combination switch status is as listed below, BCM determines that it is wiper Intermittent dial position 1.

INT VOLUME 1: ON (Continuity exists between combination switch output 3 and input 1.)

INT VOLUME 2: ON (Continuity exists between combination switch output 5 and input 1.)

INT VOLUME 3: ON (Continuity exists between combination switch output 4 and input 2.)
PKIA9949E
Wiper intermittent dial
positionIntermittent operation
intervalCombination switch
INT VOLUME 1 INT VOLUME 2 INT VOLUME 3
1Short
↑
↓
LongON ON ON
2ONONOFF
3ONOFFOFF
4 OFF OFF OFF
5OFFOFFON
6 OFF ON ON
7 OFF ON OFF

BCS-8
BCM (BODY CONTROL MODULE)

SYSTEMS CONTROLLED BY BCM DIRECTLY
NOTE:
Power supply only. No system control.
SYSTEMS CONTROLLED BY BCM AND IPDM E/R
SYSTEMS CONTROLLED BY BCM AND COMBINATION METER
SYSTEMS CONTROLLED BY BCM, COMBINATION METER AND IPDM E/R
SYSTEMS CONTROLLED BY BCM AND INTELLIGENT KEY UNIT
System Reference
Power door lock systemBL-21, "
POWER DOOR LOCK SYSTEM"
Remote keyless entry systemBL-46, "REMOTE KEYLESS ENTRY SYSTEM"
Power window system NOTEGW-17, "POWER WINDOW SYSTEM"
Sunroof NOTERF-10, "SUNROOF"
Interior room lamp timerLT-219, "INTERIOR ROOM LAMP"
Interior room lamp battery saver controlLT-222, "INTERIOR ROOM LAMP BATTERY SAVER CONTROL"
Rear fog lampLT-142, "REAR FOG LAMP"
System Reference
NATSBL-139, "
NATS(Nissan Anti-Theft System)"
Headlamp
LT- 6 , "HEADLAMP - XENON TYPE -"

LT-38, "HEADLAMP - HALOGEN TYPE -"
Auto light systemLT-64, "AUTO LIGHT SYSTEM"
Parking, license plate and tail lamps LT-196, "PARKING, LICENSE PLATE AND TAIL LAMPS"
Front fog lampLT-126, "FRONT FOG LAMP"
Exterior lamp battery saver controlLT-197, "EXTERIOR LAMP BATTERY SAVER CONTROL"
Front wiper and washer systemWW-4, "FRONT WIPER AND WASHER SYSTEM"
Headlamp washerWW-40, "HEADLAMP WASHER"
Rear window defoggerGW-54, "REAR WINDOW DEFOGGER"
System Reference
Warning chimeDI-56, "
WARNING CHIME"
Turn signal and hazard warning lampsLT-152, "TURN SIGNAL AND HAZARD WARNING LAMPS"
System Reference
Oil pressure warning lampDI-35, "
WARNING LAMPS"
System Reference
Intelligent Key systemBL-68, "
INTELLIGENT KEY SYSTEM"

BCM (BODY CONTROL MODULE)
BCS-9
C
D
E
F
G
H
I
J
L
MA
B
BCS

MAJOR COMPONENTS AND CONTROL SYSTEM
System Input Output
Remote control entry system

Remote keyless entry receiver

Key switch

Front door switch (driver side)

Front door switch (passenger side)

Rear door switch RH

Rear door switch LH

Front door lock assembly
(driver side) (door lock actuator)

Front door lock assembly
(passenger side) (door lock actuator)

Rear door lock actuator RH

Rear door lock actuator LH

Trunk lid opener actuator

Turn signal lamp (RH, LH)

Combination meter
(turn signal indicator, warning chime)
Intelligent Key system

Intelligent Key unit

Front door switch (driver side)

Front door switch (passenger side)

Rear door switch RH

Rear door switch LH

Front door lock assembly
(driver side) (door lock actuator)

Front door lock assembly
(passenger side) (door lock actuator)

Rear door lock actuator RH

Rear door lock actuator LH

Trunk lid opener actuator

Turn signal lamp (RH, LH)

Combination meter
(turn signal indicator, warning chime)
Power door lock system

Power window main switch
(door lock and unlock switch)

Front door lock assembly (driver side)
(door unlock sensor)

Key switch

Front door switch (driver side)

Front door switch (passenger side)

Rear door switch RH

Rear door switch LH

Front door lock assembly
(driver side) (door lock actuator)

Front door lock assembly
(passenger side) (door lock actuator)

Rear door lock actuator RH

Rear door lock actuator LH
Trunk lid openerTrunk lid and fuel lid opener switch
(Trunk lid opener switch)Trunk lid lock assembly
(trunk lid opener actuator)
Power supply (IGN) to power window,
sunroofIgnition power supply Power window and sunroof system
Power supply (BAT) to power window,
sunroof and power seatBattery power supply Power window, sunroof system and power seat
Headlamp Combination switch

IPDM E/R

Combination meter
(HIGH beam indicator)
Exterior lamp battery saver control

Ignition switch

Combination switchIPDM E/R
Auto light system

Optical sensor

Combination switch

Ignition switch (ACC, ON)IPDM E/R
Parking, license plate and tail lamps Combination switch

IPDM E/R

Combination meter (Tail lamp indicator)
Front fog lamp Combination switch

IPDM E/R

Combination meter
(Front fog lamp indicator)

BCS-10
BCM (BODY CONTROL MODULE)

CAN Communication UnitBKS001UH
Refer to LAN-49, "CAN System Specification Chart" .
Rear fog lamp Combination switch

Rear fog lamp

Combination meter
(Rear fog lamp indicator)
Turn signal lamp

Combination switch

Ignition switch (ON)

Turn signal lamp

Combination meter
(turn signal indicator, warning chime)
Hazard lamp Hazard switch

Turn signal lamp

Combination meter
(turn signal indicator, warning chime)
Interior room lamp timer

Key switch

Remote keyless entry receiver

Power window main switch
(door lock and unlock switch)

Front door lock assembly (driver side)

Front door switch (driver side)

Front door switch (passenger side)

Rear door switch LH

Rear door switch RH

Ignition switch (ON)

Map lamp

Personal lamp RH

Personal lamp LH

Ignition keyhole illumination
Key warning chime

Key switch

Front door switch (driver side)

Ignition switch (ON)Combination meter (warning buzzer)
Light warning chime

Combination switch

Front door switch (driver side)

Ignition switch (ON)Combination meter (warning buzzer)
Oil pressure warning lamp

IPDM E/R

Ignition switch (ON)Combination meter (warning lamp)
Front wiper and washer system

Combination switch

Combination meter

Ignition switch (ON)IPDM E/R
Headlamp washer

Headlamp washer switch

Combination switch

Ignition switch (ON)IPDM E/R
Rear window defogger

Rear window defogger switch

Ignition switch (ACC, ON)IPDM E/R
A/C switch signal

Unified meter and A/C amp.

Ignition switch (ON)ECM
Blower fan switch signal

Unified meter and A/C amp.

Ignition switch (ON)ECM System Input Output

BCM (BODY CONTROL MODULE)
BCS-13
C
D
E
F
G
H
I
J
L
MA
B
BCS

CONSULT-II Function (BCM)BKS001UK
CONSULT-II can display each diagnostic item using the diagnostic test mode shown following.
CONSULT-II BASIC OPERATION
Refer to GI-34, "CONSULT-II Start Procedure" .
CAUTION:
If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunctions might be
detected in self-diagnosis depending on control unit which carry out CAN communication.
ITEMS OF EACH PART
NOTE:
CONSULT-II will only display systems the vehicle possesses.
×:Applicable
NOTE:
This item is displayed, but should not be used.BCM diagnostic test item Check item, diagnostic test mode Content
Inspection by partWORK SUPPORT Changes setting of each function.
SELF-DIAGNOSIS RESULTS BCM performs self-diagnosis of CAN communication.
DATA MONITOR Displays the input data of BCM in real time.
CAN DIAG SUPPORT MNTRThe result of transmit/receive diagnosis of CAN communication
can be read.
ACTIVE TEST Gives a drive signal to a load to check the operation.
ECU PART NUMBER ECM part number can be read.
CONFIGURATION (Not be used.)
CONSULT-II display System and itemDiagnostic test mode (Inspection by part)
WORK
SUPPORTSELF−
DIAG
RESULTSDATA
MONITORCAN
DIAG
SUP-
PORT
MNTRACTIVE
TESTECU
PA R T
NUMBERCON-
FIGU-
RATION
BCM BCM×× × ×
×
NOTE
DOOR LOCK Power door lock system×××
REAR DEFOGGER Rear window defogger××
BUZZER Warning chime××
INT LAMP Room lamp timer×××
MULTI REMOTE ENTRemote keyless entry
system×××
HEAD LAMP Headlamp×××
WIPER Wiper×××
FLASHERTurn signal lamp
Hazard lamp××
AIR CONDITONERBlower fan switch signal
A/C switch signal×
INTELLIGENT KEY Intelligent Key system×
COMB SW Combination switch×
IMMU NATS××
BATTERY SAVER Room lamp battery saver×× ×
TRUNK Trunk lid opener××
SIGNAL BUFFER Oil pressure switch××
PANIC ALARM Panic alarm×

BL-2 Check Door Lock Actuator Output Signal ............... 39
Check Door Lock Actuator Circuit .......................... 40
(DRIVER SIDE AND REAR LH) .......................... 40
(PASSENGER SIDE AND REAR RH) ................. 41
Check Door Unlock Sensor .................................... 42
FUEL FILLER LID OPENER ..................................... 44
Component Part and Harness Connector Location ... 44
Wiring Diagram –F/LID– ......................................... 45
REMOTE KEYLESS ENTRY SYSTEM ..................... 46
Component Parts and Harness Connector Location ... 46
System Description ................................................. 46
INPUTS ............................................................... 46
OPERATED PROCEDURE ................................. 47
CAN Communication System Description .............. 48
CAN Communication Unit ....................................... 48
Schematic ............................................................... 49
Wiring Diagram — KEYLES— ................................ 50
FIG. 1 ................................................................... 50
FIG. 2 ................................................................... 51
FIG. 3 ................................................................... 52
Terminals and Reference Value for BCM ................ 53
Terminals and Reference Value for IPDM E/R ........ 54
CONSULT-II Function (BCM) .................................. 54
CONSULT-II START PROCEDURE .................... 54
CONSULT-II APPLICATION ITEMS .................... 54
Work Flow ............................................................... 56
Trouble Diagnosis Symptom Chart ......................... 56
Check Key Fob Battery and Function ..................... 57
Check ACC Switch ................................................. 58
Check Door Switch ................................................. 59
CHECK DOOR SWITCH (EXCEPT TRUNK
ROOM LAMP SWITCH) ...................................... 59
CHECK TRUNK ROOM LAMP SWITCH ............ 61
Check Key Switch ................................................... 63
Check Hazard Function .......................................... 64
Check Map Lamp and Ignition Keyhole Illumination
Function .................................................................. 64
ID Code Entry Procedure ....................................... 64
KEY FOB ID SET UP WITH CONSULT-II ........... 64
KEY FOB ID SET UP WITHOUT CONSULT-II .... 66
Key Fob Battery Replacement ................................ 67
INTELLIGENT KEY SYSTEM ................................... 68
Component Parts and Harness Connector Location ... 68
System Description ................................................. 70
DOOR LOCK/UNLOCK, TRUNK OPEN FUNC-
TION .................................................................... 70
REMOTE KEYLESS ENTRY FUNCTIONS ......... 71
ENGINE START FUNCTION ............................... 72
WARNING AND ALARM FUNCTION .................. 73
CHANGE SETTINGS FUNCTION ....................... 76
INTELLIGENT KEY REGISTRATION .................. 76
STEERING LOCK UNIT REGISTRATION .......... 77
CAN Communication System Description .............. 77
CAN Communication Unit ....................................... 77
Schematic ............................................................... 78
Wiring Diagram — I/KEY— .................................... 80
Terminals and Reference Value for Intelligent Key
Unit ......................................................................... 88
Terminals and Reference Value for Steering Lock Unit .......................................................................... 90
Terminals and Reference Value for BCM ................ 90
Diagnosis Procedure ............................................... 91
WORK FLOW ...................................................... 91
ENGINE START FUNCTION DIAGNOSTIC
PROCEDURE ...................................................... 92
CONSULT-II Functions (INTELLIGENT KEY) ......... 93
CONSULT-II Inspection Procedure ......................... 93
BASIC OPERATION ............................................ 93
CONSULT-II Application Items ................................ 93
SELF-DIAGNOSTIC RESULTS ........................... 93
DATA MONITOR .................................................. 93
WORK SUPPORT ............................................... 94
ACTIVE TEST ...................................................... 95
Trouble Diagnosis Symptom Chart ......................... 96
ALL FUNCTIONS OF THE INTELLIGENT KEY
ARE NOT OPERATING ....................................... 96
REMOTE KEYLESS ENTRY FUNCTION MAL-
FUNCTION .......................................................... 96
DOOR LOCK FUNCTION MALFUNCTION ......... 97
TRUNK OPEN FUNCTION MALFUNCTION ....... 97
HAZARD REMINDER FUNCTION MALFUNC-
TION .................................................................... 98
ENGINE START FUNCTION MALFUNCTION .... 98
WARNING CHIME FUNCTION MALFUNCTION ... 99
Check CAN Communication System ....................100
Check Intelligent Key Unit Power Supply and
Ground Circuit .......................................................100
Check Key Switch (Intelligent Key Unit Input) .......101
Check Key Switch (BCM Input) .............................102
Check Ignition knob Switch ...................................103
Check Door Switch ...............................................105
CHECK DOOR SWITCH (EXCEPT TRUNK
ROOM LAMP SWITCH) .....................................105
CHECK TRUNK ROOM LAMP SWITCH ...........107
Check Door Request Switch .................................109
Check Intelligent Key Warning Buzzer .................. 111
Check Outside Key Antenna .................................112
Check Inside Key Antenna ....................................114
Check Steering Lock Unit ......................................115
Check Headlamp Function ....................................117
Removal and Installation of Intelligent Key Unit ....117
REMOVAL ..........................................................117
INSTALLATION ..................................................117
Intelligent Key Battery Replacement .....................117
DISASSEMBLY AND ASSEMBLY OF INTELLI-
GENT KEY .........................................................117
INTELLIGENT KEY BATTERY INSPECTION ...118
DOOR ......................................................................119
Fitting Adjustment .................................................119
FRONT DOOR ...................................................119
REAR DOOR .....................................................119
STRIKER ADJUSTMENT ..................................120
Removal and Installation of Front Door ................120
REMOVAL ..........................................................120
INSTALLATION ..................................................120
Removal and Installation of Rear Door .................120
REMOVAL ..........................................................121

HOOD
BL-13
C
D
E
F
G
H
J
K
L
MA
B
BL

HOODPFP:F5100
Fitting AdjustmentBIS000VP
LONGITUDINAL AND LATERAL CLEARANCE ADJUSTMENT
1. Remove hood lock, loosen the hood hinge nuts and close the hood.
2. Adjust the lateral and longitudinal clearance, and open the hood to tighten the mounting bolts to the spec-
ified torque.
3. Install the hood lock temporarily, and align the hood striker and lock so that the centers of striker and lock
become vertical viewed from the front, by moving the hood lock laterally.
4. Tighten hood lock mounting bolts to the specified torque.
FRONT END HEIGHT ADJUSTMENT
1. Remove the hood lock and adjust the height by rotating the bumper rubber until the hood becomes 1 to1.5
mm (0.04 to 0.059 in) lower than the fender.
2. Temporarily tighten the hood lock, and position it by engaging it with the hood striker. Check the lock and
striker for looseness, and tighten the hood lock mounting bolts to the specified torque.
CAUTION:
Adjust right/left clearance between hood and each part to the following specification.

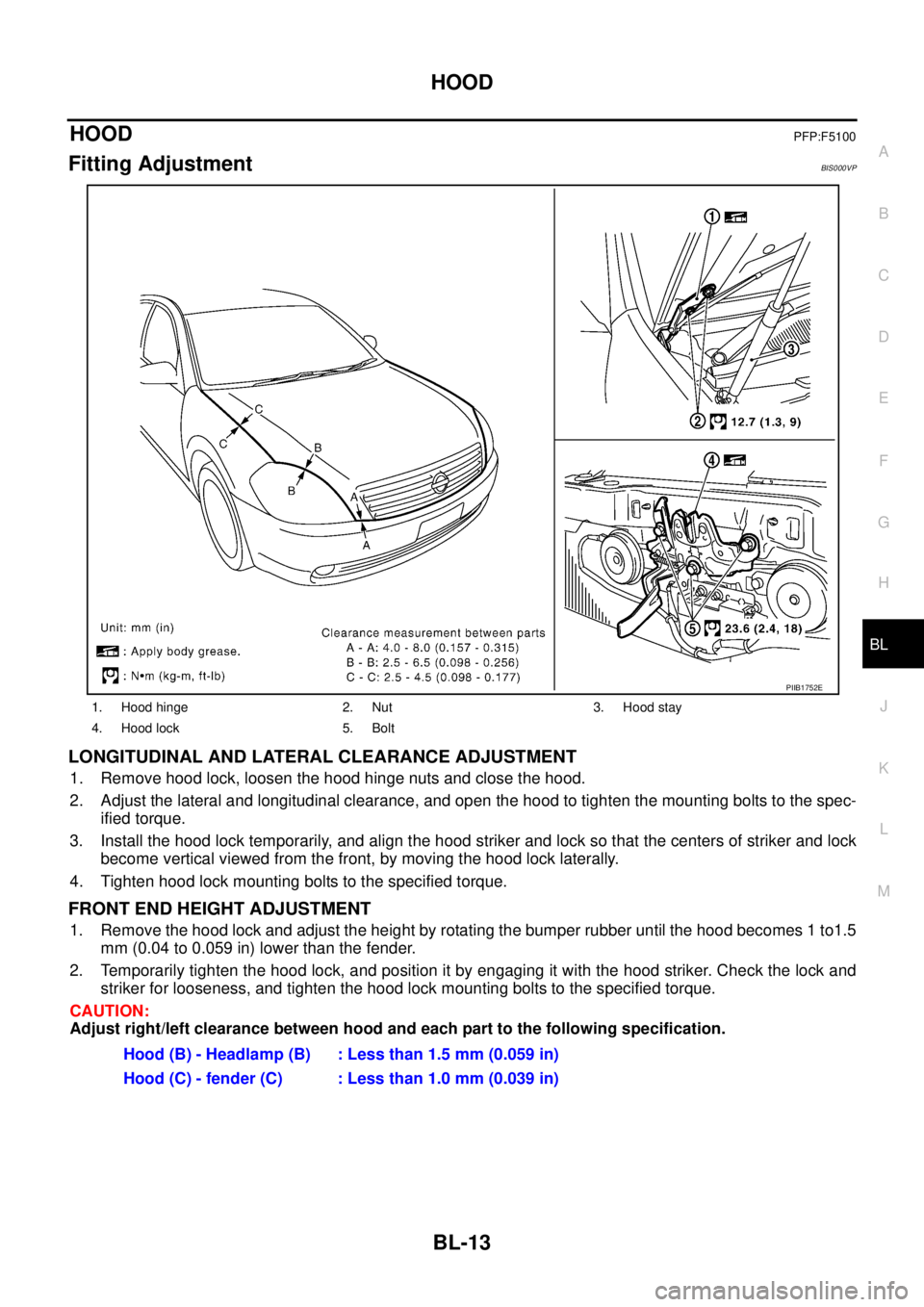

1. Hood hinge 2. Nut 3. Hood stay
4. Hood lock 5. Bolt
PIIB1752E
Hood (B) - Headlamp (B) : Less than 1.5 mm (0.059 in)
Hood (C) - fender (C) : Less than 1.0 mm (0.039 in)

BL-14
HOOD

SURFACE HEIGHT ADJUSTMENT
1. Remove hood lock, and adjust the surface height difference of hood, fender and headlamp according to
the fitting standard dimension, by rotating RH and LH bumper rubbers.
2. Install hood lock temporarily, and move hood lock laterally until the centers of striker and lock become ver-
tical when viewed from the front.
3. Check that the hood lock secondary latch is properly engaged
with the secondary striker with hood's own weight.
4. Check that the hood lock primary latch is securely engaged with
the hood striker with hood's own weight by dropping hood from
approx. 200 mm (7.87) height.
CAUTION:
Do not drop hood from a height of 300 mm (11.81 in) or
more.
5. Move hood lockup and down until striker smoothly engages the
lock when the hood is closed.
6. When pulling the hood opener lever gently, make sure that front
end of the hood rises by approximately 20 mm (0.79) and that hood striker and hood lock primary latch is
disengaged. Also make sure that hood opener returns to the original position.
7. After adjustment, tighten lock bolts to the specified torque.
Removal and InstallationBIS000VQ
Hood (B) - Headlamp (B) : 0.75 ± 1.8 mm (0.030 ± 0.071 in)
Hood (C) - fender (C) : 0 ± 1.0 mm (0 ± 0.039 in)
PIIB0259E

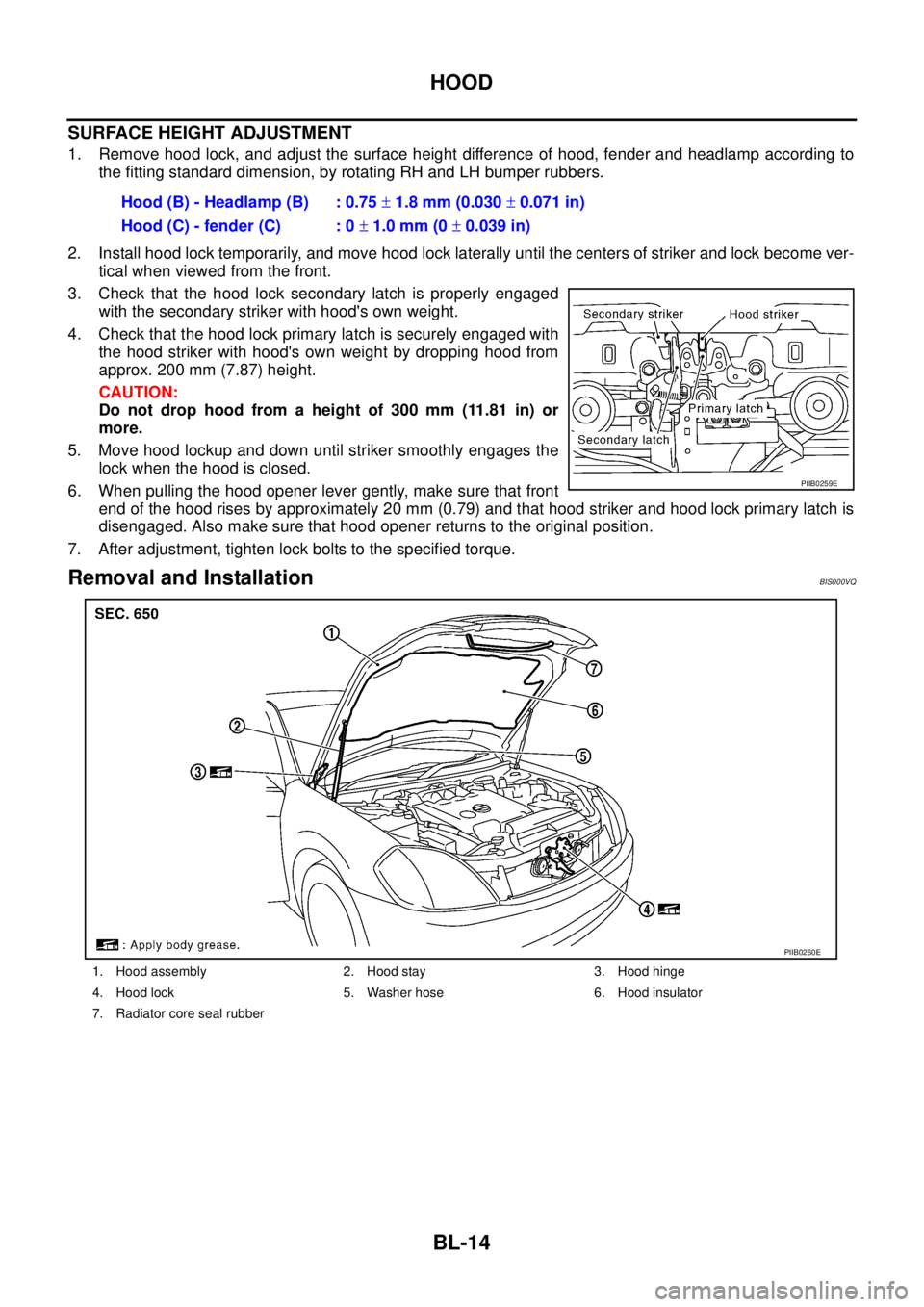

1. Hood assembly 2. Hood stay 3. Hood hinge
4. Hood lock 5. Washer hose 6. Hood insulator
7. Radiator core seal rubber
PIIB0260E
