2003 NISSAN TEANA headlamp

HEADLAMP - HALOGEN TYPE -
LT-57
C
D
E
F
G
H
I
J
L
MA
B
LT

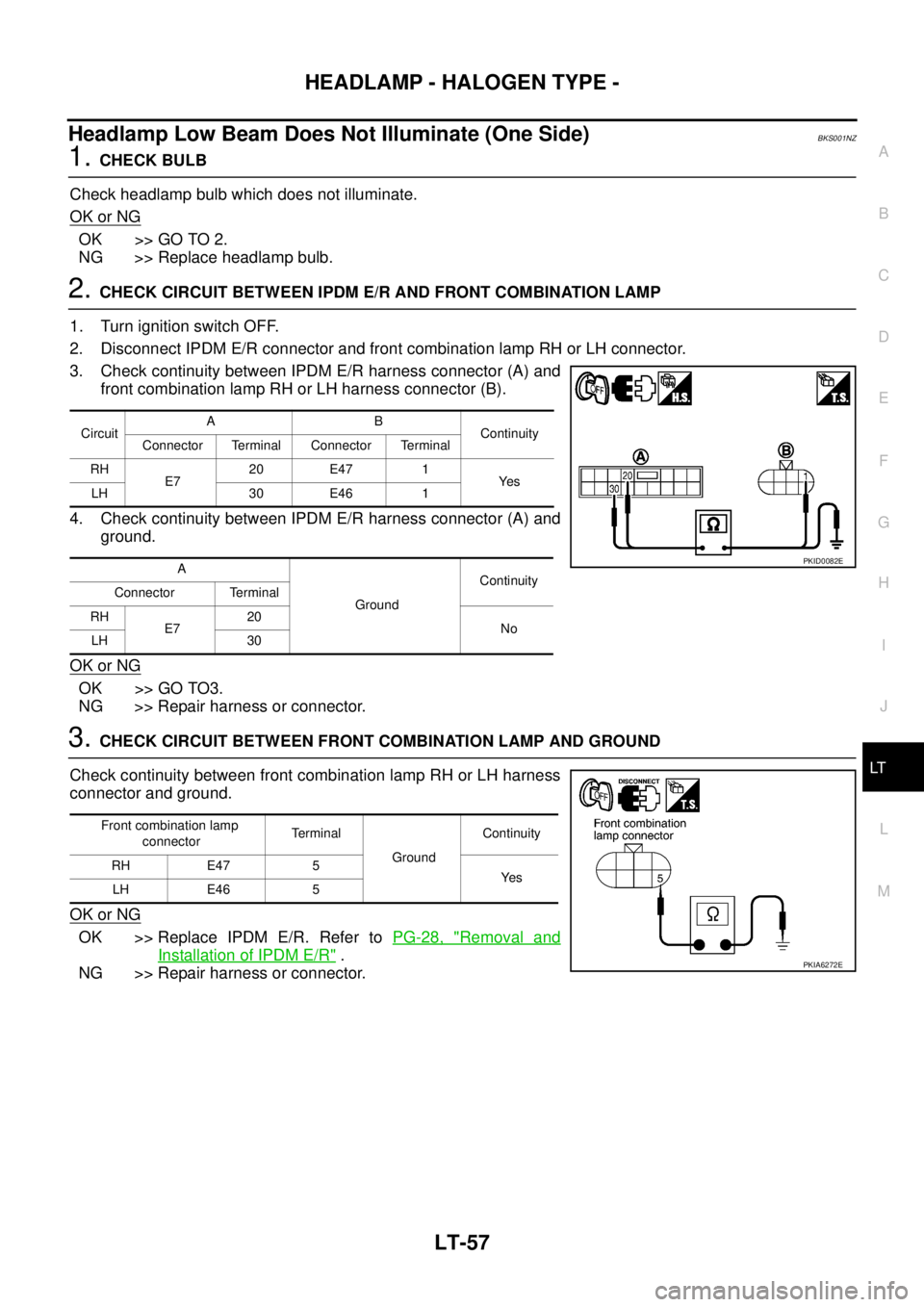

Headlamp Low Beam Does Not Illuminate (One Side)BKS001NZ
1. CHECK BULB
Check headlamp bulb which does not illuminate.
OK or NG
OK >> GO TO 2.
NG >> Replace headlamp bulb.
2. CHECK CIRCUIT BETWEEN IPDM E/R AND FRONT COMBINATION LAMP
1. Turn ignition switch OFF.
2. Disconnect IPDM E/R connector and front combination lamp RH or LH connector.
3. Check continuity between IPDM E/R harness connector (A) and
front combination lamp RH or LH harness connector (B).
4. Check continuity between IPDM E/R harness connector (A) and
ground.
OK or NG
OK >> GO TO3.
NG >> Repair harness or connector.
3. CHECK CIRCUIT BETWEEN FRONT COMBINATION LAMP AND GROUND
Check continuity between front combination lamp RH or LH harness
connector and ground.
OK or NG
OK >> Replace IPDM E/R. Refer to PG-28, "Removal and
Installation of IPDM E/R" .
NG >> Repair harness or connector.
CircuitAB
Continuity
Connector Terminal Connector Terminal
RH
E720 E47 1
Ye s
LH 30 E46 1
A
GroundContinuity
Connector Terminal
RH
E720
No
LH 30
PKID0082E
Front combination lamp
connectorTe r m i n a l
GroundContinuity
RH E47 5
Ye s
LH E46 5
PKIA6272E

LT-58
HEADLAMP - HALOGEN TYPE -

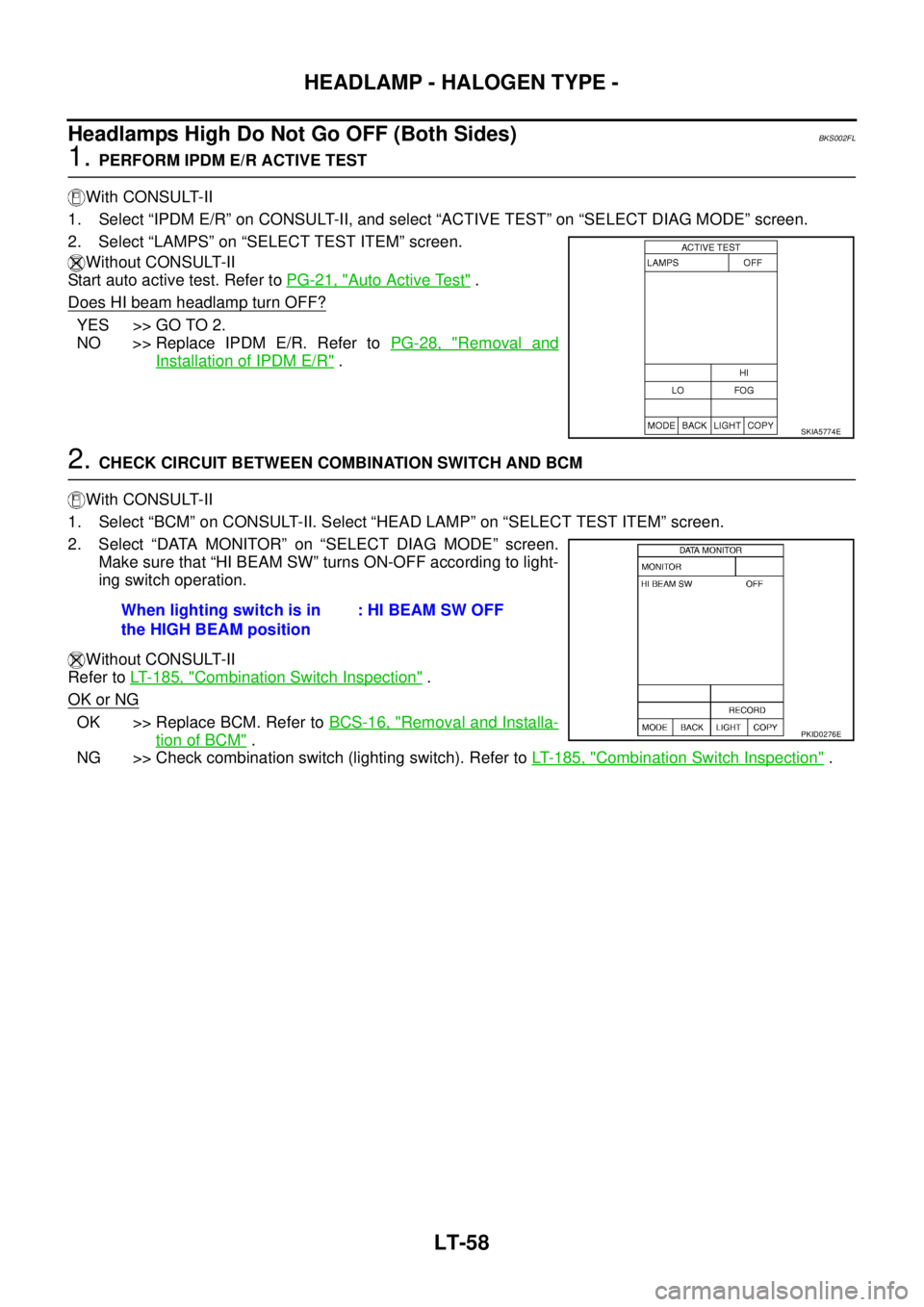

Headlamps High Do Not Go OFF (Both Sides)BKS002FL
1. PERFORM IPDM E/R ACTIVE TEST
With CONSULT-II
1. Select “IPDM E/R” on CONSULT-II, and select “ACTIVE TEST” on “SELECT DIAG MODE” screen.
2. Select “LAMPS” on “SELECT TEST ITEM” screen.
Without CONSULT-II
Start auto active test. Refer to PG-21, "
Auto Active Test" .
Does HI beam headlamp turn OFF?
YES >> GO TO 2.
NO >> Replace IPDM E/R. Refer to PG-28, "
Removal and
Installation of IPDM E/R" .
2. CHECK CIRCUIT BETWEEN COMBINATION SWITCH AND BCM
With CONSULT-II
1. Select “BCM” on CONSULT-II. Select “HEAD LAMP” on “SELECT TEST ITEM” screen.
2. Select “DATA MONITOR” on “SELECT DIAG MODE” screen.
Make sure that “HI BEAM SW” turns ON-OFF according to light-
ing switch operation.
Without CONSULT-II
Refer to LT- 1 8 5 , "
Combination Switch Inspection" .
OK or NG
OK >> Replace BCM. Refer to BCS-16, "Removal and Installa-
tion of BCM" .
NG >> Check combination switch (lighting switch). Refer to LT- 1 8 5 , "
Combination Switch Inspection" .
SKIA5774E
When lighting switch is in
the HIGH BEAM position: HI BEAM SW OFF
PKID0276E

HEADLAMP - HALOGEN TYPE -
LT-59
C
D
E
F
G
H
I
J
L
MA
B
LT

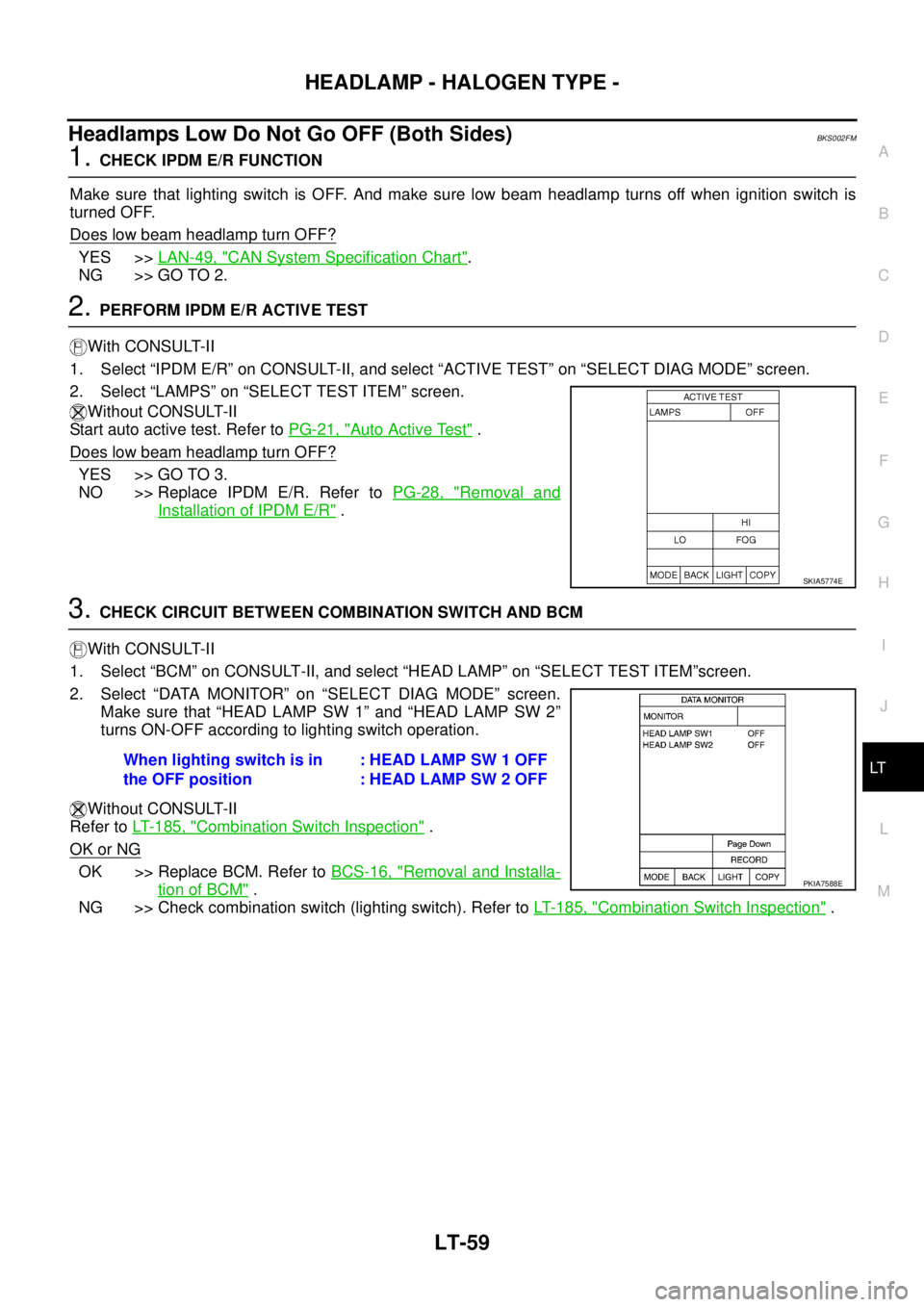

Headlamps Low Do Not Go OFF (Both Sides)BKS002FM
1. CHECK IPDM E/R FUNCTION
Make sure that lighting switch is OFF. And make sure low beam headlamp turns off when ignition switch is
turned OFF.
Does low beam headlamp turn OFF?
YES >>LAN-49, "CAN System Specification Chart".
NG >> GO TO 2.
2. PERFORM IPDM E/R ACTIVE TEST
With CONSULT-II
1. Select “IPDM E/R” on CONSULT-II, and select “ACTIVE TEST” on “SELECT DIAG MODE” screen.
2. Select “LAMPS” on “SELECT TEST ITEM” screen.
Without CONSULT-II
Start auto active test. Refer to PG-21, "
Auto Active Test" .
Does low beam headlamp turn OFF?
YES >> GO TO 3.
NO >> Replace IPDM E/R. Refer to PG-28, "
Removal and
Installation of IPDM E/R" .
3. CHECK CIRCUIT BETWEEN COMBINATION SWITCH AND BCM
With CONSULT-II
1. Select “BCM” on CONSULT-II, and select “HEAD LAMP” on “SELECT TEST ITEM”screen.
2. Select “DATA MONITOR” on “SELECT DIAG MODE” screen.
Make sure that “HEAD LAMP SW 1” and “HEAD LAMP SW 2”
turns ON-OFF according to lighting switch operation.
Without CONSULT-II
Refer to LT- 1 8 5 , "
Combination Switch Inspection" .
OK or NG
OK >> Replace BCM. Refer to BCS-16, "Removal and Installa-
tion of BCM" .
NG >> Check combination switch (lighting switch). Refer to LT- 1 8 5 , "
Combination Switch Inspection" .
SKIA5774E
When lighting switch is in
the OFF position: HEAD LAMP SW 1 OFF
: HEAD LAMP SW 2 OFF
PKIA7588E

LT-60
HEADLAMP - HALOGEN TYPE -

Aiming AdjustmentBKS001O1
PREPARATION BEFORE ADJUSTING
For Details, Refer To the Regulations In Your Own Country.
Before performing aiming adjustment, check the following.
1. Keep all tires inflated to correct pressures.
2. Place vehicle on level ground.
3. Set that there is no-load in vehicle other then the driver (or equivalent weight placed in driver’s position).
Coolant, engine oil filled up to correct level and full fuel tank.

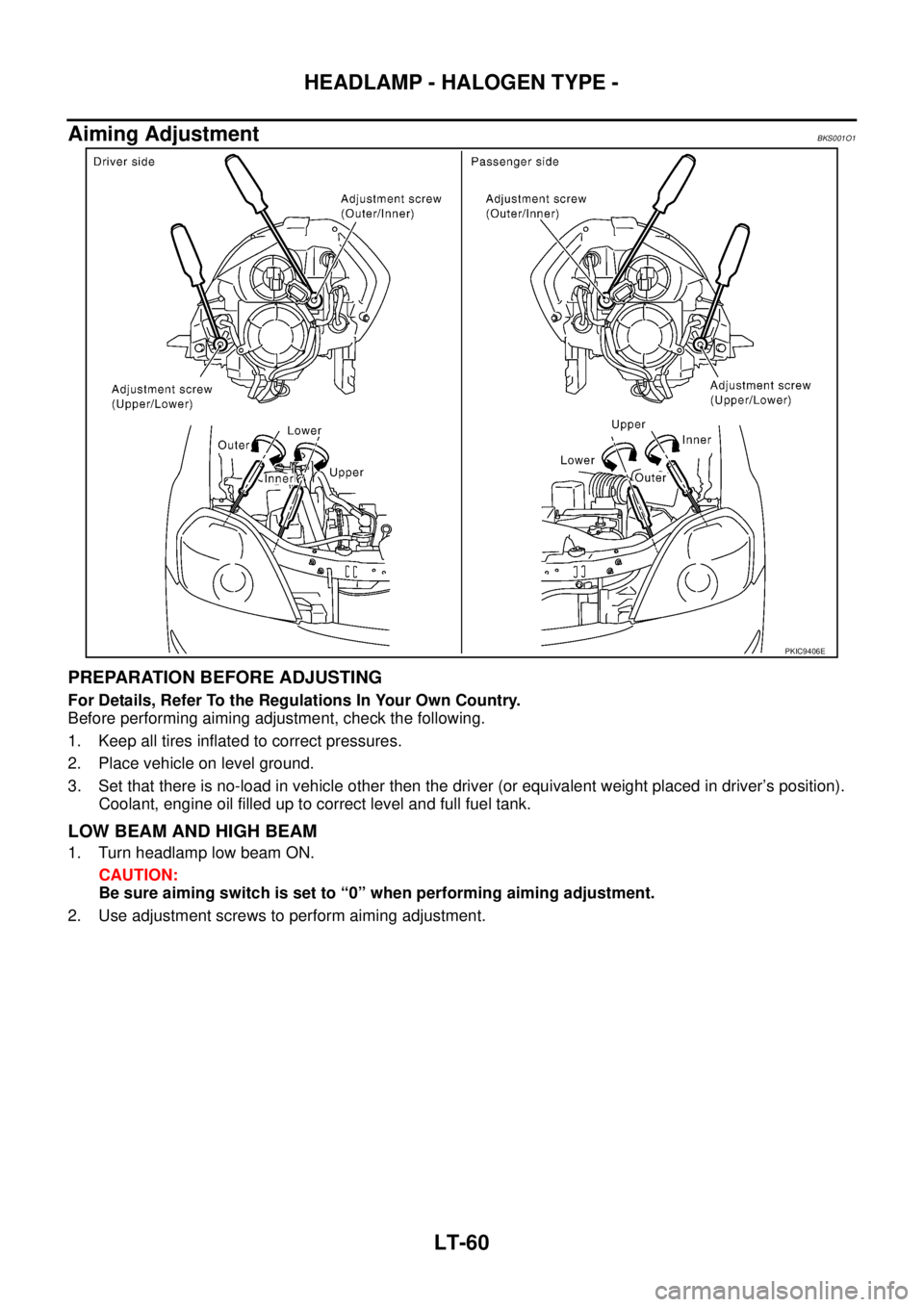

LOW BEAM AND HIGH BEAM
1. Turn headlamp low beam ON.
CAUTION:
Be sure aiming switch is set to “0” when performing aiming adjustment.
2. Use adjustment screws to perform aiming adjustment.
PKIC9406E

HEADLAMP - HALOGEN TYPE -
LT-61
C
D
E
F
G
H
I
J
L
MA
B
LT

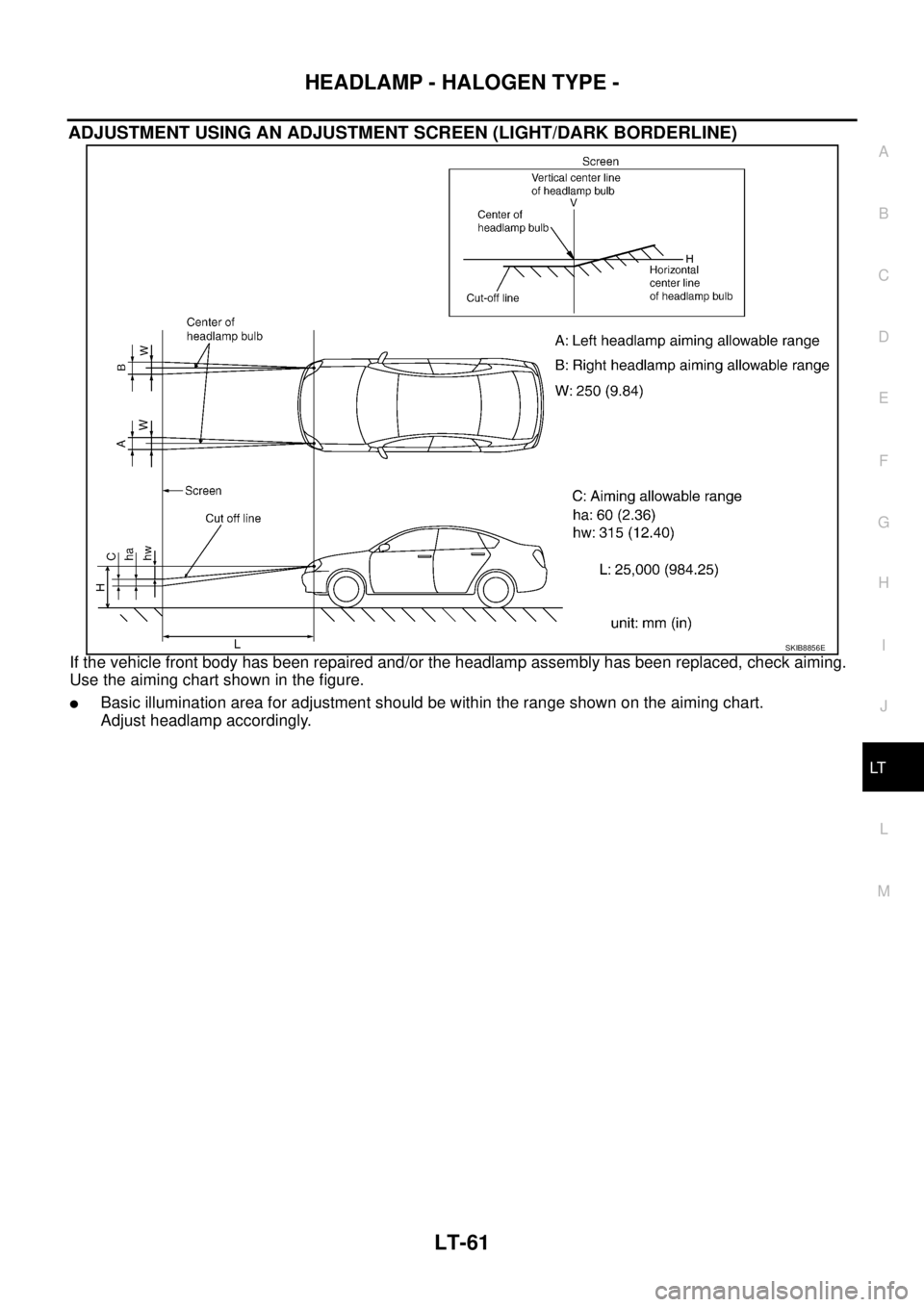

ADJUSTMENT USING AN ADJUSTMENT SCREEN (LIGHT/DARK BORDERLINE)
If the vehicle front body has been repaired and/or the headlamp assembly has been replaced, check aiming.
Use the aiming chart shown in the figure.

Basic illumination area for adjustment should be within the range shown on the aiming chart.
Adjust headlamp accordingly.
SKIB8856E

LT-62
HEADLAMP - HALOGEN TYPE -

Bulb ReplacementBKS001O2
HEADLAMP (UPPER) HIGH BEAM
1. Turn lighting switch OFF.
2. Remove washer tank inlet when replacing bulb RH. Refer to WW-38, "
Removal and Installation of Washer
Ta n k" .
Remove air cleaner case when replacing bulb LH. Refer to EM-17, "
Removal and Installation" (models
with QR engine), or EM-131, "
Removal and Installation" (models with VQ engine).
3. Turn plastic cap counterclockwise and unlock it.
4. Remove the socket connected to the bulb.
5. Unlock retaining spring and remove bulb from headlamp.
HEADLAMP (LOWER) LOW BEAM
1. Turn lighting switch OFF.
2. Remove washer tank inlet when replacing bulb RH. Refer to WW-38, "
Removal and Installation of Washer
Ta n k" .
Remove air cleaner case when replacing bulb LH. Refer to EM-17, "
Removal and Installation" (models
with QR engine), or EM-131, "
Removal and Installation" (models with VQ engine).
3. Turn plastic cap counterclockwise and unlock it.
4. Remove the socket connected to the bulb.
5. Unlock retaining spring and remove bulb from headlamp.
PARKING LAMP
1. Turn lighting switch OFF.
2. Remove fender protector (front). Refer to EI-23, "
Removal and Installation" .
3. Turn bulb socket counterclockwise and unlock it.
4. Remove bulb from its socket.
FRONT TURN SIGNAL LAMP
1. Turn lighting switch OFF.
2. Remove fender protector (front). Refer to EI-23, "
Removal and Installation" .
3. Turn bulb socket counterclockwise and unlock it.
4. Remove bulb from its socket.
CAUTION:
After installing bulb, be sure to install plastic cap and bulb socket securely to ensure watertight-
ness.
Removal and InstallationBKS001O3
Refer to LT- 3 6 , "Removal and Installation" .
NOTE:
After installation, perform aiming adjustment. Refer to LT- 6 0 , "
Aiming Adjustment" . Headlamp (upper) high beam : 12V - 55W (H7)
Headlamp (lower) low beam : 12V - 55W (H11)
Parking lamp : 12V - 5W
Front turn signal lamp : 12V - 21W (amber)

HEADLAMP - HALOGEN TYPE -
LT-63
C
D
E
F
G
H
I
J
L
MA
B
LT

Disassembly and AssemblyBKS001O4
DISASSEMBLY
1. Turn plastic cap counterclockwise and unlock it.
2. Disconnect bulb socket (low).
3. Unlock retaining spring and remove bulb (low).
4. Disconnect bulb socket (high).
5. Unlock retaining spring and remove bulb (high).
6. Turn parking lamp bulb socket counterclockwise and unlock it.
7. Remove parking lamp bulb from its socket.
8. Turn front turn signal lamp bulb socket counterclockwise and unlock it.
9. Remove front turn signal lamp bulb from its socket.
ASSEMBLY
Note the following, and assembly is the reverse order of disassembly.
CAUTION:

After installing bulb, be sure to install plastic cap and bulb socket securely to insure watertight-
ness.

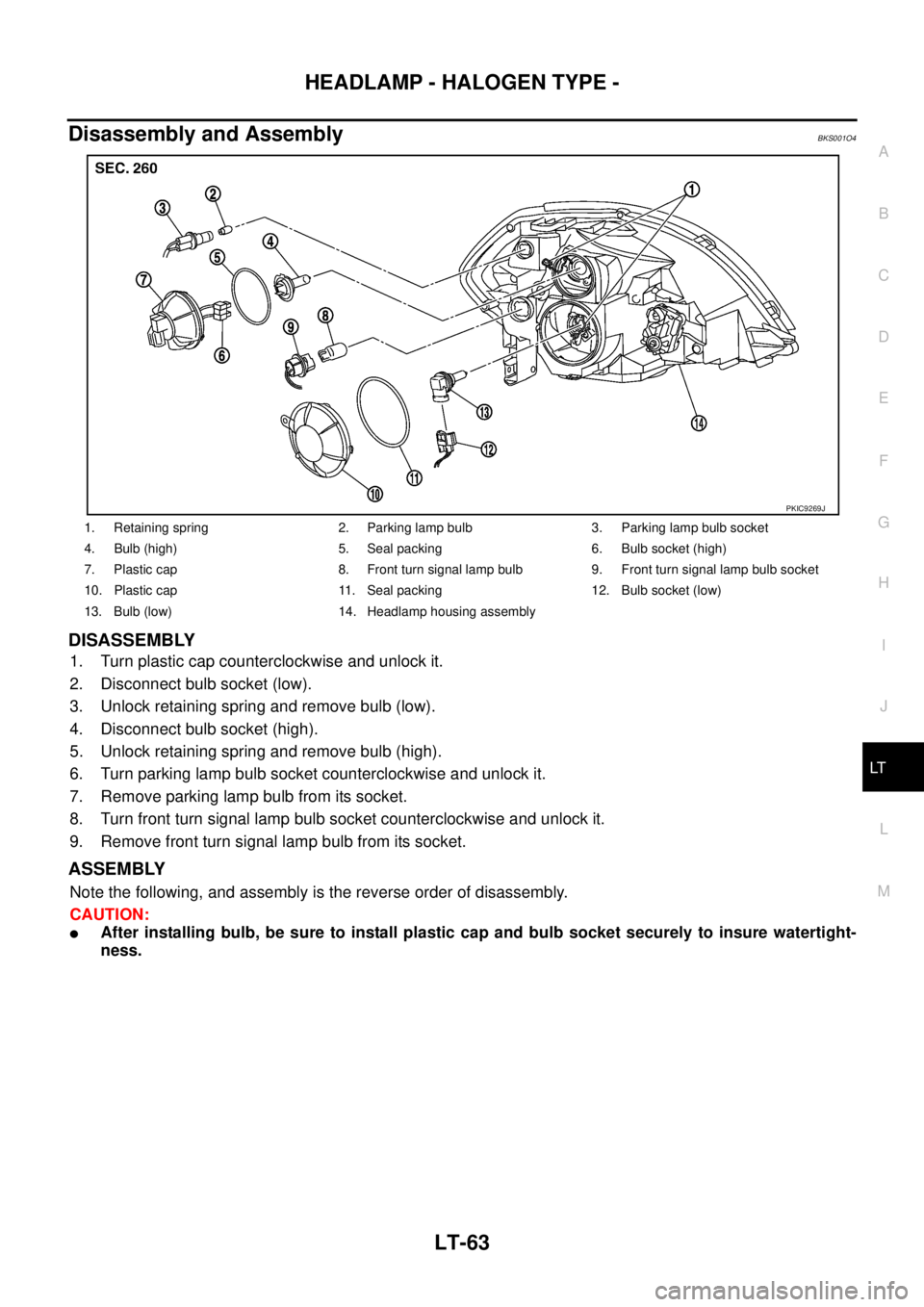

1. Retaining spring 2. Parking lamp bulb 3. Parking lamp bulb socket
4. Bulb (high) 5. Seal packing 6. Bulb socket (high)
7. Plastic cap 8. Front turn signal lamp bulb 9. Front turn signal lamp bulb socket
10. Plastic cap 11. Seal packing 12. Bulb socket (low)
13. Bulb (low) 14. Headlamp housing assembly
PKIC9269J

LT-64
AUTO LIGHT SYSTEM

AUTO LIGHT SYSTEMPFP:28491
Component Parts and Harness Connector LocationBKS001O5
System DescriptionBKS001O6

BCM (Body Control Module) controls auto light operation according to signals from optical sensor, lighting
switch and ignition switch.

IPDM E/R (Intelligent Power Distribution Module Engine Room) operates parking, license plate, tail, front
fog lamps and headlamps according to CAN communication signals from BCM.

Optical sensor detects ambient brightness of 800 to 2,500 lux. And optical sensor converts light (lux) to
voltage, then sends the optical sensor signal to BCM.
OUTLINE
The auto light control system has an optical sensor inside it that detects outside brightness.
When the lighting switch is in AUTO position, it automatically turns ON/OFF the parking, license plate, tail,
front fog lamps and headlamps in accordance with the ambient light. Sensitivity can be adjusted in four steps.
For the details of the setting, Refer to LT- 1 9 , "
WORK SUPPORT" .
Optical sensor, power is supplied

from BCM terminal 17

to optical sensor terminal 1.
Optical sensor, ground is supplied

to optical sensor terminal 3

from BCM terminal 18.
When ignition switch is turn to ON position, and
When outside brightness is darker than prescribed level, input is supplied

from optical sensor terminal 2
PKID0343E
