2003 NISSAN TEANA headlamp

AUTO LIGHT SYSTEM
LT-65
C
D
E
F
G
H
I
J
L
MA
B
LT


to BCM terminal 14.
AUTO LIGHT OPERATION
Applicable lamps

Low beam headlamp

Parking, license plate and tail lamps

High beam headlamp (with the lighting switch in HIGH BEAM position)

Front fog lamp (with the lighting switch in front fog lamp ON position)
When the lighting switch is in AUTO position with the ignition switch in ON position, BCM detects the AUTO
LIGHT (ON) by BCM combination switch reading function. BCM turns automatically ON/OFF the applicable
lamps according to ambient brightness depending on the following condition.

It turns ON applicable lamps in 3 seconds when ambient brightness is less than 1250 lux.

This lighted lamps is turned OFF in 5 seconds when ambient brightness becomes 2500 lux or higher.
Releasing Function:

Turn ignition switch to the OFF position, or

Change lighting switch to the OFF, 1ST, 2ND position.
NOTE:
Timing for when lamps turn ON/OFF can be changed by the function setting of CONSULT-II. Refer to LT- 1 9 ,
"WORK SUPPORT" .
COMBINATION SWITCH READING FUNCTION
Refer to BCS-3, "COMBINATION SWITCH READING FUNCTION" .
HEADLAMP LOW AND HIGH OPERATION (XENON TYPE)
Refer to LT- 6 , "System Description" .
HEADLAMP LOW AND HIGH OPERATION (HALOGEN TYPE)
Refer to LT- 3 8 , "System Description" .
FRONT FOG LAMP OPERATION
Refer to LT- 1 2 6 , "System Description" .
PARKING, LICENSE PLATE AND TAIL LAMPS OPERATION
Refer to LT- 1 9 6 , "System Description" .
CAN Communication System DescriptionBKS001O7
CAN (Controller Area Network) is a serial communication line for real time application. It is an on-vehicle mul-
tiplex communication line with high data communication speed and excellent error detection ability. Many elec-
tronic control units are equipped onto a vehicle, and each control unit shares information and links with other
control units during operation (not independent). In CAN communication, control units are connected with 2
communication lines (CAN H line, CAN L line) allowing a high rate of information transmission with less wiring.
Each control unit transmits/receives data but selectively reads required data only.
CAN Communication UnitBKS001O8
Refer to LAN-49, "CAN System Specification Chart" .
Major Components and FunctionsBKS001O9
Components Functions
BCM

Turns ON/OFF circuits of parking lamp, license plate lamp, tail lamp and headlamp according to signals from
optical sensor, lighting switch (AUTO), and ignition switch (ON, OFF).
Optical sensor

Converts outside brightness (lux) to voltage, and sends it to BCM. (Detects brightness of 800 to 2500 lux)

AUTO LIGHT SYSTEM
LT-69
C
D
E
F
G
H
I
J
L
MA
B
LT

Terminals and Reference Values for IPDM E/RBKS001OD
How to Perform Trouble DiagnosisBKS001OE
1. Confirm the symptom or customer complaint.
2. Understand operation description and function description. Refer to LT- 6 4 , "
System Description" .
3. Preform the Preliminary Check. Refer to LT- 7 0 , "
Preliminary Check" .
4. Check symptom and repair or replace the cause of malfunction.
5. Does the auto light system operate normally? If YES, GO TO 6. If NO, GO TO 4.
6. INSPECTION END.
Te r m i n a l
No.Wire
colorSignal nameMeasuring condition
Reference value
Ignition
switchOperation or condition
20 R/Y Headlamp low (RH) ON Lighting switch 2ND positionOFF Approx. 0 V
ON Battery voltage
22 R/LParking, license plate and
tail lampsON Lighting switch 1ST positionOFF Approx. 0 V
ON Battery voltage
27 L/W Headlamp high (RH) ONLighting switch HIGH BEAM
position or PASS positionOFF Approx. 0 V
ON Battery voltage
28 G Headlamp high (LH) ONLighting switch HIGH BEAM
position or PASS positionOFF Approx. 0 V
ON Battery voltage
30 L Headlamp low (LH) ON Lighting switch 2ND positionOFF Approx. 0 V
ON Battery voltage
38 B Ground ON — Approx. 0 V
48 L CAN− H— — —
49 P CAN− L— — —
60 B Ground ON — Approx. 0 V

AUTO LIGHT SYSTEM
LT-71
C
D
E
F
G
H
I
J
L
MA
B
LT

3. CHECK GROUND CIRCUIT
Check continuity between BCM harness connector and ground.
OK or NG
OK >> INSPECTION END
NG >> Repair harness or connector.
CONSULT-II Functions (BCM)BKS001OG
Refer to LT- 1 8 , "CONSULT-II Functions (BCM)"
Auto Light Function Does Not OperateBKS002FX
1. CHECK EXTERIOR LAMPS OPERATION
Check if the following lamps operates normally.

Headlamp

Parking lamp

License plate lamp

Tail lamp
OK or NG
OK >> GO TO 2.
NG >> Repair or replace malfunctioning parts.
2. CHECK OPTICAL SENSOR OUTPUT SIGNAL
1. Select “BCM” on CONSULT-II, and select “HEAD LAMP” on “SELECT TEST ITEM” screen.
2. Select “DATA MONITOR” on “SELECT DIAG MODE” screen.
On “OPTICAL SENSOR”, check difference in the voltage when
optical sensor is illuminated and not illuminated.
CAUTION:
Optical sensor must be securely subjected to work lamp
light. If the optical sensor is insufficiently illuminated, the
measured value may not satisfy the standard.
OK or NG
OK >> GO TO 3.
NG >> GO TO 5.
BCM connector Terminal
GroundContinuity
M4 52 Yes
PKIA6256E
Illuminated
OPTICAL SENSOR : 3.1 V or more
Not illuminated
OPTICAL SENSOR : 0.6 V or less
PKIA7596E

ACTIVE AFS
LT-75
C
D
E
F
G
H
I
J
L
MA
B
LT

ACTIVE AFSPFP:253C0

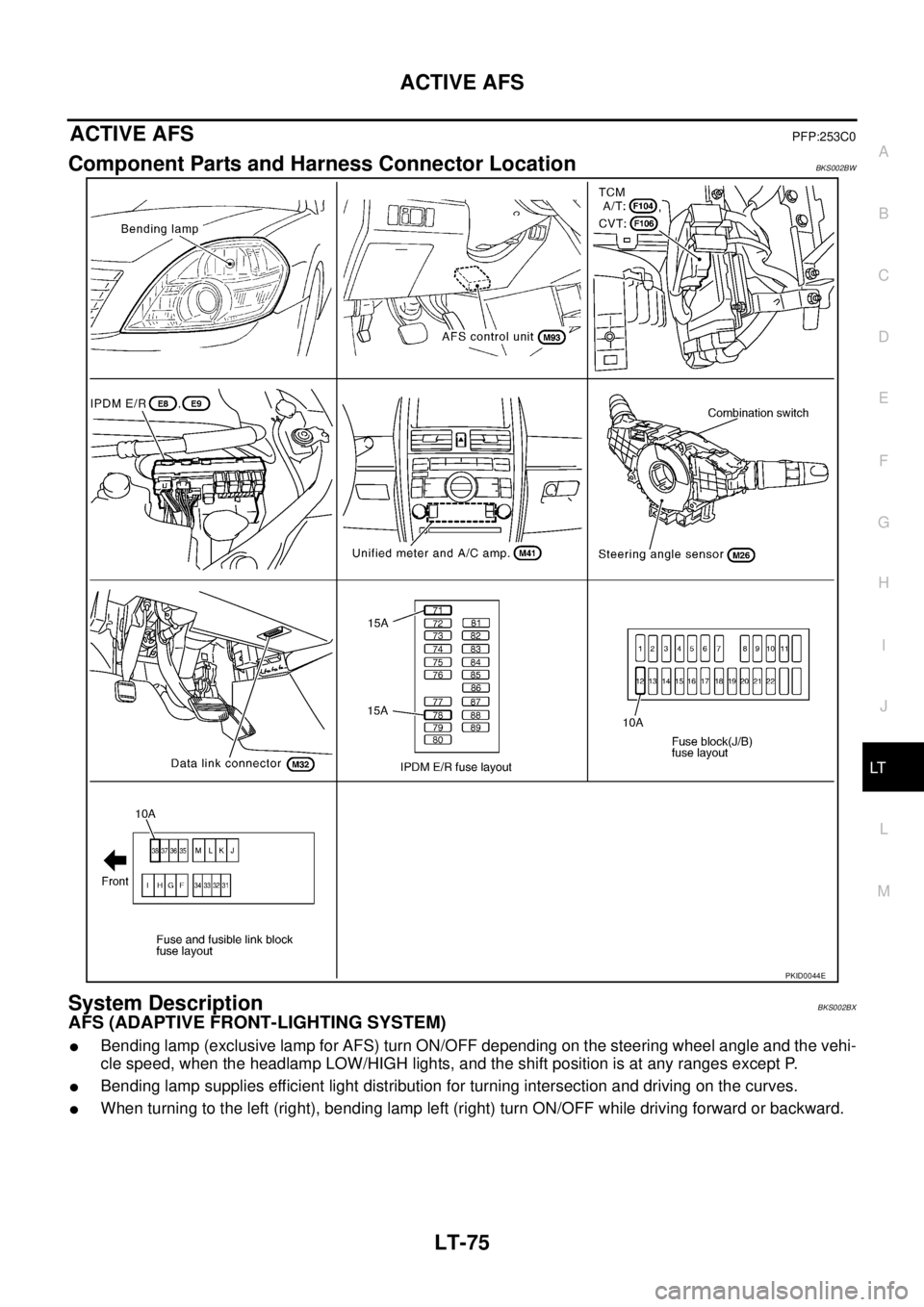

Component Parts and Harness Connector LocationBKS002BW
System DescriptionBKS002BX
AFS (ADAPTIVE FRONT-LIGHTING SYSTEM)

Bending lamp (exclusive lamp for AFS) turn ON/OFF depending on the steering wheel angle and the vehi-
cle speed, when the headlamp LOW/HIGH lights, and the shift position is at any ranges except P.

Bending lamp supplies efficient light distribution for turning intersection and driving on the curves.

When turning to the left (right), bending lamp left (right) turn ON/OFF while driving forward or backward.
PKID0044E

LT-76
ACTIVE AFS

OUTLINE
Power is supplied at all times

to ignition relay [located in IPDM E/R (Intelligent Power Distribution Module Engine Room)], from battery
direct,

through 15A fuse (No. 71, located in IPDM E/R)

to CPU (central processing unit) in IPDM E/R,

through 15A fuse (No. 78, located in IPDM E/R)

to CPU in IPDM E/R,

through 10A fuse (No. 38, located in fuse and fusible link block)

to AFS control unit terminal 6.
With the ignition switch in the ON or START position, power is supplied

to ignition relay (located in IPDM E/R),

through 10A fuse [No. 12, located in fuse block (J/B)]

to steering angle sensor terminal 3 and

to AFS control unit terminal 1.
Ground is supplied

to IPDM E/R terminals 38 and 60

through grounds E1 and E31,

to steering angle sensor terminal 2 and

to AFS control unit terminal 4

through grounds M71 and M72.
BENDING LAMP OPERATION
Bending lamp right/left turn ON depending on the steering wheel angle and the vehicle speed under the oper-
ating condition. Bending lamp right/left turn OFF when the steering wheel is returned to the straight.

Operation condition

CAN communication control
AFS control unit is connected to CAN communication line, and receives the signal necessary for active
AFS control with CAN communication.
Steering wheel Lighting switch A/T or CVT shift positionBending lamp RH Bending lamp LH
Lamp ON Lamp ON
Turn to rightOFF, 1ST —
2ND
(LOW, HIGH)P range
Except P range×
Turn to leftOFF, 1ST —
2ND
(LOW, HIGH)P range
Except P range×
Ignition switch Headlamp status A/T or CVT shift position Steering wheel angle Vehicle speed
ONIlluminated
(LOW or HIGH)Except P rangeBending lamp turn ON/
OFF according to the
steering wheel angle.Steering wheel angle, which decides if
bending lamp turn ON, depends on the
vehicle speed.
Transmit unit Meter & A/C amp. Steering angle sensor TCM IPDM E/R
Signal name Vehicle speed signal Steering angle sensor signal TCM shift position signal

Headlamp LO beam signal

Headlamp HI beam signal

LT-86
ACTIVE AFS

DATA MONITOR
Operation Procedure
1. Touch ADAPTIVE LIGHT” on “SELECT SYSTEM” screen.
2. Touch “DATA MONITOR” on “SELECT DIAG MODE” screen.
3. Touch either “ALL SIGNALS” or “SELECTION FROM MENU” on “SELECT MONITOR ITEM” screen.
4. When “ALL SIGNALS” is selected, all the items will be monitored. When “SELECTION FROM MENU” is
selected, touch items to be monitored.
5. Touch “START”.
6. Touch “RECORD” while monitoring, then the status of the monitored item can be recorded. To stop
recording, touch “STOP”.
Display Item List
NOTE:
Items will be displayed, but it is fixed to “ON” display.ALL SIGNALS Monitors all the signals.
SELECTION FROM MENU Selects items and monitors them.
Monitor itemOperating condition and display item
Contents
Operating conditionDisplay
item
STR ANGLE SIG “deg” Steering wheelTurn to right +deg
Displays steering angle as judged from steering
angle sensor signal.
Turn to left -deg
VHCL SPD “km/h” —Displays vehicle speed judged from vehicle
speed signal.
SLCT LVR POSI “P - 1” —Displays shift condition judged from AT shift
position signal or CVT shift position signal.
HEAD LAMP LO “ON/OFF” Lighting switchLO, HI ON
Displays ON/OFF condition of headlamp LO
judged from headlamp (LO) ON signal. Other than
LO, HIOFF
AFS SW
NOTE“ON/OFF” — —
BEND LAMP LH “ON/OFF” Bending lamp (LH)ON ON
Displays bending lamp (LH) output condition
judged from AFS control unit.
OFF OFF
BEND LAMP RH “ON/OFF” Bending lamp (RH)ON ON
Displays bending lamp (RH) output condition
judged from AFS control unit.
OFF OFF
HEAD LAMP HI “ON/OFF” Lighting switchHI ON
Displays ON/OFF condition of headlamp HI
judged from headlamp (HI) ON signal.
Other than HI OFF

HEADLAMP AIMING CONTROL (AUTO)
LT-95
C
D
E
F
G
H
I
J
L
MA
B
LT

HEADLAMP AIMING CONTROL (AUTO)PFP:53821

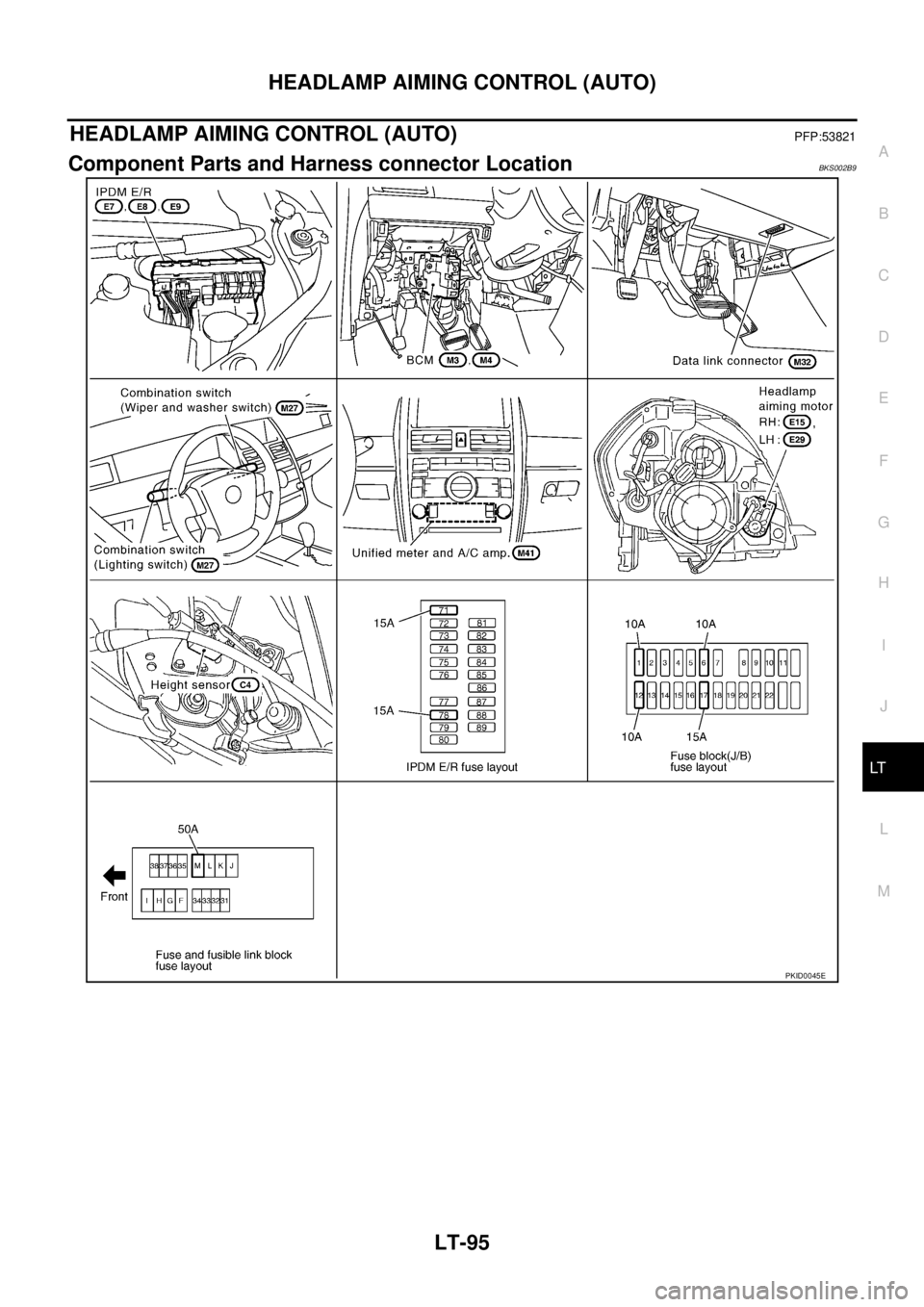

Component Parts and Harness connector LocationBKS002B9
PKID0045E

LT-96
HEADLAMP AIMING CONTROL (AUTO)

System DescriptionBKS002BA
The height sensor is located on the right side of the rear suspension member. With the lighting switch in the
1ST or 2ND position, the height sensor detects vehicle height change by sensing the displacement of the sus-
pension arm. And the height sensor transmits a corresponding signal to the headlamp aiming motors. The sig-
nal drives the headlamp aiming motors, which adjusts the low beam reflector of each headlamp to an angle
appropriate for the vehicle height.
The aiming motor drive signal level retains when the following conditions are not met.

When the stopped vehicle changes the height and keeps it for more than 10 seconds, the height sensor
outputs a aiming motor drive signal. And height sensor keeps signal voltage to headlamp aiming motor.
Upon reception of the aiming motor drive signal, both headlamp aiming motors cause the low beam reflec-
tors to move to the position commanded by the signal.

When the vehicle is running (excluded when accelerating/decelerating), the height sensor transmits aim-
ing motor drive signal to headlamp aiming motors at the predetermined intervals. The voltage level of
every signal input is maintained unchanged until the next signal is input.
Upon reception of the aiming motor drive signal, both headlamp aiming motors cause the low beam reflec-
tors to move to the position commanded by the signal.

When the vehicle is accelerating or decelerating, the height sensor keeps the same aiming motor drive
signal voltage level rather than changing it, so that the low beam reflectors of both headlamps do not
operate.
When the lighting switch is turned OFF position, the height sensor retains the aiming motor drive signal level
at that moment and stops transmitting the signal.
OUTLINE
Power is supplied at all times

to ignition relay [located in IPDM E/R (Intelligent Power Distribution Module Engine Room)], from battery
direct,

through 15A fuse (No. 71, located in IPDM E/R)

to tail lamp relay (located in IPDM E/R) and

to CPU (central processing unit) in IPDM E/R,

through 15A fuse (No. 78, located in IPDM E/R)

to CPU in IPDM E/R,

through 50A fusible link (letter M, located in fuse and fusible link block)

to BCM terminal 55,

through 15A fuse [No. 17, located in fuse block (J/B)]

to BCM terminal 42.
With the ignition switch in the ON or START position, power is supplied

to ignition relay (located in IPDM E/R),

through 10A fuse [No. 1, located in fuse block (J/B)]

to BCM terminal 38,

through 10A fuse [No. 12, located in fuse block (J/B)]

to height sensor terminal 2.
With the ignition switch in ACC or ON position, power is supplied

through 10A fuse [No. 6, located in fuse block (J/B)]

to BCM terminal 11.
Ground is supplied

to BCM terminal 52

through grounds M71 and M72,

to IPDM E/R terminals 38 and 60

through grounds E1 and E31,

to height sensor terminal 1

through grounds B214 and B217.
