2003 NISSAN TEANA stop start

BRAKE BOOSTER
BR-21
C
D
E
G
H
I
J
K
L
MA
B
BR

BRAKE BOOSTERPFP:47200
On-Board Inspection and ServiceBFS000BS
OPERATION CHECK
With engine stopped, change the vacuum to the atmospheric pres-
sure by depressing brake pedal several times. Then with brake
pedal fully depressed, start engine and when the vacuum pressure
reaches the standard, make sure that clearance between brake
pedal and floor panel decreases.
CAUTION:
Depressing pedal interval is approximately 5 seconds.
AIR TIGHT CHECK

Run engine at idle for approximately 1 minute, and stop it after
applying vacuum to booster. Depress brake pedal normally to
change the vacuum to the atmospheric pressure. Make sure
distance between brake pedal and floor panel gradually
increases.

Depress brake pedal while engine is running, and stop engine
with brake pedal is depressed. Brake pedal stroke should not
change after holding brake pedal down for 30 seconds.
CAUTION:
Depressing brake pedal interval is approximately at intervals 5
seconds.
BRA0037D
SBR365AA

PRECAUTIONS
BRC-3
[ABS]
C
D
E
G
H
I
J
K
L
MA
B
BRC

[ABS]PRECAUTIONSPFP:00001
Precautions for Supplemental Restraint System (SRS) “AIR BAG” and “SEAT
BELT PRE-TENSIONER”
BFS000CK
The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. Information necessary to service the system safely is included in the SRS and SB section of
this Service Manual.
WARNING:

To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death
in the event of a collision which would result in air bag inflation, all maintenance must be per-
formed by an authorized NISSAN/INFINITI dealer.

Improper maintenance, including incorrect removal and installation of the SRS, can lead to per-
sonal injury caused by unintentional activation of the system. For removal of Spiral Cable and Air
Bag Module, see the SRS section.

Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this
Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or
harness connectors.
Precautions for Brake SystemBFS000CL

Recommended fluid is brake fluid “DOT 3” or “DOT 4”. Refer to MA-14, "RECOMMENDED FLUIDS AND
LUBRICANTS" .

Never reuse drained brake fluid.

Be careful not to splash brake fluid on painted areas.

To clean or wash all parts of master cylinder and disc brake caliper, use clean brake fluid.

Never use mineral oils such as gasoline or kerosene. They will
ruin rubber parts of the hydraulic system.

Using a flare nut wrench when removing flare nuts, and use a
flare nut torque wrench when tighten brake tube flare nuts.

When installing brake tubes, be sure to check torque.

Before working, turn ignition switch OFF and disconnect electri-
cal connector of ABS actuator and electric unit (control unit) or
battery negative terminal.
WARNING:
Clean brake pads and shoes with a waste cloth, then wipe with
a dust collector.
Precautions for Brake ControlBFS000CM

During ABS operation, brake pedal lightly vibrates and a mechanical noise may be heard. This is normal.

Just after starting vehicle after ignition switch ON, brake pedal may vibrate or motor operating noise may
be heard from engine room. This is a normal condition of operation check.

Stopping distance may be longer than that of vehicles without ABS when vehicle drives on rough, gravel,
or snow-covered (fresh, deep snow) roads.

When an error is indicated by ABS or another warning lamp, collect all necessary information from cus-
tomer (what symptoms are present under what conditions) and check for simple causes before starting
diagnostic servicing. Besides electrical system inspection, check brake booster operation, brake fluid
level, and fluid leaks.

If tire size and type are used in an improper combination, or brake pads are not Genuine NISSAN parts,
stopping distance or steering stability may deteriorate.

If there is a radio, antenna, or antenna lead-in wire (including wiring) near control module, ABS function
may have a malfunction or error.

If aftermarket parts (car stereo, CD player, etc.) have been installed, check for incidents such as harness
pinches, open circuits, and improper wiring.
SBR820BA

SYSTEM DESCRIPTION
BRC-5
[ABS]
C
D
E
G
H
I
J
K
L
MA
B
BRC

SYSTEM DESCRIPTIONPFP:00000
System DiagramBFS000CO
FunctionsBFS000CP
ABS

The Anti-Lock Brake System is a function that detects wheel revolution while braking, and it improves
handling stability during sudden braking by electrically preventing 4 wheel lock. Maneuverability is also
improved for avoiding obstacles.

If the electrical system breaks down, then the fail-safe function is activated, ABS becomes inoperative,
and ABS warning lamp turns on.

Electrical system diagnosis by CONSULT-II is available.

During ABS operation, brake pedal lightly vibrates and a mechanical noise may be heard. This is normal.

Just after starting vehicle after ignition switch ON, brake pedal may vibrate or motor operating noise may
be heard from engine room. This is a normal status of operation check.

Stopping distance may be longer than that of vehicles without ABS when vehicle drives on rough, gravel,
or snow-covered (fresh, deep snow) roads.
SFIA3328E

BRC-6
[ABS]
SYSTEM DESCRIPTION

EBD

Electronic Brake Distribution is a function that detects subtle slippages between front and rear wheels dur-
ing braking, and it improves handling stability by electronically controlling Brake Fluid Pressure which
results in reduced rear wheel slippage.

In case of electrical system break down, the fail-safe function is activated, EBD and ABS becomes inoper-
ative, and ABS warning lamp and brake warning lamp are turned on.

Electrical system diagnosis by CONSULT-II is available.

During EBD operation, brake pedal lightly vibrates and a mechanical noise may be heard. This is normal.

Just after starting vehicle after ignition switch ON, brake pedal may vibrate or motor operating sound may
be heard from engine compartment. This is a normal condition of operation check.

Stopping distance may be longer than that of vehicles without EBD when vehicle drives on rough, gravel,
or snow-covered (fresh, deep snow) roads.
Fail-Safe FunctionBFS000CR
ABS, EBD SYSTEM
In case of electrical malfunctions with ABS, ABS warning lamp will turn on. In case of electrical malfunctions
with EBD, brake warning lamp and ABS warning lamp will turn on. Simultaneously, ABS become one of follow-
ing conditions of the fail-safe function.

For ABS malfunction, only EBD is activated and condition of vehicle is same condition of vehicles without
ABS system.
NOTE:
ABS self-diagnosis sound may be heard. That is a normal condition because a self-diagnosis for Ignition
switch ON and The first starting are being performed.

For EBD malfunction, EBD and ABS become inoperative, and condition of vehicle is same as condition of
vehicles without ABS, EBD system.

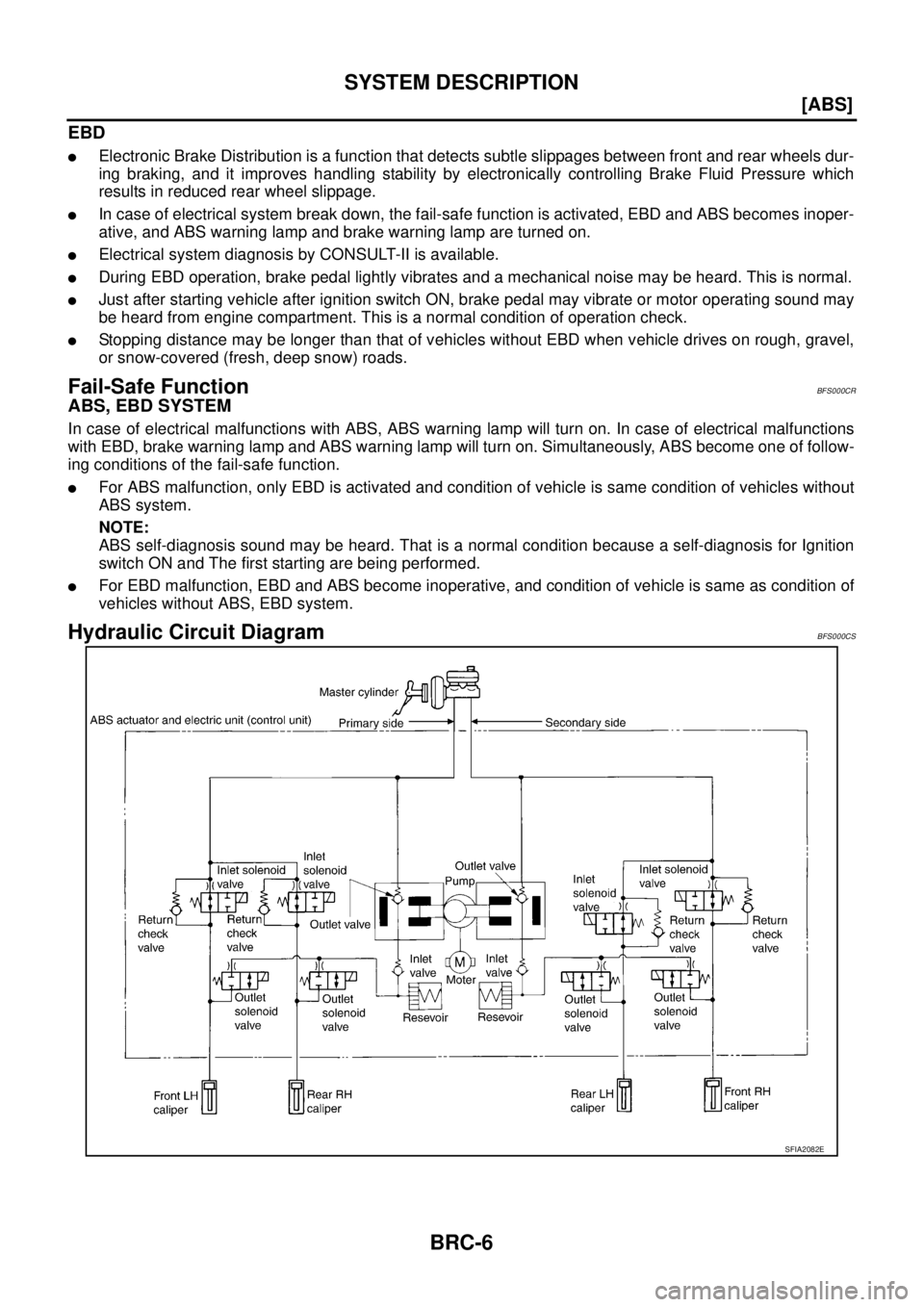

Hydraulic Circuit DiagramBFS000CS
SFIA2082E

TROUBLE DIAGNOSIS
BRC-17
[ABS]
C
D
E
G
H
I
J
K
L
MA
B
BRC

CONSULT-II Functions (ABS)BFS000CZ
CONSULT-II MAIN FUNCTION
CONSULT-II can display each diagnostic item using the diagnostic test modes shown following.
CONSULT-II SETTING PROCEDURE
Refer to GI-34, "CONSULT-II Start Procedure" .
Self-Diagnosis BFS000D0
DESCRIPTION
If an error is detected in the system, ABS warning lamp on combination meter turn on. In this case, perform
self- diagnosis as follows.
OPERATION PROCEDURE
1. Turn ignition switch OFF.
2. Perform “CONSULT-II Starting Procedure”. Refer to GI-34, "
CONSULT-II Start Procedure" .
3. Turn ignition switch ON.
4. Start engine and drive vehicle at 30 km/h (19 MPH) or more for approximately 1 minute.
5. After stopping vehicle, with the engine running, touch “ABS”, “SELF-DIAG RESULTS” in order on the
CONSULT-II screen.
CAUTION:
If “START (NISSAN BASED VHCL)” is touched immediately after starting engine or turning on the
ignition switch, “ABS” might not be displayed in the System Selection screen. In this case, repeat
the operation from step 1. If it cannot be shown after several attempts, ABS actuator and electric
unit (control unit) may have malfunctioned.
6. The self-diagnostic results are displayed. (Touch “PRINT” to print out self-diagnostic results, if necessary.)

Check ABS warning lamp if “NO FAILURE” is displayed.
7. Perform the appropriate inspection from the display item list, and repair or replace the malfunctioning
component.
8. Start engine and drive vehicle at 30 km/h (19 MPH) or more for approximately 1 minute.
CAUTION:
When the wheel sensor malfunctions, after inspecting the wheel sensor system, the ABS warning
lamp will not turn off even when the system is normal unless the vehicle is driving at approxi-
mately 30 km/h (19 MPH) or more for approximately 1 minute.
ERASE MEMORY
1. Turn ignition switch OFF.
2. Start engine and touch “ABS”, “SELF-DIAG RESULTS”, “ERASE MEMORY” in order on the CONSULT-II
screen to erase the error memory.
CAUTION:
If the error memory is not erased, re-perform the operation from step 4.
3. Perform self-diagnosis again, and make sure that diagnostic memory is erased.
4. Drive vehicle at 30 km/h (19 MPH) or more for approximately 1 minute as the final inspection, and make
sure that the ABS warning lamp is off.
Diagnostic test mode Function Reference
SELF-DIAG RESULTS Self-diagnostic results can be read and erased quickly.BRC-17, "
Self-Diagno-
sis"
DATA MONITOR Input/Output data in the ABS actuator and electric unit (control unit) can be read.BRC-19, "Data Monitor"
CAN DIAG SUPPORT
MNTRThe results of transmit/receive diagnostic of CAN communication can be read.LAN-44, "CAN Diagnos-
tic Support Monitor"
ACTIVE TESTDiagnostic Test Mode in which CONSULT-II drives some actuators apart from
the ABS actuator and electric unit (control unit) and also shifts some parameters
in a specified range.BRC-20, "Active Test"
FUNCTION TESTPerformed by CONSULT-II instead of a technician to determine whether each
system is “OK” or “NG”.—
ECU PART NUMBER ABS actuator and electric unit (control unit) part number can be read. —

TROUBLE DIAGNOSIS
BRC-19
[ABS]
C
D
E
G
H
I
J
K
L
MA
B
BRC

Note 1: After completing repairs of the shorted sensor circuit, when ignition switch is turned ON, ABS warning lamp turns on. Make sure
that ABS warning lamp turns off while driving the vehicle at 30 km/h (19 MPH) or more for approximately 1 minute according to self-diag-
nosis procedure. In addition, if wheel sensor 2 is displayed for the wheels, check the wheel sensor circuit and also check the control unit
power voltage.
Note 2: When malfunctions are detected in several systems, including the CAN communication system [U1000], perform trouble diagno-
sis on the CAN communication system.
Data MonitorBFS000D1
OPERATION PROCEDURE
1. Turn ignition switch OFF.
2. Perform “CONSULT-II Starting Procedure”. Refer to GI-34, "
CONSULT-II Start Procedure" .
3. Turn ignition switch ON.
4. At the monitor item selection screen, touch one of the items “ECU INPUT SIGNALS”, “MAIN SIGNALS” or
“SELECTION FROM MENU”.
5. Touch “START” to proceed to the data monitor screen.
DISPLAY ITEM LIST
Item (Unit)Monitor item selection
Remarks
ECU INPUT
SIGNALSMAIN SIGNALSSELECTION
FROM MENU
FR LH SENSOR
[km/h (MPH)]×××Condition of wheel speed calculated by front
left wheel sensor signal is displayed.
FR RH SENSOR
[km/h (MPH)]×××Condition of wheel speed calculated by front
right wheel sensor signal is displayed.
RR LH SENSOR
[km/h (MPH)]×××Condition of wheel speed calculated by rear
left wheel sensor signal is displayed.
RR RH SENSOR
[km/h (MPH)]×××Condition of wheel speed calculated by rear
right wheel sensor signal is displayed.
FR RH IN SOL
(ON/OFF)—××Condition of front right wheel ABS inlet sole-
noid valve (ON/OFF) is displayed.
FR RH OUT SOL
(ON/OFF)—××Condition of front right wheel ABS outlet sole-
noid valve (ON/OFF) is displayed.
FR LH IN SOL
(ON/OFF)—××Condition of front left wheel ABS inlet solenoid
valve (ON/OFF) is displayed.
FR LH OUT SOL
(ON/OFF)—××Condition of front left wheel ABS outlet sole-
noid valve (ON/OFF) is displayed.
RR RH IN SOL
(ON/OFF)—××Condition of rear right wheel ABS inlet sole-
noid valve (ON/OFF) is displayed.
RR RH OUT SOL
(ON/OFF)—××Condition of rear right wheel ABS outlet sole-
noid valve (ON/OFF) is displayed.
RR LH IN SOL
(ON/OFF)—××Condition of rear left wheel ABS inlet solenoid
valve (ON/OFF) is displayed.
RR LH OUT SOL
(ON/OFF)—××Condition of rear left wheel ABS outlet sole-
noid valve (ON/OFF) is displayed.
EBD WARN LAMP
(ON/OFF) (Note)——×Condition of brake warning lamp (ON/OFF) is
displayed.
STOP LAMP SW
(ON/OFF)×××Condition of stop lamp switch (ON/OFF) is dis-
played.
MOTOR RELAY
(ON/OFF)—××Condition of ABS motor relay (ON/OFF) is dis-
played.
ACTUATOR RLY
(ON/OFF)—××Condition of ABS actuator relay (ON/OFF) is
displayed.
ABS WARN LAMP
(ON/OFF)—××Condition of ABS warning lamp (ON/OFF) is
displayed.

BRC-20
[ABS]
TROUBLE DIAGNOSIS

×: Applicable
−: Not applicable
Note: Brake warning lamp can be used for EBD warning lamp.
Active TestBFS000D2
CAUTION:

Do not perform ACTIVE TEST while driving vehicle.

Make sure to completely bleed air from brake system.

Active test cannot be performed when ABS warning lamp is turned on.

ABS and brake warning lamps turn on during active test.
OPERATION PROCEDURE
1. Perform “CONSULT-II Starting procedure”. Refer to GI-34, "CONSULT-II Start Procedure" .
2. Touch “ACTIVE TEST” in order on the CONSULT-II screen.
3. The “ SELECT TEST ITEM” screen is displayed.
4. Touch necessary test item.
5. Touch “START” with “MAIN SIGNALS” line inverted.
6. ACTIVE TEST screen will be displayed, so perform the following test.

Solenoid valve

ABS motor
NOTE:

When active test is performed while depressing brake pedal, the pedal height will change, but this is
normal.

Approximately 10 seconds after operation has begun, “TEST STOP” will be displayed.

To perform a retest after “TEST STOP” is displayed, touch “BACK” and perform test from step 3.
BATTERY VOLT
(V)×××Condition of voltage supplied to ABS actuator
and electric unit (control unit) is displayed.
EBD SIGNAL
(ON/OFF)——×Condition of EBD operation (ON/OFF) is dis-
played.
ABS SIGNAL
(ON/OFF)——×Condition of ABS operation (ON/OFF) is dis-
played.
EBD FAIL SIG
(ON/OFF)——×Condition of EBD fail-safe signal (ON/OFF) is
displayed.
ABS FAIL SIG
(ON/OFF)——×Condition of ABS fail-safe signal (ON/OFF) is
displayed. Item (Unit)Monitor item selection
Remarks
ECU INPUT
SIGNALSMAIN SIGNALSSELECTION
FROM MENU
SFIA2085E

BRC-22
[ABS]
TROUBLE DIAGNOSIS

For Fast and Accurate DiagnosisBFS000D3
PRECAUTIONS FOR DIAGNOSIS

Be sure to check the procedures of “How to Perform Trouble Diagnosis” in advance. Refer to GI-4, "Gen-
eral Precautions" .

Always erase memory after completing trouble diagnosis. Refer to BRC-17, "ERASE MEMORY" .

When checking continuity and voltage between units, be sure to check for disconnection, looseness,
bend, or collapse for connector terminals. Repair or replace applicable part if any non-standard condition
is detected.

Intermittent malfunctions may be caused by a poor connection in the harness, connectors, and terminals.
Move harnesses, harness connectors, and terminals by hand to make sure all connections are solid and
undamaged.

Do not to forcibly extend any connector terminal if a circuit tester is used for the check.

The symptom shown in the table below may occur, but the system is operating normally.
Basic InspectionBFS000D4
BRAKE FLUID LEVEL, LEAKAGE AND BRAKE PAD
1. Check fluid level in the brake fluid reservoir tank. Refill the brake fluid if fluid level is low.
2. Check the area around the brake piping and ABS actuator and electric unit (control unit) for leakage. If
leakage or oozing is detected, check as follows:

If ABS actuator and electric unit (control unit) connections are loose, tighten the flare nut of the piping to
the specified torque. Check again for leakage, and make sure that there is no fluid leakage.

If the flare nuts at the connections and the threads of the actuator are damaged, replace the damaged
parts. Then check again for leakage, and make sure that there is no fluid leakage.

If leakage or oozing is detected on the parts other than actuator connections, wipe with a clean cloth
and check again. If there is still leakage or oozing, replace the damaged part.

If leakage or oozing is detected on actuator body, wipe with a clean cloth and check again. If there is
still leakage or oozing, replace ABS actuator and electric unit (control unit).
CAUTION:
ABS actuator and electric unit (control unit) cannot be disassembled.
3. Check brake pad for wear. Refer to BR-26, "
PAD WEAR INSPECTION" in “FRONT DISC BRAKE”, BR-
33, "PAD WEAR INSPECTION" in “REAR DISC BRAKE”.
POWER SUPPLY CIRCUIT TERMINAL LOOSENESS AND BATTERY
Check battery for looseness on the battery positive/negative terminals and ground connection. Also make sure
that battery voltage does not drop.
Symptom Symptom description Result
Motor operation soundThis is the operation noise of the motor in the actuator, and there may be a slight sound
during ABS operation.
Normal
Just after the engine starts, the motor operating sound may be heard. This is a normal
status of the system operation check.
System operation check
soundWhen engine starts, “click” sound may be heard from engine room. This is normal condi-
tion of system operation check.Normal
ABS operation
(Longer stopping distance)When driving on roads with a low coefficient of friction, such as snowy roads or gravel
roads, the stopping distance is sometimes longer for vehicles equipped with ABS.
Therefore, when driving on such roads, drive at a sufficiently reduced speed to be safe.Normal
