DTC P0703 STOP LAMP SWITCH CIRCUIT
CVT-61
D
E
F
G
H
I
J
K
L
MA
B
CVT

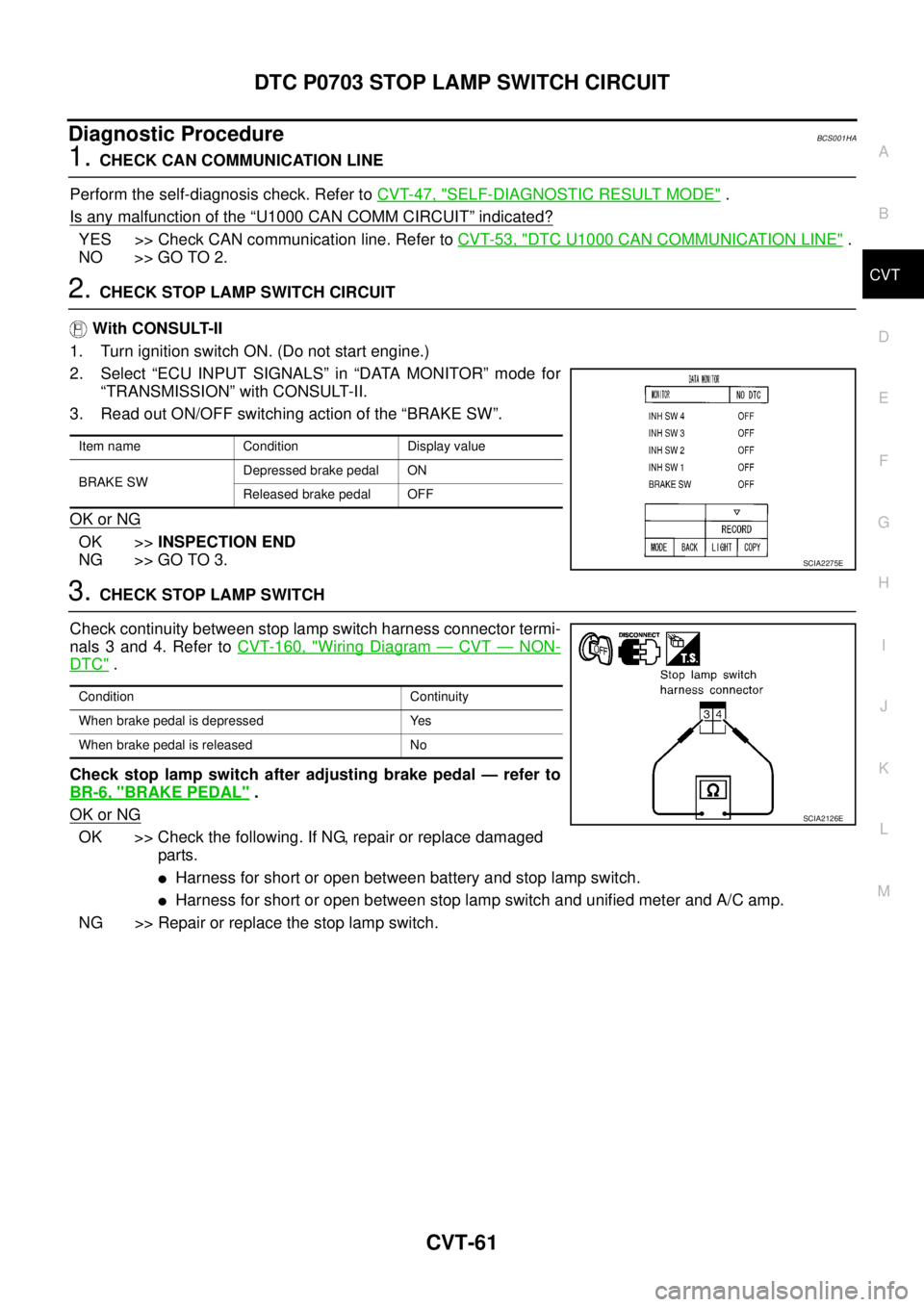

Diagnostic ProcedureBCS001HA
1. CHECK CAN COMMUNICATION LINE
Perform the self-diagnosis check. Refer to CVT-47, "
SELF-DIAGNOSTIC RESULT MODE" .
Is any malfunction of the
“U1000 CAN COMM CIRCUIT” indicated?
YES >> Check CAN communication line. Refer to CVT-53, "DTC U1000 CAN COMMUNICATION LINE" .
NO >> GO TO 2.
2. CHECK STOP LAMP SWITCH CIRCUIT
With CONSULT-II
1. Turn ignition switch ON. (Do not start engine.)
2. Select “ECU INPUT SIGNALS” in “DATA MONITOR” mode for
“TRANSMISSION” with CONSULT-II.
3. Read out ON/OFF switching action of the “BRAKE SW”.
OK or NG
OK >>INSPECTION END
NG >> GO TO 3.
3. CHECK STOP LAMP SWITCH
Check continuity between stop lamp switch harness connector termi-
nals 3 and 4. Refer to CVT-160, "
Wiring Diagram — CVT — NON-
DTC" .
Check stop lamp switch after adjusting brake pedal — refer to
BR-6, "
BRAKE PEDAL" .
OK or NG
OK >> Check the following. If NG, repair or replace damaged
parts.

Harness for short or open between battery and stop lamp switch.

Harness for short or open between stop lamp switch and unified meter and A/C amp.
NG >> Repair or replace the stop lamp switch.
Item name Condition Display value
BRAKE SWDepressed brake pedal ON
Released brake pedal OFF
SCIA2275E
Condition Continuity
When brake pedal is depressed Yes
When brake pedal is released No
SCIA2126E

DTC P0730 BELT DAMAGE
CVT-87
D
E
F
G
H
I
J
K
L
MA
B
CVT

DTC P0730 BELT DAMAGEPFP:31935
DescriptionBCS001IB
TCM selects the gear ratio using the engine load (throttle position), the primary pulley revolution speed, and
the secondary pulley revolution speed as input signal. Then it changes the operating pressure of the primary
pulley and the secondary pulley and changes the groove width of the pulley.
CONSULT-II Reference ValueBCS001IC
Remarks: Specification data are reference values.
On Board Diagnosis LogicBCS001ID

TCM calculates the actual gear ratio with input speed sensor (primary speed sensor) and output speed
sensor (secondary speed sensor).

Diagnostic trouble code “P0730 BELT DAMG” with CONSULT-II is detected, when TCM receives an unex-
pected gear ratio signal.
Possible CauseBCS001IE
Transaxle assembly
DTC Confirmation ProcedureBCS001IF
CAUTION:
Always drive vehicle at a safe speed.
NOTE:
If “DTC Confirmation Procedure” has been previously performed, always turn ignition switch OFF and
wait at least 10 seconds before performing the next test.
After the repair, perform the following procedure to confirm the malfunction is eliminated.
WITH CONSULT-II
1. Turn ignition switch ON and select “DATA MONITOR” mode for
“TRANSMISSION” with CONSULT-II.
2. Make sure that output voltage of CVT fluid temperature sensor
is within the range below.
ATF TEMP SEN: 1.0 - 2.0 V
If out of range, drive the vehicle to decrease the voltage
(warm up the fluid) or stop engine to increase the voltage
(cool down the fluid)
3. Select “DATA MONITOR” mode for “TRANSMISSION” with
CONSULT-II.
4. Start engine and maintain the following conditions for at least 30
consecutive seconds.
TEST START FROM 0 km/h (0 MPH)
CONSTANT ACCELERATION: Keep 30 sec or more
VEHICLE SPEED: 10 km/h (6 MPH) or more
ACC PEDAL OPEN: More than 1.0/8
RANGE: “D” position
ENG SPEED: 450 rpm or more
5. If DTC is detected, go to CVT-88, "
Diagnostic Procedure" .
Item name Condition Display value (Approx.)
GEAR RATIO During driving 2.37 - 0.43
BCIA0031E

CVT-118
DTC P0840 TRANSMISSION FLUID PRESSURE SENSOR A CIRCUIT (SEC
PRESSURE SENSOR)

DTC P0840 TRANSMISSION FLUID PRESSURE SENSOR A CIRCUIT (SEC
PRESSURE SENSOR)
PFP:31936
DescriptionBCS001JW
The transmission fluid pressure sensor A (secondary pressure sensor) detects secondary pressure of CVT
and sends TCM the signal.
CONSULT-II Reference ValueBCS001JX
Remarks: Specification data are reference values.
On Board Diagnosis LogicBCS001JY
Diagnostic trouble code “P0840 TR PRS SENS/A CIRC” with CONSULT-II is detected when TCM detects an
improper voltage drop when it receives the sensor signal.
Possible CauseBCS001JZ

Transmission fluid pressure sensor A (Secondary pressure sensor)

Harness or connectors
(Switch circuit is open or shorted.)
DTC Confirmation ProcedureBCS001K0
NOTE:
If “DTC Confirmation Procedure” has been previously performed, always turn ignition switch OFF and
wait at least 10 seconds before performing the next test.
After the repair, perform the following procedure to confirm the malfunction is eliminated.
WITH CONSULT-II
1. Turn ignition switch ON and select “DATA MONITOR” mode for
“TRANSMISSION” with CONSULT-II.
2. Make sure that output voltage of line temperature sensor is
within the range below.
ATF TEMP SEN: 1.0 - 2.0 V
If out of range, drive the vehicle to decrease the voltage
(warm up the fluid) or stop engine to increase the voltage
(cool down the fluid)
3. Start engine and wait for at least 5 consecutive seconds.
4. If DTC is detected, go to CVT-120, "
Diagnostic Procedure" .
Item name Condition Display value (Approx.)
SEC HYDR SEN
“N” position idle1.0 V
SEC PRESS0.5 MPa
BCIA0031E

CVT-126
DTC P0845 TRANSMISSION FLUID PRESSURE SENSOR B CIRCUIT (PRI
PRESSURE SENSOR)

DTC P0845 TRANSMISSION FLUID PRESSURE SENSOR B CIRCUIT (PRI PRES-
SURE SENSOR)
PFP:31936
DescriptionBCS001K9
The primary pressure sensor detects primary pressure of CVT and sends TCM the signal.
CONSULT-II Reference ValueBCS001KA
Remarks: Specification data are reference values.
On Board Diagnosis LogicBCS001KB
Diagnostic trouble code “P0845 TR PRS SENS/B CIRC” with CONSULT-II is detected under the following con-
ditions.

When TCM detects an improper voltage drop when it receives the sensor signal.

When TCM compares target value with monitor value and detects an irregularity.
Possible CauseBCS001KC

Transmission fluid pressure sensor B (Primary pressure sensor)

Harness or connectors
(Sensor circuit is open or shorted.)
DTC Confirmation ProcedureBCS001KD
NOTE:
If “DTC Confirmation Procedure” has been previously performed, always turn ignition switch OFF and
wait at least 10 seconds before performing the next test.
After the repair, perform the following procedure to confirm the malfunction is eliminated.
WITH CONSULT-II
1. Turn ignition switch ON and select “DATA MONITOR” mode for
“TRANSMISSION” with CONSULT-II.
2. Make sure that output voltage of line temperature sensor is
within the range below.
ATF TEMP SEN: 1.0 - 2.0 V
If out of range, drive the vehicle to decrease the voltage
(warm up the fluid) or stop engine to increase the voltage
(cool down the fluid)
3. Start engine and wait for at least 5 consecutive seconds.
4. If DTC is detected, go to CVT-128, "
Diagnostic Procedure" .
Item name Condition Display value (Approx.)
PRI HYDR SEN “N” position idle 0.7 - 3.5 V
BCIA0031E

DTC P0868 SECONDARY PRESSURE DOWN
CVT-131
D
E
F
G
H
I
J
K
L
MA
B
CVT

DTC P0868 SECONDARY PRESSURE DOWNPFP:31941
DescriptionBCS001KG
The pressure control solenoid valve B (secondary pressure solenoid valve) regulates the secondary pressure
to suit the driving condition in response to a signal sent from the TCM.
CONSULT-II Reference ValueBCS001KH
Remarks: Specification data are reference values.
On Board Diagnosis LogicBCS001KI
Diagnostic trouble code “P0868 SEC/PRESS DOWN” with CONSULT-II is detected when secondary fluid
pressure is too low compared with the commanded value while driving.
Possible CauseBCS001KJ

Harness or connectors
(Solenoid circuit is open or shorted.)

Pressure control solenoid valve B (Secondary pressure solenoid valve) system

Transmission fluid pressure sensor A (Secondary pressure sensor)

Line pressure control system
DTC Confirmation ProcedureBCS001KK
CAUTION:
Always drive vehicle at a safe speed.
NOTE:
If “DTC Confirmation Procedure” has been previously performed, always turn ignition switch OFF and
wait at least 10 seconds before performing the next test.
After the repair, perform the following procedure to confirm the malfunction is eliminated.
WITH CONSULT-II
1. Turn ignition switch ON and select “DATA MONITOR” mode for
“TRANSMISSION” with CONSULT-II.
2. Make sure that output voltage of CVT fluid temperature sensor
is within the range below.
ATF TEMP SEN: 1.0 - 2.0 V
If out of range, drive the vehicle to decrease the voltage
(warm up the fluid) or stop engine to increase the voltage
(cool down the fluid)
3. Start engine and maintain the following conditions for at least 10
consecutive seconds.
VEHICLE SPEED (accelerate slowly): 0 → 50 km/h (31 MPH)
ACC PEDAL OPEN: 0.5/8 - 1.0/8
RANGE: “D” position
4. If DTC is detected, go to CVT-132, "
Diagnostic Procedure" .
Item name Condition Display value (Approx.)
SEC PRESS “N” position idle 0.5 MPa
BCIA0031E

CVT-134
DTC P1701 TRANSMISSION CONTROL MODULE (POWER SUPPLY)

DTC P1701 TRANSMISSION CONTROL MODULE (POWER SUPPLY)PFP:31036
DescriptionBCS001KM
When the power supply to the TCM is cut OFF, for example because the battery is removed, and the self-diag-
nosis memory function stops, malfunction is detected.
NOTE:
Since “P1701 TCM-POWER SUPPLY” will be indicated when replacing TCM, perform diagnosis after
erasing “SELF-DIAG RESULTS”
On Board Diagnosis LogicBCS001KN

Diagnostic trouble code “P1701 TCM-POWER SUPPLY” with CONSULT-II is detected when TCM does
not receive the voltage signal from the battery power supply.

This is not a malfunction message. (Whenever shutting OFF a power supply to the TCM, this message
appears on the screen.)
Possible CauseBCS001KO
Harness or connectors
(Battery or ignition switch and TCM circuit is open or shorted.)
DTC Confirmation ProcedureBCS001KP
NOTE:
If “DTC Confirmation Procedure” has been previously conducted, always turn ignition switch OFF and
wait at least 10 seconds before conducting the next test.
After the repair, perform the following procedure to confirm the malfunction is eliminated.
WITH CONSULT-II
1. Turn ignition switch ON. (Do not start engine.)
2. Select “DATA MONITOR” mode for “TRANSMISSION” with
CONSULT-II.
3. Wait for at least 2 consecutive seconds.
4. If DTC is detected, go to CVT-136, "
Diagnostic Procedure" .
BCIA0031E

CVT-152
DTC P1745 LINE PRESSURE CONTROL

DTC P1745 LINE PRESSURE CONTROLPFP:31036
DescriptionBCS001LN
The pressure control solenoid valve A (line pressure solenoid valve) regulates the oil pump discharge pres-
sure to suit the driving condition in response to a signal sent from the TCM.
On Board Diagnosis LogicBCS001LO
Diagnostic trouble code “P1745 L/PRESS CONTROL” with CONSULT-II is detected when TCM detects the
unexpected line pressure.
Possible CauseBCS001LP
TCM
DTC Confirmation ProcedureBCS001LQ
NOTE:
If “DTC Confirmation Procedure” has been previously performed, always turn ignition switch OFF and
wait at least 10 seconds before performing the next test.
After the repair, touch “ERASE” on “SELF-DIAG RESULTS” and then perform the following procedure to con-
firm the malfunction is eliminated.
WITH CONSULT-II
1. Turn ignition switch ON and select “DATA MONITOR” mode for
“TRANSMISSION” with CONSULT-II.
2. Make sure that output voltage of CVT fluid temperature sensor
is within the range below.
ATF TEMP SEN: 1.0 - 2.0 V
If out of range, drive the vehicle to decrease the voltage
(warm up the fluid) or stop engine to increase the voltage
(cool down the fluid)
3. If DTC is detected, go to CVT-152, "
Diagnostic Procedure" .
Diagnostic ProcedureBCS001LR
1. CHECK DTC
1. Turn ignition switch ON. (Do not start engine.)
2. Select “SELF-DIAG RESULTS” mode for “TRANSMISSION” with CONSULT-II.
3. Erase self-diagnostic results. Refer to CVT-49, "
How to Erase Self-diagnostic Results" .
4. Turn ignition switch OFF, and wait for 5 seconds or more.
5. Start engine.
6. Confirm self-diagnostic results again. Refer to CVT-47, "
SELF-DIAGNOSTIC RESULT MODE" .
Is the
“P1745 L/PRESS CONTROL” displayed?
YES >> Replace TCM. Refer to CVT-9, "Precautions for TCM and CVT Assembly Replacement" .
NO >>INSPECTION END
BCIA0031E

DTC P1778 STEP MOTOR - FUNCTION
CVT-157
D
E
F
G
H
I
J
K
L
MA
B
CVT

DTC P1778 STEP MOTOR - FUNCTIONPFP:31947
DescriptionBCS001M0

The step motor's 4 aspects of ON/OFF change according to the signal from TCM. As a result, the flow of
line pressure to primary pulley is changed and pulley ratio is controlled.

This diagnosis item is detected when electrical system is OK, but mechanical system is NG.

This diagnosis item is detected when the state of the changing the speed mechanism in unit does not
operate normally.
CONSULT-II Reference ValueBCS001M1
Remarks: Specification data are reference values.
On Board Diagnosis LogicBCS001M2
Diagnostic trouble code “P1778 STEP MOTR/FNC” with CONSULT-II is detected under the following condi-
tions.

When not changing the pulley ratio according to the instruction of TCM.
Possible CauseBCS001M3
Ste p mo to r
DTC Confirmation ProcedureBCS001M4
CAUTION:

Always drive vehicle at a safe speed.

Before starting “DTC Confirmation Procedure”, confirm “Hi” or “Mid” or “Low” fixation by “PRI
SPEED” and “VEHICLE SPEED” on “DATA MONITOR MODE”.

If hi-geared fixation occurred, go to CVT-158, "Diagnostic Procedure" .
NOTE:
If “DTC Confirmation Procedure” has been previously performed, always turn ignition switch OFF and
wait at least 10 seconds before performing the next test.
After the repair, touch “ERASE” on “SELF-DIAG RESULTS” and then perform the following procedure to con-
firm the malfunction is eliminated.
WITH CONSULT-II
1. Turn ignition switch ON and select “DATA MONITOR” mode for
“TRANSMISSION” with CONSULT-II.
2. Make sure that output voltage of CVT fluid temperature sensor
is within the range below.
ATF TEMP SEN: 1.0 - 2.0 V
If out of range, drive the vehicle to decrease the voltage
(warm up the fluid) or stop engine to increase the voltage
(cool down the fluid)
3. Select “DATA MONITOR” mode for “TRANSMISSION” with
CONSULT-II.
4. Start engine and maintain the following conditions for at least 30
consecutive seconds.
TEST START FROM 0 km/h (0 MPH)
CONSTANT ACCELERATION: Keep 30 sec or more
VEHICLE SPEED: 10 km/h (6 MPH) or more
ACC PEDAL OPEN: More than 1.0/8
RANGE: “D” position
ENG SPEED: 450 rpm or more
5. If DTC is detected, go to CVT-158, "
Diagnostic Procedure" .
Item name Condition Display value (Approx.)
STM STEP
During driving−20 step - 190 step
GEAR RATIO2.37 - 0.43
BCIA0031E
