2003 NISSAN TEANA Unified meter and

DI-22
COMBINATION METERS

2. CHECK UNIFIED METER AND A/C AMP. INPUT SIGNAL
1. Select “ENGINE” on CONSULT-II.
2. Using “COOLAN TEMP/S” on “DATA MONITOR”, print out the
CONSULT-II screen.
3. Select “METER A/C AMP” on CONSULT-II.
4. Using “W TEMP METER” on “DATA MONITOR”, compare the
value of “DATA MONITOR” with that of the “COOLAN TEMP/S”.
OK or NG
OK >> Perform ECM self-diagnosis. Refer to EC-425, "CON-
SULT-II Function (ENGINE)" . Check applicable parts,
and repair or replace corresponding parts
NG >> Replace unified meter and A/C amp. Refer to DI-34,
"Removal and Installation of Unified Meter and A/C
Amp." .
Fuel Level Sensor Signal InspectionBKS001SB
NOTE:
The following symptoms are not malfunction.

Fuel gage
–Depending on vehicle position or driving circumstance, the fuel level in the tank various, and the pointer
may fluctuate.
–If the vehicle is fueled with the ignition switch ON, the pointer will move slowly.

Low-fuel warning lamp
–Depending on vehicle position or driving circumstance, the fuel in the tank flows and the warning lamp ON
timing may change.
1. CHECK UNIFIED METER AND A/C AMP. INPUT SIGNAL
1. Select “METER A/C AMP” on CONSULT-II.
2. Using “FUEL METER” on “DATA MONIOR”, compare the value
of “DATA MONITOR” with fuel gauge pointer of combination
meter.
OK or NG
OK >> GO TO 2.
NG >> Replace combination meter.
2. CHECK FUEL LEVEL SENSOR UNIT
1. Turn ignition switch OFF.
2. Check fuel level sensor unit. Refer to DI-24, "
CHECK FUEL LEVEL SENSOR UNIT" .
OK or NG
OK >> GO TO 3.
NG >> Replace the corresponding parts.
SKIA4368E
Fuel gauge pointer Reference value of data monitor [lit.]
Full Approx. 66
Three quarters Approx. 53
Half Approx. 36
A quarter Approx. 18
Empty Approx. 8
PKIA2088E

COMBINATION METERS
DI-23
C
D
E
F
G
H
I
J
L
MA
B
DI

3. CHECK FUEL LEVEL SENSOR SIGNAL CIRCUIT
1. Disconnect unified meter and A/C amp. connector and fuel level sensor unit and fuel pump connector.
2. Check continuity between unified meter and A/C amp. harness
connector M42 terminal 28 and fuel level sensor unit and fuel
pump harness connector B223 terminal 2.
3. Check continuity between unified meter and A/C amp. harness
connector M42 terminal 28 and ground.
OK or NG
OK >> GO TO 4.
NG >> Repair harness or connector.
4. CHECK FUEL LEVEL SENSOR GROUND CIRCUIT
1. Check continuity between fuel level sensor unit and fuel pump
harness connector B223 terminal 5 and unified meter and A/C
amp. harness connector M42 terminal 36.
2. Check continuity between fuel level sensor unit and fuel pump
harness connector B223 terminal 5 and ground.
OK or NG
OK >> GO TO 5.
NG >> Repair harness or connector.
5. CHECK INSTALLATION CONDITION
Check fuel level sensor unit and fuel pump installation, and check whether the float arm interferes or binds
with any of the internal components in the fuel tank.
OK or NG
OK >> Replace unified meter and A/C amp. Refer to DI-34, "Removal and Installation of Unified Meter
and A/C Amp." .
NG >> Install the fuel level sensor unit and fuel pump properly.
Fuel Gauge Does Not Move to FULL positionBKS001SG
1. QUESTION 1
Does it take a long time for the pointer to move to FULL position?
YES >> GO TO 2.
NO >> GO TO 3.
2. QUESTION 2
Was the vehicle fueled with the ignition switch ON?
YES >> Be sure to fuel the vehicle with the ignition switch OFF. Otherwise, it will take a long time to move
to FULL position because of the characteristic of the fuel gauge.
NO >> GO TO 3.28 – 2 : Continuity should exist.
28 – Ground : Continuity should not exist.
SKIA8723E
5 – 36 : Continuity should exist.
5 – Ground : Continuity should not exist.
SKIB0036E

COMBINATION METERS
DI-25
C
D
E
F
G
H
I
J
L
MA
B
DI

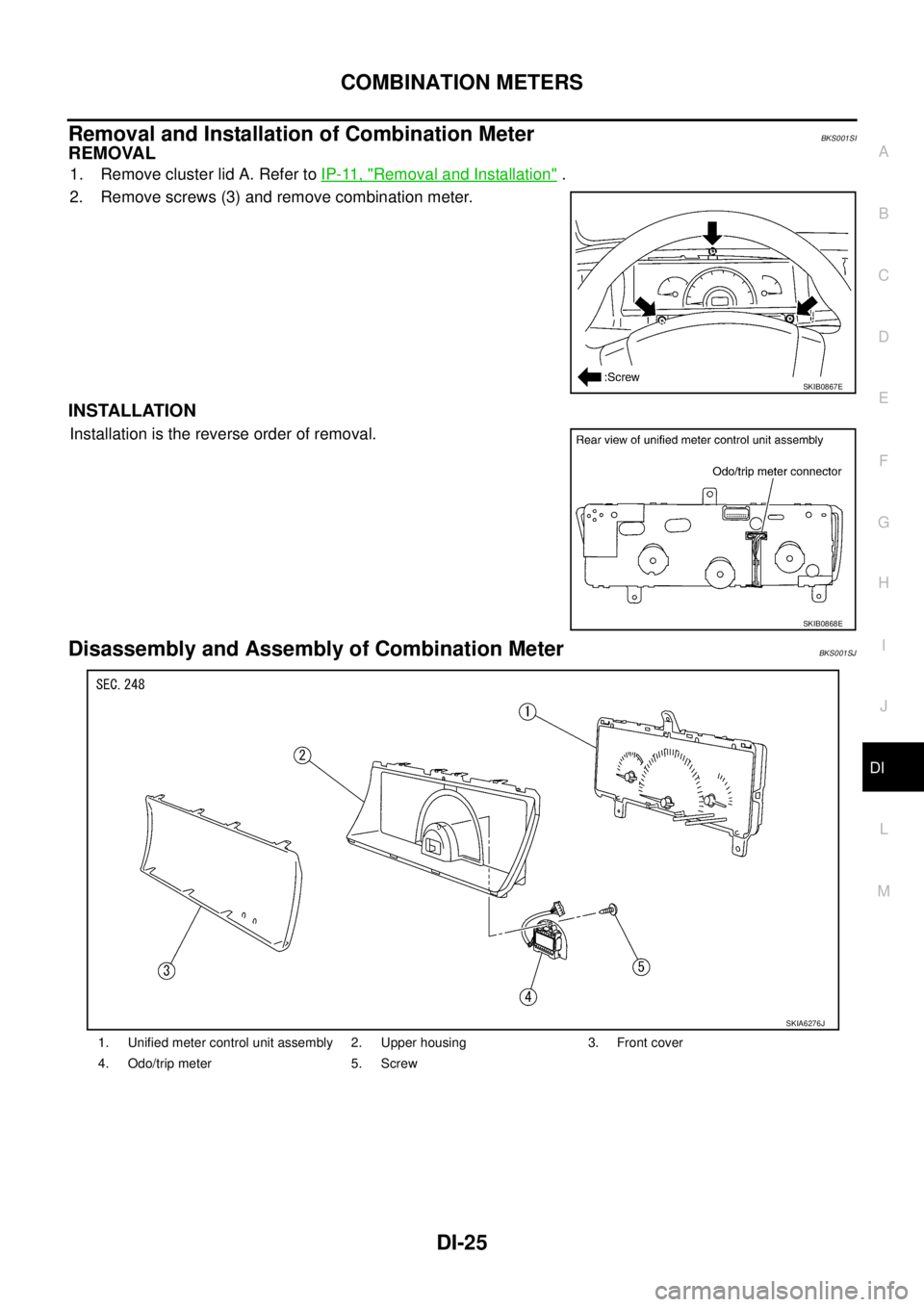

Removal and Installation of Combination MeterBKS001SI
REMOVAL
1. Remove cluster lid A. Refer to IP-11, "Removal and Installation" .
2. Remove screws (3) and remove combination meter.
INSTALLATION
Installation is the reverse order of removal.
Disassembly and Assembly of Combination MeterBKS001SJ
SKIB0867E
SKIB0868E
1. Unified meter control unit assembly 2. Upper housing 3. Front cover
4. Odo/trip meter 5. Screw
SKIA6276J

UNIFIED METER AND A/C AMP
DI-27
C
D
E
F
G
H
I
J
L
MA
B
DI

UNIFIED METER AND A/C AMPPFP:27760
System DescriptionBKS001SK

For the unified meter and A/C amp., the signal required for con-
trolling the combination meter are integrated in the A/C auto
amp.

Unified meter and A/C amp. controls each operation for A/C
auto amp. For information regarding A/C control, refer to AT C -
24, "AIR CONDITIONER CONTROL" .

Unified meter and A/C amp. inputs necessary information for
combination meter from each unit by CAN communication and
so on.

And unified meter and A/C amp. outputs these signals using
communication line (TX, RX) between unified meter and A/C
amp. and combination meter.

The signals required for the distance to empty (DTE) display are centralized in the unified meter and A/C
amp., converted into data, and sent to the display unit (with display unit) using CAN communication.

Other input signals are also sent to the ECM, TCM, BCM and display unit (with display unit) using CAN
communication.

The unified meter and A/C amp. correspond a CONSULT-II function (self-diagnostic results, CAN diag-
nostic support monitor and data monitor).
INPUT/OUTPUT SIGNALS
Between Unified Meter and A/C amp. and Combination Meter
SKIB0778E
Unit Input Output
Unified meter and A/C amp.

Seat belt buckle switch signal (Driver's side)

Parking brake signal

Illumination control nighttime required signal

Refuel status signal

Low-fuel warning lamp condition signal

Combination meter receive error signal

Delivery destination data signal

Combination meter specifications signal

Vehicle speed signal (8-pulse)

Engine speed signal

Engine coolant temperature signal

Fuel level sensor signal (resistance value)

Malfunction indicator lamp signal

ABS warning lamp signal

Brake warning lamp signal

KEY warning lamp signal (With Intelligent Key)

LOCK warning lamp signal (With Intelligent Key)

High-beam request signal

Turn indicator signal

VDC OFF indicator lamp signal (With VDC)

SLIP indicator lamp signal (With VDC)

ASCD CRUISE indicator lamp signal

ASCD SET indicator lamp signal

A/T position indicator signal

A/T CHECK warning lamp signal

CVT indicator lamp signal

CVT position indicator signal

Door switch signal

Oil pressure switch signal

Position lights request signal

Front fog light request signal

Rear fog light request signal

Buzzer output signal

DI-28
UNIFIED METER AND A/C AMP

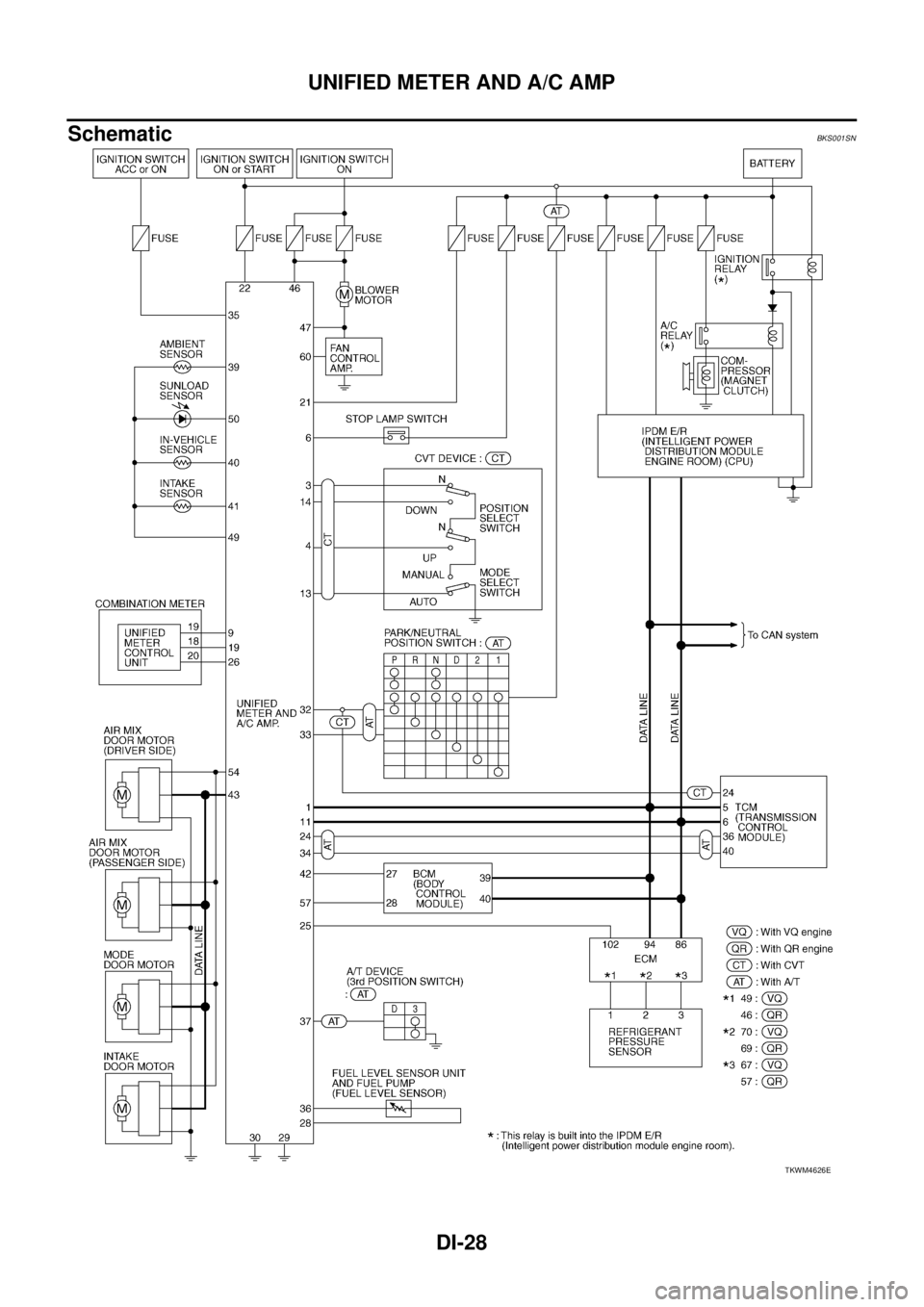

SchematicBKS001SN
TKWM4626E

UNIFIED METER AND A/C AMP
DI-29
C
D
E
F
G
H
I
J
L
MA
B
DI

CONSULT-II Function (METER A/C AMP)BKS001SO
CONSULT-II performs the following functions communicating with the unified meter and A/C amp.
CONSULT-II BASIC OPERATION
Refer to GI-34, "CONSULT-II Start Procedure"
CAUTION:
If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunctions might be
detected in self-diagnosis depending on control unit which performs CAN communication.
SELF-DIAGNOSTIC RESULTS
Display Item List
“TIME” indicates the condition of the self-diagnostic results judged by each signal input.

Normal: In case of operating properly at the present in spite of having malfunction in the past, then “TIME”
indicates “1-63”.

Malfunction: Soon after detecting malfunctions by self-diagnoses or current malfunction, “0” is indicated.
After returning to normal condition, every time when ignition switch is turned to “OFF” from “ON”, time will be
added like “1”→“2”→“3”···“63”, and when the key operation is performed 64 times, the result of the self-diag-
noses will be erased. And if any malfunction is detected again, “0” will be indicated.
System Diagnosis mode DescriptionReference
page
METER A/C AMPSelf-diagnostic resultsUnified meter and A/C amp. check the conditions and indicates
any error that unified meter and A/C amp. memorized.DI-29
CAN diagnostic support monitorThe results of transmit/receive diagnosis of CAN communication
can be read.LAN-44
Data monitor Displays unified meter and A/C amp. input data in real time.DI-30
Display item [Code] Malfunction is detected when...
CAN COMM CIRC [U1000]Malfunction is detected in CAN communication.
CAUTION:
Even when there is no malfunction on CAN communication system, malfunction may be
misinterpreted when battery has low voltage (when maintaining 7-8V for about 2 seconds)
or 10A fuse [No. 19, located in the fuse block (J/B)] is disconnected.
METER COMM CIRC [B2202]Malfunction is detected in communication of between combination meter and unified meter and
A/C amp.
VEHICLE SPEED CIRC [B2205]When an erroneous speed signal is input for 1 second.
CAUTION:
Even when there is no malfunction on speed signal system, malfunction may be misinter-
preted when battery has low voltage (when maintaining 7-8V for about 2 seconds).

DI-30
UNIFIED METER AND A/C AMP

DATA MONITOR
Operation Procedure
1. Touch “DATA MONITOR” on “SELECT DIAG MODE” screen.
2. Touch either “MAIN SIGNALS” or “SELECTION FROM MENU” on the “DATA MONITOR” screen.
3. When “SELECTION FROM MENU” is selected, touch individual
items to be monitored. When “MAIN SIGNALS” is selected,
main items will be monitored.
4. Touch “START”.
5. Touch “RECORD” while monitoring, then the status of the moni-
tored item can be recorded. To stop recording, touch “STOP”.
Display Item List
MAIN SIGNALS Monitors main signals.
SELECTION FROM MENU Selects and monitors individual signal.
SKIA8739E
Monitor item [Unit] MAIN SIGNALSSELECTION
FROM MENUContents
SPEED METER [km/h] or [mph] X XThis is the angle correction value after the speed signal from
the ABS actuator and electric unit (control unit) is converted
into the vehicle speed.
SPEED OUTPUT [km/h] or [mph] X XThis is the angle correction value before the speed signal
from the ABS actuator and electric unit (control unit) is con-
verted into the vehicle speed.
TACHO METER [rpm] X XThis is the converted value for the engine speed signal from
the ECM.
W TEMP METER [°C] or [°F] X XThis is the converted value for the engine coolant tempera-
ture signal from the ECM.
FUEL METER [lit.] X XThis is the processed value for the signal (resistance value)
from the fuel gauge.
DISTANCE [km] or [mile] X XThis is the calculated value for the speed signal from the
ABS actuator and electric unit (control unit), the signal
(resistance signal) from the fuel gauge and fuel consumption
signal from ECM.
FUEL W/L [ON/OFF] X X Indicates [ON/OFF] condition of low-fuel warning lamp.
MIL [ON/OFF] X Indicates [ON/OFF] condition of malfunction indicator lamp.
BUZZER [ON/OFF] X X Indicates [ON/OFF] condition of buzzer.
DOOR W/L [ON/OFF] X Indicates [ON/OFF] condition of door warning lamp.
HI-BEAM IND [ON/OFF] X Indicates [ON/OFF] condition of high-beam indicator.
TURN IND [ON/OFF] X Indicates [ON/OFF] condition of turn indicator.
FR FOG IND X Indicates [ON/OFF] condition of front fog lamp indicator.
RR FOG IND X Indicates [ON/OFF] condition of rear fog lamp.
OIL W/L [ON/OFF] X Indicates [ON/OFF] condition of oil pressure warning lamp.
LIGHT IND [ON/OFF] X Indicates [ON/OFF] condition of light indicator lamp.
VDC/TCS IND [ON/OFF] X Indicates [ON/OFF] condition of VDC OFF indicator lamp.
ABS W/L [ON/OFF] X Indicates [ON/OFF] condition of ABS warning lamp.
SLIP IND [ON/OFF] X Indicates [ON/OFF] condition of SLIP indicator lamp.
BRAKE W/L [ON/OFF] X Indicates [ON/OFF] condition of brake warning lamp.*
KEY G W/L [ON/OFF] X Indicates [ON/OFF] condition of key warning lamp (green).

UNIFIED METER AND A/C AMP
DI-31
C
D
E
F
G
H
I
J
L
MA
B
DI

NOTE:
Any monitored item that does not match the vehicle being diagnosed is deleted from the display automatically.
*: Monitor keeps indicating “OFF” when brake warning lamp is on by the parking brake operation or low brake
fluid level.
KEY R W/L [ON/OFF] X Indicates [ON/OFF] condition of key warning lamp (red).
KEY KNOB W/L [ON/OFF] X Indicates [ON/OFF] condition of key knob warning lamp.
PNP P SW [ON/OFF] X X Indicates [ON/OFF] condition of A/T P range.
PNP N SW [ON/OFF] X X Indicates [ON/OFF] condition of A/T N range.
M-RENGE SW X X Indicates [ON/OFF] condition of manual mode range switch.
NOT M-RANGE SW X XIndicates [ON/OFF] condition of except for manual mode
range switch.
AT-SHIFT UP SW X XIndicates [ON/OFF] condition of manual mode range switch
(up).
AT-SHIFT DOWN SW X XIndicates [ON/OFF] condition of manual mode range switch
(Down).
O/D OFF SW [ON/OFF] X Indicates [ON/OFF] condition of O/D OFF switch.
AT P MODE SW X Indicates [ON/OFF] condition of A/T POWER mode switch.
AT S MODE SW X Indicates [ON/OFF] condition of A/T SNOW mode switch.
BRAKE SW [ON/OFF] XIndicates [ON/OFF] condition of brake switch (Stop lamp
switch).
AT-M IND [ON/OFF] X X Indicates [ON/OFF] condition of manual mode indicator.
AT-M GEAR [5-1] X X Indicates [5-1] condition of manual mode gear position.
P RANGE IND [ON/OFF] X X Indicates [ON/OFF] condition of A/T shift P range indicator.
R RANGE IND [ON/OFF] X X Indicates [ON/OFF] condition of A/T shift R range indicator.
N RANGE IND [ON/OFF] X X Indicates [ON/OFF] condition of A/T shift N range indicator.
D RANGE IND [ON/OFF] X X Indicates [ON/OFF] condition of A/T shift D range indicator.
3 RANGE IND X X Indicates [ON/OFF] condition of A/T shift 3 range indicator.
2 RANGE IND X X Indicates [ON/OFF] condition of A/T shift 2 range indicator.
L RANGE IND X X Indicates [ON/OFF] condition of A/T shift L range indicator.
1 RANGE IND X X Indicates [ON/OFF] condition of A/T shift 1 range indicator.
AT CHECK W/L X Indicates [ON/OFF] condition of AT CHECK warning lamp.
CVT IND X Indicates [ON/OFF] condition of CVT indicator lamp.
CRUISE IND [ON/OFF] X Indicates [ON/OFF] condition of CRUISE indicator.
SET IND [ON/OFF] X Indicates [ON/OFF] condition of SET indicator.Monitor item [Unit] MAIN SIGNALSSELECTION
FROM MENUContents
