2003 NISSAN TEANA Unified meter and

DI-32
UNIFIED METER AND A/C AMP

DTC [U1000] CAN Communication CircuitBKS002B1
1. CHECK CAN COMMUNICATION
1. Select “CAN DIAG SUPPORT MNTR” mode for “METER A/C AMP” with CONSULT-II.
2. Print out CONSULT-II screen.
>> Go to “LAN SYSTEM”. Refer to LAN-49, "
CAN System Specification Chart" .
DTC [B2202] Meter Communication CircuitBKS002B2
1. CHECK CONNECTOR
Check combination meter, unified meter and A/C amp. and terminals (combination meter side, unified meter
and A/C amp. side and harness side) for looseness or bent terminals.
OK or NG
OK >> GO TO 2.
NG >> Repair terminal or connector.
2. CHECK METER/GAUGES VISUALLY
Does the pointer on the meter/gauge fluctuate at the engine start?
Is the fluctuation acceptable?
YES >> GO TO 3.
NO >> GO TO 6.
3. CHECK CONTINUITY COMMUNICATION CIRCUIT (TX: COMBINATION METER)
1. Turn ignition switch OFF.
2. Disconnect combination meter connector and unified meter and A/C amp. connector.
3. Check continuity between combination meter harness connector
M70 terminal 18 and unified meter and A/C amp. harness con-
nector M41 terminal 19.
4. Check continuity between combination meter harness connector
M70 terminal 18 and ground.
OK or NG
OK >> GO TO 4.
NG >> Repair harness or connector.
4. CHECK VOLTAGE OF UNIFIED METER AND A/C AMP.
1. Connect unified meter and A/C amp. connector.
2. Turn ignition switch ON.
3. Check voltage between combination meter harness connector
M70 terminal 18 and ground.
OK or NG
OK >> GO TO 5.
NG >> Replace unified meter and A/C amp. Refer to DI-34,
"Removal and Installation of Unified Meter and A/C
Amp." . 18 – 19 : Continuity should exist.
18 – Ground : Continuity should not exist.
SKIA8726E
18 – Ground : Approx. 5 V
SKIB1049E

UNIFIED METER AND A/C AMP
DI-33
C
D
E
F
G
H
I
J
L
MA
B
DI

5. CHECK VOLTAGE SIGNAL OF COMBINATION METER
1. Turn ignition switch OFF and connect combination meter connector.
2. Turn ignition switch ON.
3. Check voltage signal between combination meter harness con-
nector M70 terminal 18 and ground.
OK or NG
OK >> Replace unified meter and A/C amp. Refer to DI-34,
"Removal and Installation of Unified Meter and A/C Amp." .
NG >> Replace combination meter.
6. CHECK CONTINUITY COMMUNICATION CIRCUIT (RX: COMBINATION METER)
1. Turn ignition switch OFF.
2. Disconnect combination meter connector and unified meter and A/C amp. connector.
3. Check continuity between combination meter harness connector
M70 terminal 19 and unified meter and A/C amp. harness con-
nector M41 terminal 9.
4. Check continuity between combination meter harness connector
M70 terminal 19 and ground.
OK or NG
OK >> GO TO 7.
NG >> Repair harness or connector.
7. CHECK VOLTAGE OF COMBINATION METER
1. Connect combination meter connector.
2. Turn ignition switch ON.
3. Check voltage between unified meter and A/C amp. harness
connector M41 terminal 9 and ground.
OK or NG
OK >> GO TO 8.
NG >> Replace combination meter.18 – Ground:
SKIA8730E
SKIA3361E
19 – 9 : Continuity should exist.
19 – Ground : Continuity should not exist.
SKIA8731E
9 – Ground : Approx. 5 V
SKIB1050E

DI-34
UNIFIED METER AND A/C AMP

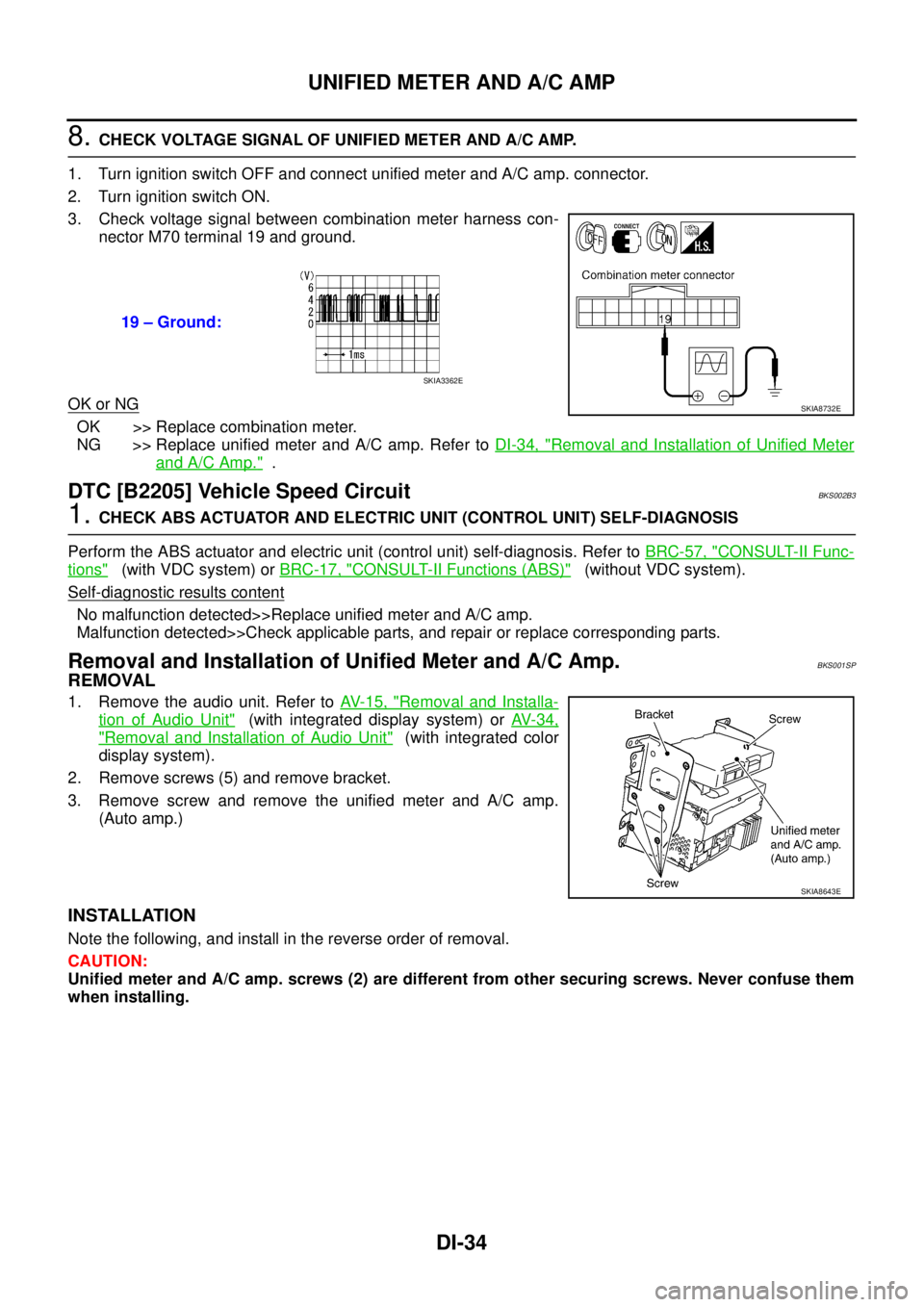

8. CHECK VOLTAGE SIGNAL OF UNIFIED METER AND A/C AMP.
1. Turn ignition switch OFF and connect unified meter and A/C amp. connector.
2. Turn ignition switch ON.
3. Check voltage signal between combination meter harness con-
nector M70 terminal 19 and ground.
OK or NG
OK >> Replace combination meter.
NG >> Replace unified meter and A/C amp. Refer to DI-34, "
Removal and Installation of Unified Meter
and A/C Amp." .
DTC [B2205] Vehicle Speed CircuitBKS002B3
1. CHECK ABS ACTUATOR AND ELECTRIC UNIT (CONTROL UNIT) SELF-DIAGNOSIS
Perform the ABS actuator and electric unit (control unit) self-diagnosis. Refer to BRC-57, "
CONSULT-II Func-
tions" (with VDC system) or BRC-17, "CONSULT-II Functions (ABS)" (without VDC system).
Self
-diagnostic results content
No malfunction detected>>Replace unified meter and A/C amp.
Malfunction detected>>Check applicable parts, and repair or replace corresponding parts.
Removal and Installation of Unified Meter and A/C Amp.BKS001SP
REMOVAL
1. Remove the audio unit. Refer to AV- 1 5 , "Removal and Installa-
tion of Audio Unit" (with integrated display system) or AV- 3 4 ,
"Removal and Installation of Audio Unit" (with integrated color
display system).
2. Remove screws (5) and remove bracket.
3. Remove screw and remove the unified meter and A/C amp.
(Auto amp.)
INSTALLATION
Note the following, and install in the reverse order of removal.
CAUTION:
Unified meter and A/C amp. screws (2) are different from other securing screws. Never confuse them
when installing.19 – Ground:
SKIA8732E
SKIA3362E
SKIA8643E

WARNING LAMPS
DI-35
C
D
E
F
G
H
I
J
L
MA
B
DI

WARNING LAMPSPFP:24814
System DescriptionBKS003R5
OIL PRESSURE WARNING LAMP
Oil pressure warning lamp turns ON when reducing engine oil pressure abnormally.

IPDM E/R inputs oil pressure switch signal from oil pressure switch, and transmits the signal to unified
meter and A/C amp. through BCM with CAN communication.

Unified meter and A/C amp. transmits oil pressure switch signal to combination meter with communication
line.

Let the combination meter turn oil pressure warning lamp ON with received oil pressure switch signal.

WARNING LAMPS
DI-45
C
D
E
F
G
H
I
J
L
MA
B
DI

Oil Pressure Warning Lamp Stays Off (Ignition Switch ON)BKS001SS
1. CHECK IPDM E/R OUTPUT SIGNAL
Activate IPDM E/R auto active test. Refer to PG-21, "
Auto Active Test" .
Is oil pressure warning lamp blinking?
No malfunction detected>> GO TO 5.
Malfunction detected>> Go to 2.
2. CHECK SELF-DIAGNOSTIC RESULTS OF IPDM E/R
Select “IPDM E/R” on CONSULT-II, and perform self diagnosis of IPDM E/R. Refer to PG-19, "
CONSULT-II
Function (IPDM E/R)"
Self-diagnosis result content?
YES >> GO TO 3.
NO >> GO TO PG-19, "
SELF-DIAG RESULTS" in “IPDM E/R”.
3. CHECK UNIFIED METER AND A/C AMP. INPUT SIGNAL
Select “METER A/C AMP” on CONSULT-II. Operate ignition switch
with “OIL W/L” of “DATA MONITOR” and check operation status.
OK or NG
OK >> Replace combination meter.
NG >> GO TO 4.
4. CHECK BCM INPUT SIGNAL
Select “DATA MONITOR” of “SIGNAL BUFFER”. Refer to BCS-13,
"CONSULT-II Function (BCM)" . Operate ignition switch with “OIL
PRESS SW” of “DATA MONITOR” and check operate status.
OK or NG
OK >> Replace combination meter .
NG >> Replace IPDM E/R.“OIL W/L”
When ignition switch is in ON
position (Engine stopped.): ON
When engine running : OFF
PKIA2064E
“OIL PRESS SW”
When ignition switch is in ON
position (Engine stopped.): ON
When engine running : OFF
SKIA8709E

DI-50
A/T INDICATOR

A/T Indicator Is MalfunctionBKS001SW
1. CHECK SELF-DIAGNOSIS OF COMBINATION METER
Perform combination meter self-diagnosis. Refer to DI-13, "
OPERA-
TION PROCEDURE"
Are all segments displayed?
YES >> GO TO 2.
NO >> Replace combination meter.
2. CHECK SELF-DIAGNOSIS RESULTS OF UNIFIED AND METER AND A/C AMP.
Select “METER A/C AMP” on CONSULT-II, and then perform self-diagnosis of unified meter and A/C amp.
Refer to DI-29, "
CONSULT-II Function (METER A/C AMP)"
Self-diagnosis result content
No malfunction detected >>SO TO 3
Malfunction detected >>GO TO DI-17, "
SYMPTOM CHART 2"
3. CHECK UNIFIED METER AND A/C AMP. INPUT SIGNAL
1. Connect CONSULT-II and start engine.
2. Use “DATA MONITOR” of “METER A/C AMP” on CONSULT-II.
Confirm each indication on the monitor when operating the shift
lever.
OK or NG
OK >> Replace combination meter.
NG >> GO TO 4.
SKIB0783E
CONSULT-II display Switch operation Operation status
P RANGE INDP range position ON
Except for P range position OFF
R RANGE INDR range position ON
Except for R range position OFF
N RANGE INDN range position ON
Except for N range position OFF
D RANGE INDD range position ON
Except for D range position OFF
3 RANGE IND3 range position ON
Except for 3 range position OFF
2 RANGE IND2 range position ON
Except for 2 range position OFF
1 RANGE IND1 range position ON
Except for 1 range position OFF
SKIB0784E

DI-54
CVT INDICATOR

CVT Indicator Is MalfunctionBKS002B6
1. CHECK SELF-DIAGNOSIS OF COMBINATION METER
Perform combination meter self-diagnosis. Refer to DI-13, "
OPERA-
TION PROCEDURE" .
Are all segments displayed?
YES >> GO TO 2.
NO >> Replace combination meter.
2. CHECK SELF-DIAGNOSTIC RESULTS OF UNIFIED METER AND A/C AMP.
Select “METER A/C AMP” on CONSULT-II, and perform self-diagnosis of unified meter and A/C amp. Refer
toDI-29, "
CONSULT-II Function (METER A/C AMP)" .
Self
-diagnostic results content
No malfunction detected>>GO TO 3.
Malfunction detected>>Check applicable parts, and repair or replace corresponding parts.
3. CHECK UNIFIED METER AND A/C AMP. INPUT SIGNAL
1. Connect CONSULT-II and start engine.
2. Use “DATA MONITOR” of “METER A/C AMP” on CONSULT-II.
Confirm each indication on the monitor when operating the shift
lever.
OK or NG
OK >> Replace combination meter.
NG >> GO TO 4.
EL-3828D
CONSULT-II display Switch operationOperation
status
AT - M I N DManual mode range ON
Except for manual mode range OFF
AT - M G E A RManual mode range (shift-up or down) 5-1
Except for manual mode range 1
P RANGE INDP range position ON
Except for P range position OFF
R RANGE INDR range position ON
Except for R range position OFF
N RANGE INDN range position ON
Except for N range position OFF
D RANGE INDD range position ON
Except for D range position OFF
L RANGE INDL range position ON
Except for L range position OFF
PKID0249E

DI-56
WARNING CHIME

WARNING CHIMEPFP:24814
System DescriptionBKS001SX
POWER SUPPLY AND GROUND CIRCUIT
Power is supplied at all times

through 50A fusible link (letter M , located in the fuse and fusible link block)

to BCM terminal 55,

through 15A fuse [No. 17, located in the fuse block (J/B)]

to combination meter terminal 7

to key switch terminal 1 (without Intelligent Key), and

to BCM terminal 42,

through 15A fuse [No. 18, located in the fuse block (J/B)] (with Intelligent Key)

to key switch terminal 3, and

to ignition knob switch terminal 7,

through 10A fuse [No. 19, located in the fuse block (J/B)]

to unified meter and A/C amp. terminal 21.
When ignition switch ON or START position, power is supplied

through 10A fuse [No. 1, located in the fuse block (J/B)]

to BCM terminal 38,

through 10A fuse [No. 12, located in the fuse block (J/B)]

to unified meter and A/C amp. terminal 22,

through 10A fuse [No. 14, located in the fuse block (J/B)]

to combination meter terminal 8.
Ground is supplied

to BCM terminal 52

to unified meter and A/C amp. terminals 29 and 30, and

to combination meter terminals 10, 11 and 12

through grounds M71 and M72.
NOTE:
When ignition key warning chime and light warning chime should be performed at the same time, the priorities
for each chime are the following.
1. Light warning chime
2. Ignition key warning chime
IGNITION KEY WARNING CHIME (WITHOUT INTELLIGENT KEY)
With the key inserted into the ignition switch, and the ignition switch OFF or ACC, when driver's door open, the
warning chime will sound.
Power is supplied

through key switch terminal 4

to BCM terminal 37.
Ground is supplied

to BCM terminal 62

through front door switch (driver side) terminal 2.
Front door switch (driver side) is case grounded.
BCM detects key inserted into the ignition switch, and sends key warning signal to unified meter and A/C amp.
with CAN communication line. Unified meter and A/C amp. sends key warning signal to combination meter
with communication line between unified meter and A/C amp. and combination meter.
When combination meter receives key warning signal, it sounds warning chime.
