2003 LEXUS LS430 engine coolant

140.INSTALL ENGINE UNDER COVER NO.2
141.INSTALL ENGINE UNDER COVER NO.1
142.INSTALL FRONT WHEEL
143.INSTALL AIR CLEANER ASSY
144.INSTALL INTAKE AIR CONNECTOR PIPE
145.INSTALL AIR CLEANER INLET NO.1
146.INSTALL V-BANK COVER
147.INSTALL HOOD SUB-ASSY (See ADJUSTMENT
and OVERHAUL )
148.CONNECT BATTERY NEGATIVE TERMINAL
149.ADD AUTOMATIC TRANSMISSION FLUID
150.ADD ENGINE COOLANT (See REPLACEMENT
)
151.ADD ENGINE OIL (See ON
-VEHICLE INSPECTION )
152.ADD POWER STEERING FLUID
153.BLEED POWER STEERING FLUID
154.INSPECT AUTOMATIC TRANSMISSION FLUID (See ADJUSTMENT
)
155.INSPECT ENGINE OIL LEAKS
156.CHECK FOR ENGINE COOLANT LEAKS
157.INSPECT FOR FUEL LEAKS
158.CHECK FOR EXHAUST GAS LEAKS
159.INSPECT AND ADJUST FRONT WHEEL ALIGNMENT
160.INSPECT IGNITION TIMING
161.INSPECT ENGINE IDLE SPEED
162.INSPECT CO/HC
163.ADJUST ENGINE (See INSPECTION
)
164.CHECK ABS SPEED SENSOR SIGNAL (See TEST MODE PROCEDURE
)
OVERHAUL
1.REMOVE SPARK PLUG
2.REMOVE OIL FILLER CAP SUB-ASSY
3.REMOVE CYLINDER HEAD COVER SUB-ASSY LH
a. Remove the 9 bolts, 9 seal washers, cylinder head cover and gasket.
4.REMOVE CYLINDER HEAD COVER SUB-ASSY
a. Remove the 9 bolts, 9 seal washers, c
ylinder head cover and gasket.

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

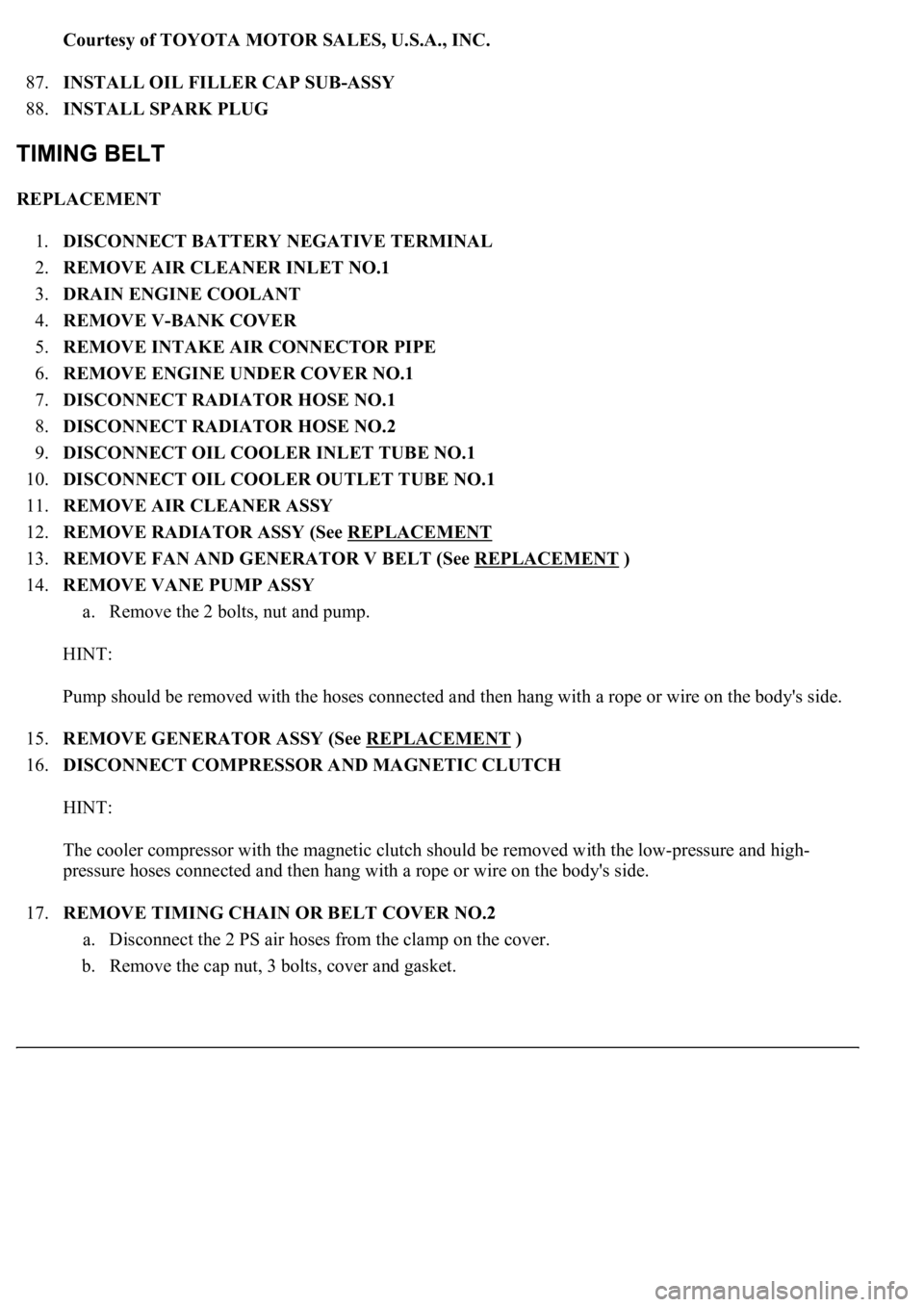

87.INSTALL OIL FILLER CAP SUB-ASSY
88.INSTALL SPARK PLUG
REPLACEMENT
1.DISCONNECT BATTERY NEGATIVE TERMINAL
2.REMOVE AIR CLEANER INLET NO.1
3.DRAIN ENGINE COOLANT
4.REMOVE V-BANK COVER
5.REMOVE INTAKE AIR CONNECTOR PIPE
6.REMOVE ENGINE UNDER COVER NO.1
7.DISCONNECT RADIATOR HOSE NO.1
8.DISCONNECT RADIATOR HOSE NO.2
9.DISCONNECT OIL COOLER INLET TUBE NO.1
10.DISCONNECT OIL COOLER OUTLET TUBE NO.1
11.REMOVE AIR CLEANER ASSY
12.REMOVE RADIATOR ASSY (See REPLACEMENT

13.REMOVE FAN AND GENERATOR V BELT (See REPLACEMENT
)
14.REMOVE VANE PUMP ASSY
a. Remove the 2 bolts, nut and pump.
HINT:
Pump should be removed with the hoses connected and then hang with a rope or wire on the body's side.
15.REMOVE GENERATOR ASSY (See REPLACEMENT
)
16.DISCONNECT COMPRESSOR AND MAGNETIC CLUTCH
HINT:
The cooler compressor with the magnetic clutch should be removed with the low-pressure and high-
pressure hoses connected and then hang with a rope or wire on the body's side.
17.REMOVE TIMING CHAIN OR BELT COVER NO.2
a. Disconnect the 2 PS air hoses from the clamp on the cover.
b. Remove the cap nut, 3 bolts, cover and gasket.

46.INSTALL OIL COOLER OUTLET TUBE NO.1
47.INSTALL OIL COOLER INLET TUBE NO.
48.INSTALL AIR CLEANER INLET NO.1
Torque: 5.0 N.m (51 kgf.cm, 44 in.lbf)
49.INSTALL INTAKE AIR CONNECTOR PIPE
Torque: 5.0 N.m (51 kgf.cm, 44 in.lbf)
50.INSTALL V-BANK COVER
Torque: 5.0 N.m (51 kgf.cm, 44 in.lbf)
51.REFILL ENGINE COOLANT (See REPLACEMENT
)
52.CHECK FOR ENGINE COOLANT LEAKS (See ON
-VEHICLE INSPECTION )
53.INSTALL ENGINE UNDER COVER NO.1
54.CONNECT BATTERY NEGATIVE TERMINAL
REPLACEMENT
1.REMOVE TIMING BELT (See REPLACEMENT
)
2.REMOVE CYLINDER HEAD COVER SUB-ASSY (See REPLACEMENT
)
3.PISTON & VALVE BREAK PREVENT WORK
a. Turn the crankshaft timing pulley counterclockwise by 45° and match the cut part with the
illustrated position.
HINT:
When the No. 1 cylinder is positioned at 45° BTDC, the valve and piston do not interfere with each other
even when the valve is fully open.

INSPECTION
1.CHECK EVAPORATOR AND HEATER RADIATOR FINS FOR FOREIGN MATTER
If foreign matter is attached to the fin, blow it off with compressed air.
2.CHECK FITTINGS FOR CRACKS OR SCRATCHES
a. Repair as necessary.
3.INSPECT EVAPORATOR TEMPERATURE SENSOR CIRCUIT (See DTC B1413:
EVAPORATOR TEMPERATURE SENSOR CIRCUIT )
4.INSPECT COOL AIR BYPASS DAMPER POSITION SENSOR CIRCUIT (DRIVER SIDE) (See
DTC B1434: MAX COOL DAMPER POSITION SENSOR CIRCUIT (DRIVER SIDE)
)
5.INSPECT COOL AIR BYPASS DAMPER CONTROL SERVOMOTOR CIRCUIT (DRIVER
SIDE) (See COOL AIR BYPASS DAMPER CONTROL SERVOMOTOR CIRCUIT (DRIVER
SIDE) )
6.INSPECT COOL AIR BYPASS DAMPER POSITION SENSOR CIRCUIT (PASSENGER SIDE)
(See COOL AIR BYPASS DAMPER CONTROL SERVOMOTOR CIRCUIT (PASSENGER
SIDE) )
7.INSPECT COOL AIR BYPASS DAMPER CONTROL SERVOMOTOR CIRCUIT (PASSENGER
SIDE) (SEE COOL AIR BYPASS DAMPER CONTROL SERVOMOTOR CIRCUIT
(PASSENGER SIDE) )
8.INSPECT WATER VALVE CONTROL SERVOMOTOR CIRCUIT (See WATER VALVE
CONTROL SERVOMOTOR CIRCUIT )
9.INSPECT AIR VENT MODE DAMPER CONTROL SERVOMOTOR CIRCUIT (See AIR VENT
MODE DAMPER CONTROL SERVOMOTOR CIRCUIT )
10.INSPECT AIR MIX DAMPER CONTROL SERVOMOTOR CIRCUIT (See AIR MIX DAMPER
CONTROL SERVOMOTOR CIRCUIT )
OVERHAUL
HINT:
Installation is in the reverse order of removal.
See COMPONENTS .
1.DISCONNECT NEGATIVE TERMINAL CABLE FROM BATTERY
2.EVACUATE REFRIGERANT HFC-134A (R134A) (See REPLACEMENT
)
3.DRAIN ENGINE COOLANT FROM RADIATOR
HINT:
It is not necessar
y to drain out all coolant.

Fig. 70: Installing Suction Tube Sub-Assy B
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
40.CONNECT NEGATIVE TERMINAL CABLE TO BATTERY
41.ADD ENGINE COOLANT (See REPLACEMENT
)
42.CHARGE REFRIGERANT (See REPLACEMENT
)
43.WARM UP ENGINE
44.CHECK FOR ENGINE COOLANT LEAKS (See REPLACEMENT
)
45.INSPECT FOR REFRIGERANT LEAKAGE (See REPLACEMENT
)
COMPONENTS

COMPONENTS
Fig. 13: Identifying Camshaft Position Sensor Components And Replacements

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
REPLACEMENT
1.REMOVE AIR CLEANER INLET NO. 1 (See step 5 in REPLACEMENT
)
2.DRAIN ENGINE COOLANT (See REPLACEMENT
)

14.REFILL ENGINE COOLANT (See REPLACEMENT )
15.WARM UP ENGINE
16.CHECK FOR ENGINE COOLANT LEAKS
COMPONENTS

If the result is not as specified, replace the VSV assy.
Fig. 8: Checking Air Flows From Port E To Port F

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
REPLACEMENT
1.DRAIN ENGINE COOLANT
2.WORK FOR PREVENTING GASOLINE FROM SPILLING OUT
3.REMOVE V-BANK COVER
a. Remove the 2 nuts and V-bank cover.
4.REMOVE AIR CLEANER INLET NO. 1
5.REMOVE INTAKE AIR CONNECTOR PIPE
a. Disconnect the air hose and ventilation hose No. 1.
b. Remove the bolt, hose clamp and intake air connector pipe.
