2003 LEXUS LS430 differential

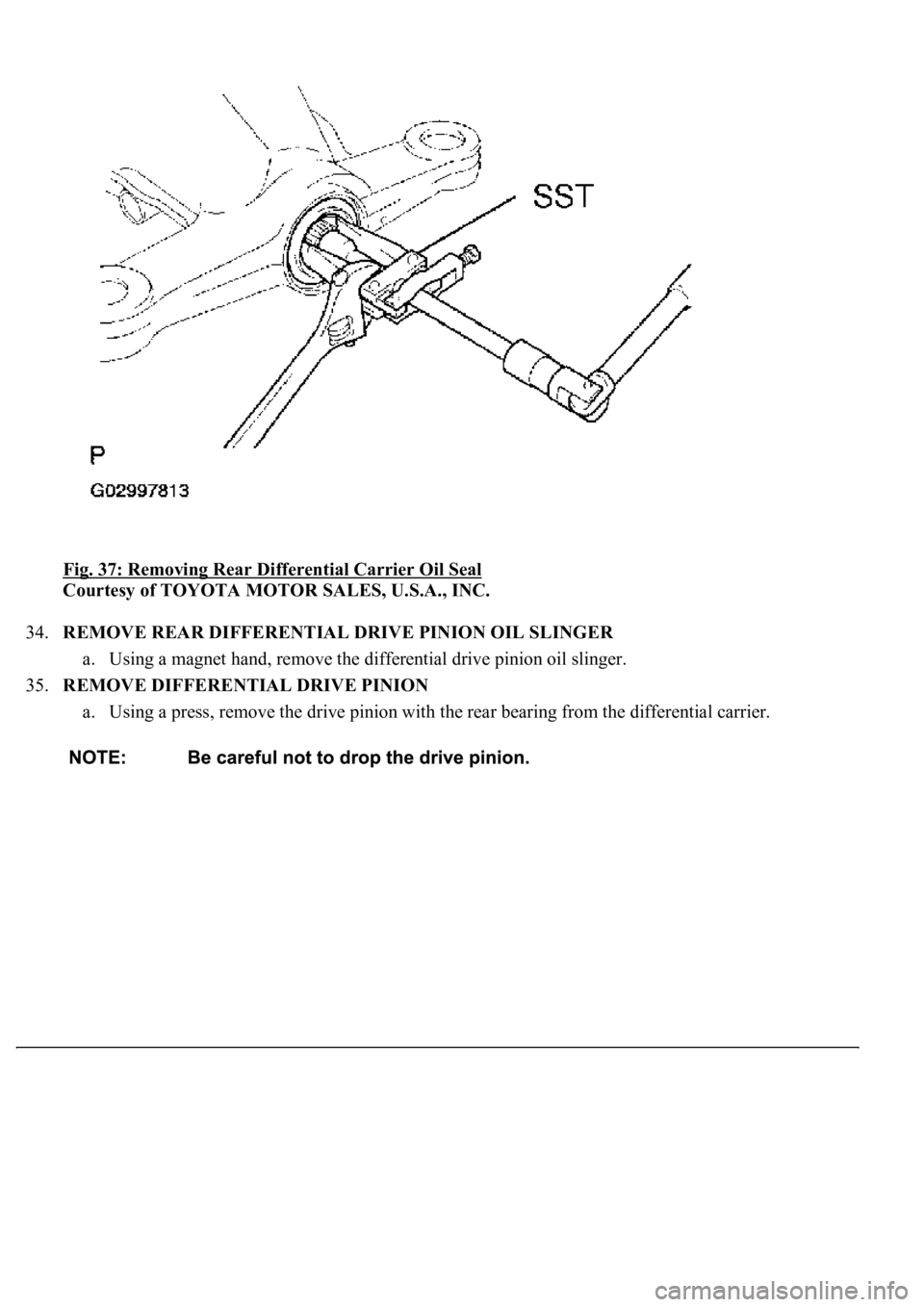

Fig. 37: Removing Rear Differential Carrier Oil Seal
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
34.REMOVE REAR DIFFERENTIAL DRIVE PINION OIL SLINGER
a. Using a magnet hand, remove the differential drive pinion oil slinger.
35.REMOVE DIFFERENTIAL DRIVE PINION
a. Using a press, remove the drive pinion with the rear bearing from the differential carrier.

Fig. 38: Removing Differential Drive Pinion
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
36.REMOVE REAR DIFFERENTIAL DRIVE PINION BEARING SPACER
a. Remove the spacer from the drive pinion.

Fig. 39: Removing Rear Differential Drive Pinion Bearing Spacer
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
37.REMOVE REAR DRIVE PINION FRONT TAPERED ROLLER BEARING
a. Remove the front bearing from the differential carrier.

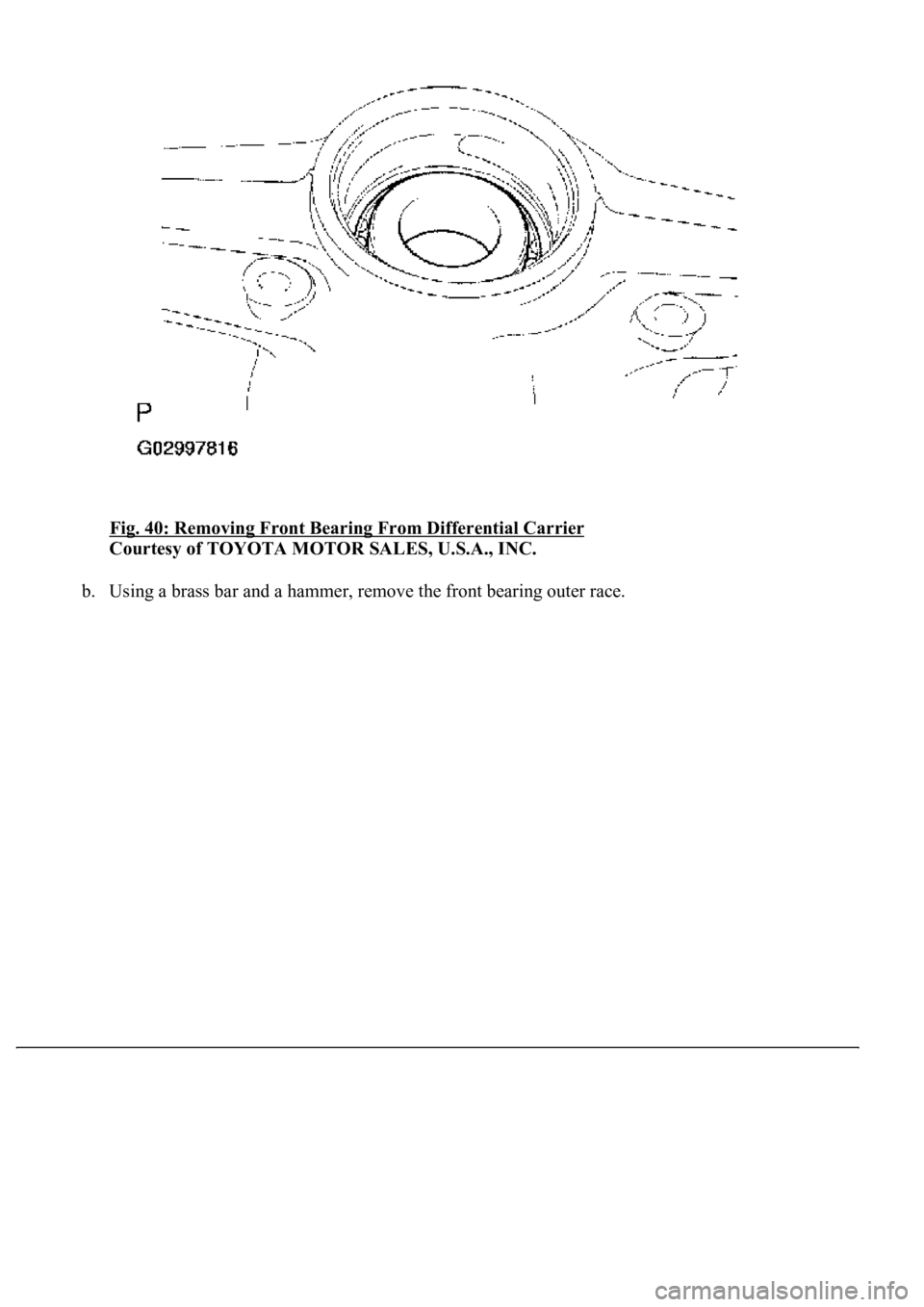

Fig. 40: Removing Front Bearing From Differential Carrier
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
b.Using a brass bar and a hammer, remove the front bearing outer race.

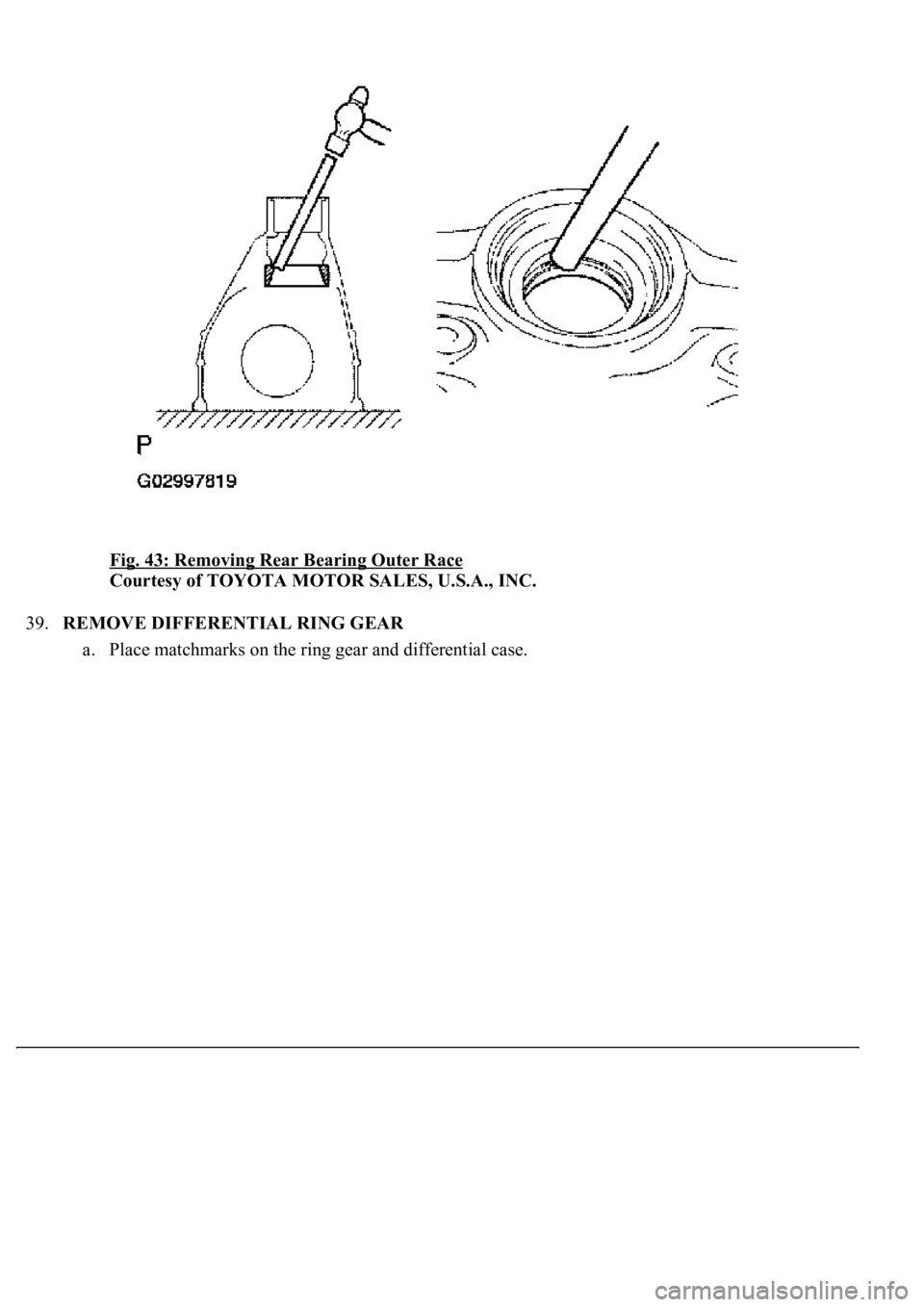

Fig. 43: Removing Rear Bearing Outer Race
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
39.REMOVE DIFFERENTIAL RING GEAR
a. Place matchmarks on the rin
g gear and differential case.

Fig. 44: Identifying Matchmarks On Ring Gear And Differential Case
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
b. Remove the 10 ring gear set bolts.

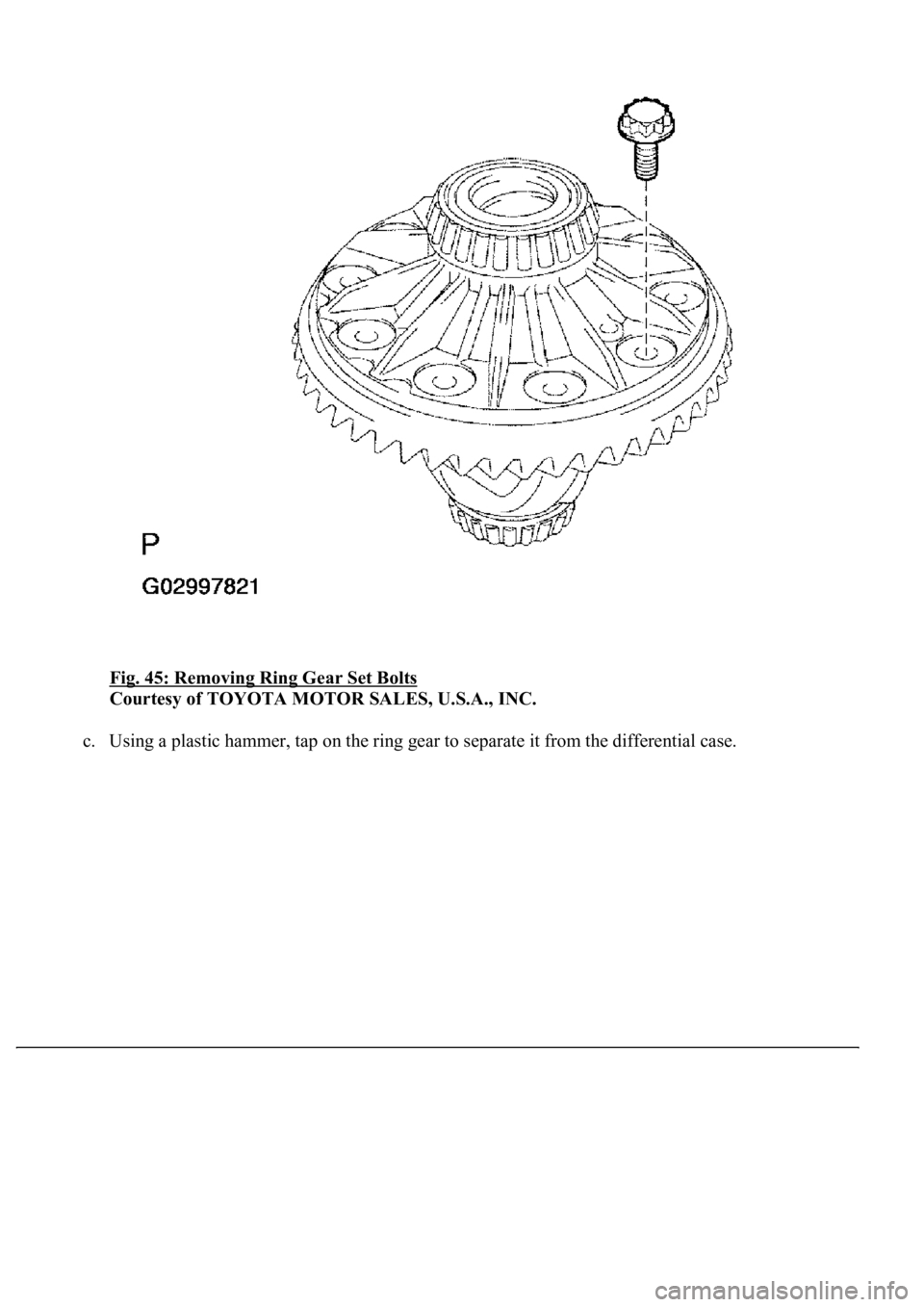

Fig. 45: Removing Ring Gear Set Bolts
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
c. Using a plastic hammer, tap on the ring gear to separate it from the differential case.

Fig. 46: Separating Ring Gear From Differential Case
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
40.INSPECT RUNOUT OF REAR DIFFERENTIAL CASE SUB-ASSY
a. Install the drive side bearing in the differential carrier first, as shown in the illustration, then install
the differential case.
