2003 LEXUS LS430 differential

b. Using a hexagon wrench (12 mm), remove the 3 hexagon bolts.

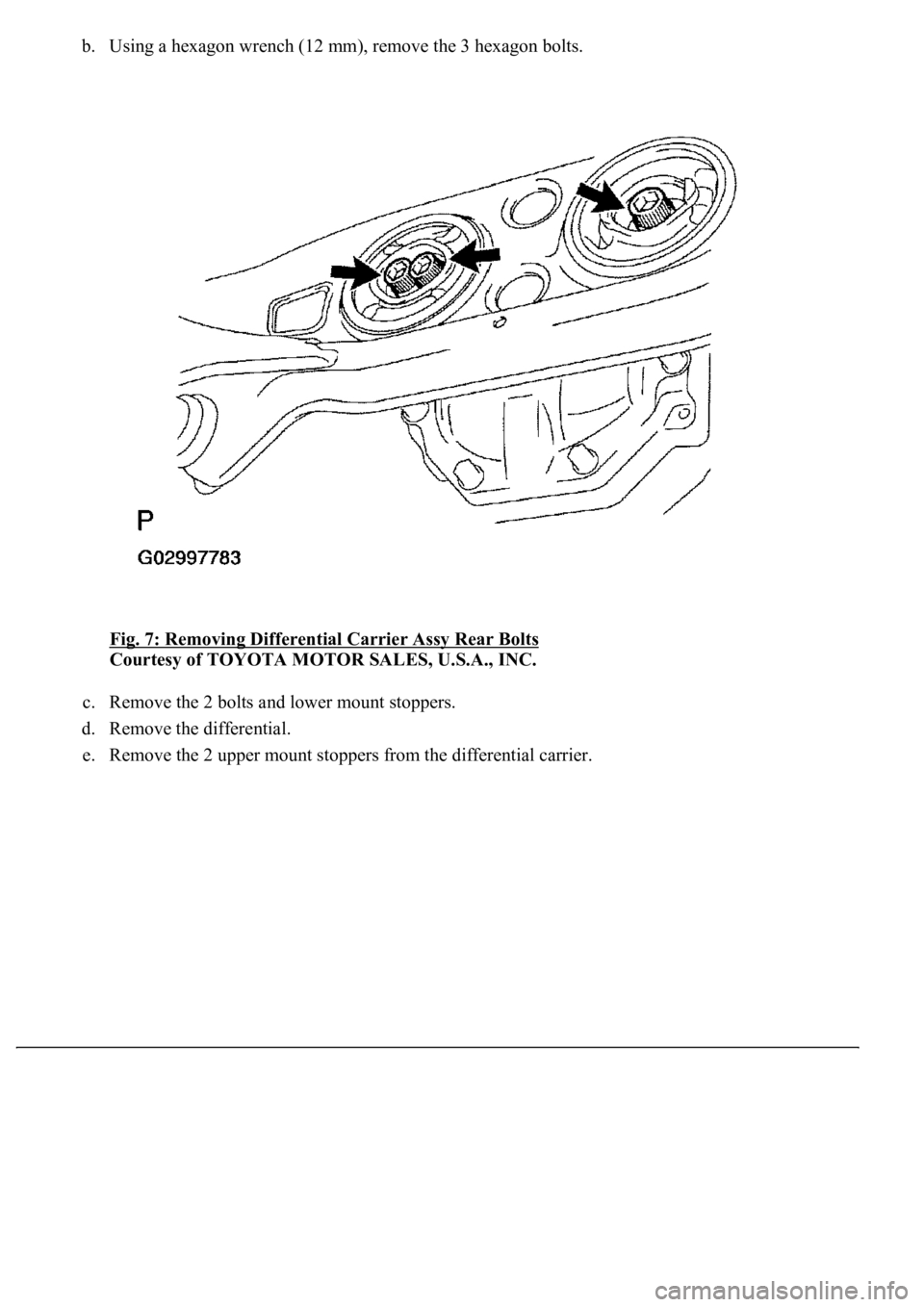

Fig. 7: Removing Differential Carrier Assy Rear Bolts

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
c. Remove the 2 bolts and lower mount stoppers.
d. Remove the differential.
e. Remove the 2 upper mount stoppers from the differential carrier.

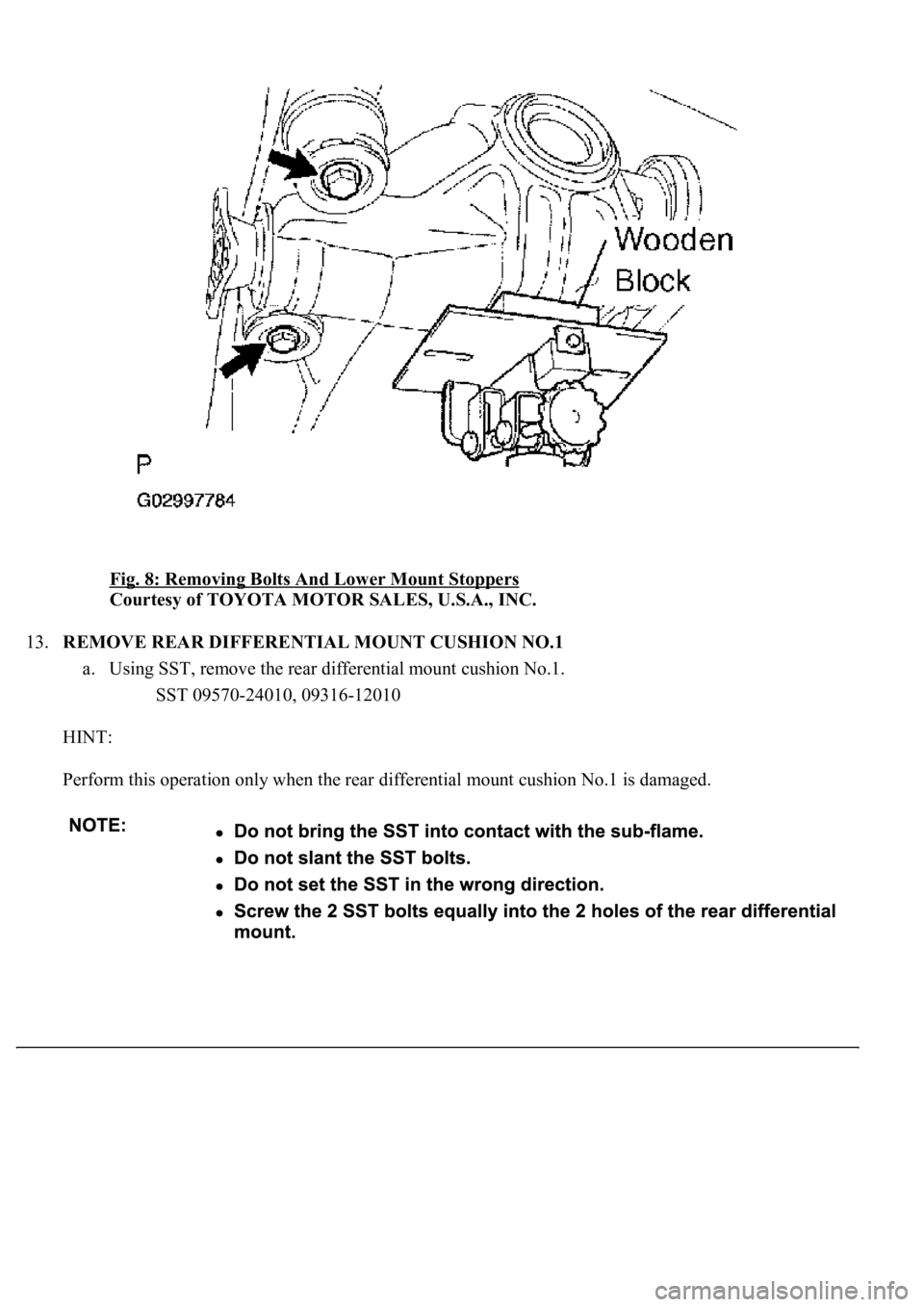

Fig. 8: Removing Bolts And Lower Mount Stoppers
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
13.REMOVE REAR DIFFERENTIAL MOUNT CUSHION NO.1
a. Using SST, remove the rear differential mount cushion No.1.
SST 09570-24010, 09316-12010
HINT:
Perform this operation only when the rear differential mount cushion No.1 is damaged.

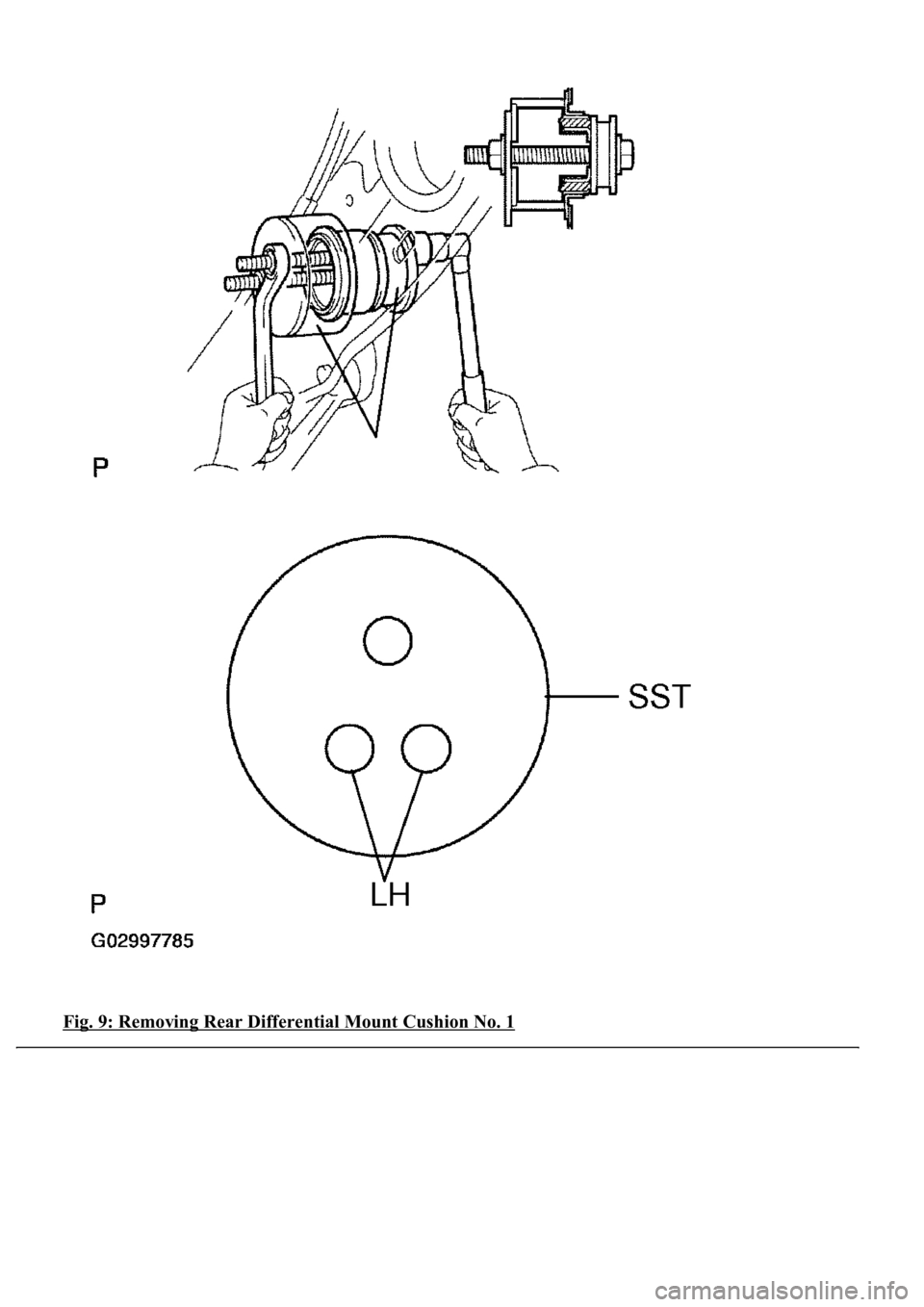

Fig. 9: Removing Rear Differential Mount Cushion No. 1

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
14.REMOVE REAR DIFFERENTIAL MOUNT CUSHION NO.2
a. Using SST remove the rear differential mount cushion No.2.
SST 09570-24010, 09316-12010
HINT:
Perform this operation only when the rear differential mount cushion No.2 is damaged.

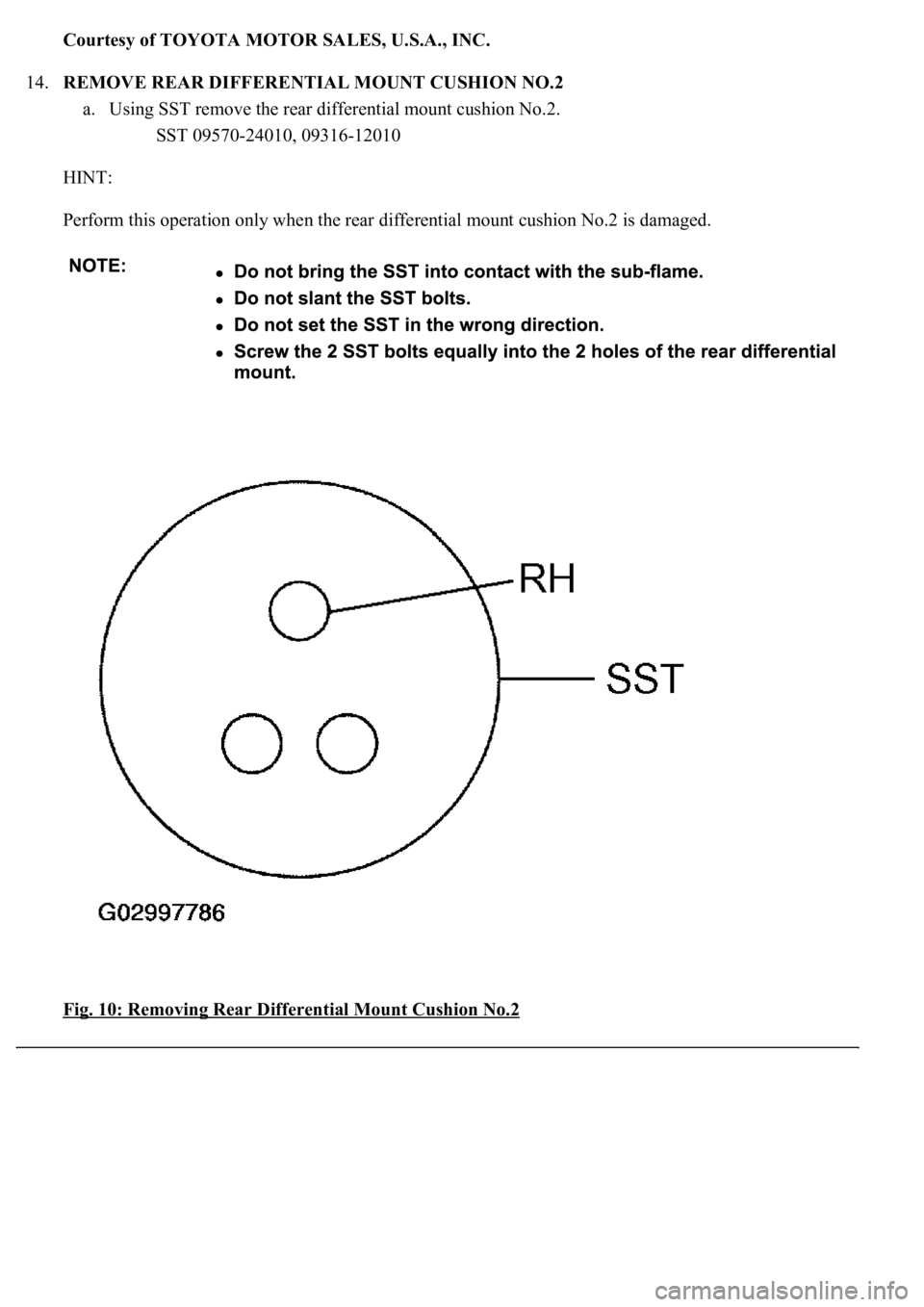

Fig. 10: Removing Rear Differential Mount Cushion No.2

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
15.REMOVE REAR DIFFERENTIAL CARRIER COVER
a. Remove the 8 bolts from the carrier cover.

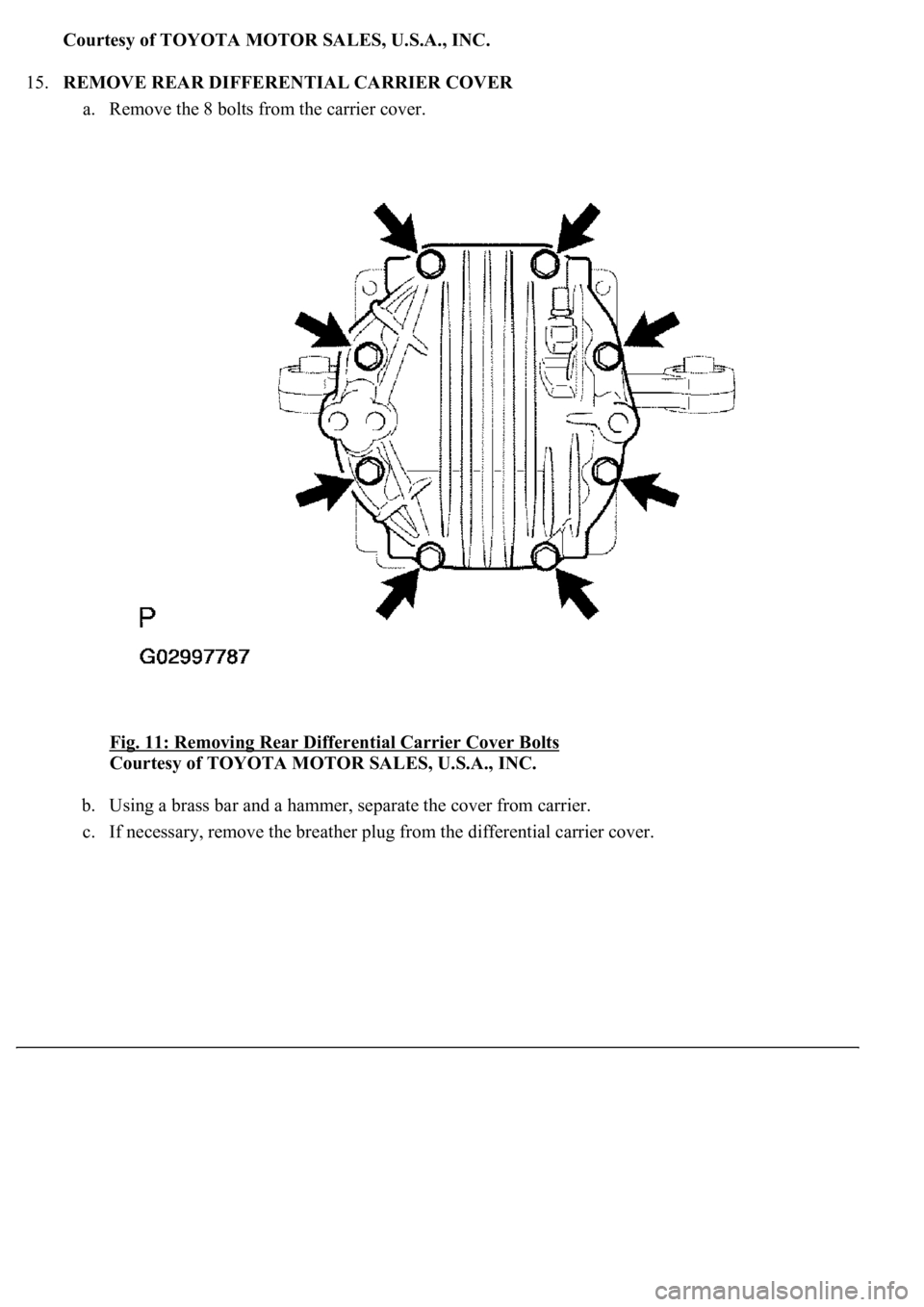

Fig. 11: Removing Rear Differential Carrier Cover Bolts

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
b. Using a brass bar and a hammer, separate the cover from carrier.
c. If necessar
y, remove the breather plug from the differential carrier cover.

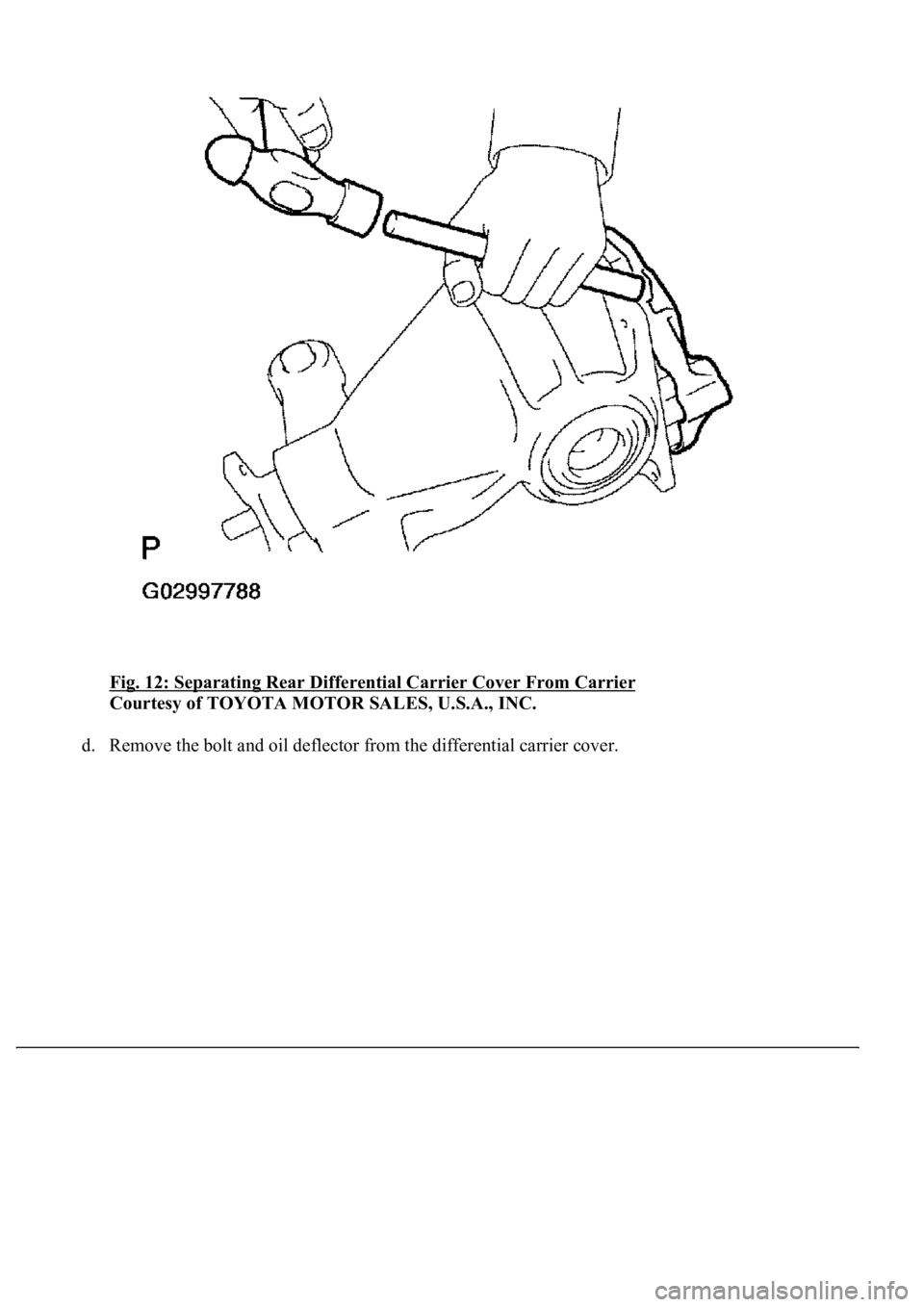

Fig. 12: Separating Rear Differential Carrier Cover From Carrier
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
d. Remove the bolt and oil deflector from the differential carrier cover.

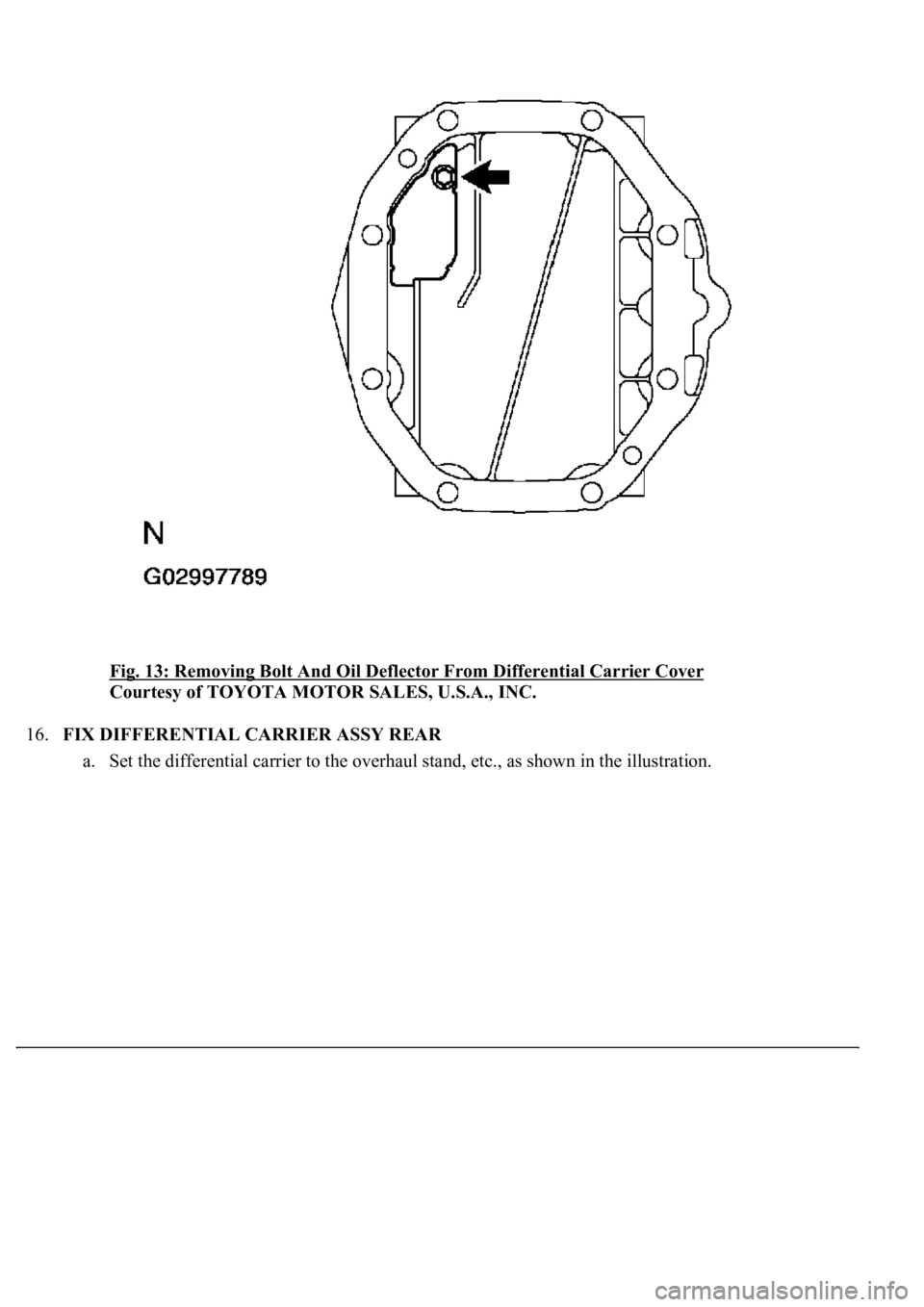

Fig. 13: Removing Bolt And Oil Deflector From Differential Carrier Cover
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
16.FIX DIFFERENTIAL CARRIER ASSY REAR
a. Set the differential carrier to the overhaul stand, etc., as shown in the illustration.

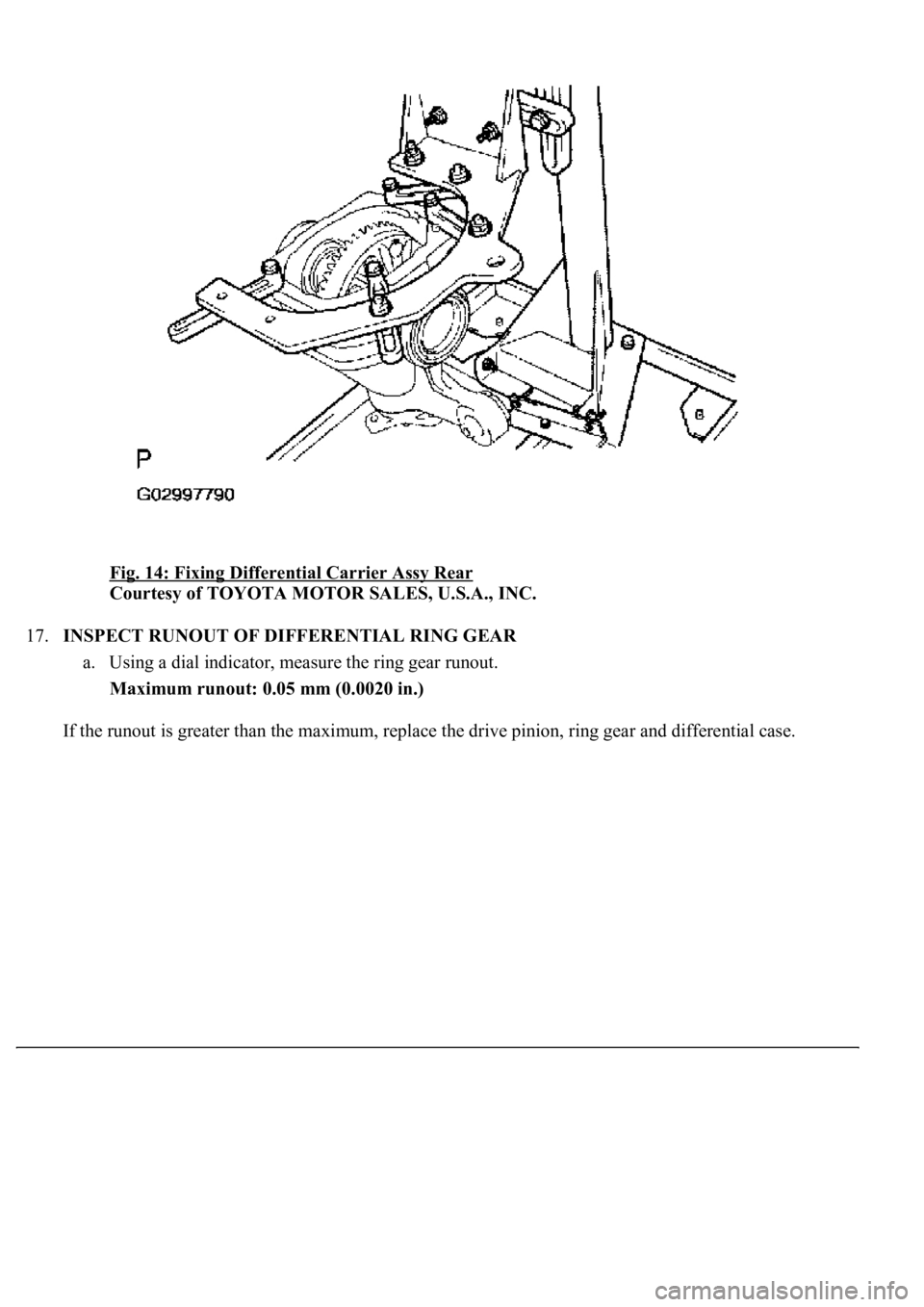

Fig. 14: Fixing Differential Carrier Assy Rear
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
17.INSPECT RUNOUT OF DIFFERENTIAL RING GEAR
a. Using a dial indicator, measure the ring gear runout.
Maximum runout: 0.05 mm (0.0020 in.)
If the runout is
greater than the maximum, replace the drive pinion, ring gear and differential case.
