2003 LEXUS LS430 differential

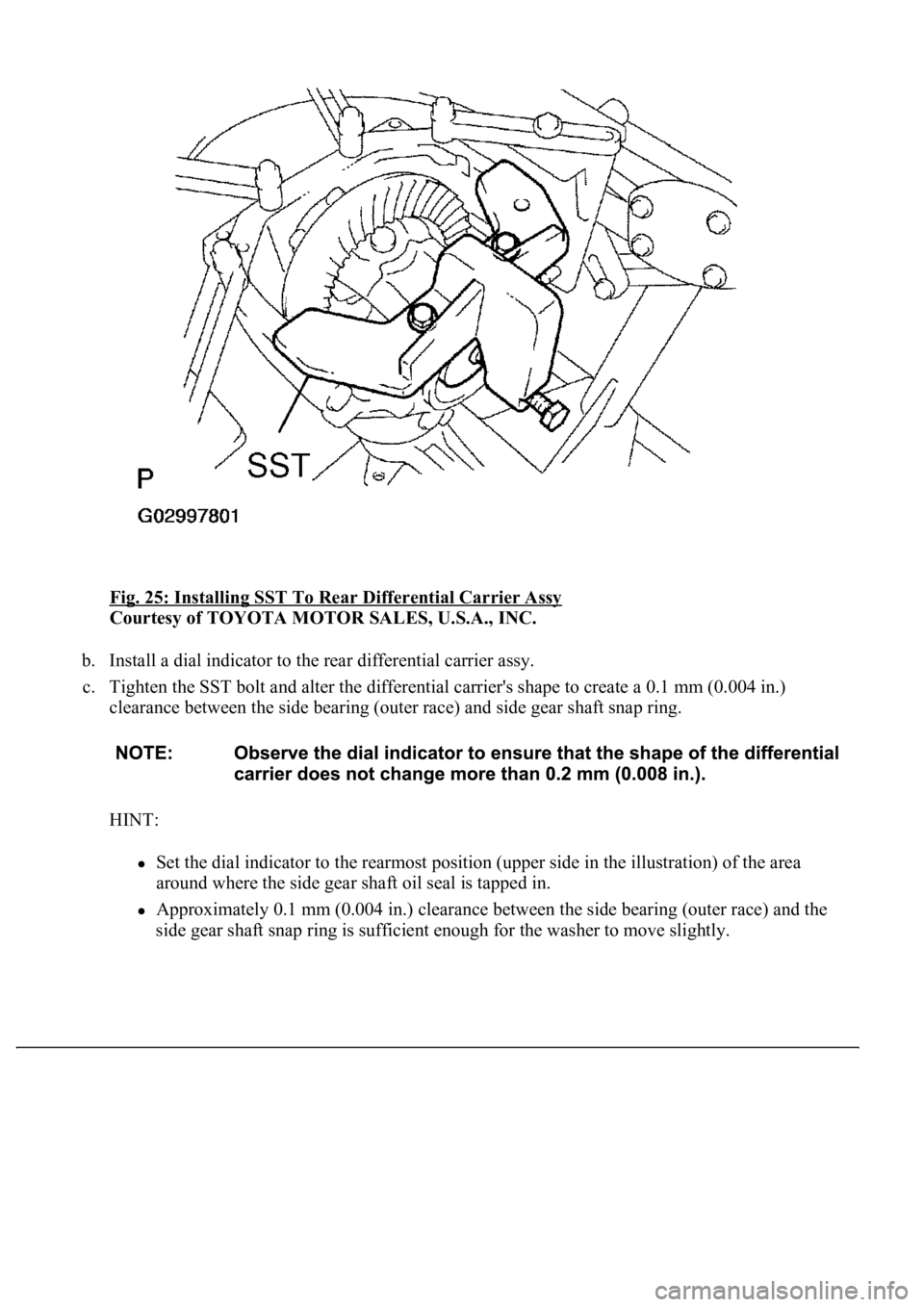

Fig. 25: Installing SST To Rear Differential Carrier Assy
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
b. Install a dial indicator to the rear differential carrier assy.
c. Tighten the SST bolt and alter the differential carrier's shape to create a 0.1 mm (0.004 in.)
clearance between the side bearing (outer race) and side gear shaft snap ring.
HINT:
Set the dial indicator to the rearmost position (upper side in the illustration) of the area
around where the side gear shaft oil seal is tapped in.
Approximately 0.1 mm (0.004 in.) clearance between the side bearing (outer race) and the
side
gear shaft snap ring is sufficient enough for the washer to move slightly.

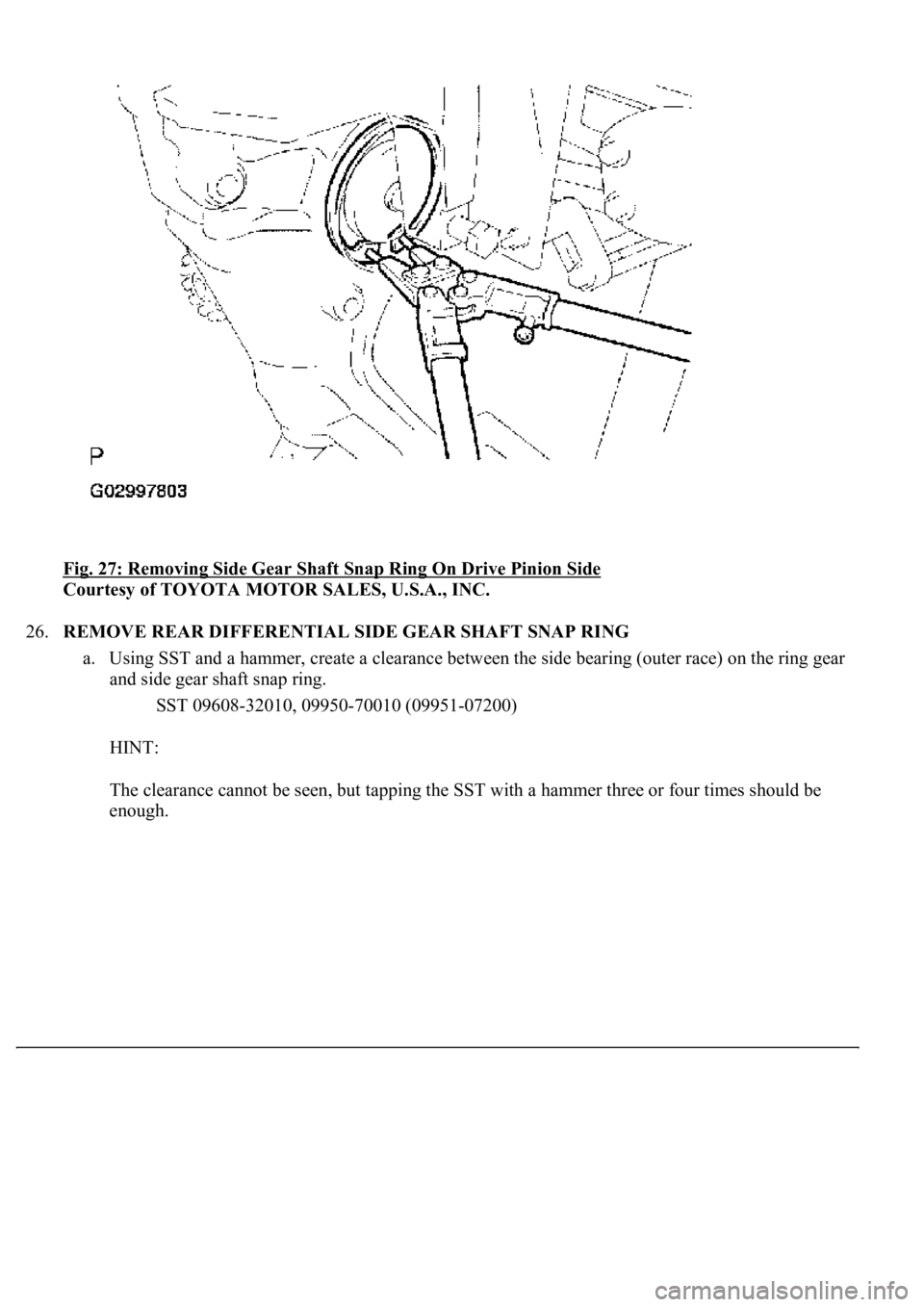

Fig. 27: Removing Side Gear Shaft Snap Ring On Drive Pinion Side
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
26.REMOVE REAR DIFFERENTIAL SIDE GEAR SHAFT SNAP RING
a. Using SST and a hammer, create a clearance between the side bearing (outer race) on the ring gear
and side gear shaft snap ring.
SST 09608-32010, 09950-70010 (09951-07200)
HINT:
The clearance cannot be seen, but tapping the SST with a hammer three or four times should be
enou
gh.

Fig. 29: Removing Side Gear Shaft Snap Ring On Ring Gear Side
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
27.REMOVE REAR DIFFERENTIAL CASE BEARING
a. Tighten the SST bolt and push out the outer race on the ring gear side.
SST 09571-50010
b. Remove the SST.

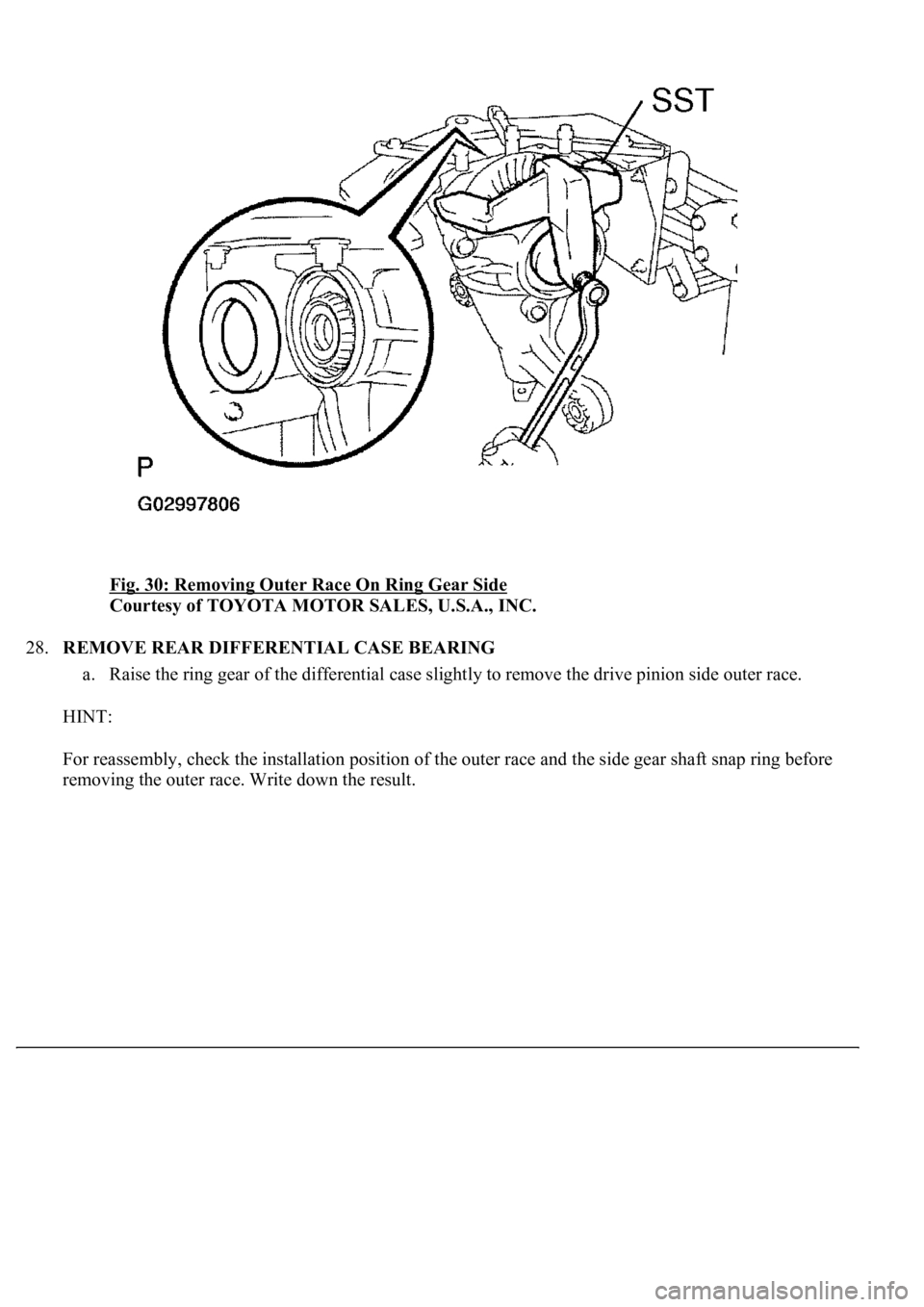

Fig. 30: Removing Outer Race On Ring Gear Side
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
28.REMOVE REAR DIFFERENTIAL CASE BEARING
a. Raise the ring gear of the differential case slightly to remove the drive pinion side outer race.
HINT:
For reassembly, check the installation position of the outer race and the side gear shaft snap ring before
removing the outer race. Write down the result.

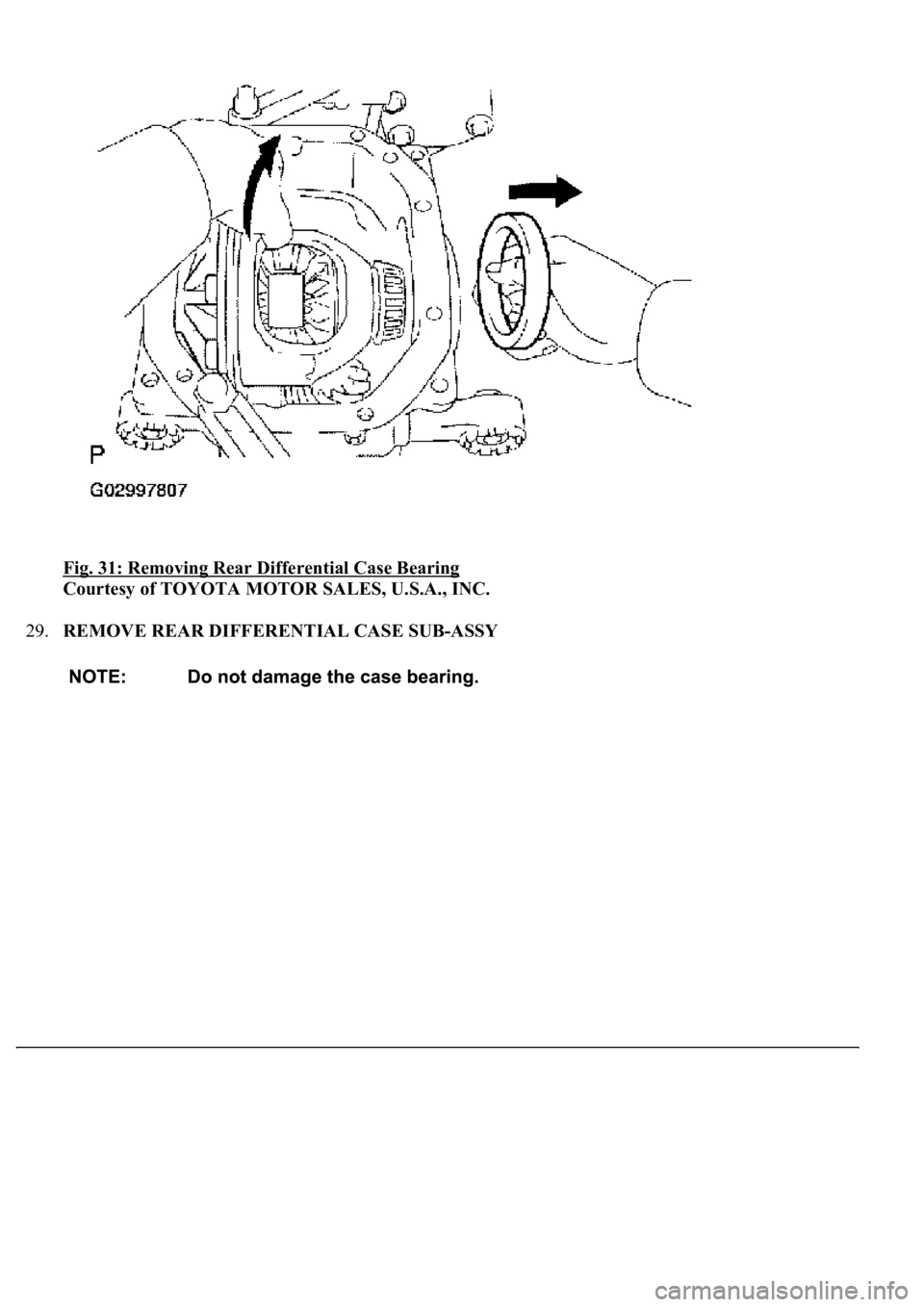

Fig. 31: Removing Rear Differential Case Bearing
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
29.REMOVE REAR DIFFERENTIAL CASE SUB-ASSY

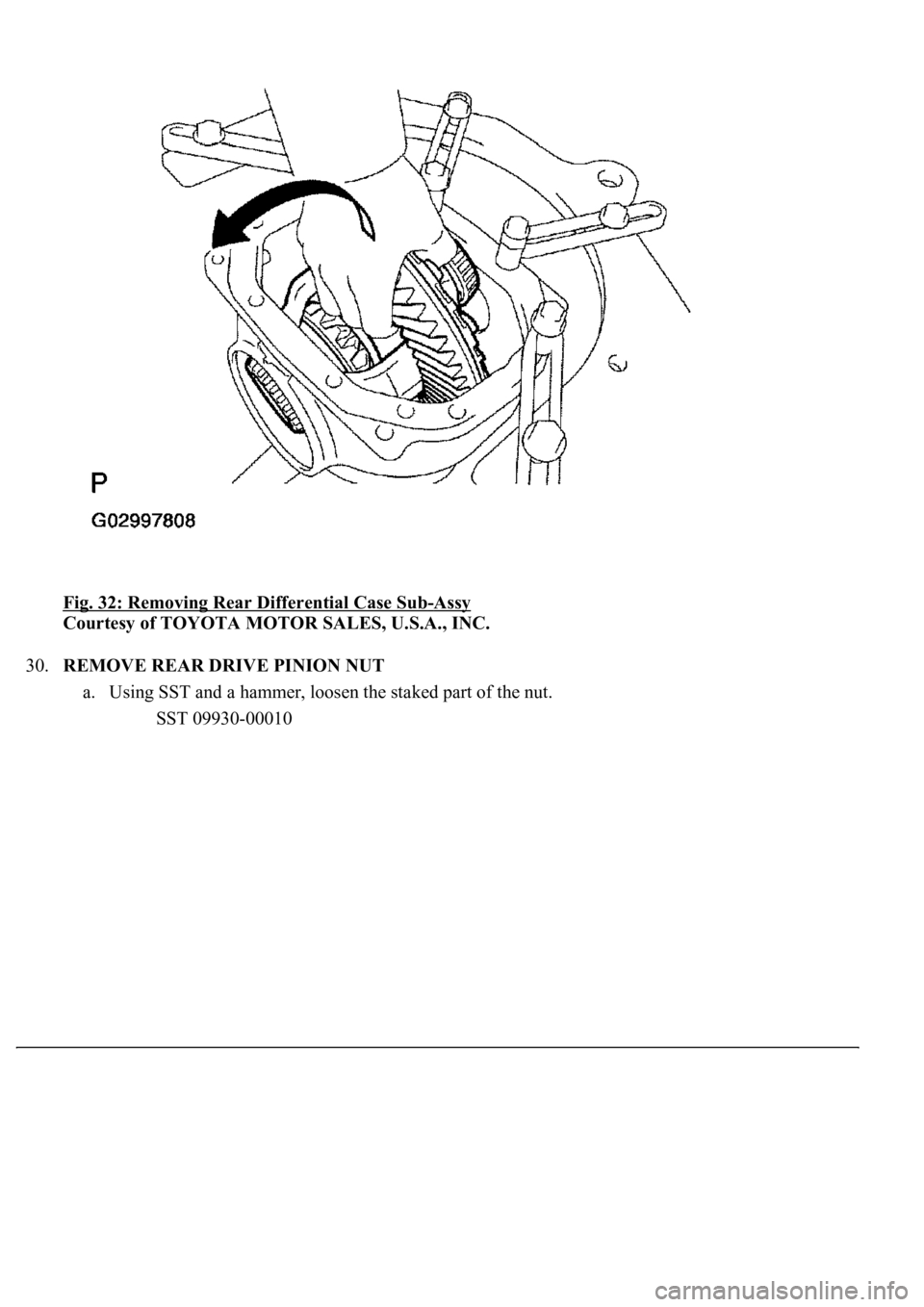

Fig. 32: Removing Rear Differential Case Sub-Assy
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
30.REMOVE REAR DRIVE PINION NUT
a. Using SST and a hammer, loosen the staked part of the nut.
SST 09930-00010

<0029004c004a0011000300160018001d000300350048005000520059004c0051004a00030035004800440055000300270055004c0059004800030033004c0051004c005200510003002600520050005300440051004c0052005100030029004f0044005100

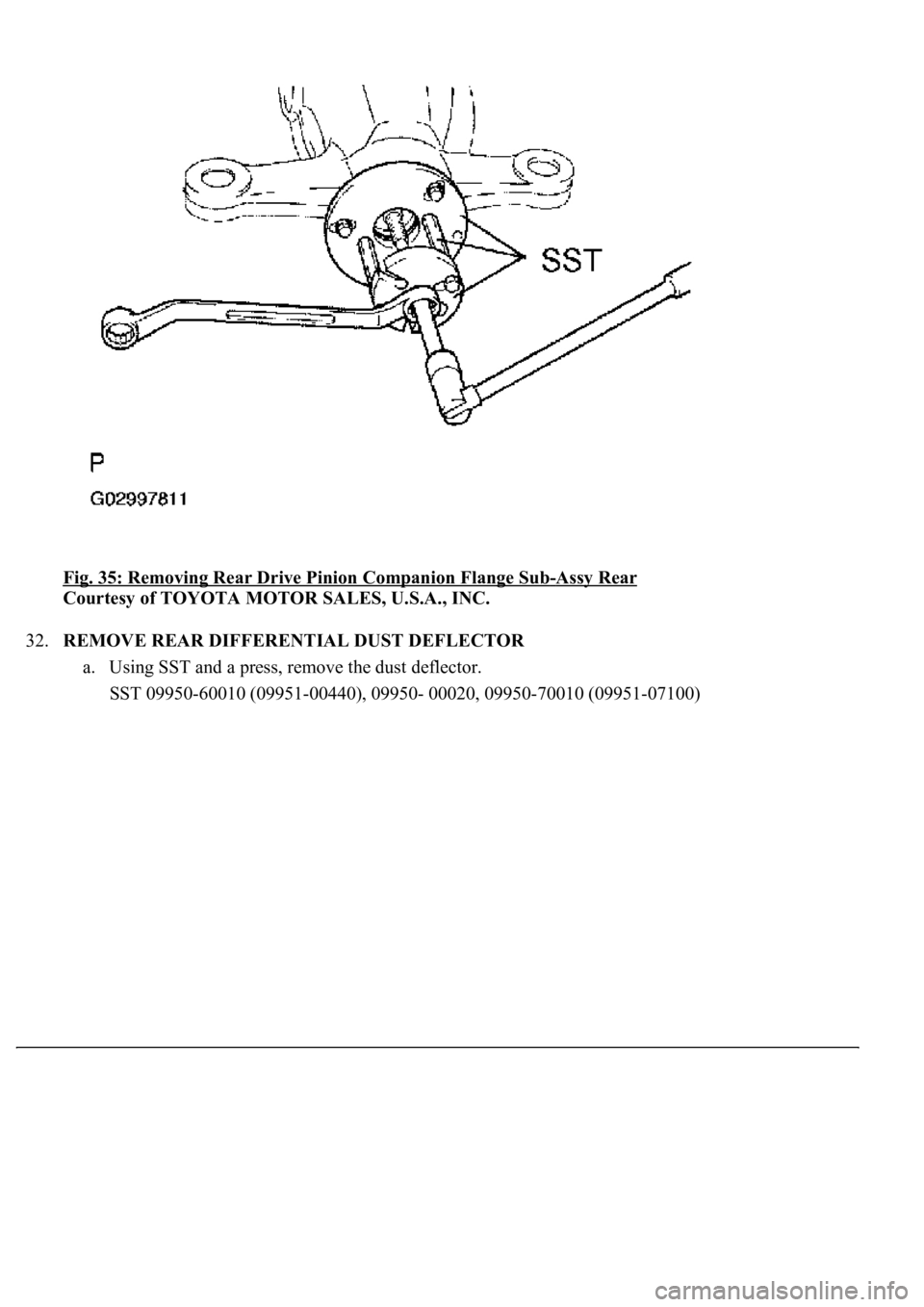

4a00480003003600580045[-Assy Rear
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
32.REMOVE REAR DIFFERENTIAL DUST DEFLECTOR
a. Using SST and a press, remove the dust deflector.
SST 09950-60010 (09951-00440), 09950- 00020, 09950-70010 (09951-07100)

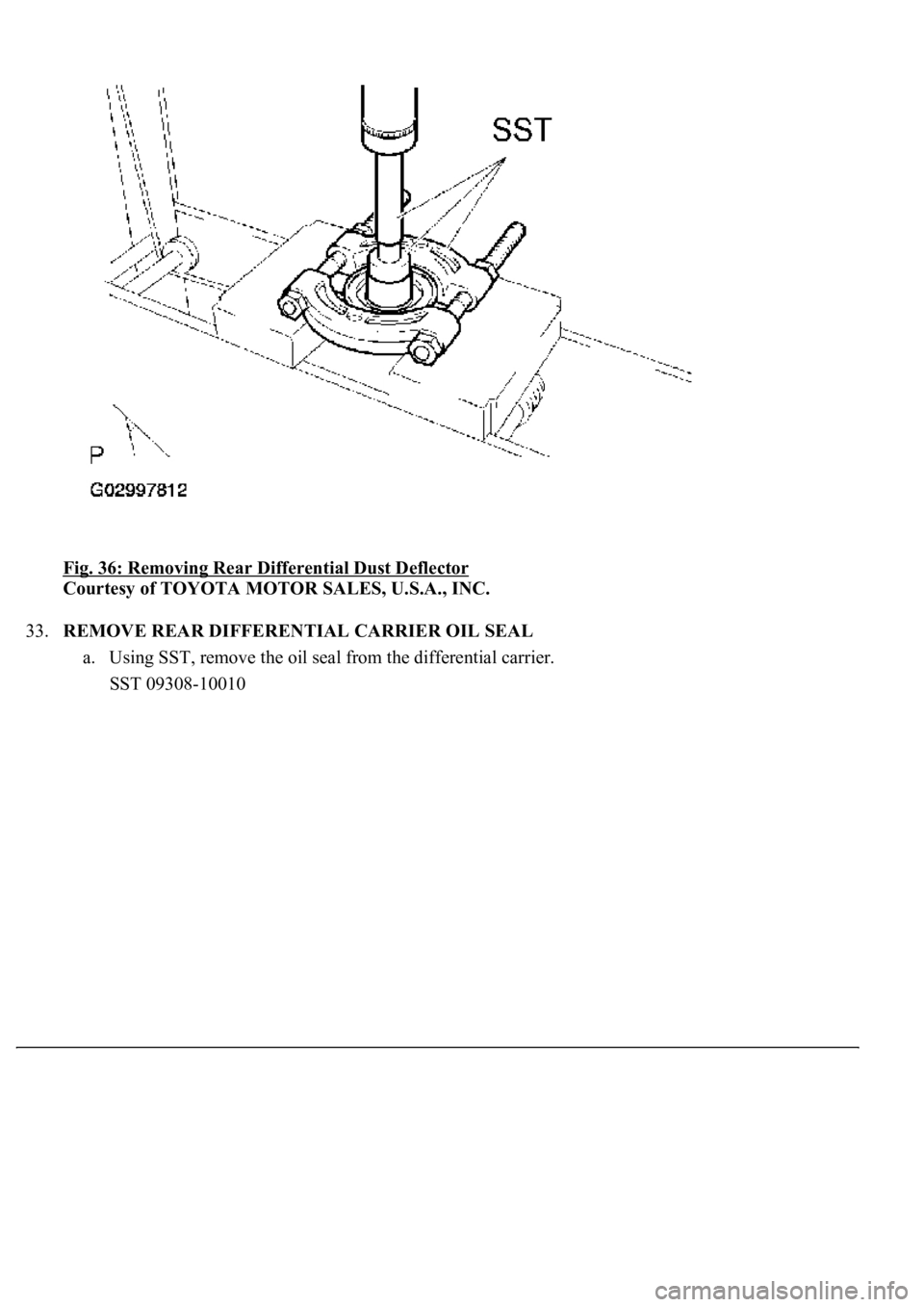

Fig. 36: Removing Rear Differential Dust Deflector
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
33.REMOVE REAR DIFFERENTIAL CARRIER OIL SEAL
a. Using SST, remove the oil seal from the differential carrier.
SST 09308-10010
