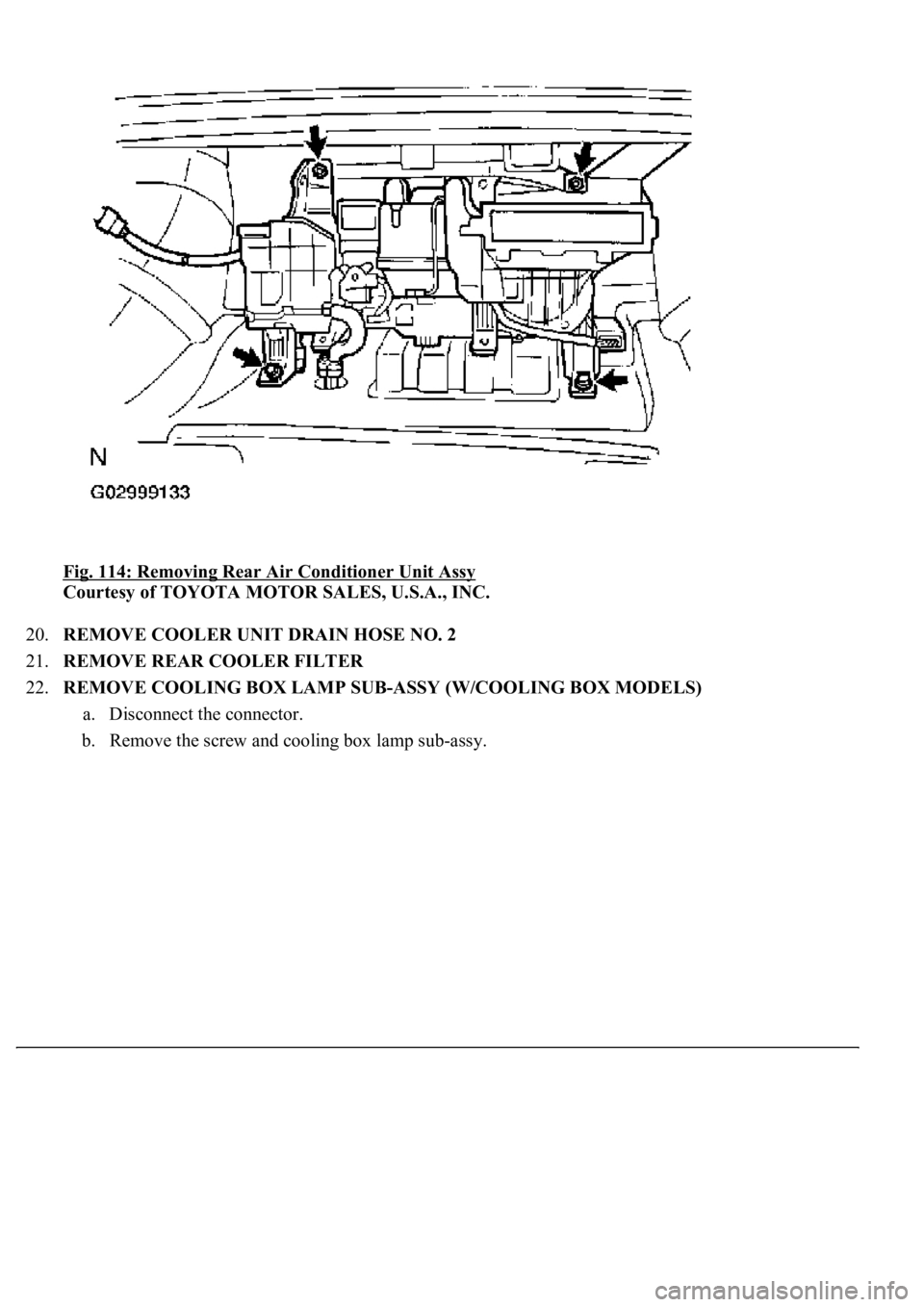

Fig. 114: Removing Rear Air Conditioner Unit Assy
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
20.REMOVE COOLER UNIT DRAIN HOSE NO. 2
21.REMOVE REAR COOLER FILTER
22.REMOVE COOLING BOX LAMP SUB-ASSY (W/COOLING BOX MODELS)
a. Disconnect the connector.
b. Remove the screw and cooling box lamp sub-assy.
