2003 LEXUS LS430 engine

Fig. 26: Exploded View Of Partial Engine Assy Components (8 Of 15)
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

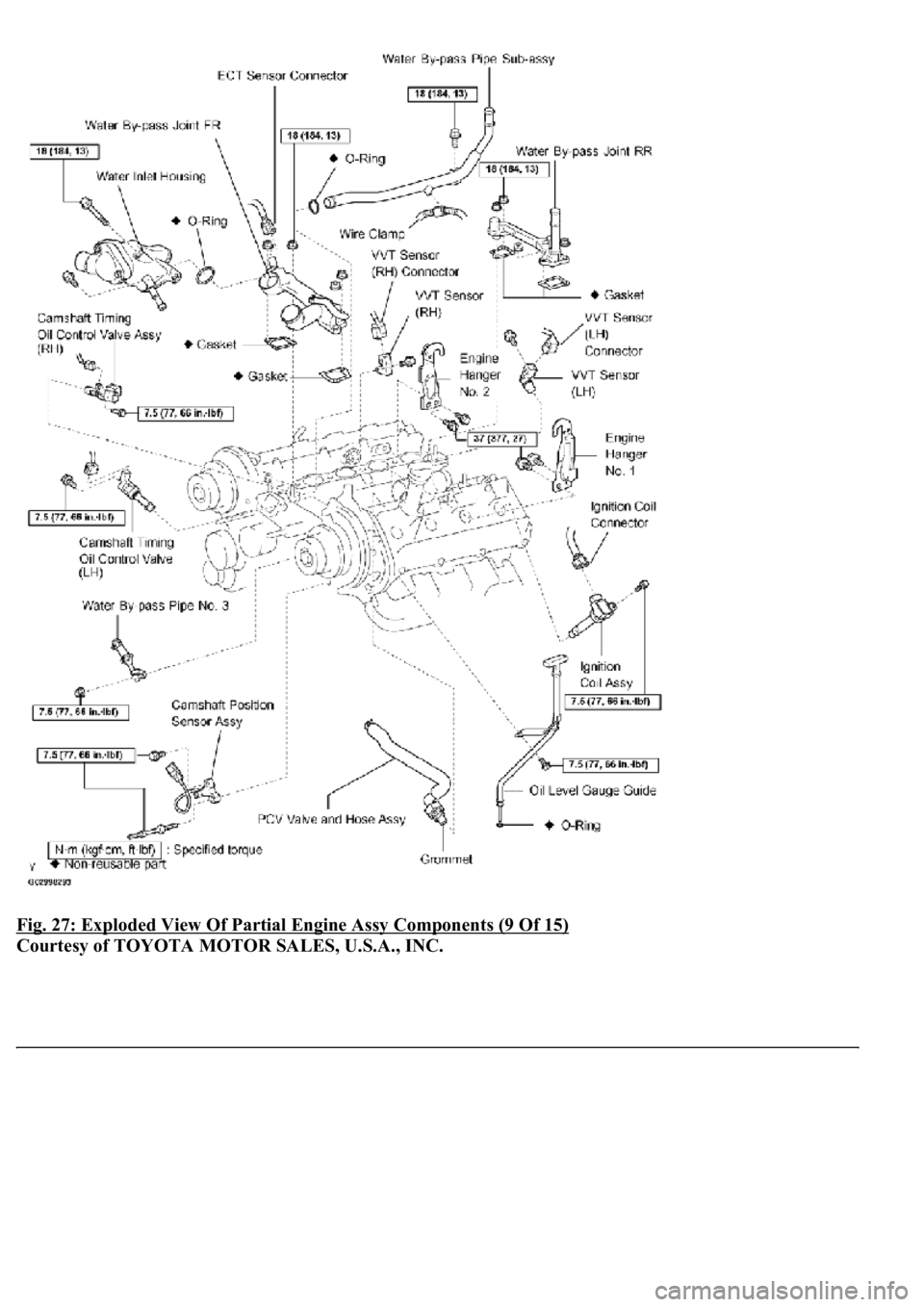

Fig. 27: Exploded View Of Partial Engine Assy Components (9 Of 15)
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

Fig. 28: Exploded View Of Partial Engine Assy Components (10 Of 15)
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

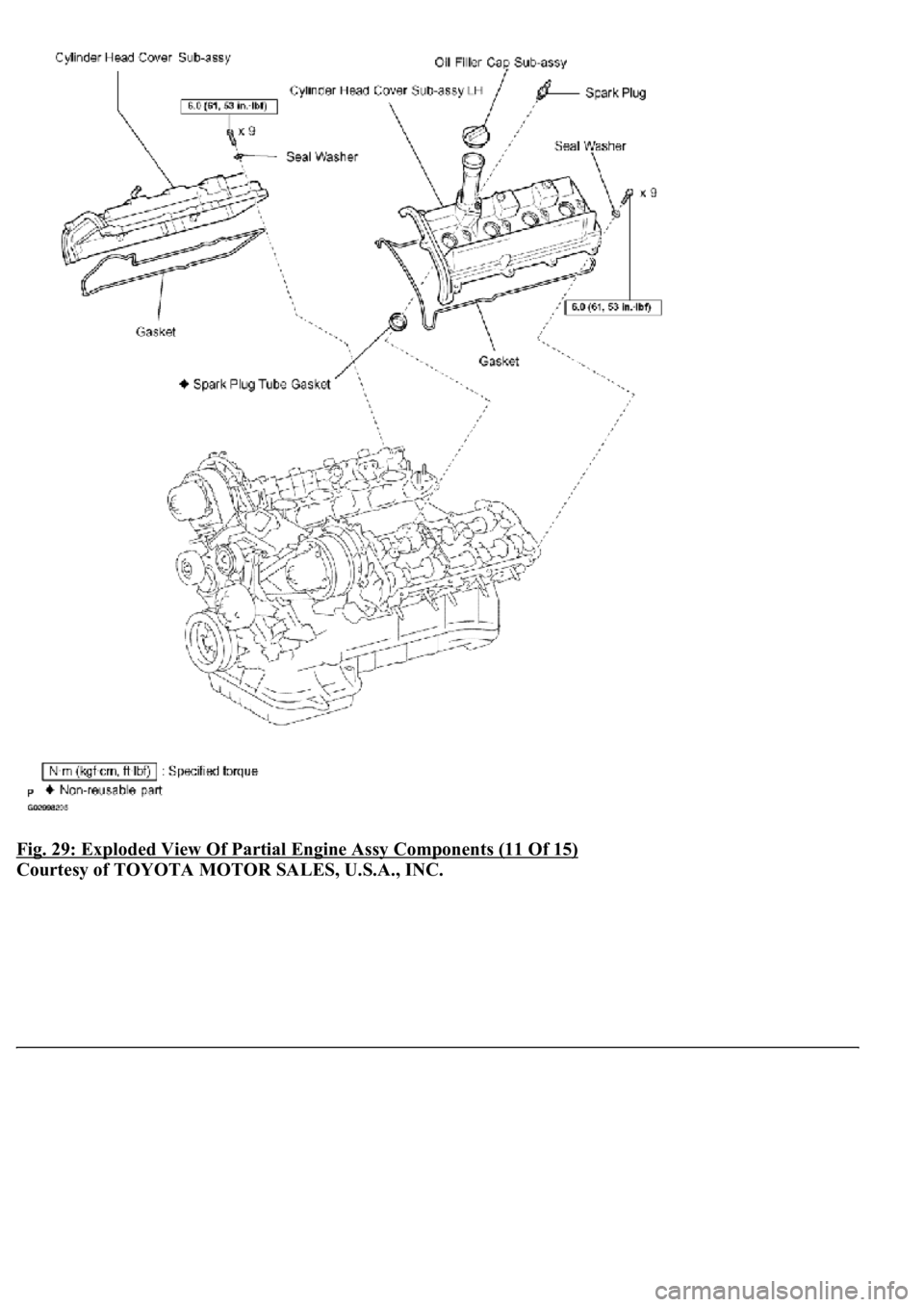

Fig. 29: Exploded View Of Partial Engine Assy Components (11 Of 15)
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

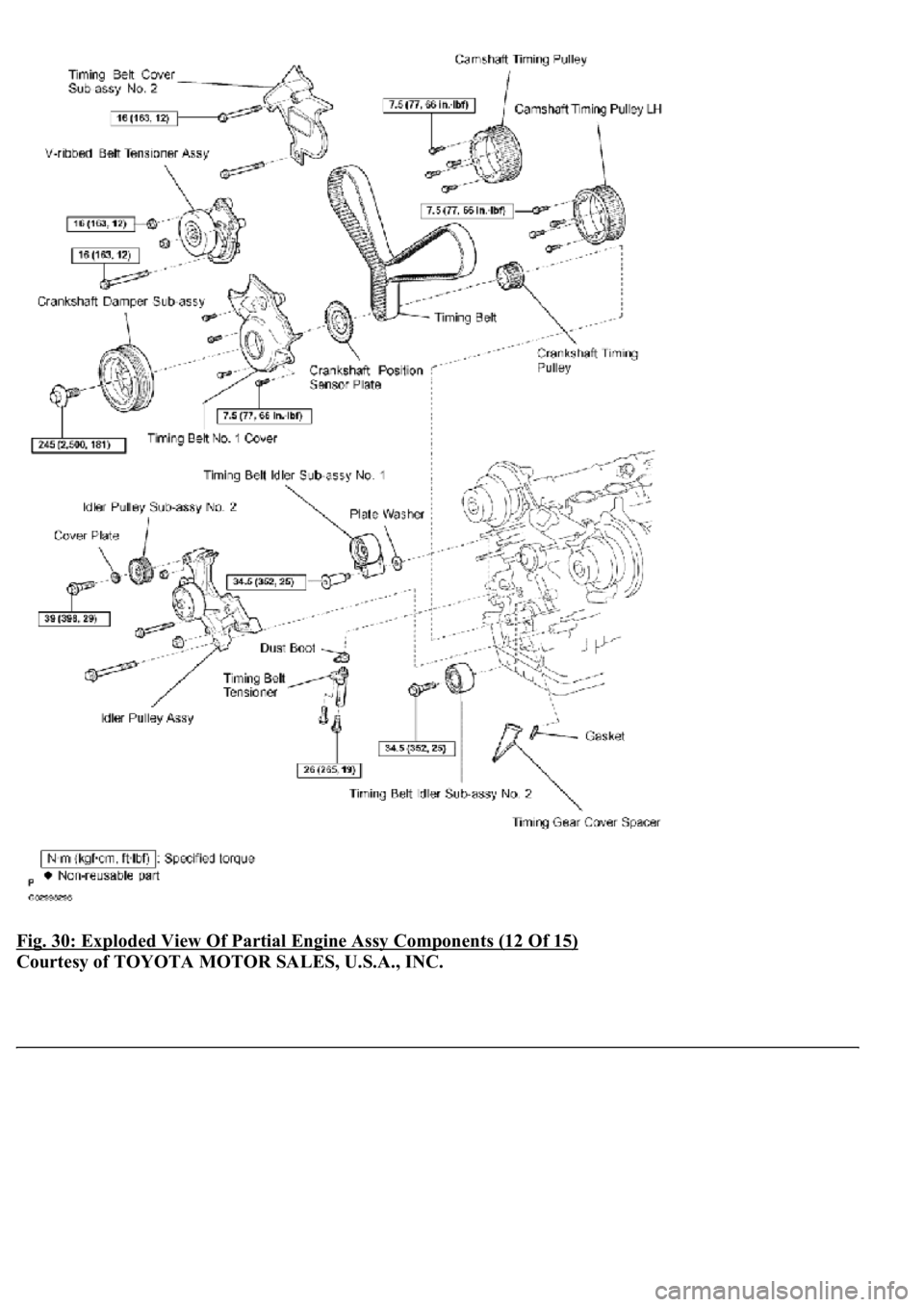

Fig. 30: Exploded View Of Partial Engine Assy Components (12 Of 15)
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

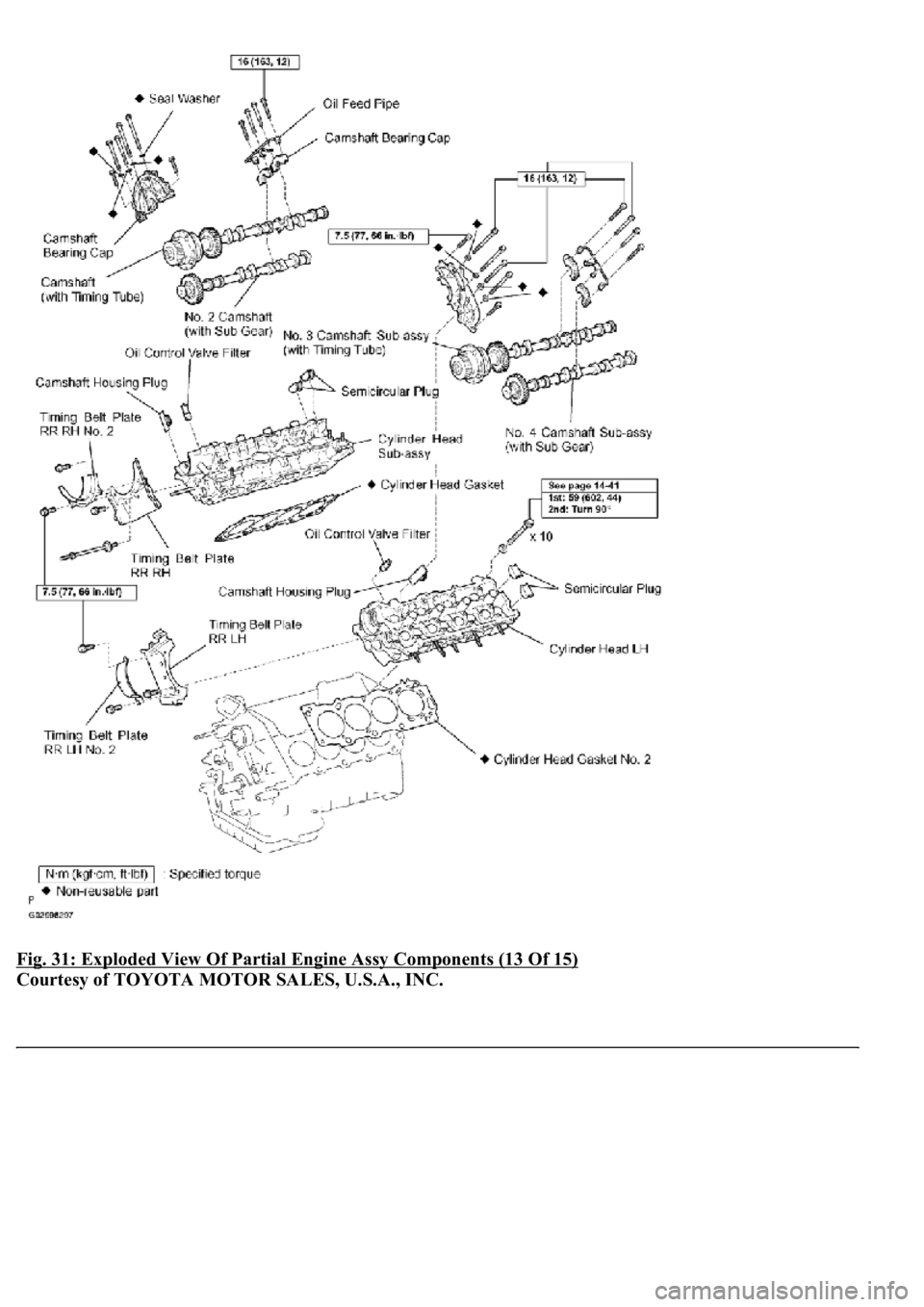

Fig. 31: Exploded View Of Partial Engine Assy Components (13 Of 15)
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

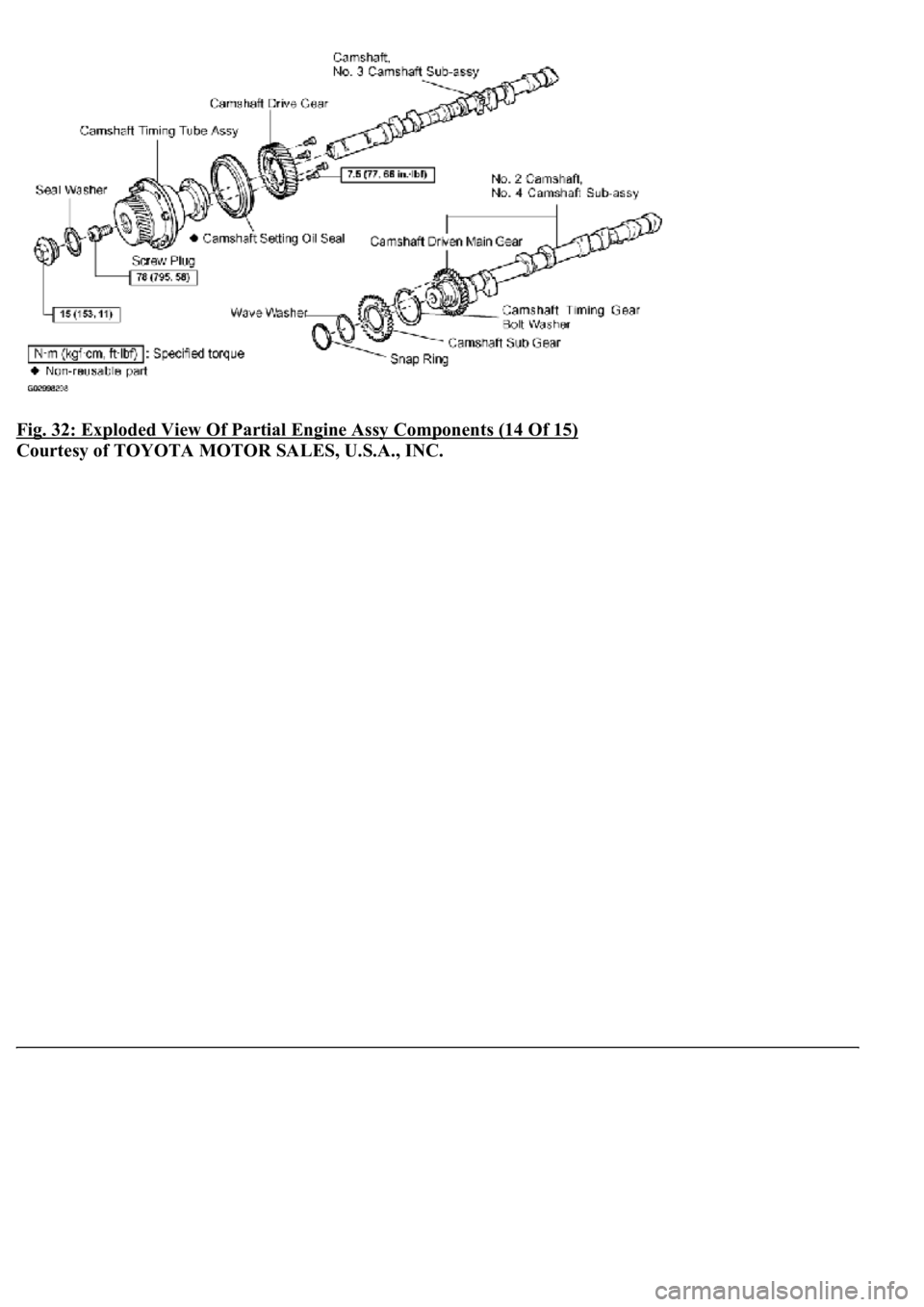

Fig. 32: Exploded View Of Partial Engine Assy Components (14 Of 15)
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

Fig. 33: Exploded View Of Partial Engine Assy Components (15 Of 15)
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
REPLACEMENT
1.WORK FOR PREVENTING GASOLINE FROM SPILLING OUT (See PRECAUTION
)
2.DISCONNECT BATTERY NEGATIVE TERMINAL
3.REMOVE HOOD SUB-ASSY (See OVERHAUL
)
4.REMOVE V-BANK COVER
5.REMOVE AIR CLEANER INLET NO.1
6.REMOVE INTAKE AIR CONNECTOR PIPE
7.REMOVE AIR CLEANER ASSY
8.REMOVE FRONT WHEEL
9.REMOVE ENGINE UNDER COVER NO.1
10.REMOVE ENGINE UNDER COVER NO.2
11.DRAIN ENGINE OIL
12.DRAIN ENGINE COOLANT
