2003 LEXUS LS430 engine

Fig. 82: Disconnecting Water By-Pass Hoses
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
c. Disconnect the engine wire from the 2 wire clamps.
d. Disconnect the camshaft position sensor connector.
e. Disconnect the camshaft position sensor wire from the wire clamp on the cover.
f. Remove the wire grommet from the cover.
g. Remove the 4 bolts.
h. Disconnect the cover from the timing plate and camshaft bearing cap.
i. Disconnect the wire clamp for the sensor from the cover.
j. Remove the connector holder from the sensor connector.
k. Remove the cover and
gasket.

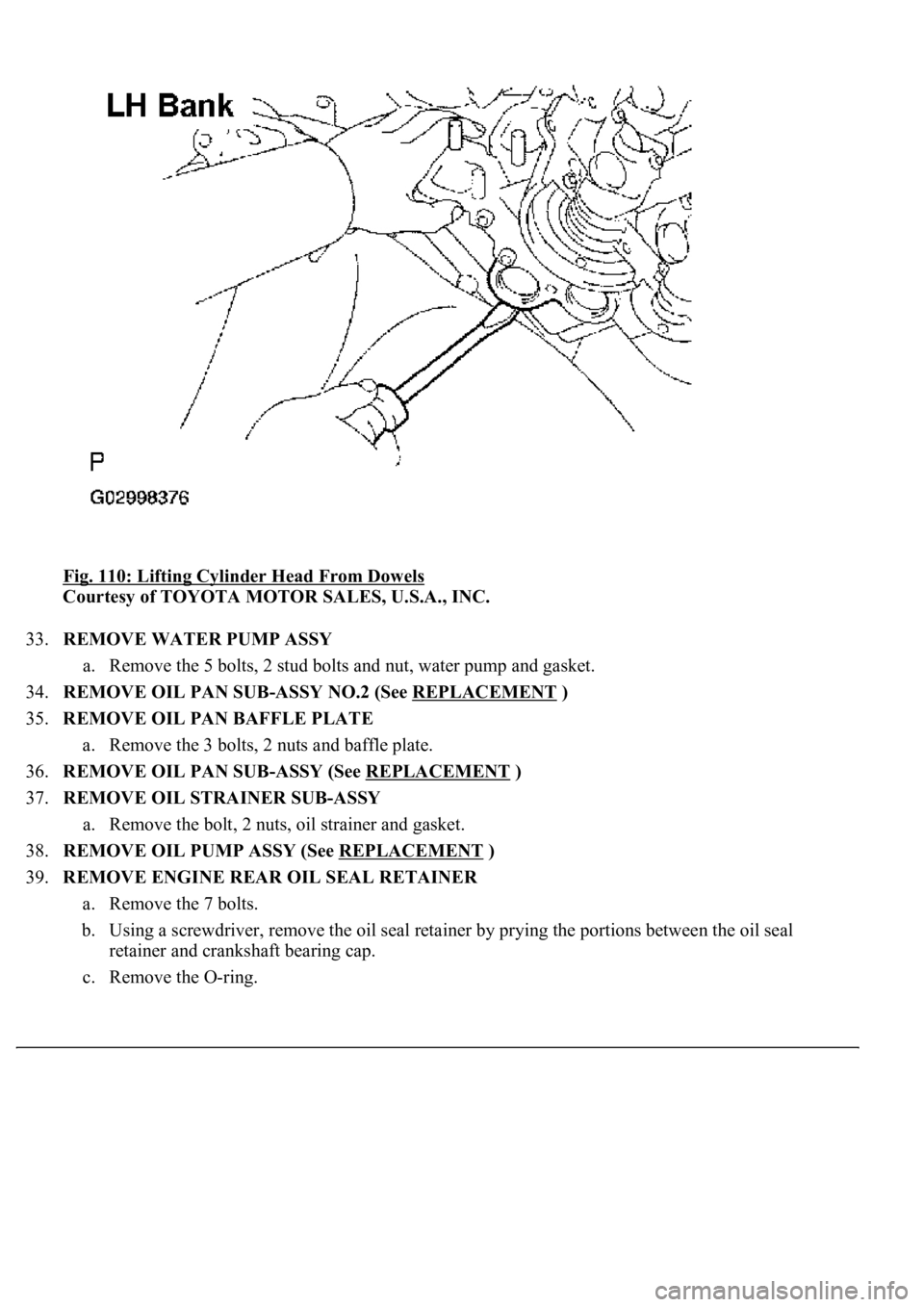

Fig. 110: Lifting Cylinder Head From Dowels
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
33.REMOVE WATER PUMP ASSY
a. Remove the 5 bolts, 2 stud bolts and nut, water pump and gasket.
34.REMOVE OIL PAN SUB-ASSY NO.2 (See REPLACEMENT
)
35.REMOVE OIL PAN BAFFLE PLATE
a. Remove the 3 bolts, 2 nuts and baffle plate.
36.REMOVE OIL PAN SUB-ASSY (See REPLACEMENT
)
37.REMOVE OIL STRAINER SUB-ASSY
a. Remove the bolt, 2 nuts, oil strainer and gasket.
38.REMOVE OIL PUMP ASSY (See REPLACEMENT
)
39.REMOVE ENGINE REAR OIL SEAL RETAINER
a. Remove the 7 bolts.
b. Using a screwdriver, remove the oil seal retainer by prying the portions between the oil seal
retainer and crankshaft bearing cap.
c. Remove the O-ring.

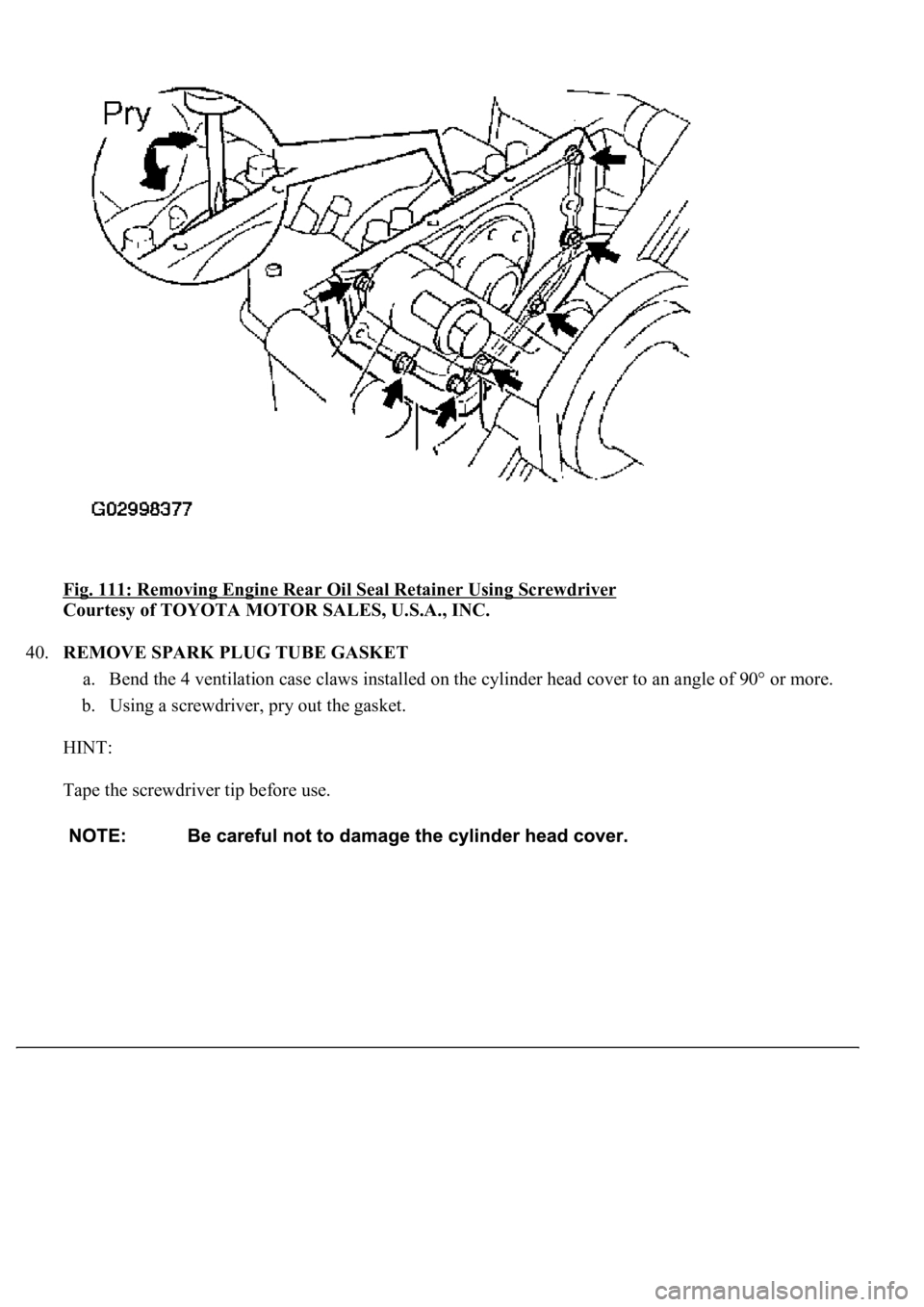

Fig. 111: Removing Engine Rear Oil Seal Retainer Using Screwdriver
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
40.REMOVE SPARK PLUG TUBE GASKET
a. Bend the 4 ventilation case claws installed on the cylinder head cover to an angle of 90° or more.
b. Using a screwdriver, pry out the gasket.
HINT:
Tape the screwdriver tip before use.

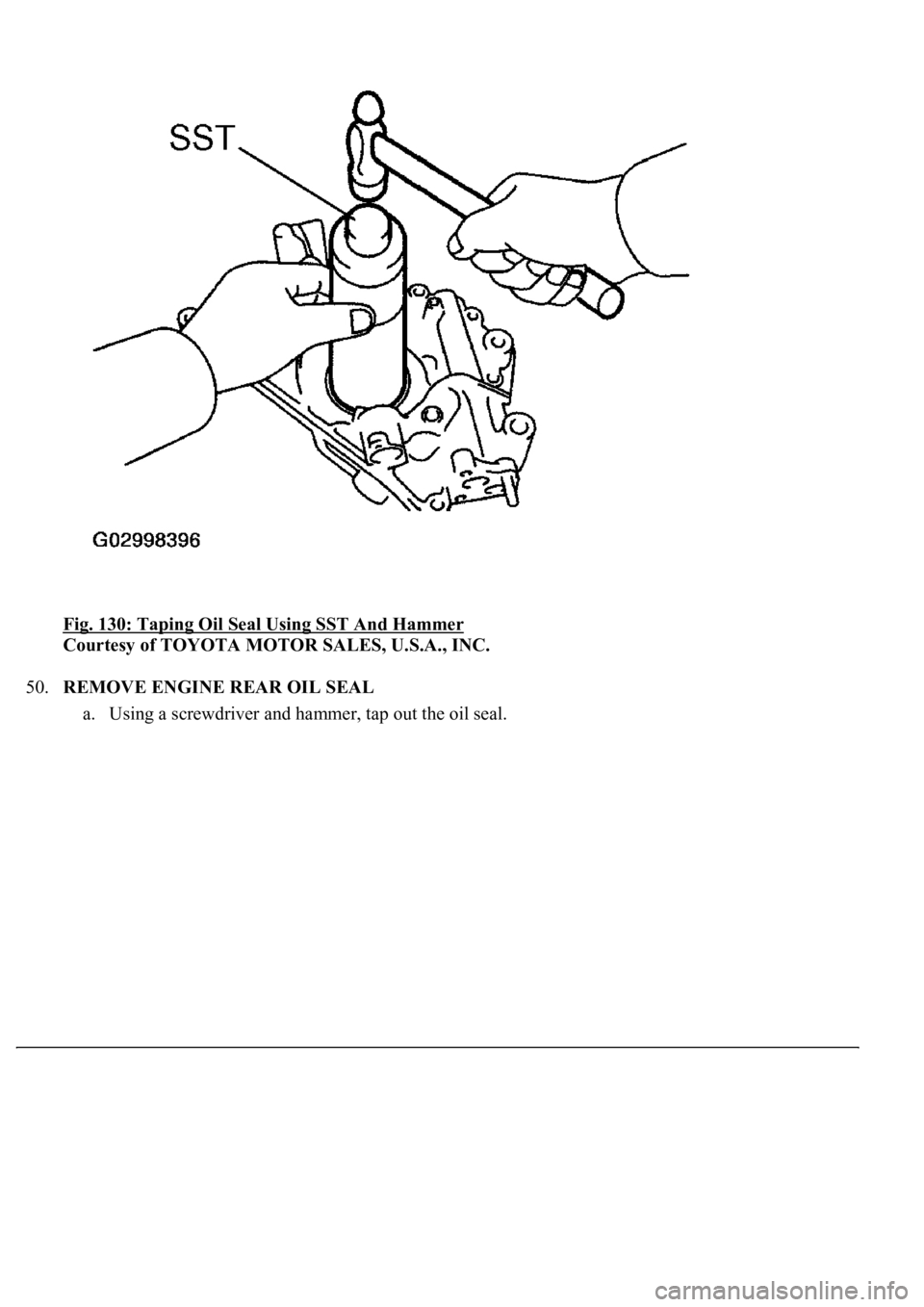

Fig. 130: Taping Oil Seal Using SST And Hammer
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
50.REMOVE ENGINE REAR OIL SEAL
a. Using a screwdriver and hammer, tap out the oil seal.

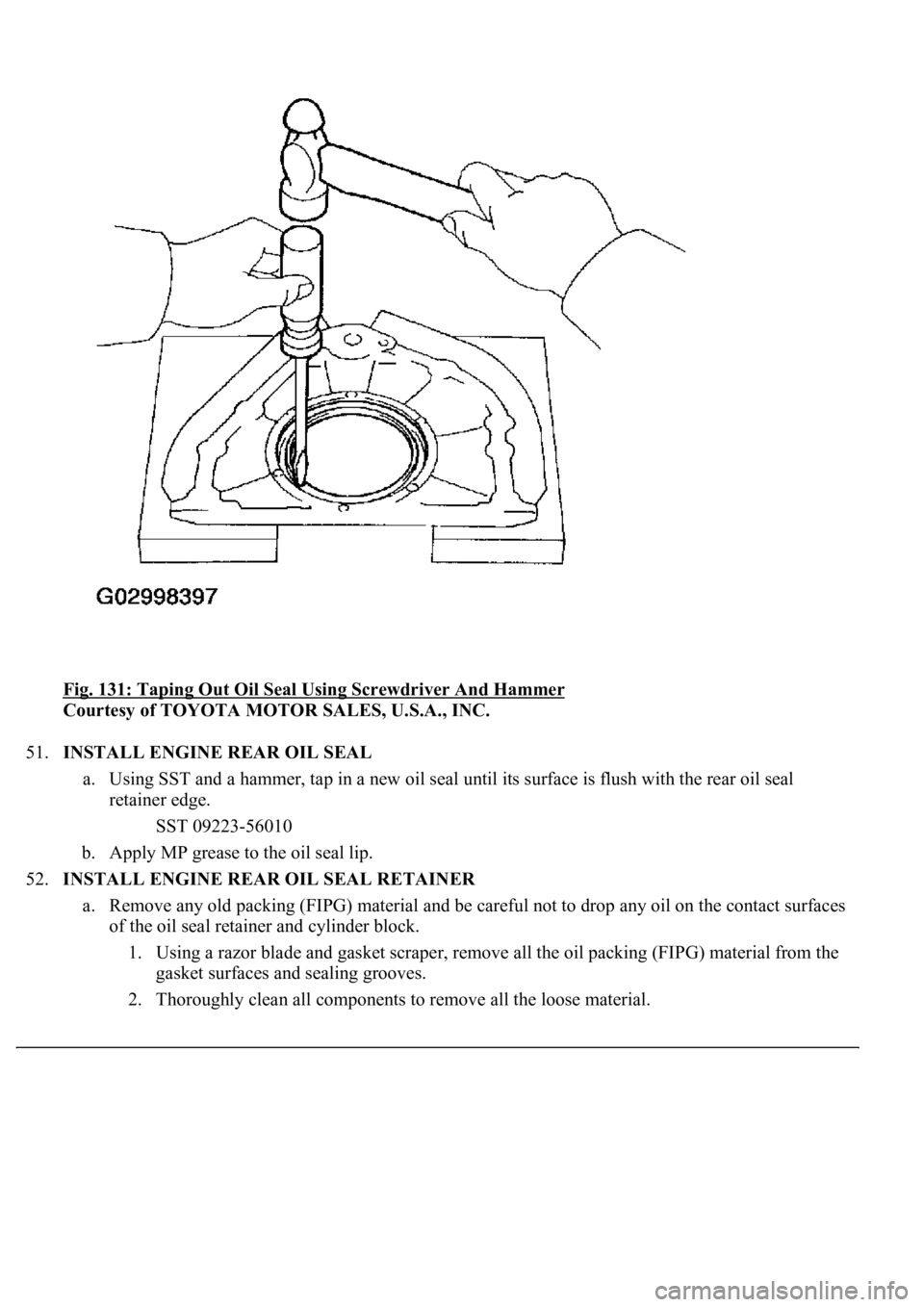

Fig. 131: Taping Out Oil Seal Using Screwdriver And Hammer
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
51.INSTALL ENGINE REAR OIL SEAL
a. Using SST and a hammer, tap in a new oil seal until its surface is flush with the rear oil seal
retainer edge.
SST 09223-56010
b. Apply MP grease to the oil seal lip.
52.INSTALL ENGINE REAR OIL SEAL RETAINER
a. Remove any old packing (FIPG) material and be careful not to drop any oil on the contact surfaces
of the oil seal retainer and cylinder block.
1. Using a razor blade and gasket scraper, remove all the oil packing (FIPG) material from the
gasket surfaces and sealing grooves.
2. Thoroughly clean all components to remove all the loose material.

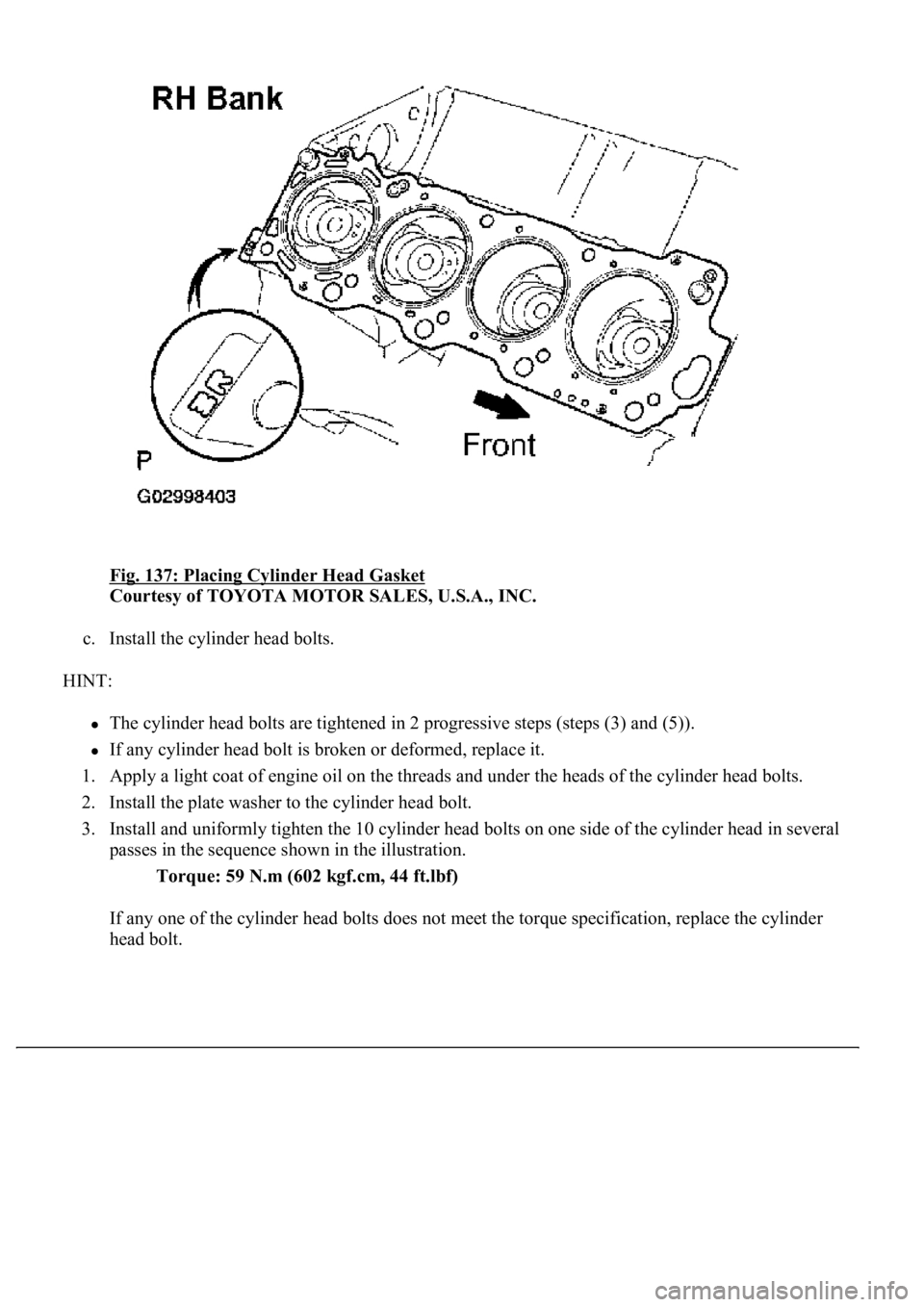

Fig. 137: Placing Cylinder Head Gasket
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
c. Install the cylinder head bolts.
HINT:
The cylinder head bolts are tightened in 2 progressive steps (steps (3) and (5)).
If any cylinder head bolt is broken or deformed, replace it.
1. Apply a light coat of engine oil on the threads and under the heads of the cylinder head bolts.
2. Install the plate washer to the cylinder head bolt.
3. Install and uniformly tighten the 10 cylinder head bolts on one side of the cylinder head in several
passes in the sequence shown in the illustration.
Torque: 59 N.m (602 kgf.cm, 44 ft.lbf)
If any one of the cylinder head bolts does not meet the torque specification, replace the cylinder
head bolt.

Fig. 141: Placing Cylinder Head On Cylinder Head Gasket
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
c. Install the cylinder head bolts.
HINT:
The cylinder head bolts are tightened in 2 progressive steps (steps (3) and (5)).
If any cylinder head bolt is broken or deformed, replace it.
1. Apply a light coat of engine oil on the threads and under the heads of the cylinder head bolts.
2. Install the plate washer to the cylinder head bolt.
3. Install and uniformly tighten the 10 cylinder head bolts on one side of the cylinder head in several
passes in the sequence shown in the illustration.
Torque: 59 N.m (602 kgf.cm, 44 ft.lbf)
If any one of the cylinder head bolts does not meet the torque specification, replace the cylinder
head bolt.

Fig. 151: Pushing Camshaft Setting Oil Seal
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
11. Install a new seal washer to the bearing cap bolts (A and B).
12. Apply a light coat of engine oil on the threads and under the heads of the bearing cap bolts
(D and E).
Bolt length:
94 mm (3.70 in.) for A with seal washer
72 mm (2.83 in.) for B with seal washer
25 mm (0.98 in.) for C
52 mm (2.05 in.) for D
38 mm (1.50 in.) for E
